INTERACTION CENTRIC REQUIREMENTS TRACEABILITY

Nitesh Narayan, Yang Li, Jonas Helming and Maximilian Koegel

Institut f

ur Informatik, Technische Universit

at M

unchen, Boltzmannstrasse 3, 87548 Garching, Germany

Keywords:

Requirements traceability, Interaction, Artifacts, UNICASE, Model.

Abstract:

Requirement Traceability provides the ability to follow the life-cycle of a requirement from its evolution till

subsequent reﬁnement and use. A key issue that restricts the adaptation of approaches to create and maintain

these relationships is the lack of tool support that employs a centralized repository for heterogeneous artifacts.

Different artifacts are stored in different repositories and thus traceability links are expensive to maintain.

Centralized repository can facilitate capturing the stakeholders interaction, which result in creation and mod-

iﬁcation of the artifacts and their relationship. These interactions hold the rationale behind changes. In this

paper we propose a novel model-based CASE tool UNICASE, which aids in maintaining requirements trace-

ability by incorporating disparate artifacts. Further, the tool facilitates capturing the evolution of requirements

invoked by the informal communication in the form of discussion and comments.

1 INTRODUCTION

There had been several deﬁnitions of requirements

traceability in literature. The most prominent one is

“Requirements traceability is the ability to describe

and follow the life of a requirement, in both a for-

ward and backward direction. That is from its ori-

gin, through its development and speciﬁcation, to its

subsequent deployment and use, and through periods

of ongoing reﬁnement and iteration in any of these

phases” (Gotel and Finkelstein, 1994).

Requirements traceability beneﬁts the facilita-

tion in program comprehension, maintenance, impact

analysis, software reuse and prevention of misunder-

standings (Egyed and Grunbacher, 2005) by utilizing

the relationship information available in software de-

velopment artifacts (De Lucia et al., 2004). Artifacts

are created and evolve through out the software devel-

opment process. Various repositories are maintained

in software projects to handle different kinds of ar-

tifacts (

Cubrani

c and Murphy, 2003). These reposi-

tories include bug tracking systems, task repositories

and source code management repositories.

An issue that restricts achieving ﬁne-grained re-

quirements traceability is the low interoperability be-

tween different repositories, where development ar-

tifacts are spread across several repositories with

their own underlying traceability management mech-

anisms. This is especially true in frequently evolving

projects where changes in artifacts stored in various

repositories are not propagated to static requirements

document (Raymond, 1999), which is stored at a dif-

ferent location.

Further in software projects, various stakeholders

interact with each other along with the artifacts, which

results in frequent change of artifacts and their rela-

tionships. These interactions can either invoke cre-

ation/modiﬁcation of an artifact representing certain

aspect of the system under development or a read-

only interaction to gain insight of the development

process. Therefore, we consider the need to capture

the dynamic state of artifacts along with the interac-

tions initiating the changes, to capture the rationale

behind changes in requirements.

In this paper we present UNICASE (UNICASE,

2011), a model-based case tool which provides a cen-

tralized place for heterogeneous artifacts. A common

platform to capture and modify different artifacts cre-

ated through out the software development process at

various life-cycle stages. The interaction between the

stakeholders and the artifacts is also recorded. Com-

bined together which provides ﬁne-grained traceabil-

ity between the artifacts at the same level of abstrac-

tion along with the artifacts at different level of ab-

straction (Antoniol et al., 2001). Further, the tool fa-

cilitates capturing the evolution of requirements in-

voked from the interaction of stakeholders over in-

formal artifacts. Informal artifacts include comments

and discussions.

In section 2 we give an overview of relevant exist-

232

Narayan N., Li Y., Helming J. and Koegel M..

INTERACTION CENTRIC REQUIREMENTS TRACEABILITY.

DOI: 10.5220/0003463502320238

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 232-238

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

ing work in requirements traceability mainly with the

tool support focus. Section 3 describes the core vari-

ables that provide the feasibility to capture and main-

tain traceability in UNICASE. Further in section 4 we

brieﬂy introduce various features of the tool, which

combined together, provide the stakeholders means

to interact among each other, and with the artifacts.

Section 5 in detail explains the process of require-

ments traceability, as and how it is captured and main-

tained in UNICASE. Subsequent section presents fu-

ture work and sums up with the conclusion.

2 RELATED WORK

Several research and commercial tools provides

means to achieve traceability between artifacts, in-

cluding some with speciﬁc focus on requirements

traceability (IBM, 2011a) (IBM, 2011b) (Pinheiro

and Goguen, 1996) (Boldyreff et al., 2002). In spite

of having a major research focus, there is no tool sup-

port addressing every aspect of attaining requirements

traceability. Artifact type being supported in each of

them is based on the underlying design decision and

extensibility to support new artifact type is limited.

Hipikat (

Cubrani

c and Murphy, 2003) for exam-

ple proposed a mechanism to integrate various inde-

pendent artifact management repositories and on the

top means to identify relationship between them for

recommending related artifacts. As Hipikat work on

the top of existing repositories, thus it completely de-

pends upon the knowledge being stored in various

repository and the methodologies to mine them.

Jazz (Frost, 2007) is an integrated development

environment providing a centralized repository for

tools supporting the development process such as

planning, work item tracking, report and build sys-

tem. Although Jazz provide means to capture various

artifacts originating during the development process,

its ability to maintain requirement traceability is lim-

ited and restricted by the commercial goals. Thus the

underlying model itself cannot be extended or modi-

ﬁed to suit project and domain-speciﬁc needs.

Lee et. al. (Lee et al., 2003) in their work pre-

sented an agile approach to capturing requirements

and traceability. The proposed approach provides

means to capture requirements in an informal man-

ner and then transform it to formal requirements, to

suit formal requirements-speciﬁcation. This work is

promising and can be very effective in capturing and

transforming informal knowledge into formal one.

Though the extensibility of this approach to consider

formal artifacts remains a matter of investigation.

Hong et al. (Hong et al., 2010) presents the need

for a tool to support requirements management with

evolving traceability for heterogeneous artifacts in the

entire life-cycle. They put forward the deﬁciency

of existing change management system in handling

traceability link evolution. Finally they conclude with

their vision of providing a tool support to fulﬁll the

need of requirement traceability management.

3 TWO DIMENSIONS OF

TRACEABILITY

Traceability relationships reference artifacts of the

same or a different level of abstraction, in both for-

ward and backward direction (Winkler and von Pil-

grim, 2010). Stakeholders interact with artifacts and

their links through operations like creation, modiﬁca-

tion or deletion. Thus, in an incremental software de-

velopment process, these interactions lead to the evo-

lution of artifacts and the relationship between them.

We identify two dimensions necessary for creat-

ing and maintaining traceability, namely artifact and

time. The artifact dimension is concerned with what

is linked by traceability, in other words, the entities

of concern. The time dimension represents the evo-

lution of artifacts and their traceability information.

Over the artifacts and throughout the time dimension

stakeholders interact, which represents the rationale

behind the changes. The interaction of stakeholders

over artifacts comprise of informations as who per-

formed the changes and how. How is represented in

the terms of interaction sequence leading to the ﬁnal

state of artifacts. Who (role of the stakeholder) and

how (see Figure 1) along with the initial and ﬁnal state

of artifacts can represent the rationale behind why the

changes occurred.

interacts

t+dt

changes

time

artifact

higher level

of abstraction

lower level

of abstraction

Figure 1: Two Dimensions of Traceability.

In the proposed approach of maintaining require-

ments traceability, artifact types and the relationship

is deﬁned in a uniﬁed extensible model, which depicts

the artifact dimension. The time axis is realized in

INTERACTION CENTRIC REQUIREMENTS TRACEABILITY

233

an operation-based version control system to record

every interaction invoking changes over the artifacts

and version the changes. In the next subsections we

describe each of these two dimensions in detail.

3.1 Artifact Dimension: Uniﬁed

Extensible Model

To address the low interoperability between geo-

graphically separated artifacts, we propose and em-

ploy a uniﬁed extensible model, which contains het-

erogeneous artifacts produced in software develop-

ment process. The model comprises of four sub-

models (see Figure 2) from different level of abstrac-

tion (Bruegge et al., 2008): (1) The requirements

model contains model elements like Scenarios or Use

Cases and describes the system under construction in

the application domain. (2) The system model de-

scribes the design using artifacts like UML class dia-

gram. (3) The collaboration model contains artifacts

like work items, sprints and meetings, while the (4)

organization model deﬁnes an organization in terms

of groups and members.

Requirements

Speciﬁcation

Requirements

Use Case

`compo.

Groups

User

Issue

Task

Sprint

Bug

System ModelRequirements Model

Collaboration Model Organization Model

Uniﬁed Extensible Model

Figure 2: Uniﬁed Extensible Model.

Every artifact is modeled as ModelElements

with its own unique identiﬁer in the proposed

model. Types of artifact is deﬁned by extending

ModelElement. In the uniﬁed model, links are de-

ﬁned to reference related model elements. Alterna-

tively links can also be modeled as model element.

Explicit links can exist between different types of ar-

tifacts. The model is easily extensible by adding new

elements. Research approaches often require new

model elements or attributes to be added, which is

even possible during project run-time.

3.2 Time Dimension: Operation-based

Versioning

Artifacts and the traceability links among them are

constantly in evolution (Jiang et al., 2007) in an itera-

tive and incremental software development paradigm.

All the information of the artifacts and the links,

as well as the interactions with stakeholders should

be stored and versioned to provide the possibility of

“time travel”. We capture the interaction informa-

tion in terms of operations and than persist it in an

operation-based version control system called EMF-

Store. EMFStore facilitate versioning and collabo-

ration. It provides change tracking, conﬂict detec-

tion, merging and versioning of models. Also it in-

cludes repository-mining facilities for data extraction.

It employs the well-known checkout-update-commit

workspace interaction schema.

ChangePackage

OperationModelState

Version

createdBy

0..1

revises

1 1

{ordered}

Figure 3: Version Model.

Figure 3 shows the version model of EMFStore.

It is a tree of versions with revision and variant

links. Every version contains a change package and

can contain a full version state representation. A

change package contains all the operations that trans-

formed the previous version into this version along

with the administrative information such as the user,

a time stamp and the log message. An Operation is

performed while stakeholders interact with involved

model elements (artifacts) and their links. Such an

operation can be applied to a project state, thereby ex-

ecuting the change that was recorded in the operation.

In contrast to other versioning and change tracking

approaches, the operation-based versioning preserves

the original time-order in which the changes occurred.

Therefore it can help reason the evolution of the arti-

facts and their traceability links.

Figure 4 shows the simpliﬁed taxonomy of opera-

tions (Herrmannsdoerfer and Koegel, 2010) consid-

ered in our approach to capture interactions result-

ing in change of model element. All operations re-

fer to one ModelElement that is being changed by the

operation. A ModelElement has values for a num-

ber of attributes. An AttributeOperation changes

the value of an attribute of a model element. A

ReferenceOperation creates or removes one or sev-

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

234

eral traceability links between model elements. A

CreateDeleteOperation creates or deletes a model

element. A CompositeOperation allows to group

several related operations to represent a refactoring,

for example.

Operation

Attribute

Operation

Reference

Operation

CreateDelete

Operation

ModelElement

creates/deletes

isChangedBy

Composite

Operation

Figure 4: Operation Meta Model.

4 UNICASE

The two aspects central to achieving requirements

traceability (see Section 3 ) is realized in a CASE tool,

UNICASE. This tool is based on the Eclipse platform

including Eclipse Modeling Framework (EMF) and

Graphical Modeling Framework (GMF).

UNICASE consists of generic views and editors:

(1) A tabular view, showing a ﬁltered and sortable list

of model elements, (2) A tree-based view, showing

the containment structure of the model (3) A form-

based editor to visualize and modify the content of

model element (artifact) and its references (4) A dia-

gram view, showing graphical representations such as

Uniﬁed Modeling Language (UML) diagrams.

5 REQUIREMENTS

TRACEABILITY WITH

UNICASE

Existing software repositories including the one sup-

porting heterogeneous artifacts versions and stores

them. This does not sufﬁciently imply that they cap-

ture the interaction information underlying the re-

quirements evolution. This interaction information

along with the state of artifacts can derive the ratio-

nal behind changes in the requirements or any related

artifact, in an iterative and incremental development

paradigm. Further having a centralized artifact repos-

itory facilitates identifying and propagating changes,

which triggers major changes in the project such as

creation of a new requirement or a discontinued func-

tionality.

In the next subsection we describe how the trace-

ability relationship between artifacts at different level

of abstraction aids in maintaining requirements trace-

ability in both forward and backward direction. Sub-

section 5.2 explains how the interactions in collabora-

tive environment leads to evolution of traceability link

between requirements and associated artifacts. From

the technical perspective this feasibility is provided by

underlying operation-based versioning 3.2. Follow-

ing subsection 5.3 describes how the inception of new

requirements or modiﬁcation of existing one invoked

from an informal artifact is captured in UNICASE.

5.1 Forward and Backward

Traceability

It is evident that any of the artifacts are subject to

change during the development process. Traceabil-

ity gives assistance to traverse from a requirement to

its implementation and vice-versa (Ramesh and Jarke,

2001), also termed as forward and backward trace-

ability in literature.

Requirements

Speciﬁcation

Requirement Use Case

System

Model

0..*

isDetailedInisSatisﬁedIn

Figure 5: Excerpt from uniﬁed model with transition from

requirements model to system model.

Software projects tend to start with loosely de-

ﬁned requirements especially projects with longer life

span, representing stakeholders view. In subsequent

process these requirements are analyzed and reﬁned.

Further these requirements provide a basis for the

future reﬁnement as system, subsystem and compo-

nent requirements. Requirements in UNICASE can

be linked to the artifact resulting from the interaction

of stakeholders in the process of requirements engi-

neering (see Figure 5). Some of the artifacts resulting

at this level of abstractions are requirements speciﬁ-

cation and use case. Due to the complexities involved

in requirements analysis, it is performed in close co-

operation and collaboration with various stakeholders

like users and customers. This interaction of various

stakeholders plays a crucial role in requirements iden-

tiﬁcation and reﬁnement, and is considered part of the

requirement traceability. An example of artifact pro-

duced within this interaction cycle is mail exchange

between customer and analysts, negotiating require-

ments.

System model consists of the artifacts produced in

an effort to map problem to the solution domain, dur-

ing design phase. Artifacts resulting at this level of

abstraction include various UML diagram types, rep-

resenting static and dynamic states of the system un-

der development. UNICASE provides inbuilt support

for UML diagrams. Uniﬁed model can be extended

INTERACTION CENTRIC REQUIREMENTS TRACEABILITY

235

to incorporate new diagram types. Eventually these

diagrams can be linked to the requirements they rep-

resent at higher level of abstraction (see Figure 5).

isObjectOf

reﬁnes

isAssignedTo

WorkItem

Developer

Issue

BugReport

Task

Functional

Requirement

Figure 6: Requirements to realization.

Requirement traceability can play an important

role in project management and planning. This can

substantially enhance the efﬁciency of project man-

agers by providing information on sprint status, due

date and open high priority tasks in scheduling and

resource allocation decisions. Collaboration model

in UNICASE provides all the necessary artifacts type

to achieve this. Model elements such as sprint pro-

vide possibility to manage tasks and bug reports.

WorkItems are linked to requirement model by the as-

sociation isObjectOf (see Figure 6). This expresses

that the activities conducted during the execution of

work item is related to the requirement or to its repre-

sentation in the implementation. The type of relation-

ship is derived based on the activity of work item. For

example an implementation task linked to a require-

ment, means that this work item needs to be done in

order to realize the requirement.

User

Developer Group

0..*

Figure 7: Developer organization.

Organization model in UNICASE consists of ele-

ments to represent various human entities. User is an

abstract super class for every stakeholder, while the

concrete implementation encapsulates the role centric

properties. Every stakeholder is modeled as a model

element in the project. For example a new developer

can be added in the repository and then assigned a task

by the association isAssignedTo (see Figure 6). De-

veloper can belong to a group (see Figure 7), which in

turn can compose several sub-groups. Further the or-

ganization model deﬁnes the different level of access

rights based on the role of stakeholder.

As every artifact in UNICASE is derived from

Model Element class, they inherit the property of hav-

ing Annotations (see Figure 8).Thus every artifact can

be linked to a source code attachment based on the

annotates

Model

Element

WorkItem

UML

Diagram

Source

Code Model

Figure 8: Traceability to source code model.

relationship type. For example a bug report can be

linked to an attachment consisting of a source code

patch to ﬁx it. Similarly a development task can be

linked to the source code produced during the execu-

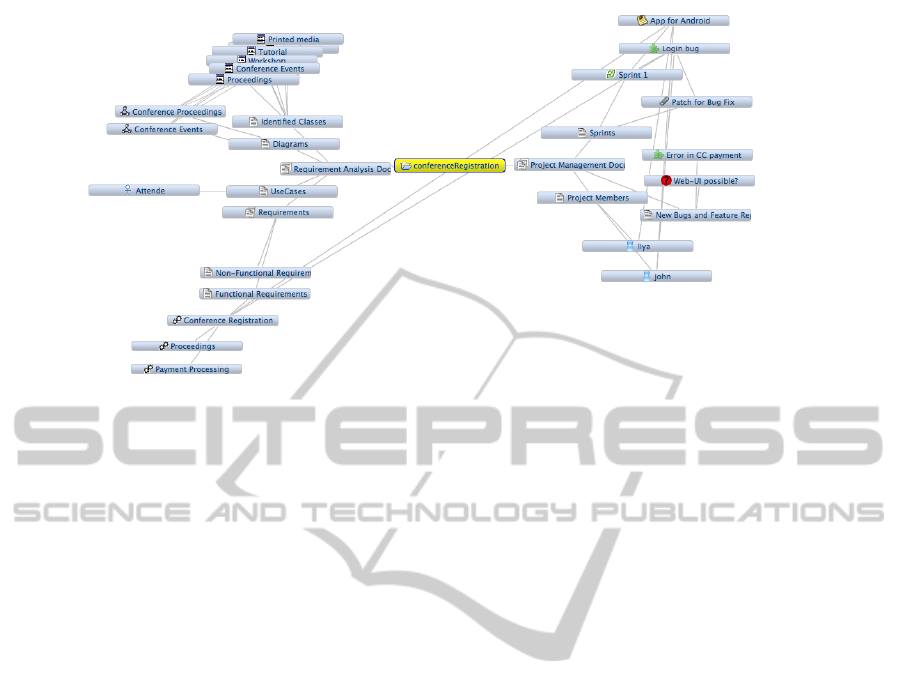

tion of the task. Hyper-graph (see Figure 9) shows the

traceability relationship between different artifacts.

At the center of the graph is the project itself as the

root element. Sequence of interactions, recorded as

operation combinedly represents the state of artifacts

in certain project state.

5.2 Evolution of Traceability

Collaborative software development process is cen-

tral to the evolution of traceability links between arti-

facts in UNICASE. Sequence of interactions over arti-

facts is recorded as change package on the client side.

This change package contains the interaction infor-

mation and changes per interaction. After performing

the necessary changes on the artifacts a stakeholder

can propagate his changes to EMFStore, the underly-

ing operation-based version control system for EMF

models (see 3.2). Stakeholders can also update the

state of their artifacts to reﬂect the changes made by

other stakeholders. Further, a stakeholder can walk

through every interaction over an artifact or the whole

project itself, to follow its evolution process.

5.3 From Informal Artifacts to Formal

Requirements

A centralized artifact repository like UNICASE eases

capturing the interaction between stakeholders over

artifacts created by informal communication. Infor-

mal communications stored in mailing list and forums

as artifacts capture various aspects of the system un-

der development. It can be identiﬁed in these discus-

sions, various issues occurring at different stage of

software project life cycle along with the collabora-

tive approach to resolve them. These informal com-

munications are also used to propose new feature re-

quest or changes in requirement. For example when

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

236

Figure 9: Hyper-graph showing traceability between requirements and other artifacts.

a new bug report or recently created issue, raises the

need of having a new requirement.

In a previous study we showed how the system

model elements and requirements evolve after a se-

quence of discussions and posts in informal commu-

nication (Helming et al., 2010). Externalizing this

informal knowledge as formal requirements become

even more important in case of frequently evolving

projects where throughout the development original

set of requirements gets blurred, outdated or lost (El-

Ramly et al., 2002). Which eventually raises critical

issues when the need arises for having a precise and

up-to-date oracle for testing and other purposes. This

is also true for maintenance of software where the

need might arise to migrate a legacy project to sup-

port newer platform and execution environment (Lo

and Khoo, 2008) (Jalote, 1997).

6 CONCLUSIONS

In this paper we presented a novel model-based

case tool for capturing and maintaining requirements

traceability. The tool considers interaction between

stakeholders and with the artifacts of major impor-

tance to derive the rational behind change.

In the ﬁrst part (see Section 3) we described two

main variables central to the requirements traceability

in our tool. Underlying uniﬁed extensible model pro-

vides a centralized place for heterogeneous artifacts.

Through the interaction of various stakeholders new

artifacts are created and evolved. This interaction is

captured and versioned in a repository for model el-

ements, thus providing the possibility to iterate over

time. Change delta containing sequence of interac-

tions, along with the initial and ﬁnal state of artifact

can be used to investigate the possibility of extract-

ing rationale for change. Though an in-depth study is

matter of future investigation.

In the second part (see Section 4) we gave a brief

introduction to various views and editor provided by

UNICASE to ease the interaction of stakeholders with

artifacts. We also discussed the importance of change

notiﬁcation in requirements traceability along with

the feasibility provided by the tool. Finally in the

last part (see Section 5) we discussed how require-

ments traceability is captured and maintained with

in UNICASE, in both forward and backward direc-

tion. Interoperability between artifacts at different

and same level of abstraction eases capturing trace-

ability links. Furthermore, the tool incorporates infor-

mal communication in a development project as arti-

facts. Thus providing the feasibility to capture trace-

ability between requirements and the informal com-

munications, which invoked the evolution of this par-

ticular requirement.

7 FUTURE WORK

This paper is a part of a research work with focus

to identify, evaluate and present novel approaches for

traceability between development artifacts. In several

previous studies we have presented heuristic, which

support the beneﬁts of having a uniﬁed model to

achieve better traceability between development arti-

facts.

Currently the proposed tool rely on API’s pro-

vided by subversion, which is a widely used source

code management system, to provide traceability

INTERACTION CENTRIC REQUIREMENTS TRACEABILITY

237

from higher level model elements to source code. In

the future we will focus on investigating approaches

to capture and maintain ﬁne-grained traceability be-

tween higher-level artifacts to source code artifact.

We are further planning to investigate methodologies,

which can help in identifying missing/broken trace-

ability links between artifacts automatically or semi-

automatically.

REFERENCES

Antoniol, G., Canfora, G., Casazza, G., and De Lucia, A.

(2001). Maintaining traceability links during object-

oriented software evolution. Software: Practice and

Experience, 31(4):331–355.

Boldyreff, C., Nutter, D., and Rank, S. (2002). Active arte-

fact management for distributed software engineering.

In Computer Software and Applications Conference,

2002. COMPSAC 2002. Proceedings. 26th Annual In-

ternational, pages 1081–1086. IEEE.

Bruegge, B., Creighton, O., Helming, J., and Kogel, M.

(2008). Unicase-an ecosystem for uniﬁed software en-

gineering research tools. In Third IEEE International

Conference on Global Software Engineering.

De Lucia, A., Fasano, F., Oliveto, R., and Tortora, G.

(2004). Enhancing an artefact management system

with traceability recovery features. In Software Main-

tenance, 2004. Proceedings. 20th IEEE International

Conference on, pages 306 – 315.

Egyed, A. and Grunbacher, P. (2005). Supporting software

understanding with automated requirements traceabil-

ity. International Journal of Software Engineering

and Knowledge Engineering, 0(0).

El-Ramly, M., Stroulia, E., and Sorenson, P. (2002). Re-

covering software requirements from system-user in-

teraction traces. In Proceedings of the 14th interna-

tional conference on Software engineering and knowl-

edge engineering, page 454. ACM.

Frost, R. (2007). Jazz and the eclipse way of collaboration.

IEEE Software, 24:114–117.

Gotel, O. and Finkelstein, C. (1994). An analysis of the

requirements traceability problem. In Requirements

Engineering, 1994., Proceedings of the First Interna-

tional Conference on, pages 94 –101.

Helming, J., Narayan, N., Arndt, H., Koegel, M., and

Maalej, W. (2010). From Informal Project Manage-

ment Artifacts to Formal System Models. System.

Herrmannsdoerfer, M. and Koegel, M. (2010). Towards a

generic operation recorder for model evolution. Pro-

ceedings of the 1st International Workshop on Model

Comparison in Practice - IWMCP ’10, page 76.

Hong, Y., Kim, M., and Lee, S.-W. (2010). Requirements

management tool with evolving traceability for het-

erogeneous artifacts in the entire life cycle. In Soft-

ware Engineering Research, Management and Appli-

cations (SERA), 2010 Eighth ACIS International Con-

ference on, pages 248 –255.

IBM (2011a). IBM - rational DOORS - software.

http://www-01.ibm.com/software/awdtools/doors/.

IBM (2011b). IBM - rational RequisitePro - software.

http://www-01.ibm.com/software/awdtools/reqpro/.

Jalote, P. (1997). An integrated approach to software engi-

neering. Springer Verlag.

Jiang, H.-y., Nguyen, T. N., Chang, C. K., and Dong,

F. (2007). Traceability Link Evolution Management

with Incremental Latent Semantic Indexing. In Pro-

ceedings of the 31st Annual International Computer

Software and Applications Conference.

Lee, C., Guadagno, L., and Jia, X. (2003). An Agile Ap-

proach to Capturing Requirements and Traceability.

In Proceedings of the 2nd International Workshop on

Traceability in Emerging Forms of Software Engineer-

ing (TEFSE 2003). Citeseer.

Lo, D. and Khoo, S. (2008). Mining patterns and rules for

software speciﬁcation discovery. Proceedings of the

VLDB Endowment, 1(2):1609–1616.

Pinheiro, F. and Goguen, J. (1996). An object-oriented tool

for tracing requirements. IEEE SOFTWARE, pages

52–64.

Ramesh, B. and Jarke, M. (2001). Toward reference models

for requirements traceability. IEEE Transactions on

Software Engineering, 27(1):58–93.

Raymond, E. (1999). The cathedral and the bazaar.

Knowledge, Technology and Policy, 12:23–49.

10.1007/s12130-999-1026-0.

UNICASE (2011). Unicase. http://www.unicase.org.

Cubrani

c, D. and Murphy, G. C. (2003). Hipikat: rec-

ommending pertinent software development artifacts.

In Proceedings of the 25th International Conference

on Software Engineering, ICSE ’03, pages 408–418,

Washington, DC, USA. IEEE Computer Society.

Winkler, S. and von Pilgrim, J. (2010). A survey of trace-

ability in requirements engineering and model-driven

development. Software and Systems Modeling, 9:529–

565. 10.1007/s10270-009-0145-0.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

238
