Bin Wu and Andy Ju An Wang
Southern Polytechnic State University, Marietta, GA, U.S.A.
Keywords: Enterprise vulnerability, Multi-level tree model, Assessment, EVMAT, NVD.
Abstract: Conducting enterprise-wide vulnerability assessment (VA) on a regular basis plays an important role in
assessing an enterprise’s information system security status. However, an enterprise network is always very
complex, separated into different types of zones, and consisting hundreds of hosts in the networks. The
complexity of IT system makes VA an extremely time-consuming task for security professionals. They are
seeking for an automated tool that helps monitor and manage the overall vulnerability of an enterprise. This
paper presents a novel methodology that provides a dashboard solution for managing enterprise level
vulnerability. In our methodology, we develop a multi-layer tree based model to describe enterprise
vulnerability topology. Then we apply a client/server structure to gather vulnerability information from
enterprise resources automatically. Finally a set of well-defined metric formulas is applied to produce a
normalized vulnerability score for the whole enterprise. We also developed the implementation of our
methodology, EVMAT, and Enterprise Vulnerability Management and Assessment Tool, to test our method.
Experiments on a small E-commerce company and a small IT company demonstrate the great potentials of
our tool for enterprise-level security.
Conducting enterprise-wide vulnerability assessment
on a regular basis plays an important role in assessing
an enterprise’s information security status. However,
the inherent complexity of information systems and
the rapid emergence of new vulnerabilities make it
extremely time-consuming task for security
professionals. It is common for a moderate enterprise
to have hundreds of different IT resources such as
computer hardware and software, distributed in
different zones of enterprise. When the IT resources
scale up, it is increasingly challenging for a
centralized manager to scan the vulnerability
information against each IT resource in the enterprise
networks and further quantify the overall vulnerability
status thus create corresponding security mechanisms.
Security professionals are seeking an automated tool
to help monitor and manage the complex IT resources.
In this paper, we present a new multi-layer tree
model-based approach to support the centralized
management of enterprise vulnerability, which is
essential for enterprise risk management.
Our methodology firstly provides an efficient
model to describe an enterprise vulnerability topology.
Here we abstract an enterprise as a collection of
business goals, such as E-commerce, customer
services, and financial accounting. These business
goals are established by senior managers of the
enterprise. Only by meeting these business goals, can
a company maintain its competitiveness in the
business and market. In an enterprise, there are a large
number of IT resources contributing to business goals.
For instance, an HTTP server and database play the
core roles of E-commerce business goal. In general,
we assume that we have a formal description of an
enterprise IT resources with respect to the device,
weight, and their functioning roles to the business
goals. To support the modeling of an enterprise
vulnerability topology, we implemented EVMAT,
which provides a user-friendly GUI help construct the
model using the above three elements.
With the initial model of an enterprise
vulnerability topology, we assign different weights
and interests to all business goals and resources to
identify the importance of a business goal/ resource to
the enterprise. Then we utilize Common Vulnerability
Scoring System (CVSS, 2006) to calculate the
vulnerability scores for all leaf business goals.
Thirdly, we provide a multi-layer C/S structure tool to
Wu B. and Ju An Wang A..
DOI: 10.5220/0003466603890394
In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 389-394
ISBN: 978-989-8425-56-0
2011 SCITEPRESS (Science and Technology Publications, Lda.)
gather and extract system characteristics from each
resource in enterprise network based on the Open
Vulnerability and Assessment Language (OVAL,
2009) standards and further retrieves vulnerability
data from National Vulnerability Database (NVD,
2010) in order to evaluate software vulnerability
scores corresponding to those resources. Then we
rank the weaknesses of each product installed in a
resource to support decision making of security
professionals. Fifthly we calculate the overall
vulnerability score of a resource and the
corresponding impact score to the business goals it
contributes to. Finally, we produce a normalized
vulnerability score for the whole enterprise based on a
set of well-defined metric formulas.
Existing literature such as Zhang et al.(2008),
Adnerson et al. (2005) and Shi et al. (2008) provides
different models to describe enterprise security. In
particular, Adnerson et al. (2005) provides a formal
enterprise level model of security used for canonical
representation, identification of components that need
to be measured. Shi et al. (2008) provides another
modeling methodology to manage the network
security in Enterprise. However, both of them did not
provide any methodology to measure the security
level of an enterprise.
A number of research papers Lee et al. (2001),
Liao, Striegel and Chawla (2010), Homer (2009), and
Chen et al. (2009) focus on the evaluation and
management of enterprise network security. Myerson,
Judith M. (2002) indentifies vulnerabilities in an
enterprise network environment. Chen et al.
addressed a comprehensive approach to enterprise
network security management.
There are some researches utilizing the enormous
vulnerability data from NVD to evaluate vulnerability
of a software product. Wang, J., Wang, H., Guo, M.,
Zhou, L., Camargo, J. (2010) provides a set of
security metrics to rank attacks based on vulnerability
analysis. Wang, J. and Guo, M. (2010) proposes a
novel methodology of using Bayesian networks to
automating the categorization of software security
vulnerabilities based on standardized vulnerability
In this section we discuss our model of enterprise
vulnerability topology for calculating the overall
vulnerability score of an enterprise. There are three
principles in our modeling method:
An enterprise is a collection of business goals.
These business goals form a tree of business goals
with each node a business goal associated with a
different interest (weight). The root business goal
must be the top of the business existence. For each
business goal, it may have multiple children business
Each leaf business goal utilizes a number of IT
resources to reach its goal. A resource can
contribute to one or more business goals. For a pair of
resource and business goal, weight is used to measure
the importance of a resource contributing to that
business object.
Each leaf business goal should have a
vulnerability score using the transferred CVSS
base metrics. This quantitative score describes the
characteristics and impacts on that business goal
when it becomes vulnerable due to its internal defects
and external threats.
3.1 Model Demonstration

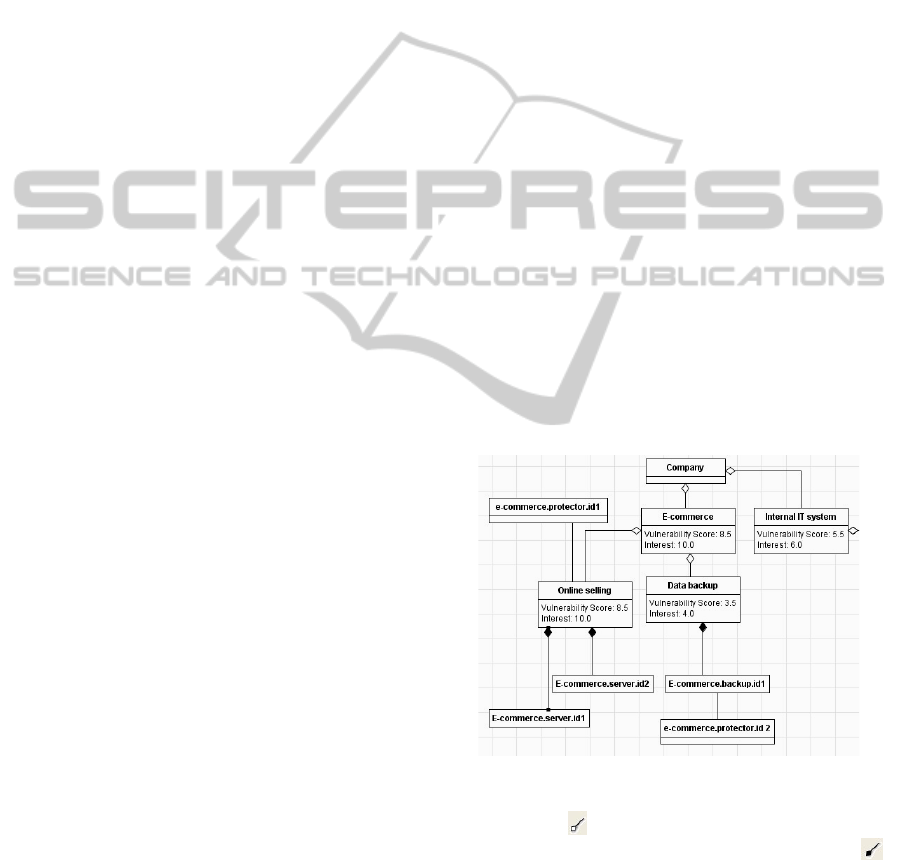

Figure 1: Sample enterprise vulnerability topology.
In Figure 1, means the relationship between a
business goal and its children business goals.
means the relationship between a business goal and
the resources it utilizes. From this figure, it is evident
that the root business goal is the Company node. It
has two business goals: one is E-commerce and the
other is Internal IT system. Also E-commerce has two
children business goals: Online selling and Data
backup. Two servers are used for reaching the goal of
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
Online selling: e-commerce.server.id1 and e-
Then we need to determine the interest (weight) of a
business goal related to its parent business goal. The
same as resource, we need to determine the weight
(range from 0 -10) of a resource for a business object.
3.2 Multi-layer Tree Model
The model in section 3.1 is useful when modeling a
small company. However, when the enterprise scales
up, consisting of tens of business goals and hundreds
of IT resources, it is not so convenient to put all
things in a single chart. Here we introduce the multi-
layer tree model to hide details of low layer elements.
The top layer tree model can be only main business
goals and for the second layer, the root is one of main
business goals and the business goal can extend to
some sub-business goals. For the lower layers,
business goals are connected with resource groups.
The lowest level only consists of leaf business goals
and resources. Figure 2 demonstrates a sample multi-
layer tree model of
an IT company.

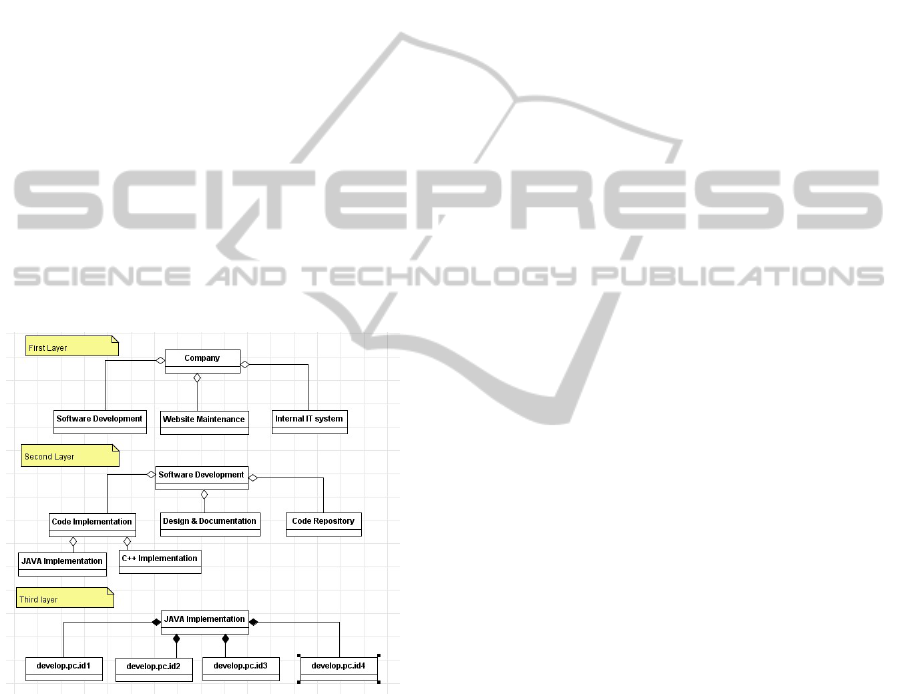

Figure 2: Multi-layer tree model of an IT company.
In figure 2, the top layer of constructed model
only consists of three main business goals: Software
Development, Website Maintenance and Internal IT
system. The second layer extends Software
Development business goal to three sub business
goals. The third level describes the relationship of
Java Implementation business goal and the IT
resources contributing to it. In this way, our multi-
layer model hides details of low layer resources from
senior security managers and allows primary security
professionals focus on the IT resources belongs to
In this section, we discuss the algorithm and technical
details of our approach based on the discussion above.
4.1 Vulnerability of a Business Goal
In our model, we evaluate the vulnerability score of
leaf business goal. CVSS is a suite of standard
measurement systems for industries, organizations
and governments that need accurate and consistent
vulnerability impact scores. It is most used for
evaluating individual IT vulnerabilities. In our
methodology, we transfer the calculation of base
metrics in CVSS to compute the vulnerability of a
business goal. The scoring formula of base metrics
can be found in (A complete guide to CVSS, 2010).
4.2 Vulnerability of a Software Product
For each machine, we use OVAL Interpreter to attain
the system characteristics XML files from different
resources, then a product vulnerability calculator
extracts the Common Platform Enumeration (CPE,
2010) information of every product and then
calculates the vulnerability score based on the data
retrieved from NVD. NVD is the U.S. government
repository of standards based vulnerability
management data represented using the Security
Content Automation Protocol (SCAP, 2010) For a
record in the NVD, it contains CVE-id (Common
Vulnerabilities and Exposures, 2010).vulnerability-
configuration, vulnerable-software-list, published date
and time, CVSS base metrics and scores, Common
Weakness Enumeration (CWE, 2010) summary of a
vulnerability and so on. We extract all vulnerability
data that has impact on the input product and then
compute the software vulnerability score. We adopt
the security metrics in Wang et al. (2009) with
modification that takes time phase into consideration.
Rigorous measurement of software security can
provide substantial help in the evaluation and
improvement of software products and processes.
However, little agreement exists about the meaning of
software security and how to define software security.
We define software security metrics based on the
representative weakness of the software as shown in
the formulas below:
Where SM(s) stands for the security metrics for
the software s, anW
d (i = 1, 2, …, m) are the severity
of those representative weakness in the software s.
Note that a software product may have many
weaknesses and flaws. Here “representative” refers to
those weaknesses that lead most vulnerabilities that
may be exploited by attackers. Suppose the weakness
corresponding to
has k vulnerabilities and their
corresponding CVSS base scores are
, …,
The severity of this weakness,
, is defined as the
average score of them, as demonstrated in the formula
(2) below.
In formula (1), each
(n = 1, 2, …, m) represents
the risk of the corresponding weakness. We use the
percentage each representative weakness occurs in the
overall weakness occurrences to calculate
as the
formula (3) below.
is the frequency of occurrences for each
representative weakness over a span of time in
months, as illustrated in formula (4) below, where
is the number of vulnerabilities related to each
representative weakness, and
M is the number of
To make the value of software security metrics
SM(s) to range from 0 to 10, we require that the
following formula (5) hold for
As shown in the formulas above, we define
software security metrics based on the
weaknesses of the software. For a given piece of
software, we first find out those typical weaknesses
reported in Common Weakness Enumeration (CWE)
related to the software and calculate the number of
vulnerabilities caused by these weaknesses. Some
weakness causes more vulnerabilities than others. We
pick up those weaknesses that cause most
vulnerabilities as our “representative weaknesses”.
After identifying the representative weaknesses for
the software, we incorporate the severity of
representative weaknesses into the security metrics.
The severity of a vulnerability is captured by
calculating the percentage of occurrences of this
vulnerability compared with the total occurrences of
all vulnerabilities.
4.3 Vulnerability of a B-R Relationship
Before calculating the vulnerability score of a B-R
relationship, users can determine the important level
of a specified software product or allow EVMAT tool
to assign the important level. For instance, for a
resource performs as an HTTP server, the
and MySQL are the core components to
achieve its functionality while a browser like Firefox
seems to be unrelated. There are three kinds of
important level:
core, related and unrelated,
describing how a product influences the functionality
of a resource. After assigning these values, we can
calculate the overall vulnerability of a resource.
,(1 < <)
In formula (6),
Vi is the vulnerability score of a
product installed in the resource.
Li is the important
level of that product. Currently we have Core=1.0,
Related=0.5 and Unrelated =0.0. In formula (6),
stands for the number of most vulnerable products to
a B-R relationship. In our implementation of EVMAT,
m=5. This formula first finds
m largest V×L
products and then calculates the overall vulnerable
score of a B-R relationship.
4.4 Computing the Weight Tree
The usage of a weight tree is to determine the
importance of a resource to the whole enterprise. For
instance, in an E-commerce company, the server used
for online selling is far important than a personal PC
used by an employee. Since it is impractical that
companies always apply vulnerability patches
immediately for all machines because of the cost of
maintenance procedure. Computing the weight tree
could help security administrators focus on the most
important resources and delay those not so important.
In section 3, we have already modeled the
enterprise vulnerability topology. Each business goal
has an interest (weight) value related to its parent and
each resource has a weight value related to the
business goal it contributes. Now we use formula 8 to
calculate the weight of a resource to the whole
,(1 < < )
In formula (7), W
is the weight of ’s parent, m is
the children number of p. The weight of root is 10.
Formula (7) iterates from the root to a resource node
to calculate the overall weight of the resource to the
whole enterprise.
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
4.5 Overall Vulnerability of an
Finally, we calculate the overall vulnerability score of
an enterprise. Assume a leaf business goal has
vulnerability score sb (calculated by CVSS) and it has
n resources weighted (wr
) and the
vulnerability scores are (sr
) . The
contributed vulnerability score for that business goal
sb × wr
Then we sum up all leaf business goals and normalize
the score into (0-100).
es =
es is the overall vulnerability score of an enterprise.
In this section, we model an IT company vulnerability
topology and calculate the overall vulnerability score
of that company. The full model is shown in Figure 4
and all resource entities have already read the scored
products file it installed. The result of enterprise
vulnerability analysis is shown in Figure 3.
From figure 3 we can see the four servers play the
core role of the whole enterprise. The company’s
vulnerability score is 38.96, which is relatively high
(The range is 0-100).

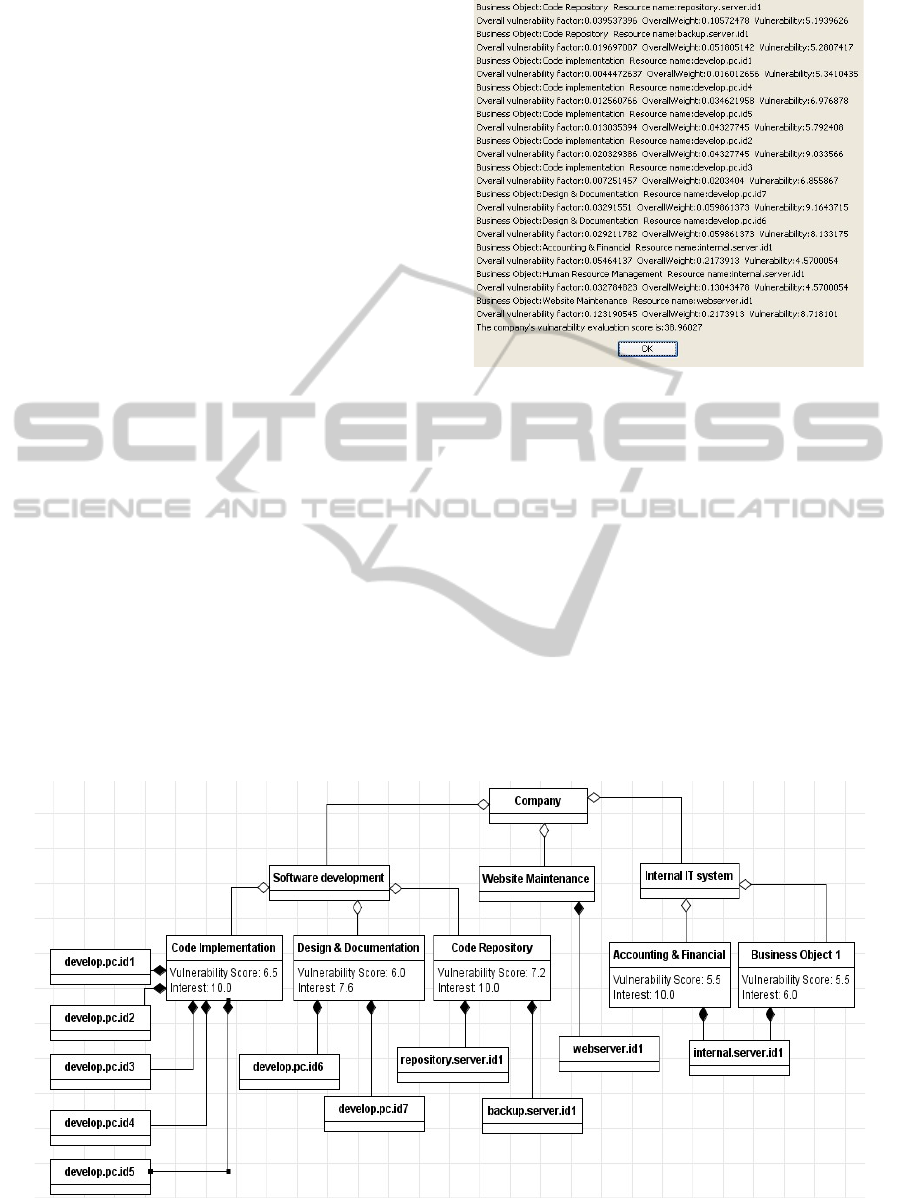

Figure 3: Analysis result of a small IT company.
The analysis result implies that the security
professionals need to pay more attention to reduce
vulnerability score.
Then we assume that due to delayed update of
MySQL installed on server internal.server.id1, the
vulnerability of MySQL becomes 10.0 (previously it
was 5.6). The overall vulnerability score increases to
44.06 and the vulnerability score of that server
increases to 7.23. Both two examples show the
advantages of using our tool to manage IT resources.
Figure 4: An IT company vulnerability topology model.
This paper presents a model-based automated
approach to quantify the overall vulnerability score of
a company. Our developed tool, EVMAT 1) provides
a user interface to model the enterprise vulnerability
topology, 2) automatically gathers system
characteristics based on OVAL and further evaluates
software vulnerabilities installed in a computer
resource based on the vulnerability data retrieved
from NVD; 3) Rank the weaknesses of software
product to help security administrators decide the
product that fits their secure demand most and 4)
quantitatively measures the overall vulnerability of an
enterprise. The experiment of modeling a small IT
company using our tool demonstrates the potentials of
this tool.
This paper is based upon work supported by the
National Science Foundation under Grant No.
0722157 and 0941900. Any opinions, findings, and
conclusions or recommendations expressed in this
material are those of the authors and do not
necessarily reflect the views of the National Science
Foundation. The authors would like to express their
gratitude to anonymous reviewers of this paper for
their thoughtful comments and suggestions.
Mell Peter and Scarfone Karen and Romanosky
Sasha.Common Vulnerability Scoring System.IEE
Security and Privary, 4(6):85-89, 2006.
OVAL, Open Vulnerability and Assessment Language.
NVD, National Vulnerability Database. http://nvd.nist.gov/
Shi, Fuqian and Xu, Hongbiao and Wang, Haining. A
Representative Management Model of Network
Security in Enterprise Informatization. Proceedings of
the 2008 International Conference on Information
Management, volume 2: 304-307, 2008
Zhang, Zonghua and Nat-Abdesselam, Farid and Lin,
Xiaodong and Ho, Pin-Han. A model-based semi-
quantitative approach for evaluating security of
enterprise networks. Proceedings of the 2008 ACM
symposium on Applied computing, 1069-1074, 2008.
Anderson, Evan and Choobineh, Joobin and Grimaila,
Michael R. An Enterprise Level Security Requirements
Specification Model. Proceedings of the Proceedings of
the 38th Annual Hawaii International Conference on
System Sciences, 186.3--, 2005
Lee, Jae Seung and Kim, Sang-Choon and Sohn, Seung
Won. A Design of the Security Evaluation System for
Decision Support in the Enterprise Network Security
Management. Proceedings of the Third International
Conference on Information Security and Cryptology,
246-260, 2001
Liao, Qi and Striegel, Aaron and Chawla, Nitesh.
Visualizing graph dynamics and similarity for enterprise
network security and management. Proceedings of the
Seventh International Symposium on Visualization for
Cyber Security, 34-45, 2010
Homer, John. A comprehensive approach to enterprise
network security management. Phd thesis, Kansas State
University, 2009
Chen, Xiuzhen and Zheng, Qinghua and Guan, Xiaohong.
An OVAL-based active vulnerability assessment system
for enterprise computer network. Information System
Frontiers, 10(5): 573-588, 2009.
Myerson, Judith M. Identifying enterprise network
vulnerabilities. Int. J. Netw. Manag., 12(3): 135-144,
Wang, Ju An and Wang, Hao and Guo, Minzhe and Zhou,
Linfeng and Camargo, Jairo. Ranking Attacks Based on
Vulnerability Analysis. Proceedings of the 2010 43rd
Hawaii International Conference on System Sciences,
1-10, 2010
Wang, Ju An and Guo, Minzhe. Vulnerability
categorization using Bayesian networks. Proceedings of
the Sixth Annual Workshop on Cyber Security and
Information Intelligence Research, 29:1—29:4, 2010.
OVAL Interpreter. http://oval.mitre.org/ language/
A complete guide to CVSS. http://www.first.org/cvss/cvss-
CPE, Common Platform Enumeration. http://cpe.mitre.org/
SCAP, Security Content Automation Protocol.
CVE, Common Vulnerabilities and Exposures.
CWE, Common Weakness Enumeration.
Wang, Ju An and Wang, Hao and Guo, Minzhe and Xia,
Min. Security metrics for software systems.
Proceedings of the 47th Annual Southeast Regional
Conference, 47:1—47:6, 2009
CERT, Computer Emergency Response Team at Carnegie
Mellon University’s Software Engineering Institute.
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
