LESSONS LEARNED IN APPLYING MDE TO THE

DEVELOPMENT OF HOME AUTOMATION SYSTEMS

Francisca Rosique, Pedro Sánchez, Manuel Jiménez and Diego Alonso

DSIE Research Group, Technical University of Cartagena, Campus Muralla del Mar s/n, E-30202, Cartagena, Spain

Keywords: Home Automation, Model Driven Engineering, Model Transformations, Domain Specific Languages.

Abstract: Home Automation (HA) systems represent a domain of interest to evaluate the benefits and difficulties of

adopting the well known Model Driven Engineering (MDE) approach. This is due to the existence of

determining factors in the development of such systems that makes MDE applicable with some

considerations. This article presents the lessons learned after the definition of a methodology and the

implementation of a set of tools to support the MDE-base development of HA systems. In particular, the

definition of a Domain Specific Language has made possible the generation of code although we have

identified some peculiarities and differences from a classical MDE perspective. These results can be

extrapolated to other domains with similar characteristic.

1 INTRODUCTION

Home Automation (HA) systems have emerged as a

field of great interest in the engineering field given

the current demand for information systems in

society. One of the main problems of HA systems

development lies in the fact that there is no

agreement in the standard to implement the

applications. HA applications and devices currently

belonging to different manufactures are isolated

from each other thereby creating the main obstacle

to HA market growth.

Leading companies in this market have adopted

several standards and protocols. Some examples

worth mentioning are the KNX (ISO/IEC14543-3-

X) ) (Karlheinz, 2009), Lonworks (ISO/IEC

14908)(Echelon, 2009) and X10(Technica, 2005)

technologies. Furthermore, as stated in

(Miori, 2006), it is improbable that there will be a

single dominant technology for HA in the short

term. Each of these technologies provides its own

software suite to create HA applications and

program the devices. Hence the particular

technology (specific platform) must be selected at

the initial design stages, inasmuch as the tools and

devices to be used depend on this choice. Thus, the

development of these systems requires developers

that have a very high degree of specialization in the

used technology. But all these tools are,

unfortunately, incompatible among them, and thus

applications cannot be reused in HA systems that

use different technologies.

The Model-Driven Engineering (MDE) approach

(Selic, 2003) presentsa very promising alternative to

solve the problems of the current development

techniques for HA systems, as mentioned before.

MDE provides a theoretical and technological

framework for the use and management of models in

software development. The work presented in this

paper describeshow MDE has been used to develop

a framework for HA applications that(i) providesan

approach more in keeping with the principles of

Software Engineering, and (ii) considers the product

life-cycle.

The article (Sanchez, 2011)presentsour

integrated framework that allows the definition of

HA systems at different levels of abstraction, from

requirements to code, as can be seen in Figure 1.

These levels of abstraction have been organized

according to the Object Management Group’s

Model-Driven Architecture (MDA) (Mellor, 2004)

initiative, into a Computation-Independent Model

(CIM), a Platform-Independent Model (PIM), and

several Platform-Specific Models (PSM).

The steps taken to obtain this framework were

the following:

- A preliminary analysis of the current state of HA

systems (domain analysis) and identification of

265

Rosique F., Sánchez P., Jiménez M. and Alonso D..

LESSONS LEARNED IN APPLYING MDE TO THE DEVELOPMENT OF HOME AUTOMATION SYSTEMS.

DOI: 10.5220/0003470502650268

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 265-268

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

the HA domain concepts was carried out.

- Acatalog of reusable HA requirements was

created.

- A definition of the various software artefacts

(functional units, components, etc.) that can be

assembled and configured was done.

- Languages and tools for both the representation

of the specific requirements of each system and

the automatic transformation towards lower

levels of the MDA approach, which are closer to

the platform, were developed.

- A tool for traceability management through was

developed and integrated in the framework.

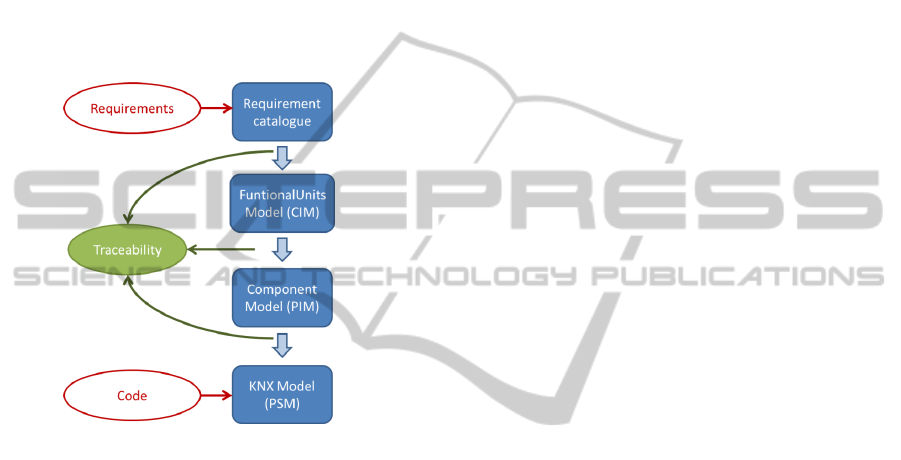

Figure 1: Framework for home automation.

This paper presents the lessons learned from the

decisions taken, the difficulties encountered and the

conclusions reached over the creation of a HA

development framework with the aforementioned

characteristics, that is from requirements to code.

Section 2 presents the main lessons learned during

its development, and finally section 3 outlines the

conclusions.

2 LESSONS LEARNED

In the previous section we have summarized the

main characteristics of the developed framework, the

tools used, and the steps that led us to its

development. This section describes the main

lessons learned from this work. These lessons seek

to extract, from the achievements and constraints,

conclusions and knowledge that can help other

developers when facing the development of a similar

framework in similar domains.

Lesson 1: About the Importance of

Platform Independence

Following the MDA guidelines, it is essential to

keep platform independence in the early stages of

the development process. In the HA domain, the

differences between platforms, technologies,

standards and manufacturers are significant. Most of

the time the compatibility is not guaranteed, so the

early selection of physical devices (switches,

controllers, alarms, etc.) and an implementation

technology (EIB, for instance) is usually inevitable.

This commitment to a specific platform makes it

difficult to carry to term an MDE approach.

The domain analysis performed previously to the

framework development demonstrates that there are

functional elements that appear in all HA

technologies and standards, although these

technologies differ in their architecture, protocols or

available modules. We have called these elements

“functional units”, and they form the core of the

approach, since we model HA systems according to

the functional units needed. In the later stages, and

depending on the selected technology, specific

devices that provide the functionality will be

selected, generating the corresponding code after a

model transformation step. In short, platform

independence has been achieved thanks to the study

of the domain and the consideration of the functional

units as basic elements to describe the HA systems.

Lesson 2: Reuse is Challenging

As Krueger states in (Krueger, 1992), “software

reuse is the process of creating software systems

from existing software rather than building software

systems from scratch”. In this context, abstraction

plays a key role, reducing the time and effort

required to develop and maintain any systems. With

DSLs, reuse is feasible at model level, making it

possible to reuse partial or entire models, rather than

pieces of platform-specific code. Thus, the

beginning of a new software development project

can be done from existing reusable assets.

We have identified two key aspects that

determine the feasibility of reuse in the context of

DSLs: (1) in order to select a model or a model

fragment for reuse, you must first know what it

does; and (2) in order to have effective reuse, you

must be able to discover the model fragment faster

than you could build it from scratch.

The existence of a generic requirement set for

subsequent system instantiation can significantly

contribute to model reuse. Modelers could select a

subset of these generic requirements when

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

266

developing new systems. For each generic

requirement a model fragment can be given using

the DSL. A model fragment is part of a complete

model in the sense that accomplishes part of the

desired functionality. Then, reuse may be fulfilled

by the integration of all the model fragments into the

system model to be developed. It is possible that a

model fragment would be syntactically or

semantically incomplete. Thus, integrity rules should

be disabled temporarily in order to facilitate the

integration of these model fragments. HA domain is

quite adequate to promote reuse by means of model

fragments since requirements are well structured and

it is quite straightforward to model them using the

DSL.

However, users must be aware of that not every

single developed artefact can be reused. But reusing

is easier when working with models than it is when

using code.

Lesson 3: Leveraging Existing Resources

It is essential to exploit the commercial tools

available for each home automation technology

rather than build a new set of tools from scratch,

since it will facilitate the generation of executable

code.

If we take the example of the KNX/EIB

technology, at present, the starting point for a

traditional developer is the creation of the project by

using the tool ETS (Engineering Tool Software),

which allows the creation of application code for

this platform by means of a scripting language. With

the proposed framework, the ETS tool becomes a

support for the implementation of the code obtained.

The ETS-ITTools plug-in allows us to interface the

manufacturer environment using the VBScript

programming language. The KNX specific model

(level PSM) is the source for the model-to-code JET

transformations to obtain the VBScript macros.

These macros are then executed using the ITTools

plug-in to automatically generate the project in ETS

for any HA application.

This approach is interesting in the way that it

takes advantage of the technology tools for code

generation rather than building a whole new set of

tools from scratch. In this way, the starting point for

a traditional developer would be the creation of the

project by interacting manually with the ETS tool.

Lesson 4: Benefits Obtained with

Traceability

The incorporation of traceability in the MDA

approach is a very interesting issue. A traceability

management tool is necessary to have an automated

way of visualizing the relationships between the

artefacts obtained in the generation process, from

requirements to code(Lago, 2009).

The framework described in ()includes a

traceability management tool that generates reports

from information collected in the traceability models

created automatically during the execution of the

modeltransformations steps. This report has been

demonstrated of great interest to:

• Validate whether all the requirements have

been supported. We have checked that all the

requirements are represented by means of DSL

model elements.

• Establish the impact of changing a

requirement. It is usual that the stakeholders of

the system suggest changes to the requirements

throughout the whole development process.

The traceability report has helped analysts to

evaluate the impact of these changes before

apply them.

• Verify whether the DSL model is compliant

with the requirements.

Lesson 5: Eclipse Modelling Tools are Still

Difficult to Use

Some difficulties have arisen at the creation of the

DSL tools with Eclipse plugins (Eclipse Fundation,

2007) such as EMF, GMF and GEF. Although they

are offered as intuitive graphical interfaces, rich in

colors and shapes, speaking in terms of development

they are not so easy to use. This is due to the great

complexity involved in using the tools and the lack

of adequate documentation.

EMF is the technological base on which to

support other modeling tools. The naming

convention of interfaces/classes generated by EMF

plugin and the location of the generated files must be

taken into account during the definition of the meta-

model. For example, some words reserved by EMF

can cause failure if selected as the name of a class,

an interface or a reference.

GMF Eclipse plugin, used to generate graphical

editors, tries to hide all the models by means of

wizards. When you want to customize the generated

editors it is needed to learn the use and origin of

each of these models and GMF main functions in the

development of the editor. A serious drawback of

GMF is the lack of a graphical editor to create and

manage the DSL elements. Besides, the definition of

new visual elements as a composition of those

previously defined is not a trivial issue. Thus,

developers must define relationships among nodes

LESSONS LEARNED IN APPLYING MDE TO THE DEVELOPMENT OF HOME AUTOMATION SYSTEMS

267

and connectors manually.

The constraints should be defined and included

in the design phase of the DSL. This fact has the

drawback that any later change or addition of one of

these OCL rules implies the rebuilding of the DSL

editor.

These modeling tools are relatively young, they

are still under development and new versions are

released frequently, so often different versions are

incompatible with each other. The documentation is

rather basic and almost non-existent, often the best

source of information can be found in the web news.

It must also be highlighted the learning time needed

to efficiently work with these tools (3-4 months).

3 CONCLUSIONS

Aframework has been created following the MDE

approach which has allowed the development of a

number of tools (requirements and traceability

managers, DSLs, model transformations, and so on)

to support the full development of HA systems.

These resources have helped users to create HA

applications in a way much more easier and

productive.

The availability of tools to promote the creation

of DSLs(Kelly, 2009) is quite promising. DSLs

allow describing systems in an easy and intuitive

way, using concepts from the application domain.

The use of new Software Engineering techniques

into domains traditionally not subject of this study,

such as the HA domain, is very promising. Although

the MDE approach is not new, there are no

integrated proposals for the development of HA

systems that cover the entire process. None of them

takes into account the advantage of reusing the

infrastructure already provided by HA manufacturer.

It may be difficult and laborious to create a DSL

from scratch. Nevertheless, the benefits are greater

than liabilities in some domains. Creating a new

DSL (with tools to support it) can be worthwhile if

the language allows a particular type of problems to

be expressed more clearly than pre-existing

languages (such as UML) would do. In MDE the use

of domain-specific languages is the best option for

HA systems where the concepts themselves are well

defined. In this way, it allows developers with some

experience in HA to create descriptions of HA

systems using visual notations that can be

automatically transformed into executable code.

For the transformations, graph grammar

techniques are a good choice given the graphic

nature of both the transformations and the models.

But the need to work with an integrated tool within

Eclipse makes more interesting the use of hybrid

declarative/imperative languages.

Furthermore, both the reuse and traceability

capabilities provide our framework with the basic

characteristics desirable in any development,

improving quality and reducing the resulting

software development costs.

All the lessons learned from our experience can

be of interest in other domains. For example, since

the HA domain is a specific case of reactive

systems, these same lessons can be extrapolated to

those that attend the same technological conditions:

(1) the existence of a substrate for the definition of a

DSL, (2) the possibility of reusing models from a

software product-line perspective, and (3) the

availability of commercial tools for making easier

and higher code generation.

ACKNOWLEDGEMENTS

This work was partially supported by the Spanish

CICYT project EXPLORE (TIN2009-08572).

REFERENCES

Eclipse Foundation, 2007. Platform Plugin Developer

Guide, Platform Architectur. http://help.eclipse.org/

help33/index.jsp?topic=/org.eclipse.platform.doc.isv/g

uide/arch.htm.

Echelon Corporation, LONWORKS Engineering

Bulletins, 2009.

Sánchez, P. ,Jiménez, M., Rosique, F., Álvarez, B. and

Iborra, A., 2011.A framework for developing home

automation systems: From requirements to code.

Journal of Systems and Software.88 (6): 1008-1021.

Karlheinz, F., 2009.EIB/KNX: Grundlagen

Gebaudesystemtechnik. Edition MundArt, 4th ed.

Kelly, S. and Pohjonen, R., 2009.Worst Practices for

Domain-Specific Modeling. IEEE Software. 26(4):

223-29.

Krueger, C., 1992.Software reuse. ACM Computing

Surveys. 24(2): 131-183.

Lago, P., Muccini, H., Vliet, H., 2009. A scoped approach

to traceability management. Journal of Systems and

Software, 82(1), pages 168-182.

Mellor, S., Scoot, K., Uhl, A.and Weise, D., 2004. MDA

Distilled: Principles of Model-Driven

Arquitecture.Addison Wesley.

Miori, V., Tarrini, L., Manca, M. Tolomei, G., 2006. An

open standard solution for domoticinteroperability.

IEEE Transactions on Consumer Electronics. 20(50),

pages 19-25.

Selic, B., 2003. The Pragmatics of Model-Driven

Development, IEEE Software.20, pages 46–51.

Technica Pacifica, 2005. Easy X10 Projects for Creating a

Smart Home.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

268
