AN MDA-BASED METHOD FOR DESIGNING INTEGRATION

PROCESS MODELS IN B2B COLLABORATIONS

Ivanna M. Lazarte, Pablo D. Villarreal

CIDISI, National Technological University Santa Fe Faculty, Lavaise 610, S3004EWB, Santa Fe, Argentina

Omar Chiotti

INGAR, National Council of Scientiﬁc and Technological Research, Avellaneda 3657, S3002GJC, Santa Fe, Argentina

Lucin´eia Heloisa Thom, Cirano Iochpe

Institute of Informatics, Federal University of Rio Grande do Sul, Bento Gonc¸alves 9500, 91501-970, Porto Alegre, Brazil

Keywords:

Business-to-Business, Collaborative Business Process, Integration Business Process, Model-Driven Architec-

ture, Workﬂow Activity Patterns.

Abstract:

The design of integration processes is a key issue for implementing collaborative business processes in

Business-to-Business collaborations. A collaborative process is executed through the enactment of the in-

tegration process of each organization, which contains the public and private logic required to support the role

an organization performs in the collaborative process. Integration process models must be aligned with and

derived from their corresponding collaborative process models to guarantee interoperability among organiza-

tions. In this work, we propose a method based on a Model-Driven Architecture to enable organizations to

support and automate the design of integration process models. This method provides a model transformation

process that uses Workﬂow Activity Patterns to generate the public/private activities required in integration

processes to support cross-organizational message exchanges.

1 INTRODUCTION

In current global markets, organizations are imple-

menting Business-to-Business (B2B) collaborations

with their business partners to improve their perfor-

mance and competitiveness. A B2B collaboration re-

quires collaborativebusiness processes to be designed

at the business level and implemented at the techno-

logical level. A collaborative business process (CBP)

deﬁnes the global view of the interactions among or-

ganizations to achieve common business goals (e.g.

decrease inventory average levels) (Villarreal et al.,

2007; Bauer et al., 2005; Roser and Bauer, 2005).

The design and implementation of B2B collabo-

rations involves the fulﬁllment of particular require-

ments such as the ability to cope with changes, de-

centralized management of CBPs, peer-to-peer inter-

actions, preservation of organizations’ autonomy, rep-

resentation of complex negotiations, the required sup-

port for interoperability, and the alignment between

business solution and technological solution so that

the technological solution provides full support to

CBPs.

In order to implement a CBP in a decentralized

way, each organization (or business partner) has to

deﬁne its integration business process. An integration

process (also called private (OMG, 2010), executable

(Bauer et al., 2005) or orchestration process (Weske,

2007)) speciﬁes the public and private behavior that

supports the role an organization performs in a CBP.

It contains, from the viewpoint of an organization, the

public and private logic required to process or gener-

ate the information exchanged with its partners.

CBPs and integration processes should be mod-

eled at a high level of abstraction and in a technology-

independent way to facilitate design and communi-

cation among stakeholders as well as to enable their

implementation in different platforms (Lazarte et al.,

2010). Designing integration processes is a highly

complex, time consuming and error prone task, which

Lazarte I., Villarreal P., Chiotti O., Thom L. and Iochpe C..

AN MDA-BASED METHOD FOR DESIGNING INTEGRATION PROCESS MODELS IN B2B COLLABORATIONS.

DOI: 10.5220/0003495000550065

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 55-65

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

requires business analysts’ modeling expertise and

knowledge to identify and add the public and private

logic that supports cross-organizational message ex-

change.

In addition, integration process models of organi-

zations must be aligned and consistent with the pub-

lic logic deﬁned in its corresponding CBP model, and

hence, they must be correctly deﬁned in order to guar-

antee their interoperability and provide full support to

the CBP.

In this work, we propose a method based on the

Model-Driven Architecture (OMG, 2003) for gener-

ating integration process models from a CBP model.

The main goals of this method are twofold: (1) to

provide an automated support for the design of inte-

gration process models required by the organizations

for implementing CBPs, (2) to enable organizations

to deﬁne integration processes which are interopera-

ble and consistent with the CBPs. By interoperability

we mean the capability of organizations’ integration

processes for interacting with each other in a synchro-

nized way for executing a CBP. By consistency we

mean the coherence between the behavior deﬁned in

an integration process and its corresponding CBP.

To automatically generate the public and private

logic of an integration process model, this method

provides a model-to-model transformation process

that makes use of the Workﬂow Activity Patterns

(Thom et al., 2009). These patterns represent recur-

rent business functions frequently found in business

processes (e.g. task execution request, notiﬁcation ac-

tivity, approval). The use of these activity patterns

enables reusing the process knowledge captured in

them and generating the activities and process logic

required in integration process models.

The proposed method uses CBP models deﬁned

with the UP-ColBPIP language (Villarreal et al.,

2007; Villarreal et al., 2010) and generates integra-

tion process models deﬁned with theBusiness Process

Model and Notation (BPMN) language (OMG, 2010).

CBPs are modeled as interaction protocols with the

UP-ColBPIP language. In an interaction protocol, a

speech act (e.g. agree, refuse, propose) represents

sender’s intention with respect to the business docu-

ment being exchanged in a message (Villarreal et al.,

2007; Villarreal et al., 2010). In this work, the seman-

tics of speech acts is analyzed and used for determin-

ing the activity patterns applied in each deﬁned trans-

formation rule to derive an integration process model

from a CBP model.

The remainder of the paper is organized as fol-

lows: Section 2 describes features of the CBP models

and the language used to model them. Applied ac-

tivity patterns are discussed in Section 3. Section 4

describes the MDA-based method for designing inte-

gration process model, and Section 5 presents a case

study of that method. Section 6 discusses related

work. Section 7 draws conclusions and future work.

2 COLLABORATIVE BUSINESS

PROCESS MODELS

CBPs must be modeled using concepts that are closer

to the B2B collaboration domain and in an inde-

pendent way of the implementation technology. To

support this, CBPs are modeled with UP-ColBPIP

language (UML Proﬁle for Collaborative Business

Processes based on Interaction Protocols) (Villarreal

et al., 2007; Villarreal et al., 2010). This language

fulﬁlls the requirements for B2B collaborations men-

tioned in Section 1. By using UP-ColBPIP language,

the behavior of CBPs is modeled as interaction pro-

tocols. An interaction protocol describes a high-

level communication pattern through a choreography

of business messages between organizationswho play

different roles. A business message represents an in-

teraction between two organizations. The message

choreography describes the global view of interac-

tions between the roles played by the organizations.

Interaction protocols deﬁne not only the informa-

tion exchange but also the communication of actions

between organizations (Villarreal et al., 2007; Villar-

real et al., 2010). Coordination and communication

aspects of B2B interactions are represented in inter-

action protocols through the use of speech acts (Table

1) associated to business messages. Speech acts pro-

vide semantics to the business messages. This enables

the deﬁnition of complex negotiations and avoids the

ambiguity in the semantics and understanding of the

business messages of CBPs.

The UP-ColBPIP language was deﬁned as a UML

Proﬁle in order to provide well-known graphical no-

tations for modeling CBP that were easily under-

stood by business analysts and system designers. This

language encourages a top-down approach to model

CBPs and supports the modeling of ﬁve views: B2B

Collaboration View, Collaborative Business Process

View, Interaction Protocol View, Business Document

View, and Business Interface View. For space reasons,

this work only includes the description of the Interac-

tion Protocol View that is used to deﬁne the behav-

ior of CBPs. More details about this language can

be found in (Villarreal et al., 2007; Villarreal et al.,

2010).

UP-ColBPIP language extends the semantics of

UML2 Interactions to model interaction protocols.

Accordingly, they are deﬁned using UML2 Sequence

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Table 1: Main speech acts used by UP-ColBPIP language.

Accept-Proposal: represents the action of accepting a previously submitted proposal to perform an action.

Agree: represents the action of agreeing to perform some action, possibly in the future. It expresses an

agreement on a previously submitted request to perform some action.

Call-for-Proposal: represents the action of a role requesting another role a proposal to perform some action.

Inform: represents the action of a role informing and communicating another role a given information.

Propose: represents the action of submitting a proposal to perform a certain action. It is used to make a

proposal or respond to an existing proposal in a negotiation process.

Refuse: represents the action of refusing to perform a given action, and explaining the reason for the refusal.

Reject-Proposal: represents the action of rejecting a previously submitted proposal to perform some action.

Request: represents the action of a role requesting another role to perform some action. The document

associated with the act describes the action to be executed.

Diagrams. The main conceptual elements used to de-

ﬁne interaction protocols are described as follows.

Partners (organizations) and the role they fulﬁll

are represented through lifelines. Business messages

are the basic building blocks of interaction protocols.

A business message deﬁnes a one-way asynchronous

interaction between two roles, a sender and a receiver.

It contains a business document (the exchanged infor-

mation) and a speech act (the semantics of the mes-

sage). Table 1 describes the speech acts used, which

were obtained from the speech act library of the Agent

Communication Language (FIPA, 2002).

A Protocol Reference represents a sub-protocol or

nested protocol. Protocols have an implicit termina-

tion. A Termination represents an explicit end event

of a protocol, which can be labeled as success or fail-

ure.

A Control Flow Segment represents complex mes-

sage sequences. It contains a control ﬂow operator

and one or more interaction paths. An interaction path

contains an ordered sequence of protocol elements:

messages, termination events, protocol references and

nested control ﬂow segments. The semantics of the

control ﬂow segments depends on the operator being

used: And, Xor, Or, Loop, Exception, Cancel, Multi-

ple Instances, and If.

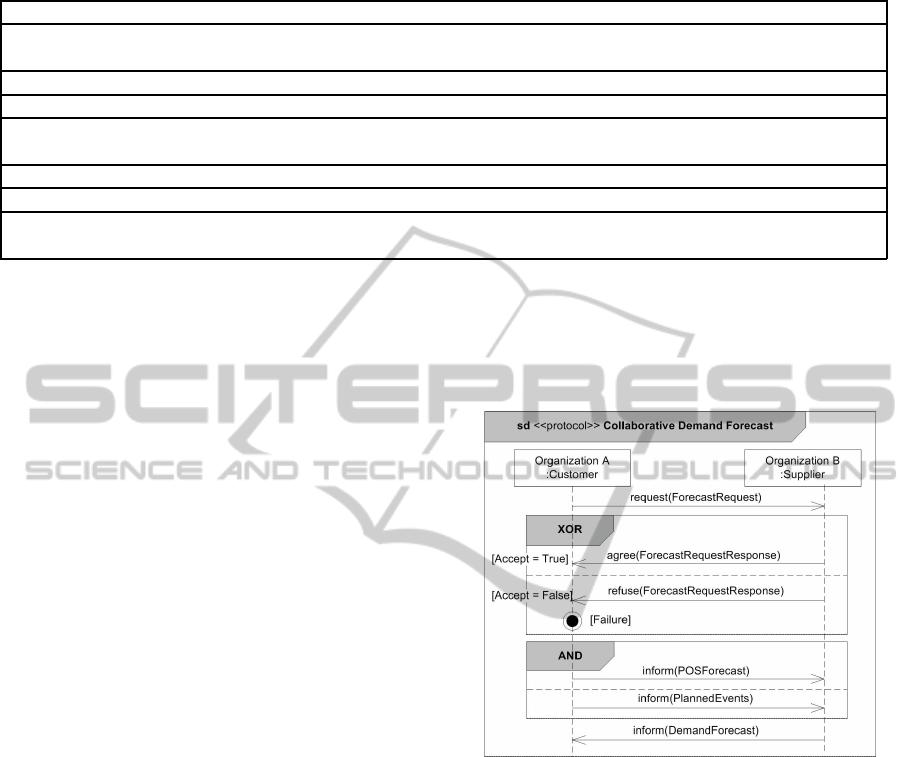

As an example, Figure 1 presents the Collabora-

tive Demand Forecast interaction protocol, which de-

scribes a CBP of a Vendor-Managed Inventory collab-

orative model. This protocol represents a simple ne-

gotiation process between a customer and a supplier

to determine a demand forecast. The process begins

with the customer, who requests a collaborative de-

mand forecast to the supplier.

The generated request message conveyed the data

to be considered in the forecast (e.g. products, time-

frame). The supplier processes the request and may

respond by accepting or rejecting it. In case it is ac-

cepted, the supplier undertakes to realize the required

forecast; otherwise, the process ﬁnalizes with a fail-

ure. If the supplier accepts the request, the customer

informs, in parallel, a sales forecast of points of sales

(POS) and planned sales policies. With this infor-

mation, the supplier generates a demand forecast and

sends it to the customer. Then, the process ﬁnishes.

Figure 1: Collaborative Demand Forecast protocol.

3 PROCESS PATTERNS FOR

DESIGNING INTEGRATION

PROCESSES

An integration process model deﬁnes the particular

view of an organization participating in a CBP, and

contains the public and private logic and activities.

Public activities are those that support the exchange

of messages with other organizations. Private activ-

ities comprise data transformations and/or activities

executed either by internal information systems or by

human beings.

In order to facilitate the design task of integra-

tion processes, process patterns can be used. Pro-

cess patterns are behavioral and functional patterns

intended to increase process model quality (Eriksson

AN MDA-BASED METHOD FOR DESIGNING INTEGRATION PROCESS MODELS IN B2B COLLABORATIONS

and Penker, 2000). A pattern is a generalized solution

that can be implemented and applied in a given con-

text in order to resolve a recurrent problem. The use

of process patterns facilitates the design of process

models, reduces process modeling time and cost, and

encourages the reuse of (fragment of) process model

(Gschwind et al., 2008).

In this work, we use the process patterns proposed

in (Thom et al., 2009) and called Workﬂow Activ-

ity Patterns for supporting cross-organizational busi-

ness message exchange and ensuring interoperability

in the message exchange.

A Workﬂow Activity Pattern (activity pattern for

short) refers to the description of a recurrent business

function (e.g., notiﬁcation, task execution request)

as it can be frequently found in business processes

(Thom et al., 2009). Seven activity patterns were

identiﬁed based on an extensive literature study about

business process types. These activity patterns are:

Approval, Question-answer, Uni- / Bi-directional Per-

formative, Information Request, Notiﬁcation, and De-

cision Making. This pattern set is close to the vocabu-

lary and abstraction level at which business processes

are usually described by domain experts. This fosters

pattern reuse when modeling business processes and

therefore contributes to more standardized and bet-

ter comparable business process models (Thom et al.,

2009). The frequency of co-occurring activity pat-

terns in real world process models was also studied

(Lau et al., 2009).

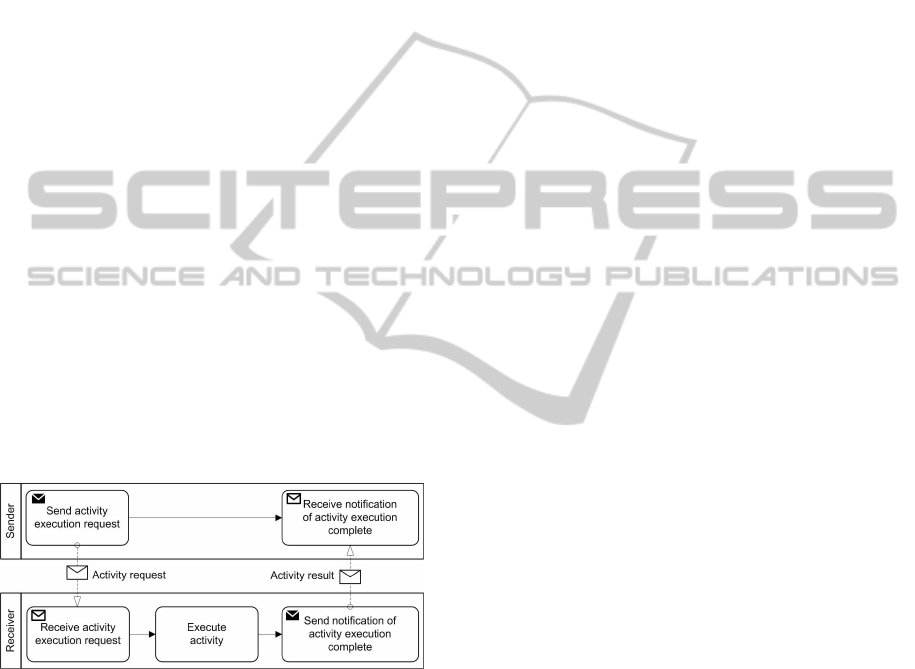

Figure 2: Bi-Directional Performative (Single-Request-

Response variant) illustrated with the BPMN language.

A sample of activity pattern used in this work is

Bi-Directional Performative (see Figure 2): A sender

requests the execution of a particular activity from an-

other role (e.g. a human or a software agent) involved

in the process. The sender waits until the receiver

notiﬁes him that the requested activity has been per-

formed.

The complete set of activity patterns can be found

in (Thom et al., 2009).

4 AN MDA-BASED METHOD FOR

GENERATING INTEGRATION

PROCESS MODELS

To automate the design of integration process mod-

els we propose a method that applies the principles of

the Model-DrivenArchitecture (MDA) (OMG, 2003).

MDA is an approach to system development, which

separates the views of a system on different abstrac-

tion levelsor layers: Computation IndependentModel

(CIM), Platform Independent Model (PIM), and Plat-

form Speciﬁc Model (PSM). In MDA, the models are

primary artifacts in thesoftware developmentprocess.

This is accomplished through a series of transforma-

tions between models speciﬁed in the same abstrac-

tion level (horizontal transformations) or different ab-

straction levels (vertical transformations).

The proposed MDA-based method focuses on

horizontal transformations between business process

models at a PIM level. This method takes as in-

put a CBP model and generates as output an inte-

gration process model of one organization, accord-

ing to the role the organization fulﬁlls in the CBP

model. The integration process of the other organi-

zations involved in the CBP are not generated so that

each organization can focus on its own integration

process model. The input model is deﬁned with the

UP-ColBPIP language, and the output model is de-

ﬁned with the BPMN language. These languages al-

low representing platform-independent process mod-

els at a high level of abstraction.

The transformation process consists in analyzing

each element of a interaction protocol from the view-

point of a selected protocol role, and generating pub-

lic/private logic and activities in the target integra-

tion process model by applying transformation rules.

The input of a rule is a protocol element. The out-

put of a rule is a predeﬁned BPMN pattern that ex-

presses the semantics of a protocol element in terms

of the elements and semantics provided by BPMN.

For transforming business messages, BPMN patterns

were deﬁned according with the Activity Patterns in

order to generate the activities required by an organi-

zation to support the exchange of business messages.

For the other protocol elements, such as control ﬂow

segments, protocol reference and termination, BPMN

patterns were also deﬁned to generate the control ﬂow

and elements required by an integration process to be

consistent with its corresponding CBP.

The transformation process of an interaction pro-

tocol into an integration process model takes into ac-

count the following actions:

1. The lifeline of the selected role of the source inter-

action protocol is analyzed and a BPMN diagram

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

is generated, which represents the integration pro-

cess of the organization that performs such role in

the CBP.

2. The BPMN diagram is built through the composi-

tion of the predeﬁned BPMN patterns by applying

model transformation rules.

3. For each protocol element there is a rule that

transforms such element into the corresponding

BPMN element/s in a BPMN diagram, accord-

ing with an output BPMN pattern associated to

the rule.

The generated integration process model contains:

public activities that enable to an organization to send

or receive business messages deﬁned in an interac-

tion protocol, private activities that enable the orga-

nization to process or generate the information to be

exchanged, and the control ﬂow that enables the orga-

nization to carry out the routing of business messages

as it was deﬁned in the interaction protocol.

Private activities are deﬁned in a coarse-grained

way, and therefore they may be reﬁned by business

analysts in order to deﬁne how they would be carried

out in a particular organization. Public activities and

the control ﬂow must remain inalterable in order to

preserve the consistency between the interaction pro-

tocol and the integration processes, and the interoper-

ability among the integration processes of the organi-

zations involved in the interaction protocol.

To deﬁne the transformation rules that generate

the activities for the exchange of business messages,

the correspondence between speech acts and activity

patterns was obtained analyzing the semantics of both

and identifying the similarity between them. The se-

mantics of speech acts used by the UP-ColBPIP lan-

guage is essential to identify activity patterns for gen-

erating the public and private activities of an integra-

tion process model. Process languages such as BPMN

do not provide semantics to cross-organizationalbusi-

ness messages. For this another reason the UP-

ColBPIP language is used for modeling CBPs.

4.1 Transformation Rules for Business

Messages

Each transformation rule has two output BPMN pat-

terns, one to be applied in case of the generation of

the integration process of the role that is the sender of

the business message, and another one to be applied

in case of the generation of the process of the role

that is the receiver of the business message. The ﬁrst

pattern contains all the activities corresponding to the

sender role of the activity pattern used in the rule. The

second pattern contains all activities corresponding to

the receiver role of the activity pattern used.

All activities of the BPMN patterns of the rules are

labeled with the verb-object style, which is consid-

ered less ambiguous and more useful by model users

(Mendling et al., 2010).

In a BPMN pattern, a public activity that enables

an organization to send a business message is deﬁned

as a Send Task, which is a task type that represents

the sending of a message to an external participant

(OMG, 2010). A public activity that enables an or-

ganization to receive a business message is deﬁned as

a Receive Task, which is a task type that waits for a

message to arrive from an external participant (OMG,

2010). Both Send Task and Receive Task types have

an associated Message, which represents the content

of a communication between two participants (OMG,

2010). A message in a BPMN pattern represents

the business document (BD) exchanged in a business

message of a protocol.

Private activities generated by the output of the

rule are deﬁned as Abstract Task type (OMG, 2010).

Then, business analysts, who know the structure and

operation of organizations, should indicate the be-

havior that these activities might represent: Service,

User, Manual, Script, or Business Rule.

Following we describe each transformation rule

for the business messages indicating the activity pat-

tern used and providing the corresponding BPMN

patterns to be used for the sender of the message and

the receiver of the message. Table 2 shows graphi-

cally some transformationrules of business messages.

• Rule Accept-Proposal: is applied for each busi-

ness message with the accept-proposal speech

act. This is based on the Notiﬁcation pattern,

which allows the sender to notify the acceptance

of a previously submitted proposal. The reason of

the acceptance is communicated in the BD.

– Sender: for the role sending the message, a

send task is added and labeled as Send +

accept-proposal + BD name.

– Receiver: for the role receiving the message, a

receive task is added and labeled as Receive +

accept-proposal + BD name.

• Rule Agree (see Table 2.a): it is applied for each

business message with the agree speech act. This

is based on the Notiﬁcation pattern, which allows

the sender to notify the acceptance of a previously

submitted request to perform some action. The

reason of the acceptance is communicated in the

BD.

– Sender: a send task is added and labeled as

Send + agree + BD name.

AN MDA-BASED METHOD FOR DESIGNING INTEGRATION PROCESS MODELS IN B2B COLLABORATIONS

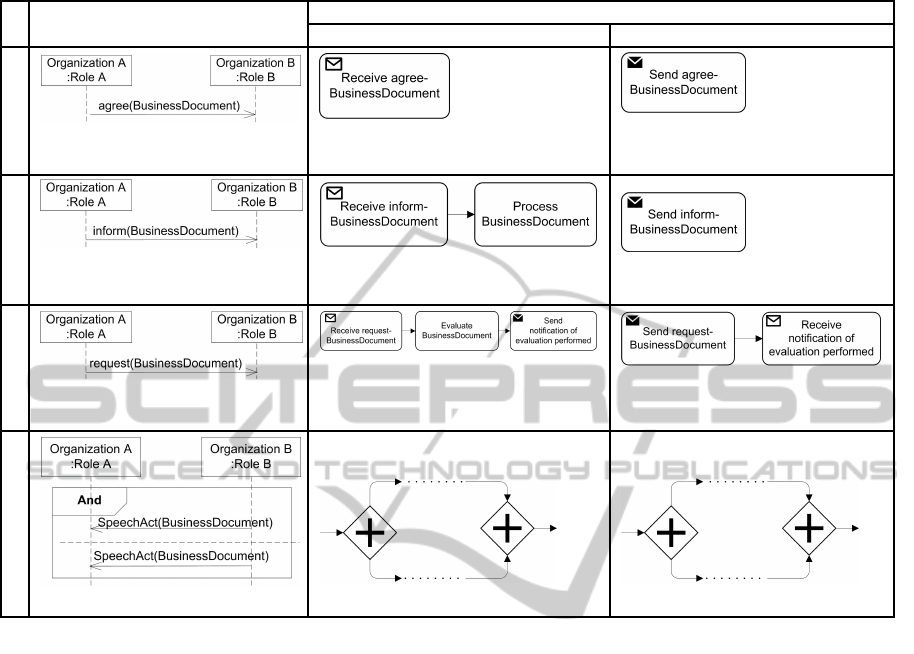

Table 2: BPMN patterns of transformation rules for some elements of the UP-ColBPIP language.

Input patterns (UP-ColBPIP)

Output patterns (BPMN)

Receiver role Sender role

Business message with the

agree speech act.

Notiﬁcation pattern (Receiver

role).

Notiﬁcation pattern (Sender

role).

Business message with the in-

form speech act.

Unidirectional Performative pat-

tern (Receiver role).

Unidirectional Performative pat-

tern (Sender role).

Business message with the re-

quest speech act.

Bi-directional Performativepattern

(Receiver role).

Bi-directional Performative pat-

tern (Sender role).

CFS with the And operator.

– Receiver: a receive task is added and labeled as

Receive + agree + BD name.

• Rule Call-for-Proposal: it is applied for each

business message with the call-for-proposal

speech act. This is based on the Bi-directional

Performative pattern, which allows the sender to

request the receiver generates a proposal to per-

form some action. The sender waits until the re-

ceiver notiﬁes him about completion of the re-

quested activity.

– Sender: two tasks are added; a send task, which

is labeled as Send + call-for-proposal + BD

name, and a receive task which is labeled as

Receive + notiﬁcation of evaluation performed.

– Receiver: three tasks are added; a receive task

which is labeled as Receive + call-for-proposal

+ BD name, an abstract task which is labeled

as evaluate + BD name, and a send task which

is labeled as Send + notiﬁcation of evaluation

performed.

• Rule Inform (see Table 2.b): it is applied for each

business message with the inform speech act. This

is based on the Unidirectional Performative pat-

tern, which allows the sender to inform about

a particular BD so that the receiver may have

knowledge of the information contained in such

BD.

– Sender: a send task is added and is labeled as

Send + inform + BD name.

– Receiver: two tasks are added: a receive task

which is labeled as Receive + inform + BD

name, and an abstract task which is labeled as

evaluate + BD name.

• Rule Propose: it is applied for each business mes-

sage with the propose speech act. This is based

on the Bi-directional Performative pattern, which

allows the sender to propose the receiver to per-

form a certain action. The sender waits until the

receiver notiﬁes him about completion of the re-

quested activity.

– Sender: two tasks are added; a send task which

is labeled as Send + propose + BD name, and a

receive task which is labeled as Receive + noti-

ﬁcation of evaluation performed.

– Receiver: three tasks are added; a receive task

which is labeled as Receive + propose + BD

name, an abstract task which is labeled as eval-

uate + BD name, and a send task which is la-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

beled as Send + notiﬁcation of evaluation per-

formed.

• Rule Refuse: it is applied for each business mes-

sage with the refuse speech act. This is based on

the Notiﬁcation pattern, which allows the sender

to notify the refusal of the previously submitted

request to perform some action. The reason for

the refusal is communicated in the BD.

– Sender: a send task is added and labeled as

Send + refuse + BD name.

– Receiver: a receive task is added and labeled as

Receive + refuse + BD name.

• Rule Reject-Proposal: it is applied for each busi-

ness message with the reject-proposal speech act.

This is based on the Notiﬁcation pattern, which al-

lows the sender to notify the rejection of the pre-

viously submitted proposal. The reason for the

rejection is communicated in the BD.

– Sender: a send task is added and labeled as

Send + reject-proposal + BD name.

– Receiver: a receive task is added and labeled as

Receive + reject-proposal + BD name.

• Rule Request (see Table 2.c): it is applied for

each business message with the request speech

act. This is based on the Bi-directional Perfor-

mative pattern, which allows the sender to request

the receiver to perform some action. The sender

waits until the receiver notiﬁes him that the re-

quested activity has been performed.

– Sender: two tasks are added; a send task which

is labeled as Send + request + BD name, and a

receive task which is labeled as Receive + noti-

ﬁcation of evaluation performed.

– Receiver: three tasks are added; a receive task

which is labeled as Receive + request + BD

name, an abstract task which is labeled as eval-

uate + BD name, and a send task which is la-

beled as Send + notiﬁcation of evaluation per-

formed.

4.2 Transformation Rules for the

Remaining Protocol Elements

To carry out the transformation of the remaining pro-

tocol elements, such as control ﬂow segments (CFS),

protocol reference and termination event, we propose

a set of predeﬁned BPMN patterns that represents the

semantics of a protocol element in terms of the el-

ements and semantics provided by BPMN language

from the viewpoint of a role. Due to UP-ColBPIP is a

block-structured language, BPMN patterns for trans-

forming CFSs are deﬁned in a structured way. Table

2 shows graphically some transformation rules.

• Rule Start: a None Start Event is added to repre-

sent the start of an integration process.

• Rule And (see Table 2.d): a CFS And is mapped

into a Parallel Gateway with a gate for each inter-

action path. A synchronizing Parallel Gateway is

added to synchronize each path. Paths that have a

termination event are not synchronized.

• Rule Xor: A CFS Xor (either data-based or event-

based) is mapped into an Event-Based Gateway if

the role receives messages, or it is mapped into

an Exclusive Gateway if the role sends messages

in the interaction paths. One gate per interaction

path is added. A converging Exclusive Gateway

is added to merge each path. Paths that have a

termination event are not merged.

• Rule Or: a CFS Or is mapped into an Inclusive

Gateway with a gate for each interaction path.

A converging Inclusive Gateway is added to syn-

chronize each path. Paths that have a termination

event are not synchronized.

• Rule Loop: for each CFS with the Loop operator,

an expanded Sub-Process with a Loop Marker is

created. The transformation depends on the Loop

type. (1) For a ”while loop” whose condition is

[(0,n), Var1=True], the LoopCondition attribute

with the var1=True value, the loopMaximum at-

tribute with the n value, and the testBefore at-

tribute with the true value are settled in the ex-

panded Sub-Process. (2) For a ”repeat until loop”

whose condition is [(1, n), Var1=True], the Loop-

Condition attribute with the not var1 value, the

loopMaximum attribute with the n value, and the

testBefore attribute with the false value are settled

in the expanded Sub-Process.

• Rule Cancel: a CFS Cancel is mapped into an

expanded Sub-Process. This Sub-Process is trig-

gered by a Timer Intermediate Event if the inter-

action path of the CFS handles a time constraint,

or by a Conditional Intermediate Event for excep-

tions related to the protocol logic. The outgoing

Sequence Flow of this Sub-Process is connected

to a Terminate End Event.

• Rule Ref: for each protocol reference, a Call Ac-

tivity is created to refer to a process deﬁned in an-

other BPMN diagram. The name of the Call Ac-

tivity is the same as the protocol it refers to.

• Rule Explicit-End: for each termination event in a

protocol, a Terminate End Event labeled Success

or Failure is added to the BPMN diagram. If this

AN MDA-BASED METHOD FOR DESIGNING INTEGRATION PROCESS MODELS IN B2B COLLABORATIONS

event is in an expanded Sub-Process, it is mod-

eled by a Signal End Event. Then, a Signal In-

termediate Event is attached to the Sub-Process to

catch the signal. The outgoing Sequence Flow of

this event is connected to a Terminate End Event.

This ensures the protocol execution ends when the

Sub-Process returns the control to the main pro-

cess.

• Rule Implicit-End: A None End Event is added to

BPMN diagram to represent the implicit termina-

tion of a protocol.

4.3 Eclipse-based IDE to Support the

MDA-based Method

In order to implement the proposed MDA-based

method we use the extended IDE proposedin (Lazarte

et al., 2010) to support the model-driven develop-

ment methodology for B2B collaborations. This IDE

is based on the Eclipse open development platform

(Eclipse, 2004) in order to take advantage of a well-

known development environment and the Eclipse

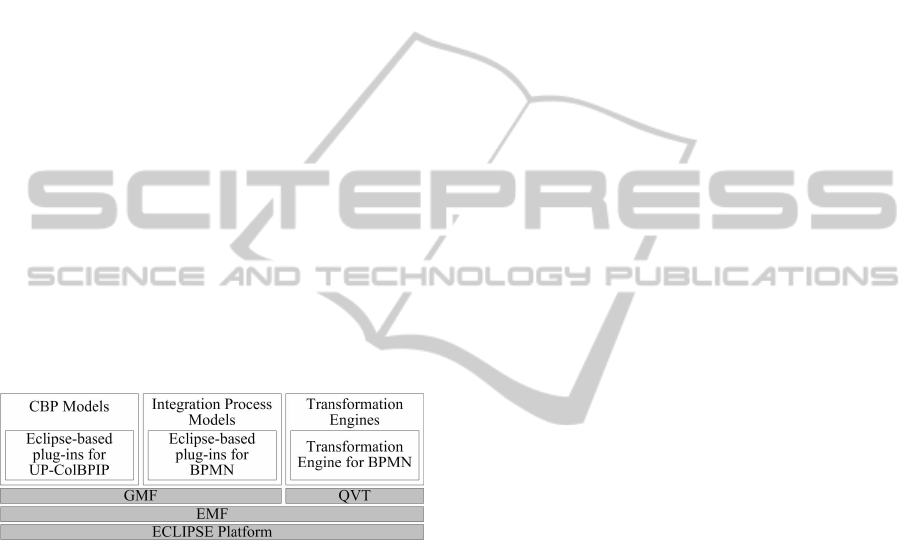

platform extension mechanisms. Figure 3 shows a

view of the architecture of the Eclipse-based IDE for

supporting the proposed MDA-based method.

Figure 3: Architecture of the Eclipse-based IDE.

The transformation engine for BPMN interprets

and executes the transformation deﬁnition, which

uses a UP-ColBPIP meta-model as the source meta-

model and a BPMN meta-model as the target meta-

model. Both meta-models are implemented with

EMF (Eclipse, 2004).

Transformation rules required for the transforma-

tion deﬁnition and described in sections 4 are spec-

iﬁed with QVT (OMG, 2011), which is a standard

language for model transformations. These rules are

implemented with the QVT Operational component

(Eclipse, 2004) of Eclipse.

5 A CASE STUDY EXAMPLE

The Collaborative Demand Forecast interaction pro-

tocol described in section 2 is used for exempli-

fying the model transformation process aforemen-

tioned. Due to space limitations, the model transfor-

mation process is described only from the viewpoint

of the supplier, and therefore all business message are

analyzed from this viewpoint.

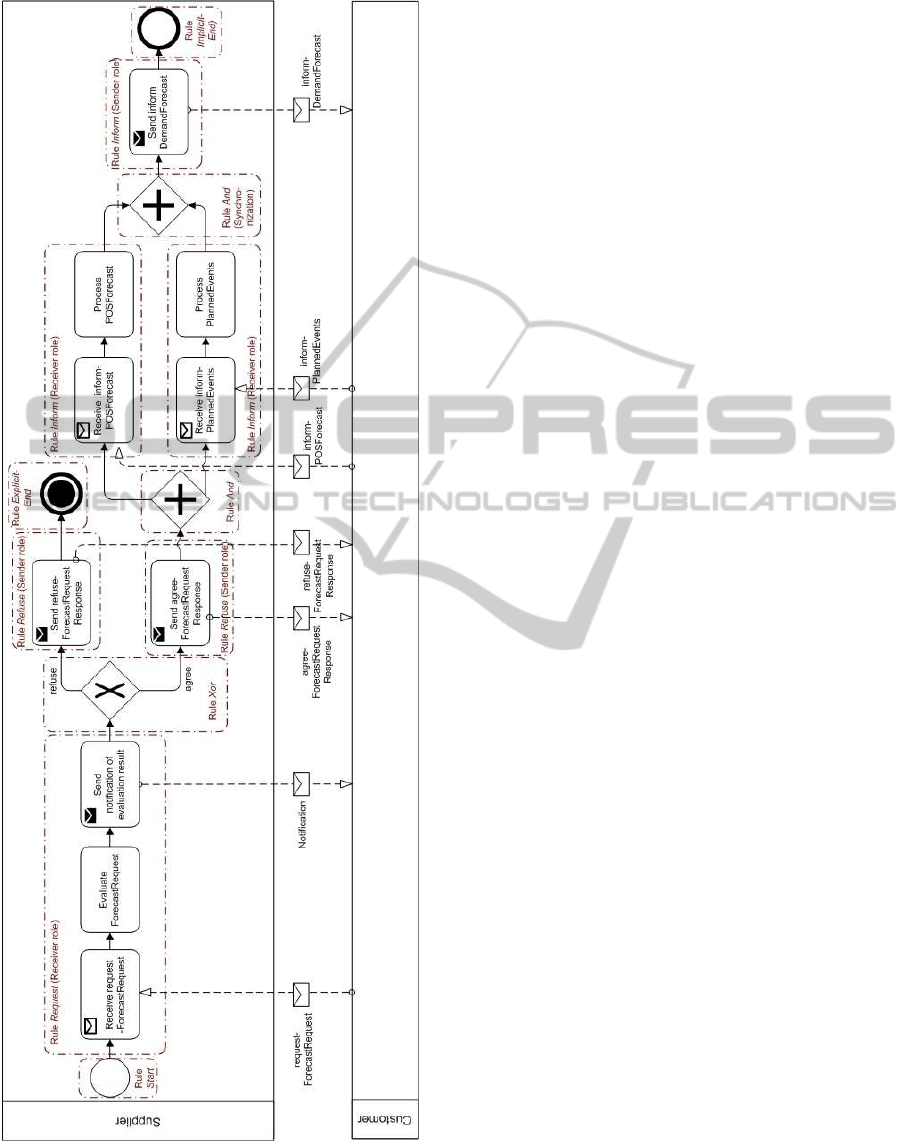

Figure 4 shows the BPMN diagram of the sup-

plier’s integration process model generated by the

transformation process. The applied transformation

rules are indicated in the diagram.

A None Start Event was added to represent the

start of the integration process (rule Start). The

ﬁrst protocol element is the request(ForecastRequest)

business message, which is received by the supplier.

The request message is transformed by applying the

rule Request. This rule adds the activities that enables

the supplier to receive and evaluate the request, and

then send a notiﬁcation of the evaluation performed.

The second protocol element is the CFS with the

Xor operator with two alternative paths. This element

is transformed by applying the rule Xor. This rule

adds an Exclusive Gateway with two gates, one for

each interaction path. Then, each path is analyzed to

determine the rule to be used in the transformation.

After the reception of a request, the supplier

has to respond to the customer with an agree-

ment or refusal throughout the corresponding busi-

ness message: agree(ForecastRequestResponse) and

refuse(ForecastRequestResponse), respectively. The

agree message is transformed by applying the rule

Agree to enable the supplier to notify to the customer

the reason of such decision. The rule Refuse is ap-

plied to notify the refusal. In this case, after the refuse

message is sent, the process ﬁnalizes as it is indicated

by the explicit termination element. This element is

transformed by the rule Explicit-End, which adds a

Terminate End Event labeled Failure. Because one

path has an explicit termination, the two gates are not

synchronized and the transformation continues along

the path which does not have the explicit termination.

The next protocol element is the CFS with the And

operator, which represents the parallel execution of

two paths. This element is transformed by the rule

And, which is mapped into a Parallel Gateway with a

gate for each interaction path.

The ﬁrst path contains the inform(POSForecast)

business message that is received by the supplier. The

inform message is transformed by the rule Inform that

generates the tasks that enable the supplier to receive

the business message and then to process the informa-

tion received within the document from the customer.

The second path contains the inform(PlannedEvents)

business message also received by the supplier. This

message is also transformed by applying the rule In-

form. Both paths are synchronized by a synchronizing

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Figure 4: Supplier’s integration process model.

Parallel Gateway (see rule And).

Following, the inform(DemandForecast) message

sent by the supplier is transformed by the rule Inform,

which generates the task that enables the supplier to

send the DemandForecast document so that the cus-

tomer can have knowledge about this document. Fi-

nally, the implicit termination of the protocol is mod-

eled with a None End Event (rule Implicit-End).

6 RELATED WORK

The modeling of CBPs has been a subject of intensive

research. However, this did not occur with the mod-

eling of the business processes required to execute

CBPs. In (Hofreiter, 2009), an approach for modeling

local choreographies is proposed. This approach pro-

vides a UML Proﬁle which extends the UN/CEFACT

Modeling Methodology (UMM) and enables organi-

zations to model their local choreography in align-

ment with the global choreography deﬁned in UMM

models. However, it is not based on a model-driven

approach and does not provide mechanisms to iden-

tify private activities that should be added to a local

choreography. Instead, in the present work we pro-

pose an MDA-based approach that uses speech acts

to identify and automatically generate these activities.

Also, we use the standard BPMN language instead of

a particular one.

In (Zaha et al., 2006), an algorithm for gener-

ating service local models from a service choreog-

raphy model is proposed in order to provide a lo-

cal view of each organization that participates in the

choreography. Such work focuses on process models

based on service interactions. Instead, we focus on

independent-platform process models.

In (Gschwind et al., 2008), an extension of a busi-

ness process modeling tool with basic workﬂow pat-

terns is proposed. This modeling tool provides to the

users the support to select patterns that are applica-

ble in some user-determined context. However, it is

not applied in the context of B2B collaborations and

only focuses on the basic workﬂow patterns for con-

trol ﬂow. Instead, in this work we provide support for

modeling business process in a B2B context. In addi-

tion, do not only use control ﬂow patterns but also use

activity patterns, which are suited for deﬁning busi-

ness processes from a variety of application domains.

AN MDA-BASED METHOD FOR DESIGNING INTEGRATION PROCESS MODELS IN B2B COLLABORATIONS

7 CONCLUSIONS AND FUTURE

WORK

In this work we have proposed an MDA-based

method for the automatic generation of the integra-

tion process model of an organization from a CBP

model. This method allows organizations to gener-

ate integration processes which are interoperable as

well as consistent with the global logic agreed on the

CBPs. Consistence is guaranteed since the integration

process models of the organizations are derived from

CBP models by applying a top-down model-to-model

transformation process. In addition, interoperability

is achieved by applying activity patterns that guaran-

tee the synchronization between the generated public

activities of the integration process models.

The method enables to transform CBP models de-

ﬁned with the UP-ColBPIP language. This language

uses interaction protocols to represent the behavior of

technology-independentCBPs. The use of interaction

protocols supports the main features of B2B collabo-

rations: global view of the B2B interactions, organi-

zation autonomy, decentralized management, peer-to-

peer interactions and representation of complex ne-

gotiations. Also, the use of speech acts in interac-

tion protocols provides semantics to business mes-

sages deﬁned in CBP models. This semantics enables

the common understanding of the meaning of B2B in-

teractions of a CBP model. Furthermore, this seman-

tics enables the identiﬁcation and application of the

activity patterns for generating the public and private

activities of integration process models.

The method allows generating integration process

models deﬁned with the BPMN language. This pro-

vides process models deﬁned at a high level of ab-

straction and in a platform-independent way. This

also enables the communication among stakeholders

and their implementation in different platforms. Thus,

organizations can understand and focus on the busi-

ness requirements to fulﬁll the role they perform in

CBPs.

Activitypatterns are used in the proposed transfor-

mation process to generate the public and private ac-

tivities required in the integration processes to support

cross-organizational message exchanges. The use of

activity patterns brings several beneﬁts for designing

integration process models: automate and facilitate

the design of process models, reduce process model-

ing time and cost, improve process model quality, and

enable the reuse of the process knowledge captured

in them to generate the public and private activities.

Also, the use of activity patterns ensures the interop-

erability in the message exchange between integration

processes by providing a synchronization among the

receiving activities and the sending activities gener-

ated in the processes.

Finally, the proposed MDA-based method shows

that a direct mapping can be applied to generate a

BPMN diagram of the integration processes of an or-

ganization from a CBP model represented as interac-

tion protocol. No intervention is required by a mod-

eler. For each protocol element, a BPMN pattern is

provided to generate its behavior from the viewpoint

of the role an organization performs in the protocol.

Future work is about the identiﬁcation of process

model fragments that enable the business analysts to

reﬁne private activities in order to obtain ﬁne-grained

models.

REFERENCES

Bauer, B., Roser, S., and M¨uller, J. (2005). Adaptive de-

sign of cross-organizational business processes using

a model-driven architecture. In Wirtschaftsinformatik

2005, pages 103–121. Springer.

Eclipse (2004). Eclipse Platform. http://www.eclipse.org.

Eriksson, H.-E. and Penker, M. (2000). Business Modeling

With UML: Business Patterns at Work. John Wiley &

Sons, Inc.

FIPA (2002). Communicative Act Library Speciﬁcation.

http://www.ﬁpa.org/specs/ﬁpa00037/SC00037J.html.

Gschwind, T., Koehler, J., and Wong, J. (2008). Applying

patterns during business process modeling. In Proc. of

BPM, volume 5240 of LNCS, pages 4–19. Springer.

Hofreiter, B. (2009). Extending un/cefact’s modeling

methodology by a uml proﬁle for local choreogra-

phies. Inf Syst E-Bus Manage, 7(2):251–271.

Lau, J., Iochpe, C., Thom, L., and Reichert, M. (2009).

Discovery and Analysis of Activity Pattern Cooccur-

rences in Business Process Models. Proc. of ICEIS,

pages 83–88.

Lazarte, I. M., Tello-Leal, E., Roa, J., Chiotti, O., and

Villarreal, P. D. (2010). Model-Driven Development

Methodology for B2B Collaborations. In Proc. of

EDOCW, pages 69–78. IEEE Computer Society.

Mendling, J., Reijers, H., and Recker, J. (2010). Activity

labeling in process modeling: empirical insights and

recommendations. Inform. Syst., 35(4):467–482.

OMG (2003). Model Driven Architecture Guide, V.1.0.1.

http://www.omg.org/cgi-bin/doc?omg/03-06-01.pdf.

OMG (2010). Business Process Model and Notation, V. 2.0.

http://www.omg.org/spec/BPMN/2.0/Beta2.

OMG (2011). Query/View/Transformation Speciﬁcation,

V.1.1. http://www.omg.org/spec/QVT/1.1.

Roser, S. and Bauer, B. (2005). A categorization of collabo-

rative business process modeling techniques. In Proc.

of CECW, pages 43–51. IEEE Computer Society.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Thom, L., Reichert, M., and Iochpe, C. (2009). Activity

patterns in process-aware information systems: ba-

sic concepts and empirical evidence. In IJBPIM, vol-

ume 4, pages 93–110. Inderscience.

Villarreal, P. D., Lazarte, I. M., Roa, J., and Chiotti, O.

(2010). A Modeling Approach for Collaborative Busi-

ness Processes Based on the UP-ColBPIP Language.

In BPM Workshops, volume 43 of LNBIP, pages 318–

329. Springer.

Villarreal, P. D., Salomone, E., and Chiotti, O. (2007). En-

terprise modeling and computing with UML, chapter

Modeling and speciﬁcations of collaborative business

processes using a MDA approach and a UML proﬁle,

pages 13–45. Idea Group Inc.

Weske, M. (2007). Business Process Management: Con-

cepts, Languages, Architectures. Springer-Verlag.

Zaha, J. M., Dumas, M., ter Hofstede, A., Barros, A., and

Decker, G. (2006). Service Interaction Modeling:

Bridging Global and Local Views. In Proc. of EDOC,

pages 45–55. IEEE Computer Society.

AN MDA-BASED METHOD FOR DESIGNING INTEGRATION PROCESS MODELS IN B2B COLLABORATIONS
