SEMANTICALLY RICH API FOR IN-DATABASE DATA

MANIPULATION IN MAIN-MEMORY ERP SYSTEMS

Vadym Borovskiy, Christian Schwarz, Alexander Zeier

Hasso-Plattner-Institute, Potsdam, Germany

Wolfgang Koch

SAP AG, Walldorf, Germany

Keywords:

Business object query language, Business object virtualization, ERP data manipulation API, Main-memory

ERP systems.

Abstract:

Assuming the feasibility of main-memory database management systems, the current research aims at de-

signing a new type of data manipulation API, called Business Object Query Language (BOQL), speciﬁcally

tailored for in-database data manipulation in main-memory ERP systems. The paper contributes the concept

of business object virtualization and describes a query processor that takes advantage of this concept. The ﬁrst

serves as a means of grouping raw memory-resident data into high-level data structures, while the second ex-

poses a ﬂexible query-like API to manipulate the high-level data structures. Special effort has been dedicated

to integrating the API into C++ programming language.

1 INTRODUCTION

Enterprise resource planning (ERP) systems fully de-

pend on database management systems (DBMSs) in

data manipulation tasks. Such a dependency makes

ERP systems very sensitive to changes in DBMSs.

Because the popular DBMSs were architectured more

than 25 years ago for much different hardware than

today, their capabilities are far below the level that is

achievable with the state of the art hardware (Stone-

braker et al., 2007). In particular, the availabil-

ity of very large and relatively inexpensive memory

made possible keeping enterprise-scale data volumes

in main memory. Motivated by this opportunity, a

number of researches proposed a new design of a

DBMS optimized for permanent main memory data

residence (Manegold et al., 2000), (Kallman et al.,

2008), (Legler et al., 2006). Experiments conducted

on a number of different prototypes illustrating the

new design showed its remarkable performance ad-

vantage (up to two orders of magnitude) over the con-

ventional DBMSs on benchmark workload.

This fact opens a new horizon in ERP systems de-

velopment: having orders of magnitude performance

advantage for in-database operations allows shifting

part of business logic from an application server down

to the database layer. Getting business logic executed

directly inside the database process eliminates expen-

sive data transfers between the application server and

the database, removes the need for application-server-

side cache and allows performing operations other

than declarative SQL data manipulation.

Unfortunately, deploying business logic code in-

side the database is not that easy because of the

mismatch in semantics of the application and the

database’s data models. That is, business logic

accesses ERP data via a semantically rich object-

oriented application programming interface (API),

whereas a DBMS is capable of exposing only plain

relations via semantic-free (generic) SQL. Resolving

this mismatch is one of the major milestones on the

way towards shifting business logic from application

servers to the database.

The main goal of the current research is to lever-

age the fact of having all database objects perma-

nently living in main memory in order to provide

more efﬁcient data manipulation API that ERP sys-

tems can employ while executing in-database busi-

ness logic operations. In particular, in this paper we

present the design and prototype of a semantically

rich API for in-database data manipulation for ERP

systems. The following three points constitute the

contribution of the paper:

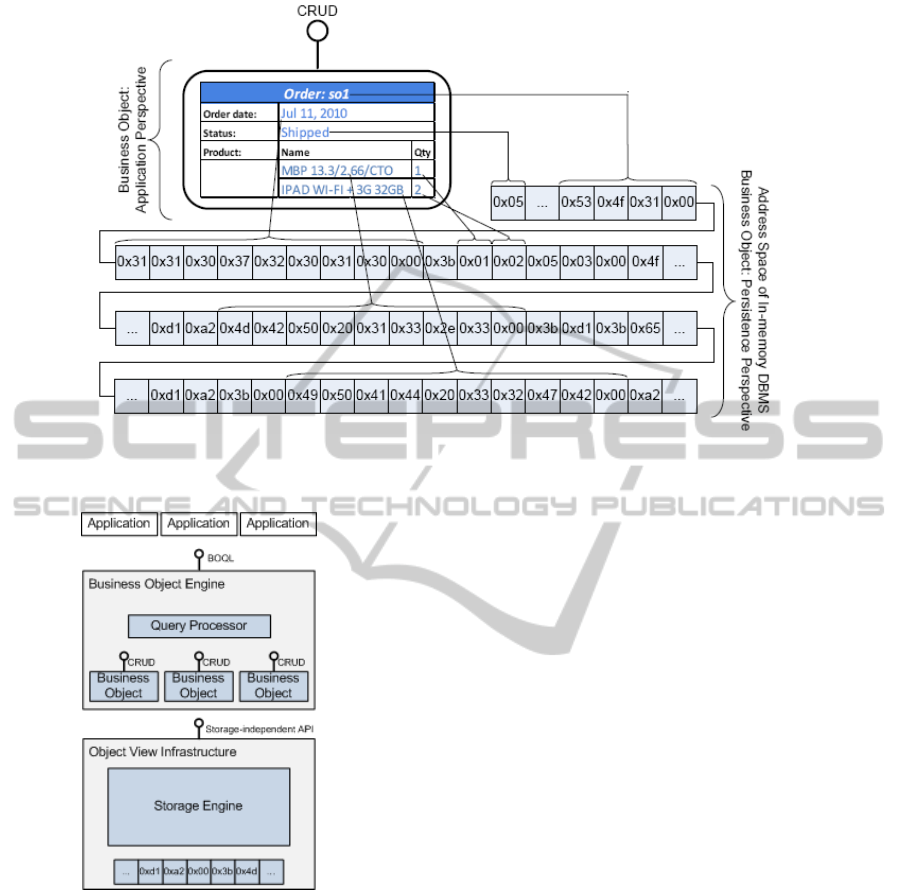

• virtualization of business objects - the way of re-

solving high-level business object data model into

the primitives of the storage engine;

253

Borovskiy V., Schwarz C., Zeier A. and Koch W..

SEMANTICALLY RICH API FOR IN-DATABASE DATA MANIPULATION IN MAIN-MEMORY ERP SYSTEMS.

DOI: 10.5220/0003503502530260

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 253-260

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

• business object query language (BOQL);

• integration of BOQL into an object-oriented pro-

gramming language.

A signiﬁcant part of the work has been dedicated

to demonstrating the feasibility of BOQL, which pro-

vides a basis for a larger and more careful effort, in-

cluding the in-depth development and analysis of for-

malism for BOQL (i.e. optimization algorithms).

2 RELATED WORK

In this section we brieﬂy review the most important

APIs that to our knowledge are used in different state-

of-the-art ERP systems.

A straightforward approach to data manipulation

is to use standard SQL. Since modern ERP systems

rely on relational databases, SQL statements can be

issued directly against the database tables in order to

operate on data. Although feasible, this approach is

unlikely to satisfy the requirements stated above. The

problem with standard SQL is that it violates the data

encapsulation principle. It exposes too much control

over the underlying database and increases the risk of

corrupting data in the system. An ERP system is not

only data, but also a set of business rules that apply

to the data. Generally, these rules are not a part of

the system’s database. Direct SQL access to the data

circumvents the rules and violates data integrity. An-

other disadvantage of SQL as API is the need for so

called ”glue code“: in order to manipulate data with

SQL from an application the later must use a data

provider (e.g. OBDC, ADO.NET, JDBC and etc.).

This hinders the usability.

To increase the productivity of the previous ap-

proach and allow direct consumption of data from

object-oriented programs, storage layers provide ob-

ject views on existing relational databases. The views

are implemented on top of particular DBMSs to map

persistent database relations to object models of ap-

plications. This approach has received the name of

object-relational mapping (ORM) and is even more

attractive with object-relational DBMSs, which sup-

port more of the desired object functionality in the

database engine itself (Bernstein et al., 1999). The

advantage of ORM is having data objects as ﬁrst-class

citizens of a programming language. This simpliﬁes

coding and increases application developers’ produc-

tivity. A number of ORM generators can be used to

alleviate the tedious development of mappings. Some

development platforms even include such generators

into their toolboxes. For example, the Enterprise

JavaBeans speciﬁcation offers two alternatives for

deﬁning the data access code of entity beans: Bean-

Managed Persistence (BMP) and Container-Managed

Persistence (CMP). In the latter case a correspond-

ing mapping is generated automatically by the bean’s

container. The main disadvantage of mapping is low

performance. Application object models are inher-

ently navigational (Bernstein et al., 1999). That is, ob-

jects have references or relationships to other objects,

which applications follow one at a time. Each access

to a relationship entails a round-trip to the DBMS,

which hinders the performance.

An alternative to SQL is data as a service ap-

proach. In this case a system exposes a number of

Web services with strongly-typed interfaces operating

on data. By calling these services application devel-

opers perform required data manipulation. This ap-

proach has an advantage of hiding internal organiza-

tion of data. Instead of a data schema and a query in-

terface an ERP system exposes a set of operations that

manipulate its data. By choosing operations and call-

ing them in an appropriate sequence required actions

can be performed. Because of using Web services this

approach is platform independent. In fact, the data-as-

a-service approach has been very popular. SAP, for

instance, has deﬁned hundreds of Web service oper-

ations that access data in SAP Business Suite. Ama-

zon Electronic Commerce service is another example

of such approach. However, this method has a se-

rious disadvantage - lack of ﬂexibility. Although an

ERP system can expose many data manipulation op-

erations, they will unlikely cover all combinations of

attributes that applications might need to operate on.

Therefore, granularity mismatches are very likely to

occur. As discussed earlier, this will require applica-

tion developers to manually construct a sequence of

calls on existing operations to perform a desired ma-

nipulation. An example of such a case is presented in

(Grund et al., 2008). To partially overcome the mis-

match, the interfaces of Web services can be relaxed

(Borovskiy et al., 2009). This, however, will blur the

semantics of the operations.

Service data objects (SDO) enhance the data-as-a-

service approach by specifying many aspects of data

manipulation. SDO is a speciﬁcation for a program-

ming model that uniﬁes data programming across het-

erogeneous data sources, provides robust support for

common application patterns, and enables applica-

tions, tools, and frameworks to more easily query,

view, bind, update, and introspect data (Resende,

2007). SDO has a composable (as opposed to mono-

lithic) architecture and is based upon the concept of

disconnected data graphs. Under the disconnected

data graphs pattern, a client application retrieves a

data graph from a data source, mutates the it, and

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

254

can then apply the data graph changes back to the

data source. Access to data sources is provided by

a class of components called data access services. A

data access service (DAS) is responsible for querying

data sources, creating graphs of data containing data

objects, and applying changes to data graphs back to

data sources. SDO essentially wrap data sources and

fully control access to them via a set of strongly-typed

or dynamic interfaces. SDO offer a number of advan-

tages: data encapsulation, better semantics in com-

parison to the previous approach (because data ma-

nipulation is organized around data objects from ap-

plication domain), better modularity and reuse. How-

ever, SDO have a weakness (as in the case of data-as-

a-service approach): the problem of interface design

is not solved. Therefore, granularity mismatches are

possible, but the usage of dynamic interfaces can al-

leviate the problem at the cost of code complexity.

3 BUSINESS OBJECT QUERY

LANGUAGE

As one can see the APIs used in the state-of-the-

art ERP systems have advantages and disadvantages.

SQL provides great ﬂexibility by allowing construct-

ing queries that match the granularity of any infor-

mation need. At the same time, SQL exposes too

much control over the database and circumvents busi-

ness logic rules. In contrast to SQL, object-centric

and service-centric APIs enforce business rules and

data integrity by exposing a set of operations with

well-deﬁned semantics (i.e. strongly-typed interface),

which encapsulate data manipulation and hide data

organization. However, the granularity of the exposed

operations (in terms of record selection and attribute

projection) often does not match the needs of applica-

tion developers.

The main contribution of the current research is

an attempt of combining the advantages of the state-

of-the-art approaches by leveraging main-memory

database technology. The designed API follows data

encapsulation principles without restricting the ﬂex-

ibility of data manipulation. Data encapsulation

is achieved by organizing data manipulation around

business objects. In order to avoid the disadvantages

of object-centric APIs (overhead of reconstructing

business objects out of raw data and inﬂexibility of

strongly-types interfaces), we suggest ”virtualizing”

business objects and manipulating them in a query-

like style via uniﬁed generic CRUD (Create, Retrieve,

Update, Delete) interface. The following subsection

describe the suggestions in detail.

3.1 Virtualizing Business Objects

Business objects are the corner stone of BOQL. An

important difference to existing object-centered APIs

is that in BOQL business objects are virtualized or

not materialized. Because BOQL is targeted at main-

memory-based ERP systems, there is no need for ma-

terializing the objects: all required data always re-

sides in main memory and thus can be directly ac-

cessed. Therefore, instead of pulling the data from

the database, caching it on the application server and

materializing the objects from the cache, the objects

can be reconstructed on the ﬂy by resolving high-

level data model into physical locations (see Figure

1). This means that whenever a given attribute is re-

quired the system calculates its location in the sys-

tem’s address space and performs required manipula-

tion via the storage engine.

The schema resolution is done by business object

engine (BO engine) using the metadata (system cat-

alog), which describes the structure of business ob-

jects, e.g. their attributes and associations. In its sim-

plest implementation BO engine maps the attributes

and associations of business objects to the primitives

of the underlaying storage engine (record collections

and referential constraint). This, however, is not the

best design, as it creates dependency of the BO en-

gine on the storage engine. A much better design

is keeping the two engines separated by a storage-

independent abstraction layer. This permits the busi-

ness object engine to work with multiple storage en-

gines using the same API. We called this layer object

view infrastructure (OVI).

Figure 2 illustrates the relationships among

memory-resident database, storage engine, OVI, BO

engine and applications. An application issues a

BOQL query that is dispatched to the query engine.

The engine parses the query and creates an execution

plan: a sequence of CRUD calls on involved business

objects. The plan is than executed and the result is

than sent back to the application.

Business object virtualization essentially offer an

alternative to object-relational mapping (ORM) as a

mechanism of assembling business objects from raw

data. In comparison to ORM virtual objects impose

less overhead. This advantage is achieved by in-place

data manipulation. ORM, in contrast, reconstructs

business objects only partially and from replicated

data. This results in many network round trips be-

tween the database and application server. Moreover,

ORM complicates the internals of the ERP system,

because of the need of keeping database and applica-

tion server cache in-sync. Virtualized business object,

on the other hand, avoid this overhead altogether, by

providing access directly to the original data.

SEMANTICALLY RICH API FOR IN-DATABASE DATA MANIPULATION IN MAIN-MEMORY ERP SYSTEMS

255

Figure 1: An instance of SalesOrder business object is constructed by ”grouping” memory-resident data and attaching the

CRUD interface.

Figure 2: System Architecture.

3.2 Querying Business Objects

In order to support the query-like style of manipula-

tion (and thus overcome the second major deﬁciency

of object-centric APIs - inﬂexibility) we suggest to

unify the interfaces of business objects and design a

query engine that would convert declarative queries

into a sequence of calls to the limited and well de-

ﬁned number of operations (very much like an SQL

engine decomposes queries into relational algebra op-

erations).

The diversity of business objects makes it im-

possible to inherit them all from a single data type

with semantically rich interface. Therefore, we sug-

gest inheriting all business object data types from a

class with generic (semantic-free) interface, that fea-

tures the collections of attributes and associations and

CRUD-operations - Create, Retrieve, Update, Delete.

Such a uniform representation allows introducing a

query language for business objects very much like

SQL for relations with a difference that a query

is translated into a sequence of CRUD-operations,

rather than relational algebra operations. Hence,

query processing is implemented as follows:

1. Write Query. A programmer composes a BOQL

query describing what to retrieve from or change

in the system and sends the query to the BOQL

query processor.

2. Build Query Tree. The processor parses the

query to detect involved business objects and op-

erations on them and builds a query tree - an in-

ternal representation of the query.

3. Emit Execution Script. The query processor

traverses the query tree and emits an execution

script - a sequence of CRUD-operation calls on

the source business objects. For example, tokens

from select clause are converted to Retrieve or

RetrieveByAssociationChain operations, while to-

kens from update clause are converted to Update

operations.

4. Bind Parameters. Having constructed the

call sequence, the processor binds corresponding

query tokens to the input parameters of CRUD-

operations, e.g. the value of a ﬁlter in where

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

256

clause.

5. Execute. The execution script gets executed by

business object engine and the result is sent back

to the client.

In its essence BOQL performs on-the-ﬂy orches-

tration of calls to objects’ CRUD-operations based on

user-deﬁned queries. This orchestration is made fea-

sible by a uniform representation of business objects

(in terms of the structure and behavior). In compar-

ison to other object- and service-centric APIs BOQL

has an advantage of supporting access and manipula-

tion at any granularity level. At the same time, BOQL

does not circumvent business rules (because CRUD-

operations control data manipulation and enforce all

required constraints), which favors BOQL over the

SQL-based APIs. To the query processor the data is

seen through the interfaces of business objects. The

direct access to the data is prohibited to enforce data

integrity and internal business logic implemented by

business objects. To access the business data a BOQL

query must be issued.

Because the query processor is a single point of

access into the system, it is a potential bottle-neck. In

order to make the query processor scalable, it has to

support multi-threading and allow simultaneous and

independent processing of individual queries (inter-

query parallelism). Therefore, when the processor re-

ceives a query, it acquires a thread from the system’s

thread pool. The worker thread processes the query

as outlined above. In order to further increase the

scalability of BOQL, intra-query parallelism can be

supported. This can be achieved by parallelizing the

execution of CRUD-calls. To ﬁgure out what calls

to execute at the same time, the query processor ana-

lyzes the query tree and issues every call, which does

not rely on yet not retrieved data, in a separate thread.

Both intra- and inter-query parallelism will not pro-

duce any positive effect, unless there is enough hard-

ware capacity available (most importantly the number

of CPUs/cores).

3.3 BOQL Grammar

The formal grammar of BOQL is almost fully re-

sembles that of data manipulation language (DML)

constructs of SQL. As SQL DML, BOQL supports

SELECT, UPDATE, DELETE and INSERT state-

ments. It also has SELECT, FROM, WHERE,

GROUP BY, ORDER BY and HAVING clauses.

Moreover, the standard SQL aggregate functions like

COUNT(), AVG(), SUM(), MIN() and MAX() are

supported. BOQL has full support for arithmetic ex-

pressions, nested expressions, comparisons and pred-

icates (LIKE, BETWEEN, IN, AND, OR and others).

The choice of SQL as a reference language was not

a coincidence. The main reason is that we wanted

BOQL to be as expressive as SQL. With SQL a de-

veloper can access any data (at any granularity level)

with little effort (minimum number of statements).

The second reason was the willingness to minimize

the learning and migration effort: for years SQL has

been the primer choice of data manipulation in ERP

systems. Therefore, having BOQL similar to SQL

will somewhat simplify the transition.

Apart from some minor syntactic differences,

BOQL differentiates from SQL in three ways, which

essentially position it apart from SQL dialects.

1. BOQL natively supports business object hierarchy

and enforces business logic. Because of tight in-

tegration with BO engine, the type system of the

later is fully shared with query engine. This is the

biggest advantage over SQL, which has no knowl-

edge of business objects. For SQL this essen-

tially implies, that objects must be reconstructed

in the application layer of the system, whereas

with BOQL they are embedded into data storage.

2. BOQL does not support relations. Because ERP

data is inherently object-oriented, there is no need

for supporting plain relations.

3. BOQL query always has one source business ob-

ject. Because business objects are connected with

associations and BOQL ”understands” this, there

is no need for explicit joins in FROM clause.

Joins are implied by associations and, thus, can be

omitted. The later fact greatly simpliﬁes BOQL

queries in comparison to SQL.

3.4 Integrating BOQL into a

Programming Language

In order to improve the productivity of ERP applica-

tion developers, the effort of issuing BOQL queries

from business logic code must be minimized. There-

fore, we suggest integrating BOQL with the language

used for programming business logic. The integration

must be at three levels: syntactic, type system and ex-

ecution.

Syntactic integration means that the grammar of

the chosen programming language must be extended

with BOQL grammar. This enables mixing BOQL

queries with control statements written in the chosen

language. Type system integration means extending

the language’s type system with business object data

types. This makes business objects ﬁrst-class citizens

of the programming language. Integration at execu-

tion level (or runtime integration) means that business

logic code and data manipulation statements execute

SEMANTICALLY RICH API FOR IN-DATABASE DATA MANIPULATION IN MAIN-MEMORY ERP SYSTEMS

257

on the same runtime/infrastructure. Strictly speaking,

syntactic and type system integration automatically

imply runtime integration.

The simplest way of integrating BOQL into a

programming language is to cross-compile BOQL

queries into this given language. This immediately

implies that business object data types and object

view infrastructure must be implemented in the very

same language (or in compatible ones).

3.5 Prototype System

The current subsection demonstrates a possible im-

plementation of the concepts presented in the paper.

In particular, a small ERP system featuring six busi-

ness objects

has been developed. The ERP exposes

BOQL as a single data manipulation API. The proto-

type uses Berkeley DB, conﬁgured as an in-memory

data store, as its storage engine. The system assumes

row-oriented data organization. Because Berkeley

DB is a key-value store, it does not natively sup-

port row layout. Therefore, the prototype takes the

burden of reconstructing rows out of key-value pairs.

This functionality is provided by object view infras-

tructure. As for BOQL query execution, two models

are supported: interpretation and cross-compilation.

All components of the system are developed in C++.

Obviously, queries that are cross-compiled are cross-

compiled into C++. The prototype system also inte-

grates BOQL into a programming language (C++) as

described in subsection 3.4. For convenience, the pro-

grams mixing BOQL and C++ statements are called

to be written in Business C++ (BC++). Hence, BC++

is a language integrating C++ control statements (e.g.

function calls, assignments, arithmetic expressions,

loops, branching, etc.) and BOQL data manipula-

tion statements by providing a single type system and

runtime environment for both types of statements.

BC++ programs are translated into C++, compiled

with GNU g++, linked against the business object en-

gine and later are executed inside its address space

(the closest possible to data) and thus become its inte-

gral part. The rest of the subsection gives more details

on the prototype.

Using Flex (lexer generator) and Bison (parser

generator) tools a parser for Business C++ has been

generated. Its main purpose is to recognize and

process BOQL queries embedded in C++ programs.

Therefore, the parser ignores any constructs other

than BOQL queries and emits them unchanged (as

they are) directly to the output ﬁle

. For BOQL con-

customer invoice, sales order, order line item, cus-

tomer, product and address

The reason is simple: C++ constructs must be compiled

structs the parser builds an abstract syntax tree (we

call it query tree). If the query stands alone (is not part

of any program), the generated tree is handed over to

query interpreter. The interpreter traverses the tree

and issues CRUD-calls on involved business objects.

If the query is embedded into a C++ program, it must

be cross-compiled into C++ and merged with the pro-

gram. Therefore, for an embedded query the query

tree is handed over to the C++ code generator (cross-

compiler). The later generates a C++ program per-

forming CRUD-calls on business objects. Then, the

query code is merged with the rest of the program and

resulting code is compiled with a native C++ com-

piler (GNU g++). The developed parser is capable

of processing BOQL data manipulation (DML) state-

ments and data deﬁnition (DDL) statements. That is,

the system allows not only querying business objects,

but also deﬁning them. There is, however, one limita-

tion. DDL statements can only be interpreted, there-

fore, they cannot be embedded into a C++ program.

The following steps describe the process of work-

ing with the system. For demonstration purposes we

have selected a dunning use-case.

Deﬁne Business Object Data Model. Before work-

ing with the system its data model must be deﬁned.

This can be done with Create Type statement. The fol-

lowing code deﬁnes sales order business object data

type. The rest ﬁve types are deﬁned in the same way.

Create Type SalesOrder {

attributes:

string id,

DateTime date

associations:

Customer Customer,

OrderLineItem Items

};

Each Create Type statement leads to creation of

two C++ classes: business object data type and object

view class. The ﬁrst class implements data schema,

whereas the second one maps the schema to the prim-

itives of Berkeley DB. The following code demon-

strates classes generated for SalesOrder type

class SalesOrderBo : public BusinessObject {

public:

SalesOrderBo(BoView *owner, char *id);

string id();

DateTime date();

CustomerBo *Customer();

vector<OrderLineItemBo*> &Items();

};

...

with native C++ compiler. So parsing them at this stage is

redundant.

for the sake of brevity non-conceptual details were

omitted

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

258

string

SalesOrderBo::id() {

string res;

char *rawVal = boView->getAttributeRaw(0, getKey());

res.assign(rawVal);

return res;

}

...

class SalesOrderView : public BoView {

public:

SalesOrderView(DbEnv *env);

˜SalesOrderView();

void associate(DbEnv *env);

//CRUD

...

vector<SalesOrderBo*> &Retrieve();

...

private:

Db *OrderLineItemInd;

};

...

vector<SalesOrderBo*> &SalesOrderView::Retrieve() {

vector<SalesOrderBo*> *res = new vector<SalesOrderBo *>();

vector<char*> id = GetIds();

SalesOrderBo *bo;

for (int i = 0; i < id.size(); i++) {

bo = new SalesOrderBo(this, id[i]);

res->push_back(bo);

}

return *res;

}

//Retrieve IDs from Berkeley DB

vector<char*> &BoView::GetIds() {

vector<char*> *res=new vector<char*>();

Dbc *cur; Dbt key_, value_;

collection->cursor(NULL, &cur, 0);

...

int ret;

while((ret = cur->get(&key_, &value_, DB_NEXT))==0) {

res->push_back((char*)key_.get_data());

...

}

...

return *res;

}

Mount Business Objects Data Types. Once the

classes have been generated they are compiled and

dynamically loaded into the address space of the sys-

tem. Then, the classes are registered in the system’s

catalog, which makes the data types available to the

query processor. Mounting data types is done auto-

matically by the system.

Inserting Data. Having deﬁned business objects,

they must be populated with data. This step is omit-

ted, as we generated test data.

Write Business C++ Programs. Once the data

model and actual data are ready a programmer may

start developing their Business C++ code.

void RunDunning(Currency email,

Currency sms, Currency call) {

DateTime curDate = System.CurrentDate;

//retrieve overdue invoices

CustomerInvoice[] inv = SELECT OBJECTS

FROM CustomerInvoice as CI

WHERE CI˜Status != Status.Paid AND CI˜dueDate < curDate;

//send reminders

for(int i=0; i<inv.size; i++) {

if (inv[i]˜Amount <= email)

EmailAlert(inv[i]);

else if (inv[i]˜Amount <= sms)

SmsAlert(inv[i]);

else if (inv[i]˜Amount <=call)

CallAlert(inv[i]);

}

Execute. An application developer may now call the

program by issuing the Execute instruction with cor-

responding input parameters.

Hence, Business C++ offers two advantages over

the SQL stored procedures:

• BC++ integrates business object hierarchy of a

given ERP system into C++, which allows mix-

ing control ﬂow statements with data manipula-

tion statement;

• BC++ compiles (translates) into a C++ program

(the language of storage engine).

4 FUTURE WORK

The presented techniques will result in a higher work-

load for the DBMS. Therefore, the scalability of a

database system got high attention in the current re-

search. A number of approaches on database scala-

bility based on horizontal partitioning and data dis-

tribution within a cluster of nodes have been studied

(Boral et al., 1990; DeWitt et al., 1990; Teeuw and

Blanken, 1993). In order to beneﬁt from the comput-

ing resources available in a database cluster, conven-

tional query processing approaches must be revised.

In particular, operators within a query execution plan

have to be assigned to processing nodes according to

the nodes’ data. Those distributed operators can re-

quire additional communication based on the required

synchronization and collection of their results (Mehta

and DeWitt, 1997).

Because distributed query processing is a chal-

lenging research topic in itself, contributing to it is

SEMANTICALLY RICH API FOR IN-DATABASE DATA MANIPULATION IN MAIN-MEMORY ERP SYSTEMS

259

out of the scope of the current work. The main contri-

bution to this research area will be devising formal

models for optimizing database partitioning strate-

gies, that is, deciding at what parts a database must

be split.

5 CONCLUSIONS

The feasibility of in-memory DBMSs and their

tremendous performance advantage over the conven-

tional DBMSs in ERP systems market sector pro-

voked us to rethink the distribution of workload in

an ERP system. Orders of magnitude performance

advantage of in-database operations suggests shifting

more business logic operations inside the database.

This requires the database to provide a semantically

richer data model and API than currently available. In

this paper we presented an API, called business object

query language, that we think better suits the needs of

ERP application developers than any of the currently

employed APIs.

The main idea of BOQL is to provide a system that

groups together different pieces of memory-resident

data and casts the resulting constructs to speciﬁc busi-

ness object data types. That is, BOQL is essentially

a system that resolves high-level abstractions (busi-

ness objects) into low-level storage primitives that are

manipulated via the storage engine’s API. We also

demonstrated how BOQL can be integrated into an

object-oriented programming language by means of

cross-compiling BOQL queries into the target lan-

guage.

REFERENCES

Bernstein, P. A., Pal, S., and Shutt, D. (1999). Context-

based prefetch for implementing objects on relations.

In VLDB ’99: Proceedings of the 25th International

Conference on Very Large Data Bases, pages 327–

338.

Boral, H., Alexander, W., Clay, L., Copeland, G., Danforth,

S., Franklin, M., Hart, B., Smith, M., and Valduriez, P.

(1990). Prototyping bubba, a highly parallel database

system. IEEE Transactions on Knowledge and Data

Engineering, 2(1):24.

Borovskiy, V., Enderlein, S., and Zeier, A. (2009). Generic

web services - extensible functionality with stable in-

terface. In IEEE International Conference on Web

Services.

DeWitt, D., Ghandeharizadeh, S., Schneider, D., Bricker,

A., Hsiao, H., and Rasmussen, R. (1990). The gamma

database machine project. IEEE Transactions on

Knowledge and Data Engineering, pages 44–62.

Grund, M., Krueger, J., and Zeier, A. (2008). Declara-

tive web service entities with virtual endpoints. In

Proceedings of the IEEE International Conference on

Services Computing.

Kallman, R., Kimura, H., Natkins, J., Pavlo, A., Rasin, A.,

Zdonik, S., Jones, E. P. C., Madden, S., Stonebraker,

M., Zhang, Y., Hugg, J., and Abadi, D. J. (2008). H-

store: a high-performance, distributed main memory

transaction processing system. Proc. VLDB Endow.,

1(2):1496–1499.

Legler, T., Lehner, W., and Ross, A. (2006). Data mining

with the sap netweaver bi accelerator. In Proceedings

of the 32nd international conference on Very large

data bases, VLDB ’06, pages 1059–1068. VLDB En-

dowment.

Manegold, S., Boncz, P. A., and Kersten, M. L. (2000). Op-

timizing database architecture for the new bottleneck:

memory access. The VLDB Journal, 9:231–246.

Mehta, M. and DeWitt, D. (1997). Data placement in

shared-nothing parallel database systems. The VLDB

Journal, 6(1):53–72.

Resende, L. (2007). Handling heterogeneous data sources

in a soa environment with service data objects. In

ACM SIGMOD international conference on Manage-

ment of data.

Stonebraker, M., Madden, S., Abadi, D. J., Harizopoulos,

S., Hachem, N., and Helland, P. (2007). The end of an

architectural era: (it’s time for a complete rewrite). In

Proceedings of the 33rd international conference on

Very large data bases, VLDB ’07, pages 1150–1160.

VLDB Endowment.

Teeuw, W. and Blanken, H. (1993). Control versus data ﬂow

in parallel database machines. IEEE Transactions on

Parallel and Distributed Systems, 4(11).

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

260
