DISTRIBUTED SOFTWARE INTEGRATION MODEL BASED ON

ATTRIBUTE-DRIVEN DESIGN ADD METHOD

Hamid Mcheick

, Yan Qi

and Hani Charara

Department of Computer Science and Mathematic, University of Quebec at Chicoutimi

UQAC, 555 Boulevard de l’Université Chicoutimi, G7H2B1, Chicoutimi, Canada

Department of Computer Science and Mathematic, Lebanese University, Faculty of Science I, Lebanon Hadath, Lebanon

Keywords: Connector, ADD.

Abstract: Software integration in distributed architecture plays an important role to improve software quality.

Engineers often face challenges coming from connectors. Especially, design of connectors in a distributed

system encounters more design issues such as: i) how to fulfil the functional and quality requirements of

connectors in distributed system; ii) how do multiple technologies combine together to resolve design issues

of connectors. In order to design connectors in distributed software, this paper proposes a design model by

using ADD methods. And then we give an example of MVC architecture for presenting how to instantiate

that model based on ADD design method.

1 INTRODUCTION

Software components and connectors are two

important parts of the software architecture.

Connectors are regarded as software elements for

delivering data and control in a software system

(Base et al. 2003).

In software development, there are some simple

connectors, such as procedure call, association class,

etc. These connectors are widely used and some of

them become general programming approaches

(procedure call) provided by most of development

tools. The connectors are good at linking

components together in local environment.

However, in the recent years network

technologies and distributed system are rapidly

growing. In distributed architecture the components

are distributed in separate computers over the

network and the traditional approaches (for example,

the method-based mechanism) are not directly

available for interacting with the distributed

components (Qiu, 2005). In order to design the

connectors in distributed system, multiple

technologies are applied in practice. However, when

facing these technologies, developers often meet

some problems. For example, messaging system

(middleware) is used to deliver messages in network

for constructing connectors. But they do not have the

ability to build the relationship of components. On

the other hand design pattern is most effective for

building relationship when combined with aspect-

oriented programming (AOP). However, AOP only

provides the mechanisms for developer to weave

aspects and base code together into a coherent

program (Elrad et al. 2001). Thus, AOP is merely

applied to handle classes situated in one local

application. As a result of this property, AOP cannot

be directly used in distributed system. Furthermore,

the qualities of connectors may be seldom discussed

in the design process of connectors, particularly

when these technologies are put together for solving

problems.

In our research, we focus on these design issues:

in order to fully satisfy both the functionalities and

qualities of connector, how to analyze and design

connector in distributed architecture by weaving the

relevant technologies together (design pattern,

aspect-oriented programming, middleware, network

protocol etc.)

In the following sections, we firstly present

background related to connectors (section 2).

Secondly, section 3 develops a general design model

and an example scenario for connector in distributed

architecture by following ADD method. Thirdly, we

draw a conclusion in section 4.

Mcheick H., Qi Y. and Charara H..

DISTRIBUTED SOFTWARE INTEGRATION MODEL BASED ON ATTRIBUTE-DRIVEN DESIGN ADD METHOD.

DOI: 10.5220/0003506500530058

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 53-58

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 BACKGROUND

2.1 Middleware in Distributed Systems

Middleware in distributed system is a dedicated

software which is designed to deliver messages

between components without involving knowledge

of network protocol and hardware platform.

Distributed system frequently applies two kinds of

middleware to interactions of components: object

oriented and message oriented middleware.

Object oriented middleware (OO middleware) is

applied to component interaction in distributed

system. It provides an easy programming model for

the interaction of distributed programs by using

current programming language features (Pryce,

2000), such as CORBA (OMG, 2004) and Java RMI

(Remote Method Invocation). But there are some

disadvantages: they are only suitable for

client/server architecture; especially, it is hard to

apply them to complex distributed systems.

Message oriented middleware (MOM) is also

called as messaging system. It is a separate software

system that provides messaging capabilities for

distributed components (Hohpe et al., 2004). In

contrast to OO middleware, MOM implements the

interactions of components by formatting them as

messages instead of modelling the interaction as

procedure calls. MOM provides users with the

capability of providing stable communications in an

unstable network environment.

The two kinds of middleware work towards a

common goal: sending/receiving data over network.

However they cannot be used to describe the

relationship of components and they have no idea

about the message construction.

2.2 Design Pattern

Design patterns are often used to describe

relationships between components (classes or

objects). The design patterns in Gamma et al.’s book

(1995) are descriptions of communication of objects

and classes that are customized to deal with general

design problems. The communication of object and

class should be loosely coupled without becoming

entangled in each other's data models and methods

(Cooper, 2000). Gamma et al.’s design patterns

particularly deal with problems at the level of

software design, especially object-oriented software

design. They can be classified by criterion scope

which is used to specify whether the pattern is

mainly used to classes or objects. Thus, the design

patterns have two kinds: class design pattern and

object design pattern (Gamma et al., 1995). Object

patterns are applied to object relationships, which

can be modified at run-time and are more dynamic,

such as Proxy Pattern, Observer Pattern, Publish-

Subscribe and so forth.

Design pattern is specially used to design the

dependency of components. It cannot be directly

applied to distributed architecture, if it is does not

have a proper transport mechanism.

2.3 Aspect-oriented Programming

Aspect-oriented programming (AOP) is combined

with object-oriented programming (OOP) for

achieving a basic objective (Gradecki et al., 2003):

describe and divide the concerns by crosscutting

components. The core mechanism of AOP uses an

aspect weaver that is a compiler-like tool. This tool

compiles the whole program by combining the

crosscutting concern (aspect) with other classes and

the compiling process is defined as weaving in AOP

(Laddad, 2003). Therefore, the working mode of

AOP technology is static. The whole program

cannot be dynamically changed after weaving them.

According to the properties of AOP, it has the

capability to build relationships (following a design

pattern) between separate components without

modifying much of the existing source code of

components. As a result of this point, AOP enables

the developers to easily design, implement, extend

and maintain software system.

Despite this, AOP has a major limitation. It is

merely applied to classes situated in one local

program. Thus, AOP cannot be directly used in

distributed system and the use of AOP across

network is still a challenge for developers.

2.4 Attribute-Driven Design (ADD)

In software engineering some design methods are

defined to model software engineering activities. For

example, both the attribute-driven design method

and object-oriented (OO) methods belong to

software engineering design methods. OO method

merely focuses on the functionalities of software

system.

Attribute-Driven Design (ADD) method is

developed by the Carnegie Mellon Software

Engineering Institute (SEI). In contrast to OO

method, ADD is an approach to designing a software

architecture in which the high level design process

relies on the software’s quality attribute (Wojcik et

al. 2006). ADD method follows a recursive design

process: 8 steps (Wojcik et al. 2006) that are iterated

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

until all architecturally important requirements are

satisfied (Bass et al. 2003).

The input of ADD involves functional

requirement, design constraint and quality attribute

requirement; the output of ADD is the high levels

design of some views of architecture. The views of

architecture include module decomposition,

concurrency, and deployment. Quality attribute

requirements show the different properties which a

system must exhibit; functional requirements

indicate what functions a system must be provided

for stakeholder’s needs when the software works

under some conditions; design constraints are

decisions about a system’s design that must be

involved into final design (Wojcik et al. 2006).

Architectural drivers are the combination of

functional requirement and quality requirements

which are used to form the architectures and

modules (Bass et al. 2003). Architectural patterns

and tactics are applied to satisfy the quality

attributes which are used to define types of elements

and interactions by following the step4 of ADD,

while functionality requirements are chosen to

instantiate the module types (in step 5 of ADD).

Bass et al.’s research (2003) addressed the

system quality attributes of software, such as

availability, modifiability, performance, security,

testability, usability, and so forth. In order to achieve

quality attributes of connector in distributed system,

these qualities should be considered when designing,

implementing connector.

3 DESIGN MODEL FOR

DESIGNING CONNECTOR

In this section we provide a general design model for

designing connector by using ADD method in

distributed architecture. And then, we give an

example scenario about design of connector in

distributed MVC (Model, View and Controller)

architecture.

3.1 Model for Designing Connector

Connectors which are situated in distributed system

must be designed to satisfy the demands: i) the

transport of information; ii) description of

relationship; iii) message construction. According to

the properties of the distributed connectors, we

propose a general model for designing connector

using ADD design method. The design process

following the standard of SEI’s ADD design method

is described below.

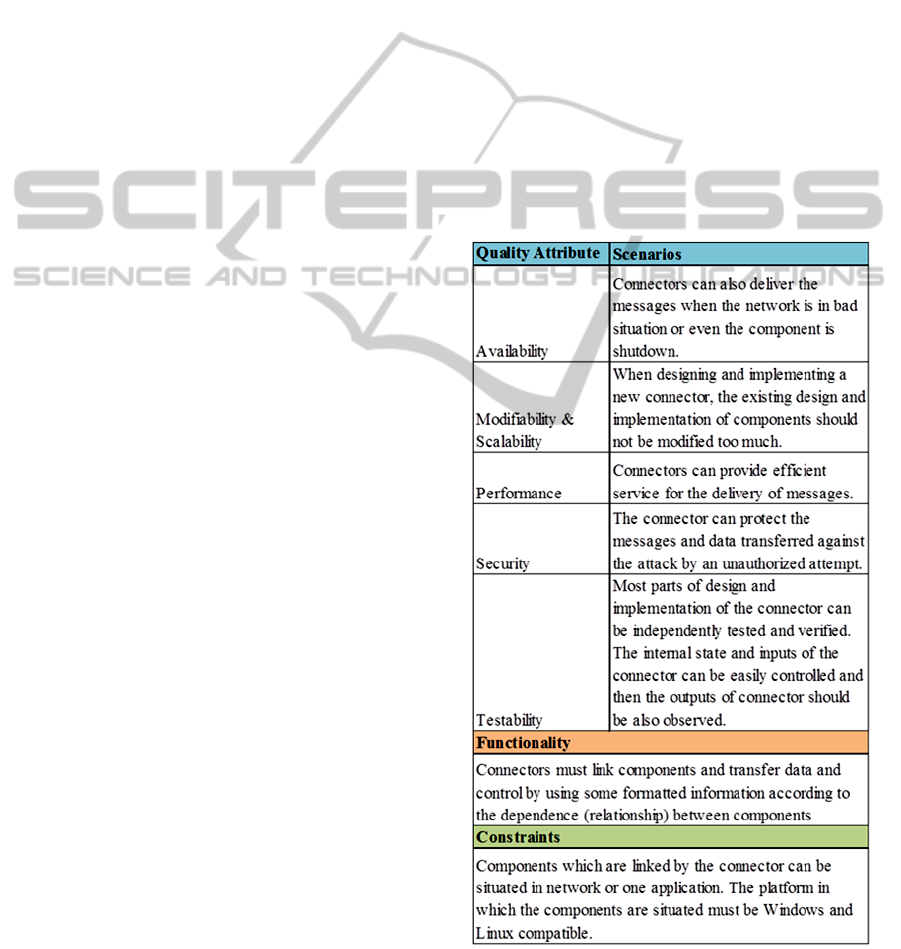

Step 1: collect the architectural drivers: specific

quality scenarios functional requirements and design

constrain (Table 1).

Step 2: choose the module to decompose. We

consider the whole connector as the primary

element.

Step 3: identify chosen architectural drivers. For

the design model, the quality attribute: Availability

and Modifiability are high priorities.

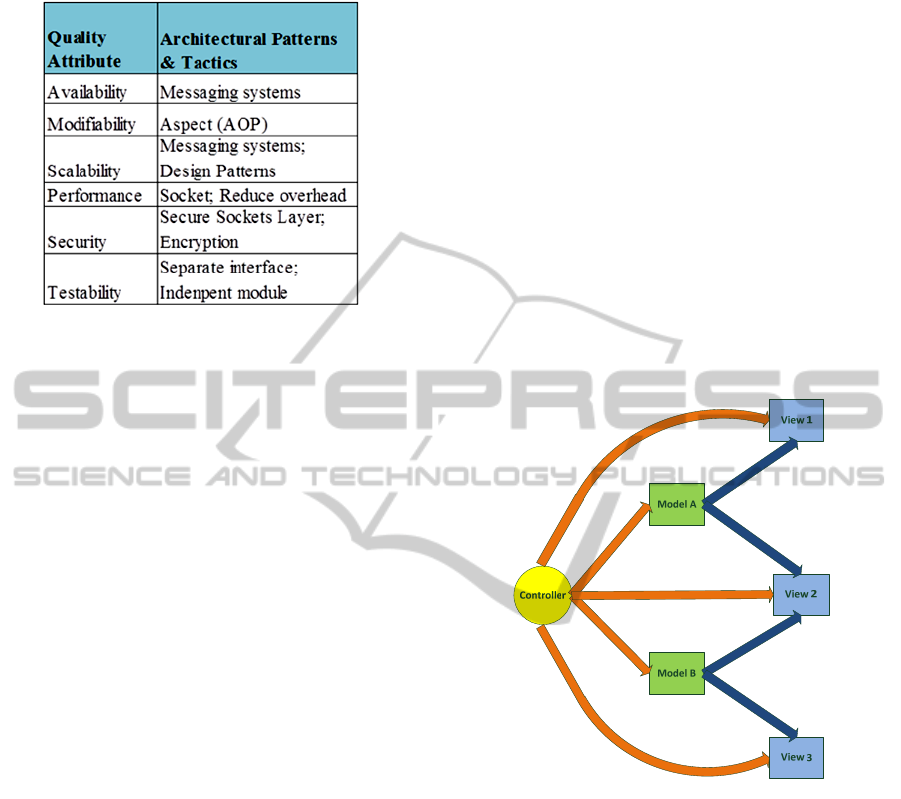

Step 4: choose the patterns and tactics to satisfy

the architectural drivers (Table 2). In light of the

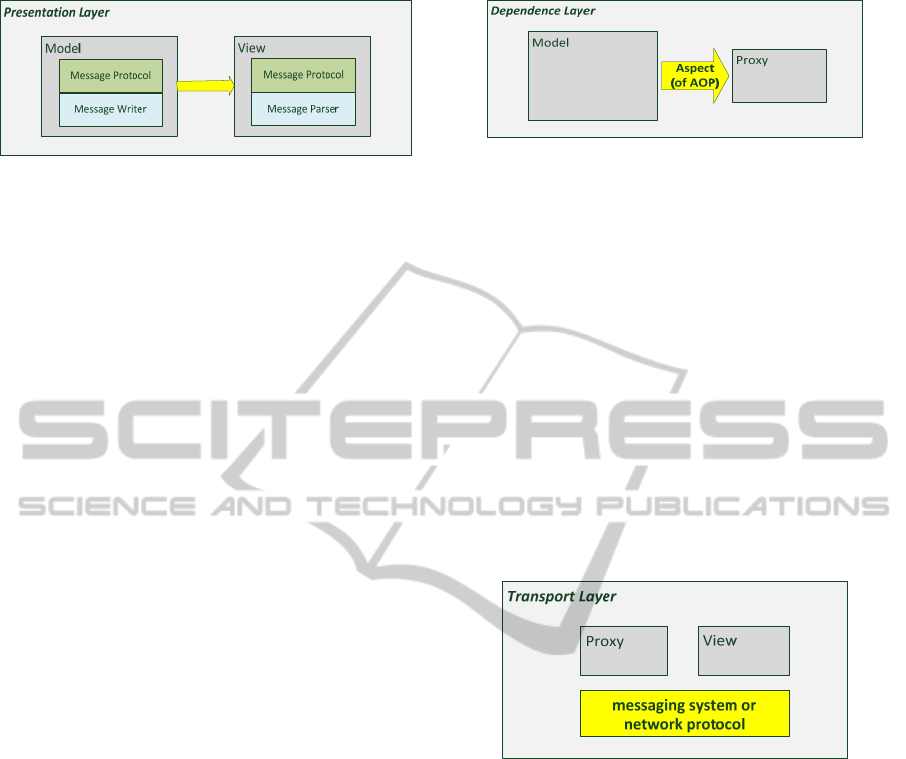

architectural drivers, we propose a general layered

model in which each layer corresponds to different

modules for meeting the functional requirements and

achieving quality attribute of connectors. The

layered model consists mainly of Transport Layer,

Dependence Layer and Presentation layer.

Table 1: Architecture drivers.

DISTRIBUTED SOFTWARE INTEGRATION MODEL BASED ON ATTRIBUTE-DRIVEN DESIGN ADD METHOD

Table 2: Architectural patterns and Tactics.

Transport layer (module) situated in the base of

the connector is responsible for basic transceiver in

network. It is used to “carry” the dependence or

relationship between components by linking them

together. Normally, it is implemented by network

protocols (such as TCP/IP, HTTP protocol stacks) or

MOMs (WebSphere MQ/ Open Message Queue

etc.). MOM can satisfy the Availability and

Scalability, because that MOM has the ability to

provide the reliable communication and support high

scalability for a large number of clients. However,

there is a side effect for MOM: poor Performance.

Thus, if the Performance is very important to the

system, the socket API (TCP or UDP) should be

chosen. Particularly, secure socket layer can

provides Security for transfer.

Dependence layer (module) describes the

relationship between components in detail. In order

to build the relationship of components, we can use

object design pattern or architecture pattern to

implement it. AOP and design pattern are good at

building the relationship without modifying much of

existing components. Therefore, they can satisfy the

Modifiability.

Presentation layer (module) is responsible for

constructing the transferred information depending

on the type, format and amount of the information.

We can use Markup language such as XML or a

customized format defined by developers according

to the type and amount of the information. Secure

encryption of data and messages are always required

in this layer. Therefore, it can satisfy the Security.

3.2 Example Scenario: Design of

Connector

In this subsection, we design architecture of

connector for an example scenario: a distributed

MVC software system by using our general design

model. And then, decompose the general

architecture into concrete modules by using ADD

method.

The MVC architecture (Figure 1) shows: the

component Controller can send messages to all

Models and Views; the Model A can send messages

to View 1 and View 2; Model B can send messages

to View 2 and View 3. Based on this structure, the

MVC structure can provide active working model,

because when the data related to Model has been

changed, the Model can update the registered Views

without notifying Controller.

According to the standard of SEI’s ADD and

requirement of connectors, the steps 1- 4 have been

completed in the design process of the general

design model described in subsection 3.1. Then, we

start to discuss the design process from Step 5 of

ADD.

Figure 1: Example Scenario: MVC architecture.

Step 5: instantiate architectural modules and

define responsibilities. In this step, we instantiate the

modules analysed in step 4.

In the example, there are two kinds of

connectors: i) connector between Controller and

other components (Models and Views); ii) connector

between Model and View. The relationship between

Controller and others components is the same as the

relationship between Model and Views. They both

follow the Publish-Subscribe pattern. For example,

Controller publishes messages/command to Models

and Views; Views and Models can receive the

message they subscribe to.

i) In presentation layer, module writer and parser

are utilized to process messages by adopting the

message protocol of access (Figure 2).

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

Figure 2: Presentation layer of connector.

Message protocol is the meaning or logic of the

message. For example, if one component wants to

access a database server, it may use a SQL code as

the logic of messages. Message writer/parser handles

the format of message, such as the package/un-

package data, encryption/ decryption, compression/

decompression, etc.

ii) In dependence layer, we apply an Aspect of

AOP and design pattern to build the relationship of

components. In figure 1, it shows an active mode

MVC. When the data maintained in Model is

changed, the Model must notify the Views of the

changes. Thus, Publish-Subscribe pattern is suitable

to build the relationship between Model and View.

For the detailed design, we use Observer design

pattern to implement the Publish-Subscribe and

apply AOP to implement the Observer design

pattern. The reason why we prefer utilizing AOP is

analysed below: the component Model should

concentrate on the data processing of application and

all the functionalities of Model should be separated

from all things related to display and user interfaces

that should be done by component View. In other

words, the developers of Model do not need to know

when to notify Views and what data should be

delivered to Views. Fortunately, the AOP enables

developers to build the relationship between two

components (Model and View) by crosscutting the

two components without modifying much of the

logic of both components. Particularly, when

planning to update one MVC architecture by adding

a new connector between components (for example,

a new View wants to get some information from one

existing Model.), the developers can get maximum

benefit from the usage of AOP.

We show a diagram about the design of the

dependence layer (Figure 3).

Figure 3 shows that a new component Proxy is

added. The component Proxy and Model are situated

in one program that runs in a same computer. That

means that they share the same memory space and

CPU. One purpose of Proxy is to represent the

Figure 3: Dependence layer of connector.

component View in dependence layer. The other

purpose of Proxy will be described in transport

layer. In figure 3, we also note that another special

module is instantiated. It is named as an Aspect

which is used to crosscut the two components

(Model and View). In term of the Observer design

pattern, we make the Model work as Subject and

make Proxy work as Observer. In term of the

architecture of Figure 1, multiple Views can be

supported as Subject. Then the dependence

(relationship) is built between the two components

(Model and View).

iii) In transport layer, in light of the quality of

network and the requirements of whole system,

developers choose the network protocols or MOM to

implement the task of transport in network.

Figure 4: Transport layer of connector.

In the Figure 4, the component Proxy is

described in the design of dependence layer (shown

in Figure 3). Here, we talk about another purpose of

the Proxy. It is used to send message to Views by

using an instantiated module (messaging system or

network protocol). The component Proxy plays an

important role in our solution. It works as an

Observer to “monitor” the Model component. When

the Model changes its data which interests the

Proxy, the Proxy will be updated automatically in

dependence layer. In addition, it is responsible for

transferring the updated data to Views relying on the

module messaging system or network protocol.

In this Step, we instantiate the modules of

connector based on the MVC structure by taking

connector between Model and View for example.

Another type of connector between Controller and

other components can be designed in the same way.

After Step 5, the general model for connector in



DISTRIBUTED SOFTWARE INTEGRATION MODEL BASED ON ATTRIBUTE-DRIVEN DESIGN ADD METHOD

the MVC example is instantiated. According to

ADD methods, the Step 6 (define interfaces) and

Step 7 (refine requirements) should be done in an

actual project by meeting different requirements.

3.3 Analysis of the Design Model

This design model presents a clearly layered

structure of connector which fulfils the architectural

drivers by using ADD methods. Each layer is

responsible for dedicated requirements. The

developers can be guided through the process of

design of connector by using the design model.

Compared to other approaches of connector, this

model covers every aspect of connector in

distributed system. For example, in some research

works, network protocols (TCP/IP, P2P etc…) are

regarded as connectors. This misunderstand can lead

developers to only concentrate on the functionality

of transport, neglecting to study and design the

relationship of components.

Relationship is the core of the model. When

using this model, developers must put a lot of effort

into the relationship of the components. To simplify

the analysis of relationship, the pattern approach

(design pattern by using AOP) is applied to the

design of connector in distributed system.

Messaging system and other transport mechanisms

are designed to ensure that the messages can be

successfully delivered. In our opinion, the

messaging system should be situated in transport

layer of this model, even though some of messaging

systems have the function of description of

independency of components.

4 CONCLUSIONS

This paper discusses a design model of connectors in

distributed architecture. We mainly concentrate on

the design problems of connectors: how to gain the

benefit from the combination of multiple

technologies (design pattern, AOP, MOM and

network protocol) for satisfying the functional

requirements and achieving quality attribute. To

resolve the problems, we propose a general design

model for design of connector in distributed

architecture based on ADD method. And then we

give an example of distributed MVC architecture for

presenting how to instantiate that model based on

ADD. In that example, our design model enables us

to easily design and develop the connectors for

coherently linking the Views and Modes together

and fulfilling the functional and quality requirements

of connectors.

The presented approach is at an early stage of

development and would certainly merit being more

detailed especially for generalize our model to

facilitate the maintenance and reduce the cost of

distributed applications.

ACKNOWLEDGEMENTS

This work was sponsored by the University of

Quebec at Chicoutimi (Quebec), and by NSERC

(Canada).

REFERENCES

Bass, L., Clements, P. & Kazman, R., 2003. Software

Architecture in Practice, Addison-Wesley, Second

Edition.

Qiu, X., 2005. Message-based MVC Architecture for

Distributed and Desktop Applications. Syracuse

University PhD.

Elrad, T., Filman, R. E. & Bader, A., 2001. Aspect-

oriented programming: Introduction. Magazine

Communications of the ACM Volume 44 Issue 10,

Oct. 2001 ACM New York, NY, USA.

Wojcik, R., Bachmann, F., Bass, L., Clements, P., Merson

P., Nord R. and Wood, B., 2006. Attribute-Driven

Design (ADD), Version 2.0. TECHNICAL REPORT,

CMU/SEI-2006-TR-023, ESC-TR-2006-023.

OMG (Object Management Group), 2004. The Common

Object Request Broker: Architecture and

Specification, Version 3.0.3.

Pryce, N. G., 2000. Component Interaction in Distributed

Systems. PhD Thesis. Imperial College of Science,

Technology and Medicine.

Hohpe, G. & Woolf, B., 2004. Enterprise Integration

Patterns: Designing, Building, and Deploying

Messaging Solutions. Addison-Wesley.

Gamma, E., Johnson, R., Vlissides, J. & Helm, R., 1995.

Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Cooper, J. W., 2000. Java Design Patterns: A Tutorial.

Addison-Wesley.

Gradecki, J.D. & Lesiecki, N., 2003. Mastering AspectJ:

Aspect-Oriented Programming in Java. Wiley.

Laddad, R., 2003. Aspect J in Action: Practical

Aspect-oriented Programming. Manning.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies
