AUTOMATIC SOUND RESTORATION SYSTEM

Concepts and Design

Andrzej Czyzewski, Bozena Kostek and Adam Kupryjanow

Multimedia Systems Department, Gdansk University of Techonlogy, Narutowicza 11/12, Gdańsk, Poland

Keywords: Audio restoration, Web service, Tape shrinkage, Noise and wow and flutter reduction.

Abstract: A concept of a system for automatic audio recording reconstruction is described. It is supported by the video

image reconstruction algorithm, focused on the video instability analysis. Sound restoration is performed

focusing on noise and wow and flutter analysis. Presented algorithms are designed to be automatic and to

reduce the human effort during the restoration process. A web service designed especially for automatic

restoration process is envisioned as an integration platform for these algorithms and for repository of

recordings.

1 INTRODUCTION

Audio recordings, especially those from previous

epochs are one of the main valuables of our times.

These archival recordings should be made available

for the society, in order to help people learn and

understand the changing reality. In the archives of

the Polish Radio and Television there are countless

hours of unique audio and video, movie recordings

stored on various types of storage media: magnetic

tapes, film tapes with optical and magnetic

soundtracks, that should be digitized, reconstructed

and stored. In order to facilitate the reconstruction

procedure, it is necessary to design algorithms for

automatic audio-video content quality assessment

and restoration.

First the objectives of this study are to be

presented. The main causes of film degradation and

resulted distortions are pointed out. Next

methodology proposed is shortly described along

with some conceptual use scenarios of the system

designed. The last part of this paper deals with the

technology and reviews shortly the main algorithms

that are used in the system. Future plans are outlined

in Conclusion.

2 STUDY OBJECTIVES

The objectives of this work are to design a system

and to integrate it with the archive repository.

Further goals are to evaluate algorithms for

automatic audio archive material reconstruction. The

algorithms are designed for supporting analogue

media digitalization by fully automatic recordings

distortions assessment. Nowadays the process of

analogue recording digitalization is highly related to

a human subjective assessment of the recording

quality. This process is time consuming and arduous

because it has to be performed during the real-time

reproduction of the archive materials. The developed

methods enable the digitalization and reconstruction

of movie soundtracks without human control. Time

of these processes should be shorter than the real-

time track duration. Moreover, methods that are

created could be used for automatic quality

assessment and restoration of the digital multimedia

libraries.

Many of the distortions in the video recordings

may be introduced to the original signal during the

recording, producing, monitoring or duplicating

stages. However some of them occur because of tape

shrinkage (Brun, 2007, Maziewski, 2008). It is

caused by loss of water, solvent, and plasticizer in

movie tapes. Both nitro-based and acetate-based

films are exposed to this process. Tape shrinkage

results in that perforations do not match the

distances between the cogs of the sprocket roller,

which in turn causes movie tape displacements. This

is schematically shown in Fig. 1.

Among the most common distortions noise

and/or wow and flutter may be pointed out. An

example of noise that is introduced to the original

207

Czyzewski A., Kostek B. and Kupryjanow A..

AUTOMATIC SOUND RESTORATION SYSTEM - Concepts and Design.

DOI: 10.5220/0003527702070211

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 207-211

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

signal is the low-frequency power-line hum. This

low-frequency signal may be however useful in

determining undesired frequency modulation (FM)

(Czyzewski, 2007, Wolfe, 2004). Wow is an audio

distortion perceived as an undesired frequency

modulation in the range of approximately 0.5 to 6

Hz, which affects analog recordings. In case of

flutter this range is between 6 and 100Hz. The

distortion is introduced to a signal by an irregular

velocity of the analog medium. As mentioned

before, irregularities can originate from various

mechanisms, depending on medium type, production

technique and other factors (Czyzewski, 2007,

Godsill, 1994, Malecki, 1953, Nichols, 2001, Ryder,

1968).

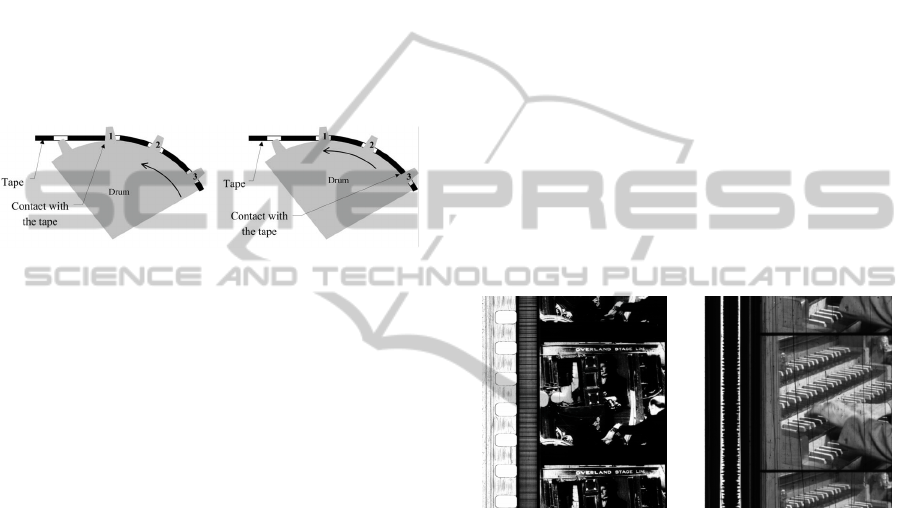

Figure 1: Tape shrinkage effects on the film tape

transportation system.

3 METHODOLOGY

Distortion of the audio-video materials may be

analyzed in two separate areas. In the beginning

quality of a video frame is measured, then audio

quality is assessed. The following audio defects are

measured: level of the noise and wow and flutter.

Distortion of the video frame, that is assessed, is

interpreted as the image instability produced by the

shrinkage of the movie tape. Those distortions often

occur in the archival materials and require a long

time to be described and removed. Algorithms for

the quality assessment are integrated with algorithms

for automatic audio-video material reconstruction.

The proposed algorithms are a part of the digital

online library that is to be engineered at the

Multimedia Systems Department of the Gdansk

University of Technology (GUT). This library is

designed to be open for everyone, on the condition

that person will register and upload an example of

the multimedia content (movie or audio recording).

Automatic recording restoration could be

performed within three possible scenarios. In the

first scenario, the recordings are first digitized. The

digitized material is quality-assessed basing on the

distortion types specified during the process of

digitization. Then this material is saved in the library

without any modifications and is reconstructed in

accordance with the quality assessment. The next

scenario concerns recordings added by the Internet

service. In this case, the quality control should be

performed as in Scenario 1. In the third scenario,

recordings are saved in the library and an automatic

restoration is performed for all database content that

is not reconstructed.

4 TECHNOLOGY DESCRIPTION

Video frame irregularity analysis algorithm is

conducted on separate film frames digitalized using

a dedicated movie tape scanner. This algorithm is

combined with an algorithm for wow and flutter

reduction (wow and flutter reduction algorithm is

described in the further part of this paper). Instability

of the video frame is calculated according to the

image content using information about the original

size of the movie tape, i.e. frame height and

perforation hole height. In Fig. 2 images of the

digitalized movie frames with the optical soundtrack

are presented.

a) b)

Figure 2: a) Image of the 35 mm movie frame with the

optical variable density soundtrack and perforation holes

image, b) image of the 16 mm movie frame with optical

variable area soundtrack.

The defined size of the movie frame and

perforation holes are invariant for every type of film

(35 mm, 16 mm etc.), these values could be

compared with the actual size of the specific element

in the analyzed movie frame. To determine height of

the movie frame, the mean intensity of the frame is

analyzed in the horizontal direction. For all movie

frames a ratio between actual and original height is

calculated. A set of the ratio values calculated for

the whole film creates the so-called pitch variation

curve (PVC) (Czyzewski, 2007). If PVC equals 1,

the video frame is free of mechanical distortion

otherwise irregularity of the video frame is detected.

PVC is also used to describe changes in the

soundtrack of the movie.

Reduction of this distortion is obtained by

performing 2-dimensional non-uniform resampling

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

208

according to the PVC. Algorithms used for the

reconstruction and analysis of this distortion have

been thoroughly researched at the Multimedia

Systems Department (GUT) and described in earlier

publications (Czyzewski, 2007; Czyzewski, 2008;

Czyzewski, 2010) however Section 4.1 provides

some details concerning the wow determination

algorithm.

4.1 Video Frame Irregularity

Assessment and Reconstruction

Wow introduces FM to the whole signal, this means

that all spectral components are affected by this

distortion. Thus audio spectrum can provide

information necessary to determine the

characteristics of the distortion. Several tonal

components can be analyzed simultaneously using

algorithms adapted from sinusoidal modeling

(Godsill, 1994). The wow distortion can be

characterized by the pitch variation curve (PVC)

(Czyzewski, 2007, Kupryjanow, 2007). This

function describes the parasitic FM caused by

irregular velocity

)(tV of the recording medium:

nom

VtVtPVC /)()( =

(1)

where

nom

V represents the nominal, constant speed

value. As mentioned before, if the pitch (speed) is

constant, i.e. there is no wow, the PVC equals one.

The PVC deviations from unity illustrating pitch

variations indicate the wow depth.

Besides the genuine audio, additional tones can

be found in archival recordings. This concerns

magnetic recordings which contains a high-

frequency bias (HFB). Another pilot tone at 15.734

kHz can be found in the NTSC stereo soundtracks.

This is the so-called Multichannel Television Sound

(MTS) pilot (Maziewski, 2008, Pastuszak, 2008).

Tracking the pilot tone allows for determining

the PVC. For this purpose the Short Time Fourier

Transform (STFT) is used for detecting its time-

frequency variations. Thus, in the algorithm

proposed, the input signal is divided into STFT

frames. Some earlier study indicated that Hann

window should be applied to weight each frame.

Fig. 3 shows block diagram of the pilot tone tracking

(Czyzewski, 2007).

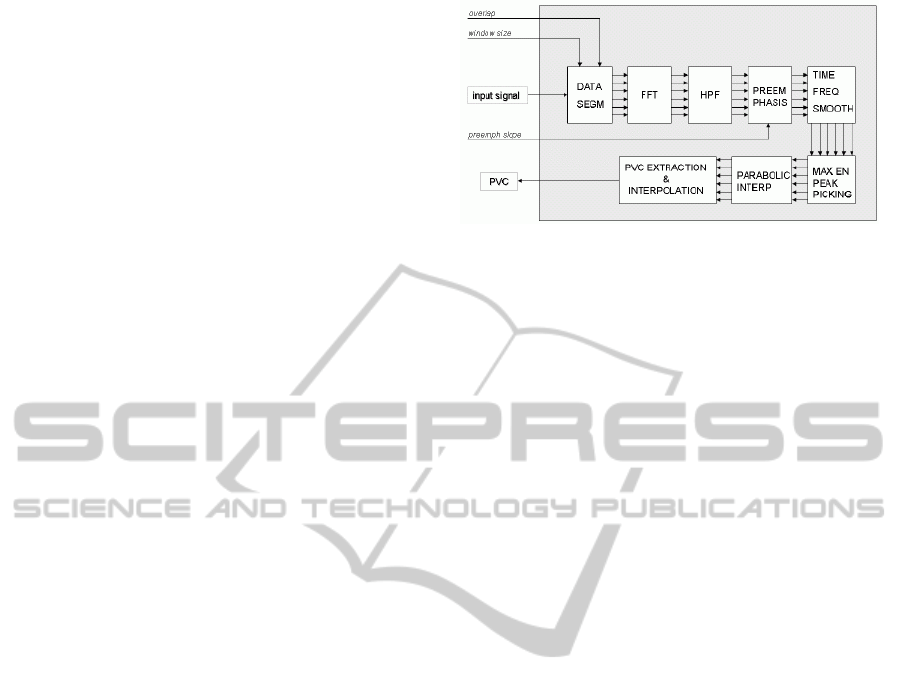

Figure 3: Block diagram of the HFB tracking algorithm.

As a result of STFT calculation, a spectrogram

matrix, representing the time-frequency properties of

the signal, is obtained. Low-frequency spectral

components are set to zero in order to remove the

high-energy genuine audio content which may

obscure the pilot tone (HFB). In addition, each

column of the spectrogram matrix is weighted by an

appropriate preemphasis curve, allowing the bias

enhancement. Also, the time- and frequency-domain

smoothing (both 3

order) are applied. This has an

effect of blurring the whole spectrogram which is

helpful to reduce noise and improve frequency

estimation. Spectral expansion algorithms (e.g.

spectrum raised to 4

power) may also be applied at

this time. Then all columns are searched for

maximal peaks, which, after correcting their

amplitude and frequency estimation accuracy, are

processed to obtain the PVC. Parabolic interpolation

helps to find the fractional index of the bias

frequency bin.

The MTS tracking algorithm operates in two

phases, the first phase is similar to the HFP.

However different (lower) cut-off frequency is

applied, as well as parabolic interpolation is used to

estimate the pilot tone frequency more precisely.

During the second phase the center of gravity (CoG)

within the neighborhood of the nominal pilot tone

frequency (15734 ± 250 Hz) is sought. It is used

later to eliminate the background pilot tone signal

and to correct any potential inexactness of a signal

pitch. Calculating CoG instead of spectral maximum

reduces accidental jumps to nearby strong

interfering signals that are making pilot tone harder

to find in the next steps. The algorithm is iterative.

Fig. 4 shows spectrogram analysis of wow-distorted

signal using the MTS tracking algorithm (Pastuszak,

2008). There are three fragments with oscillating

FM distortion (one with deep aperiodical

modulation). A background MTS pilot tone is

noticeable in the spectrogram.

AUTOMATIC SOUND RESTORATION SYSTEM - Concepts and Design

209

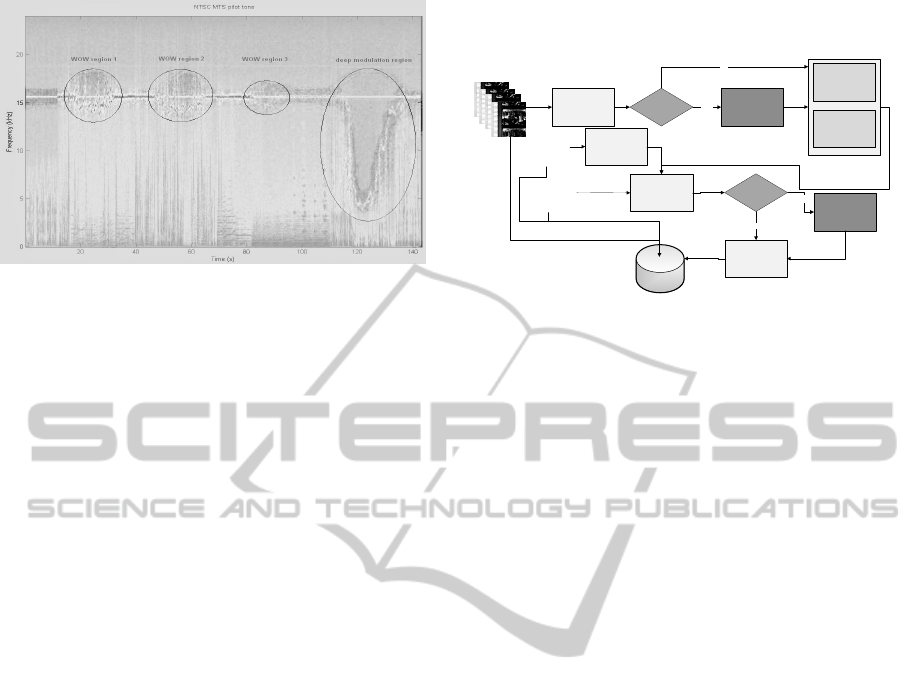

Figure 4: Wow-distorted audio sample spectrogram

(Pastuszak, 2008).

After the wow and flutter distortion is detected

in the video frame irregularity, then accordingly to

the obtained PVC, distortion reduction is performed

by the non-uniform resampling of the movie

soundtrack.

4.2 Movie Frame Processing

After the reconstruction process of distortions

connected with frame images, image processing of

frames is performed. In the first step, to present

uploaded movie frames as one movie, an algorithm

for an automatic film frames cutting is used. This

algorithm cuts the images of the movie from the

image of the whole movie and connect them into the

avi file. Then if images of the movie contain the

image of the optical soundtrack, its image is

converted to the digital sound.

4.3 Automatic Noise Reduction

Noise reduction is performed only for audio files or

for the soundtrack of the video file. Therefore if the

video file is assed regarding the level of the noise in

the soundtrack, audio file is extracted from the input

avi file. An algorithm for an automatic noise

reduction is based on whitening and spectral

subtraction. This method assumes that noise in the

archival recording is the added noise. The algorithm

used for noise reduction was designed during the

European Union Project named PrestoSpace and is

described in details in the paper by one of the

Authors and his colleagues (Czyzewski, 2007).

4.4 Web Service Description

To facilitate automatic material reconstruction

special web service is designed. During the upload

process quality assessment and reconstruction

process of the recordings are to be performed

according to the block diagram presented in Fig. 5.

Image instability

analysis

Image instability,

wow and flutter

reduction

Reconstruction

needed?

Yes

Noise analysis

Reconstruction

needed?

Converting image

to sound

Creating movie file

from frames

Noise reduction

Yes

Database

audio-video

file

audio file

Demux

Mux

Figure 5: Block schema of the automatic reconstruction

web service.

Two scenarios of the data analysis are possible.

In both scenarios original files are saved to the

database. These files could be used in the future e.g.

when more algorithms for quality assessment will be

added or if the process of the distortion reduction

will not give the sufficient quality of reconstruction.

4.4.1 Scenario 1 – Movie Frame Upload

In the first step the user uploads film frames to the

content directory. Then assessment of the image

instability is performed. According to the obtained

the PVC function a decision if the reconstruction is

required is taken. The algorithm of the quality

assessment is based on the comparison of the mean

value and standard deviation of the PVC function

with the thresholds set by the web service user. This

method provides an opportunity to set the level of

distortions that is acceptable for the user. If the level

of the accepted distortions is set to a very low value,

the reconstruction algorithm will work slower than

for the higher value, because the reconstruction

process is performed only for parts of the movie

where the PVC function has a value higher than the

threshold.

After the reduction of the image instability and

wow and flutter defects all images are processed in

order to get the avi file with the movie and wav file

with the soundtrack. In the next step only soundtrack

of the movie is analyzed to detect the level of the

distortion. The algorithm noise reduction detects the

noise level automatically. A similar quality

assessment rule as for the image instability and wow

and flutter algorithms is used. The user should

define a threshold of the noise level that is

satisfactory for him/her and the noise reduction

algorithm is performed only when the level of the

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

210

noise in the soundtrack is higher than the defined

noise level.

In the last step the reconstructed soundtrack and

image are connected into one avi file. The last step is

to save the avi file in the database, then it could be

viewed by other users. The owner of the file has also

an opportunity to perform the reconstruction process

on the original file as many times as he/she wants

setting various values of the threshold. In the

database however only the newest version of the

reconstructed file is saved, therefore only this

version of the file is present in the web service.

4.4.2 Scenario 2 – avi/wav File Upload

The second scenario describes the situation when a

movie is saved in the avi file or only the wav file

with audio signal is uploaded to the service. In this

situation only audio distortions are assessed. The

reconstruction is conducted in the same way as in

the Scenario 1. The reconstructed recordings are

saved in the database and the owner of the

file has

the same possibilities of its processing as in the

Scenario 1.

5 CONCLUSIONS

As a result of the carried out research, a solution for

automatic audio-video reconstruction and archiving

system has been proposed and is now under

development. The proposed quality control

mechanism ensures that high quality recordings are

stored in the database. The system, currently being

implemented as a web application, enables users to

access the audio-video restoration services. The

Internet service allows users for uploading their own

recordings and, in exchange, the system reconstructs

them and allows downloading the restored

recordings.

ACKNOWLEDGEMENTS

Research funded within the project No.

SP/I/1/77065/10 entitled: "Creation of universal,

open, repository platform for hosting and

communication of networked resources of

knowledge for science, education and open society

of knowledge", being a part of Strategic Research

Programme "Interdisciplinary system of interactive

scientific and technical information" funded by the

The National Centre for Research and Development

(NCBiR, Poland).

REFERENCES

Brun, E., Hassaine, A., Besserer, B., Decenciere, E., 2007.

Restoration Of Variable Area Soundtracks. ICIP

IEEE.

Czyzewski, A., Ciarkowski, A., Kaczmarek, A., Kotus, J.,

Kulesza, M., Maziewski, P., 2007. DSP Techniques

for Determining "Wow" Distortions. J. Audio Eng.

Soc., 55, 4, 266-284.

Czyzewski, A., Maziewski, P., Kupryjanow, A., Papaj,

M., Wroclaw, 9-11.04.2008. Methods for audio and

video distortion. Proc. KKRRiT, 465-468, (in Polish).

Czyzewski, A., Maziewski, P., Kupryjanow, A., 2010.

Reduction of Parasitic Pitch Variations in Archival

Musical Recordings. Signal Processing, Special Issue

of Signal Processing: Ethnic Music Restoration, 981 –

990.

Godsill, J., Adelaide, April, 1994. Recursive restoration of

pitch variation defects in musical recordings. Proc.

International Conference on Acoustics, Speech, and

Signal Processing, vol. 2 pp. 233-236.

Kupryjanow, A., Gdańsk 2007. Converting digital picture

of optical soundtrack to digital sound. ISSVEM 2007,

12th International Symposium on Sound and Vision

Engineering and Mastering.

Malecki, I., Warszawa, 1993. Sound Registration and

Reproduction, PWT (in Polish).

Nichols, J., Budapest, October 2001. An interactive pitch

defect correction system for archival audio. 20th Audio

Eng. Soc. International Conference.

Maziewski, P., Kupryjanow, A., Czyzewski, A.,

Amsterdam, NL, 2008. Drift, Wow and Flutter

Measurement and Reduction in Shrunken Movie

Soundtracks. 124th Audio Eng. Soc. Convention,

Preprint No. 7392.

Maziewski, P., 2008. Modulation frequency constrains on

wow and flutter determination. Archives of Acoustics,

33, 125-131.

Pastuszak P., 2008. MTS pilot tone tracking for "wow"

distortion determination. Archives of Acoustics, 33, 1,

117-123, 2008.

Ryder L., July 1968. Synchronous Sound for Motion

Pictures. J. Audio Eng. Soc., 16, 291–295.

Wolfe P., Howarth J., July/Aug. 2004. Nonuniform

Sampling Theory in Audio Signal Processing. 116

Audio Engineering Society Convention, Preprint 6123,

J. Audio Eng. Soc. (Abstracts), 52, 813.

AUTOMATIC SOUND RESTORATION SYSTEM - Concepts and Design

211
