MANAGING TETRA CHANNEL COMMUNICATIONS
IN ANDROID
Luis Corral, Alberto Sillitti and Giancarlo Succi
Center for Applied Software Engineering, Free University of Bozen-Bolzano
Piazza Domenicani 3, I-39100 Bozen-Bolzano, Italy
Keywords: Android, Mobile, Tetra.
Abstract: Mobile systems have evolved to a level in which they have to carry out their operations in environments
demanding high availability and short response time. An excellent radio transmission protocol is necessary
to provide the means to satisfy such requirements. TETRA standard offers a large number of features
designed for safety and emergency use; however, to access a TETRA network it is compulsory the use of a
standard-specific device. In this paper we explore the conditions that have to be fulfilled to extend Android's
capabilities to access TETRA networks from a general-purpose mobile device, and set a path for a future
development aimed to accomplish it.
1 INTRODUCTION
Mobile systems have evolved to a level where they
are required to carry out their operations in
environments demanding high availability, efficient
performance and short response time. Along with
regular radio, cellular telephone communication has
been the choice of organizations that have to satisfy
strict mission-critical requirements (Bissmeier,
2006).
In this context, Terrestrial Trunked Radio
(TETRA) was specifically designed by the European
Telecommunications Standards Institute to meet the
needs of Professional Mobile Radio (PMR),
primarily used in the public safety sector: police
departments, emergency services, fire departments,
surveillance of marine traffic and others (Bakaric,
Borzic, Bratkovic, Grga, 2005).
Major manufacturer Nokia states that now
TETRA is a global standard for PMR
communication in the same way that the Global
System for Mobile Communications (GSM) is the
standard for mobile telephony (NOKIA, 2004).
TETRA provides the capability of trunked, non-
trunked and direct mobile-to-mobile communication.
The services it offers include voice (group or private
calls), circuit switched data, packet switched data
and Short Data Service (SDS) - similar to Short
Message Service (SMS) in GSM (Axiotis and
Xenikos, 2007). TETRA also supports generic and
tailored data applications for each user organization,
such as command and control systems, vehicle
location, database queries, reporting, image transfer
and other customized applications. Thanks to these
characteristics, TETRA is now the official European
Standard for digital PMR and has been selected by
numerous organizations in Asia, Middle-East and
South America for operations considered safe and
emergency critical, according to The TETRA MoU
Association (TETRA MoU, 2011).
Similar to GSM, to access a TETRA network it
is compulsory the use of a device designed for the
use of the standard. This means that the baseband of
the device should recognize the range of frequencies
in which TETRA communications are transported.
Currently, TETRA product lines offered by
manufacturers are not as wide as other equivalent
GSM equipment, and the range of prices makes
disadvantageous to select a TETRA-specific device
against another comparable GSM-specific unit.
In this paper we study the conditions that have to
be fulfilled to access TETRA networks from a
general-purpose mobile device, based on the
possibilities given by Android to incorporate APIs
for utilizing GSM-specific phone features. Then, we
trace a path for a future development aimed to
design and implement an extension to Android for
supporting communication on TETRA networks.
The rest of this paper is organized as follows:
section 2 presents background on current devices
307
Corral L., Sillitti A. and Succi G..
MANAGING TETRA CHANNEL COMMUNICATIONS IN ANDROID.
DOI: 10.5220/0003534303070312
In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 307-312
ISBN: 978-989-8425-55-3
Copyright
c
2011 SCITEPRESS (Science and Technology Publications, Lda.)
available on market; section 3 introduces the
motivation to conduct this research and the scenario
that this work aims to solve; section 4 comments
related work; section 5 describes a comprehensive
analysis of the state of the question and explores the
opportunities given by concurrent technologies;
section 6 identify directions for future work and
finally section 7 draws the conclusions.
2 TETRA MOBILE DEVICES
TETRA devices are designed and produced to work
in a spectrum of radio frequencies from 300 through
1000 MHz. In Europe, TETRA frequencies are
mainly allocated in the 380 to 430 MHz, keeping
lower radio frequency band (380-385 MHz and 390-
395 MHz) reserved for emergency and public
services and the higher (410-430 MHz) for civil use
(Bakaric, Borzic, Bratkovic, Grga, 2005).
The number of active TETRA projects has
continuously shown a growing trend (Mikulic and
Modlic, 2008). With the increasing number of
networks, organizations and users, there is as well an
increasing need of development of technology (e.g.
infrastructure, devices, accessories) to interact with
TETRA networks.
Currently there is a rich variety of devices to
work with TETRA communications. Major
manufacturers (e.g. Motorola, Nokia and Siemens)
include TETRA solutions as part of their product
lines. TETRA devices cover a range of fixed
terminals, mobile handsets, pagers and mobile
devices for vehicles. Encompassing the possibilities
given by the standard, this equipment is able to
deliver services on mobile radio, cellular telephony,
text messaging and digital data.
Records presented by Ascom Group indicate that
TETRA handset prices show a decreasing trend
since 2003, and predictions in the industry foresee a
continuous price pressure towards the level of a
regular cellular phone (ASCOM, n.d.). Nonetheless,
despite of the growing number TETRA products out
in the market, pricing and availability do not match
those shown by GSM-supporting equipment.
3 MOTIVATON
As said, TETRA product lines are not as wide as
equivalent GSM equipment. It is our motivation to
take advantage of the versatility and the diversity of
cutting-edge GSM mobile devices in market to
incorporate them into a TETRA environment. This
incorporation may bring another advantages, for
instance by accessing a TETRA network from a
common mobile device, emergency personnel using
general-purpose mobiles may gain autonomy and
commonality with other interfaces.
It is desired to develop a logic interface that
enables regular mobile devices to directly access a
TETRA network. Because of its simplicity and
disposition to work at different levels, we have
chosen text messaging as the first service to analyze.
To develop the logical interface, we selected
Android as preferred framework, considering its
flexibility and openness. Within Android, different
levels of abstraction are offered, and in particular,
we assume that the telephony API already included
in Android can be a useful element of abstraction to
outline a solution.
The ideal scenario would be that at a lower level,
a parallel layer is placed to collaborate with the
environment that Android already has to manage the
GSM phone signals, in such way to map the TETRA
channel signaling through the composition of proper
Hayes AT commands.
4 RELATED WORK
Comparisons between TETRA and GSM have been
frequently presented in TETRA conferences and
summits, as well as position papers and white papers
that analyze performance or services provided by
each standard. Generally, position papers are issued
by the TETRA Memorandum of Understanding
(TETRA MoU), and white papers are issued by
major manufacturers or service providers. These
works agreed in pointing out several mission critical
characteristics from TETRA that cannot be found in
other similar standards.
We have reviewed as well a number of case
studies showing results of the use of TETRA (i.e.
performance metrics) in a given environment, and
experiences from user organizations using TETRA
around the world. As part of their user experiences,
several comparisons between TETRA and similar
technologies are mentioned too. However, to the
extent of our current review, we were not able to
find any work whose aim is to incorporate TETRA
services to GSM equipment through a customized
software layer.
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
308
5 EXTENSIONS TO ANDROID
TELEPHONY SUPPORT
TO HOLD DIVERSE
STANDARDS
To establish an outline of the conditions that satisfy
the necessities described in section 3, first we need
to know the similarities and differences between
GSM and TETRA, as the former is currently
supported by Android through different management
libraries that let users to access different GSM
services. We consider that this availability represents
an important starting point to set the directions for
our work.
Once we know the similarities and differences
between the two standards, a general study on the
way that Android supports GSM will take place, for
us to understand how Android manages GSM
telephony, messaging and data services and how the
currently offered management may be leveraged or
re-used to access TETRA. Given the case that it is
not possible to baseline or re-use GSM libraries to fit
TETRA operations, other strategies (e.g. kernel
programming) may be considered. After that, we
will be in a position to draw conclusions which at
the same time will serve as foundation for the future
work that is needed to incorporate TETRA support
to Android devices.
In light of this strategy, the following activities
were conducted: 1) Know differences between
TETRA and GSM, 2) Understand how SMS is
managed by GSM to leverage the required behavior
for TETRA-SDS, 3) Determine how Android
provides software packages to manage GSM, 4)
Review the different abstraction levels that Android
has to manage GSM and 5) Select the most ideal
level to implement the necessary functionality. The
rest of this section is organized matching the order
of these activities.
5.1 Differences between TETRA and
GSM
ET Industries highlight that TETRA is not intended
to compete with GSM or any other cellular
technology; they are clearly made for different
purposes. While TETRA was designed for PMR
applications, GSM was designed for public cellular
telephony (ETI, n. d.). Table 1 shows a summary of
different mobile services and its availability through
our two relevant standards.
Table 1: Comparison of services offered by GSM and
TETRA.
Service GSM TETRA
Individual call Supported Supported
Group call Not Supported Supported
Emergency call Supported Supported
Short data messages Supported Supported
Encryption Supported Supported
Authentication Not Supported Supported
Data services Supported Supported
Out of network coverage Not Supported Supported
It has been claimed that TETRA is more robust
than GSM (Nordman et al., 2001). TETRA offers
some specific features that cannot be found in GSM,
including a number of features designed for safety
and emergency use. For example, it allows one-to-
one and one-to-many communication modes, and
thanks to its technology based on a four slot system,
it may use multiple carrier frequencies to
significantly increase the utilization of the radio
channel (ASCOM, n.d.).
Commercial GSM services are not mission-
critical; they collapse under heavy load (i.e. during
the emergency events of London underground
bombing and Madrid railway bombing). In the other
hand, TETRA has proven the capacity to handle
location updates of thousands of units in dense city
areas under highly demanding conditions, like those
in the 2008 Olympic Games in Beijing: 86.000
users, (more than 40.000 from Beijing Police),
holding a total of 17 million group calls during the
whole Games period (Korpilahti, 2010).
Major high-level differences between GSM and
TETRA systems may be summarized as follows
(ETI, n.d.) (Swan, 2006) (Pasquali, 2007).
Table 2: Summary of differences between GSM and
TETRA.
GSM TETRA
Purpose
Public cellular
telephony
Professional mobile
radio applications
Freq.
range
900 to 1910 MHz 380 to 430 MHz
Channel
access
method
Frequency Division
Multiplication Access
Time Division
Multiplication
Access
Call set-
up time
Seconds. (Not suitable
for emergency
services)
Milliseconds.
(Suitable for
emergency services)
Security
No authentication for
listening parties
Authentication plus
encryption
Network
tolerance
Congestion of in
demanding situations
Tolerance to
congestion in
stressing situations
MANAGING TETRA CHANNEL COMMUNICATIONS IN ANDROID
309
5.2 SMS Management on GSM
The Short Message Service makes available a means
of sending messages of limited size to and from
mobile devices. The provision of SMS makes use of
a service center, which acts as a store and forward
center for short messages.
It is referenced by the 3rd Generation Partnership
Project that a GSM SMS message can be up to 160
characters long, where each character is 7 bits
according to the 7-bit default alphabet. There are
two ways of sending and receiving SMS messages:
by text mode and by Protocol Description Unit
(PDU) mode. The text mode is an encoding of the
bit stream represented by the PDU mode. Both text
and PDU modes are all set by the AT-commands
when reading the message in a computer application.
The PDU string contains the message and meta-
information about the sender, service center, time
stamp, etc. (3GPP, 2010)
The Short Data Service of TETRA is a data
service that is comparable with the SMS of GSM. A
TETRA SDS message can carry up to 140 byte data
per message. SDS messages may as well be sent and
received through text mode and PDU with
equivalent AT commands (Ozimek and Gorazd,
2002).
5.3 Software Packages Provided
by Android to Support GSM
Android offers APIs for utilizing specific telephony
features, (e.g. phone calls and SMS messaging). In
the beginning, Android delivered APIs for GSM-
specific features, but now these APIs have been
deprecated to incorporate new versions that support
both GSM and Code Division Multiple Access
(CDMA).
Current telephony APIs are structured within a
package (android.telephony) and its corresponding
classes. These APIs monitor the basic phone
information, such as the network type and
connection state, and give methods for manipulating
phone number strings and other telephony services.
For instance, we may find in Android’s online
reference that it has classes to access to information
about the telephony services on the device, or
classes to manage SMS operations such as sending
data, text SMS messages, and PDU SMS messages
(Android, 2011a).
These appealing concepts lead our next steps to
research the level in which these APIs are located,
and how they interface with the rest of the mobile's
environment.
5.4 Abstraction Levels in Android
to Manage GSM
Android has different abstraction layers to place a
variety of services and applications according to
specific requirements and necessities (Santi, Guidi,
and Ricci, 2010).
Android's Radio Interface Layer (RIL) provides
an abstraction level between Android telephony
applications (android.telephony) and radio hardware
(see Figure 1). This RIL is radio agnostic, this means
that it works with any of the frequencies that the
radio hardware can receive. Now Android RIL
includes support for GSM-based radios.

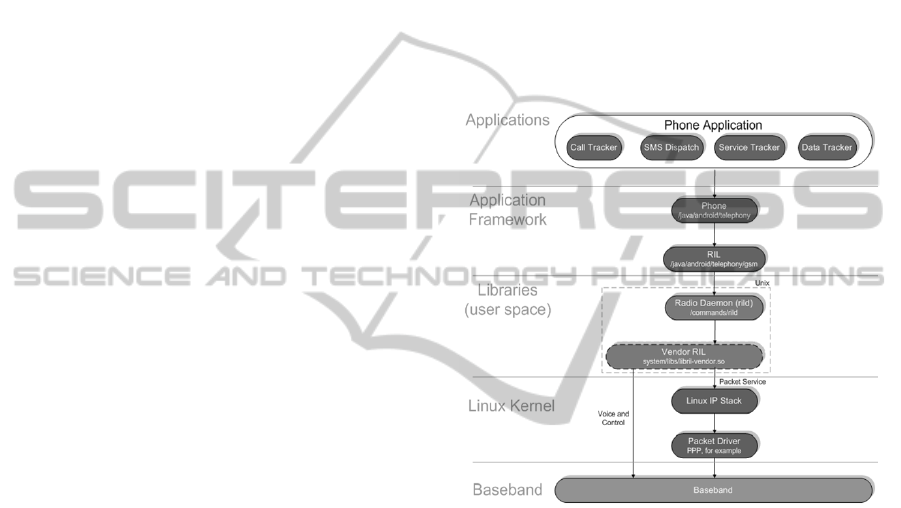

Figure 1: RIL in the context of Android's telephony
system architecture (Android, 2011b).
The RIL consists of two primary components: 1)
RIL Daemon: initializes the Vendor RIL, processes
all communication from Android telephony services,
and dispatches calls to the Vendor RIL as solicited
commands, and 2) Vendor RIL: a radio-specific
vendor RIL that processes all communication with
radio hardware and dispatches calls to the RIL
Daemon through unsolicited commands (Android,
2011b).
To develop a radio-specific RIL, it is required to
create a shared library that implements the set of
functions required by Android to process particular
radio requests. In an abstraction level, we can locate
libraries as software components that rely on the
kernel and provide higher level functionality to user-
level applications (Ponomarenko and Rubanov,
2010).
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
310
5.5 Selection of an Abstraction Level
to Implement New Functionality
Since the Android radio interface is radio agnostic,
the Vendor RIL can use any protocol to
communicate with the radio. Android has a
reference Vendor RIL, using the Hayes AT
command set, that can be used as a quick start for
telephony testing and a guide for commercial vendor
RILs (Android, 2011b). This suggests the possibility
to take advantage of these libraries to communicate
high level APIs with a TETRA radio. Android itself
locates the source code for the reference RIL at
/commands/reference-ril.
This approach is preferable to writing code in
kernel mode, because the adaptation of the physical
transport device and a serial signal would need the
creation of a driver, whilst an application-level
solution would be based only on the adaptation of
APIs and the execution of AT commands at user
mode.
6 FUTURE WORK
Established the grounds from which this work
should be undertaken, the following high-level
stages shall be covered to achieve full TETRA
functionality on an Android-operated target device:
First, it is necessary to create a shared library that
implements the set of functions required by Android
to process particular radio requests, in our case,
TETRA-specific ones. The required functions are
defined in the RIL header (/include/telephony/ril.h),
and such library shall be reviewed in sufficient detail
to determine what functions are required, how to
adapt them and finally how to deploy them in a real-
world device. This new RIL should define a handle
to the functions that will process all radio requests,
and particular functions to handle solicited and
unsolicited commands.
The next step is to perform a thorough review on
current APIs delivered by Android to suit GSM
operations. As mentioned above, our goal is to
determine the feasibility and effectiveness to use
them to meet TETRA requirements, and then
perform the necessary changes or development to
deliver a suite of Android APIs that truly allow an
Android device to interact with a TETRA network,
starting from text messaging (SDS). This stage will
represent a major endeavor that will require the
design and implementation of efficient methods,
able to interact both with the RIL and with high-
level user applications. Currently we are reviewing
different strategies to achieve this goal in the most
appropriate fashion.
Though Android permits full interaction with
Java, we acknowledge that other programming
languages (e.g. C or C++) facilitate hardware and
low-level interfacing. Due to this, it is our goal to
explore the possibility of writing or baselining the
necessary functions using native C code, considering
the possibilities that the Android Native Developer
Kit (NDK) gives.
Writing or re-utilizing C code should not
introduce conflicts with the rest of the Android
environment. Applications written in native code are
still packaged into the usual Android .apk file and
they still run inside of the virtual machine on the
device, leaving the fundamental Android application
model untouched (Android, 2011c). The use of
Android NDK will enable the development effort to
manage the device in an adequate level of detail
beyond the limit of the common framework
(Sangchul and Jeon, 2010).
Currently, we have exercised different examples
on how C code can be written and called by regular
Android applications as native methods. Results
have been positive in methods that return values,
arrays and simple objects. For interaction with
complex objects, the use of aid tools like SWIG may
be advisable. In the same sense of the performance
tests described by Sangchul and Jeon (2010), our
observations have been as well substantially
favorable to native C code when comparing its
execution time with identical methods written in
Java.
7 CONCLUSIONS
The main contribution of this paper is to provide a
background on how Android framework can be
modified in a way to allow it to interact with
services from different communication standards,
additional to GMS or CDMA. Although significant
effort is yet to come, essential information may be
taken from this paper to set a projection in the
forthcoming work:
Differences between GSM and TETRA are
located chiefly in physical and transport
layers. This proposes that software layers may
deal with different sorts of packages delivered
by radio hardware.
Android offers different abstraction levels to
interface with the context of telephony system
architecture, including RIL, a radio agnostic
layer that may work with all frequency ranges
MANAGING TETRA CHANNEL COMMUNICATIONS IN ANDROID
311
that the radio can receive. This RIL interfaces
with telephone APIs and libraries within user
space. Vendor RIL can be modified or
replaced to implement a radio-specific RIL, in
this case, a TETRA-specific one.
Thanks to the RIL abstraction layer, it is
visualized that no kernel programming would
be required but the design and implementation
of a TETRA-specific RIL library at Android's
user space level, capable to work with APIs
that suit specific needs required by TETRA.
This recommends in consequence undertaking
the effort of creating the RIL that implements
the functions required by Android to process
TETRA radio requests, and re-using and
tailoring android.telephony APIs to satisfy the
requirements set by the new RIL library. We
foresee the use of Java, as well as the
inclusion of native C code as a convenient tool
to incorporate functionality related to low-
level operations.
Our goal is to provide functionality in fundamental
services such as text messaging interchange. At this
point it is not yet possible, though, to assure that all
functionality and enhanced features provided by
TETRA (encryption, direct mode operation, etc.) can
be supported only by adapting basic telephone and
messaging Android APIs.
REFERENCES
Android 2.3 Release Documentation (2011). Android
Package Summary: android.telephony. Retrieved
February 8, 2011, from http://developer.android.com
/reference/packages.html.
Android 2.3 Release Documentation (2011). Android
Radio Layer Interface. Retrieved February 8th, 2011,
from http://source.android.com/porting/telephony.html
Android 2.3 Release Documentation (2011). Android
Native Development Kit. Retrieved February 8th,
2011, from http://developer.android.com/sdk/ndk.
Ascom Group. (n.d.) TETRA Terrestrial Trunked Radio. ©
Ascom. Retrieved February 8th, 2011 from http://
www.ascom.com/en/tetra-article.pdf.
Axiotis, D. I., Xenikos, D. (2007). On the effects of short
data service-transport layer message length in QoS
metrics of TETRA networks. Proceedings of the 18th
Annual IEEE International Symposium on Personal,
Indoor and Mobile Radio Communications.
Bakaric, S., Borzic, M., Bratkovic, D., Grga, V. (2005).
TETRA (Terrestrial Trunked Radio) - Technical
Features and Application of Professional
Communication Technologies in Mobile Digital Radio
Networks for Special Purpose Services. Proceedings
of the 47th International Symposium ELMAR-2005.
Bissmeier, R. (2006). High demands on cellular networks-
High demands on Surge Protective Devices.
Proceedings of the 28th Annual International
Telecommunications Energy Conference.
ET Industries. (n.d.). Introduction to TETRA Technology.
Retrieved February 8th, 2011, from http://www.eti
world.com/tetra.pdf.
Korpilahti, T. (2010). TETRA Data Applications. TETRA
Moving Forward in Indonesia. Jakarta 2010.
Retrieved February 8th, 2011, from http://www.
tetramou.com.
Mikulic, M., Modlic, B. (2008) General System
Architecture of TETRA Network for Public Safety
Services. Proceedings of the 50th International
Symposium ELMAR-2008.
Nokia. (2004). TETRA Quick Guide © Nokia. Retrieved
February 8th, 2011, from http://www.nokia.com
/NOKIA_COM_1/About_Nokia/Press/White_Papers/
pdf_files/tetraquickguide.pdf.
Nordman, M. et al. (2001). TETRA radio in Monitoring
and Control of Secondary Substations. Proceedings of
the 2001 Developments in Power System Protection
Conference.
Ozimek, I., Gorazd, K. (2002). SCADA System Using
TETRA Communication Network. Proceedings of the
6th WSEAS International Multiconference on Circuits,
Systems, Communications and Computers.
Pasquali, F. (2007). The TETRA Business Case. TETRA
today in Turkey. Retrieved February 8th, 2011, from
http://www.tetramou.com/tetramou.aspx?id=4208
TETRA MoU.
Ponomarenko A., Rubanov. V. (2010). Automated
Verification of Shared Libraries for Backward Binary
Compatibility. Second International Conference on
Advances in System Testing and Validation Lifecycle.
Sangchul L., Jeon, J. W. (2010). Evaluating Performance
of Android Platform Using Native C for Embedded
Systems. 2010 International Conference on Control,
Automation and Systems.
Santi, A., Guidi, M., Ricci, A. (2010). Exploiting Agent-
Oriented Programming for Developing Android
Applications. Undicesimo Workshop Nazionale "Dagli
Oggetti agli Agenti". WOA 2010.
Swan, D. (2006). Comparing TETRA with other
Technologies. TETRA Experience Dubai 2006.
Retrieved February 8th, 2011, from http://www.
tetramou.com.
TETRA (Terrestrial Trunked Radio) Memorandum of
Understanding (2011). Official Website. © 2011 The
TETRA MoU Association Ltd. Retrieved February
8th, 2011 from http://www.tetramou.com.
Third Generation Partnership Project. (2010). TS 23.040
V9.3.0: Technical realization of the Short Message
Service (SMS) 3GPP. © 3GPP Organizational
Partners. 2010.
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
312
