TOWARDS PATTERNS FOR HANDLING SAFETY CRITICAL

ADAPTIVE CONTROL SOFTWARE

Andr´e A. Hauge

Department of ICT Risk and Dependability, Institute for Energy Technology, Halden, Norway

Department of Informatics, University of Oslo, Oslo, Norway

Ketil Stølen

Department of Networked Systems and Services, Sintef ICT, Oslo, Norway

Department of Informatics, University of Oslo, Oslo, Norway

Keywords:

Pattern format, Adaptive software, Safety.

Abstract:

This article puts forward a pattern format for use in the safety critical control domains where adaptable com-

ponents are part of the control software. The pattern format may be seen as a ﬁrst step towards establishing a

pattern language uniting three interests. The ﬁrst interest is related to the objective of providing the compre-

hensibility and usability found in design patterns with respect to communication of solutions to problems that

may be solved by means of adaptive control. The second interest is related to the need to make explicit the re-

quirements to be satisﬁed in order to facilitate instantiation of a design in different safety critical contexts. The

third interest is related to the need to provide argumentation for risk being satisfactory reduced. The pattern

format supports not only documentation of a technical solution to a recurring problem, but also documentation

of the requirements that must be satisﬁed when instantiating a design in different contexts as well as solutions

for how the safety property may be demonstrated.

1 INTRODUCTION

From the perspective of a software safety engineer,

evaluating the suitability of a particular adaptive soft-

ware design or ﬁnding the most suitable of a set of

relevant designs for use in a speciﬁc context is a chal-

lenge in itself. Our approach is intended to provide

the safety engineer with a pattern language which of-

fers design solutions as well as indication on the re-

quirementsthat may be associated with the design and

solutions to how one may demonstrate safety.

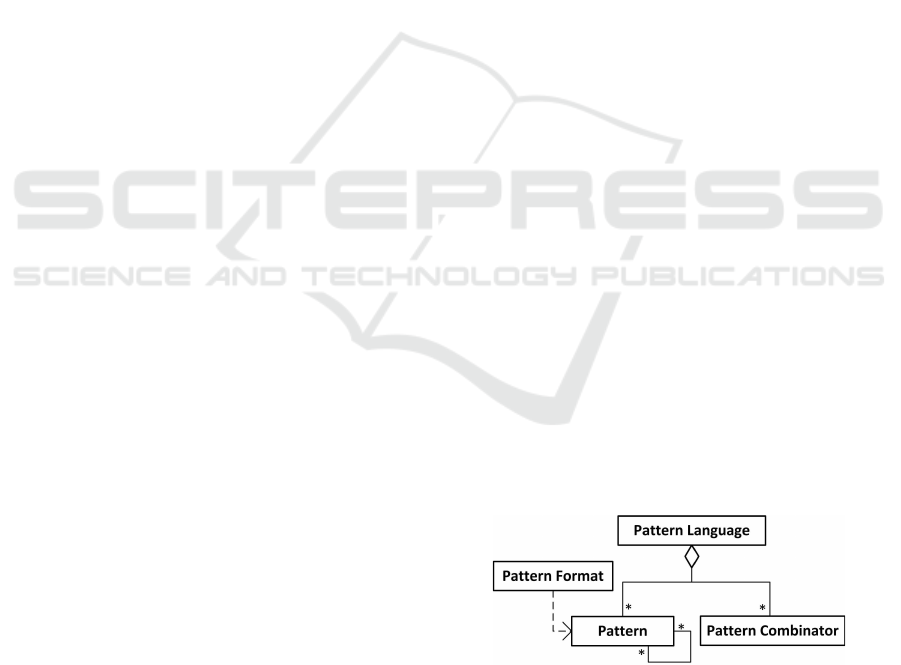

Figure 1 illustrates the relationship between the

different constituents of our pattern language for Safe

Adaptive Control Software (or SACS for short). We

employ the Alexandrian (Alexander et al., 1977) in-

terpretation of what is meant by a pattern language.

This article mainly addresses the format and discusses

how the format supports establishing the SACS pat-

tern language.

Section 2 provides an overview of the main chal-

lenges to be addressed by our pattern language. Sec-

tion 3 presents the pattern format. Section 4 exem-

Figure 1: The levels of the language.

plify how patterns speciﬁed according to the format

may be combined to form a usable pattern language.

2 THE CHALLENGE

Adaptive control software is able to evolve while exe-

cuting, thereby introducing an additional uncertainty

aspect with respect to functional behaviour compared

to conventional software systems. The uncertainty is

associated with the variability of the system and the

variabilityof the service as an effectof the adaptations

that may be experienced at runtime. The variability of

211

A. Hauge A. and Stølen K..

TOWARDS PATTERNS FOR HANDLING SAFETY CRITICAL ADAPTIVE CONTROL SOFTWARE.

DOI: 10.5220/0003538502110214

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 211-214

ISBN: 978-989-8425-74-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

the systems and the service is governed by the adap-

tation loop mechanism (Salehie and Tahvildari, 2009)

consisting of processes for monitoring, detecting, de-

ciding and acting upon change. From a safety per-

spective, the challenge is to demonstrate that the sys-

tem is still safe after each adaptation iteration.

A successful pattern language for use by a safety

engineer should be able to communicate: (i) design

solutions; (ii) requirements that must be satisﬁed in

order to give conﬁdence that a system may achieve its

intended utility and safety integrity; and (iii) how to

demonstrate that a system based on a design pattern

is sufﬁciently safe for a given purpose. In order to

facilitate such a pattern language, we summarise the

following main success criteria for our pattern format:

1) support the speciﬁcation of patterns in such a

manner that a pattern language for safety criti-

cal/related adaptive control software may be pro-

vided

2) support the speciﬁcation of patterns for each of

the concerns requirements, design and safety case

3) support speciﬁcation of patterns which build upon

each other in such a manner that a user may be

provided with choices and detail by the linked pat-

terns

3 MAIN INGREDIENTS OF THE

PATTERN FORMAT

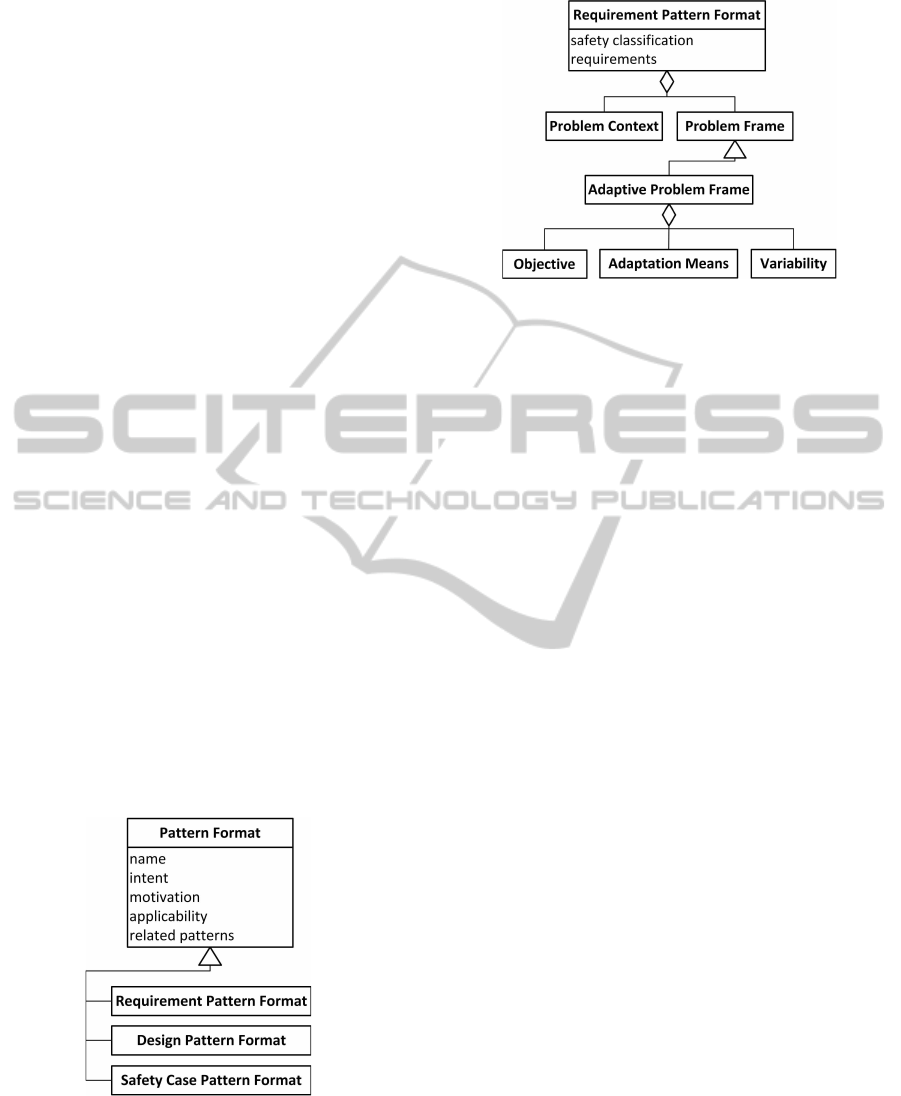

Figure 2 gives the basic format of the three types of

patterns. In the following we describe these in further

detail.

Figure 2: Overall Structure for Pattern Format.

3.1 Requirement Pattern Format

The requirement pattern format as illustrated in Fig-

ure 3 is inspired by the problem frames approach by

Figure 3: Requirement Pattern Format.

(Jackson, 2001). A requirement pattern in our pat-

tern language address a speciﬁed set of problems, or

problem domains, which are documented as part of

the problem context. The problem frame part of a

pattern is intended to be used to elaborate upon the

phenomenons associated with the different types of

problem domains identiﬁed in the problem context

to such an extent that the problem is sufﬁciently un-

derstood. The requirements part should specify the

sets of requirements which are derived on the basis of

the problem frames speciﬁcations. A challenge is to

capture uncertainty or allowable variability of the ser-

vice and the system as an effect of adaptations, this

is discussed in (Qureshi and Perini, 2009) and (Whit-

tle et al., 2009). An Adaptive Problem Frame may

be used to elaborate upon the challenges with respect

adaptiveness. This type of problem frame requires

that the objective for introducing adaptivity, adap-

tation means detailing how adaptability may be ob-

tained, and the challenges associated with variability

of the system and the system service are addressed.

Requirements that may be derivedthe problem frames

speciﬁcations are detailed in the requirements ﬁeld.

3.2 Design Pattern Format

Our format for expressing design patterns as shown

in Figure 4 is inspired by the the format provided by

(Gamma et al., 1995), an extension is provided by re-

quiring the explicit description of safety features.

Although our language is intended to address

adaptive control software, each pattern which make

up a part of the language does not necessarily address

adaptivity. A design pattern thus might conform to the

basic Design Pattern Format or the extended Adapt-

able Design Pattern Format as illustrated in Figure

4. An adaptable design pattern should clearly de-

scribe the characteristic properties which provide sys-

tem variability and service variability as an effect of

runtime adaptations.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

212

Figure 4: Design Pattern Format.

3.3 Safety Case Pattern Format

A safety case may be structured in different styles

(Alexander et al., 2008) and by different means, e.g.

graphical approaches like GSN or CAE (Alexander

et al., 2008), (Bishop et al., 2004). The intent how-

ever is to structure claims, arguments and evidence in

such a manner that it may be logically deduced and

concluded that the system is sufﬁciently safe.

For any safety critical or safety related system, the

core driver for providing conﬁdence that the system is

sufﬁciently safe is basically to demonstrate two con-

cerns: (i) that the safety requirements speciﬁcation is

sufﬁcient and correct and (ii) that the system satisﬁes

the safety requirements. A safety case pattern should

provide the main claims, arguments and indicate the

evidence required such that the concerns of (i) and (ii)

may be demonstrated.

Adaptive software differs from non-adaptive soft-

ware in that the properties of the software are ex-

pected to change beyond commissioning time. In or-

der to demonstrate that an adaptive system is safe, we

must demonstrate that an iteration of the adaptation

loop always yields a reﬁnement which is safe within

its operational lifetime.

Figure 5 provides the basic format of our pat-

tern for demonstrating the safety of adaptive software.

A pattern speciﬁed according to the Adaptive Safety

Case Pattern Format is required to provide a claim

structure documentation which in general is intended

to be used to document the argument in a structured

manner. With respect to demonstration of adaptive

software safety, the claim structure should be docu-

mented in such a manner that it is a logical conse-

quence of the premises provided by these argument

parts that adaptation will have no negative effect on

safety. There are ﬁve important parts to such an argu-

ment which are required to be explicitly documented

in our pattern format under the ﬁeld Safe Adaptation.

Figure 5: Safety Case Pattern Format.

The objective should reﬂect the goals to be achieved

by adaptation. The precondition is intended to capture

the premises of the argument related to the conditions

for executing the adaptation loop. Related to the tran-

sition ﬁeld, there should be provided a description of

the means which assure adapting a system satisfying

a precondition will always yield a system satisfying a

postcondition. The postcondition is intended to cap-

ture set of premises which is satisﬁed when the sys-

tem is adapted and which guarantees that the system

is safe. The variability part of the pattern is intended

to capture the implied variability of the service and

the system which may be expected as an effect of ac-

commodating changes by adapting. It should also be

described why this variability will have no negative

effect on safety.

4 EXAMPLE

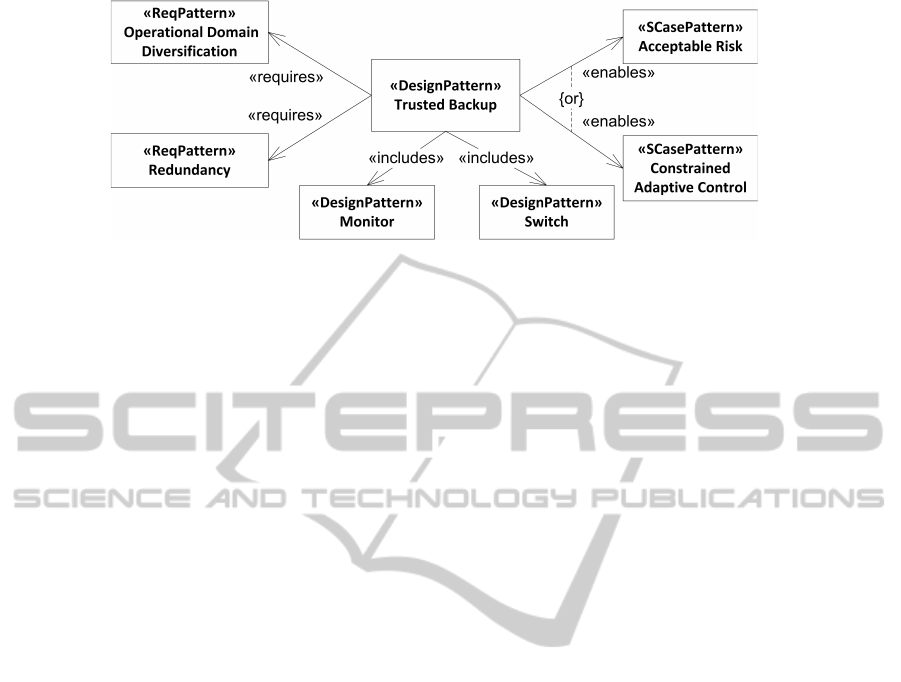

Figure 6 illustrates a map of related patterns as seen

from the perspective of an example design pattern

named Trusted Backup, thus only one generation of

links is provided. A map of the complete pattern lan-

guage may be provided by combining the information

contained in the related patterns ﬁeld of individual

patterns.

Pattern combinators describe the rules for how

patterns may be combined to form a pattern language.

Figure 6 exemplify the use of a set of combinators

where the following semantics may be assumed:

includes: speciﬁes that a pattern may be partially

deﬁned by another pattern of the same type. This

is used to deﬁne that patterns may build upon each

other

requires: speciﬁes that a Design Pattern should

satisfy the requirements in a Requirement Pattern

enables: speciﬁes that a speciﬁc Design Pattern

TOWARDS PATTERNS FOR HANDLING SAFETY CRITICAL ADAPTIVE CONTROL SOFTWARE

213

Figure 6: Example.

enables the use of a speciﬁc Safety Case Pattern

in order to argue about the safety property

Where there is a one-to-many relationships between

patterns, the following rules may be used in order to

detail the relationship:

or: deﬁne that the targets represent alternatives

where only one is required for completeness

and: deﬁne that all the target patterns are required

for completeness. This is implied in Figure 6 if

not otherwise speciﬁed

We assume here that the Trusted Backup design pat-

tern describes a conﬁguration of an adaptable con-

troller, a conventional controller, a monitor and a

switch component. Both controllers operate in par-

allel and are granted control privileges according to

a switching scheme. A monitor supervises the adapt-

able controller in order to detect anomalies to its be-

haviour. The switch grants control to the adaptable

controller given that no anomalies are detected by the

monitor and the system under control is in a state for

which the adaptable controller may not cause harm,

otherwise the switch grant control to the conventional

controller.

The Trusted Backup design speciﬁes the use of on

a redundant set of controllers and means for delega-

tion of control according to some type of diversiﬁca-

tion of the operational state space. The requires rela-

tionships specify the requirement patterns which must

be instantiated and satisﬁed when instantiating the de-

sign pattern, here this is the Operational Domain Di-

versiﬁcation and Redundancy requirement patterns.

The Trusted Backup design pattern may include

several other design patterns as part of its speciﬁca-

tion. The include relationships of Figure 6 indicate

that the pattern include functionality for monitoring

and switching and that these are handled in dedicated

patterns named Monitor and Switch.

Depending on the intent for introducing adapt-

ability and other characteristics of the system design,

strategies for demonstrating safety may or may not be

applicable. If adaptivity is introduced in a design to

improve performance, we cannot make an argument

of improved safety. In Figure 6 there is illustrated

two applicable Safety Case Patterns named Accept-

able Risk and Constrained Adaptive Control where

it is sufﬁcient to apply only one for demonstrating

safety.

REFERENCES

Alexander, C., Ishikawa, S., and Silverstein, M. (1977). A

Pattern Language: Towns, Buildings, Construction.

Oxford University Press.

Alexander, R., Kelly, T., and McDermid, J. (2008). Safety

cases for advanced control software: Safety case pat-

terns. Technical Report FA8655-07-1-3025, Depart-

ment of Computer Science, Univeristy of York.

Bishop, P., Bloomﬁeld, R., and Guerra, S. (2004). The fu-

ture of goal-based assurance cases. In Proceedings of

Workshop on Assurance Cases. Supplemental Volume

of the 2004 International Conference on Dependable

Systems and Networks, pages 390–395.

Gamma, E., Helm, R., Johnson, R. E., and Vlissides,

J. (1995). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Jackson, M. (2001). Problem Frames: Analysing and Struc-

turing Software Development Problems. Addison-

Wesley.

Qureshi, N. A. and Perini, A. (2009). Engineering adaptive

requirements. International Workshop on Software

Engineering for Adaptive and Self-Managing Systems,

pages 126–131.

Salehie, M. and Tahvildari, L. (2009). Self-adaptive soft-

ware: Landscape and research challenges. ACM

Trans. Auton. Adapt. Syst., 4(2):1–42.

Whittle, J., Sawyer, P., Bencomo, N., Cheng, B. H. C., and

michel Bruel, J. (2009). Relax: Incorporating uncer-

tainty into the speciﬁcation of self-adaptive systems.

In 17th IEEE International Requirements Engineering

Conference RE 2009, pages 79–88.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

214
