MULTI-VIEW 3D DATA ACQUISITION USING A SINGLE

UNCODED LIGHT PATTERN

Stefania Cristina

, Kenneth P. Camilleri

and Thomas Galea

Department of Systems and Control Engineering, University of Malta, Msida, Malta

Megabyte Ltd, Mosta, Malta

Keywords:

3D Reconstruction, Machine vision, Stereo, One-shot, Uncoded light pattern, Data fusion. Multiple views.

Abstract:

This research concerns the acquisition of 3-dimensional data from images for the purpose of modeling a per-

son’s head. This paper proposes an approach for acquiring the 3-dimensional reconstruction using a multiple

stereo camera vision platform and a combination of passive and active lighting techniques. The proposed one-

shot active lighting method projects a single, binary dot pattern, hence ensuring the suitability of the method

to reconstruct dynamic scenes. Contrary to the conventional spatial neighborhood coding techniques, this

approach matches corresponding spots between image pairs by exploiting solely the redundant data available

in the multiple camera images. This produces an initial, sparse reconstruction, which is then used to guide a

passive lighting technique to obtain a dense 3-dimensional representation of the object of interest. The results

obtained reveal the robustness of the projected pattern and the spot matching algorithm, and a decrease in the

number of false matches in the 3-dimensional dense reconstructions, particularly in smooth and textureless

regions on the human face.

1 INTRODUCTION

The acquisition of 3-dimensional data by stereovision

techniquesis a very widely researched area in the ﬁeld

of computer vision due to its wide range of applica-

tions. However, the range ﬁnders proposed to date

still face major challenges such as the reconstruction

of textureless surfaces.

Passive range ﬁnders depend only on stereo im-

ages acquired in ambient lighting to operate. Multi-

view passive systems (Okutomi and Kanade, 1993;

Kang et al., 2001; Gallup et al., 2008) provide larger

surface coverage and higher depth accuracy when

compared to passive two-camera systems. However,

their performance is still challenged by texturless sur-

faces. Active range ﬁnders code the viewed scene

with a light pattern to address the issues in recon-

structing textureless surfaces. While temporal coding

(Chang, 2003; Zhang et al., 2002) and direct codiﬁca-

tion (Miyasaka et al., 2000; Liang et al., 2007) tech-

niques are not suitable for reconstructing non-static

objects since they project multiple patterns, spatial

neighbourhood coding techniques (Shi et al., 2005;

Song and Chung, 2008) project only a single pattern

but they are not robust to surface depth discontinu-

ities.

The object of interest in this work that is sought to

be 3-dimensionally reconstructed is an ear-to-ear rep-

resentation of a person’s head. A multi-viewapproach

consisting of passive and active lighting techniques is

used due to the textureless nature of the human face.

The active technique projects a single, binary and un-

coded dot pattern, and an algorithm is proposed which

matches corresponding spots by exploiting the redun-

dant data in multiple stereo images. This matching al-

gorithm is not susceptible to surface depth discontinu-

ities and results in an initial, sparse reconstruction. A

dense 3-dimensional reconstruction is then obtained

using a passive lighting technique, which is guided

by the initial reconstruction to reduce the likelihood

of occurrence of false matches.

This paper is organized as follows. Section 2 de-

tails the various stages of the proposed approach. Ex-

perimental results are discussed in Section 3. Section

4 presents the concluding remarks and suggests fur-

ther work.

2 METHODS

The concept behind the proposed spot matching al-

gorithm is that for every 3-dimensional point on the

317

Cristina S., P. Camilleri K. and Galea T..

MULTI-VIEW 3D DATA ACQUISITION USING A SINGLE UNCODED LIGHT PATTERN.

DOI: 10.5220/0003545203170320

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 317-320

ISBN: 978-989-8425-75-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

surface of interest there is only one consistent and

physical depth value on which every stereo pair in

the multi-camera setup must agree, and this per-

mits the identiﬁcation of correspondingspots between

multiple images. The multi-camera setup in this

work comprises 4 cameras, which are calibrated us-

ing Bouguet’s Camera Calibration Toolbox for Mat-

lab (Bouguet, 2010).

Spot Pattern Extraction: A simple, single pattern

composed of centered horizontal and vertical stripes,

spanning from one border to the other, and binary dots

is projected on the object of interest, as shown in Fig-

ure 1. The stripes delineate quadrant sets of dots al-

lowing each quadrant to be processed separately and

inhibiting every dot matching error from propagating

into other quadrants.

Figure 1: Projection of the light pattern onto the object of

interest, as acquired from one of the cameras.

The spot pattern is extracted by binarising the im-

ages of the object and the projected light pattern, and

ﬁlling any holes in the spots. The centroid of each ex-

tracted spot is then found and used to represent the ap-

proximate location of each projected spot. This yields

the images f

(u)

for any spot quadrant, where camera

index i = 1, . . . , n, and superscript u denotes unrecti-

ﬁed images.

Spot Matching: In order to generate a sparse re-

construction of the object of interest, corresponding

spots between multiple stereo pairs need to be iden-

tiﬁed. Contrary to the active techniques reviewed

in Section 1, which rely on coded patterns to iden-

tify correct pixel correspondences, the proposed algo-

rithm exploits the redundant data in multiple stereo

images to match each spot in the uncoded binary pat-

tern. This ensures that the method is unaffected by

the underlying surface colour and is not susceptible

to surface depth discontinuities. The spot matching

procedureﬁrst involves identifying candidate matches

and then identiﬁes the most likely match on the basis

of range consistency.

In order to identify the possible matching spots in

the pattern, the binary images are ﬁrst rectiﬁed with

respect to a reference camera i according to (Fusiello

et al., 2000), in order to reduce the search problem

for correspondences to a 1-dimensional search along

epipolar lines. This yields the pairs of images, f

(r(i, j))

and f

(r(i, j))

for cameras indexed i and j respectively,

where j = 1, . . . , n, j 6= i, with a particular rectiﬁca-

tion r(i, j) between camera pair i, j. The spots in im-

ages f

(r(i, j))

and f

(r(i, j))

are also arbitrarily assigned a

unique index value k

(i)

and k

( j)

respectively, for iden-

tiﬁcation purposes.

Now, consider the spot indexed k

(i)

. Its true match

must theoretically lie on the epipolar line in image

(r(i, j))

. Therefore, the indices of the spots residing

on the epipolar line are included in the set, C

(i)

) =

( j)

, k

( j)

, . . . , k

( j)

} = {k

( j)

, 1 ≤ η ≤ N}, of candidate

matching dots for the spot with index, k

(i)

. In addi-

tion, spots residing on a number of rows above and

below the epipolar line are also included in the set of

candidate matches, since the estimation of each spot

location may shift the true match off the epipolar line.

Now, each candidate match is assigned a score and

a depth value. The score value was chosen to be a lin-

early decreasing function of distance from the epipo-

lar line. The depth value Z

(r(i, j))

(i)

( j)

) is calcu-

lated by triangulation between the reference spot with

index value, k

(i)

, and each candidate match, k

( j)

, in

(i)

) as described by Equation 1.

(r(i, j))

(i)

( j)

) =

i, j

(r(i, j))

d(k

(i)

, k

( j)

)

(1)

where, η = 1, . . . , N, B

i, j

denotes the baseline length

of the stereo pair (i, j), F

(r(i, j))

denotes the common

focal length of cameras i and j, and d(k

(i)

, k

( j)

) is the

disparity value in pixel units between spot index k

(i)

in f

(r(i, j))

and the candidate matching spot index k

( j)

in f

(r(i, j))

Since the depth value of the true match must be

consistent between all stereo pairs, this true match can

be identiﬁed by seeking that candidate match that has

the same depth value in all stereo pairs. However,

any inaccuracies in the camera calibration parameters

and the inaccurate approximation of each spot loca-

tion may cause the depth values of the true match

to vary by some value between different stereo pairs.

To counteract this discrepancy and identify the true

match, a weighted histogram of the depth values of

each candidate match is generated, where each can-

didate match is weighted by its score value forming a

histogram such as shown in Figure 2. A separate map-

ping table is also used to retain the relationship be-

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

318

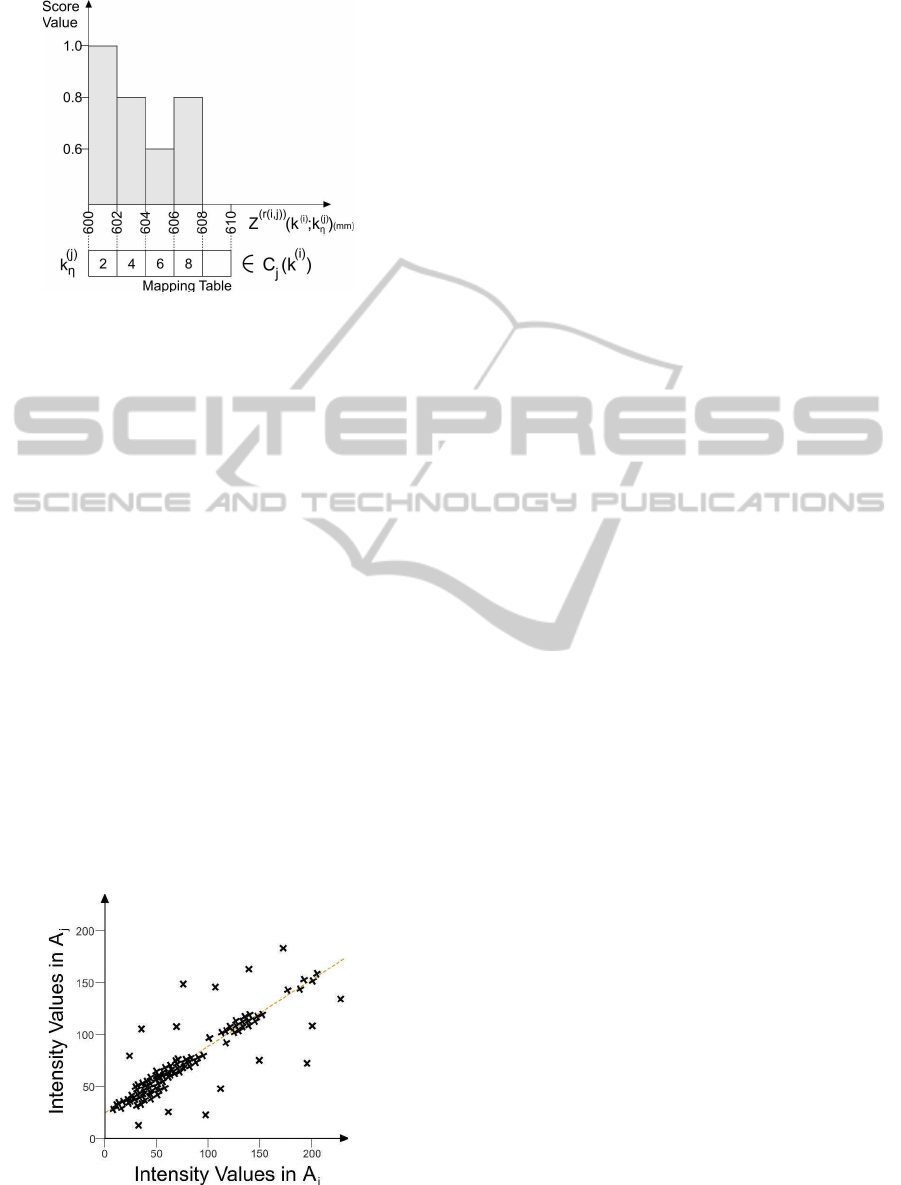

Figure 2: A weighted histogram of the depth values of each

candidate match is generated for each stereo pair, and a sep-

arate mapping table retains the relation between the index

value and depth value of each candidate match.

tween the index, k

( j)

, of a particular candidate match

and its depth value. The histogram of each stereo pair

is aligned and summed to generate a single global his-

togram. The mode depth interval is then chosen to

represent the range, and the corresponding spots are

identiﬁed and taken to represent the same dot in the

pattern.

Post-Processing of the Matched Spot Pattern:

Theoretically, true spot matches have similar inten-

sity values in stereo image pairs acquired in ambient

lighting. Ignoring any non-linearities in camera sensi-

tivity, all correctly matched spots should ﬁt a straight

line. Therefore, the intensities of all matching spot

pairs are plotted in a 2-dimensional plot where each

axis represents the intensity of each camera in the

pair, as shown in Figure 3. The best straight line is

then ﬁt to the distribution by linear regression, and

those points whose distance from the line is above

a certain tolerance are taken to represent mismatches

and are discarded.

Figure 3: The intensities of all matching spot pairs are plot-

ted, where A

and A

denote the ambient lighting images

acquired from cameras i and j respectively.

Localized Correspondence and 3D Reconstruc-

tion: The initial, sparse representation of the object

of interest is used to guide a passive correspondence

technique in order to obtain a dense 3-dimensional

reconstruction. All stereo image pairs are being in-

tensity calibrated by adopting a modiﬁed version of

(Kawai and Tomita, 1998).

The passive correspondence method used to ob-

tain a dense 3-dimensional representation of the ob-

ject of interest, is based on the Sum of Sum of

Square Differences (SSSD) in-inverse-distance tech-

nique by Okutomi and Kanade (1993). In the pro-

posed approach, the correspondence search range is

constrained for each individual pixel using the set of

matched spots. This increased the robustness of the

correspondence algorithm, as detailed in Section 3.

3 RESULTS AND DISCUSSION

The proposed approach was tested by projecting a

random dot pattern on a test mannequin, as shown

in Figure 1. From the results obtained it was found

that on average the spot matching algorithm yielded

97.53% of correctly matched spots per pattern quad-

rant.

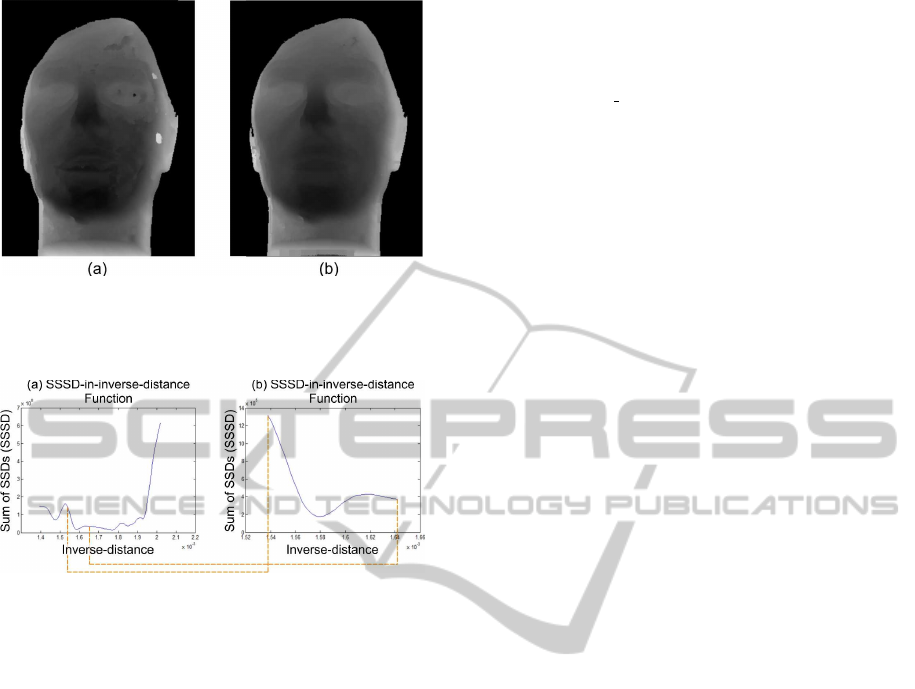

For comparison purposes, the reconstruction in

Figure 4(a) was generated from intensity calibrated

images using the method in (Okutomi and Kanade,

1993). This result shows several false matches on sur-

face regions which mostly lack anydiscernible texture

such as the forehead, the cheeks and the chin, when

compared to the result obtained using the proposed

approach in Figure 4(b). The occurrence of these

false matches is a direct consequence of the large

search range considered in (Okutomi and Kanade,

1993). The SSSD-in-inverse-distance function in Fig-

ure 5(a) of a false match in Figure 4(a) shows multi-

ple minima whose SSSD value is very close, and a

global minimum at the wrong inverse-distance value.

On the other hand, constraining the search range in

the proposedapproach results in the SSSD-in-inverse-

distance function in Figure 5(b), which contains a

single minimum and correctly identiﬁes the inverse-

distance value of the true match.

4 CONCLUSIONS

This work has dealt with the 3-dimensional recon-

struction of a person’s head using a multi-camera

setup and a combination of active and passive lighting

methods, to combine their merits and obtain a more

reliable 3-dimensional reconstruction.

MULTI-VIEW 3D DATA ACQUISITION USING A SINGLE UNCODED LIGHT PATTERN

319

Figure 4: The depth map computed using the approach in

(Okutomi and Kanade, 1993) (a), compared to the depth

map generated using the proposed approach (b).

Figure 5: The large search range considered in (Okutomi

and Kanade, 1993) and the lack of surface texture result

in a global minimum at the wrong inverse-distance value

(a), while constraining the search range in the proposed

approach ensures the SSSD-in-inverse-distance function to

contain a single minimum at the true match (b).

The projection of a single, uncoded binary pattern

and the proposed spot matching algorithm are appli-

cable in reconstructing non-static surfaces which con-

tain depth discontinuities and are not colour-neutral.

This generates a sparse but reliable 3-dimensional

reconstruction, which is then used to constrain the

search range of a passive correspondence technique

to produce a dense reconstruction of the object of in-

terest.

Further work includes scaling up of the system to

include a larger number of cameras, in order to en-

hance the performance of the spot matching and cor-

respondence algorithms due to the availability of a

larger amount of multi-view redundant data.

ACKNOWLEDGEMENTS

This work is part of the project ’3D-Head’ funded by

the Malta Council for Science and Technology under

Research Grant No. RTDI-2004-034.

REFERENCES

Bouguet, J. Y. (2010). Camera calibration toolbox for

matlab. Available at: http://www.vision.caltech.edu/

bouguetj/calib doc/. [Accessed January 2010].

Chang, N. L. (2003). Efﬁcient dense correspondences using

temporally encoded light patterns. In IEEE Interna-

tional Workshop on Projector-Camera Systems.

Fusiello, A., Trucco, E., and Verri, A. (2000). A compact

algorithm for rectiﬁcation of stereo pairs. In Machine

Vision and Applications. Springer-Verlag.

Gallup, D., Frahm, J. M., Mordohai, P., and Pollefeys, M.

(2008). Variable baseline/resolution stereo. In IEEE

Conference on Computer Vision and Pattern Recogni-

tion. IEEE Computer Society.

Kang, S. B., Szeliski, R., and Chai, J. (2001). Handling oc-

clusions in dense multi-view stereo. In Proceedings of

the IEEE Computer Society Conference on Computer

Vision and Pattern Recognition. IEEE Computer So-

ciety.

Kawai, Y. and Tomita, F. (1998). Intensity calibration

for stereo images based on segment correspondence.

In International Association of Pattern Recognition,

Workshop on Machine Vision Applications.

Liang, Z., Gao, H., Nie, L., and Wu, L. (2007). 3d recon-

struction for telerobotic welding. In Proceedings of

the 2007 IEEE International Conference on Mecha-

tronics and Automation.

Miyasaka, T., Kuroda, K., Hirose, M., and Araki, K. (2000).

High speed 3-d measurement system using incoherent

light source for human performance analysis. In Pro-

ceedings of the 19th Congress of The International So-

ciety for Photogrammetry and Remote Sensing.

Okutomi, M. and Kanade, T. (1993). A multiple-baseline

stereo. In IEEE Transactions of Pattern Analysis and

Machine Intelligence. IEEE Computer Society.

Shi, L., Yang, X., and Pan, H. (2005). Face mod-

eling using grid light and feature point extraction.

In Proceedings of the International Conference on

Computational Science and its Applications. Springer

Berlin/Heidelberg.

Song, Z. and Chung, R. (2008). Grid point extraction

exploiting point symmetry in a pseudo-random color

pattern. In Proceedings of the 15th IEEEInternational

Conference on Image Processing.

Zhang, L., Curless, B., and Seitz, S. M. (2002). Rapid shape

acquisition using color structured light and multi-

pass dynamic programming. In Proceedings of the

First International Symposium on 3D Data Process-

ing Vizualization and Transmission. IEEE Computer

Society.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

320
