INTELLIGENT HOTEL ROOM ASSISTANT

Balázs Tusor

Integrated Intelligent Systems Japanese-Hungarian Laboratory, Budapest, Hungary

Annamária R. Várkonyi-Kóczy

Institute of Mechatronics and Vehicle Engineering, Óbuda University, Budapest, Hungary

Keywords: Intelligent space, Virtual room application, Machine learning, Smart environments.

Abstract: Recently, the usage of smart environment systems has become popular, in order to make everyday living

more comfortable and to improve the quality of human life. Intelligent Space (or iSpace) based systems are

good examples: they strive to be comfortable and easy to use, even without demanding technical knowledge

from their users. However, their aim is not limited to this: in fact, their ultimate goal is to achieve an

intelligent environment for higher quality, natural and easy to follow lifestyle. The goal of this paper is to

present a research that focuses on developing an Intelligent Space application that is able to comprehend,

interpret and execute the detected and pre-processed commands given by human users. The presented

solution is also able to learn commands that are given periodically under specific conditions and execute

them if the conditions occur.

1 INTRODUCTION

Today, computers play an increasing role in our

everyday life. The applications of intelligent systems

that aim to improve the living conditions and quality

of everyday life are also gaining more and more

importance. In ideal case, these systems are realized

in such a way that the usage of the systems becomes

as easy as possible, while the presence of the system

does not bother its user at all. This leads to the basic

idea of “ubiquitous computing”, proposed by

(Weiser, 1991).

One example for ubiquitous computing

applications is the Intelligent Space (iSpace) (Lee et

al., 2000), which has been developed at the

University of Tokyo. ISpace is a room or area that

has built-in intelligence: it can monitor the events

and actions taking place in the room or area, it can

comprehend human interactions, and it is able to

react to them. To mention some examples, it can

share information with the user, help in orientation,

or anticipate crisis situations. The user can also give

commands to the Intelligent Space to use certain

services. Therefore, the system should be easy to use

for the people in it, without the need for them to

learn how the system is to be used.

The most characteristic feature of the iSpace is

that the intelligence is distributed in the whole space,

not in the individual agents. The main advantages of

this component based architecture are that the iSpace

can easily be constructed or modified by the

installation or replacement of so-called Distributed

Intelligent Networked Devices (DINDs) responsible

for monitoring a part of the space, processing the

sensed data, making local decisions, and

communicating with other DINDs or agents if

necessary. The agents in the space do not have to

possess any complex logic.

Any room or area can be converted to an

Intelligent Space by installing DINDs into it.

Although, when building iSpace into an existing

area we have to keep in view that the system should

be human centered, should not be disturbing for the

people who are using it and the installation should

not alter the area overly.

There are several iSpace applications currently

developed or planned. These include the positioning

and tracking of humans, the localization of mobile

robots, the control of robots, finding paths for them

by using itineraries taken by people, etc. (see e.g.

(Lee and Hashimoto, 2000), (Appenzeller et al.,

1997), and (Lee et al., 2004)).

182

Tusor B. and R. Várkonyi-Kóczy A..

INTELLIGENT HOTEL ROOM ASSISTANT.

DOI: 10.5220/0003573101820187

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 182-187

ISBN: 978-989-8425-74-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

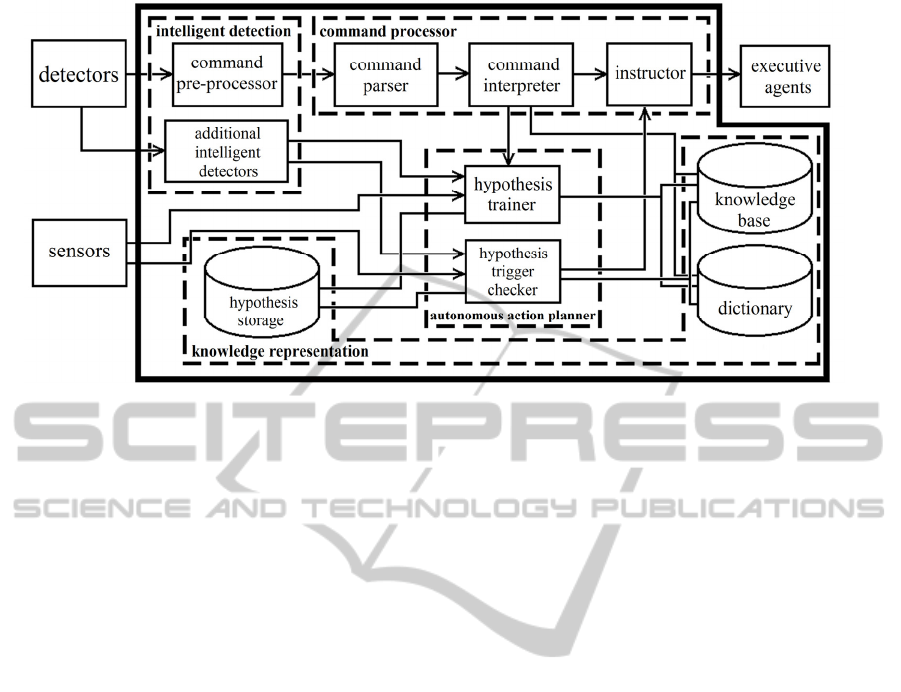

Figure 1: The architecture of the system.

In this paper, the authors focus on a different

approach fitting into the frame of the iSpace. This

application covers learning and satisfying varying

daily routine actions of different people. A typical

example can be an intelligent hotel room assistant

that provides services to make the daily life of the

people inhabiting the room more comfortable.

To achieve this goal, several problems need to

be solved. First, the knowledge has to be

represented in a flexible and easy to process way.

Secondly, the commands given by users need to be

detected. Thirdly, the detected commands need to

be processed and executed. Lastly, frequently

repeated commands need to be learned and

executed autonomously. Thus, the system can be

divided to 4 major parts; each part solves one of

the problems mentioned above.

The rest of the paper is organized as follows: In

section 2 the authors present an overview of the

proposed system. Section 3 gives more specific

descriptions about the modules of the system. In

section 4 the current implementation of the system

is presented. Section 5 draws the conclusions about

the current state of the system and presents ideas

for future work.

2 THE INTELLIGENT HOTEL

ROOM ASSISTANT

Figure 1 shows the architecture of the system. The

inputs for the system are provided by detectors and

sensors. Former are devices which are capable of

detecting audio or visual commands given by

human users, latter are simple devices which can

measure simple properties of the room, like its

temperature.

Executive agents are electric devices that are able

to satisfy the needs of the user. They have just enough

built-in intelligence to be able to do their pre-defined

task. The iSpace is connected to them as well.

The system consists of 4 parts. The first major part

is Knowledge Representation, which defines the way

how knowledge is described and stored in the system.

The second major part is Intelligent Detection part,

which detects the command given by human users and

prepares it. It also detects additional information. This

part is designed to be added or be replaced by a new

module easily. The third part is the Command

Processor part. It processes the command and orders

the appropriate executing agents to carry it out. The

last part is the Autonomous Action Planner, which is

responsible for the learning and trigger-based

autonomous actions of the system.

3 THE MAJOR PARTS

OF THE SYSTEM

3.1 Knowledge Representation

The knowledge representation part consists of the

knowledge base, the hypothesis storage and at least

one dictionary.

The knowledge base represents the knowledge of

the system. It is realised as a graph-based structure,

where the nodes denote the known abstract objects

and concepts. The directed edges between them

describe their relationship.

INTELLIGENT HOTEL ROOM ASSISTANT

183

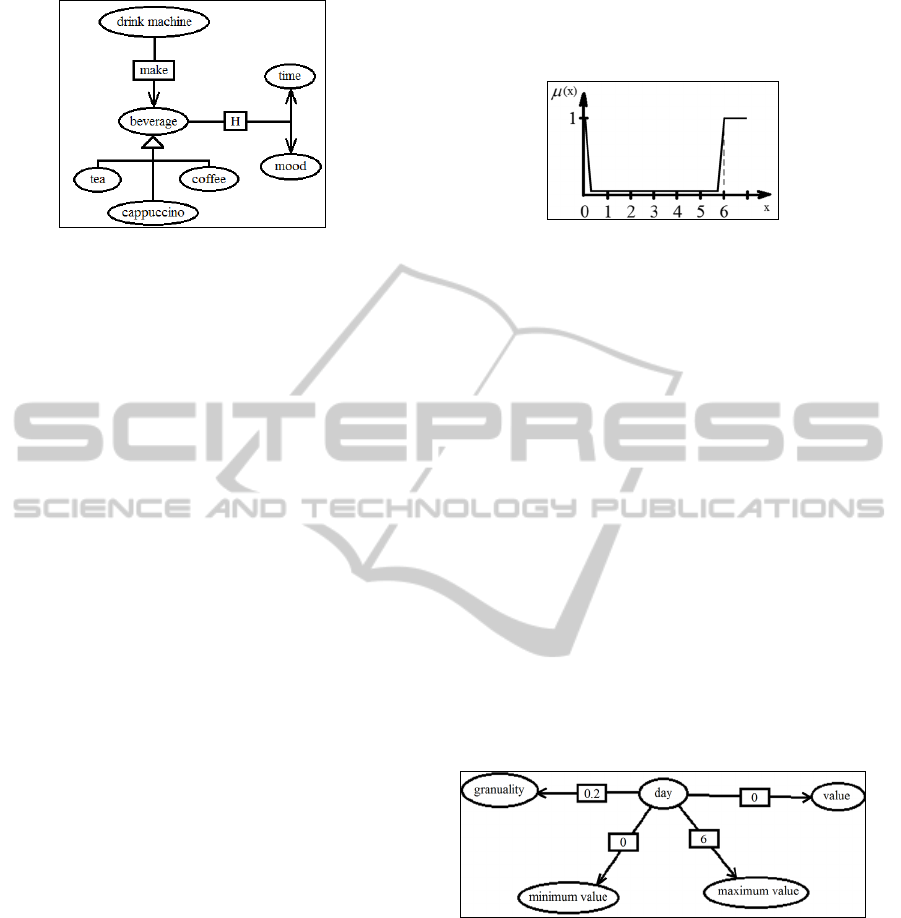

Figure 2: Structural example for the knowledge

representation in the knowledge base.

The nodes are homogenous and nameless. For

the sake of identification dictionaries are used,

which assign words or expressions to nodes. In the

current implementation only one (English)

dictionary is used, although the concept is

designed for the usage of multiple dictionaries.

This way the knowledge base can be kept

independent of natural languages.

The different types of edges are the following:

 Ability Edges: node A is connected to node B

with label s, if A can do s to B. For example,

A = „drink machine”, B = „beverages”,

s = „make” means „drink machine can make

beverages”. In figure 2 it is denoted with its s

label.

 Instance Edges: an instance edge assigns the

address of an executive agent to node A. For

example, A = „drink machine” and the

assigned address is the address of the drink

machine. This is a flexible way to bind an

executive agent to the node that describes it.

 Meta Edges: node A is connected to node B,

if A has a numerical value in B quality. For

example, A = „temperature”, B = „value” and

the value is „20” (which means „the value of

the temperature is 20”). Another example, to

describe that the minimum value of the

temperature is 0: B = „minimum value” and

the value is „0”. With the application of meta

edges environmental variables can be

appointed, which can store the values of the

sensors connected to the iSpace.

 Heuristics Edges: node A is connected to

node B, if B heuristics can be bound to

concept A. B is usually an environmental

variable. For example, actions done to

„curtain” are dependent of „time”. It is

denoted by an arrow with label H.

Inheritance Edges: node A is connected to

node B, if A is a B. For example, “coffee is a

beverage”. A inherits the properties of B: for

example, the heuristics and ability edges

connected to B. It is denoted by a triangle headed

arrow.

Figure 3: The fuzzy membership function for Saturday.

 Fuzzy Edges: similar to meta edges, but with

fuzzy sets instead of numerical values. For

example, A = „Saturday”, B = „day” and the

assigned value is given by the membership

function that can be seen on figure 3, for input

value x. (x = 0..6, assuming the days of the week

start with Sunday (with index 0)).

Figure 2 shows a structural example for the

realization of the knowledge base and figure 4 shows

an example for the application of meta edges. The

meta edges connecting nodes minimum value and

maximum value to node day store the possible

minimum and maximum value of the day

environmental variable, the edge between node value

and node day stores the current value of the

parameter, similarly; while the edge between nodes

granularity and day stores a value that remarks how

sensitive the variable is to change.

These 4 nodes are connected to specific nodes like

mood and time, similarly with the appropriate values,

thus making them environmental variables.

Figure 4: The application of meta edges.

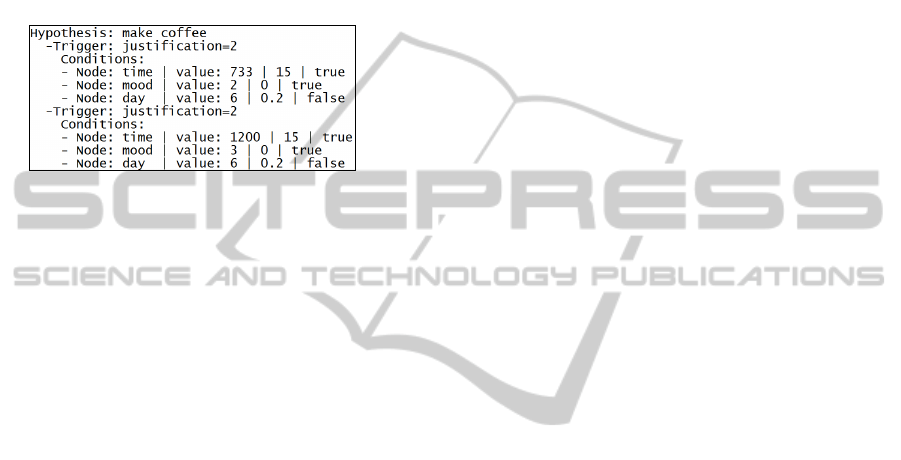

The system creates and manages hypotheses based

on the interpreted commands given by the user. The

hypotheses are stored in the hypothesis storage. A

hypothesis consists of (pointers to) the action and

subject nodes. It also can have optional numerical

values, similarly to the command the hypothesis is

based on. A hypothesis also has at least one trigger,

which consists of a justification value that denotes

how reassured the system is in the trigger of the

hypothesis; and at least one condition. A condition is

derived from an environmental variable: it consists of

a condition node (the node of the environmental

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

184

variable), value (the value stored in the meta edge

connecting the environmental variable to node

„value”), sensitivity (which can be derived

similarly to value using node „granularity” and the

appropriate meta edge), and affirmativeness, which

is a Boolean value. If its value is false then the

condition is used as if it would be negated. (Thus

the trigger will be triggered only if the condition is

not fulfilled.)

3.2 Intelligent Detection

The Intelligent Detection part consists of

Command Pre-Processor (CPP) modules and

Additional Intelligent Detector (AID) modules.

The task of the CPP modules is to detect the

command given by human users and transform it

into a whole sentence (for example, “open the

window”). The methods used to achieve this

depend on the type of the available detectors. For

example, for voice commands microphones are

required, and to be able to give command to the

iSpace via hand gestures (so users suffering from

hearing impairment or muteness can communicate

with the system as well via sign language) one or

more cameras are necessary. For the latter case, the

hand gesture detection and recognition system

proposed by (Várkonyi-Kóczy et al., 2010)can be used.

The task of the AID modules is to provide

additional information to the system, like

estimating the emotional state of the human users.

3.3 Command Processor

The modules of the Command Processor analyze

the given command and order the appropriate

executive agents to carry it out. These modules are

the Command Parser Module, the Command

Interpreter Module and the Instructor Module.

3.3.1 Command Parser Module (CPM)

The task of the CPM is to determine the type of the

command and parse it with regards to its type. Its

input is the pre-processed command in the form of

a whole sentence and its output is the parsed

command.

Two different types of commands are

distinguished: instructions and prohibitions.

Instructions are simple commands, which are

given by the user to achieve change in the

environment. The first part of instructions

describes the action that is needed to be executed,

while the second part describes the subject of the

action. After that there can be optional numerical

values.

Prohibitions are commands that are given by the

user to bound one or more commands that were

already learned, thus achieving change in the

hypotheses. Their structure is similar to instructions,

with the difference that they start with DO NOT and

have additional (at least one) text parameters, which

represent fuzzy sets. For example, in case of „DO

NOT make coffee on Saturday” prohibition command

„Saturday” means the fuzzy membership function that

can be seen in figure 3 (the input value can be

retrieved from the meta edge connecting nodes value

and day). Since the granularity of Saturday is 0.2,

early Sunday morning and late Friday night count as

“almost Saturday”.

Since the input is a whole sentence in predefined

format (since English language is quite strictly

defined), the parsing algorithm is simple. For

example, in case of instructions the first word is

always the action and (after the removal of occurrent

articles, like “the”) the second one is the subject of the

command.

3.3.2 Command Interpreter Module (CIM)

The task of the CIM is to determine which executive

agent can execute the command. Its input is the parsed

command and its output is the address/reference of an

executive agent.

The algorithm of the command interpretation is

applied only if the command is an instruction, since

prohibitions are not needed to be executed. First the

algorithm needs to find the node corresponding to the

subject of the command, with the usage of the

dictionary. Then if there is such node, the next step is

to find out what can do the action of the command to

the previously found node. This is done by searching

among the action edges. If there is one and it has an

instance (there is an instance edge to it), then the

algorithm has found the executive agent that can

execute the command. If there is none (or there is, but

it does not have any instances) then the algorithm

looks at the ancestors of the subject node (via

inheritance edges), recursively searching for an

ancestor with at least one instance. If there is at least

one, then the algorithm returns the address/reference

of the executive agent bound to that ancestor.

Otherwise, the command cannot be executed.

3.3.3 Instructor Module

The task of the Instructor Module is to instruct the

executive agents chosen by the interpreter to execute

the task to provide the desired service for the user.

INTELLIGENT HOTEL ROOM ASSISTANT

185

3.4 Autonomous Action Planner (AAP)

The AAP is responsible for the learning of the

system via hypotheses and to decide whether or

not to take actions according to what the system

has learned. It consists of the Hypothesis Trainer

and the Hypothesis Trigger Checker modules.

3.4.1 Hypothesis Trainer Module (HTM)

The task of the HTM is to determine which

executive agent can execute the command. Its

input is the parsed command and has no outputs.

The algorithm of the hypothesis training is the

following:

If the command is an instruction, then search

for a hypothesis that has the same action, subject

and numerical parameters. Since there can be only

one hypothesis like that, it is sufficient to get that

one. If there is none, then make a new hypothesis

using the parameters of the command and add a

new trigger and new conditions with the

(environmental variable) nodes connected to the

subject node with heuristic edges. There will be as

many conditions as many heuristic edges are

connected to the subject node. The value and

granularity of each condition is derived from the

current value and granularity of the environmental

variable. If there already is such a hypothesis, then

check its triggers. If there are any triggers with

conditions triggered by the current values of the

environmental variables, increase the justification

of that trigger and end the algorithm. If there is no

trigger like that, then make a new trigger using

heuristics just like it is explained above.

If the command is a prohibition then search for

a corresponding hypothesis with triggers. If there

is one (if it doesn’t have any triggers, add a new

trigger to it), then add a new condition to all its

triggers using the negated fuzzy membership

function of the prohibition. An example will be

shown for this in section 4.

3.4.2 Hypothesis Trigger Checker Module

(HTCM)

The task of the HTCM is to frequently check the

conditions of the hypotheses in the hypothesis

storage. If a hypothesis is triggered, the HTCM

sends the command of the hypothesis to the CIM,

which instructs the appropriate executive agents to

carry out the command.

4 THE IMPLEMENTED SYSTEM

In the current implementation (shown in figure 5)

the system is realised in a virtual room where a virtual

man is living his everyday life. He gives commands to

the Intelligent Hotel Room Assistant integrated to the

room to have his desires satisfied. The system is

equipped with detectors that can detect the given

command. It also has an emotion estimator as an

additional intelligent detector (which is still under

development; in the current implementation it is

assumed that it correctly estimates the mood of the

human user).

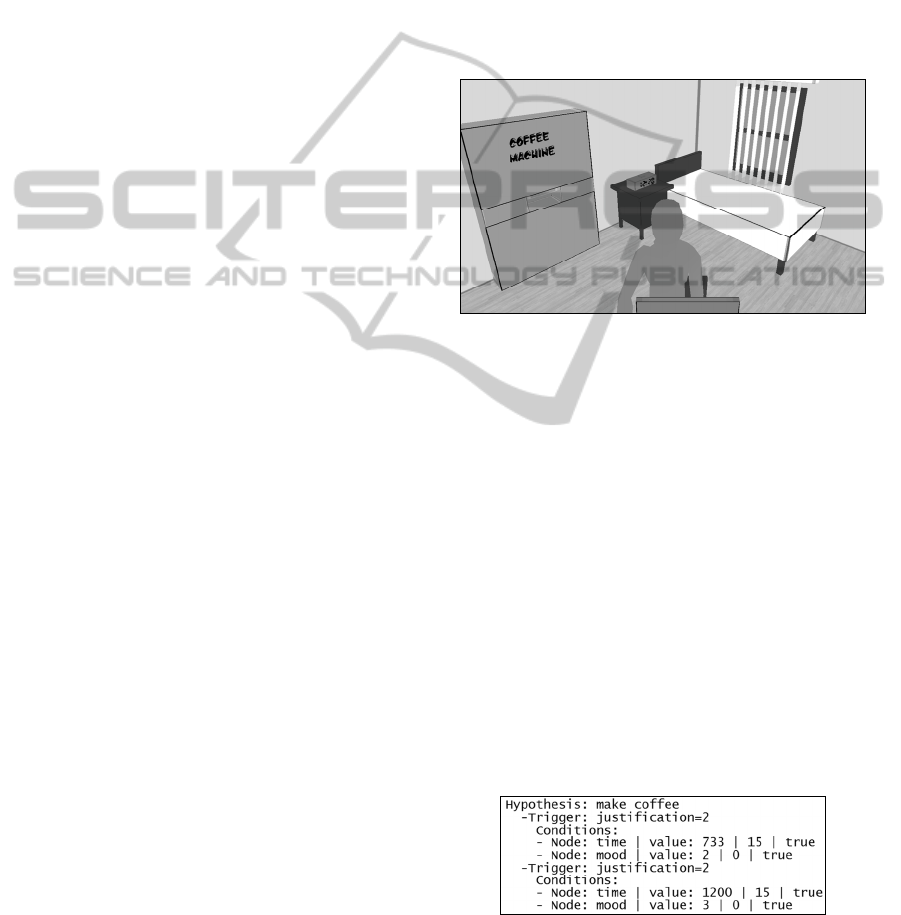

Figure 5: The current implementation of the virtual room.

He gives certain commands in certain times (for

example, „open the curtains” after he woke up at 7:00,

„make coffee” at 7:33 and 12:00, „turn on the

heating” if the temperature is lower than

15 °C / 59 °F, etc.), the system makes and manages

hypotheses based on these commands. The

justification threshold of the triggers of hypotheses is

set to 2, thus the system is only able to give out the

command of the triggered hypotheses if the command

was detected at least 2 times under the same

circumstances.

Figure 6 shows an example for a learned

hypothesis based on the instruction „make coffee”.

The command was given at 7:33 and 12:00 (the

parameters after „value” are: the value and granularity

of the environmental variable and the affirmativeness

of the condition). (The mood of the user was

frustrated (2) and neutral (3)).

Figure 6: Example for the instruction command.

His weekday and weekend schedules are different,

though the system does not know about this on the

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

186

first time, so it makes coffee at 7:33 on Saturday.

In reaction the user gives a prohibition: “DO NOT

make coffee on Saturday.”

Thus, the hypothesis based on command „make

coffee” is modified by the complement of fuzzy

membership function Saturday as it is shown in

figure 7, which means the system will not make

coffee if the value of environmental variable day is

6. (If the user decides after that he wants to drink

coffee after all on Saturday, the system will add a

brand new trigger to the hypothesis.)

Figure 7: Example for the prohibition command.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, an Intelligent Space application is

presented that is able to comprehend, interpret and

execute the detected and pre-processed commands

given by the human user, if the commands are

given in a specific form. The system is able to

learn repetitive commands that are given in similar

conditions with the usage of heuristics and execute

them when the conditions are fulfilled without

requiring the user to give those commands again.

During the simulations of the current

implementation the system could learn all the

instruction and prohibition commands given by the

virtual inhabitant of the virtual room.

The system is able to operate real-time because

of the graph-based knowledge base which can be

expanded and modified dynamically, thus new

sensors and executive agents can be added to the

system any time. The system is still under

development, there are numerous ways to improve

the capability and efficiency of the system.

Complete language independency: The

language independency is not complete in the

current implementation because of the text

parameter of the ability edges. However,

appointing nodes for the actions (and binding

words to them by the dictionary) and converting

the ability edges to three-ended-connections,

complete language independency can be achieved.

More flexible command parsing: in the current

implementation the command given by the user

needs to be in a predefined form, thus the user is

limited in giving commands. This limitation needs to

be decreased with the application of more intelligent

parser algorithms.

Causality: the system should realize the indirect

desires of the human user. For example, if the user

says that he or she is cold, then the system should

realize that the correct course of action is to close the

windows if they are open, turn on the heating, etc. To

achieve this, the improvement of the Knowledge Base

and Interpreter Module will be necessary.

Interaction between the iSpace and the human

user: if the system is unsure about giving out a learned

command (the justification value of the trigger of the

hypothesis is just at the threshold) or there are two

very similar hypothesis triggered at the same time

(e.g. „make coffee!” and „make tea!”), the system

should ask the human user about what actions should

it take.

These improvements will be applied to the system

in future work.

ACKNOWLEDGEMENTS

This work was sponsored by the Hungarian National

Scientific Fund (OTKA 78576).

REFERENCES

Appenzeller, G., J.-H. Lee, H. Hashimoto, 1997. “Building

topological maps by looking at people: An example of

cooperation between Intelligent Spaces and robots,”

Intelligent Robots and Systems, Vol. 3, No. 7, pp. 1326 –

1333. 1997.

Lee, J-H., H. Hashimoto, 2000. “Intelligent Space,” in Proc.

Int. Conf. on Intelligent Robots and Systems, IROS 2000,

Vol. 2, pp. 1358 – 1363.

Lee, J-H., K. Morioka, N. Ando, H. Hashimoto, 2004.

“Cooperation of distributed intelligent sensors in

intelligent environment,” IEEE/ASME Trans. on

Mechatronics, Vol. 9, No. 3, 2004

Várkonyi-Kóczy, A. R., B. Tusor, 2010, Circular Fuzzy

Neural Network Based Hand Gesture and Posture

Modeling, In CD-ROM Proc. of the 2010 IEEE Int.

Instrumentation and Measurement Technology Conf.,

MTC’2010, Austin, USA, May 3-6, 2010, pp. 815-

820.

Weiser, M., 1991. “The Computer for the twenty-first

century,” Scientific American, pp. 94-104, 1991.

INTELLIGENT HOTEL ROOM ASSISTANT

187
