WHAT ARE GOOD CGS/MGS CONFIGURATIONS FOR H.264

QUALITY SCALABLE CODING?

Shih-Hsuan Yang and Wei-Lune Tang

Department of Computer Science and Information Engineering, National Taipei University of Technology

1 Sec. 3, Chung-Hsiao E. Rd., Taipei, Taiwan

Keywords: Scalable video coding, Rate-distortion performance, Coding complexity, H.264/AVC.

Abstract: Scalable video coding (SVC) encodes image sequences into a single bit stream that can be adapted to

various network and terminal capabilities. The H.264/AVC standard includes three kinds of video

scalability, spatial scalability, temporal scalability, and quality scalability. Among them, quality scalability

refers to image sequences of the same spatio-temporal resolution but with different fidelity levels. Two

options of quality scalability are adopted in H.264/AVC, namely CGS (coarse-grain quality scalable coding)

and MGS (medium-grain quality scalability), and they may be used in combinations. A refinement layer in

CGS is obtained by re-quantizing the (residual) texture signal with a smaller quantization step size (QP).

Using the CGS alone, however, may incur notable PSNR penalty and high encoding complexity if

numerous rate points are required. MGS partitions the transform coefficients of a CGS layer into several

MGS sub-layers and distributes them in different NAL units. The use of MGS may increase the adaptation

flexibility, improve the coding efficiency, and reduce the coding complexity. In this paper, we investigate

the CGS/MGS configurations that lead to good performance. From extensive experiments using the JSVM

(Joint Scalable Video Model), however, we find that MGS should be carefully employed. Although MGS

always reduces the encoding complexity as compared to using CGS alone, its rate-distortion is unstable.

While MGS typically provides better or comparable rate-distortion performance for the cases with eight rate

points or more, some configurations may cause an unexpected PSNR drop with an increased bit rate. This

anomaly is currently under investigation.

1 INTRODUCTION

Video is used in diversified situations. The same

video content may be delivered in different and

variable transmission conditions (such as bandwidth),

rendered in various terminal devices (with different

resolution and computational capability), and served

for different needs. Adaptation of the same video

content to every specific purpose is awkward and

inefficient. Scalable video coding (SVC), which

allows once-encoded content to be utilized in

flexible ways, is a remedy for using video in the

heterogeneous environments (Ohm, 2005).

Video scalability refers to the capability of

reconstructing lower-quality video from partial bit

streams. An SVC-coded signal is encoded once at

the highest quality (resolution, frame rate) with

appropriate packetization, and then can be decoded

from partial streams for a specific rate or quality or

complexity requirement. There are three categories

of scalability in video: spatial (resolution), temporal

(frame rate), and quality (fidelity). The major

expenses of SVC compared to state-of-the-art non-

scalable single-layer video coding are the gap in

compression efficiency and increased encoder and

decoder complexity.

The H.264 standard, also known as MPEG-4

AVC (Advanced Video Coding) (ITU-T Rec. H.264,

2009), has been dominating the emerging video

applications including digital TV, mobile video,

video streaming, and Blu-ray discs. The wide

adoption and versatility of H.264/AVC leads to the

inclusion of scalability tools in its latest extension

(Schwarz and Marpe, 2007). There are two options

for H.264 quality scalability, CGS (coarse-grain

quality scalable coding) and MGS (medium-grain

quality scalability). For CGS, a refinement of texture

information is achieved by re-quantizing the

(residual) texture signal with a smaller quantization

step size (QP) relative to that used for the preceding

104

Yang S. and Tang W..

WHAT ARE GOOD CGS/MGS CONFIGURATIONS FOR H.264 QUALITY SCALABLE CODING?.

DOI: 10.5220/0003608201040109

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 104-109

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

CGS layer. Inter-layer prediction may be employed

to increase compression efficiency of CGS.

However, the number of available bit rates is

restricted to the number of selected QPs (CGS layers)

and more layers generally imply worse coding

efficiency. To increase the flexibility of bit stream

adaptation and to improve the coding efficiency,

MGS additionally provides the capability to

distribute the CGS enhancement layer transform

coefficients into more layers. Grouping information

of the transform coefficients is signaled in the slice

headers, and thus, a CGS layer that corresponds to a

certain QP can be partitioned into several MGS

layers and separately packetized. Pulipaka et al

(2010) conducted some statistical analyses of SVC,

including the rate distortion and rate variability

distortion performances. Görkemli et al (2010)

compared MGS fragmentation configurations of

SVC, including the slice mode and extraction

methods, for their rate-distortion performance.

In this paper, we test various CGS/MGS options

for H.264 SVC using the official reference software

JSVM (Joint Scalable Video Model) (JSVM

Software Manual, 2010/2011). Throughout the

comprehensive experiments, unusual rate-distortion

behavior for some configurations of SVC options

was discovered. It is generally believed that an

additional quality layer (more received bits) should

always improve the quality for SVC. However, we

find that adding an MGS sub-layer in some cases

may conversely decrease the PSNR. We thus

conduct more tests to explore this anomaly. The rest

of this paper is organized as follows. In Section 2,

we briefly review the H.264 SVC techniques,

particularly in details for CGS and MGS.

Experiments on H.264 quality scalability with

various JSVM CGS/MGS configurations are given

in Section 3, which also demonstrates the

aforementioned oddity. Some discussion and future

work are given in Section 4.

2 H.264 SCALABLE VIDEO

CODING

H.264 includes two layers in structure: video coding

layer (VCL) and network abstraction layer (NAL).

Based on the core coding tools of the non-scalable

H.264 specification, the SVC extension adds new

syntax for scalability (ITU-T Rec. H.264, 2009). The

representation of the video source with a particular

spatio-temporal resolution and fidelity is referred to

as an SVC layer. Each scalable layer is identified by

a layer identifier. In JSVM, three classes of

identifiers, T, D, and Q, are used to indicate the

layers of temporal scalability, spatial scalability, and

quality scalability, respectively. A constrained

decoder can retrieve the necessary NAL units from

an H.264 scalable bit stream to obtain a video of

reduced frame rate, resolution, or fidelity. The first

coding layer with identifier equal to 0 is called the

base layer, which is coded in the same way as non-

scalable H.264 image sequences. To increase coding

efficiency, encoding the other enhancement layers

may employ data of another layer with a smaller

layer identifier.

Temporal scalability provides coded bit streams

of different frame rates. The temporal scalability of

H.264 SVC is typically structured in hierarchical B-

pictures. In this case, each added temporal

enhancement layer doubles the frame rate. These

dyadic enhancement layer pictures are coded as B-

pictures that use the nearest temporally available

pictures as reference pictures. The set of pictures

from one temporal base layer to the next is referred

to as a group of pictures (GOP). It is found from

experiments that the GOP size of 8 or 16 usually

achieves the best rate-distortion performance

(Schwarz and Marpe, 2007). Note that the GOP size

also determines the total number of temporal layers

(no. of temporal layers = (log

GOPsize) + 1).

Each layer of H.264 spatial scalability

corresponds to a specific spatial resolution. In

addition to the basic coding tools of non-scalable

H.264, each spatial enhancement layer may employ

the so-called interlayer prediction, which employs

the correlation from the lower layer (resolution).

There are three prediction modes of inter-layer

coding: inter-layer intra prediction, inter-layer

motion prediction, and inter-layer residual prediction.

Accordingly, the up-sampled reconstructed intra

signal, the macroblock partitioning and the

associated motion vectors, or the up-sampled

residual derived from the colocated blocks in the

reference layer, are used as prediction signals. The

inter-layer prediction shall compete with the intra-

layer temporal prediction for determining the best

prediction mode.

Quality scalable layers, which are the main

concern of this paper, have identical spatio-temporal

resolution but different fidelity levels. H.264 offers

two options for quality scalability, CGS (coarse-

grain quality scalable coding) and MGS (medium-

grain quality scalability). An enhancement layer of

CGS is obtained by requantizing the (residual)

texture signal with a smaller quantization step size

(quantization parameter, QP). CGS incorporates the

WHAT ARE GOOD CGS/MGS CONFIGURATIONS FOR H.264 QUALITY SCALABLE CODING?

105

inter-layer prediction mechanisms very similar to

those used in spatial scalability, but with the same

picture sizes for the base and enhancement layers.

Besides, the up-sampling operations and the inter-

layer de-blocking for intra-coded reference layer

macroblocks are omitted. Also, the inter-layer intra

and inter-layer residual predictions are directly

performed in the transform domain. SVC supports

up to 8 CGS layers but the inter-layer prediction is

constrained to at most three CGS layers including

the required base layer. Usually, a significant

difference in QP, which corresponds to largely

deviated bit rates, is expected in order to achieve

good RD performance (Schwarz and Marpe, 2007),

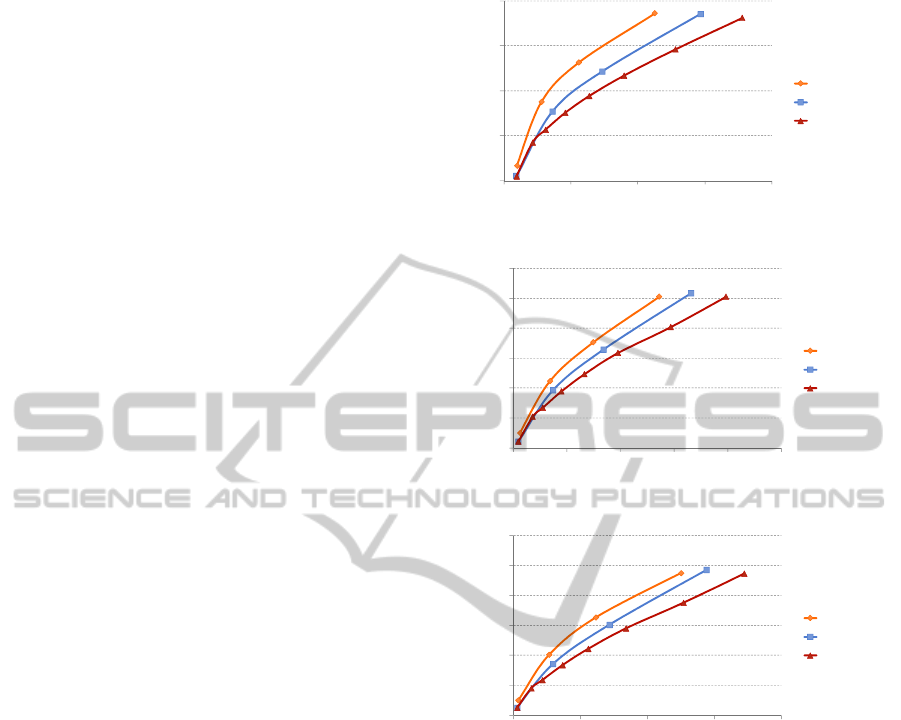

(Pulipaka, Seeling, Reisslein and Karam, 2010). In

Figure 1, 4-layer CGS and 8-layer CGS are

compared with the non-scalable single-layer H.264

coding. More notable PSNR losses are observed for

8-layer CGS, as expected.

MGS is proposed in SVC to increase the

adaptation flexibility, improve the coding efficiency,

and reduce the coding complexity. A CGS layer that

corresponds to a certain QP can be partitioned into

several MGS sub-layers and distributed over

different NAL units. An MGS sub-layer corresponds

to a group of transform coefficients of 4×4 blocks in

the zigzag order. The first and the last scan index for

transform coefficients are signaled in the slice

headers. Thus, the slice data (and the corresponding

NAL units) may only include the indicated

transform coefficients for a certain QP. The MGS

sub-layers can more flexibly switch in any access

unit in contrast that the CGS layers can only be

changed in the next GOP. JSVM further limits the

total number of rate points not exceeding 16,

counting both the CGS layers and the MGS sub-

layers. Note that at most 8 CGS layers are allowed

and a large number of CGS layers may incur

significant PSNR degradation and encoding

complexity. Therefore, it may be preferable to

incorporate MGS quality sub-layers inside some

CGS layers if more rate points (say more than 4) are

expected. However, some unusual rate-distortion

performance is observed for some MGS

configurations, as detailed in the next section.

3 OBSERVED ANOMALY IN

H.264 QUALITY SCALABILITY

We comprehensively evaluate the rate-distortion

performance and computational complexity for

H.264 quality scalability, with focuses on

100 600 1100 1600 2100

Single Layer

4-Layer CGS

8 Layer CGS

bit rate (kbits/s)

Y-PSNR (dB)

Foreman (289)

300 1300 2300 3300 4300 5300

Single Layer

4-Layer CGS

8-Layer CGS

Y-PSNR (dB)

bit rate (kbits/s)

Mobile (289)

300 1300 2300 3300 4300

Single Layer

4-Layer CGS

8-Layer CGS

Y-PSNR (dB)

bit rate (kbits/s)

Tempete (257)

Figure 1: Comparisons of 4-layer and 8-layer CGS with

the non-scalable single-layer coding. 4-layer CGS: QP =

36-28-24-20, 8-layer CGS: QP = 36-32-30-28-26-24-22-

20. The single layer is individually coded for each QP (36-

28-24-20) with non-scalable H.264 coding. The number

after the sequence name indicates the number of total

coded frames. Simulation is based on JSVM 9.19.9, and

the results with JSVM 9.19.13 show little difference.

CGS/MGS configurations. Experiments were

formerly conducted with JSVM 9.19.9 and later with

JSVM 9.19.13, on nine test sequences shown in

Figure 2. In JSVM, the primary encoding parameters

are specified in the Main Configuration File

(main.cfg), and the encoding parameters associated

with each CGS layer are specified in the individual

Layer Configuration File (layerx.cfg) where x

denotes the dependency_id. A typical Main

Configuration File and a typical Layer Configuration

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

106

File are shown in Table 1, where only the

parameters important to our evaluations are listed.

The GOPsize is fixed to be 16. We thus set the

number of frames to be encoded as a multiple of 16

plus 1, to its maximum. (The extra one is added for

accomplishing the reference pictures of the

hierarchical B structure.) Hence, 289 frames are

used for image sequences of 300 frames.

EncodeKeyPictures controls the drift of

prediction. The value set to 1 means that pictures

with MGS (Q > 0) refinement are coded as key

pictures. Only minor variation is observed if we use

another EncodeKeyPictures value and the

global rate-distortion trend does not change. JSVM

allows only three 3 CGS layers if we set

CgsSnrRefinement = 0. Therefore, we set

CgsSnrRefinement = 1 (MGS) along with

appropriate LayerCfgs. It is also found that the value

of CgsSnrRefinement will not change the

coding results if no more than 3 CGS layers are used.

Thus, 3-layer CGS (CgsSnrRefinement = 0)

and 3-layer MGS (CgsSnrRefinement = 1) have

almost identical rate-distortion results.

The parameter NumLayers specifies the total

number of spatial/CGS layers. (Recall that CGS is

regarded as a special case of spatial scalability.) In a

Layer Configuration File that corresponds to a

specific QP, the parameter MGSVectorMode

specifies whether MGS is used, i.e., whether the

transform coefficients of the CGS layer are written

into several MGS quality layers according to

MGSVectorX. The parameter MGSVectorX

(a) (b) (c)

(d) (e) (f)

(h) (i) (j)

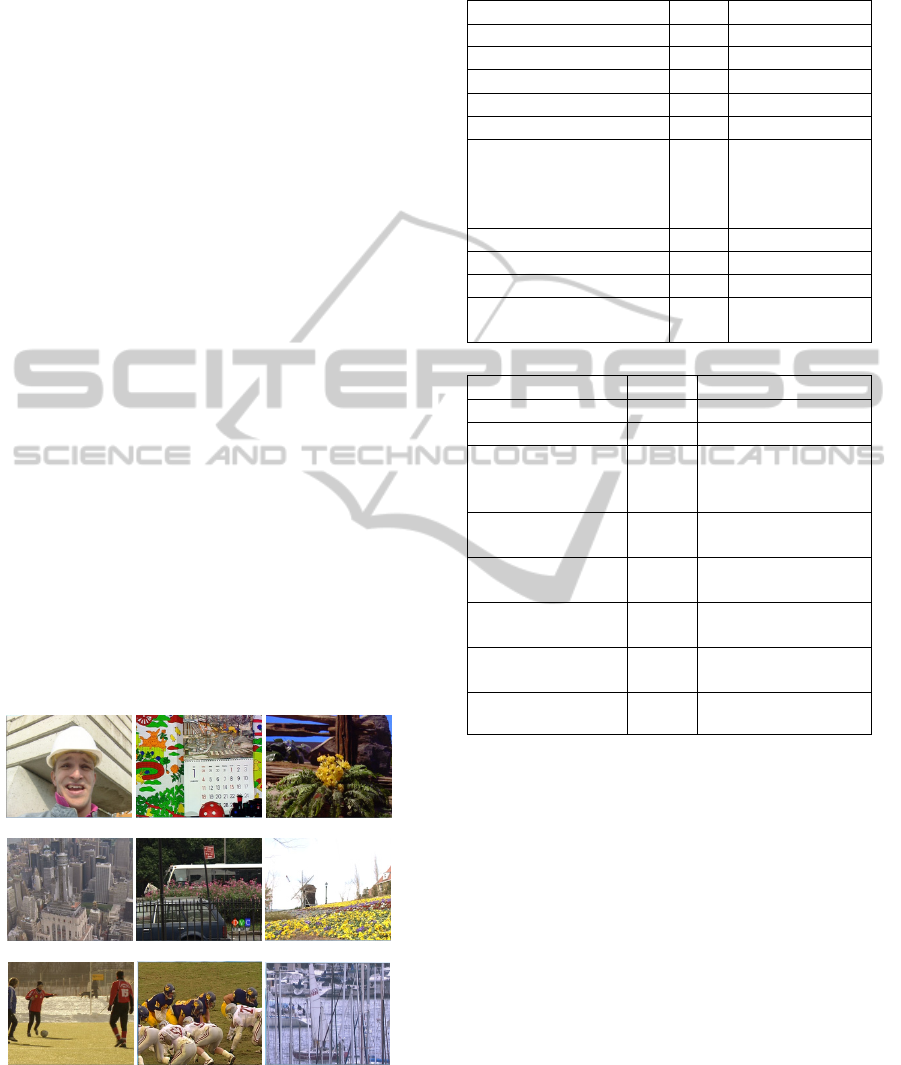

Figure 2: Test sequences, (a) Foreman, (b) Mobile, (c)

Tempete, (d) City, (e) Bus, (f) Flower, (h) Soccer, (i)

Football, (j) Harbour.

Table 1: Encoding parameters.

(a)

main.cfg

Parameter Value Remarks

rameRate 30.0

ramesToBeEncode

289 No. of frames

OPSize 16

gsSnrRefinement 1 1: MGS; 0: CGS

ncodeKeyPictures 1 MGS

MGSControl 2

ME+MC with EL,

closing prediction

loop at lowest and

highest rate point

earchMode 4 FastSearch

earchRange 32 In full pels

umLayers 4 CGS layers

LayerCfg

layer0-

3.cfg

Layer

configuration file

(b) layer3.cfg

Parameter Value Meaning

ourceWidt

352 Input frame width

ourceHeight 288 Input frame height

InterLayerPred 2

Inter-layer Prediction

(0: no, 1: yes,

2:adaptive)

MGSVectorMode 1

MGS vector usage

selection

MGSVector0 4

Specifies 0th position

of the vector

MGSVector1 4

Specifies 1st position

of the vector

MGSVector2 8

Specifies 2nd position

of the vector

QP 20

Quantization

parameters

specifies the number of transform coefficients in the

MGS sub-layer, i.e., the X

position of the vector

in the zigzag order.

In the following, we present the simulation

results for two cases, 4 rate points and 8 rate points.

Due to the page limit, we primarily present the

results for the three sequences Foreman, Tempete,

and Flower. The results for 4 rate points are shown

in Figure 3. Three SVC configurations are examined:

(i) 4-layer CGS, QP = 36-28-24-20; (ii) 3-layer CGS,

QP = 36-28-20(4-12); (iii) 2-layer CGS, QP = 36-

20(4-4-8). A number in parentheses after a QP value

denotes an MGSVector. Therefore, Configuration

(ii), 36-28-20(4-12), indicates that 2 MGS sub-layers

exist for the CGS layer with QP = 20 and these two

sub-layers consist of 4 and 12 transform coefficients,

respectively. As shown in Figure 3, the inserted

MGS sub-layers degrade PSNR performance.

However, incorporating MGS significantly reduces

WHAT ARE GOOD CGS/MGS CONFIGURATIONS FOR H.264 QUALITY SCALABLE CODING?

107

the encoding time as compared to using CGS alone,

as shown in Figure 4. On the other hand, whether

MGS is used has little effect on the decoding time.

Although the results are shown only for three test

sequences, the others generally exhibit similar

behaviors.

100 600 1100 1600

SingleLayer

CGS‐36‐28‐24‐20

CGS+MGS‐36‐28‐20(4‐12)

CGS+MGS‐36‐20(4‐4‐8)

Foreman (289)

300 1300 2300 3300

SingleLayer

CGS‐36‐28‐24‐20

CGS+MGS‐36‐28‐20(4‐12)

CGS+MGS‐36‐20(4‐4‐8)

Tempete (257)

300 1300 2300 3300

SingleLayer

CGS‐36‐28‐24‐20

CGS+MGS‐36‐28‐20(4‐12)

CGS+MGS‐36‐20(4‐4‐8)

Flower (241)

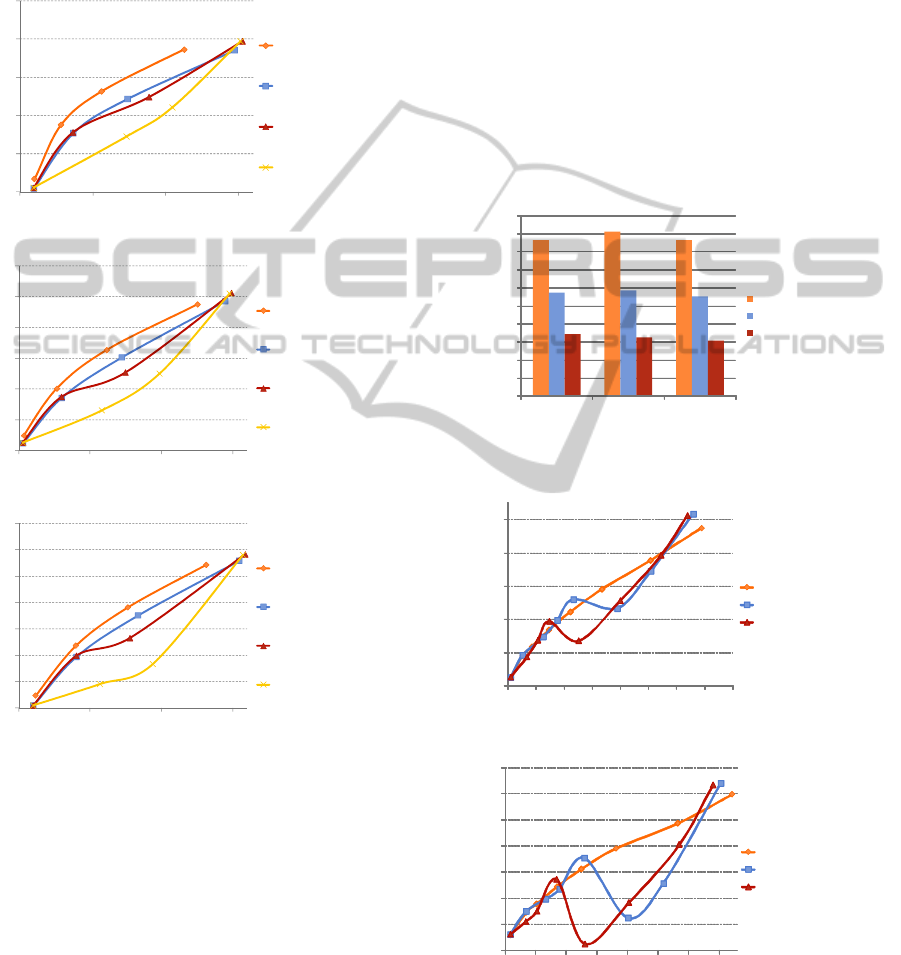

Figure 3: Rate-distortion results (4 rate points) with JSVM

9.19.13.

The rate-distortion results for 8 rate points are

shown in Figure 5 (with JSVM 9.19.9) and Figure 6

(with JSVM 9.19.13). Three SVC configurations are

examined: (i) 8-layer CGS, QP = 36-32-30-28-26-

24-22-20; (ii) 4-layer CGS, QP = 36-32-26(4-4-8)-

20(4-4-8); (iii) 3-layer CGS, QP = 36-28(4-4-8)-

20(2-4-5-5). Adding MGS sub-layers outperforms

the pure CGS layers in most rate points for most test

sequences. The inefficiency of CGS attributes to the

decreasing inter-layer correlation with dense QP

settings. However, the first MGS sub-layer for QP =

20 may exhibit an unusual PSNR drop for some test

sequences (Mobile, Tempete, Bus, Flower) with

JSVM 9.19.9! A decreased PSNR is observed with

more received bits, and then the rate-distortion plots

gradually go back to their normal values. This

anomaly becomes less significant in the newest

JSVM 9.19.13 but is not fully resolved. We conduct

some more tests on the Flower sequence, which

yields the severest PSNR drop. It seems that the

drop occurs at the first MGS sub-layer of the last

CGS layer that has the smallest QP, and then the

rate-distortion plots will gradually return to their

normal positions. The encoding time comparison is

shown in Figure 7, which confirms the time savings

of MGS.

2000

4000

6000

8000

10000

12000

14000

16000

18000

20000

foreman(289) tempete(257) flower(241)

CGS‐36‐28‐24‐20

CGS+MGS‐36‐28‐20(4‐12)

CGS+MGS‐36‐20(4‐4‐8)

Figure 4: Encoding time comparison (4 rate points) with

JSVM 9.19.13.

300 800 1300 1800 2300 2800 3300 3800 4300

36‐32‐30‐28‐26‐24‐22‐20

36‐32‐26(4‐4‐8)‐20(4‐4‐8)

36‐28(4‐4‐8)‐20(2‐4‐5‐5)

‐



(

)

bitrate(kbits/s)

Tempete (257)

400 900 1400 1900 2400 2900 3400 3900

36‐32‐30‐28‐26‐24‐22‐20

36‐32‐26(4‐4‐8)‐20(4‐4‐8)

36‐28(4‐4‐8)‐20(2‐4‐5‐5)

‐



(

)

bitrate(kbits/s)

Flower (241)

Figure 5: Rate-distortion results (8 rate points) with JSVM

9.19.9.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

108

300 800 1300 1800 2300 2800 3300 3800 4300

36‐32‐30‐28‐26‐24‐22‐20

36‐32‐26(4‐4‐8)‐20(4‐4‐8)

36‐28(4‐4‐8)‐20(2‐4‐5‐5)

‐



(

)

bitrate(kbits/s)

Tempete (257)

400 900 1400 1900 2400 2900 3400 3900 4400 4900

36‐32‐30‐28‐26‐24‐22‐20

36‐32‐26(4‐4‐8)‐20(4‐4‐8)

36‐28(4‐4‐8)‐20(2‐4‐5‐5)

Flower (241)

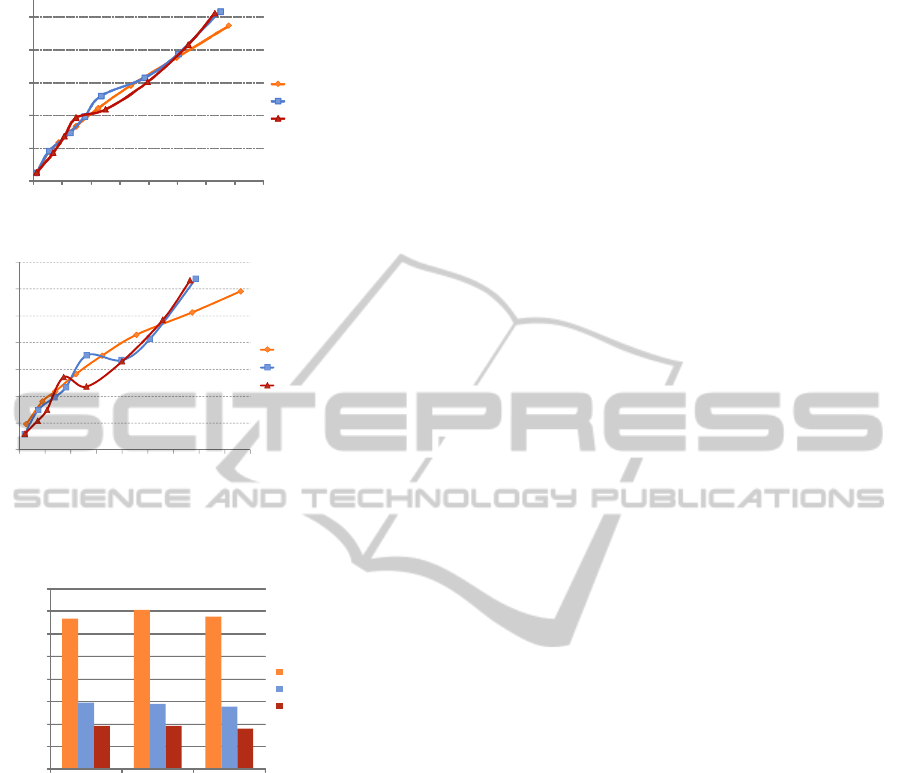

Figure 6: Rate-distortion results (8 rate points) with JSVM

9.19.13.

5000

10000

15000

20000

25000

30000

35000

40000

foreman(289) tempete(257) flower(241)

36‐32‐30‐28‐26‐24‐22‐20

36‐32‐26(4‐4‐8)‐20(4‐4‐8)

36‐28(4‐4‐8)‐20(2‐4‐5‐5)

Figure 7: Encoding time comparison (8 rate points) with

JSVM 9.19.13.

4 DISCUSSION AND FUTURE

WORK

The effects of CGS/MGS configurations of H.264

SVC are investigated in this paper. For four or fewer

rate points, CGS coding alone gives better coding

performance despite of its high encoding complexity.

For more rate points, adding MGS sub-layers to

existing CGS layers may give better or worse rate-

distortion performance as compared to using CGS

alone. It is observed that some CGS/MGS

configurations may cause an unexpected PSNR drop

with an increased bit rate. The drop occurs at the

first MGS sub-layer of the last CGS layer that has

the smallest QP. Although this phenomenon is less

significant in the latest version of JSVM, the

problem is not fully resolved. As a consequence, one

may be hesitant to use MGS due to its un-stability.

The reasons behind this anomaly are under study. By

investigating the source code and simulation results,

our current finding and conjecture are towards the

residual coding and the inter-layer prediction of

blocks smaller than 8x8.

ACKNOWLEDGEMENTS

This work is supported in part by the National

Science Council, R.O.China, under Grant NSC 99-

2220-E-027-002.

REFERENCES

Ohm, J.-R., 2005. ‘Advances in scalable video coding’,

Proceedings of the IEEE, vol. 93, no. 1, Jan, pp. 42-54.

ITU-T Rec. H.264, 2009. (MPEG-4 AVC), Fifth Edition,

May (including SVC and MVC extensions).

Schwarz, H. and Marpe, D., 2007. ‘Overview of the

scalable video coding extension of the H.264/AVC

standard’, IEEE Trans. Circuits Syst. Video Technol.,

vol. 17, no. 9, Sep, pp. 1103-1102.

Pulipaka, A., Seeling, P., Reisslein, M and Karam, L.J.,

2010. ‘Overview and traffic characterization of coarse-

grain quality scalable (CGS) H.264 SVC encoded

video’, Consumer Communications and Networking

Conference (CCNC), Jan, pp.1-5.

Görkemli, B., Şadi, Y. and Tekalp, A.M., 2010. ‘Effects of

MGS fragmentation, slice mode and extraction

strategies on the performance of SVC with medium-

grained scalability’, IEEE International Conference

Image Processing (ICIP), Sep, pp.4201-4204.

JSVM Software Manual, 2010/2011. Version: 9.19.9

(CVS tag: JSVM_9_19_9), January 16th, 2010. JSVM

Software Manual, Version: 9.19.13 (CVS tag:

JSVM_9_19_13), May 4, 2011.

WHAT ARE GOOD CGS/MGS CONFIGURATIONS FOR H.264 QUALITY SCALABLE CODING?

109
