Jinying Yu
and Philipp Brune
Hochschule Neu-Ulm - University of Applied Sciences, Wileystraße 1, D-89231 Neu-Ulm, Germany
Keywords: IT-Security, Identity Management, Two Factor Authentication, Smart Cards.
Abstract: The recently reported security issue possibly compromising the security tokens sold by a major vendor of
two factor authentication (2FA) solutions (Schneier, 2011) demonstrates the importance of the basic
principle of using an open design for security solutions (Saltzer and Schroeder, 1974). In particular, the
safety of such devices should not be based on the use of a secret algorithm or seed value to generate a
sequence of one-time passwords (OTP) inside the security token. Instead, we argue in favour of using an
open design using pre-generated sequences of OTP that are stored encrypted on the security token. Here, the
safety of the solution only relies on the confidentiality of the decryption key and not the design of the
solution itself. We illustrate our argumentation by describing a respective authentication scheme and a
prototype based on an open design, the latter being used as the basis for the security analysis.
There exist several established commercially
available solutions for implementing 2FA in an
enterprise context. There, the 2FA is achieved by a
user's secret knowledge (e.g. a password) in
combination with the user's possession of a certain
device, the so-called security token (e.g. a smart card
or USB device). By means of entering the password,
the user obtains a OTP (usually a multi-digit
number) from the security token. The user now
authenticates with the OTP at the desired service.
The advantage of the OTP is that it is only valid for
a short period of time, thus providing additional
Since Lamport (Lamport, 1981) published a
remote user authentication scheme in 1981, many
smart card-based 2FA authentication schemes have
been proposed in the literature (Yang and Shieh,
1999, Yang et al., 2006 and references therein).
Most related publications discuss possible
mathematical algorithms to compute the OTP within
the security token and the related security problems
(Sood et al., 2010, and references therein).
Based on these results, most available 2FA
solutions also use an algorithm implemented in
parallel inside the security token as well as the
authentication server to generate a secret OTP
number sequence. Thus, an OTP presented by the
user may be verified inside the authentication server
by comparing it to the value generated by the
implementation inside the server. However, this
design embodies two weaknesses:
Due to inevitable small derivations in the
accuracy of the timer clocks inside the security
token and the server, the number sequence
generation for the OTP runs out of sync after
some time. Thus, an additional mechanism for
re-synchronization is needed.
The safety of this approach lies in the
unpredictability of the generated number
sequence used for the OTP. Thus, the
algorithm used for the number generation or at
least its seed values need to be kept secret.
Especially the second point prohibits the use of a
fully open design for such solutions. The recently
reported theft of algorithm and seed value details
from a major vendor of 2FA solutions, performed
probably by an advanced persistence threat (APT)
attack against the companies' servers (Schneier,
2011) in the authors' opinion once again clearly
emphasizes the necessity of using an open design for
IT security solutions.
For a long time, open design is considered as one
of the basic principles of IT security (Saltzer and
Schroeder, 1974). Thus, the authors emphasize that
it should be applied also to the design of 2FA
solutions. Particularly, the safety of the solution
Yu J. and Brune P..
DOI: 10.5220/0003610004180421
In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 418-421
ISBN: 978-989-8425-71-3
2011 SCITEPRESS (Science and Technology Publications, Lda.)
should not rely on the obscurity of the OTP
sequence generation algorithm or seed value.
One approach for an authentication scheme
allowing for an open design would be to abandon the
use of a security token in the scheme (Ku, 2004).
However, this would be no true 2FA scheme
Using an open design, a suitable 2FA solution
should instead at least fulfil the following
No OTP generation inside the security token,
thus removing the need for synchroni-sation
with the authentication server as well as for
keeping the generation algorithm secret.
No need for a secret seed value or generation
algorithm, the full design should be open
without a loss of security.
No need for a special purpose hardware device
(e.g. a smart card) used as the security token.
Thus, neglecting legal issues, a 2FA solution
should be at least potentially releasable as open
source software (OSS) without a loss of
Any solution following these requirements keeps
to the basic principle of an open design. In
particular, its security would not be based on
The rest of the paper is organized as follows:
First, an authentication scheme for 2FA using an
open design and based on the requirements stated
above and a prototype implementation for it are
presented. Second, based on the prototype
implementation, a security analysis in comparison
with the standard smart card-based approach is
presented. We conclude with a summary of our
Figure 1 shows an overview of a two factor
authentication scheme fulfilling the above
requirements and used as the reference model in
what follows. It contains four main components,
The service server (e.g. a web or virtual private
network (VPN) server) the user wants to
The clients representing the users and their
respective client software to connect to the
service server,
The authentication server used to validate the
user's credentials and OTP,
The storage medium used as the security token
that contains the encrypted OTP sequence.

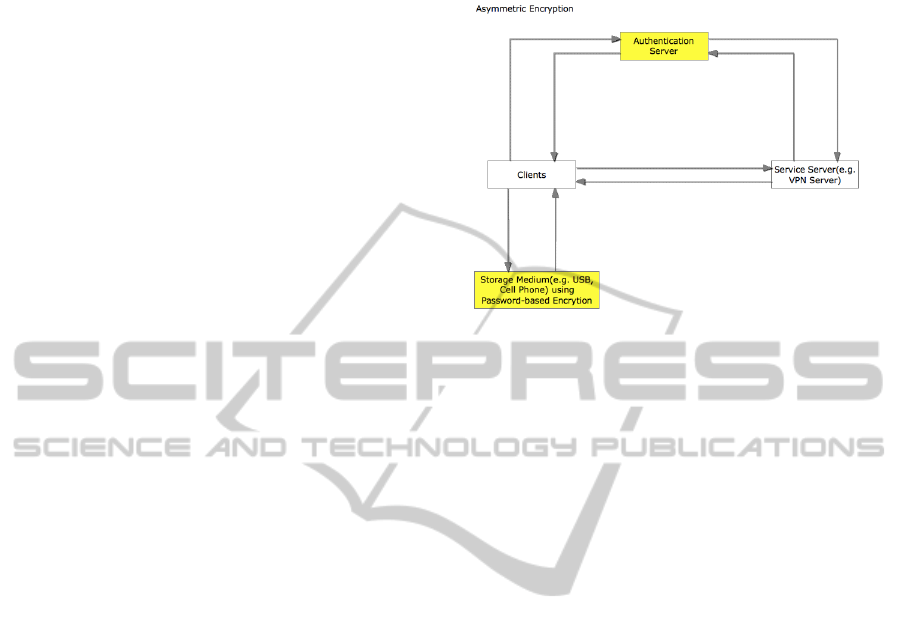

Figure 1: Authentication scheme overview.
Within this scheme, the 2FA is achieved as
In the registration phase, a user-specific list of
OTP sequence numbers is generated by the
authentication server and stored encrypted on the
security token and the authentication server. In
addition, a client software is installed on the security
token that allows to decrypt the OTP list and obtain
the next valid OTP by entering a valid PIN or
In the authentication-and-login phase, a user
first authenticates at the (web-based) authentication
server with a valid user-id and password (e.g. via
HTTPS protocol). The authentication server then
presents the user a sequence number indicating
which OTP in the list shall be used.
Next, the user enters the OTP sequence number
and the password (this password is designed to
decrypt the OTP list and is not necessarily the same
as the one used to log in at the authentication server)
in the client software running on the security token.
The software decrypts and displays the
corresponding OTP. The user now could
authenticate at the service server with user-id and
OTP within validity time period of the OTP.
In the verification phase, the service server
checks the validity of the provided user-id and OTP
with the authentication server. Thus, user logs in at
the service server with a different OTP each time
and each OTP is only valid for a short period of
time, e.g. 30 seconds. As the security token any
mobile device capable of storing the encrypted OTP
list and running the decryption client software may
be used.
In order to perform the security analysis, the
authors also implemented the described
authentication scheme as a prototype for evaluation
and further studies. This implementation uses
ubiquitous cell phones as security tokens storing the
encrypted OTP list, similar to many commercially
available solutions.
The web-based authentication server and the
client software components were developed in the
the Java programming language, using the Java EE
and Java ME frameworks for the server-side and
cell-phone components, respectively. The service
server calls the authentication server by means of a
web service. The OTP list is generated by the
authentication server and encrypted using a strong
encryption algorithm, e.g. Twofish (Schneier et al.,
Since almost every business person today uses a
Java-enabled cell phone, this approach to 2FA a
does not require additional equipment for users, thus
creating no additional costs. Therefore, also some
commercially available 2FA solutions now offer a
cell phone-based software replacement of the smart
In the security analysis of the prototype
implementation for the described authentication
scheme, different typical attacks are considered (Lin,
Since the algorithm for generating the OTP lists
is not needed to be defined within the authentication
scheme and its implementation needs to reside only
on the authentication server and not the security
tokens, any known algorithm for generating a
sequence of random numbers may be used. It is also
possible to easily switch the generation scheme
regularly or to use different versions at the same
time. Therefore, assuming that always a state-of-the-
art algorithm is used, an intruder may not predict or
forge the OTP list.
E.g., the HMAC-based OTP algorithm (HOTP)
may be used (M'Raihi et al., 2005), which generates
OTP values by using keyed hashed message
authentication code (HMAC). With the HOTP
algorithm, the only thing that has to kept secret is the
so-called secret key (not necessarily identical with
the user's OTP list decryption key). Any iterative
cryptographic hash function could be used within the
HOTP algorithm. Since the proposed scheme allows
to use arbitrary secret keys and hash functions for
the OTP list generation, the difficulty of forgery and
prediction attacks is additionally increased. Thus,
the authentication scheme is resistant against these
attacks as well as an eavesdropping of the sequence
number send to the user during the authentication-
and-login phase.
If an intruder eavesdrops a valid authentication
message during the login process to the service
server, the attempt to perform a replay attack will
fail in the verification phase since every OTP is
invalidated by the authentication server after used
once. This is similar for all approaches using an
However, a major security threat for the scheme
is the possible disclosure of the encrypted OTP list
from a user's security token. In case the security
token (i.e. a cell phone) is stolen or lost, and the user
realizes the loss, the stored list may easily be
invalidated on the authentication server and replaced
by a new one. However, if the user does not realize
the loss of the device or only the OTP list is copied
from the device, the list may be disclosed by an
offline password guessing attack. Although the
stored OTP list is encrypted using a strong
encrypting algorithm (e.g. Twofish), there is still the
danger that an intruder might decrypt it within its
period of validity. Depending on the length and the
strength of the used password, the encryption might
be broken by a password guessing attack. Thus, it is
important to use sufficiently strong passwords for
the OTP list encryption.
In the future, an interesting solution for this
might be the use of self-destructing digital data to
prevent copying of the list. E.g., the research project
Vanish (Geambasu et al., 2009), conducted by
University of Washington, intends to develop such a
digital data.
Additionally, the OTP lists should be exchanged
frequently. However, this increases the
administrative overhead of distributing the OTP lists
to the security tokens. Thus, a suitable automation
solution for this should be considered.
In summary, any solution implementing the
described 2FA scheme, following the stated open
design principles and fulfilling the above
requirements, in the authors' opinion is not less
secure than the frequently used OTP number
generation inside the security token.
In conclusion, we presented our opinion on how
2FA should be implemented using an open design
approach. We claimed that the recently reported
security issue once again demonstrated the
SECRYPT 2011 - International Conference on Security and Cryptography
importance of the basic principle of using an open
We described a respective two factor
authentication scheme and developed a prototype
implementation used for the security analysis.
The presented security analysis discusses the
resistance of the scheme against the most common
attacks. However, further research is needed to
prove the resistance of the approach to various other
kinds of attacks. In addition, the possibilities of
using self destructing data to secure the OTP list
need to be further investigated.
Geambasu, R., Kohno, T., Levy, A., Levy, H. M. (2009).
Vanish: Increasing Data Privacy with Self-Destructing
Data. In Proceedings of the USENIX Security
Symposium. Montreal, Canada.
Ku, W. C. (2004). A Hash-Based Strong-Password
Authentication Scheme without Using Smart Cards.
SIGOPS Operating Systems Review, 38(1), 29-34.
Lamport, L. (1981). Password authentication with insecure
communication. Communications of the ACM, 24(11),
Lin, C. L., Sun, H. M., Hwang, T. (2001). Attacks and
Solutions on Strong-Password Authentication. IEICE
Transactions on Communications, E84-B(9), 2622-
M'Raihi, D. Bellare, M., Hoornaert, F., Naccache, D.,
Ranen, O. (2005). HOTP: An HMAC-Based One-
Time Password Algorithm. In Request for Comments,
4226. Internet Engineering Task Force. Retrieved May
15, 2011, from
Saltzer, J. H., Schroeder, M. D. (1974). The Protection of
Information in Computer Systems. Communications of
the ACM, 17(7).
Schneier, B., Kelsey, J., Whiting, D., Wagner, D., Hall, C.
(1998). Twofish: A 128-Bit Block Cipher. AES-Sub-
Schneier, B. (2011). Schneier on Security (Blog).
Retrieved April 8, 2011, from
Sood, S. K., Sarje, A. K., Singh, K. (2010). An
Improvement of Xu et al.’s Authentication Scheme
using Smart Cards. In COMPUTE '10, Proceedings of
the Third Annual ACM Bangalore Conference. ACM.
Yang, G., Wong, D., Wang, H., Deng, X. (2006). Formal
Analysis and Systematic Construction of Two-Factor
Authentication Scheme. In Information and
Communications Security (Lecture Notes in Computer
Science) (pp. 82-91). Berlin / Heidelberg: Springer.
Yang, W. H., Shieh, S. P. (1999). Password
Authentication with Smart Cards. Computers &
Security, 18(8), 727-733.
