CLOUD-X
Remote Desktops and Applications through Web Browsers
Edgar Fabi´an Hern´andez-Ventura and Jorge Buenabad-Ch´avez
Departamento de Computaci´on, CINVESTAV-IPN, Ciudad de M´exico, D.F., Mexico
Keywords:
Remote desktops, Web browsers, Cloud computing.
Abstract:
Cloud computing is gaining general acceptance and we believe it will broaden its user base significantly once
users can run their favourite applications in the Cloud through web browsers and with the same interface that
each such application is used in a desktop or laptop computer. This paper presents CloudX, a new architecture
based on web browser techonologies for the X Window system. X Window is the de facto standard for
window display in Unix-like operating systems. CloudX translates X Window commands to web browser
display commands using AJAX and SVG (Scalar Vector Graphics) technologies. CloudX does not require any
extension to the X Window system nor any plugin to the web browser.
1 INTRODUCTION
There has been a lot of hype around Cloud computing
in recent years, both in industry and in the research
community; and rightly so. For small and medium en-
terprises (SMEs) and individual entrepreneurs alike,
Cloud computing is quite the panacea in IT. Having
access to a sound IT infrastructure, at a reasonable
price, with 24/7 or so availability, and immediate use
from anywhere and any device, fosters both creativity
and entrepreneurship. Certainly, the cost and hassle
of deploying and maintaining a solid IT infrastructure
was a hindrance for many a good idea to develop.
We think the user base of Cloud computing
will broaden significantly once users can run their
favourite applications in the Cloud through web
browsers and with the same interface that each such
application is used in a desktop or laptop computer.
It is possible to run applications with a rich GUI
remotely and with good performance using remote
desktop technologysuch as Cytrix (Citrix Inc., 2010b)
and NX (NoMachine, 2010). However, doing so is not
as flexible as doing it through a web browser. Using
remote desktop technology would involve installing a
client software in each computer and mobile device
with which a user works, and it may not be available
for some software-hardware platforms. Also, its in-
stallation may require privileges (c.f. Ipod, Ipad) that
users may not have or may not want to exercise for
lack of relevant knowledge.
This paper presents Cloud-X, a new web-browser-
based architecture for the X Window system. X Win-
dow is the de facto standard for window display in
Unix-like operating systems. It consists of a general,
hardware-independentset of commandsto buildGUIs
and a network protocol for communication between
an application and remote display hardware. Cloud-
X translates X Window commands to browser dis-
play commands using AJAX and SVG (Scalar Vector
Graphics) technologies. It does not require any exten-
sion to the X Window system nor any plugin to the
web browser.
The remainder of the paper is organized as fol-
lows. Section 2 presents background material to X
Window and SVG. Section 3 presents the design of
Cloud-X. Section 4 presents related work and we con-
clude in Section 5.
2 BACKGROUND TO X WINDOW
AND SVG TECHNOLOGIES
2.1 X Window (X11)
“The X Window system [typically referred to as X11
for its current major version being 11] is a computer
software system and network protocol that provides
a basis for graphical user interfaces (GUI) for net-
worked computers. It creates a hardware abstraction
layer where software is written to use a generalized
set of commands, allowing for device independence
234
Fabián Hernández-Ventura E. and Buenabad-Chávez J..
CLOUD-X - Remote Desktops and Applications through Web Browsers.
DOI: 10.5220/0003611302340237
In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 234-237
ISBN: 978-989-8425-76-8
Copyright
c
2011 SCITEPRESS (Science and Technology Publications, Lda.)
and reuse of programs on any computer that imple-
ments X” (Wikipedia, 2011). It was developed in
1984 at MIT by Bob Scheifler and Jim Gettys (Schei-
fler et al., 1988).
The basic idea of the X11 protocol is as follows,
see Figure 1. Applications are clients that request an
X server to display their interfaces through requests
sent over a network. The server executes the requests
in the display hardware. The server also captures in-
put events from the user both through the mouse and
through the keyboard, and sends them back to the ap-
plication over the network. The application responds
to events by sending more requests to the X server,
and so on.
XServer
(Display)
X
(Application)
Client
Responses
Events
Errors
Requests

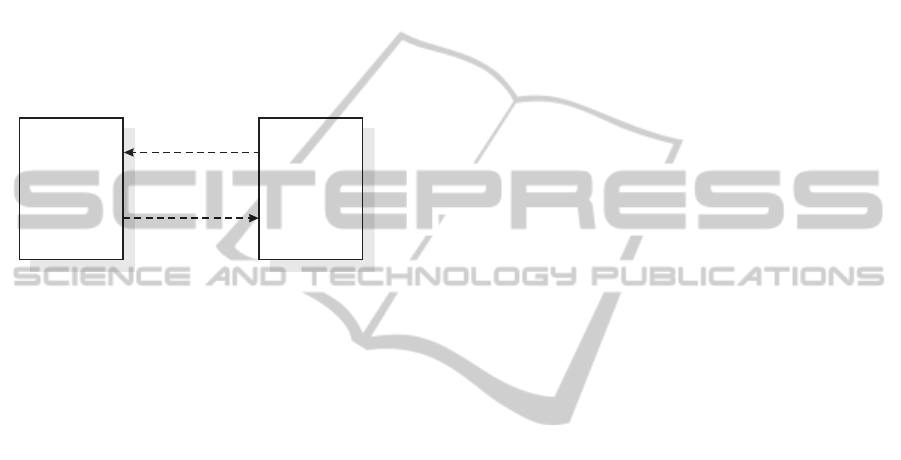

Figure 1: X11 base protocol.
In PCs and workstations using a Unix-like operat-
ing system, X11 works the same: a client application
and the X server run completely separate, but on the
same machine.
2.1.1 Display Capabilities
The server handles 127 different request codes, corre-
sponding to the core X11 protocol. The client sends
requests to create, manipulate and destroy server re-
sources. These resources will affect the GUI dis-
played to the user and include: windows, pointer, key-
board, fonts, pixmaps, graphical contexts and palettes
(colormaps). There are also requests to manage win-
dow properties, text manipulation and to subscribe to
events generated from the user.
2.1.2 Event Capabilities
The event capabilities of X11 include: cursors man-
agement, resource management, color mapping, inter-
client communication (the ability of different X11
applications to communicate with one another) and
input and output buffering, among others (Brain,
1992).
2.2 SVG
SVG (Scalable Vector Graphics) is a family of speci-
fications in XML for describing two-dimensionalvec-
tor graphics, both static and dynamic. The specifica-
tion has been under development by the World Wide
Web Consortium (W3C) since 1999 (SVG Working
Group, 2010a).
Being defined in XML text files, SVG images can
be searched, indexed, scripted, compressed, and cre-
ated and edited with a texteditor. There are also draw-
ing applications that support SVG file formats like
Inkscape (Inkscape, 2011).
All major modern web browsers support and ren-
der SVG markup directly with some limitations. It
is expected that in 2011 all major browsers comply
with at least 80% of the specification of the SVG test
suite (SVG Working Group, 2010b).
2.2.1 Display Capabilities
SVG graphical objects can be vectorial graphics,
raster images (PNG, JPEG) and text. Graphical Ob-
jects can be modified in several ways while being dis-
played. They can be grouped together, the style with
which they were drawn can be changed, they can be
transformed in size, rotated, etc. This allows inter-
esting and complex ways of display and animation,
making SVG an excellent tool for web design and vi-
sualization.
2.2.2 Events Capabilities
SVG images are composed of graphical objects.
These objects offer different ways to interact with the
user. They can have hiperlinks to new pages or gener-
ate events by change of focus, mouse click, scrolling
or zooming.
Each event is handled by a defined function that
may run a script, or perhaps start, stop or alter an ani-
mation. This is very important for the implementation
of Cloud-X. There is no need to develop a new mech-
anism for mouse or keyboard input. We just use the
event handlers already implemented for SVG in the
browser with no additional plugins required.
3 CLOUD-X
Cloud-X was conceived out of the need for visual-
izing already developed desktop software with rich
GUI, but remotely through the cloud. In our search,
we observed that the web browser is the most widely
used software to connectto the cloud, and was already
installed in almost any device (including tablets and
smartphones).
Although different technologies are available for
drawing in web browsers, like Java applets or Flash,
we wanted our software to be as non-invasive as pos-
CLOUD-X - Remote Desktops and Applications through Web Browsers
235
sible, and also to be standard complying. After study-
ing SVG, we made it our choice as we found it ideal
for displaying interfaces, and because it is based on
open standards. The latter guarantees (to some ex-
tent) long term support and usability in browsers that
implement those standards. Almost any major web
browser has SVG support or plans to implement it
in the short term. This eliminates the need of addi-
tional software like Oracle Java, Adobe Flash, Mi-
crosoft Silverlight, etc. All we got left to do was the
communication part.
Investigating the way Linux displays its graphics,
we found out that X11 already catered for remote dis-
play. Both ends of the connection were already there:
the applications already programmed to display their
interfaces remotely and web browsers with features
to display them. However, the communication can-
not be completed without software that translate mes-
sages between X11 and SVG.
Cloud-X makes such translation. It is a web ap-
plication programmed in Java and uses Tomcat Web
Server to provide dynamic web pages to an applica-
tion’s GUI using SVG and AJAX.
3.1 Overview
Figure 2 shows Cloud-X. Recall that: X11 works with
a client/server model, an application is the client, and
when an application requires to display a GUI it sends
a series of X11 commands to an X server. Cloud-
X translates them and writes an SVG file. The file
is created in a web server to make it available to the
web browser which then displays its content. In the
web browser, the user will interact with the GUI and
generate events. Cloud-X translates these events to
X11 events and sends them back to the application.
Application
WidgetToolkit
Xlib
Cloud-X
WebServer
Browser
Screen,
Keyboardand
PointingDevice
RemoteDesktop
Cloud-XServer
UserDevice
X11
HTTP
Figure 2: Cloud-X Architecture.
When only part of a GUI needs to be updated (for
instance edited text or closed subwindows), instead of
sending a completely new SVG file, AJAX is used to
refresh immediately only that part in the user’s web
browser. This is very convenient as the browser only
has to keep track of the currently displayed graphi-
cal objects, leaving to Cloud-X the task of manag-
ing what objects to show, and what objects to hide
or eliminate from memory. Cloud-X is composed of
four modules: the Access Controller, the Resources
Manager, the Events Manager and the Communica-
tion Manager.
3.2 From X Window to SVG and Vice
Versa
Cloud-X will map X Window commands and events
into “equivalent” SVG commandsand events and vice
versa, as outlined shortly. Assume a user connected to
a remoteweb server through a web browser, and about
to click on an icon in order to start running the Emacs
editor on a Linux remote host. The Emacs GUI inter-
face will be displayed within the web browser. (We
are ommitting some details of the communication: the
initial connection to the remote web server, in which
Cloud-X runs, and the communication to show the
first display to the user.) The following events will
take place:
1. Cloud-X opens a secure shell channel with the
remote host where Emacs will run, and starts an
X11-forward session so that the display output of
Emacs will be forwarded to Cloud-X. (Note that
both the web server, Cloud-X and Emacs may run
in the same host.)
2. Emacs (through Xlib) starts the handshake proto-
col with the Cloud-X server, which involves ask-
ing the characteristics of the display and the X
server it is dealing with, e.g.: colours available,
display size, etc.
3. Cloud-X sends the web browser a simple SVG file
for the web browser to start displaying a blank
GUI and thus overlap some processing.
4. Emacs will then display its GUI, which involves
the following. It will first send X11 requests to
create the necessary resources in the X Server, ac-
tually the Cloud-X server. Emacs will then send a
request to show its GUI (XmapWindow). On re-
ceiving this request, Cloud-X will generate a new
SVG file with the GUI and will push it into the
web browser.
5. Among other events, Emacs will request from
X server to be informed of keyboard and mouse
events, for instance, when Ctrl-S is entered. For
each event, Cloud-X will generate a handler func-
tion that is written in an SVG file and that is
pushed into the web browser. When the user inter-
action involves any such event, the relevant han-
dler function will send a message to Cloud-X,
which will translate it into an X11 response to
send to Emacs.
6. Emacs will eventually update part of its GUI (for
example, displaying the
File
menu), sending the
ICSOFT 2011 - 6th International Conference on Software and Data Technologies
236
relevant X11 requests. Cloud-X will parse each
request, translate it into a single update to the
SVG file (in the web browser) corresponding to
the entire Emacs GUI, and then will push each
update into the web browser. The latter will then
update the user display.
We are currently implementing the above func-
tionality. After trying it out, we will design and imple-
ment the functionality relating to displaying streams
(sound and video), printing and file sharing.
4 RELATED WORK
The purpose of our work is to use web browsers
to display rich GUIS of applications running re-
motely. The work more similar to ours that we know
of is the Broadway extension to the GTK+ toolkit
library developed by Alexander Larsson (Larsson,
2010). Broadway extension is only for GTK+ soft-
ware. Cloud-X works for any X11 application includ-
ing GTK+, Qt, MOTIF, etc.
Rich GUI applications can be run remotely
through Remote Desktop technology, but not within
a web browser. There are various Remote Desktop
clients available. NX is an optimization of the X
Window system and protocol that connects to Linux
desktops (NoMachine, 2010). Virtual Network Com-
puting (VNC) has multi-platform compatibility given
by the underlying protocol, the Remote FrameBuffer
(RFB) protocol, which works directly with the screen
buffer and just sends the raw pixel data.
The Remote Desktop Protocol (RDP) (Microsoft,
2010) and Independent Computing Architecture
(ICA) (Citrix Inc., 2010a) are proprietary network
protocols for the Microsoft Windows operating sys-
tem. The commercial products Citrix XenAppp
client uses ICA (Citrix Inc., 2010b). ICA and RDP
send
GDI+
commands in ciphered packages through a
TCP/IP network.
GDI+
(Graphical Device Interface)
is the core Windows API for GUI drawing.
All these technologies require certain resources
and system permissions to install their clients, and as
mentioned earlier, they do not show the display within
web browsers.
5 CONCLUSIONS AND FUTURE
WORK
Web browsers run on a wide variety of devices and
operating systems and will soon be compliant to the
SVG standard. Through Cloud-X, web browsers will
be able to display rich GUIs of X11 applications run-
ning remotely. Cloud-X offers two main advantages:
i) immediate use of hundreds of applications already
developed for Unix-like operating systems based on
Xlib, and ii) development of new Cloud applications
without the need to develop new display technology.
Cloud-X can also be used as the base technology
to offer a complete operating system in the Cloud.
When a new user needs an account and resources to
work with, the system administrator can install a copy
of Linux in a powerful server with all the software re-
quired. The user can then access this new desktop en-
vironmentfromany devicewith a web browser,elimi-
nating the need of providingeach user with a powerful
machine.
ACKNOWLEDGEMENTS
Edgar Hern´andez-Ventura would like to thank
CONACyT for the scholarship granted to carry out
his MSc studies.
REFERENCES
Brain, M. (1992). Motif programming: the essentials–and
more. Digital Pr.
Citrix Inc. (2010a). Citrix software. Retrieved from:
http://www.citrix.com/site/SS/downloads/index.asp.
Citrix Inc. (2010b). Citrix xenapp. Retrieved
from: http://www.citrix.com/English/ps2/products/
product.asp?contentID=186.
Inkscape (2011). Inkscape. Retrieved from:
http://inkscape.org/.
Larsson, A. (2010). Gtk3 vs html5. Retrieved
from: http://blogs.gnome.org/alexl/2010/11/23/gtk3-
vs-html5/.
Microsoft (2010). Remote desktop connection soft-
ware. Retrieved from: http://www.microsoft.com/
windowsxp/downloads/tools/rdclientdl.mspx.
NoMachine (2010). Introduction to nx technology. Re-
trieved from: http://www.nomachine.com/documents/
intr-technology.php.
Scheifler, F., Gettys, J., and Newman, R. (1988). X Win-
dow system: C Library and protocol reference. Digital
Press Newton, MA, USA.
SVG Working Group (2010a). Svg wiki. Retrieved from:
http://www.w3.org/Graphics/SVG/WG/wiki/Main.
SVG Working Group (2010b). Test suite overview.
Retrieved from: http://www.w3.org/Graphics/SVG/
WG/wiki/Test Suite Overview.
Wikipedia (2011). X window system. Retrieved from:
http://en.wikipedia.org/wiki/X Window System.
CLOUD-X - Remote Desktops and Applications through Web Browsers
237
