SEMANTIC MINING OF DOCUMENTS

IN A RELATIONAL DATABASE

Kunal Mukerjee, Todd Porter and Sorin Gherman

SQL Server RDBMS, Microsoft, Redmond, WA, U.S.A.

Keywords: Semantic mining, Documents, Full text search, SQL Server.

Abstract: Automatically mining entities, relationships, and semantics from unstructured documents and storing these

in relational tables, greatly simplifies and unifies the work flows and user experiences of database products

at the Enterprise. This paper describes three linear scale, incremental, and fully automatic semantic mining

algorithms that are at the foundation of the new Semantic Platform being released in the next version of

SQL Server. The target workload is large (10 – 100 million) enterprise document corpuses. At these scales,

anything short of linear scale and incremental is costly to deploy. These three algorithms give rise to three

weighted physical indexes: Tag Index (top keywords in each document); Document Similarity Index (top

closely related documents given any document); and Phrase Similarity Index (top semantically related

phrases, given any phrase), which are then query-able through the SQL interface. The need for specifically

creating these three indexes was motivated by observing typical stages of document research, and gap

analysis, given current tools and technology at the Enterprise. We describe the mining algorithms and

architecture, and outline some compelling user experiences that are enabled by these indexes.

1 INTRODUCTION

Managing unstructured and structured data in

separate systems leads to many problems, such as

consistency control, synchronizing backups, and

supporting multiple systems. Increasingly, this pain

drives users to move unstructured data into relational

databases. Such unstructured data includes files

(e.g., office documents, PDFs) and large text

fragments (e.g., emails, wiki pages, forum

comments), etc.

As users store more documents in databases, it is

critical that databases help manage them. Doing so

effectively requires more than storing and retrieving

bits; it requires providing access to the information

in documents. To illustrate, suppose a consumer

products company keeps corporate documents in a

database. These documents describe which

employees work on which products, how products

are related, how they compare to the competition,

etc. However, if the database treats these documents

merely as opaque bits, users cannot query this

information. To address this, we introduce the

Semantic Platform for SQL Server, which mines and

then exposes structured concepts within unstructured

data to database queries, by building three physical

indexes: 1) Tag Index (TI), which can return the top

keywords, given a document; 2) Document

Similarity Index (DSI), which can return the most

closely related documents, given any document; and

3) Semantic Phrase Similarity Index (SPSI), which

returns the top semantically related phrases, given

any phrase.

The view from one level up is that in SQL

Server, we are building a tightly streamlined and

integrated Document Understanding Platform,

comprising Integrated Full Text Search (IFTS) and

Semantic Platform for documents, under a unified

functional surface of SQL language extensions. We

avoid creating an entirely separate syntax for

Semantic Platform, by merely extending the IFTS

syntax that is already familiar to many customers.

The processing flow and algorithms are highly

optimized so that documents are crawled, parsed and

mined in a unified, 1-pass algorithm. The algorithm

is incremental, and efficiently updates the index as

the corpus evolves over time (increments may be

triggered both manually and automatically). The

Full-Text Index (FTI) is one output, in order to

satisfy the needs of document search.

Simultaneously, document level semantics are

mined into the three new indexes: TI, DSI, and

146

Mukerjee K., Porter T. and Gherman S..

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE.

DOI: 10.5220/0003631401380150

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2011), pages 138-150

ISBN: 978-989-8425-79-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

SPSI, without needing to re-crawl and re-parse the

original documents.

Additionally, the user does not have to go

through any special configuration steps in order to

tell the system about their data, e.g. set up special

classifiers, etc. Everything involved in mining these

indexes, figuring out what are the semantic concepts

contained in the document corpus, how they cluster,

etc., is fully automatic and inherent to the system.

This means that we have created a very low barrier

to entry for users of the document understanding

system.

We conducted experiments to verify two main

properties: linear scalability and quality. Results

show that building the FTI, TI, and DSI is linear and

highly scalable. Also, experimental results show that

both TI and DSI produce competitive precision

numbers when compared to other methods.

The rest of the paper is organized as follows:

Section 2 describes related products and algorithms

and then describes how we used customer and

scenario focused design to help guide our design. In

Section 3, we describe the overall architecture and

algorithmic components. Experimental results are

described in detail in section 4. We describe some

potential applications in Section 5, and conclude and

point to future work in Section 6.

2 ALGORITHMIC LINEAGE

AND DESIGN OBJECTIVES

Starting in February 1990, the NSF has been

publishing a set of goals for database research and

commercialization every 5 years. The NSF

prospectus (Silberschatz, 1996) clearly identifies the

need to cover IR over unstructured and semi-

structured data and document processing, as a large

emerging need for future database product lines.

Fifteen years later we have Full-Text Search

trending towards mainstream in multiple database

product lines including Microsoft SQL Server;

Oracle acquiring OpenText in 2008, etc.

We are currently at the cusp of widespread

adoption of document IR in the database, as

predicted by leading NSF researchers. In the

Enterprise space, Oracle, PostgreSQL, Microsoft

and others are competing in order to become

entrenched players in the space of Document

Understanding. Oracle's Open Text (McNabb, 2007)

has created integration with Share Point and

Microsoft Duet (Office + SAP). Oracle Open Text

offers a broad based document strategy, providing

good support for web docs, via their Red Dot

component, and over semi-structured data, by way

of LiveLink. Semi-structured search is also

supported with LiveLink ECM (McNabb, 2007).

Microsoft’s primary products in the space of

document understanding include SharePoint and

FAST, and also in-database IFTS, which has been

offered for a few releases now.

At the algorithmic level, two semantic mining

classics are Latent Semantic Indexing (LSI)

(Deerwester, 1988), Probabilistic LSI, or PLSI,

(Hofmann, 1999), and Latent Dirichlet Allocation

(LDA) (Blei, 2003). These have been extensively

used and built upon, in both Enterprise and Web

based search. There are a number of approaches for

extracting relevant keywords from a document, e.g.

(Cohen, 1995).

The main advantages of our semantic mining

algorithms over the existing algorithms are that our

algorithms scale linearly with the size of data, and as

we show in the results section (Section 5), linear

scale-out is achievable with additional

computational resources. They are also incremental

in nature. All of these are essential ingredients for

mining large (e.g. 10 to 100 million) Enterprise

document corpuses and keeping the indexes “fresh”

as the corpus evolves over time.

There are some similarities of our Semantic

Phrase Similarity Indexing (SPSI) approach with

PLSI: both these are statistically based and

incremental; however, our approach takes a

simplifying assumption over co-occurrences: that of

i.i.d (independent and identical distributions), and

generates the co-occurrence weights explicitly via

Jaccard similarity, and propagates weights explicitly,

via transitive closure. These explicit assumptions

and operations are very useful for rigorous

testability, in the application context of deploying in

a relational database.

In (Damashek, 1995) the authors propose a

language-independent means of gauging topical

similarity in unrestricted text, using character level

n-grams and a simple vector-space technique to infer

categorization and similarity. By contrast, we

bootstrap our system with fairly large and complete

statistical language models (LM), and work with

ngrams over LM words that are output by the word

breakers in our system (Full Text Search Overview),

to cheaply inject high level structural and contextual

constraints into our feature space very early on

(almost at the outset). This saves compute time for

our system.

In a related work also based on character level n-

grams (Cohen, 1995), the authors are motivated to

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE

147

construct a highlight/abstract extraction system that

does not rely on any language-specific resources

such as stemmers and stop lists, whereas the

scenario is exactly opposite for IFTS and Semantic

Platform in SQL Server, where the language is

explicitly identified, and space constraints are not as

tight. So we do employ stop lists, stemmers and

sophisticated LMs as relatively cheap components

from our perspective, to reduce CPU load, which

aligns better with the more imperative aspects of our

typical customer workload.

In (Gabrilovich, 2007) the authors do inject

language specific resources; they go one step further

and use a knowledge model based on training a

space of concepts on Wikipedia. Their Explicit

Semantic Analysis (ESA) system reports good

correlation with subjective evaluation, and also has

the advantage of working over a vector space that

makes intuitive sense compared to the above

character-based vector space methods.

However, at the Enterprise (the primary domain

for SQL Server), a lot of the information tends to be

very domain-specific, technical, and full of jargon

and acronyms. For this reason we construct a system

that does use a vector space of language ngrams, but

stops short of constructing a vector space over a

generic knowledge model, because we have found

that these tend to be too generic.

For document similarity, our approach is close to

the classic vector space model (Salton, 1975). We

use cosine-similarity over the documents represented

in the vector space of weighted keywords, and use

LM entropy to boost semantic salience to correlate

well with subjective evaluation.

Our approach to phrase similarity is close to

(Hammouda, 2004). Whereas their objective is to

ultimately use the phrase graph to infer document

similarity, ours is to infer a semantic thesaurus that

incorporates transitive relationships between

phrases.

We also focus on scalability aspects and linear

approximation whilst generating a transitively closed

phrase graph, because linear scale is pretty much a

hard pre-requisite for SQL Server’s customer base.

Most important from our perspective is the fact that

our mining algorithms are tightly integrated as a

cohesive system such that the documents are parsed

or incrementally scanned in a single pass, and all the

data flows linearly through the entire system to

create the three new indexes, plus the already

Figure 1: System design directly mirrors typical customer activities in researching large document corpuses: 1) FT1 enables

full text search, returning references to the most relevant documents; 2) The next step is to query top documents for most

relevant keywords and phrases – this is facilitated by T1; 3)The subset of interesting documents is used to query all related

documents, using the DSI; and 4) Search terms are refined by way of SPSI (not shown here) – this takes us back to step 1.

Key Title Document

D1 Annual Budget …

D2 Corporate

Earnings

…

D3 Marketing Reports …

…… …

---------------

----------

---------------

----------

---------------

----------

ID Keyword Colid … compDocid CompOc CompPid

K1 revenue 1 … 10,23,123 (1,4),(5,8),(1,34) 2,5,6,8,4,3

K2 growth 1 … 10,23,123 (1,5),(5,9),(1,34) 2,5,6,8,5,4

… ……… … …

DocID MatchedDocID

D1 (Annual Budget)D2 (Corporate

Earnings)

D1 (Annual Budget)D7 (Finance Report)

D3 (Marketing Reports)D11 (Azure Strategy)

……

ID DocID

T1 (revenue growth)D1 (Annual Budget)

T1 (revenue growth)D2 (Corporate Earnings)

T2 (Windows Azure)D3 (Marketing Reports)

……

T1 (revenue growth)D7 (Finance Report)

……

T2 (Windows Azure)D11 (Azure Strategy)

……

ID Keyword

T1 revenue

T1 growth

T2 Windows

T2 Azure

……

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

148

existing FTI. Additionally, the one pre-existing and

three new indexes are created and maintained to

directly support four very fundamental customer

needs and interactions, which are described next.

This makes the end-to-end system highly optimized,

and ensures that all functionality and end outputs are

directly motivated by customer requirements.

2.1 Customer and Scenario Focused

Design

Customer focus groups reveal that the following is a

common work flow of events and actions when

perusing and researching a document corpus, as

depicted in Figure 1: 1) First, the user, by now very

accustomed to using search engines, starts by

searching the corpus for an idea, a word or a phrase;

2) Next, when the search returns a number of “hits”

comprising enterprise documents, the user needs to

quickly skim the top results for their content without

reading the entire document – this is an important

differentiator for the Enterprise user as opposed to

the user of web search, because Enterprise

documents may be hundreds of pages long, whereas

web pages are short enough to be scanned rapidly; 3)

When a small number of candidate documents have

been identified, the user wishes to round off their

search by querying for all documents that are related

to those exemplars – without this the research would

not be complete; and 4) Finally, the user may wish

to re-submit a search by refining the search terms,

typically by seeking out semantically related words

or phrases. For instance, “Google” may translate into

{search engine, relevance} by way of ordinary

thesaurus lookup; however, a semantically related

term for “Google”, when mined over a corpus of

Microsoft documents, might result in “competition”.

With the results of step 4, the user returns once

more to step 1, and the process refines and repeats

until the research is completed. The fundamentals of

system design of Semantic Platform follow almost

directly from the above work flow. Internally, we

provide four physical indexes to support the above

queries. 1) FTI, already available in past releases of

SQL Server, enables searching of words and

phrases; 2) TI summarizes each document into its

top phrases; 3) DSI finds the top related documents

to a given document; and 4) SPSI provides

semantically related phrases to a given phrase.

The family of mining algorithms that processes a

large enterprise document corpus linearly and

incrementally to produce the above four indexes,

constitutes a significant advance in the state of art,

because they may be applied to unify the search and

semantic inference processing suites of a

significantly large number of Enterprise products.

With modifications to handle spam and account for

web-specific relevance characteristics such as

hyperlink count (page rank), they may become

interesting for search engines. Our algorithms can

provide substantial savings of capital expenditure as

well as reduce document crawl- to-index

availability, i.e. end-to-end throughput and latency

of these products may be improved.

In this paper, we present the Semantic Platform

being released in the next version of SQL Server.

This paper specifically describes the underlying

mining algorithms of Semantic Platform, and

provides a brief outline of the SQL extensions and

new user experiences that are easy to build by

querying these indexes.

3 SEMANTIC MINING

ALGORITHMS AND

ARCHITECTURE

In this section, we first show the system level block

diagram, which shows how all the algorithmic

pieces of IFTS and Semantic Platform fit, and how

data flows through the tightly combined IFTS and

Semantic Platform system end-to-end. Next, we will

provide details on the three new Semantic mining

algorithms.

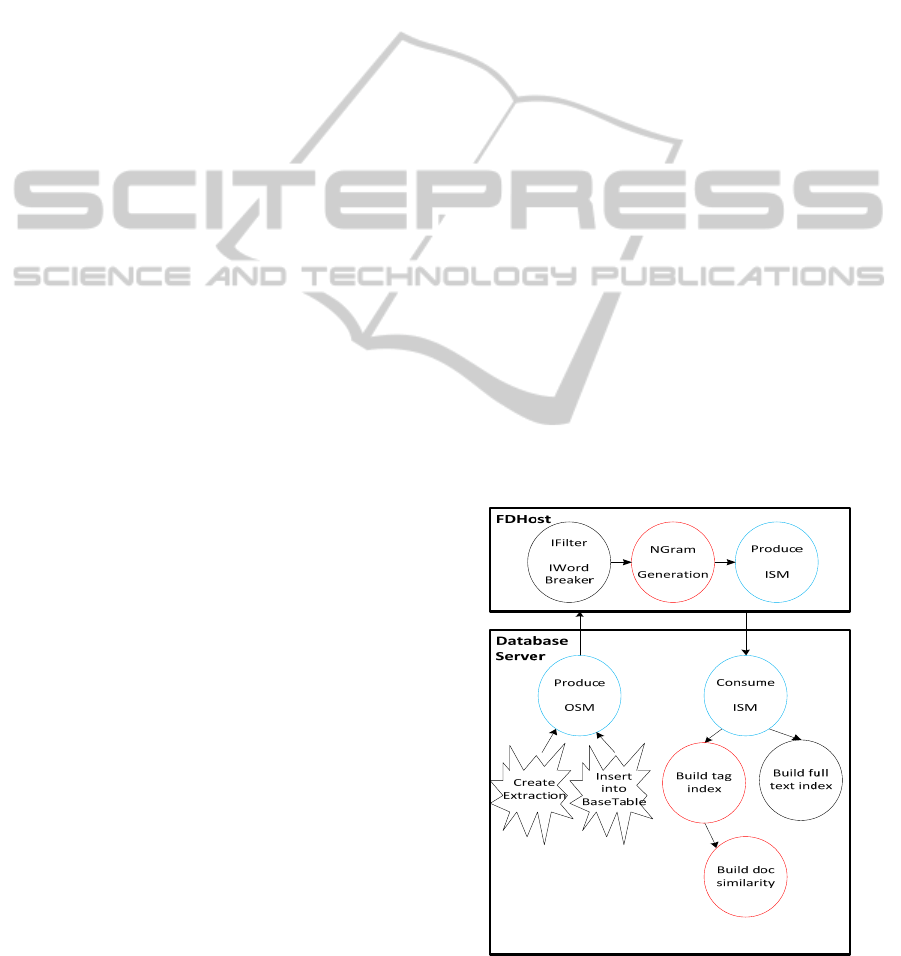

Figure 2: High level system architecture.

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE

149

3.1 Top Level System Diagram

Figure 2 shows how all the pieces fit at the system

level. We start with a table in SQL database, where

one column contains references (e.g. URIs) to actual

documents. If the source of the data resides in a

relational database, the primary key in the relational

table or view goes in the main document index key

field. Once the extraction process is created and

launched by the user, the documents are crawled and

parsed in a separate process called FDHost, which

runs as a service, hosting third party DLLs such as

IFilters and word breakers, which crack open the

document formats, e.g. *.doc, *.pdf, and extract

words and word sequences (ngrams). Shared

memory is used for inter-process communications

between the database server processes.

Once the ngrams have been received back in the

database server process, the TI and FTI are built

and/or incremented concurrently. After the TI has

been built, it is in turn used as the source to

construct the DSI. After DSI is built or incremented,

the whole process is complete. Thus, this provides a

streamlined, single-pass and highly optimized

combined architecture for IFTS and Semantic

Platform in SQL Server.

Due to the close integration of the Semantic

mining platform with the pre-existing Full Text

Search pipeline, the cost/effort to develop and

maintain this architecture is moderate. We took 8

months with a team of 6 Developers, 5 Testers and 1

Program Manager to productize the system from

start to finish.

3.2 Mining the Tag Index

The primary objective of mining the tag index (TI) is

the need to summarize long enterprise documents

(sometimes 200 – 500 pages long) into their top few

key words and phrases. This is very important in

order to support the search experience at the

Enterprise, because the user might otherwise find

search results, which are links to long documents,

very time consuming to go through. Good tag

indexing therefore directly results in productivity

gains for the user of an Enterprise search based

system such as IFTS.

The TI mining algorithm is based on a LM and

weight and threshold functions. TI is the output of

the algorithm: given a document id, the TI returns a

list of its top N key phrases, each with a weight

signifying relative importance in the document.

The data flowing into the TI mining algorithm is

shown in the system block diagram above (Figure

2). The TI mining algorithm is kept simple for

scalability purposes, and is based on cross-entropy:

we compare the word distributions from the LM

(which contains expected distributions) to the word

distribution from the current document. We score

the ngrams based on how much more frequently

they appear in a document, compared to their

expected frequency as computed based on LM. This

can be viewed as an approximation to Term

Frequency Inverse Document Frequency (TFIDF)

weighting, but we are replacing the inverse

document frequency with the LM frequency. This

enables our algorithm to be corpus independent,

which is essential for Enterprise document corpuses

that are getting new documents daily – we do not

want to re-compute the TI every time this occurs.

Also, our algorithm is not machine learning based,

so there is no training phase, it can be used without

the need of a good corpus representative sample data

set for initial training.

A caveat is that for short documents the word

distributions are not very reliable. Therefore, we

take into account document length as well. For all

ngrams in any document that are considered as a

possible tag, the algorithm requires: 1) Ngram

frequency in the document; and 2) Ngram frequency

in the language. This is either directly available in

the LM, or is inferred from the LM, by treating

words as i.i.d and adding their log probabilities.

The pseudo-code for extracting keywords is

provided below.

ExtractTopNKeyPhrases(doc)

{

languageModel Å

SelectLanguageModel(doc);

candidates Å

Empty topN priority queue;

for each ((ngram, locations) in doc)

score = CrossEntropy(doc.GetSize(),

locations.Length,

// ngram frequency in doc

languageModel.Frequency(ngram)

);

Candidates.Add(ngram, score);

end for

return topN candidates by descending

score

}

ComputeCrossEntropy(docSize,

docFrequency,

LMFrequency)=(docFrequency/docSize)

x(BASE

Log10(LMFrequency)

)

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

150

3.3 Mining the Document Similarity

Index

The DSI mining algorithm works with a populated

and stable TI as its input/data source. The end output

of the algorithm is an index which can be queried by

any given document id, and returns the top N other

documents which share common highly ranked key

phrases with the given document, with connection

weights for each related document. Whereas

incrementing the TI is straightforward: on getting

new documents we simply add new rows to the TI,

incrementing the DSI is somewhat complex, because

it may include changing existing rows in the table.

Therefore, we present both the basic DSI mining

algorithm, and the incremental algorithm in this

section.

We only consider up to top K′ candidate

documents that we consider for similarities (to avoid

the O(N

) CPU issue), and only top K (where K ≤

K′) of those similarities will be stored. This allows

us to avoid the O(N

) space issue. This greedy

heuristic can be summarized as: given the target doc

T, we have the list of keywords in descending order

by their relative weight within T given by the TI; we

start exploring the keywords list top-down and we

find the documents where these keywords are also

highly weighted; we stop when we have found K′

such documents, or we finished exploring the

keywords list for doc T; those K′ documents are our

candidates.

Given two documents, doc1 and doc2, the TI

gives us the list of tags and corresponding weights

for each:

Doc

: {(tag

, weight

), (tag

, weight

),…,

(tag

, weight

)}

Doc

: {(tag

, weight

), (tag

, weight

),…,

(tag

, weight

)}

We use cosine-similarity to compute the

similarity between two documents, as shown below:

(



,



)

(



,



)

(



)×(



)

where:

(



,



∑

{ℎ(, 



)×ℎ(,



)}

for each tag that is common to doc

and doc

and

),()(

∑

doctagWeightdocNorm

for each tag

in doc

The pseudo-code for the DSI mining algorithm is

provided below.

ExtractTopKDocumentSimilarities(TagInde

x TI)

{

for each (unprocessed docId) do

// Step 1: Find top K’ candidates

topK’Candidates

=SelectSimCandidates(TI, docId);

// Step 2: Find similarities,

// relative to candidates

resultsHeap <-EmptyHeap(size=K);

for each (candidateId in topK’) do

similarity=CosineSimilarity(T,

docId,candidateId);

resultsHeap.Add(candidateId,

similarity);

end for

// Step 3: Select top K results

for each

(candidateId,similarity) in

resultsHeap do

DSI.WriteRow(docId,candidateId,

similarity);

end for

}

The details of the SelectSimCandidates function

are provided in pseudo-code.

SelectSimCandidates(TI, docId)

{

resultSet = Empty(Map<int, double>);

for each (tag, weight1) in

TI(docId) do

for each ((candidateId, weight)

in (select topK’ docs from

TI[tag]) do

if (candidateId ∉ resultSet)

resultSet.Add(candidateId,0.0);

end if

resultSet[candidateId]

+= weight1*weight2;

end for

return top K items in resultSet;

}

3.3.1 Incremental DSI Algorithm

When the corpus evolves as new documents are

added, and older documents are updated and deleted,

it is not immediately obvious how to update the DSI

such that it remains “fresh”, as well as consistent

with the TI and FTI, without having to re-build it

from scratch each time, as that would be very costly.

We have designed a scalable approach to this

problem, which builds upon the candidate selection

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE

151

heuristic that is at the core of our DSI mining

algorithm (see pseudo-code segments above).

For the documents in the update batch, (doc

,…,

doc

), we first extract and store the tags in the Tag

Index (TI). Then we compute document similarities

for each of doc

,…,doc

Let us detail the process for any one document in

this batch, doc

. We apply the standard DSI

algorithm for doc

and find the top K′ candidates for

it: cand

,…,cand

K′

, where each of the K′ candidates

can either be one of the documents already indexed

in previous batches, or it can be a document from the

same batch as doc

For the incremental step, we do the following for

each cand

in top K′: 1) If cand

is a document in the

current batch, do nothing special (since its

similarities will be up to date); 2) If cand

is a

document from a previous batch, compare

Similarity(doc

, cand

) with the weakest similarity

among the top-K similarities stored for cand

; if

there is a document X such as Similarity(cand

, X) <

Similarity(doc

, cand

), then we update the stored top

K similarities for cand

, by replacing

Similarity(cand

, X) with Similarity(doc

, cand

We will discuss the cost and accuracy

implications of the incremental algorithm in the

section on Experimental Results.

3.4 Mining the Semantic Phrase

Similarity Index (Graph)

N.B: This index is not being shipped in the next

version of SQL Server, but in a subsequent release

to be determined by Microsoft.

In this section we first describe the top level

objectives of the information we are trying to mine,

to clarify for the reader, fundamental differences

with related approaches like (Hammouda, 2004).

Whereas the end objective in (Hammouda, 2004) is

to infer document similarity, our objective is to infer

a phrase similarity graph that is approximately

closed under transitive closure, and has near-linear

time computational requirement.

3.4.1 Top Level Objective: Semantic

Thesaurus

The overall objective of mining the semantic phrase

similarity index (SPSI) is to derive a semantic

thesaurus which embodies the inferred semantic

space over phrases used at the Enterprise.

For example, given a Microsoft corpus of

documents, we would like “Google” to translate into

things like “search engine”, “ad revenue”, etc., that

we would normally get from a Thesaurus lookup,

but additionally, also get “competition”. In case the

corpus is mainly discussing the competition between

these companies, we want “competition” to be

heavily weighted. We also wish to discover so-

called latent relationships (Deerwester, 1988),

between words and phrases, such that if A Æ B with

a high weight and B Æ C with a high weight, then I

wish to infer the A Æ C relationship. Most

importantly, we wish to construct the mining

algorithm to scale linearly, be incremental, and

possible to integrate tightly into the overall FTI and

Semantic Platform architecture outlined in Section

3.1.

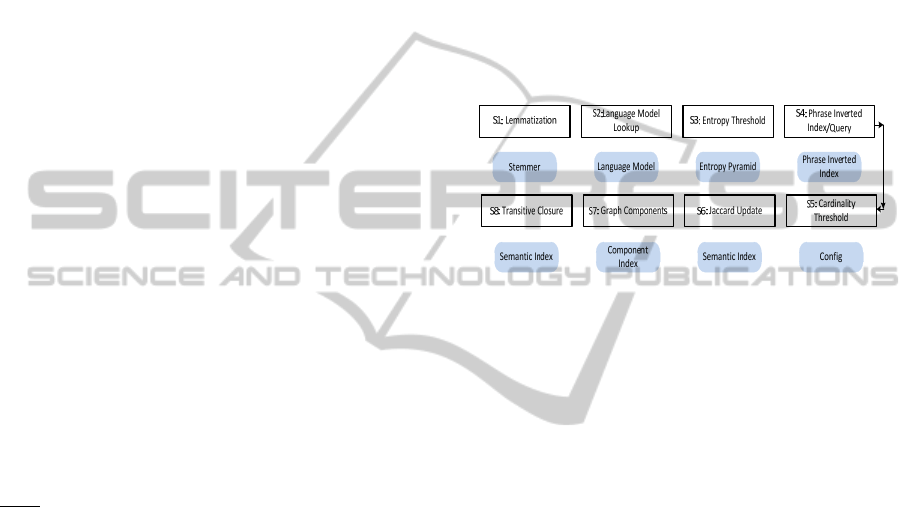

Figure 3: SPSI mining algorithm.

3.4.2 Eight Stage Algorithm

The SPSI algorithm consists of eight stages,

numbered S1 – S8 in Figure 3. Corresponding to

each stage is a data structure abstraction, as shown

in the figure.

To facilitate understanding this algorithm, we

will re-use a worked example from (Zamir, 1998).

Consider that the document corpus we are working

with contains the following three documents, with

ids: D

, D

and D

: “Cat ate cheese”

: “Mouse ate cheese too”

: “Cat ate mouse too”

In S1, which does tokenization and

lemmatization into base forms, we transform the

corpus thus:

: “cat eat cheese”

: “mouse eat cheese too”

: “cat eat mouse too”

In S2 we simply substitute LM ids for each word

(or ngram), so that the rest of the algorithm works

with integers. This makes the processing more

efficient than working with strings. However, for

ease of explanation, we will revert back to using

strings for the remainder of this worked example.

: 2022, 788, 4077

: 16788, 788, 4077, 345

: 2022, 788, 16788, 345

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

152

In S3, where we use an LM to filter out the low

entropy words in the language, we end up with the

following:

: “cat eat cheese”

: “mouse eat cheese too”

: “cat eat mouse too”

We pre-process the text using LMs to derive

entropy sliced pyramids (ESP). The top levels of

these pyramids contain the most salient semantic

entities. Lower levels of the ESP contain

progressively more terms, and the lowest level

contains everything and can be used for full text

search. ESP essentially gives us a multi-resolution

decomposition of the data, and imposes the

priority/scale constraints that the top levels of the

pyramid contain both the most semantically valuable

as well as least quantity of data, which means we

can “skim off the top” and compute only the most

salient information, entities and relationships faster

than the rest. This mechanism enables us to deal

very effectively with information at scale. Figure 4

shows an example of using an ESP on the incoming

text (presumably from a resume): “Skill set: I have

used C++ and MATLAB”.

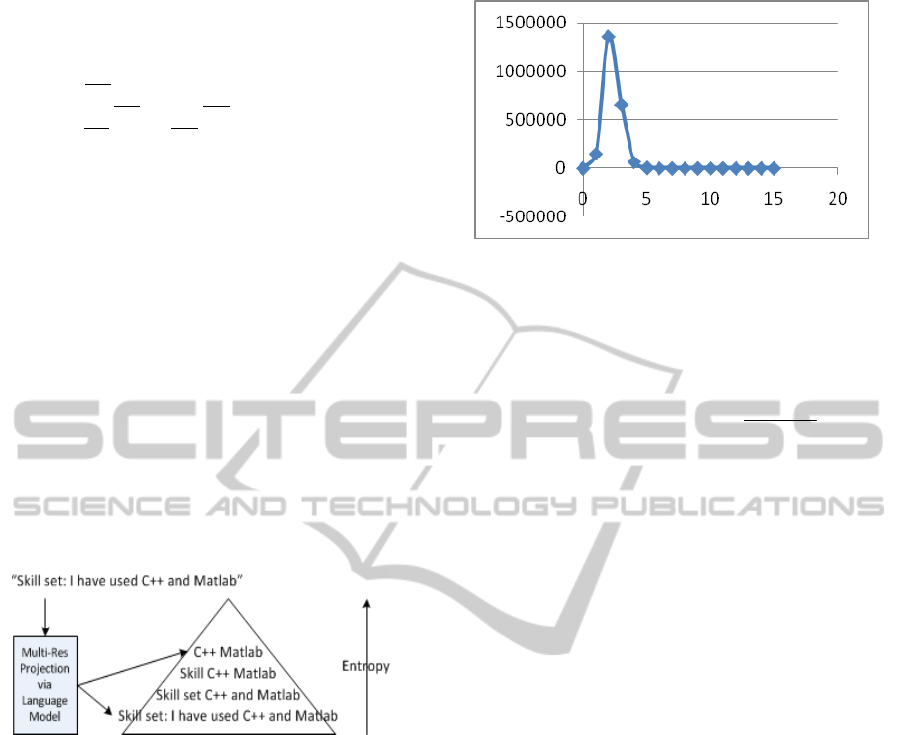

Figure 4: Entropy Sliced Pyramid. Each level contains

terms at or above the entropy threshold for that level.

In S4, we create the inverted ngram index, as

shown below:

“cat”: {D

, D

}

“cheese”: {D

, D

}

“mouse”: {D

, D

}

“cat cheese”: {D

}

“mouse cheese”: {D

}

“cat mouse”: {D

}

Here it’s worth mentioning that we only used 1,

2, and 3-grams. There is a big space/disk cost to

using high order ngrams, and we repeatedly found

evidence of diminishing returns for ngrams longer

than 3 in a number of large (Enterprise) corpuses.

This is shown in Figure 5.

In S5 we filter out sets with cardinality less than

some threshold. For example, in our running

example, we may filter out the sets: “cat cheese”,

“mouse cheese” and “cat mouse” because they are

all singletons. Sometimes singleton sets are indicative

Figure 5: Ngram node length histogram mined from a

3000 doc corpus.

of noise, and they are rarely useful in linking

semantically similar content.

In S6, we create weighted adjacency lists, using

the Jaccard metric:

∪

∩

),(

DDJ =

. This

provides a notion of semantic nearness between any

two ngrams, as the count of documents they are both

present, over those only one is present. In our

running example, the pairwise Jaccard metric

applied to the surviving ngrams produces the

following output, which is an Adjacency Matrix:

cat: {(cheese, 0.33), (mouse, 0.33), (cat cheese,

0.5), (cat mouse, 0.5)}

cheese: {(cat, 0.33), (mouse, 0.33), (cat cheese,

0.5), (mouse cheese, 0.5)}

mouse: {(cat, 0.33), (cheese, 0.33), (mouse

cheese, 0.5), (cat mouse, 0.5)}

cat cheese: {(cat, 0.5), (cheese, 0.5)}

mouse cheese: {(cheese, 0.5), (mouse, 0.5)}

cat mouse: {(cat, 0.5), {mouse, 0.5)}

For S6, we compute the Jaccard graph that

relates all pairs of ngram nodes incrementally, with

each incoming document, as described below.

Induction Hypothesis: Graph is Jaccard complete

(i.e. all pairs have distance given by the Jaccard

metric) after we have seen the (i-1)

document.

Induction Step: We only partially update the

graph to change numerators and denominators of

only the “active ngrams” – these are the ngrams that

occur in the i

document. After the update step the

graph is once more Jaccard complete.

In the following we outline the steps of the fast

Jaccard update algorithm on receiving the ith

document.

1. Represent the incoming document as a set of

ngrams: Doc(i) = {ng

, ng

, …, ng

};

2. Mark previously unseen and previously seen

ngrams, creating the set partitions:

∪

)()()( iUnseeniSeeniDoc =

;

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE

153

3. Insert the unseen set into the Adjacency

Matrix, the unseen rows become: Doc(i), all

numerators and denominators = 1;

4. For each ngram in the Seen set, append the

Unseen set, and initialize all numerator =

denominator = 1;

5. For each ngram in Seen set, update the old row

with denominator++; and if the old word is in

Doc(i) then numerator++.

6. In order to guarantee strictly linear behaviour

wrt Jaccard updates, we reuse the incremental

update regime detailed in the context of DSI

updates in section 3.3.1. Namely, we maintain

a maximum of K’ candidates in each word’s

adjacency list; these are used to “bubble up”

the final K top relationships for each word. K’

> K.

Step S7 is actually an optimization/pre-

processing step to speed up S8, and so we first

describe S8, which is the transitive closure over the

graph obtained from S6.

At the output of S6, we have a pairwise

connected weighted graph represented by the

adjacency matrix. From this it is possible to compute

connected components and semantic clusters and

neighbourhoods. Indeed, that is what we do in S7.

However, in order to capture the latent semantic

relationships, it is necessary to consider transitive

relationships between ngram nodes. If we fail to do

that, the semantic inference available from the entire

process tends to be locked into “vocabulary silos”.

We compute the transitive closure over this

graph using the classic Floyd-Warshall algorithm, by

defining the relaxation step to be the maximum over

edge weight between vertices i, j, and intermediate

vertex k: e(i, k) x e(k, j). This exposes the latent

semantic relationships, and gives us functional

equivalence with LSI. The end result is an entity

relatedness graph with edge weights representing

relationship strengths between any pair of vertices.

Note that our edge weights are symmetrical, and so

we only need to deal with the upper triangular half

of the adjacency matrix, discounting diagonal entries

(each node is trivially related to itself).

Theorem: Given a Graph G, defining the

relaxation step on an edge connecting vertices V

and

as: e(i, j) = Max{e(i, j), e(i, k) x e(k, j)} where the

base edge weights represent Jaccard similarity, is

necessary and sufficient to induce transitive closure

over G, exposing latent semantic relationships.

Proof: If Jaccard similarity is considered as an

approximation of probability that nodes V

and V

are

related, and if the relationship between any two

(non-identical) pairs of vertices (e.g. {V

, V

} and

, V

}) is independent, then their joint probability

is the result of multiplying independent probabilities.

But this is the same as multiplying edge weights

stemming from Jaccard similarity.

To complete the running example, here are the

outputs of the Transitive Closure step. Latent

relationships that emerge after transitive closure are

highlighted.

cat: {(cheese, 0.33), (mouse, 0.33), (cat cheese,

0.5), (cat mouse, 0.5), (mouse cheese, 0.165)}

cheese: {(cat, 0.33), (mouse, 0.33), (cat cheese,

0.5), (mouse cheese, 0.5), (cat mouse, 0.165)}

mouse: {(cat, 0.33), (cheese, 0.33), (mouse

cheese, 0.5), (cat mouse, 0.5), (cat cheese,

0.165)}

cat cheese: {(cat, 0.5), (cheese, 0.5), (mouse,

0.165), (mouse cheese, 0.25), (cat mouse,

0.25)}

mouse cheese: {(cheese, 0.5), (mouse, 0.5),

(cat, 0.165), (cat cheese, 0.25), (cat mouse,

0.25)}

cat mouse: {(cat, 0.5), {mouse, 0.5), (cheese,

0.165), (cat cheese, 0.25), (mouse cheese, 0.25)}

3.4.3 Transitive Closure Optimizations

Transitive Closure on a graph is an expensive O(N

)

operation. We outline a series of optimizations that

reduce the end-to-end complexity.

First, we enforce sparseness on the graph from

S6 by clamping weights, e(i,j), that are less than a

sparseness threshold, T, to zero: If (e(i, j) < T e(i, j))

= 0, then e(i,j) = 0.

We next run connected components algorithm on

the sparse graph. Connected components is O(N).

Once the M components are identified, the transitive

closure on the entire graph reduces to running

transitive closure on the M components. Thus, we

transform the overall complexity from O(N

) to

)(

∑

A spin-off data structure of connected

components is the Component Index, which is

actually a hierarchy of embedded sub-components,

corresponding to different values of sparseness

threshold. This enables us to work with components

and clusters later on.

We now state without formal proof, a conjecture

based on substantive empirical evidence, that

actually results in completely eliminating the

expensive transitive closure operation for large

corpuses. Either transitive closure is necessary and

the document set is small, in which case it is cheap

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

154

to compute; or transitive closure is asymptotically

unnecessary (and can therefore be entirely

eliminated), beyond filling in the pair-wise Jaccard

similarities, when the document set is large.

Intuitive Explanation: Consider documents

relating Obama and the US presidency. These are

likely to be many. Consider documents relating

Obama and basketball. These are likely to be few. In

a small collection there may not be any single

document commenting on relationships between the

office of the President of USA and basketball.

However, if a sufficiently large document set is

constructed, then there is a high chance that some

document does talk about how presidents relate to

the game of basketball.

This intuitively explains why the net contribution

of transitive closure, or latent relationships, in

general, may be expected to diminish as we

approach very large document sets.

Experimental Evidence: We now present the

experimental evidence (Figure 6) which shows that

the contribution of the weight deltas due to the

transitive closure step seems to follow roughly an

exponential decay curve as the corpus size increases.

We have found that this generalizes over a variety of

different Enterprise (e.g. SharePoint design

document repository) and academic corpuses (e.g.

New England Journal of Medicine).

Figure 6: Contribution of transitive closure diminishes for

large corpuses.

4 EXPERIMENTAL RESULTS

Traditional accuracy metrics for full text search and

web search are Precision and Recall (Baeza-Yates,

1999). Whereas the precision of semantic search is

good, the recall is expected to be somewhat poor in

comparison to full text search products, because we

follow transitive links to other documents.

For our tagging experiment, we used the social

tagging dataset culled from delicious that was used

in (Jiang, 2009). There are two versions of the TI

algorithm that we tested - the normal algorithm and

a filtered version (Filtered TI). The filtered version

takes the keywords produced by the TI and then

filters out keywords that do not appear in the

document a minimum number of times normalized

by the document length. We compare our results to

corpus dependent machine learning methods: KEA

(Witten, 1999), Linear Support Vector Machine

(SVM) and Ranking Support Vector Machine

(Ranking SVM) (Jiang, 2009). We used the same

parameter settings, test/training splits, etc. as (Jiang,

2009), for consistency. We also compare our results

to the standard Term Frequency (TF) and TFIDF

methods. Table 1 shows our results based on the

Precision at 5 (P @ 5) and Precision at 10 (P @ 10)

metrics.

The results are quite promising. Without

filtering, TI produces results that are approximate to

TFIDF, but in a corpus independent way. Once we

filter TI, we achieve results that surpass TF and

TFIDF and, in fact, are closing in on KEA. The

advantage is that our method scales linearly. One

interesting result is that TF performed better than

TFIDF, which could be due to the small corpus size

(600). Overall, the results show that TI provides a

solid foundation upon which DSI can be built.

Table 1: Precision results for our algorithm (TI and

Filtered TI) compared to others.

P @ 5 P @ 10

TI 0.289 0.221

TFIDF 0.295 0.23

TF 0.34 0.267

Filtered TI 0.38 0.27

KEA 0.437 0.31

SVM 0.469 0.323

Ranking SVM 0.495 0.349

For document similarity precision performance,

we constructed a corpus of 2500 documents scraped

from Wikipedia. The corpus consisted of 25 topics,

each with 100 documents each. Sample topics

include “american actors”, “american singers”, and

“national football league players”. Note, some of the

documents belonged in two categories, such as an

actor that was also a singer. This negatively affects

precision results for all methods including DSI. To

test the precision, we took a single document from

each of the topics and used it as the query document,

and then we obtained the top 10 most similar

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE

155

documents. Then precision numbers at 1, 3, 5, and

10 were calculated. We compared our results to the

traditional Cosine similarity measure (CosSim)

based on TFIDF (Baeza-Yates, 1999).

The results in Table 2 show that DSI provides a

similar precision level to CosSim, but does so in

linear time instead of in O(N

) time, and is

completely corpus independent, unlike CosSim.

This is a huge win for customers whose workloads

are in the millions of documents, anything other than

linear will simply not be feasible at such scale.

Table 2: Precision results for DSI and CosSim.

P @ 1 P @ 3 P @ 5 P @ 10

DSI 0.8 0.8 0.79 0.78

CosSim 0.8 0.82 0.83 0.82

Figure 7 shows how FTI, TI and DSI mining

stack up in terms of end-to-end execution time (i.e.

sum total of computing all three indexes) on a real

customer workload sampled at 200k document

increments, with an average sample size of 40KB

per document in plain text format. The test machine

had 32GB of RAM and a DOP (degree of

parallelism) of 32. The results clearly show linear

scaling.

Figure 7: Total execution time (sec.) vs. Docs mined.

4.1 Incremental DSI Algorithm

Performance

As the corpus evolves over time (new documents are

added, and old ones are updated), the incremental

algorithm keeps the index fresh in an efficient

manner. However, there are a few expensive

operations involved in “back updates”. These are, in

increasing order of cost: 1) Lookup to find if cand

in the new (incremental) batch or not. For this we

can use an in-memory hash table; 2) Lookup to find

the weakest of the top K stored similarities for cand

;

and 3) Update (or delete followed by insert) in case

we need to update the weakest similarity for cand

This is the most expensive operation.

In Figure 8, we report on the accuracy and I/O

cost for various corpus sizes, from 1000 to ~500,000

documents (number of docs is on the X-axis).

Figure 8: Cost of incremental DSI.

One conclusion from the above analysis is that

the “average similarity values” (top left plot) shows

that the DSI approach gives quite good accuracy: we

will not have 100% accuracy (compared to some

“perfect similarity oracle”), but the fact that top-1

similarities, especially for large corpus sizes, are

close to 1 means that strong similarities are easily

identified; also, average top-10 similarities grow

nicely. The reason that those numbers (both for top-

1 and top-10) are lower for smaller size corpuses is

due to the fact that the lower the corpus size, the

lower the probability to find similar documents.

Secondly, the total time in milliseconds (lower-

right) graph shows that the runtime is linear: as we

double the document set size, the runtime roughly

doubles. Thirdly, the “I/O cost of incremental

updates” (upper-right) graph is similar to the

TotalTimeMillis one, in the sense that the number of

back-lookups and back-updates doubles when we

double the corpus size.

Another piece of learning from the above

analysis is that accuracy can benefit from the same

approach (back-updates) even for in-batch

documents. The reason is that back-updates act to

boost accuracy, and give some documents that may

have been missed by the candidate selection

heuristic a second chance. Given the high overhead

in I/O cost, we should be cautious to use this in all

cases, and we recommend to only using it for batch

updates, where this is absolutely needed, and to let

the non-incremental case run as fast as possible.

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

156

The semantic mining algorithms have been

distributed in the form of SQL Server’s community

tech preview (CTP) bits, and have been well

received, with one Microsoft internal and one

external customer showing intent to adopt.

5 APPLICATIONS

With the search user experience, we have been used

to a document-centric rather than concept-centric

navigation of information. The overall

search/browse experience is somewhat broken at the

Enterprise (which is the primary concern of SQL

Server’s user base), because Enterprise documents

could be hundreds of pages long, and there may be

millions of documents in the repository, e.g.

SharePoint. People simply don’t have the time to

scan so much information and ultimately navigate to

the exact point of interest.

Based on mining the Phrase Similarity Index

(Section 3.4), we propose to enable a set of concept-

centric information navigation experiences (Figure

9). This enables the user to browse a document

collection by following links through concepts,

rather than through document names or a sequence

of search queries – especially useful in large

document collections where individual documents

are large, e.g. at the Enterprise. In Figure 10, we

show how the semantic graph may be used to

enhance the Windows Explorer user experience.

Figure 9: Exploring a concept graph.

Figure 10: Exploring mined concepts in a file system.

When a concept is browsed on the left, corresponding files

are highlighted on the right.

6 CONCLUSIONS

We have described the semantic mining algorithms

that lie at the core of Semantic Platform, which is

being released in the next version of SQL Server,

and shown that they scale linearly with large

document corpuses. The combination of the four

indexes facilitates the process and work flow of

browsing, searching and researching information at

the Enterprise, where documents can be large

compared to web pages. It also enables new and

intuitive user experiences along the lines of

browsing concepts that are contained in documents

instead of the documents themselves, e.g. using

filenames.

Future work includes keyword precision

improvements for the TI by utilizing additional

corpus independent features such as first occurrence

and phrase distribution (Jiang, 2009). Additionally,

for the DSI, exploring different candidate document

selection strategies and document similarity

functions are fruitful avenues of research that could

potentially yield gains in performance and precision.

We also plan to expose more tuning knobs (e.g. K

and K′ in Section 3.3) to better control the degree of

completeness of DSI results, and/or to adapt them as

the mining proceeds. Adaptive language modelling

is yet another promising future direction when

mining Enterprise document corpuses.

SEMANTIC MINING OF DOCUMENTS IN A RELATIONAL DATABASE

157

REFERENCES

Administering Full Text Search (http://msdn.microsoft.

com/en-us/library/ms142557.aspx).

Baeza-Yates, R., Ribeiro-Neto, B., Modern Information

Retrieval, Addison-Wesley, 1999.

Blei, D. M., Ng, A. Y., Jordan, M., Latent Dirichlet

allocation, Journal of Machine Learning Research No.

3, pp. 993 – 1022, 2003.

Cohen, J. D., Highlights: Language- and domain

independent automatic indexing terms for abstracting,

Journal of the American Society of Information

Science, Volume 46, Issue 3, pp. 162-174, April 1995.

Damashek, M., Gauging similarity with N-grams:

Language-independent categorization of text, Science

267, Feb. 1995.

Deerwester, S., et al., Improving Information Retrieval

with Latent Semantic Indexing, Proceedings of the

51st Annual Meeting of the American Society for

Information Science 25, 1988, pp. 36–40.

Full Text Search Overview (http://msdn.microsoft.com/en-

us/library/ms142571.aspx).

Gabrilovich, E., Markovitch, S., Computing semantic

relatedness using Wikipedia-based explicit semantic

analysis, in Proceedings of the 20

International Joint

Conference on Artificial Intelligence, 2007.

Hammouda, K., M., Kamel, M., S., Document Similarity

using a Phrase Indexing Graph Model, Journal of

Knowledge and Information Systems, Vol. 6, Issue 6,

November 2004.

Hofmann, T., “Probabilistic Latent Semantic Indexing”,

Proc. SIGIR, 1999.

Jiang, X., Hu, Y., Li, H., A Ranking Approach to

Keyphrase Extraction, Microsoft Research Technical

Report, 2009.

McNabb, K., Moore, C., and Levitt, D., Open Text Leads

ECM Suite Pure Plays, The Forrester Wave Vendor

Summary, Q4 2007.

Salton, G., Wong, A., Yang, C. S., “A Vector Space

Model for Automatic Indexing”, Communications of

the ACM, vol. 18, nr. 11, pages 613-620, 1975.

Silberschatz, A., Stonebraker, M., and Ullman, J.,

Database Research: Achievements and Opportunities

into the 21

Century. Technical Report, Stanford,

1996.

Tan, P-N., Steinbach, M., Kumar, V., Introduction to Data

Mining, 2005

Witten, I. H., Paynter, G. W., Frank, E., Gutwin, C., and

Nevill-Manning, C., G., KEA: Practical automatic

keyphrase extraction, Proc. DL ’99, pp. 254-256.

Zamir, O., Etzioni, O., Web Document Clustering: A

Feasibility Demonstration, in Proc. ACM SIGIR’98,

1998.

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

158
