LEVERAGING USER KNOWLEDGE

Design Principles for an Intuitive User Interface for Building Workﬂows

D. Kotowski, G. Henriques, M. G. Gillespie, H. Hlomani and D. A. Stacey

School of Computer Science, University of Guelph, 50 Stone Road East, Guelph, Canada

Keywords:

Ontology, Ontology driven composition systems, Composition systems, User interface, Leveraging knowl-

edge, Mind mapping, Workﬂow composition, Knowledge engineering, Human computer interface issues.

Abstract:

Compositional systems offer a unique opportunity to users who have domain expertise but lack the necessary

skills to develop software solutions in their own domain. A subset of these systems are ontology driven

compositional systems (ODCS). ODCS use ontological knowledge to help facilitate composition between

individual compositional units. Since an ODCS is a technologically complex system where a majority of the

emphasis is placed on the inner workings of the system, often the user interface is an afterthought. This paper

focuses on the human issues related to developing a workﬂow management application by investigating the

design principles behind an ODCS interface prototype.

1 INTRODUCTION

Compositional systems offer a unique opportunity to

users who have domain expertise but lack the nec-

essary skills to implement software solutions in their

own domain. The ability to compose a system from

pre-existing algorithms allows for quick creation of

software solutions. However, the process of software

composition must be easy and approachable for the

user.

A subset of compositional systems is ontology

driven compositional systems (ODCS). Ontology

driven compositional systems perform system com-

position using ontologies. The beneﬁt of ODCS is the

ability to describe software development and domain

speciﬁc knowledge within an ontological representa-

tion. For example, system knowledge would be ele-

ments that pertain to the actual composition and the

system on which the composition will be executed.

Domain knowledge would represent information im-

portant to a user’s speciﬁc domain such as aggregate

data from multiple business paradigms.

An ODCS is a technologically complex system

where a majority of the emphasis is placed on the in-

ner workings of the system.Often the user interface is

an afterthought. The interface needs to facilitate the

interaction between the ODCS and the goal oriented

mind of the user. The user does not care about the in-

ner workings of an ODCS however they do care about

having a metaphor for mapping the process that will

accomplished their task. We investigate mind map-

ping as a way in which users can describe a workﬂow

process of compositional units.

Current compositional systems such as Galaxy,

Triana and Yahoo Pipes focus on workﬂow composi-

tion. They embrace the notion of designing a work

ﬂow, however are not ontologically driven. These

three systems will be assessed against our usability

criteria.

Overall this paper focuses on the human issues re-

lated to developing a workﬂow management appli-

cation to mimic the task of describing a workﬂow.

More speciﬁcally, we will describe the design process

for creating the interface to our prototype ontology

driven compositional system. This ODCS has been

previously described in (Hlomani and Stacey, 2009)

and (Gillespie et al., 2011). Systems can be viewed

from many perspectives and one of the most impor-

tant viewpoints is that of the user. Regardless of how

the system actually works, the system metaphor that

is embraced by the user (whether it is the metaphor

consciously designed into the system or an implicit

metaphor generated by the user’s experience) is in-

strumental in determining if the system is success-

ful. A successful metaphor will encourage the user

to select the most appropriate system over alternatives

and will allow the user to successfully complete their

tasks.

In this paper we account for several factors such

as usability heuristics (section 2.2), mind mapping

176

Kotowski D., Henriques G., G. Gillespie M., Hlomani H. and A. Stacey D..

LEVERAGING USER KNOWLEDGE - Design Principles for an Intuitive User Interface for Building Workﬂows.

DOI: 10.5220/0003632801760182

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2011), pages 176-182

ISBN: 978-989-8425-80-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

(section 2.3), and examination of interfaces of exist-

ing systems (section 2.4). An interface prototype was

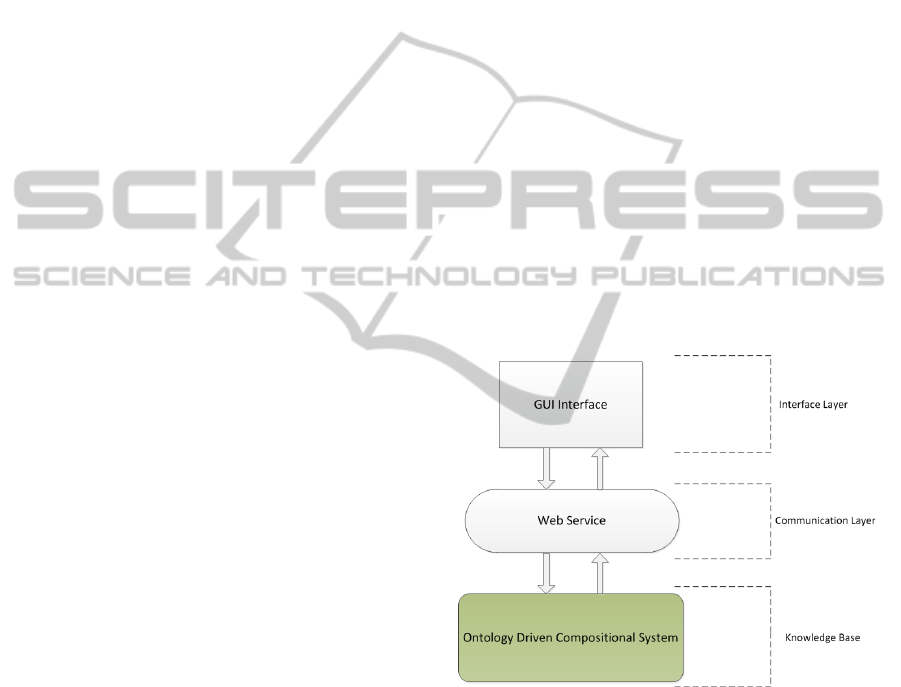

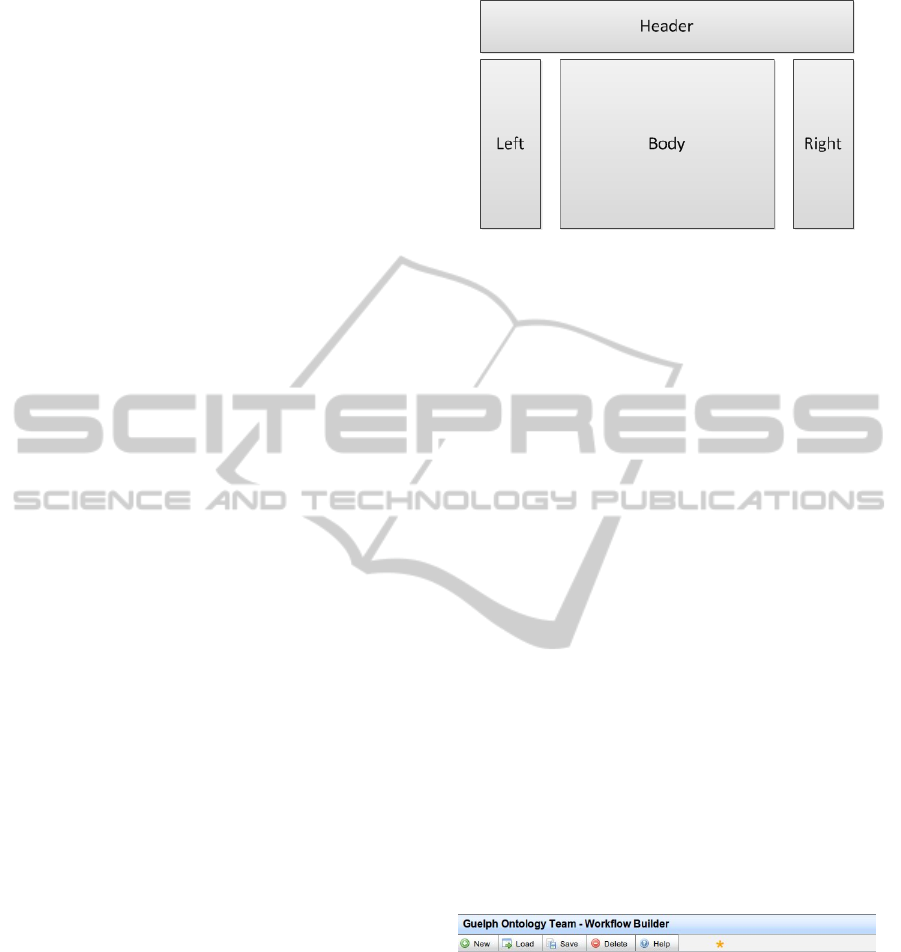

constructed using various web technologies. The ba-

sic layout of the program consists of the use of the

“WireIt!” library, which is connected to an ODCS via

a web service architecture. The paper will conclude

with a discussion about our current prototype.

2 BACKGROUND

2.1 Ontology Driven Compositional

Systems

Often there has been a disconnect between the ability

to program a solution and the expertise necessary to

understand the key components of a complex problem

such as population modelling. The task of designing

software is often out of reach of domain experts. An

Ontology Driven Compositional System (ODCS)

uses existing computational knowledge in the form

of compositional units to aid a domain expert in the

construction of a software systems solution (Gillespie

et al., 2011). The system uses ontologies to share per-

tinent information between components to allow for

seamless integration (Hlomani and Stacey, 2009).

An ODCS deﬁnes a workﬂow by combining

Compositional Units (CU), which are discreet units

of composition. A CU may be an algorithm, pack-

age or service that takes in a given input and produces

a set of calculated outputs (Gillespie et al., 2011).

The workﬂow describes the ﬂow of data between each

compositional unit as well as maintains the order of

execution. The system aids the user by automatically

inserting nodes that convert data formats to conform

to expected input of a subsequent CU.

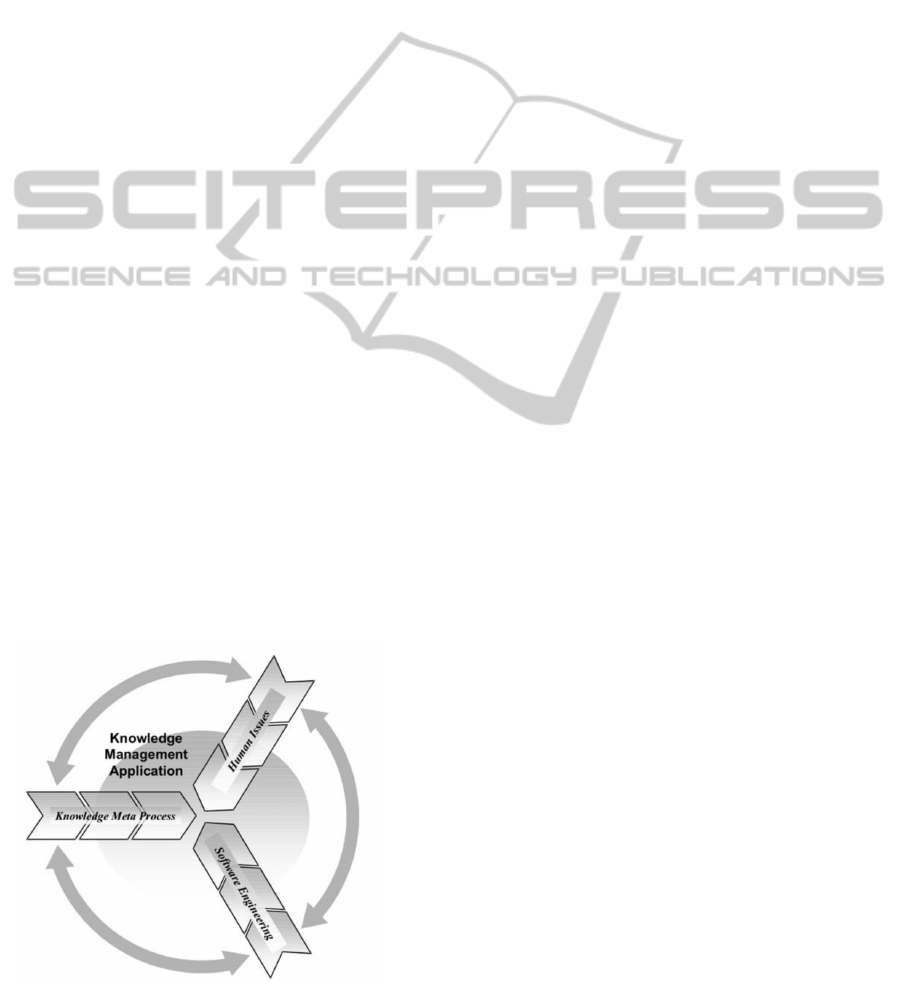

Figure 1: Processes involved in designing a knowledge

management system from (Sure et al., 2009).

Since the main function of an ODCS is to com-

pose software, the user/expert can focus on crafting

the solution that best addresses the nuances of their

problem domain. In essence the system leverages the

knowledge of the expert to design domain speciﬁc so-

lutions. It is important to note that many ODCS sys-

tems have been designed with a bottom up approach

where the knowledge base and the underlying archi-

tecture were designed ﬁrst. Until now the interfaces

for these systems were minimal at best. (Sure et al.,

2009) state that there are several human issues when

designing a knowledge management system. Figure

1 describes the relevant processes in designing a sys-

tem such as an ODCS. This paper will focus on the

human issues within this process by designing an in-

terface that helps the user leverage their knowledge

within the ODCS system and that is both easy to un-

derstand and use.

2.2 Usability Heuristics

Jakob Nielsen introduced ten usability heuristics for

evaluating systems and applications. One of these

heuristics, ﬂexibility and efﬁciency of use, states that

a system should cater to experienced and inexperi-

enced users (Nielsen, 1994). Many times, a system

is composed of various types of users ranging from

novices to experts.

The system aims to accommodate novice users at

composing workﬂows of compositional units with-

out the need of expert software knowledge. Not all

users accessing the application will have the knowl-

edge necessary to build components used within the

application. For example, it is not necessary for a

user to have the knowledge required to build a com-

positional unit which represents a statistical model.

Instead, they will be able to utilize the representation

of that model without having to deal with having the

computational or mathematical background. At the

same time, the system should provide accelerators in

order to speed up interaction of expert users.

Leveraging Knowledge describes how the trans-

fer of knowledge between two people is bi-directional

and that “knowledge grows when used and depreci-

ates when unused” (Firm et al., 2000). An example of

how this concept can be used within a web application

is outlined in (Gillespie et al., 2011). Here the author

describes the interaction between two user types of a

system. One such user can have the knowledge re-

quired to execute semantic requirements of composi-

tional units, while another user type contains knowl-

edge required to interconnect multiple compositional

units (Gillespie et al., 2011). This exchange of knowl-

edge is required in order to compose a system. This

LEVERAGING USER KNOWLEDGE - Design Principles for an Intuitive User Interface for Building Workflows

177

concept is prevalent throughout the design of the in-

terface.

2.3 Mind Mapping of Workﬂow

Mind Mapping has been used in various ﬁelds to

help categorize ideas and give a visual ﬂow be-

tween concepts (Brinkmann, 2003). The process

of mind mapping allows both sides of the brain to

work together to increases productivity and creativ-

ity. Mind maps are great tools for organizing infor-

mation. “The hierarchical structure of a mind map

conforms to the general assumption that the cognitive

representation of knowledge is hierarchically struc-

tured” (Brinkmann, 2003) . This lends itself well to

the notion of a compositional system. The user will

lay out and connect the compositional units necessary

to visualize their solution.

Mind maps excel in connecting new information

with given knowledge (Brinkmann, 2003). This qual-

ity is incredibly useful when trying to expand a work-

ﬂow in an ODCS. Often new algorithms or computa-

tional units will become available, and the user may

choose to add them. By having a visual workﬂow it

will be easy for the user to identify the location of

where the new CU should be placed.

The mind mapping process is a logical way to rep-

resent a workﬂow as it gives coherence and a good

visual representation. It is evident with some of the

design choices in the interface presented that mind

mapping was a key inspiration allowing the interface

to truly leverage the knowledge of the user.

2.4 Related Existing Systems

With the acknowledgment of the different user types

and their skill levels, many research initiatives have

been started with the goal of meeting some of the

heuristics discussed in section 2.2. In this section we

provide an overview of some of these initiatives.

Triana is a problem solving environment (PSE)

that can be used for composing, compiling and run-

ning applications (Majithia et al., 2004). Like many

other compositional systems, the goal of Triana is to

make use of several tools (data analysis tools, algo-

rithms, control structures) to solve a problem (Tay-

lor et al., 2007). Triana deﬁnes interfaces to a vari-

ety of execution environments through its Grid Ap-

plication ToolKit (GAT) and Grid Application Proto-

col (GAP) allowing the execution of both task-based

workﬂows and service-based workﬂows. With Tri-

ana, a user graphically composes a workﬂow by dis-

covering, composing, invoking and publishing com-

posite services in a seamless manner.

Galaxy is a tool and data integration framework

(Team, 2010). It is an open-source application and al-

lows for the installation of individual instances. The

target users in Galaxy are software developers and bi-

ologists. The tools found within the application can

be applied to datasets to perform calculations. New

tools can be added to the interface. In order to do so,

a developer must add a conﬁguration ﬁle that contains

information about how the tool is run (Team, 2010).

One form of current use is as a web-based genome

analysis tool (Goecks et al., 2010). The genome anal-

ysis is done in the workspace area which allows for

the application of computational tools to perform the

data analysis (Goecks et al., 2010). It is important to

note that this application targets a speciﬁc ﬁeld, bi-

ology. Furthermore, in order to keep the front-end

user satisﬁed, it is required to maintain a person with

some programming experience in case new tools are

needed. Another aspect of Galaxy worth noting is

that although it is a web-based application, installa-

tion only works through Linux and Mac OSX, with

no current support for Windows (Team, 2010). These

points play a role in increasing the cost and decreas-

ing the adaptability of the application by other users

or ﬁelds of interest.

Yahoo Pipes is a composition tool that creates data

mashups; it is used primarily as a simple way to run

web projects, or publish web services (Pruett, 2009).

Yahoo Pipes has a set of modules that have different

types of containers that can be used when building

the pipe. It contains many of the concepts that are

useful for CU workﬂow composition, however the set

modules that it contains would have to be conﬁgured.

The power of ontologies is that they have the abil-

ity to automatically infer semantic relationships be-

tween CUs within the ODCS. For example, by de-

scribing the input/output parameters for each CU, the

system would have the ability to infer which other

CUs have the same I/O requirements. It would also

have the capability of determining which CU’s were

created by the same software developer. In turn, this

reduces the amount of work on the software develop-

ment side thus reducing any dependence the front-end

user might have when making modiﬁcations, such as

adding new CU’s, to the system.

The discussed systems are efﬁcient in their areas

and have a lot of power, but all require users with

experience and background knowledge in program-

ming in order to make modiﬁcations to ﬁt their needs.

When considering the perspective of the end user,

some of the described systems are not very adaptable

to change. By using an ontology-driven system, the

user is able to intuitively run the system, and perform

their necessary actions without being required to at-

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

178

tain the background knowledge some systems require.

It also has the capability of adapting various types of

ﬁelds through a given set of CU’s. Using a simplistic

interface, the user should be able to construct work-

ﬂows of CU modules without concerning themselves

with the background of the system (such as creating

the CU’s, deﬁning the semantics, running the work-

ﬂows, etc.).

3 ODCS INTERFACE

PROTOTYPE

3.1 Goals and Principles of the

Prototype

When designing the interface for our ODCS proto-

type system, there were several possible approaches

that could have been taken. As software developers,

an obvious solution would be to design a plug-in for a

software IDE (Integrated Development Environment)

such as Eclipse. This would add several barriers of

entry upon the user. Firstly, IDE’s are often resource

intensive and this would force the user to invest into

a substantial work station to run the software. Sec-

ond, there is the learning curve involved with a com-

plex IDE. For a developer who is familiar with IDE’s

it is a relatively simple learning task, however, to a

non-developer it can be a long, difﬁcult process. With

such a learning curve, acceptance of an OCDS may

be limited and only available to those with a strong

software development background. Also, one of the

main advantages of an OCDS is that the user need not

be a software developer to develop software solutions,

thus the IDE solution is not preferable.

Thus we centered our focus on a user that will

not be experienced with software development or be

particularly computer savvy. Since we assume that

the user will have little to no background in software

development we decided to take inspiration from a

method that most user would be familiar with: mind

mapping. As explained in section 2.3 mind mapping

offers tools to the user to effectively create workﬂows.

Since mind mapping is used in various ﬁelds it is very

likely that the end user will have been exposed to

mind maps in one manner or another. This allows

for the learning curve of the user to be signiﬁcantly

lower.

Another factor that had to be taken into consider-

ation was that of the access to hardware that the user

may have. For this we decided to implement a dis-

tributed solution. The user interface would be pro-

vided through a web browser. This alleviates the need

for high powered hardware but allows the user to still

accomplish computationally intensive tasks.

As with all interfaces, usability was also taken into

consideration. Described in section 2.2, the key us-

ability heuristics focused on are ﬂexibility and efﬁ-

ciency of use.

3.2 System Architecture

Our ODCS system architecture was designed in three

layers. The bottom layer is the knowledge base where

the main ODCS system resides. Here all the underly-

ing logic and composition will occur. Also the physi-

cal instantiations of the CU’s exist in this layer along

with the ontological information. The layer above the

knowledge base is a communication layer. Here a

web service translates information received from the

interface and presents it to the underlying knowledge

base, and then once the knowledge base has processed

the information it will return its results to the inter-

face through the communication layer. Finally the top

layer is the interface layer where the user interface

will reside. This architecture is depicted in ﬁgure 2.

Figure 2: Conceptual Architecture of the ODCS System.

The design was inspired by modern service

oriented architecture. Service Oriented Archi-

tecture (SOA) combines loosely coupled software

components to generate a powerful software ser-

vice(Papazoglou et al., 2007).The loose coupling of

the software components allows for high portability

and reuse of key software components (Papazoglou

and Heuvel, 2007). In our system this means that both

the interface and knowledge base are neither tied to

nor dependent on one another. As long as both adhere

to the web service interface they will be able to co-

operate with each other. It is common among SOA’s

LEVERAGING USER KNOWLEDGE - Design Principles for an Intuitive User Interface for Building Workflows

179

to use web services to facilitate communications be-

tween components (Papazoglou and Heuvel, 2007).

The high adaptability of this system allows for

the knowledge base to be replaced quickly and eas-

ily. This is a powerful feature as the interface is able

to represent various knowledge bases describing dif-

ferent composition systems. All that is necessary is

the conformity to the communication layer.

3.3 WireIt! for Workﬂows

WireIt! is an open source Javascript library which is

used to create web “wireable” interfaces for data-ﬂow

applications, visual programming languages, graphi-

cal modelling, and graphical editors (Abouaf, 2010).

It has been adapted as the interface for ODCS due

to the ﬂexibility and adaptability that this library ex-

hibits. WireIt! introduces many different concepts

that can be used within applications such as contain-

ers and wires. There are various types of containers:

image containers, input/output containers, form con-

tainers, etc.. It also has the ﬂexibility for a developer

to create their own container with set properties.

WireIt! also presents various examples of how

their components are used to build a system. In partic-

ular, the wiring editor example was used as the base

of the interface for the ODCS. Wirable I/O contain-

ers were used as the main representation for CU’s.

A panel within the wiringEditor provides a section

where workﬂow composition can be performed. The

presentation of workﬂows through the use of this li-

brary can be compared to the visual ﬂow of concepts

that is commonly seen with mind-mapping applica-

tions as described in section 2.3. A further break-

down of how and why WireIt! was adapted to the

ODCS is seen in section 3.4.

3.4 GUI Components

As mentioned in the above section, the WireIt! li-

brary’s wiringEditor was used as the base of the

ODCS interface. The system uses a four panel layout;

header, left, body, right. The following sections will

describe the functionality and purpose of each panel.

The layout is depicted in ﬁgure 3.

3.4.1 Header

The header contains a toolbar with various function-

ality to assist the user in uploading and storing work-

ﬂow schemas; New, Load, Save, Delete, Help. The

New function creates a blank workﬂow. The work-

ﬂow is loaded from an XML ﬁle which is passed from

the backend to the interface through a web-service.

Figure 3: ODCS Interface Layout.

The ﬁle is then parsed and displayed in the work-

ﬂow area. By using this information, the user does

not need to concern themselves with the process of

loading a workﬂow schema, i.e. they do not have

to build the XML ﬁle themselves; this will already

have been done when a workﬂow is saved. The Save

function saves the workﬂow composition that the user

has built. The composition is saved in an XML tem-

plate ﬁle and passed to the backend of the applica-

tion. Leveraging knowledge is seen here, as the soft-

ware developers are using the expert knowledge the

end user has to put together the workﬂow. In turn, the

user is using the knowledge of the software developer

in order to save the conﬁguration of the current work-

ﬂow. Delete will remove all content from the existing

workﬂow. If the workﬂow has been saved, a blank

XML template ﬁle will be passed to the backend of

the application and this conﬁguration will be saved.

If the delete is used before saving content, the user is

simply presented with a blank workﬂow without the

need of going through the backend of the application.

The Help menu option displays simple instructions

for the end user on how to compose workﬂows within

the application. The Help menu option displays sim-

ple instructions for the end user on how to compose

workﬂows within the application.

Figure 4: ODCS Interface Header Menu.

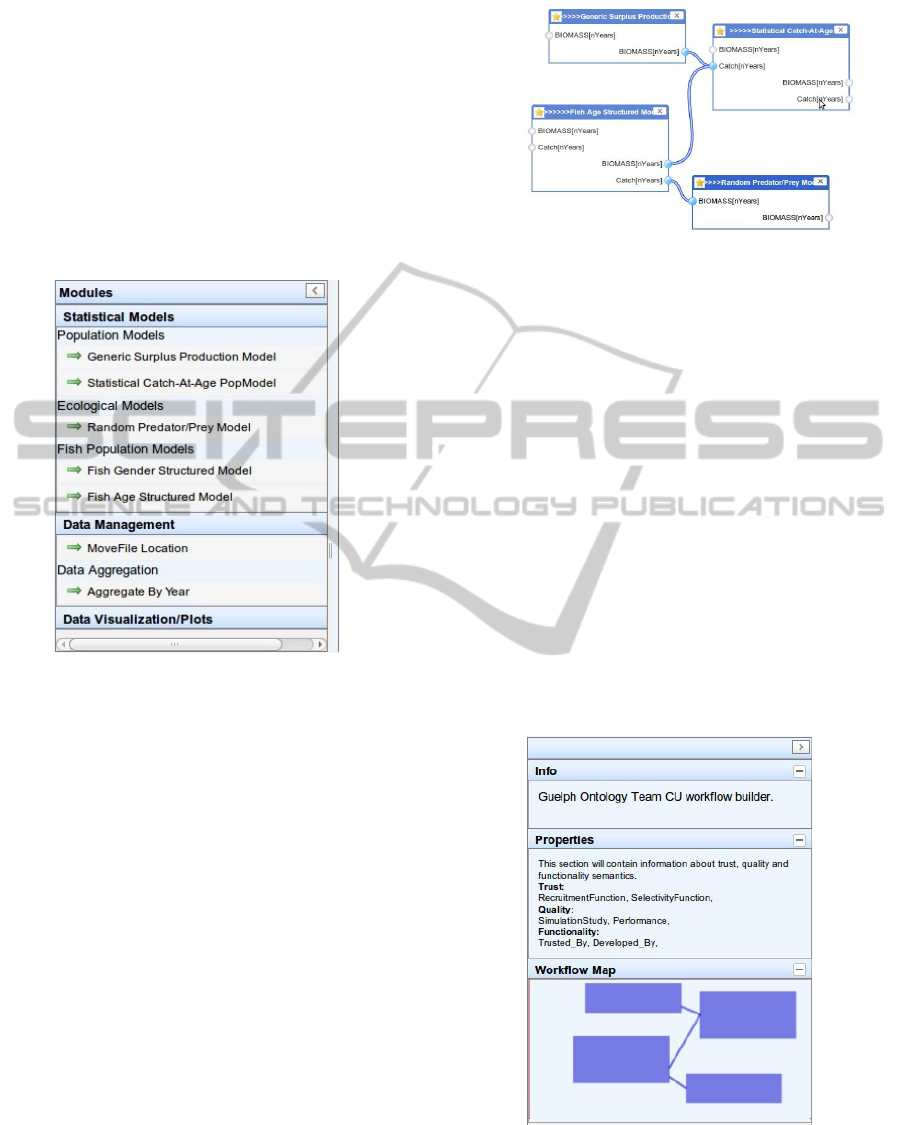

3.4.2 Left Menu

The Left panel contains a Menu holding the CU Mod-

ules collection. The modules are categorized and

sorted by CU purpose and models.

The CU modules are representations of different

knowledge frameworks that a user may require. For

example; some modules may be statistical models,

simulations, visualization software, etc. The user uses

these modules to build a workﬂow. They are not re-

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

180

quired to create the CU themselves. The CU’s are de-

veloped by software developers, and at times, the cre-

ation of these CUs requires expert knowledge from

other disciplines. The user does not have to worry

about going through a learning curve in order to uti-

lize the CU’s; nor do they have to worry themselves

about the complexity found within the creation of

these modules. Thus leveraging of knowledge proves

to be a cost efﬁcient and time saving process for the

front end user. It is also important to note that the

application is not bound to a single set of modules.

Figure 5: ODCS Interface Header Menu.

3.4.3 Body

The body of the application contains a workﬂow

builder area. This is a section where users can con-

struct CU workﬂows. The information in this area

can be loaded and stored. A workﬂow is composed

of:

• I/O Container. This is the representation of a

compositional unit (CU). It contains a set of input

and output terminals that display CU parameters.

Input terminals are on the left side, output termi-

nals are located on the right side.

• Wires. Wires are used to connect the I/O Con-

tainers. A wire may only connect an output ter-

minal from one container to the input terminal of

another.

The concept of mind mapping was used as a tem-

plate for the workﬂow builder area. The CU workﬂow

composition provides a visual representation of exist-

ing knowledge (a CU module) being used in the con-

struction of new information (multiple CU modules

connected together forming a new concept).

Figure 6: ODCS Interface Header Menu.

3.4.4 Right Menu

This section is split into three different categories:

Info, Properties, and Workﬂow Map. The Info sec-

tion displays information about the workﬂow builder

application.

The Properties section displays information about

the CU semantics. Each CU module contains a set

of properties that make up the CU’s semantic knowl-

edge. These semantics are categorized by type: Trust,

Quality, and Functionality. This information is based

on the current set of CU module collections found on

the left panel of the application.

The workﬂow map section displays a mini map

of the current workﬂow. This mini map allows the

user to navigate through the workﬂow builder area by

clicking on a section in the map and dragging it to the

desired spot.

Figure 7: ODCS Interface Header Menu.

LEVERAGING USER KNOWLEDGE - Design Principles for an Intuitive User Interface for Building Workflows

181

4 DISCUSSION & CONCLUSIONS

In this paper we have exposed the metaphor and de-

sign principles used in our implementation of a proto-

type interface for our ontology driven compositional

system. The prototype implemented the notion of

mind mapping as a metaphor for workﬂow compo-

sition. From this prototype we have identiﬁed a clear

convergence of mind mapping and workﬂow compo-

sition. With this method it was possible to deliver an

interface that leveraged the user knowledge with the

knowledge contained in the system.

As examined within section 3.1, an IDE plug-in is

an alternative way to approach this problem. However

the cost of entry would be exorbitantly high for users

that do not come from a software development back-

ground. It is important to emphasize that the purpose

of an ODCS is to enable domain experts to develop-

ment software who do not necessarily have software

development skills. This is why we decided to focus

on the metaphor between mind mapping and work-

ﬂow composition. Many people have been exposed to

mind mapping in some form or another and thus this

lowers the barrier of entry to the average user. Users

will see value in the system when it is easy to learn

and understand.

Now that a working prototype has been estab-

lished it is necessary to examine whether or not this

method will suite users/experts from different do-

mains. User testing must examine if the heuristics

presented are being met in a wider user base.

The human Issues involved in designing a knowl-

edge based system must be examined thoroughly and

solutions must be tailored to the user base. Level of

entry as well as access to hardware were driving fac-

tors within our design choices. We do not dispute

there are many ways to approach this problem, how-

ever, we strictly tailored our approach to that of a do-

main expert and the average user. This will open the

system to many users from many different domains.

ACKNOWLEDGEMENTS

We would like to acknowledge all the work of the

Guelph Ontology Team as this paper would not be

possible with out their collaboration and hard work.

We would also like to thank Deb Stacey for her sup-

port and guidance with this work.

REFERENCES

Abouaf, E. (2010). Wireit a javascript wiring library. On-

line: http://neyric.github.com/wireit/.

Brinkmann, A. (2003). Graphical Knowledge Display

Mind Mapping and Concept Mapping as Efﬁcient

Tools in Mathematics Education. Mind, pages 35–48.

Firm, T., Chain, V., and Network, V. (2000). Ten Ways to

Leverage Knowledge for Creating Value. Knowledge

Creation Diffusion Utilization.

Gillespie, M. G., Stacey, D. A., and Crawford, S. S.

(2011). Designing Ontology-Driven System Composi-

tion Knowledge and Processes to Satisfy User Expec-

tations (in publication). Lecture Notes in Computer

Science. Springer-Verlag.

Goecks, J., Nekrutenko, A., Taylor, J., and Galaxy Team, T.

(2010). Galaxy: a comprehensive approach for sup-

porting accessible, reproducible, and transparent com-

putational research in the life sciences. Genome Biol-

ogy, 11(8):R86.

Hlomani, H. and Stacey, D. A. (2009). An ontology driven

approach to software systems composition. In Inter-

national Conference of Knowledge Engineering and

Ontology Development, pages 254–260. INSTICC.

Majithia, S., Shields, M., Taylor, I., and Wang, I. (2004).

Triana: a graphical Web service composition and exe-

cution toolkit. Proceedings. IEEE International Con-

ference on Web Services, 2004., pages 514–521.

Nielsen, J. (1994). Usability Engineering. San Diego: Aca-

demic Press, pages 115–148.

Papazoglou, M. P. and Heuvel, W.-J. (2007). Service ori-

ented architectures: approaches, technologies and re-

search issues. The VLDB Journal, 16(3):389–415.

Papazoglou, M. P., Traverso, P., Dustdar, S., and Leymann,

F. (2007). Service-Oriented Computing: State of the

Art and Research Challenges. Computer, 40(11):38–

45.

Pruett, M. (2009). Yahoo Pipes.

Sure, Y., Staab, S., and Studer, R. (2009). Ontology En-

gineering Methodology, pages 135–152. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Taylor, I., Shields, M., Wang, I., and Harrison, A. (2007).

The triana workﬂow environment: Architecture and

applications. Workﬂows for eScience, pages 320–339.

Team, G. D. (2010). Galaxy Project Page. Online:

http://usegalaxy.org.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

182
