AN APPLICATION OF SEMANTIC DISTANCE BETWEEN SHORT

TEXTS TO INVENTIVE DESIGN

Wei Yan

, Cecilia Zanni-Merk

and Francois Rousselot

LGECO/INSA de Strasbourg, 24 Boulevard de la Victoire, Strasbourg Cedex, France

LSIIT/BFO Team, UMR CNRS 7005, P

ole API, BP 10413, Illkirch Cedex, France

Keywords:

Semantic distance, Information content, WordNet, Inventive design.

Abstract:

The gradual development of inventive design techniques makes that numerous knowledge sources are available

for experts to solve inventive problems in different technical and non-technical ﬁelds. Real-world problems

are established in terms of parameters that are inherent to the artefact being developed, but inventive design

techniques use generalized engineering parameters to propose solutions to the problem. An abstraction effort

needs to be provided to choose, then, the best generalized parameter. In this paper, we ﬁrstly present the

inventive principles ontology we have established as a support for our approach. According to this ontology,

we propose a method to calculate the semantic distance between short texts and use it to ﬁll the semantic gap

between the parameter and the generalized one, to facilitate the use of inventive design techniques.

1 INTRODUCTION

The inventive design methodology we are interested

in, TRIZ (Theory of Inventive Problem Solving) (Alt-

sthuller, 1984) (Altsthuller, 1999), is primarily about

technical and physical problems, but is now being

used on almost any problem or situation. The key to

success in TRIZ is the fact that (technical) systems

evolve in similar ways, and, by reducing any situa-

tion and problem to a functional level, we can apply

almost standard solutions and problem solving tech-

niques, even from dissimilar industries.

The creator of TRIZ, the Russian engineer Gen-

rich Altshuller proved that a systematic approach to

the inventive process is possible. A major conclusion

of Altshuller’s studies was that inventions were not a

result of unorganized thinking, but instead the prod-

ucts of objective laws and trends of technology evolu-

tion.

Comprehensive studies of patent collections fol-

lowing this discovery resulted in two more ﬁndings.

First, Altshuller shows that an inventive solution re-

sults from the elimination of a contradiction which is

caused by attempts to improve preceding design prod-

ucts. Attempts to compromise without eliminating

the contradiction do not allow a designer to achieve

the desired degree of improvement. The second con-

clusion is that the majority of the patented inventions

comply with a relatively small set of basic principles

for eliminating the contradictions. Based on these

ﬁndings, Altshuller has developed a scientiﬁcally-

based problem solving methodology which codiﬁes

numerous inventive principles and incorporates the

laws of engineering system evolution.

There are several disadvantages in the direct use

of classical TRIZ, as it has not been fully formalized:

• The wealth of knowledge available in TRIZ is

necessary for solving a large variety of inventive

problems but access to the needed speciﬁc knowl-

edge might be troublesome.

• TRIZ does not operate with formal scientiﬁc cat-

egories, thus making impossible the application

of quantitative constraints at the phase of problem

formulation, although, it is often the case.

• TRIZ deﬁnitions of physical concepts such as sub-

stances and ﬁelds are ambiguous and can not be

adequately interpreted.

• Using a recommendation proposed by TRIZ for

solving a speciﬁc problem requires an extensive

knowledge of different engineering domains and

is not currently supported. Therefore, the user is

supposed to have a high degree of expertise in en-

gineering design (Cavallucci and Eltzer, 2007).

We make the hypothesis that semantic technolo-

gies may be used to ﬁll the gap between real-world

problems and the high level abstract concepts manip-

261

Yan W., Zanni-Merk C. and Rousselot F..

AN APPLICATION OF SEMANTIC DISTANCE BETWEEN SHORT TEXTS TO INVENTIVE DESIGN.

DOI: 10.5220/0003660702610266

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2011), pages 261-266

ISBN: 978-989-8425-80-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

ulated by TRIZ. We therefore present here, in section

2, a short introduction to TRIZ with the explicitation

of the problem we intend to solve. In section 3 we

present the ontology we have established as a support

for our development. Section 4 presents our proposal

for a solution, and in particular, after a short state of

the art on the measurement of semantic distance, we

present the one we have retained. Experiments val-

idating our approach are presented in section 5 and,

ﬁnally, section 6 presents some conclusions and per-

spectives of future work.

2 INTRODUCTION TO TRIZ

A goal of the design process is to map a function onto

a physical principle that would be capable of perform-

ing the function. But what can be done in a situation

when an exact function to be performed is not avail-

able? Or, none of the previous solutions meet the new

speciﬁcations? Inventive design is difﬁcult to perform

due to the uncertainty on how an original problem can

be translated into the functional speciﬁcations.

From this point of view, the most important TRIZ

achievement was that it reveals the common cause

of inventive design problems: contradictions (Alt-

sthuller, 1984). A contradiction arises from mutually

exclusive demands that may be placed on the same

system where compromising does not produce the re-

quired result. Instead of solving inventive problems

ad-hoc, TRIZ introduces principles for the formula-

tion and elimination of the contradictions in a system-

atic way.

2.1 Types of Contradictions

Altshuller proposed to formulate inventive problems

in terms of contradictions with respect to already ex-

isting design.

Two types of contradictions are known in TRIZ:

technical and physical (in our case, we will only be

concerned by technical conradictions). The techni-

cal contradiction arises when it is required to improve

some feature of the existing artefact but all solutions

known within the domain do not produce the required

result or their use would cause a negative effect. The

impossibility to improve one parameter and to prevent

another important parameter from deterioration is the

main feature which separates inventive problems from

problems that can be solved by a procedure of routine

design.

Example of a Technical Contradiction: Structures

that have to be both strong and light. Strength im-

proves by adding more material, which makes weight

worse and vice versa.

2.2 Inventive Principles for Elimination

of Technical Contradictions

The ﬁrst TRIZ problem solving technique was a col-

lection of Inventive Principles aimed at eliminating

technical contradictions. They are heuristic principles

based on the accumulated and generalized previous

experience of inventors and are available in a form

that is independent of any particular engineering do-

main.

To make the inventive principles applicable in a

systematic way, Altshuller formulated 39 generalized

engineering parameters, like ”the weight of a movable

object” or ”speed”.

A new problem can be solved by the use of a

proper inventive principle, after the problem has been

formulated as a technical contradiction in terms of

predeﬁned generalized parameters: ”a generalized pa-

rameter to be improved versus a generalized param-

eter which deteriorates”. Forty Inventive Principles

aimed at resolving contradictions between general-

ized parameters are known.

The inventive principles can be used in a system-

atic way by accessing the principles through indices

in a matrix. Along the vertical axis of this matrix the

generalized parameters which have to be improved

are speciﬁed. Along the horizontal axis the param-

eters which deteriorate as a result of the improve-

ment are speciﬁed. These parameters can be looked

up along the vertical and horizontal axes and the ma-

trix suggests up to four principles that can be used to

solve the contradiction.

Selected principles are ordered according to their

applicability. The principle that will most likely solve

the problem is given ﬁrst.

Example

- Improving the strength of an ob-

ject (the improvement feature) which consequentially

gives rise to an undesirable conﬂict with the ease

of manufacture of the object. The matrix suggests

4 principles: 11-Beforehand compensation, 3-Local

quality, 10-Preliminary action, 32-Optical changes.

In changing an object such as a garden spade to resist

breaking during use, we may add more process steps

in manufacture or use a material that is more difﬁcult

to work. To counter this, we can use the same ma-

terial or process, but change the object to make it in-

herently stronger. Replaceable handles and localized

hardening help deal with strength issues, whereas pre-

assembled parts and color coded assembly deal with

manufacturing process issues. A handle that changed

Adapted from (Tennant, 2003).

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

262

color when stressed too much would alert the user be-

fore the spade broke.

2.3 The Problem

If we consider the last example, the contradiction is

already established in terms of Altshuller’s general-

ized parameters (strength needs to be improved, but

in that case, ease of manufacturing degrades).

In real-world problems, the contradictions are es-

tablished in terms of parameters that are inherent to

the artefact being developed, and there is a semantic

gap to ﬁll between those parameters and the general-

ized ones. An abstraction effort needs to be provided

to choose the best generalized parameter, and in this

way, be able to use the contradiction matrix.

Example: In the framework of an inventive design

project proposed to a class of engineering students in

our school, there was the study of the improvement

of a barbecue grill. The students have retained to fol-

lowing contradiction to solve: if the number of parts

in the wire mesh is high, the mastery of the beef done-

ness is satisfying but the weight of the grill is unsat-

isfying. On the other hand, if the number of parts is

low, the mastery of the beef doneness is unsatisfying

but the weight is satisfying. We have then two param-

eters: PE1, the weight; PE2; the mastery of the beef

doneness.

PE1 is directly associated with the 2nd general-

ized parameter ”weight of a stationary object”; but

for PE2, the association with the 35th generalized pa-

rameter ”adaptability or versatility” is not intuitive.

TRIZ uses 40 principles and sometimes they are

declined in sub-principles. In the following, we have

decided to use only sub-principles in order to have a

uniform granularity.

3 THE INVENTIVE PRINCIPLES

ONTOLOGY

The Contradiction Matrix consists in 39 Features (or

Generalized Parameters) and 40 Inventive Principles,

and each two Features correspond to an Item: one

acts as positive feature, the other as negative feature.

Each Item can have i Inventive Principles (i = 0 ···n),

and each Inventive Principle can have i Sub Inventive

Principles (i = 0·· ·n).

Each Feature refers to two concepts: Primary

Feature (1 : 1) - the initial description of Feature, such

as ’power’; Applied Feature (1 : i, i = 0··· n) - the de-

tailed description of the application, such as ’electri-

cal energy’.

Each Sub Inventive Principlealso refers to two

concepts: Primary Sub Inventive Principle (1 : 1) -

the initial description of the Sub Inventive Principle,

such as ’IP38a- replace normal air with air’; Applied

Sub Inventive Principle (1 : i, i = 0 ···n) - the detailed

solution of the application, such as ’replace normal air

with ozone’.

The semantic links of Applied Feature, Primary

Sub Inventive Principle and Applied Sub Inventive

Principle are depicted by an objectProperty linksWith

in the inventive principles ontology.

In order to solve inventive problems based on the

inventive principles ontology, we create a instance of

the Applied Feature, manually connect it to the cor-

responding Primary Feature, and then use the Con-

tradiction Matrix to look for the Inventive Principle,

the Sub Inventive Principle and the Primary Sub In-

ventive Principle. Finally, we obtain ideas from the

Primary Sub Inventive Principle and establish our de-

tailed Applied Sub Inventive Principle.

In the process stated above, the accuracy of the

traditional TRIZ solving process depends on the sub-

processes from Applied Feature to Primary Feature,

from Primary Sub Inventive Principle to Applied Sub

Inventive Principle, which need to be implemented

manually and require a large amount of TRIZ and do-

main knowledge.

We are interested in trying to automate, as much

as possible, this process.

4 OUR PROPOSAL

In this section,we present our proposal of a framework

to help experts in the search for similar inventions in

related or non-related ﬁelds.

4.1 The Semantic Similarity Calculation

The literature presents several surveys on measures

of semantic relatedness, in particular, (Budanitsky,

1999) presents an extensive state of the art and

classiﬁcation. We are interested in the measures

that use WordNet (Fellbaum, 1998) as a knowledge-

base. These methods vary from simple edge-counting

(Rada et al., 1989) to attempts to calculate taking

into account certain characteristics of the structure of

WordNet by considering the link direction (Fellbaum,

1998), the relative depth (Sussna, 1993) or the density

(Agirre and Rigau, 1996). There are also other meth-

ods using statistical and machine learning techniques.

Finally, there are hybrid approaches combining dif-

ferent knowledge sources ((Resnik, 1995), (Jiang and

Conrath, 1997) or (Lin, 1998)).

AN APPLICATION OF SEMANTIC DISTANCE BETWEEN SHORT TEXTS TO INVENTIVE DESIGN

263

Resnik’s (Resnik, 1995) approach is based on the

fact that the similarity between a pair of concepts may

be measured by ”the extent to which they share infor-

mation”. Similarity between two concepts in Word-

Net is deﬁned as the information content of their low-

est super-ordinate or most speciﬁc common subsumer

lso(c1, c2):

sim

(c1, c2) = −log(p(lso(c1, c2)) (1)

where p(c) is the probability of encountering an in-

stance c of a set of synonyms in some speciﬁc corpus.

Jiang and Conrath (Jiang and Conrath, 1997) also

use the notion of information content, but in the form

of the conditional probability of encountering an in-

stance of a child set of synonyms given an instance

of a parent set of synonyms. Therefore, the informa-

tion content of the two concepts and that of their most

speciﬁc subsumer play a role in this distance.

dist

(c1, c2) = 2 ∗ log(p(lso(c1, c2)))

−log(p(c1)) −log(p(c2))

(2)

In the end, Lin (Lin, 1998) measures similarity

with the same elements as Jiang and Conrath, but used

in a different way.

sim

(c1, c2) =

2 ∗ log(p(lso(c1, c2)))

log(p(c1))+ log(p(c2))

(3)

In our proposal, the information content (IC) we

use is:

IC(c) = 1 −

log(hypo(c)+ 1)

log(max

)

(4)

where c represents a concept, hypo(c) returns the

number of hyponym concepts of concept c in Word-

Net, and max

is the number of concepts in Word-

Net.

In the framework we are considering, we usu-

ally need to calculate the semantic similarity between

short texts, such as the text description of the inven-

tive principles or features. Therefore, we present here

a speciﬁc method to calculate semantic similarity be-

tween short texts, which includes the following ﬁve

steps:

1. Word Segmentation: We need to divide the

short text into several words by using tech-

niques of word segmentation, such as tokeniza-

tion (e.g., substance appearance - disappearance

→ <substance, appearance, disappearance>),

lemmatization (i.e., copies → copy) and elimina-

tion (e.g., remove ’a’, ’by’, ’my, ’to’) (Rahm and

Bernstein, 2001).

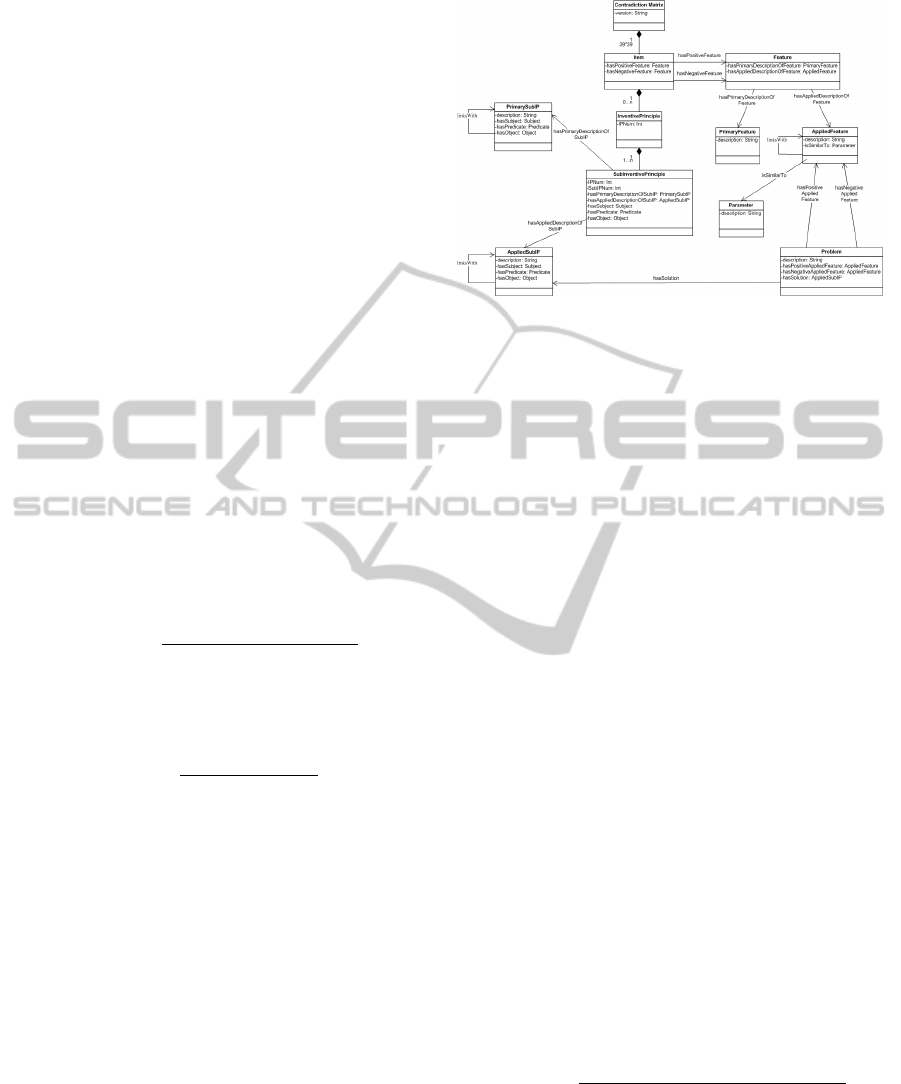

Figure 1: The framework of the new version of the ontology.

2. Sense Search: For each word obtained, we use

WordNet to look for their corresponding senses,

including nouns, verbs, adjectives and adverbs.

For example, the noun form of the word ’way’ has

12 senses.

3. Sense Similarity: We use Lin’s measure (Lin,

1998) to calculate the semantic similarity of the

senses of two words. With this measure, it is obvi-

ous that in WordNet, the higher the rate of sharing

information, the more similar two concepts.

4. Word Similarity: We choose the maximum sense

similarity of two words as their word similarity.

5. Short Text Similarity: Short text similarity is

calculated based on word similarity. We as-

sume that two sentences: A, including words se-

quence A

, A

···A

and B, including B

, B

···B

s(A

, B

) represents word similarity of A

and B

1 6 i 6 m, 1 6 j 6 n. We can build the matrix

M(A, B):







s(A

, B

) s(A

, B

) ··· s(A

, B

)

···

s(A

, B

) s(A

, B

) ··· s(A

, B

)

···

s(A

, B

) s(A

, B

) ··· s(A

, B

)







(5)

We can use this matrix to obtain the semantic sim-

ilarity of two sentences A and B:

s(A, B) =

∑

i=1

max(s(A

, B

), ··· , s(A

, B

))

(6)

4.2 The Use of the Contradiction Matrix

based on Semantic Similarity

For each new problem, we identify then the parame-

ters involved in the contradiction to solve. Semantic

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

264

matching is done to ﬁnd the most accurate generalized

parameters. Once the generalized parameters are

identiﬁed, we are able to search, in the existing prob-

lems base, the ones that used the same generalized pa-

rameter and identify the inventive principle and sub-

principle used and in which way they were applied.

These data will provide the users with ideas of appli-

cation of the inventive principles that may be appro-

priate for their needs.

4.3 The New Version of the Ontology

To support the methodology outlined in the previous

subsection, we have modiﬁed the initial ontology to

add the concept of Problem (Fig. 1).

According to this new ontology framework, we

create instances for inventions available, at the same

time, we establish semantic links among inventions.

Firstly, for each problem, we build instances of the

Problem, the Applied Feature, the Applied Sub Inven-

tive Principle and establish links between the Applied

Feature and the Primary Feature, the Applied Sub In-

ventive Principle and the Primary Sub Inventive Prin-

ciple.

Next we search for semantic links according to the

comparison between semantic similarity of the Ap-

plied Feature, the Primary Sub Inventive Principle

and the Applied Sub Inventive Principle and pre-ﬁxed

threshold

(for Applied Feature), threshold

(for Ap-

plied Sub Inventive Principle) and threshold

(for

Primary Sub Inventive Principle).

We set f lag to indicate whether a semantic link

is found, that is, 0-not found, 1-found. According to

estimating the value of f lag, we ﬁnish our program

only when we ﬁnd the ﬁrst similar problem, which

avoids to overlap of the semantic links to be built.

The pseudo-code for the automatic instantiation of

the inventive principles ontology is shown here:

Begin

Input: The framework of the inventive princip-

les ontology, problems,

threshold

, threshold

Output: The instantiated inventive principles

ontology with all the semantic links

// F-Feature, PF-PrimaryFeature, AF-AppliedFe-

ature, IP-InventivePrinciple, SIP-SubInven-

tivePrinciple, PSIP-PrimarySubInventivePri-

nciple, ASIP-AppliedSubInventivePrinciple,

P-Problem;

1. According to contradiction matrix, create

39 F instances f and 39 corresponding PF

instances p f , 40 IP instances ip and

their corresponding SIP instances sip,

PSIP instances psip;

2. For each problem

a. Create a P instance p;

b. Create its AF instance a f , and connect

to its corresponding f and p f ;

c. Create its ASIP instance asip, connect

to its corresponding psip, sip, and ip.

d. If there is no existing problem instance

return;

EndIf

Else

int f lag=0;

// f lag indicates whether semantic

links are found(0 − No, 1 −Yes);

For each existing problem instance p

If Similarity(a f ,a f

)≥ threshold

// Similarity(s1, s2) returns the

semantic similarity between two sent-

ences s1 and s2;

linksWith(a f ) = a f

;

// linksWith is a objectProperty connec-

ting two concepts in ontology;

f lag++;

EndIf

If Similarity(asip,asip

)≥ threshold

linksWith(asip) = asip

;

f lag++;

EndIf

If Similarity(psip, psip

)≥ threshold

linksWith(psip) = psip

;

f lag++;

EndIf

If f lag 6= 0

Succeed in building semantic links.

EndIf

EndFor

If f lag = 0

Fail in building semantic links.

EndIf

EndElse

EndFor

End

5 EXPERIMENTS

To test our approach, we have analyzed a set of

projects proposed to engineering students of our

school. The students needed to solve an inventive

project (such as an improvement of existing artifacts).

Our experiments have been developed in a Java 2

platform, WordNet 2.0 and JWNL13rc3 (Java Word-

Net Library) on a Windows environment, taking ten

inventive problems as examples.

For each problem, we consider the two features in-

tervening in the contradiction that was retained. Then

we calculate the semantic similarity between them

and Altshuller’s generalized parameters, returning the

most similar one(s). Finally, the prototype returns the

inventive principles that should be used to solve the

contradiction.

AN APPLICATION OF SEMANTIC DISTANCE BETWEEN SHORT TEXTS TO INVENTIVE DESIGN

265

Some of the results of the experiments are shown

in Figure 2. We remark that there are two types of

projects. Sometimes, we obtain only one similar gen-

eralized feature for each speciﬁc feature (projects 1

and 2). But there are times, where two same values of

semantic similarity are obtained for the same speciﬁc

feature (projects 3, 4 and 5).

The results are encouraging if we compare with

the real solving process. For the ﬁrst type of projects,

we can obtain the exact inventive principles obtained

manually by the students. For the second kind, we get

more inventive principles compared with the manual

work.

As stated above, we verify that our method can

facilitate the task of looking for inventive principles

efﬁciently and accurately.

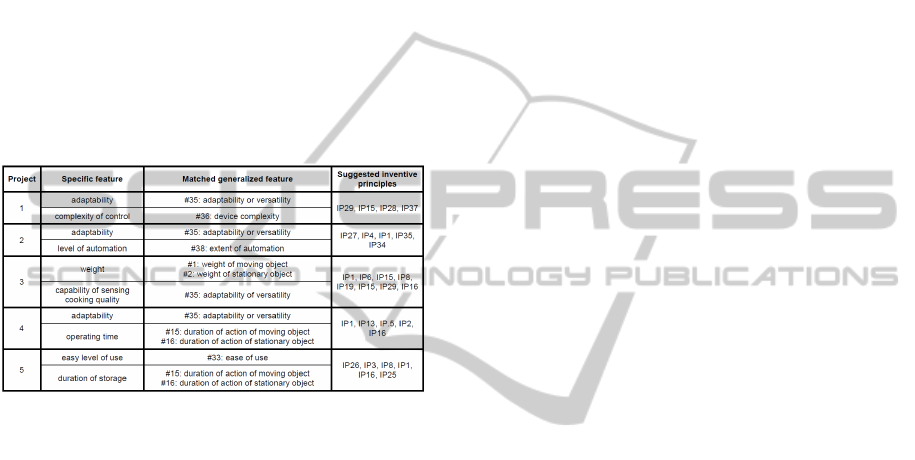

Figure 2: The results of the experiments.

6 CONCLUSIONS

The gradual development of inventive design tech-

niques provokes that numerous knowledge sources

are available for experts to solve inventive problems

in different technical and non-technical ﬁelds. In real-

world problems, most of the times, the problems are

established in terms of parameters that are inherent

to the artefact that is being developed, and there is

a semantic gap to ﬁll between those parameters and

the generalized ones. An abstraction effort needs to

be provided to choose the best generalized parame-

ter, and in this way, be able to use the contradiction

matrix.

In this paper, we present the inventive principles

ontology we have established as a support for our ap-

proach. According to this ontology, we propose to

measure the semantic distance between the parame-

ters intervening in the contradiction and the 39 gen-

eralized parameters, to help the user ﬁll that semantic

gap and facilitate the process of using the contradic-

tion matrix.

In the future research, we need to improve our

method of semantic similarity calculation to adapt

to the semantic mapping among different knowledge

sources, such as inventive principles and inventive

standards.

REFERENCES

Agirre, E. and Rigau, G. (1996). Word sense disambigua-

tion using conceptual density. In Proceedings of the

16th conference on Computational linguistics - Vol-

ume 1, COLING ’96, pages 16–22, Stroudsburg, PA,

USA. Association for Computational Linguistics.

Altsthuller, G. (1984). Creativity as an Exact Science. Gor-

don and Breach Scientiﬁc Publishers, New York.

Altsthuller, G. (1999). TRIZ The innovation algorithm; sys-

tematic innovation and technical creativity. Technical

Innovation Center Inc., Worcester, MA.

Budanitsky, A. (1999). Lexical semantic relatedness and its

application in natural language processing. In Natural

Language Processing.

Cavallucci, D. and Eltzer, T. (9 November 2007). Parameter

network as a means for driving problem solving pro-

cess. International Journal of Computer Applications

in Technology, 30:125–136(12).

Fellbaum, C., editor (1998). WordNet: An Electronic Lexi-

cal Database. MIT Press, Cambridge, MA.

Jiang, J. and Conrath, D. (1997). Semantic similarity based

on corpus statistics and lexical taxonomy. In Proc.

of the Int’l. Conf. on Research in Computational Lin-

guistics, pages 19–33.

Lin, D. (1998). An information-theoretic deﬁnition of sim-

ilarity. In Proceedings of the Fifteenth International

Conference on Machine Learning, ICML ’98, pages

296–304, San Francisco, CA, USA. Morgan Kauf-

mann Publishers Inc.

Rada, R., Mili, H., Bicknell, E., and Blettner, M. (1989).

Development and application of a metric on semantic

nets. IEEE Transactions on Systems, Man and Cyber-

netics, 19(1):17–30.

Rahm, E. and Bernstein, P. (2001). A survey of approaches

to automatic schema matching. In The International

Journal on Very Large Data Bases (VLDB).

Resnik, P. (1995). Using information content to evaluate

semantic similarity in a taxonomy. In Proceedings of

the 14th international joint conference on Artiﬁcial in-

telligence - Volume 1, pages 448–453, San Francisco,

CA, USA. Morgan Kaufmann Publishers Inc.

Sussna, M. (1993). Word sense disambiguation for free-

text indexing using a massive semantic network. In

Proceedings of the second international conference on

Information and knowledge management, CIKM ’93,

pages 67–74, New York, NY, USA. ACM.

Tennant, G. (2003). Pocket TRIZ for Six Sigma. Mulbury

Consulting Limited, Bristol, England.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

266
