HANDWRITTEN CHARACTER CLASSIFICATION USING THE

HOTSPOT FEATURE EXTRACTION TECHNIQUE

Olarik Surinta, Lambert Schomaker and Marco Wiering

Department of Artiﬁcial Intelligence, University of Groningen, Nijenborgh 9, Groningen, The Netherlands

Keywords:

Handwritten character recognition, Feature extraction, k-Nearest neighbors, classiﬁcation.

Abstract:

Feature extraction techniques can be important in character recognition, because they can enhance the efﬁcacy

of recognition in comparison to featureless or pixel-based approaches. This study aims to investigate the

novel feature extraction technique called the hotspot technique in order to use it for representing handwritten

characters and digits. In the hotspot technique, the distance values between the closest black pixels and the

hotspots in each direction are used as representation for a character. The hotspot technique is applied to three

data sets including Thai handwritten characters (65 classes), Bangla numeric (10 classes), and MNIST (10

classes). The hotspot technique consists of two parameters including the number of hotspots and the number

of chain code directions. The data sets are then classiﬁed by the k-Nearest Neighbors algorithm using the

Euclidean distance as function for computing distances between data points. In this study, the classiﬁcation

rates obtained from the hotspot, mark direction, and direction of chain code techniques are compared. The

results revealed that the hotspot technique provides the largest average classiﬁcation rates.

1 INTRODUCTION

Feature extraction can play an important role in hand-

writing recognition. It is used for generating suitable

feature vectors, and using them as representation of

handwritten characters. The difference between hand-

written characters and printed characters lies in the di-

versity of characters. In printed characters, the struc-

tural pattern of characters is always the same, there-

fore the main challenges are coping with different

fonts, or scanning qualities. However, in handwrit-

ten characters, the pattern of characters is different,

even for those of the same writer.

The main objective for using feature extraction is

to reduce the data dimensionality by extracting the

most important features from character images (Lauer

et al., 2007). When the feature vector dimensionality

is smaller, a set of features can be useful for repre-

senting the characteristics of characters. Moreover,

feature extraction can play a signiﬁcant factor for ob-

taining high accuracies in character recognition sys-

tems (Trier et al., 1996), especially if there is not a lot

of training data available.

The present study aims to investigate a novel fea-

ture extractor for handwritten characters and other

types of characters such as handwritten digits from

different scripts. The main aim of this paper is to pro-

pose a fast and easy to use feature extraction method

that obtains a good performance. This study fo-

cuses on isolated characters. Three data sets including

MNIST, Bangla numeric, and Thai were used to test

our novel proposed feature extraction technique. The

hotspot technique is used to determine the distance

along a particular direction between the hotspots and

the ﬁrst black pixel of the object. The hotspots are dis-

tributed at ﬁxed locations over the character images.

This technique extracts some important information

from the character images and is fairly robust to trans-

lation and rotation variances. The important parame-

ters of this technique are the number of hotspots and

the number of chain code directions.

Related Work. Sanossian and Evans (1998) pro-

posed a scanning technique for English characters.

They used 64 × 64 pixels of binary images. The fea-

ture values are calculated by scanning through the

image in horizontal, vertical, and inner (inside the

character) directions of character images. Ferdinando

(2001) used a vertical and two horizontal directions

for digits. The feature vectors from this technique are

the positions of crossing points between each line. In

addition, an interesting approach is a direction tech-

nique consisting of 4 feature windows, and 4 neigh-

261

Surinta O., Schomaker L. and Wiering M. (2012).

HANDWRITTEN CHARACTER CLASSIFICATION USING THE HOTSPOT FEATURE EXTRACTION TECHNIQUE.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 261-264

DOI: 10.5220/0003712002610264

 SciTePress

bor marks. Firstly, Kawtrakul and Waewsawangwong

(2000) used 4 feature windows including horizontal,

vertical, left diagonal, and right diagonal directions.

This technique found the contour of Thai character

images. Subsequently, every feature window (3 × 3

pixels) is used to slide through all cells of character

images. The feature vectors of this technique rep-

resent the number of perfectly matching windows in

the feature window with the part of the character win-

dows. Secondly, Pal et al. (2008) presented 4 direc-

tion neighbors. These directions are used to count

a matching number of directions from contour im-

ages. Rajashekararadhya and Vanaja Ranjan (2009)

suggested the application of a feature extraction algo-

rithm for Kannada script. In this study, the zone and

projection distance metric technique was proposed.

The distance values from four different directions in-

cluding vertical downward direction, vertical upward

direction, horizontal right direction, and horizontal

left direction were calculated.

Contributions of this Paper. We propose a novel

method for feature extraction which is suitable for iso-

lated handwritten characters. We have used three dif-

ferent handwritten data sets from different scripts to

compare our novel feature extraction method to two

state-of-the-art techniques. The results show that our

novel method signiﬁcantly outperforms the other 2

methods on 2 data sets containing handwritten dig-

its. Only on the Thai data set containing 65 classes,

one other technique achieves higher recognition ac-

curacies. The average recognition rate over the three

data sets is also highest for our novel technique, which

demonstrates its effectiveness.

2 DATA COLLECTION AND

PRE-PROCESSING

The data sets used in the present study include Thai,

Bangla numeric and MNIST (LeCun and Cortes,

1998). Figure 1 shows some examples of handwritten

characters. Each data set consists of isolated charac-

ters. MNIST consists of 60,000 training examples and

10,000 test examples. MNIST is a handwritten nu-

meric data set that has been widely used as benchmark

for comparing feature extraction techniques (Lauer

et al., 2007). In the present study, 10,000 records (10

classes) of the MNIST data set were used. For the

Bangla numeric data set, 9,595 records (10 classes)

are used. The Thai data set used in the present study

includes 65 classes consisting of consonants, vowels

and tones. There are 5,900 Thai examples in this data

set. The Thai data set was collected from characters

written by writers aged from 20-23 years old. Among

this group of data, there are characters written by 7

female writers and 3 male writers.

Figure 1: Some examples of character images used in the

present study. (a) Thai data set. (b) Bangla numeric data

set. (c) MNIST data set.

Pre-processing starts off with cropping the ex-

ceeding parts of scanned images. The exceeding area

is the non-character area so that there are only charac-

ter pixels in the images. These images are then trans-

formed into binary images. Consequently, the images

are scaled to 40×40 pixels. Finally, the thinning tech-

nique is used to make the images absolutely thin and

ready for feature extraction and classiﬁcation.

3 HOTSPOT FEATURE

EXTRACTION TECHNIQUE

Feature extraction can play a signiﬁcant factor for

increasing the efﬁcacy of recognition systems (Trier

et al., 1996). It is a process that extracts the important

information from the character images and transforms

them into vector data. When a feature extraction tech-

nique is applied, the dimensionality of the resulting

feature vector is smaller in comparison with that of

raw data (Lauer et al., 2007). Since the smaller fea-

ture vectors are afterwards used in a classiﬁcation al-

gorithm, with little training data they may suffer less

from overﬁtting than pixel-based methods.

The hotspot technique is our novel method useful

for representing the character. The distance between

black pixels and the hotspots in each direction is used

to describe the whole object. In this technique, the

size of the hotspot was deﬁned as N ×N. For example,

the size of the hotspot can be 3 × 3 (Figure 2). The

distance between black pixels and the hotspots from

the ﬁrst to the last hotspot is calculated. The direction

of the hotspots is deﬁned by the chain code directions

(Figure 3). The hotspot feature vector P

is deﬁned as

(Equation (1));

{

, y

{

}

{

}}

(1)

Where (x

, y

) is the coordinate of the hotspot,

{

0, 1, 2, ..., 7

}

when chain code direction is con-

sidered as 8-directional codes, and D

is the distance

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

262

between the hotspot and the ﬁrst black pixel of the ob-

ject found in the direction d

. It is noted that, if there

is no object pixel found then the distance D

is set to

max

. The distance is measured by using the following

equation (Equation (2));

(

− x

)

+ (y

− y

)

i f (x

, y

) exists,

max

else

(2)

Where (x

, y

) is the coordinate of the closest black

pixel of the object in the speciﬁed direction. As fea-

ture vector we only consider 4 or 8 values of ev-

ery hotspot and then concatenate it into some spe-

ciﬁc order to create a feature vector. The com-

plete notation of feature vectors can be deﬁned as

f = {D

, . . . , D

}, where L is the

number of hotspots and K is the number of direc-

tions. The feature vector size depends on the number

of hotspots and the number of directions.

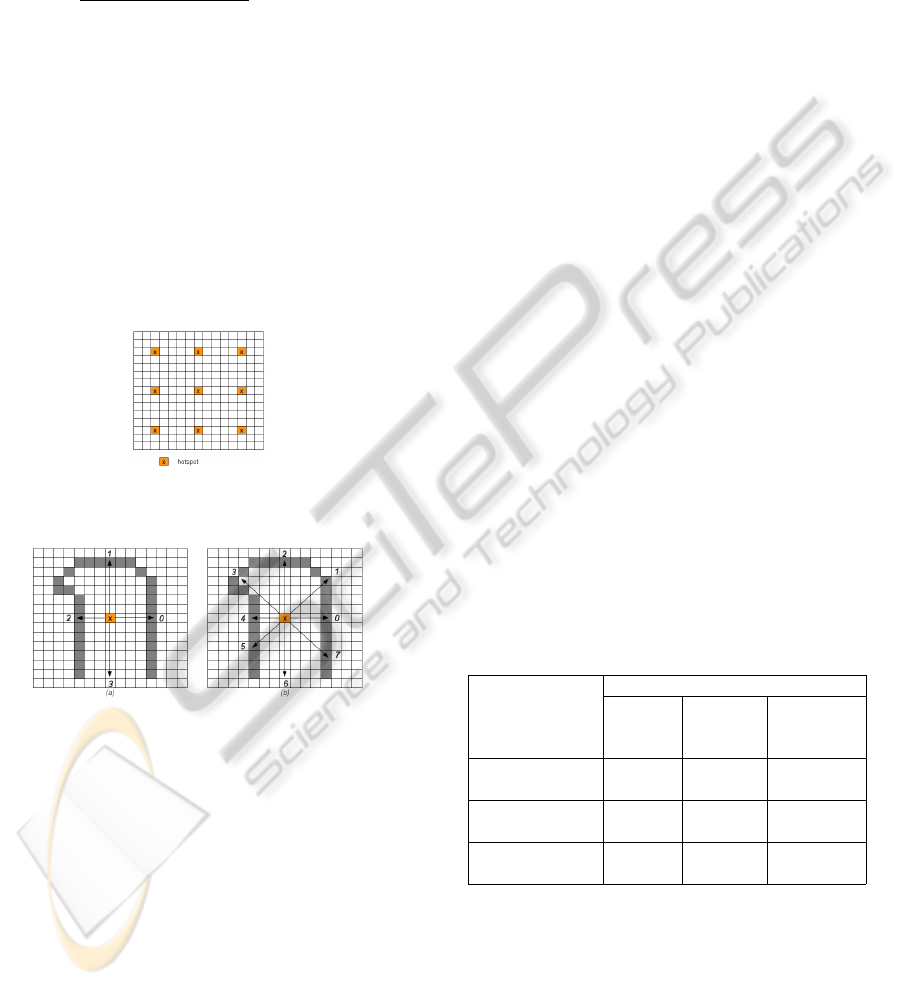

Figure 2: An example to illustrate the location and distribu-

tion of the hotspots.

Figure 3: The chain code directions for identifying the dis-

tance, starting from the hotspot until the object in each di-

rection was found, (a) 4 directions chain code and (b) 8 di-

rections chain code.

There are two parameters that inﬂuence this

method including 1) number of hotspots and 2) num-

ber of chain code directions. The preliminary results

demonstrated that the best setting uses 25 hotspots

and 4 directions, so that the hotspot technique pro-

vides 100 features.

4 EXPERIMENTAL RESULTS

We presented a novel method for feature extraction,

called the hotspot technique, which is compared in

this section to other methods including mark direction

and the direction of chain code technique.

The mark direction technique is also known as

the direction feature (Blumenstein et al., 2003) and

suitable for tracking the directions of the character

image. The mark size for the mark direction tech-

nique is 3 × 3 pixels (Kawtrakul and Waewsawang-

wong, 2000). The mark directions consist of hori-

zontal mark, vertical mark, left-diagonal mark, and

right-diagonal mark (Blumenstein et al., 2003). The

number of features obtained from mark direction was

64 features.

The direction of chain code technique is an efﬁ-

cient technique in handwriting recognition (Bhowmik

et al., 2007). We applied this technique to the present

study according to the methods described by Pal et al.

(2008), although we adapted their technique to deal

more efﬁciently with our data sets by identifying the

starting point of the direction in each block.

The feature vectors obtained from these tech-

niques are classiﬁed by the k-Nearest Neighbors (k-

NN) method. The outcome of the classiﬁcation pro-

cess is the classiﬁcation rate. All different extrac-

tors were applied to three data sets including Thai,

Bangla numeric, and MNIST. These three data sets

were treated with the same methods so that the char-

acter image’s size for all data sets is determined as

40 × 40 pixels.

The data sets were divided into 10 subsets (90%

training set and 10% test set). We randomly divided

the data into a test and training set 10 different times.

The value of k of the k-Nearest Neighbor classiﬁer

was optimized for each method and dataset.

Table 1: Comparison of data classiﬁcation efﬁcacy of fea-

ture extraction techniques by using kNN.

Data set

Feature extraction technique

Hotspot Mark Direction

direction of

chain code

Thai

83.3 88.0 71.3

σ = 0.5 σ = 0.6 σ = 0.7

MNIST

89.9 85.1 83.5

σ = 0.3 σ = 0.3 σ = 0.2

Bangla numeric

90.1 87.6 82.7

σ = 0.4 σ = 0.4 σ = 0.4

The size of the feature vectors obtained from

hotspot, mark direction, and direction of chain code

technique were 100, 64, and 128 dimensions, respec-

tively, For the hotspot technique we used d

max

= 20

for the two data sets containing digits, and d

max

= 0

for the Thai data set, which worked slightly better for

an unknown reason than d

max

= 20.. Table 1 shows

the comparison of classiﬁcation efﬁcacy of the differ-

ent feature extraction techniques. It is found that the

HANDWRITTEN CHARACTER CLASSIFICATION USING THE HOTSPOT FEATURE EXTRACTION TECHNIQUE

263

best feature extraction technique for classiﬁcation is

hotspot, followed by mark direction and direction of

chain code, respectively. The average classiﬁcation

rate obtained from hotspot, mark direction, and di-

rection of chain code are 87.8%, 86.9%, and 79.2%,

respectively. Our new technique signiﬁcantly out-

performs the other feature extraction method on the

two data sets containing digits. The mark direction

technique outperforms our method on the Thai data

set. The direction of chain code technique obtains

the worst performance by far. This technique is more

complicated and involves several subtleties which re-

quires adapting it to different data sets. Much bet-

ter results for MNIST have been reported in literature

(above 99% accuracy), but in those studies more train-

ing patterns were used (60,000 compared to 10,000 in

our study). This dataset has a very large number of

examples and few classes, which makes pixel-based

methods more effective. However, we believe that

by more ﬁne-tuning, using more examples and better

classiﬁers, and combining multiple feature extraction

methods, we are able to obtain similar performances.

5 CONCLUSIONS

The present study proposed a new technique for fea-

ture extraction, named the hotspot technique. In this

technique, the distance values between the closest

black pixels and the hotspots in each direction are

used as representation for a character. There are two

key parameters to be taken into account; 1) number

of hotspots and 2) number of chain code directions.

The hotspot technique was applied to numeric data

sets including MNIST and Bangla numeric, and Thai

characters.

For the two data sets with few classes, namely

the handwritten digit data sets, Bangla and MNIST,

the novel hotspot technique signiﬁcantly outperforms

the other methods. However, the mark direction tech-

nique outperforms the hotspot technique on the Thai

data set that has much more classes (65). Maybe

the hotspot technique needs more examples for this

data set, possibly because it is less robust to variances

in the handwritten characters than the mark direction

technique. Still, our results on data sets of multiple

scripts show that the hotspot technique achieves the

highest average recognition rate.

In future work, we want to compare different fea-

ture extraction techniques, among those the ones de-

scribed in this paper, to pixel-based methods. Sev-

eral neural network architectures have obtained very

high recognition rates on the MNIST data set, and we

are interested in ﬁnding the utility of feature extrac-

tion methods compared to the use of strong classiﬁers

that immediately work on pixel representations. Fur-

thermore, keypoint methods have not deserved a lot

of attention in handwriting recognition, and we want

to explore the use of adaptive keypoints to be more

translation invariant and also use generative models

to maximize the probability of generating the data.

ACKNOWLEDGEMENTS

We are sincerely grateful to Dr. Tapan K. Bhowmik

for providing the Bangla numeric data used in the

present study. We thank Jean Paul van Oosten for use-

ful remarks on a preliminary version of this paper.

REFERENCES

Bhowmik, T. K., Parui, S., Kar, M., and Roy, U. (2007).

HMM parameter estimation with genetic algorithm

for handwritten word recognition. In Ghosh, A., De,

R., and Pal, S., editors, Pattern Recognition and Ma-

chine Intelligence, volume 4815 of Lecture Notes in

Computer Science, pages 536–544. Springer Berlin /

Heidelberg.

Blumenstein, M., Verma, B., and Basli, H. (2003). A novel

feature extraction technique for the recognition of seg-

mented handwritten characters. Document Analysis

and Recognition, International Conference on, 1:137.

Ferdinando, H. (2001). Handwriting Digit Recognition

With Fuzzy Logic. Jurnal Teknik Elektro, 1(1).

Kawtrakul, A. and Waewsawangwong, P. (2000). Multi-

feature extraction for printed thai character recogni-

tion. In Natural Language Processing, 2000. SNLP

2000. 4th International Conference on.

Lauer, F., Suen, C. Y., and Bloch, G. (2007). A train-

able feature extractor for handwritten digit recogni-

tion. Pattern Recognition, 40(6):1816–1824.

LeCun, Y. and Cortes, C. (1998). The MNIST database of

handwritten digits.

Pal, U., Sharma, N., Wakabayashi, T., and Kimura, F.

(2008). Handwritten character recognition of popu-

lar south indian scripts. In Doermann, D. and Jaeger,

S., editors, Arabic and Chinese Handwriting Recogni-

tion, volume 4768 of Lecture Notes in Computer Sci-

ence, pages 251–264. Springer Berlin / Heidelberg.

Rajashekararadhya, S. and Ranjan, P. (2009). Zone based

feature extraction algorithm for handwritten numeral

recognition of kannada script. In Advance Computing

Conference, 2009. IACC 2009. IEEE International,

pages 525–528.

Sanossian, H. and Evans, D. (1998). Efﬁcient feature

extraction technique for english characters. Inter-

national Journal of Computer Mathematics, 66(3-

4):257–265.

Trier, Ø. D., Jain, A. K., and Taxt, T. (1996). Feature extrac-

tion methods for character recognition-a survey. Pat-

tern Recognition, 29(4):641–662.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

264
