A REALIZATION OF GOAL-DIRECTED BEHAVIOR

Implementing a Robot Model Based on Cortico-Striato-Thalamic Circuits

Berat Denizdurduran and Neslihan Serap Sengor

Electronics and Communication Department, Istanbul Technical University, Maslak, Istanbul, Turkey

Keywords: Action Selection, Goal-directed Behaviour, Reinforcement Learning, Robot Model.

Abstract: Computational models of cognitive processes based on neural substrates clarify our understanding of the

ongoing mechanisms during these high order processes. These models also inspire new approaches and

techniques for implementing intelligent systems. Here, an implementation of goal-directed behaviour on

Khepera II mobile robot will be presented. The main point of this work is to show the potential use of robot

models for tasks requiring high order processes like goal-directed behaviour.

1 INTRODUCTION

The computational models of neural systems can be

considered as tools to understand the cognition.

Thus obtaining these models and showing their

effectiveness would stimulate studies in cognitive

science and inspire the development of new

approaches for intelligent systems.

Amongst the wide spectrum of high order

cognitive processes such as planning, selective

attention, decision making; goal-directed behaviour

has driven a specific attention. To consider goal-

directed behaviour as composed of two processes:

action selection and reinforcement learning bore a

computationally tractable model (Sengor, 2008).

Though there are numerous computational models

for action selection (Gurney, 2001), (Taylor, 2000)

and reinforcement learning (Schultz, 1997), (Dayan,

2009), few consider them together (Sengor, 2008),

(Humphrys, 1997). These models consider the role

of neural structures especially the basal ganglia, so

they are biologically plausible models. Based on the

models of basal ganglia behavioural disorders such

as addiction (Gutkin, 2006), and different processes

as feature detection are studied (Saeb, 2009).

There are also some work considering the robot

models of neural substrates and some others where

cognitive processes are investigated considering

these robot models (Webb, 2000), (Fleischer, 2009),

(Prescott, 2006). In the well-known work of Prescott

(Prescott, 2006) a robot model for action selection is

given. This robot model mimics the behaviour of a

rat in an unfamiliar environment and it is based on

mathematical model of basal ganglia which is

inspired by neurophysiologic studies (Gurney,

2001). In this robot model which is implemented on

Khepera II, it is shown that basal ganglia take part in

selecting an action amongst different choices based

on the saliencies of each possibility.

Here, the idea is to develop the work in (Prescott,

2006), further by implementing reinforcement

learning to determine the saliencies which influence

the choice of the rat. The process of learning has not

been considered in (Prescott, 2006), where the

choices depend only on a priori saliencies. So the

saliencies are reconsidered and priority of one over

the other is determined according to the

environmental conditions with reinforcement

learning. It is shown that a simpler model of the

cortico-striato-thalamic circuit considered for action

selection can fulfil the expected behaviour based on

these saliencies. Thus, the improvement of this work

over (Prescott, 2006), is the utilization of

reinforcement learning to determine the choices and

this is provided by using a simpler model of cortico-

striato-thalamic circuit for action selection (Sengor,

2008).

In the sequel, first the computational model

proposed in (Sengor, 2008) will be summarized,

than the task and implementation of the model on

the Khepera II mobile robot will be given. In

section 3, simulation results will be given, and in the

last section the expected improvements will be

discussed.

289

Denizdurduran B. and Serap Sengor N..

A REALIZATION OF GOAL-DIRECTED BEHAVIOR - Implementing a Robot Model Based on Cortico-Striato-Thalamic Circuits.

DOI: 10.5220/0003733602890294

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 289-294

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 COMPUTATIONAL MODEL

In this section, first a model for goal-directed

behaviour (Sengor, 2008) will be introduced. Then it

will be shown that the model is capable of selecting

an appropriate action under changing environmental

conditions and the implementation of this model on

Khepera II will be discussed.

2.1 Modelling Goal-Directed Behaviour

The sub-regions of neural system communicate with

each other by interconnection neurons and realize

any process via neurotransmitters along neural

pathways. One of these pathways is striatonigral

pathway which is associated with motor control and

related to dopaminergic pathway (Haber, 2010).

Dysfunction of this pathway causes disorders such

as Parkinson’s disease, Huntington’s disease and

Schizophrenia (Alexander, 1990). Transmission of

dopamine relates striatum with substantia nigra pars

compacta. These regions are the part of the basal

ganglia-thalamus-cortex circuits (Alexander, 1990).

Retrograde and anterograde tracing studies have

shown that the basal ganglia-thalamus-cortex

circuits and a.k.a. striatonigrostrital pathways have

important role in action selection and learning

phenomena. The cortico-striato-thalamic model

considered in this work for implementation of goal-

directed behaviour is based these neurophysiological

facts and is capable to explain how primates make

appropriate choices and learn associations between

environmental stimuli and proper actions (Sengor

2008). In (Alexander, 1990), different regions of

basal ganglia are considered for different neural

circuits, but principle substructures are proposed to

be striatum, subthalamic nucleus, globus pallidus

internal and external, substantia nigra pars reticulate

and compacta. Relationship between these

substructures, cortex and thalamus is very complex.

The model used in this work, consider only a

subgroup of these relations which are important for

action selection, so it is simpler. The connections

considered in the model are illustrated in Figure 1.

This computational model of action selection has

been shown to realize a sequence learning task

(Sengor, 2008). The parameters of the dynamical

system corresponding to neurotransmitters are

modified with reinforcement learning. In order to

realize the task, input substructure of the model

which is cortex transmits the sensory data to the

striatum, thalamus and subthalamic nucleus. The

main effect on cortex is due to excitatory signal from

thalamus

Figure 1: Basal Ganglia-Thalamus-Cortex circuit

considered in the computational model.

In the model of cortico-striato-thalamic circuit for

action selection (Sengor, 2008) all substructures act

according to tangent hyperbolic function

f(.). The

activity in the cortex is demonstrated by a difference

equation as follows:

)()()(()1( kIWkThlkCfkC

++=+

(1)

The variables

ThlC ,

denote vectors

corresponding to cortex and thalamus and the matrix

denotes the efficiency of sensory stimulus

and

it is adapted through reinforcement learning.

Figure 1 corresponds to

IWS

. An action is

selected, when the value of cortex variable

becomes almost one. This corresponds to firing of

related neural structure.

The interconnections between substructures

striatum, subthalamic nucleus and substantia nigra

pars reticulate/globus pallidus interna, that are

respectively denoted by

GPStnStr ,,

are modelled

as in Eq. (2).

))()(()1(

))(()1(

))()(()1(

kStrkStnfkGP

kCfkStn

kCfWkStr

kGPkCfkThl

−=+

(2)

Here

denotes the effect of dopamine on

action selection. The action selection depends on

two parameters:

WW ,

. In (Sengor, 2008), both of

these parameters were adapted through

reinforcement to determine the proper action.

In this work only the effect of sensory input on

action selection will be considered and

will be

ICAART 2012 - International Conference on Agents and Artificial Intelligence

290

adapted.

Adaptation of parameter

due to

reinforcement learning is given in Eq. 3:

)()()()()1( kCkSkkWkW

μδ

+=+

(3)

Here

is learning rate and

)(k

corresponds to

error in expectation and determined as in

conventional reinforcement learning literature as

follows:

)()1()( kvkvrk

−++=

(4)

Expectation error

depends on the value

attained

to the action selected and the reward

and

discount factor. The value of the action is also

updated as follows:

)()()()1(

)()(

kCkkWkW

kCWkv

μδ

+=+

(5)

In the equations through 1to 5, only selecting one

action is considered, so all variables are scalars.

When an action has to be selected amongst a number

of possible actions, except reward

and expectation

error

all the variables corresponding to neural

substrates will be denoted by vectors and parameters

by matrices.

2.2 Implementation of the Model

The computational model summarized in section 2.1

will be modified and implemented on mobile robot

Khepera II. While implementing the model proposed

in (Sengor, 2008) on Khepera II, first the saliencies

are defined based on the sensory information

obtained from mobile robot. Another modification is

to consider

as vector. The task of the robot is to

mimic the behaviour of a rat’s search for food in an

unfamiliar environment. Here, using the mobile

robot, rats’ behaviour such as searching for the food,

recognizing the food, and avoiding an obstacle and

finding the nest is simulated. All these actions will

be realized in the context of goal-directed behaviour,

thus action selection based on reinforcement

learning will be used. Thus behaviour of the rat will

be realized mimicking the cognitive processes

ongoing in neural structures.

Figure 2 gives a schema of the whole

implementation. First the perception of environment

through sensors is realized and then these sensory

data interacts with action selection and

reinforcement learning blocks to fulfil the goal-

directed behaviour.

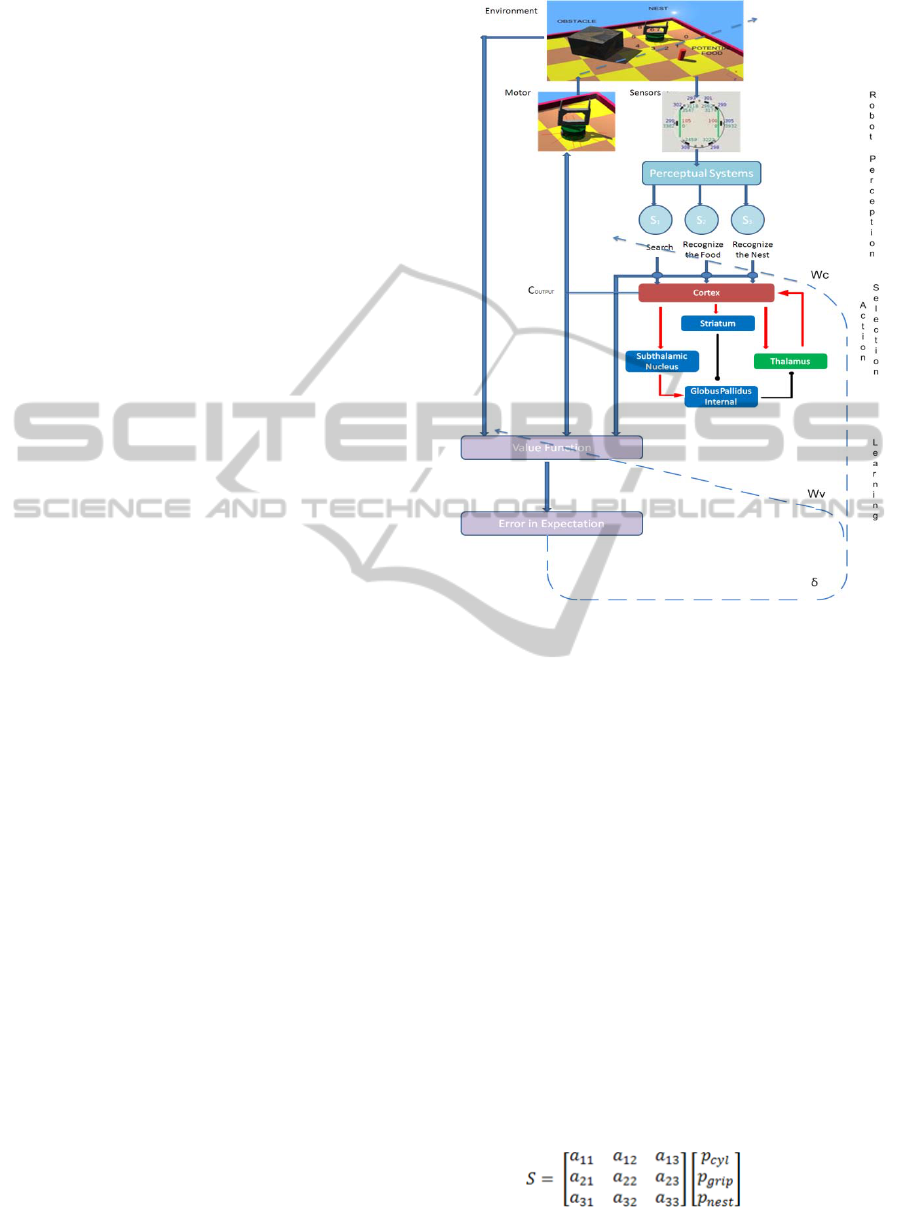

Figure 2: The architecture of the model realizing goal-

directed behaviour.

Based on the structure of Khepera II mobile

robot, the distance and light sensors are used to

collect data from environment. As it can be followed

from Figure 2, Khepera II mobile robot has 8

distance and light sensors, respectively.

These data collected from sensors form the

model input vector  which is weighted by

coefficient matrix

to define the saliencies

IWS

. The dimension of this matrix is

determined by the number of action choices and the

saliencies build up the perceptual system. This

matrix is modified through reinforcement learning

process. In the problem considered, there are three

saliencies corresponding to search, recognizing the

food and recognizing the nest and they are formed

with the

data collected from sensors. This data is

considered with three different aspects

corresponding cylinder and nest distance and gripper

position. So, the saliencies are defined as follows:

(6)

A REALIZATION OF GOAL-DIRECTED BEHAVIOR - Implementing a Robot Model Based on

Cortico-Striato-Thalamic Circuits

291

Since there are three saliencies

built by

weighting three sensor information

, the dimension

of vectors and the matrix are

, RIS ∈ ,

33×

∈ RW

respectively. Robot distance sensors give natural

numbers between “0” to “1050” which means

absence or presence of related object. These

numbers are scaled in “0” to “1” so the variables

corresponding to distance of cylinder, gripper

position and distance of nest 



,

,





are

denoted by rational numbers. This scaling is given in

Eq. (7):

)(_001.01

)(__ isensdistivalsensdist −=

(7)

Once the saliencies are established, the cortico-

striato-thalamic circuit determines an action. This

selected action and the reward obtained for it

interacts with the learning block and the selection

process in action selection block restarts at each time

step. During this process,

is adapted

continuously, till the robot comes across cylinders or

nest. During the learning process, saliencies

determine the action selected, and selected action is

used to control the behaviour of robot. Unlike the

work of Prescott et al., (Prescott, 2006) there is no

need for a busy signal as the sensor data is

considered constantly.

The action selection adapted by reinforcement

learning block is the contribution of this work. In

(Prescott, 2006), the idea of behavioural selection is

based only on certain targets and the sensor data and

it is designed on a rule based algorithm. Early

studies of action selection and reinforcement

learning phenomena are proposed in different

contexts for separate tasks. However, both tasks are

considered together in this work.

3 SIMULATION RESULTS

Khepera II mobile robot is used to simulate the task

of a rat searching for food in an unfamiliar

environment, recognizing the nest and carrying food

there. We simulated rats’ intrinsic feelings in a

simple learning task. The robot is placed in any

starting point from which the rat could do any one of

the three goal actions. Only one of the goal actions is

chosen on each trial, and the chosen action is

searching in the beginning of the experiment. The

experiment is illustrated in Figure 3 (b).

Experiments such as those illustrated in Figure 3

would clarify the difference between each process.

The case in Figure 3 (a) corresponds to the work in

(Prescott, 2006) where the saliencies are determined

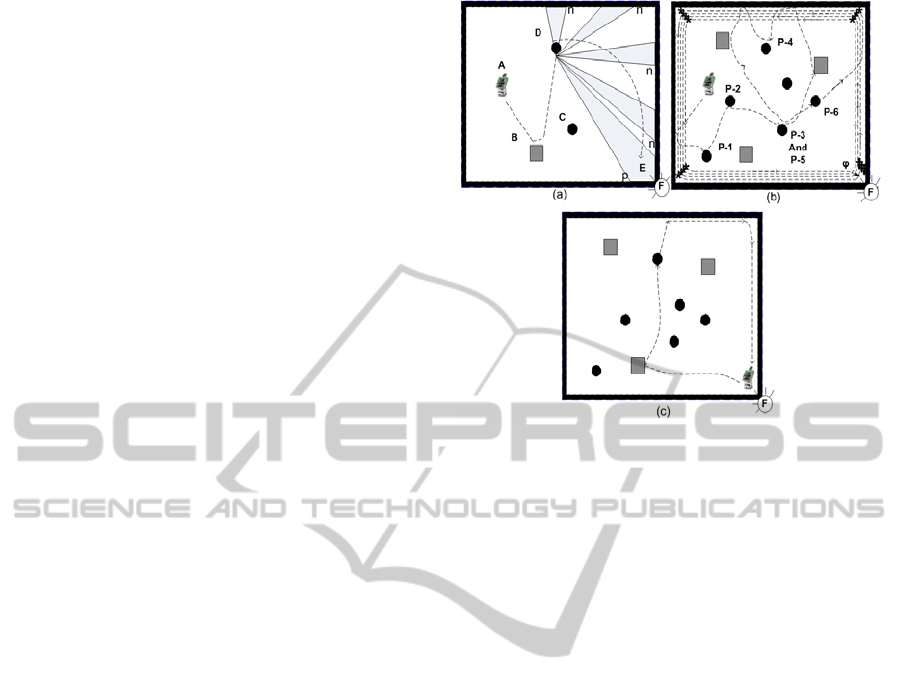

Figure 3: Robot foraging on an unfamiliar environment is

illustrated with a priori saliencies, during learning and

after learning, respectively in (a), (b) and (c). n: negative

for light, p: positive for light, A: Khepera II, B: Obstacle,

C, D: Potential food, E: Nest, F: Light, P: Process of

Learning, ∗: negative for nest, †: nest but not enough for

deposit, φ: deposit it to the nest.

a priori. So robot begins to search instantly with the

correct choice, it recognizes the obstacle and food

without mistake. When food is picked up by the

robot, the light sensor begins to search light source

which is the indicator of the nest. Notice that for this

process the search continues until light sensors

recognize the nest.

In Figure 3(b), there are no a priori determined

saliencies, the robot learns the environment with the

choices it makes and the rewards it obtains. Thus it

begins with random search and it takes some trial

and error steps till it finds food, picks it up and

carries to the nest. Once the learning process is

completed, it can immediately pick up the food and

carry it to nest as shown in Figure 3(c).

As the robot is not moving at the beginning of

the experiment depicted in Figure 3(b), the

reinforcement learning block force it to move and

begin to search. This is provided by increasing

coefficient “a

” through reinforcement learning.

In Figure 4, the adaptation of coefficient “a

”,

change in expectation error and reward are given,

respectively. Once “a

” is large enough and

“search” salience is selected, robot begins to move.

If Khepera II robot comes across to any one of the

potential food, coefficient of “a

” begins to

increase. This is the learning phase of recognizing

food. Results of this phase are given in Figure 5.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

292

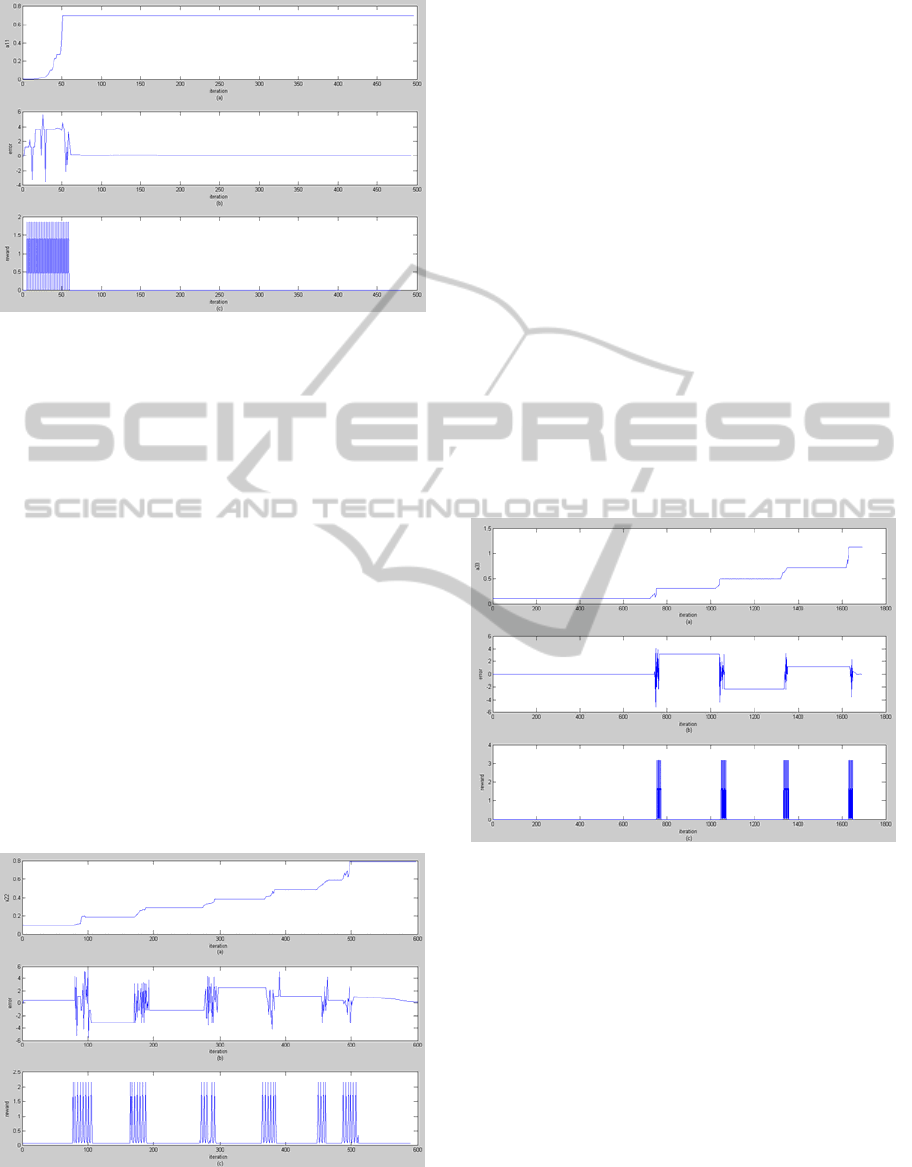

Figure 4: Simulation results for searching phase during

learning process. After 80

iteration, learning process ends

for the search salience but the given illustration is

continued till the 500

iteration. Reward is 1.8 for this

coefficient.

Once the robot learns to recognize food and

picks it up, it has to begin searching the nest. In

order to reach the nest the robot moves along the

wall and seeks for the light source when it finds it,

reward is given. This reward modifies the value of

“a

” and when “a

” reaches a certain value, the

robot learns the place of the nest. There are six

coefficients besides “a

”, “a

” but these are

not necessary for the determination of saliencies, so

they are kept constant.

Once, the robot places the food to the nest, the

search for food begins again, but as it learned the

food and the nest it picks up the first food it comes

across and carries it to the nest directly. As, the

robot do not learn the coordinates of the latest food

it picked up, the searching process is made

randomly.

Figure 5: Simulation results for pick up and carrying

phase. After 550

iteration, learning process ends for this

phase. Reward is 2.2 for this coefficient.

Learning the deposit of the food in the nest is

same as the other learning routines and the results

are given in Figure 6. We can change the reward

value for each step to examine the variation of

process, so each reward selected differently. As it

can be followed from Figure 4, the small reward

need more iteration to learn the task, and when the

reward value is increased less iteration step is

needed and less try outs to learn the task. In Figure

5, the reward is chosen as 2.2 so robot learns the

potential food in 6 try outs while in Figure 6 reward

is increased and learning process for the nest ends in

4 try outs. This reinforcement learning results are

drawn in MATLAB, but the data are collected from

the environment where mobile is implemented. The

mobile robot is trained to learn to recognize the food

and the place of the nest and it is capable of

completing the task even though the conditions in

the environment changes. In 20 trials, mobile robot

recognizes the food and the nest for 17 cases. Once

the learning is completed the robot learns the place

of the nest and deposits the food there.

Figure 6: Simulation results for learning to find the nest

and deposit phase. After 1700

iteration, learning process

ends for finding the salience so in figure 1800

iteration

are shown. Reward is 3 for this coefficient.

4 CONCLUSIONS

In this work, it is shown that robot implementation

of neural circuits which are capable of realizing

reinforcement learning is possible. Here, the model

proposed in (Sengor, 2008) is reconsidered and

implemented on mobile robot Khepera II to mimic

the behaviour of a rat searching for food in an

unfamiliar environment. It has to be emphasized that

a more complex cognitive process than action

selection, i.e., goal-directed behaviour is

A REALIZATION OF GOAL-DIRECTED BEHAVIOR - Implementing a Robot Model Based on

Cortico-Striato-Thalamic Circuits

293

implemented on a mobile robot. So, the work

considered here improves (Prescott, 2006), in two

aspects, reinforcement learning process is

implemented on Khepera II and goal-directed

behaviour is realized. The task considered could be

easily upgraded for more complex scenarios.

Here the choices of the robot are determined only

by saliencies depending on sensor data. So the action

selection is due to environmental inputs. In (Shultz

1997, Dayan 2009), it has been discussed that the

action selection is affected also by the dopamine

value which is determined by emotional processes.

Thus the choices of the robot should also be

determined by

parameter. So the adaptation of

could be considered to model the emotional

drives.

ACKNOWLEDGEMENTS

The mobile robot Khepera II used for simulations

and implementations belong to I.T.U. Artificial

Intelligence and Robotics Laboratory. The authors

would like to thank the laboratory staff and

especially the coordinator Sanem Sarel Talay for

their guidance and for their sharing knowledge. This

work is partially supported by I.T.U. BAP project.

REFERENCES

Gurney, K., Prescott, T. J., Redgrave, P., 2001.

Computational Model of Action Selection in the Basal

Ganglia I: A New Functional Anatomy. Biological

Cybernetics, vol.84, 401-410.

Taylor, J. G., Taylor, N. R., 2000. Analysis of Recurrent

Cortico-Basal Ganglia-Thalamic Loops for Working

Memory. Biological Cybernetics, vol.82, 415-432.

Schultz, W., Dayan, P., Montague, P. R., 1997. A Neural

Substrate of Prediction and Reward. Science 275,

1593-1599.

Dayan, P., 2009. Dopamine, Reinforcement Learning, and

Addiction. Pharmacopsychiatry. Vol.42, 56-65.

Gillies, A., Arbuthnott, G., 2000. Computational Models

of the Basal Ganglia. Movement Disorders. 15, no. 5,

762-770.

Sengor, N. S., Karabacak, O., Steinmetz, U., 2008. A

Computational Model of Cortico- Striato-Thalamic

Circuits in Goal-Directed Behavior. LNCS 5163,

Proceedings of ICANN, 328-337.

Gutkin, B. S., Dehaene, S., Changeux, J. P., 2006. A

Neurocomputational Hypothesis for Nicotine

Addiction. PNAS, vol.103, no.4, 1106-1111.

Saeb, S., Weber, C., Triesh, J., 2009. Goal-directed

learning of features and forward models. Neural

Networks, vol.22, 586-592.

Webb, B., 2000. What does robotics offer animal

behavior? Animal Behavior, Vol. 60, 545-558

Fleischer, J. G., Edelman, G. M., 2009. Brain-based

devices. IEEE Robotics and Automation Magazine,

33-41.

Prescott, T. J., Montes-Gonzalez, F. M., Gurney, K.,

Humpries, M. D., Redgrave, P., 2006. A Robot Model

of the Basal Ganglia: Behaviour and Intrinsic

Processing. Neural Networks, 1-31.

Haber, S. N., 2010, The reward circuit: Linking primate

anatomy and human imaging. Neuropsychopharmaco-

logy Reviews, 35, 4-26.

Alexander, G. E., Crutcher, M. D., DeLong, M. R., 1990.

Basal ganglia-thalamocortical circuits: Parallel

substrates for motor, oculomotor, “prefrontal” and

“limbic” functions. Progress in Brain Research, 85,

119-146.

Humphrys, M. “Action Selection Methods Using

Reinforcement Learning”, Ph.D. Thesis, Trinity Hall,

Cambridge, 1997.

APPENDIX

The algorithm corresponding to the model

considered is summarized as follows:

Begin

SetCoefficients

SetInitialCond

GetSensorData

ScaleSensorData

1. ReinforcementLearning

If ∀DistSen=0&&grip=0&&wheels=0

EvaluationOfEquation 6-10

Update a

If DistSen2&&DistSen3=0

EvaluationOfEquation 6-10

Update a

If ∀LightSen!=0&&∀DistSen!=0

EvaluationOfEquation 6-10

Update a

2. Saliencies

∑













;i=1,2,3

3. Action Selection

For IterationStep<200

EvaluationOfEquation 1-5

4. RobotMotion

If e1>0.67&&e2<0.67&&e3<0.67

DoSalience1

If e1<0.67&&e2>0.67&&e3<0.67

DoSalience2

If e1<0.67&&e2<0.67&&e3>0.67

DoSalience3

// e

are cortex output values

End.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

294
