MOBILE, REAL-TIME SIMULATOR
FOR A CORTICAL VISUAL PROSTHESIS
Horace Josh, Benedict Yong and Lindsay Kleeman
Department of Electrical and Computer Systems Engineering, Monash University, Wellington Road, Clayton, Australia
Monash Vision Group, Monash University, Clayton, Australia
Keywords: Visual prosthesis, Mobile simulator, Visual cortex, Visuotopic mapping, Phosphene, Bionic vision.
Abstract: This paper presents a mobile, real-time simulator system for a cortical visual prosthesis, making use of
current neurophysiological models of visuotopy. This system overcomes fundamental limitations of current
simulator systems which include simplified visuotopic mapping and the lack of mobility, limiting use in
open and untethered environments. A visual prosthesis simulator provides a useful demonstration and
research platform for a bionic vision system. It can be used to simulate the visual results of such an implant,
as well as aid in the development of algorithms and techniques that would most suitably present information
to a patient. Cortical visual prostheses work by electrically stimulating the visual cortex, the part of the brain
primarily responsible for vision, and eliciting visual perceptions known as ‘phosphenes’. The simulator’s
main function is to translate a scene provided by a camera sensor into a low resolution form that closely
mimics the phosphene pattern produced by a cortical visual prosthesis. Preliminary psychophysics testing
has suggested that in some situations it can be advantageous to have four different levels of intensity rather
than two. It was also found that there is a learning effect associated with continued use of the system which
would need further psychophysics study.
1 INTRODUCTION
A study conducted in 1968 showed that electrical
stimulation of the visual cortex of a human brain
resulted in the elicitation of bright spots of light,
called ‘phosphenes’, in the visual field of the subject
(Brindley and Lewin, 1968). Supporting results were
also found in (Dobelle and Mladejovsky, 1974;
Dobelle et al., 1976; Bak et al., 1990). Further
studies (Humayun et al., 1996; Veraart et al., 1998)
have shown that it is also possible to generate
phosphenes via electrical stimulation of the retina
and optic nerve. These early studies provided a basis
for widespread research into the development of
functional visual prostheses.
A visual prosthesis, also often referred to as a
‘bionic eye’, is an implantable biomedical device
that aims to restore vision to the blind. The core
component of these devices is an array of electrodes,
driven by specialised electronics. The electrodes
inject electrical current into a particular section of
the patient’s visual pathway in order to generate an
‘image’ in the visual field.
The term visual pathway refers to the path that
signals take from the retina in the eye where they are
generated to the primary visual cortex at the back of
the brain. Light that is incident on photoreceptors in
the retina, a layer of cells at the back of the eye,
results in the generation of signals. These signals are
passed through the optic nerve and Lateral
Geniculate Nucleus (LGN) before arriving at the
primary visual cortex (V1), which is at the back of
the brain. From V1, signals diverge to subsequent
levels of visual cortex where higher level processing
takes place. In a blind individual, parts of the visual
pathway may not function. Therefore, visual signals
do not reach the visual cortex. A successful
prosthesis would bypass these inoperative sections
in order to deliver signals to V1.
The Australian Research Council funded a new
collaborative research initiative in 2009 to develop a
functional visual prosthesis. One of the two
proposals accepted for this initiative was by a
Monash University led team of researchers, now
known as the Monash Vision Group (MVG)
(Monash Vision Group, 2010). Established in 2010,
the MVG aims to develop a visual prosthesis
37
Josh H., Yong B. and Kleeman L..
MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS.
DOI: 10.5220/0003773300370046
In Proceedings of the International Conference on Biomedical Electronics and Devices (BIODEVICES-2012), pages 37-46
ISBN: 978-989-8425-91-1
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
(Monash Bionic Eye) centred on a cortical implant,
making use of approximately 600 electrodes.
As research grows in this new area of bionics,
there is a great need for simulation or visualisation
of the possible results of such an implant. Bionic eye
simulators serve as good platforms for researchers to
investigate the effectiveness of implemented
algorithms, tune parameters, and realise the
importance of certain parameters prior to actual
clinical trials. The simulators would be used most in
psychophysical trials – trials involving normally
sighted individuals attempting to complete tasks
with the limited vision provided by a simulator.
However, the simulators would also be of use to the
general public for educational purposes and to
handle the expectations of families and friends of
potential patients. Input to the system is in the form
of an image or image stream. This image data goes
through processing that transforms it into a
representation that attempts to mimic the elicitation
of phosphenes through electrode stimulation. The
processed image data is then stored and/or displayed
on a screen for viewing by the user.

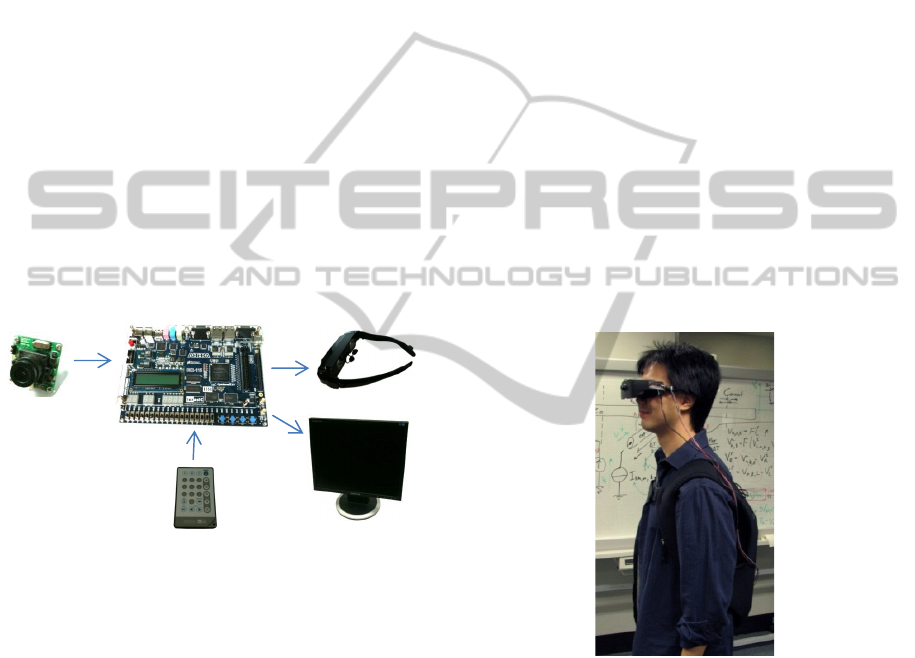

Figure 1: Main components of our simulator system: A)
CMOS Camera B) FPGA Development Board C) IR
Remote D) Head-Mounted Display E) External Monitor.
Many visual prosthesis simulators have already
been developed and some of the more recent work is
found in (Van Rheede et al., 2010; Zhao et al., 2010;
Fehervari et al., 2010; Srivastava et al., 2009; Chen
et al., 2005). Nevertheless, there are some significant
limitations that arise in their implementations. The
majority of these simulators perform their image
processing on a computer using image processing
libraries and so are often limited to use within an
area close to a stationary computer. Depending on
the complexity of processing and the available
processing power of the equipment in use, these
systems may sometimes suffer from latency and
frame rate issues. In the case of simulators for
cortical visual prostheses, visuotopic mapping – the
mapping of electrode placement on the visual cortex
to elicitation of phosphenes in the visual field, has
often been overlooked or used simplified models.
Our system aims to address the shortcomings of
currently implemented systems. In comparison to
other cortical FPGA based systems (Fehervari et al.,
2010; Srivastava et al., 2009), our system is very
mobile and has been used to do untethered
preliminary psychophysics testing. Our simulator is
based on a Field Programmable Gate Array (FPGA)
system implementation. FPGAs are microchips that
offer extremely dense amounts of electronically
reconfigurable logic gates. FPGA systems offer the
advantages of low latency, highly parallel
implementation and the ability to integrate with
large numbers of external devices through the high
availability of peripheral interface pins. Figure 1
shows the main components of our simulator
system. A CMOS camera captures a stream of image
data, which is then processed on an FPGA
development board and finally displayed on a head-
mounted display and optionally on an external
monitor as well. An infra-red remote control
interface is used to enable/disable the various
functions. A more detailed description of the system
components is provided in Section 2.
Figure 2: Integrated system.
2 SYSTEM SETUP
As shown in Figure 1, our system is comprised of
the following main components: a camera for
acquiring images, an FPGA development board for
performing all image processing functions and
visuotopic mapping, a head-mounted display as well
as optional external monitor for display of the
resulting image stream, and finally an infra-red
remote control for toggling of functions.
The camera that we have chosen to use is a low cost
CMOS camera (Sparkfun Electronics CM-26N/P)
A
B
C
D
E
BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices
38
Figure 3: Flowchart of main functions of the system.
which has an analogue signal output. It captures
images at a resolution of 640 x 480 pixels, at a frame
rate of 59.94Hz and has a viewing angle of 70˚.
Reasons for choosing this particular camera include
low cost, small physical size, switchable PAL/NTSC
output, and the simplicity of a three wire
power/signal connection which also allows for
longer cable lengths.
At the centre of our system, we have a Terasic
DE2-115 FPGA development board, which is based
on an Altera Cyclone IV EP4CE115F29C7 FPGA
chip. We chose this development board for its low
cost, lower power consumption, high logic element
and on-chip memory count, wide range of available
peripheral devices and I/O pins, and our familiarity
with its design and operation.
An infra-red remote, that comes standard with
the DE2-115, was utilised for capturing user input. It
provides a simple and easy way of toggling and
controlling all implemented functions.
For display of the final output, we have chosen a
head-mounted display (HMD) unit (Vuzix iWear
VR920), sometimes referred to as virtual reality
goggles. This HMD offers a 640x480 pixel display
resolution with a viewing angle of 32˚. The VR920
was chosen for its low cost, compatible resolution,
lightweight design, and its ability to take an
analogue VGA signal as its input. Since our system
outputs video via a VGA port, we were able to use a
simple passive splitter cable to provide dual output
(HMD as well as an external monitor).
For our system to be mobile, all hardware needed
to be integrated into a neat, wearable package. We
achieved the result shown in Figure 2. The majority
of components are fastened inside a hard plastic
laptop casing, which is then placed in a neoprene
laptop bag with cables running to the camera and
HMD that the user is wearing. A 12V rechargeable
lithium-ion battery pack is used to power the system.
3 SYSTEM IMPLEMENTATION
The flowchart shown in Figure 4 outlines the
implementation of the main functions of our system.
A high resolution image stream (640x480 pixels) is
captured by the CMOS camera, which is delivered to
the DE2-115 development board via a standard
NTSC analogue connection. After decoding of the
NTSC signal is complete, the pixels are sampled and
averaged. The sampled data is thresholded in order
to simulate possible limitations of electrode
stimulation. A pre-generated visuotopic mapping
lookup table is then used to determine the placement
of the phosphenes on the output display. A discrete
Gaussian falloff profile is used to simulate the
physiological phenomena of a phosphene dot in the
visual field. Before output on the screen, the frame
rate of the system can be set in real-time in order to
simulate varying stimulation frequencies of
electrodes. A more detailed explanation of these
main system features is given in Subsections 3.1,
3.2, 3.3, 3.4, and 3.5.
Furthermore, features such as edge detection,
histogram assisted threshold selection, and dead
electrode simulation, have been implemented in
order to allow for evaluation of the effects of such
image processing techniques on the perception of the
provided low resolution data (Subsection 3.6).
All processing performed on the image stream
from the camera is implemented using Verilog
hardware description language. Unlike conventional
code that is written for execution on a processor that
runs at a specific clock speed, Verilog describes the
way logic gates are to be arranged and connected
and so is compiled into a synthesisable logic
solution that can be either synchronous (operate with
reference to a clock), asynchronous (without
reference to a clock) or a mixture of the two. A
Verilog solution was chosen due to the ability to
create functions that can run in parallel, resulting in
a low latency real-time system.
3.1 Visuotopic Mapping
Early physiological research (Schwartz, 1977;
Wandell et al., 2007) proved that ‘points’ in the
visual field correspond to specific locations on the
Captured image
stream (640 x 480)
Sampling and
averaging
Thresholding Visuotopic mapping
Phosphene
modelling
Frame rate adjustment
Display on HMD
MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS
39
visual cortex, inferring a ‘map’ or transfer function
between visual field points and the visual cortex.
Furthermore, that map is mostly continuous in that
neighbouring points in the visual field correspond
with neighbouring points on the visual cortex. The
map or transfer function which describes the
translation of points between the visual cortex to its
corresponding points on the visual field is known as
the visuotopic map.
Due to the physiological non-linear properties of
the visual cortex, the visuotopic map is also non-
linear and ‘distorted’. In humans, the phenomenon
known as cortical magnification describes how a
small region at the centre of the visual field, known
as the fovea, corresponds with a much larger area of
the visual cortex (Horton and Hoyt, 1991; Duncan
and Boynton, 2003). Early work by Schwartz (1977)
indicated an approximation to the mapping by a
‘log-polar’ representation, where linear points on the
visual cortex correspond to eccentrically logarithmic
and angularly linear points in the visual field. The
foveal region is represented this way as a dense
packing of points in the centre of the visual field
which corresponds to a disproportionately larger
region on the visual cortex. Also important to note is
that the visual cortex is spread over both halves of
the brain with the left visual cortex corresponding
with the right visual hemifield and vice versa, due to
cross-over of the optic nerves. (Bear et al., 2007).
Mathematical models that came from this include
the Monopole model (defined from the ‘log-polar
observations) (Schwartz, 1977; Polimeni et al.,
2006; Schira et al., 2010), the Wedge-Dipole model
(adds a second parameter to Monopole model to
account for curvature in the periphery region of the
visual cortex) (Balasubramanian et al., 2002;
Polimeni et al., 2006) and more recently the Double-
Sech model (adds a shear function to the Wedge-
Dipole model to account for changing local
isotrophy as well as increasing accuracy of mapping
at higher levels of visual cortex V2, V3) (Schira et
al., 2007; Schira et al., 2010).
As the implant is anticipated to consist of a linear
array of electrodes, the resulting phosphene pattern
would not be linear but rather follow this log-polar
mapping. It would be useful and more accurate to
model the output visualisation based off a
mathematical model of the visuotopic mapping.
Since the implant is expected to be placed in the
primary visual cortex V1 and closer to the foveal
side of the visual cortex, the Monopole model was
chosen to model the output visualisation as it was
mathematically simpler and still provides reasonable
accuracy.

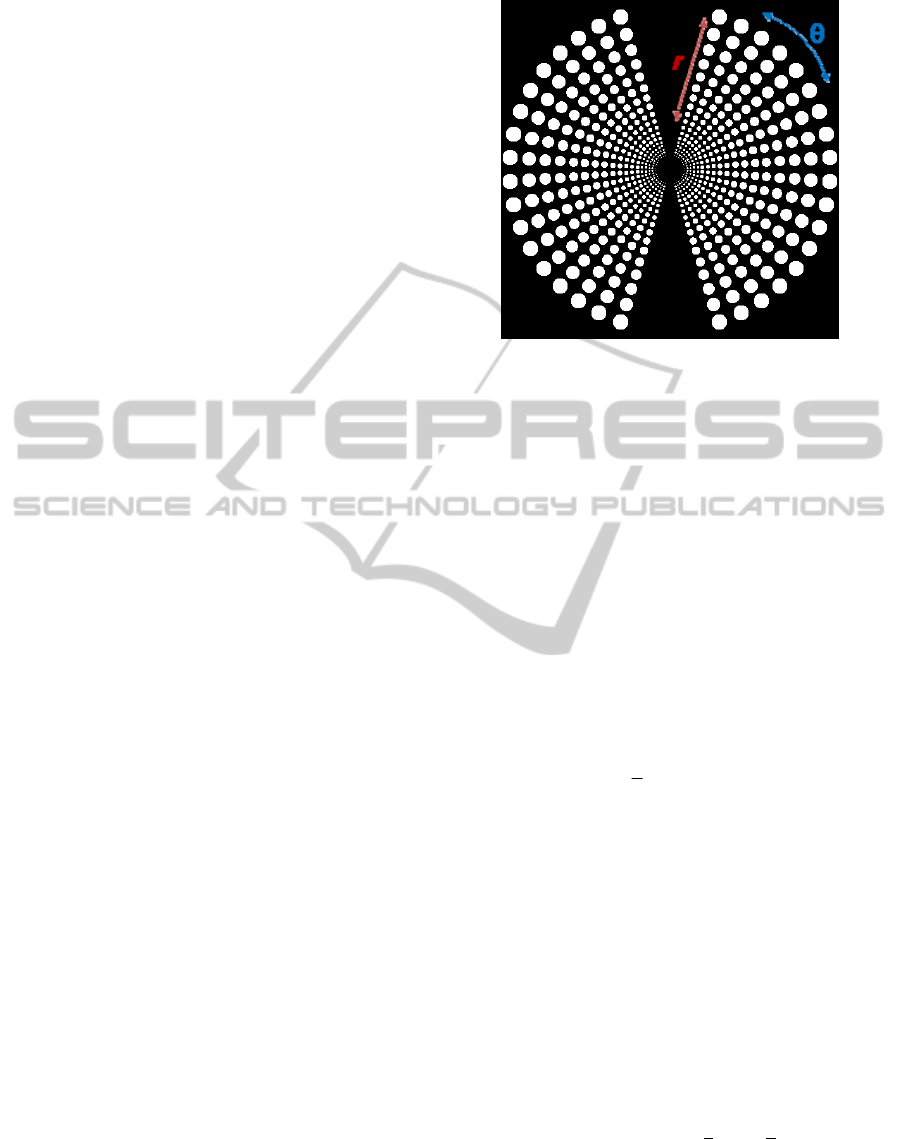

Figure 4: Resultant visual field of implemented visuotopic
map.
The Monopole equation (1) describes the left
visual cortex ‘w’ as a complex function of the right
visual hemifield ‘z
w
’. ‘C’ is the set of complex
numbers, and ‘k’ is a dilation factor constant.
log( )
w
wk z a=+^
(1)
Visual field z
w
can be represented as a complex
exponential where r represents the eccentricity and θ
represents polar angle.
i
w
zre
θ
=∈^
(2)
Rearranging the Monopole equation describes
visual field z
w
as a function of visual cortex w.
w
k
w
zea=−^
(3)
The electrode array of the implant was assumed
to be a linear array placed on the visual cortex closer
to the foveal region. The visuotopic map was created
using MATLAB and ported over to the FPGA for
use as a large lookup table. Approximate values
were used for the Monopole equation parameters,
which are reasonably consistent with the various
values used in the literature: k=15, a=0.7. (Polimeni
et al., 2006; Schira et al., 2007; Fehervari et al.,
2010). The exact dimensions and intended locations
of the implant are still not known, the eccentricity
and polar angle were limited to an 18×18 linear
array on the visual cortex that cover the following
values on: r=[10,40], θ=[-0.8(
), 0.8(
)]. This only
represents the left visual cortex, corresponding with
the right visual hemifield. The 18×18 array was
duplicated for the right visual cortex, creating
another array on the left visual hemifield. This
BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices
40
Figure 5: Averaging sampler implementation.
produces a total electrode count of 648. These
assumptions were taken to make better use of the
limited screen resolution of the head-mounted
display while remaining realistic to the ‘log-polar’
mapping of the visual cortex. However, new maps
can be simply regenerated on MATLAB to
accommodate any changes to this and implemented
into our system. The resultant visual field of our
implemented map is shown in Figure 4.
3.2 Averaging Sampler

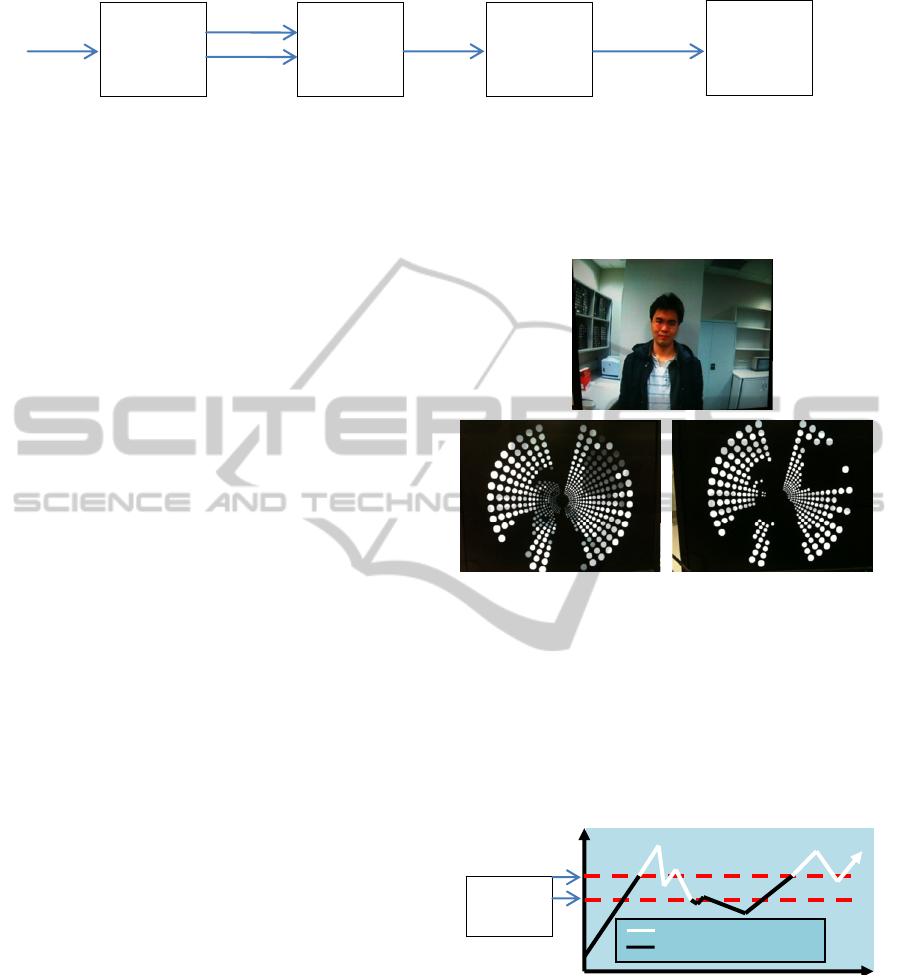

Figure 5 outlines our averaging sampler
implementation. After NTSC decoding, the image
stream from the camera is made available one pixel
at a time in a sequential fashion. As each pixel
arrives at the sampling section of the system, its X &
Y pixel count values are compared against the
mapping lookup table. This lookup table stores the
corresponding phosphene index number for each
pixel within the central 480 x 480 window of the full
camera view. Pixels not belonging to a phosphene
are assigned number zero. Once the phosphene
index number is determined, the pixel is sampled by
adding to a storage register that corresponds to that
particular phosphene index number. This process
repeats until all pixels have been sampled. Finally,
an average is performed on all of the storage
registers according to the number of pixels that are
within each phosphene, and the results are stored in
a separate set of storage registers.
3.3 Thresholding
Various studies (Brindley and Lewin, 1968; Dobelle
and Mladejovsky, 1974; Schmidt et al., 1996) have
shown that the modulation of phosphene brightness
is possible using a number of different techniques.
However, there is some ambiguity in the possible
number distinguishable brightness levels.
Our system takes an optimistic approach at
simulation of this property, having the option to
display at 2, 4 or 8 levels of intensity or greyscale.
Since our system uses 10-bit storage registers for
pixels, the full greyscale intensity range is 0 to 1023.
This range is divided evenly in order to create bands
of intensity for 2, 4 and 8 level modes. Results of 2
and 4-level thresholding are shown in Figure 6. It is
often difficult to perceive the results of the system in
a static image form, therefore we encourage you to
view the videos we have listed in the appendix.
Figure 6: Thresholding: full resolution image (top), 4-level
image (bottom left), binary image (bottom right).
To avoid high frequency oscillation between
intensity bands, a hysteresis feature was included.
Two threshold values are used to define changes
between intensity bands, instead of one value. When
a phosphene’s intensity is between the two
thresholds, no change occurs. Figure 7 shows how
hysteresis reduces the oscillation problem.
Figure 7: Binary thresholding with hysteresis.
3.4 Phosphene Modelling
Stimulation of each electrode on the implant will
produce a phenomenon in the patient’s visual field
known as a phosphene, whose appearance is
somewhat similar to a bright spot of light (Brindley
and Lewin, 1968). Rather than simply using square
pixels that perfectly line up with each other, we
attempted to model the output visualisation based on
Pixel data
Phosphene
index
Pixel data
Total sum Averaged data
Summing
Storage
Registers
Phosphene
lookup table
Averager
Display
storage
registers
Output white phosphene
Output black phosphene
Greyscale
Intensit
y
Time
Hysteresis
thresholds
MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS
41
what phosphenes would approximately look like.
In the literature, one common approach is to
model the phosphene using a 2D Gaussian mask.
(Chen et al., 2009). The 2D Gaussian function is
based on the standard distribution curve, except in
two dimensions instead of one. This creates the
appearance of a round ‘spot’ where the centre of the
spot has the highest intensity value with the intensity
values decreasing radially towards the outside edge
of the spot, following the standard distribution
curve. A comparison between a phosphene with and
without the Gaussian function applied is shown in
Figure 8.

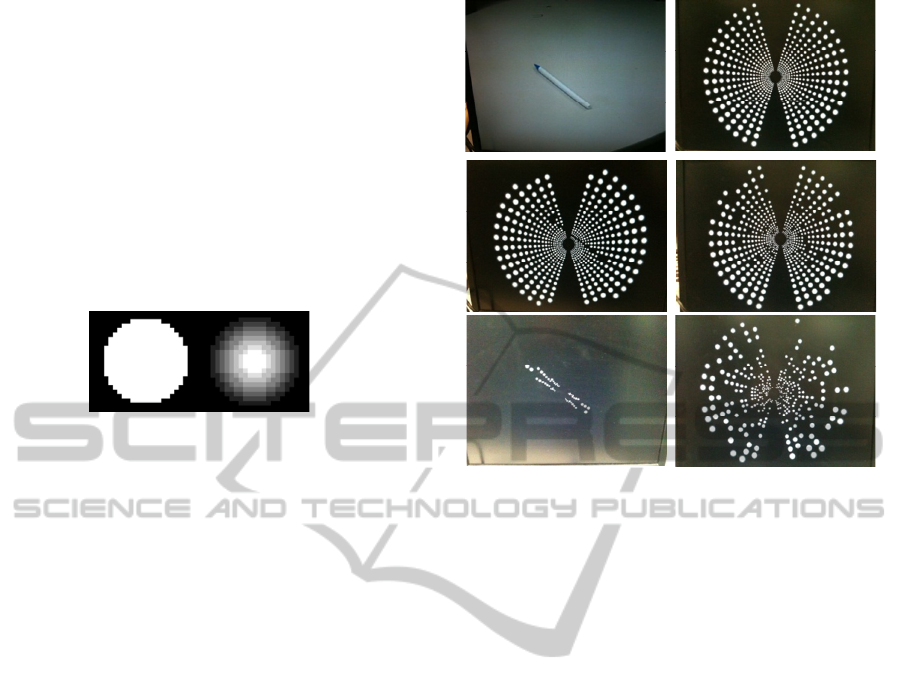

Figure 8: Phosphene modelling: without Gaussian function
(left), with Gaussian function (right).
3.5 Frame Rate Reduction
The ability of a person to detect motion is very
important when it comes to mobility exercises in
low resolution vision. A key factor that would limit
one’s ability to detect motion in the immediate
environment is the lack of temporal resolution. It is
expected that the temporal resolution of electrode
stimulation achievable by the Monash Bionic Eye
may be in the range of 5-15 frames per second. In
order to simulate this temporal resolution and
investigate the possible implications it may have on
a patient’s ability to move around, we have
implemented a frame rate reduction function. The
output frame rate of our system can be changed in
real-time. Our system has 8 different discrete frame
rates available for selection (1, 2, 4, 8, 10, 15, 30 and
60 frames per second). Variable frame rate is
achieved by holding the stored frame output data for
the specific period of the chosen frame rate.
3.6 Extra Functions
Additional functions have been implemented in our
system, such as edge detection histogram assisted
threshold selection and dead electrode simulation.
These features have not been evaluated in the
preliminary testing we present in this paper;
however, would be of importance for future
psychophysical research we intend to carry out.
Figure 9 demonstrates edge detection and dead
electrode simulation.
Figure 9: Edge detection: full resolution (top left), binary
thresholding (middle left), edge detection (bottom left).
Dead electrode simulation: 0% (top right), 10% (middle
right), 50% (bottom right).
4 EXPERIMENTAL SETUP
After the hardware was built, two different
psychophysical preliminary testing experiments
were devised by the authors and conducted by a
number of Monash Vision Group staff and post-
graduate students as volunteers. These experiments
were not formalised clinical trials, but rather
preliminary trials to test the effectiveness of the
system and to examine the effective difference
between the modes and parameters set on the system
on the end user. The two experiments were a
mobility based obstacle avoidance walking maze
test, as well as a sit-down contrast discrimination
hand-eye co-ordination chessboard placement test.
4.1 Maze Test
In this test, there were 7 test subjects (6 male, 1
female). The maze test involved subjects walking
through a course while avoiding obstacles. The
obstacles were large cardboard boxes and office
chairs with wheels. The placement of the obstacles
was randomised within the maze area and 5 different
configurations of obstacle layout were developed,
one for each mode tested and kept consistent
between subjects. Subjects were not allowed to see
BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices
42
the obstacle layout before each test. The starting
point was around the corner from the main
rectangular maze area, and the end point was at a
table at the far end wall of the maze. There is a small
black box on the table and the test ends when the
subject finds and picks up the box.

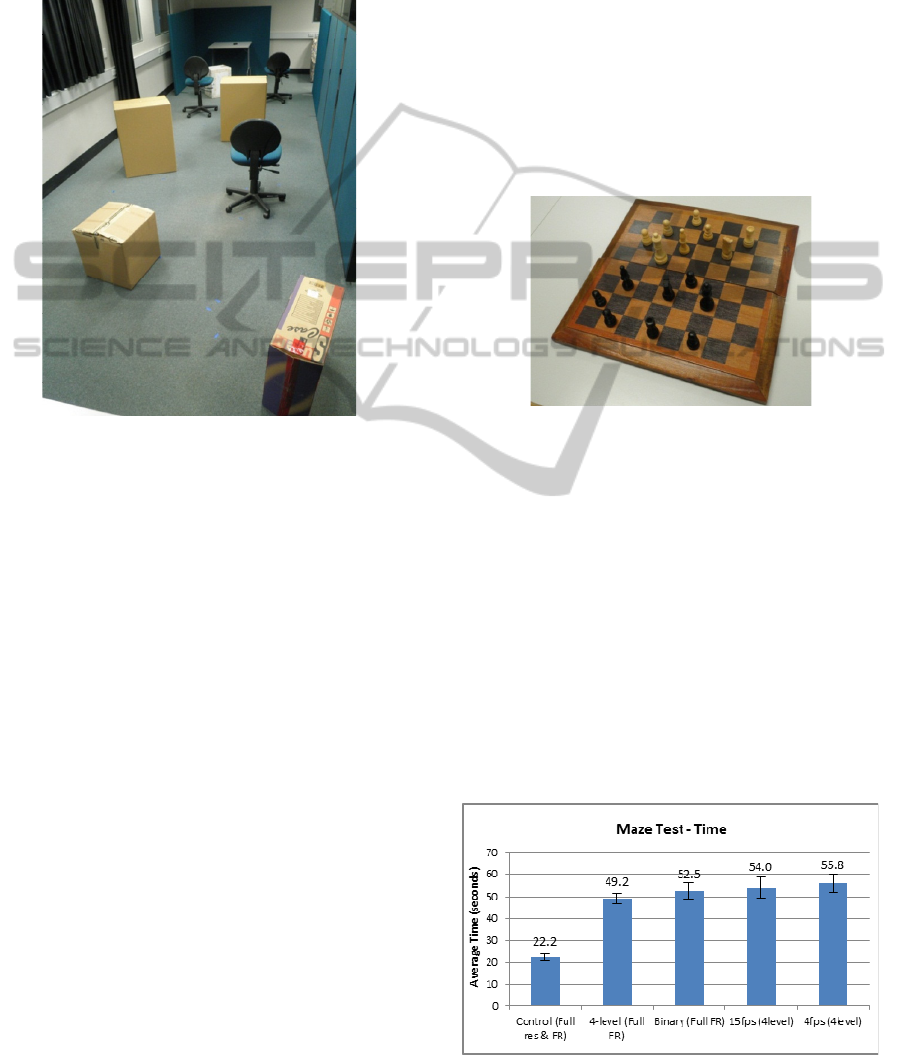

Figure 10: Maze Test obstacle layout.
For the test, both time to completion and number
of collisions were recorded for all subjects. Subjects
were allowed to touch the obstacles in the maze so
only unintentional collisions were counted. The 5
modes tested were a control (full resolution, full
colour), 4-level thresholding (full frame rate), binary
thresholding (full frame rate) and reduced frame rate
at 15 fps and 4 fps (both with 4-level thresholding).
Subjects were given 2 minutes accommodation time
just before the test for each mode where they could
adjust to using the system around a cardboard box
and two chairs placed away from the actual maze
area. Subjects were also given a minimum of 5
minutes break in between each test.
4.2 Chessboard Test
In this test, there were 7 test subjects (6 male, 1
female) and were the same subjects as used in the
previous Maze Test. The task required subjects to sit
down at a table with a chessboard in front of them
and 16 chess pieces (8 black, 8 white) placed in a
random pile to the left of the chessboard. The
objective was for the subjects to sort and place any
black coloured pieces on any white square in the
bottom half of the chessboard, and the white pieces
on black squares in the top half of the chessboard.
For the test, both time to completion and number
of mistakes were recorded for all subjects. For a
piece to be considered as correctly placed, at least
half of it had to be over the right square. Another
aspect to this experiment was to test for learning
effects that come from repeated usage of the system.
As such, the non-control modes tested were repeated
3 times in this order (all at full frame rate): control
(full resolution, full colour), binary thresholding, 4-
level thresholding, binary, 4-level, binary, 4-level.
Before the testing, subjects were asked to attempt
the task without wearing the system in order to
familiarise themselves with the task itself. The
testing was conducted in a single session, with a
minimum 1 minute break in between each test.
Figure 11: Chessboard Test finished example.
5 RESULTS AND DISCUSSION
5.1 Maze Test
Figure 12 is a graph that details the time to
completion (in seconds) for each mode, averaged
over the 7 subjects. The order of the modes reflects
the order that the subjects were tested in. The error
bars show the standard error. 2-way, paired T-Tests
were conducted between the control time and each
of the non-control modes, as well as between the 4-
level thresholding full frame rate mode and the other
3 modes (binary and both reduced frame rates).
Figure 12: Maze Test - mode vs. average time (seconds).
MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS
43
Figure 13: Maze Test - mode vs. average no. of collisions.
The times taken for all the non-control modes
were significantly higher (p < 0.05 for all) than the
time for the control. The binary and reduced frame
rate modes were slightly longer than the 4-level
thresholding full frame rate mode, but all the non-
control modes were within the statistical margin of
error (p > 0.05 for all).
Figure 13 details the number of collisions for
each mode, averaged over the 7 subjects. The error
bars show the standard error. The average number of
collisions was very low, due to a few of the subjects
not colliding with anything in any of the modes, but
the binary thresholding and reduced frame rate
modes had more collisions on average than the 4-
level thresholding full frame rate.
5.2 Chessboard Test
Figure 14 details time to completion (in seconds) for
each mode, averaged over the 7 subjects. The order
of the modes reflects the order the subjects were
tested in and shows how the same modes were tested
repeatedly 3 times to examine learning effects. The
error bars show the standard error. 2-way, paired T-
Tests were conducted between the control time and
each of the non-control modes, as well as between
the binary and 4-level thresholding for each pair of
repeated tests (eg. 1
st
binary with 1
st
4-level).
Figure 14: Chessboard Test - mode vs. average time (sec).
Figure 15: Chessboard Test - mode vs. average mistakes.
The times taken for all non-control modes were
significantly longer than control mode (p < 0.05 for
all). The times taken for the binary modes were
significantly longer than the 4-level thresholding for
the same repeated number of trial (p < 0.05 for the
1
st
and 2
nd
pairs of tests, p = 0.063 for the 3
rd
pair).
The times for all modes decreases with increasing
number of repeated tests.
Figure 15 details the number of mistakes for each
mode, averaged over the 7 subjects. The error bars
show the standard error. The average number of
mistakes was quite low due to some subjects not
making any mistakes. The trend however clearly
looks similar to the Chessboard Time graph with
decreasing number of mistakes with repeated trials.
5.3 Discussion
The Maze Test results show that subjects take much
longer to finish the test in any of the non-control
modes compared to the control, and that although
the binary and reduced frame rate modes took
slightly longer to complete than the 4-level full
frame rate mode, the difference was not significant.
This trend is also shown in the average number of
collisions, but the standard error is very large.
From observations made while building and
testing the system, reduction in colour depth and
frame rate does increase the difficulty of most
general tasks including navigational and obstacle
avoidance tasks. Possible reasons for this not being
made clear in the results are that the maze area was
fairly small and straightforward so the task could be
completed in a relatively short amount of time, and
the number of test subjects was low, presenting a
relatively large error. Also, the obstacles used in this
test were large and obvious and so subjects may not
have benefitted a lot from an increased colour depth
and frame rate. Another problem could be the order
of the modes in which the subjects were tested was
made consistent and that the ‘harder’ modes were
BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices
44
tested later. A learning effect just from repeated
testing, even with the changing obstacle placement
and accommodation time between tests, could cause
a decrease in times for the later tested ‘harder’
modes and hence reduce differences between them
and the earlier test ‘easier’ modes.
For the Chessboard Test, the results demonstrate
that the binary modes were significantly longer than
the 4-level thresholding modes for each repeated
test. The results also show that there is a clear
downwards trend with increasing number of tests for
both modes. The average number of mistakes also
shows these trends, that the binary has more
mistakes than the 4-level and that both modes
decrease over repeated testing, however the standard
error is very large. The reason the tests were
completed much faster on 4-level compared to
binary is likely because this test is based primarily
on contrast discrimination and the extra levels of
grey available on the 4-level allow the subjects to be
able to tell the difference between the dark and light
chess pieces and chessboard as well as the grey table
more rapidly. This shows that different tasks may
benefit differently from various modes. A significant
learning effect was evident as times and mistakes
would decrease with repeated testing, probably
leading to an eventual plateau point where times do
not get much faster. It is apparent that as people
keep repeating a task they are unfamiliar with, they
will improve at it. There should be no reason why it
is not the same when using a visual prosthesis
simulator, or even a patient with a visual prosthesis
implant itself.
5.4 Limitations of the System
Although, our system uses a physiologically based
model for mapping of phosphenes, it does not
represent the gaze-locked nature of a cortical
implant. In the case of a real cortical visual
prosthesis, the patient will not be able to focus on
different points of the visual field with eye
movements. In our system however, the user is able
to scan the presented pattern voluntarily. To
overcome this limitation, an eye-tracker would be
required to allow the system to move the pattern
along with the movement of the user’s eyes,
therefore ‘locking’ the gaze at a specific point
(usually at the center) in the presented pattern.
6 CONCLUSIONS
AND FUTURE WORK
This paper has presented a simulator for a cortical
visual prosthesis. By addressing fundamental
limitations in current simulator systems through its
portability, and physiologically based phosphene
mapping, the system has met expectations and
makes a good platform for investigation,
improvement and tuning of algorithms for use with a
visual prosthesis. The completion of preliminary
psychophysical testing has shown that the number of
greyscale intensities has a significant effect on
results for certain tasks. It was also found that a
learning effect is present with repeated trials which
will need to be addressed in future work with
broader and more rigorous sets of psychophysical
testing. It is hoped that valuable insight can be
gained and used to improve the implementation of
future visual prosthesis devices.
ACKNOWLEDGEMENTS
Monash Vision Group is funded through the
Australian Research Council Research in Bionic
Vision Science and Technology Initiative
(SR1000006). The authors would like to thank the
members of Monash Vision Group that participated
in the trials and all those that shared their valuable
opinions and advice. The authors would also like to
thank Grey Innovation for help with the physical
layout of the integrated simulator system.
REFERENCES
Bak, M., Girvin, J. P., Hambrecht, F. T., Kufts, C. V.,
Loeb, G. E., Schmidt, E. M., 1990. Visual sensations
produced by intracortical microstimulation of the
human occipital cortex. Medical & Biological
Engineering & Computing, vol. 28, pp. 257-259.
Balasubramanian, M., Polimeni, J. R., Schwartz, E. L.,
2002. The v1-v2-v3 complex: quasiconformal dipole
maps in primate striate and extra-striate cortex. Neural
Networks, vol. 15, iss.10, pp1157-1163.
Bear, M. F., Connors, B. W., Paradiso, M. A. 2007.
Neuroscience: Exploring the Brain. Lippincott
Williams & Wilkins. Baltimore, 3rd edition.
Brindley, G. S., Lewin, W. S., 1968. The sensations
produced by electrical stimulation of the visual cortex.
Journal of Physiology, vol. 196, pp. 479-493.
Canny, J., 1986. A computational approach to edge
detection. IEEE Trans. on Pattern Analysis and
Machine Intelligence, vol. 8, pp. 679-698.
MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS
45
Chen, S. C., Hallum, L. E., Lovell, N. H., Suaning, G. J.,
2005. Visual acuity measurement of prosthetic vision:
a virtual-reality simulation study. Journal of Neural
Engineering, vol. 2, pp. S135-S145.
Chen, S. C., Suaning, G. J., Morley, J. W., Lovell, N. H.,
2009. Simulating prosthetic vision: i. visual models of
phosphenes. Vision Research, vol. 49, pp. 1493-1506.
Dobelle, W. H., Mladejovsky, M. G., 1974. Phosphenes
produced by electrical stimulation of human occipital
cortex, and their application to the development of a
prosthesis for the blind. Journal of Physiology, vol.
243, pp. 553-576.
Dobelle, W. H., Mladejovsky, M. G., Evans, J. R.,
Roberts, T. S., Girvin, J. P., 1976. 'Braille' reading by
a blind volunteer by visual cortex stimulation. Nature,
vol. 259, pp. 111-112.
Dowling, J. A., Maeder, A. J., Boles, W., 2004. Mobility
enhancement and assessment for a visual prosthesis.
Proceedings of SPIE Medical Imaging 2004:
Physiology, Function, and Structure from Medical
Images, vol. 5369, pp. 780-791.
Duncan, R. O., Boynton, G. M., 2003. Cortical
magnification within human primary visual cortex
correlates with acuity thresholds. Neuron, vol. 38, pp.
659-671.
Fehervari, T., Matsuoka, M., Okuno, H., Yagi, T., 2010.
Real-time simulation of phosphene images evoked by
electrical stimulation of the visual cortex. Neural
Information Processing, vol. 6443, pp. 171-178.
Horton, J. C., Hoyt, W. F., 1991. The representation of the
visual field in human striate cortex: a revision of the
classic holmes map. Archives of Ophthalmology, vol.
109, pp. 816-824.
Humayun, M. S., de Juan, E., Dagnelie, G., Greenberg, R.
J., Propst, R. H., Phillips, D. H., 1996. Visual
perception elicited by electrical stimulation of retina in
blind humans. Archives of Opthalmology, vol. 114, pp.
40-46.
Lee, J. S. J., Haralick, R. M., Shapiro, L. G., 1987.
Morphologic Edge Detection. IEEE Journal of
Robotics and Automation, vol. 3, pp. 142-156.
Monash Vision Group, 2010. Monash vision direct to
brain bionic eye. Viewed 11th July, 2011,
<http://monash.edu.au/bioniceye>.
Polimeni, J. R., Balasubramanian, M., Schwartz, E. L.,
2006. Multi-area visuotopic map complexes in
macaque striate and extra-striate cortex. Vision
Research, vol. 46, pp. 3336-3359.
Schira, M. M., Wade, A. R., Tyler, C. W., 2007. Two-
dimensional mapping of the central and parafoveal
visual field to human visual cortex. Journal of
Neurophysiology, vol. 97, pp. 4284-4295.
Schira, M. M., Tyler, C. W., Spehar, B., Breakspear, M.,
2010. Modeling magnification and anisotropy in the
primate foveal confluence. PLoS Computational
Biology, vol. 6, iss.1, pp. 1-10.
Schmidt, E. M., Bak, M. J., Hambrecht, F. T., Kufta, C. v.,
O'Rourke, D. K., Vallabhanath, P., 1996. Feasibility of
a visual prosthesis for the blind based on intracortical
microstimulation of the visual cortex. Brain, vol. 119,
pp. 507-522.
Schwartz, 1977. Spatial mapping in the primate sensory
projection: analytic structure and relevance to
perception. Biological Cybernetics, vol. 25, pp. 181-
194.
Srivastava, N. R., Troyk, P. R., Dagnelie, G., 2009.
Detection, eye-hand coordination and virtual mobility
performance in simulated vision for a cortical visual
prosthesis device. Journal of Neural Engineering, vol.
6, pp 1-14.
Van Rheede, J. J., Kennard, C., Hicks, S. L., 2010.
Simulating prosthetic vision: optimizing the
information content of a limited visual display.
Journal of Vision, 10(14):32, pp. 1-15.
Veraart, C., Raftopoulos, C., Mortimer, J. T., Delbeke, J.,
Pins, D., Michaux, G., Vanlierde, A., Parrini, S.,
Wanet-Defalque, M., 1998. Visual sensations
produced by optic nerve stimulation using an
implanted self-sizing spiral cuff electrode. Brain
Research, vol. 813, pp. 181-186.
Wandell, B. A., Dumoulin, S. O., Brewer, A. A., 2007.
Visual field maps in human cortex: review. Neuron,
vol. 56, pp. 366-383.
Zhao, Y., Lu, Y., Tian, Y., Li, L., Ren, Q., Chai, X., 2010.
Image processing based recognition of images with a
limited number of pixels using simulated prosthetic
vision. Information Sciences, vol. 180, pp. 2915-2924.
APPENDIX
Vid.1) www.youtube.com/watch?v=oAxaNloHVHg
Vid.2) www.youtube.com/watch?v=2byh1qQfWGQ
Vid.3) www.youtube.com/watch?v=gIVrnsk04LA
BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices
46
