CODED APERTURE STEREO

For Extension of Depth of Field and Refocusing

Yuichi Takeda

, Shnisaku Hiura

and Kosuke Sato

Graduate School of Engineering Science, Osaka University, 1-3 Machikaneyama-cho, Toyonaka, 560-8531 Osaka, Japan

Graduate School of Information Sciences, Hiroshima City University, Ozuka-Higashi, Asa-Minami-Ku, 731-3194

Hiroshima, Japan

Keywords:

Computational Photography, Coded Aperture, Stereo Depth Estimation, Deblur, Depth of Field, Refocusing.

Abstract:

Image acquisition techniques using coded apertures have been intensively investigated to improve the perfor-

mance of image deblurring and depth estimation. Generally, estimation of the scene depth is a key issue in the

recovery of optical blur because the size of the blur kernel varies according to the depth. However, since it is

hard to estimate the depth of a scene with a single image, most successful methods use several images with

different optical parameters captured by a specially developed camera with expensive internal optics. On the

other hand, a stereo camera conﬁguration is widely used to obtain the depth map of a scene. Therefore, in this

paper, we propose a method for deblurring and depth estimation using a stereo camera with coded apertures.

Our system conﬁguration offers several advantages. First, coded apertures make not only deconvolution but

also stereo matching very robust, because the loss of high spatial frequency domain information in the blurred

image is well suppressed. Second, the size of the blur kernel is linear with the disparity of the stereo images,

making calibration of the system very easy. The proof of this linearity is given in this paper together with

several experimental results showing the advantages of our method.

1 INTRODUCTION

Optical blur (defocusing) and motion blur are typical

errors in photographs taken in dark environments. If

the aperture of the lens is stopped down to extend the

depth of ﬁeld, moving objects are likely to be blurred

with a slow shutter speed to keep the exposure value

constant. In other words, insufﬁcient light from the

scene causes a trade-off between depth of ﬁeld and

exposure time, and thus it is difﬁcult to take a clear

sharp picture of a moving object in a dark scene using

a hand-held camera. Consequently, post processing of

captured images including deblurring and denoising,

have been intensively studied in prior years. In this

paper, we propose a method that extends the depth

of ﬁeld computationally using a stereo camera with

coded apertures.

Typically, the performance of deblurring depends

on the knowledge about the point spread function

(PSF). If the shape of the PSF is not known, it should

be estimated during deconvolution. This technique,

called blind deconvolution, is generally an ill-posed

problem when dealing with only a single image, and

some kind of priors about the scene must be introdu-

ced(Levin et al., 2007). However, if the prior is not

suitable for the scene, simultaneous estimation of the

PSF and latent image will fail. Therefore, multiple

images with different optical parameters such as fo-

cus distance or aperture shape are commonly used

to make the problem solvable(Hiura and Matsuyama,

1998; Zhou et al., 2009). In this paper, we explore the

use of disparity introduced by a stereo camera pair to

determine the size of the PSF. Contrary to sequential

capture with different optical settings, stereo cameras

can deal with moving scenes. To determine the size

of the PSF, we need to calibrate the relationship be-

tween disparity and focus. In this paper, we present a

proof showing that the diameter of the blur kernel is

directly proportional to the relative disparity from the

focus distance.

The other important factor in the preciseness of

deblurring is the characteristics of the PSF. If a nor-

mal circular aperture is used, information in the high

spatial frequency domain is almost lost (Veeraragha-

van et al., 2007). Therefore, we introduce coded aper-

tures to two lenses of the stereo camera to retain the

information of the scene as far as possible. The spe-

cial aperture also makes the stereo matching robust,

103

Takeda Y., Hiura S. and Sato K..

CODED APERTURE STEREO - For Extension of Depth of Field and Refocusing.

DOI: 10.5220/0003818801030111

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 103-111

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

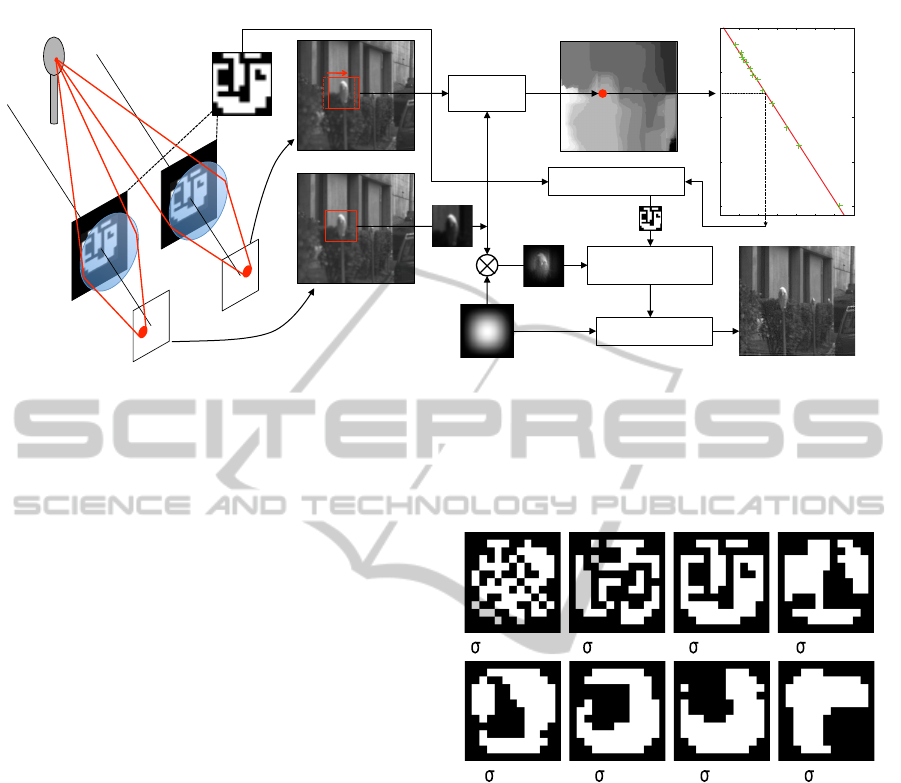

Left input image!

Right input image!

Disparity!

Stereo

Matching

Disparity Map!

All-in-focus Image!

Window Function!

Scaling of Blur Kernel

Wiener

Deconvolution

Integration!

(weighted sum)

Aperture

Pattern!

100

120

140

0 50 100 150 200

kernel size [pixel]

disparity [pixel]

Conversion of Disparity

to Blur Kernel Size

Coded

Apertures

Lens


Sensors

Object

Figure 1: Process ﬂow of proposed method.

and the clear scene is stably recovered using the pre-

cisely determined PSF.

Related work is brieﬂy summarized in Section 2.

An overview of the proposed system and the algo-

rithms is presented in Section 3, together with a proof

of the linear relationship between blur size and dis-

parity. Experiments are discussed in Section 4, while

Section 5 concludes the paper.

2 RELATED WORK

Optical blur (defocus) appearing in images captured

with conventional cameras is modeled as the convo-

lution of the sharp original scene and a blur kernel

(i.e., the PSF). Thus, the latent image can be recon-

structed by applying an inverse ﬁlter or deconvolution

techniques to the captured image. Several methods

including Richardson-Lucy deconvolution (Richard-

son, 1972) and MAP estimation (Lam and Goodman,

2000) have been proposed; however, the performance

of the reconstruction depends greatly on the correct-

ness of the blur kernel. In particular, a circular blur

kernel in a conventional aperture contains many zero

crossings in the spatial frequency, while reconstruc-

tion at a frequency of low gain is unstable with much

noise inﬂuence. Therefore, the idea of designing an

aperture shape with the desirable spatial frequency

characteristics was proposed. Hiura et al. introduced

a coded aperture to improve the preciseness of depth

estimation using the defocus phenomenon (Hiura and

Matsuyama, 1998). Similarly, Levin et al. (Levin

et al., 2007) and Veeraraghavan et al. (Veeraraghavan

et al., 2007) tried to remove the defocus effect from

a single image taken by a camera with independently

designed coded apertures. Desirable aperture shapes

have been explored by Zhou et al. (Zhou and Nayar,

2009) and Levin et al. (Levin, 2010).

Circular Annular

MURA

Image Pattern

Random

Multi-Annular

Levin

Veeraraghavan

=0.0001

=0.001

=0.008 =0.01

=0.005=0.002

=0.02 =0.03

Proposed

Figure 3. All the aperture patterns we used in our simulations.

Top two rows: Eight patterns, including circular, annular, multi-

annular, random, MURA, image pattern, Levin et al.’s pattern [13],

and Veeraraghavan et al.’s pattern [3]. Bottom two rows: Eight of

our patterns optimized for noise levels from σ =0.0001 to 0.03.

have used it in all of our comparisons and experiments. It

must be noted that similar algorithms have been advocated

in the past (see [19] for example).

6. Performance Comparison of Apertures

Before conducting real experiments, we ﬁrst performed

extensive simulations to verify our aperture evaluation cri-

terion and optimization algorithm. For this, we used the 16

aperture patterns shown in Figure 3. The top 8 patterns in-

clude simple ones (circular, annular, and multi-annular) and

more complex ones proposed by other researchers [9], [13],

[3]. In addition, we have tested an “image pattern,” which

is a binarized version of the well-known Lena image, and

a random binary pattern. The bottom 8 patterns were pro-

duced by our optimization algorithm for different levels of

image noise. The performances of these 16 apertures were

evaluated via simulation over a set of 10 natural images at

eight levels of image noise.

For each aperture pattern k and each level of image noise

σ, we simulated the defocus process using Equation (1), ap-

plied defocus deblurring using Equation (13), and got an

estimate

of the focused image f

. Using each deblurred

image, the quality of the aperture pattern was measured as

�

�f

−

�

. To make this measurement more reliable, we

repeated the simulation on 10 natural images and took the

average. These results are listed in Table 2 for the 16 aper-

ture patterns and 8 levels of image noise. Our optimized

patterns perform best across all levels of noise, and the im-

provement is more signiﬁcant when the noise level is low.

On the other hand, the circular (conventional) aperture is

close to optimal when the noise level is very high. While

there are different optimal apertures for different levels of

image noise, we may want a single aperture to use in a va-

riety of imaging conditions. In this case, we could pick the

optimized pattern for σ =0.001 as it performed well over a

wide range of noise levels (from σ =0.0001 to 0.01).

It is interesting to note that the image pattern (Lena)

also produces deblurring results of fairly high quality. We

believe this is because the power spectrum of the image

pattern follows the 1/f law–it successfully avoids zero-

crossings and, at the same time, has a heavy tail covering the

high frequencies. Unfortunately, the image pattern consists

of a lot of small features, which introduce strong diffraction

effects. We believe that it is for this reason that the image

pattern did not achieve as high quality results in our experi-

ments as predicted by our simulations.

7. Experiments with Real Apertures

As shown in Figure 4(a), we printed our optimized aper-

ture patterns as well as several other patterns as a single high

resolution (1 micron) photomask sheet. To experiment with

a speciﬁc aperture pattern, we cut it out of the photomask

sheet and inserted it into a Canon EF 50mm f/1.8 lens

In Figure 4(b), we show 4 lenses with different apertures

(image pattern, Levin et al.’s pattern, Veeraraghavan et al’s

pattern, and one of our optimized patterns) inserted in them,

and one unmodiﬁed (circular aperture) lens. Images of real

scenes were captured by attaching these lenses to a Canon

EOS 20D camera. As previously mentioned, we choose the

pattern which is optimized for σ =0.001, as it performs

well over a wide range of noise levels in the simulation.

To calibrate the true PSF of each of the 5 apertures, the

camera focus was set to 1.0m; a planar array of point light

sources was moved from 1.0m to 2.0m with 10cm incre-

ments; and an image was captured for each position. Each

defocused image of a point source was deconvolved using

a registered focused image of the source. This gave us PSF

estimates for each depth (source plane position) and several

locations in the image

. In Figure 4(c-g), two calibrated

PSFs (for depths of 120cm and 150cm) are shown for each

pattern.

7.1. Comparison Results using Test Scenes

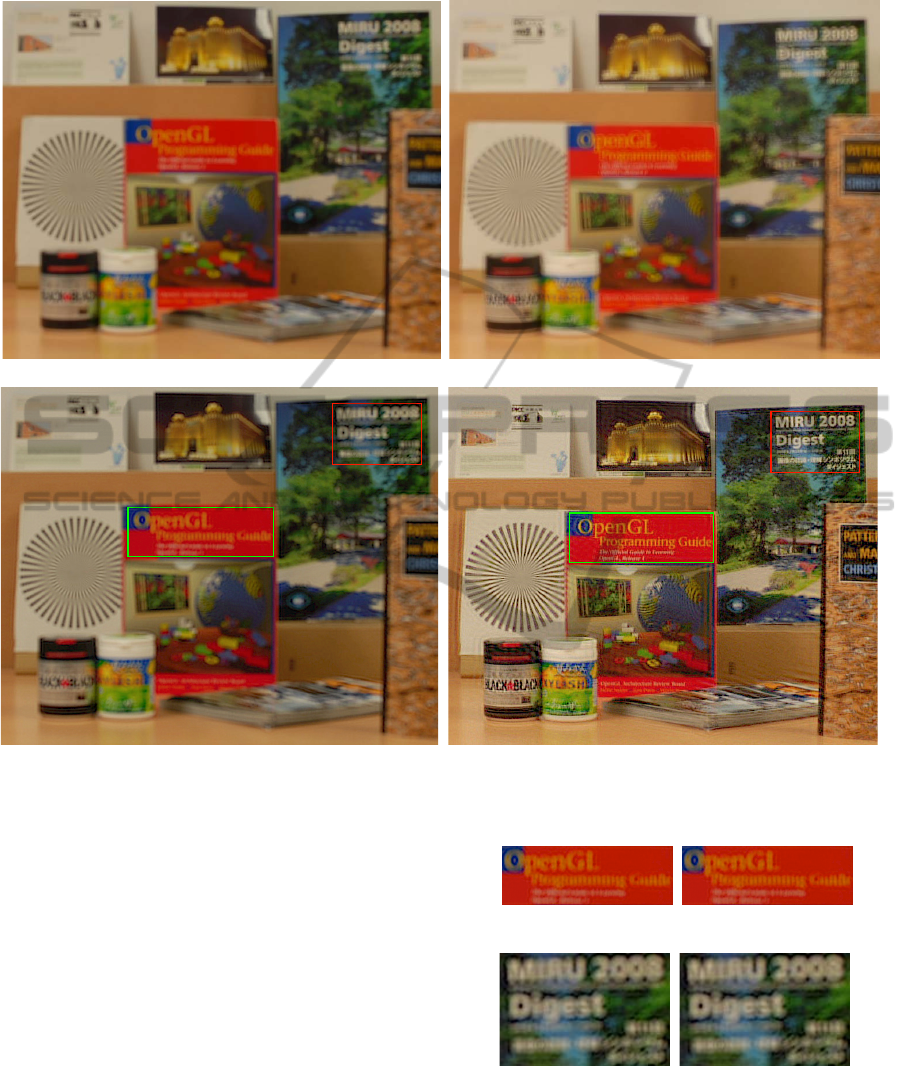

In our ﬁrst experiment, we placed a CZP resolution chart

at a distance of 150cm from the lens, and captured images

using the ﬁve different apertures. To be fair, the same expo-

sure time was used for all the acquisitions. The ﬁve captured

images and their corresponding deblurred results are shown

We chose this lens for its high quality and because we were able to

disassemble it to insert aperture patterns with relative ease.

We measured the PSF at different image locations to account for the

fact that virtually any lens (even with a circular aperture) produces a spa-

tially varying PSF.

Figure 2: Shapes of Zhou’s codes for various noise levels,

σ (Zhou and Nayar, 2009).

Since the size of the blur kernel varies with the

distance between the camera and object, it is neces-

sary to estimate the depth of the captured scene accu-

rately. Depth estimation through the optical defocus

effect is called Depth from Defocus, and a number of

studies on this aspect have been carried out (Schech-

ner and Kiryati, 2000). In general, it is not easy to

estimate the depth of a scene using a single image, be-

cause simultaneous estimation of the blur kernel and

latent image is under constrained. Therefore, Levin et

al. (Levin et al., 2007) assumed a Gaussian prior to

the edge power histogram to make the problem well-

conditioned. However, this method is not always ro-

bust, and the authors mentioned that human assistance

was sometimes necessary.

Several studies estimating depth from multiple

images captured by different optical parameters have

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

104

been conducted to make Depth from Defocus robust.

Nayer et al. (Nayar et al., 1995) proposed a method

that captures two images with different focus dis-

tances from the same viewpoint by inserting a prism

between a lens and image sensor. Similarly, Hiura et

al. (Hiura and Matsuyama, 1998) used a multi-focus

camera that captures three images with different focus

distances, and introduced a coded aperture to simulta-

neously estimate the depth map and a blur-free image

of the scene using an inverse ﬁlter.

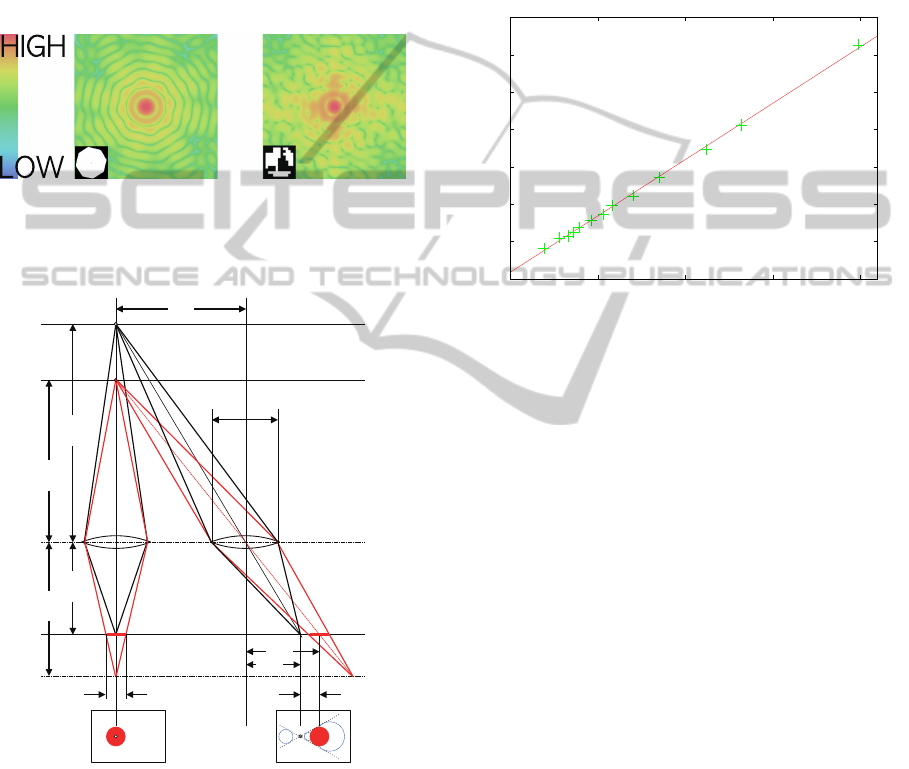

Figure 3: Log of the power spectrum of the aperture shape:

(left) the conventional iris diaphragm; (right) Zhoufs code

as used in this paper.

Figure 4: Relation between disparity and blur size.

Similarly, other optical factors can be incorpo-

rated to make the deblurring problem solvable. In the

research by Zhou et al. (Zhou et al., 2009), two dif-

ferent aperture shapes were used to estimate the depth

map and latent image. The authors also proposed op-

timal aperture shapes for their system, where the cen-

troid of the opening is offset from the center of the

aperture. This means that the difference in aperture

shapes occasionally has the effect of disparity, which

is commonly used in stereo cameras. However, accu-

racy of the depth estimation of Depth from Defocus is

lower than that of stereo depth estimation as pointed

out by Schechner et al. (Schechner and Kiryati, 2000)

because the disparity caused by the change in aperture

shape is limited to within the lens diameter. Addition-

ally, their system cannot deal with moving scenes be-

cause images with different aperture shapes are cap-

tured sequentially.

100

120

140

0 50 100 150 200

kernel size [pixel]

disparity [pixel]

Figure 5: Relation between disparity and blur kernel size.

Blur kernel size is linear with disparity. The red line denotes

the calibrated parameters.

To summarize, there are two methods for captur-

ing multiple images from a single lens with varying

optical parameters. In the ﬁrst, an optical device such

as a prism or mirror is placed between the lens and im-

age sensor (Green et al., 2007), while in the other, im-

ages are captured sequentially with changing param-

eters (Liang et al., 2008). The former method is ex-

pensive and complicated with specially made optics,

while the latter is not applicable to moving scenes.

Additionally, using a single lens limits the precise-

ness of the depth estimation to a short baseline length

within the lens aperture. Therefore, we propose a ro-

bust depth estimation and deblurring method using

images captured by a stereo camera with coded aper-

tures. Stereo depth estimation is widely used since it

is not necessary to use special optical devices in the

camera. Furthermore, a stereo camera makes it pos-

sible to control the baseline length, which is indepen-

dent of the blur size of the lens, thus leading to robust

depth estimation. Coded apertures make not only de-

convolution but also stereo matching very robust, be-

cause the loss of high spatial frequency domain in-

formation in blurred image is adequately suppressed.

Calibration of the system is very easy because the size

of the blur kernel is linear with the disparity of stereo

images.

CODED APERTURE STEREO - For Extension of Depth of Field and Refocusing

105

(a) Circular aperture. (b) Coded aperture.

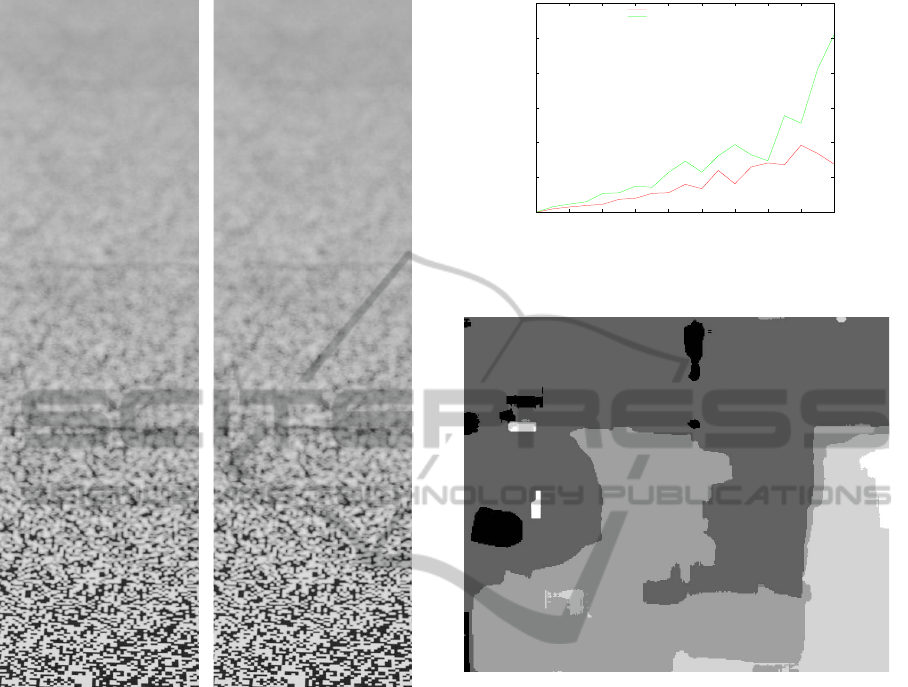

Figure 6: Captured images for the ﬁrst experiment. Focus

was set at the nearest point (lower part of ﬁgures).

3 CODED APERTURE STEREO

An overview of our system and proposed method is

illustrated in Figure 1. Input images are captured by a

stereo camera with coded apertures. The shape of the

aperture is the same, and therefore, the effect of the

defocus is common to both input images.

First, stereo matching is calculated for the two

captured images, providing a depth map of the scene.

Any stereo matching algorithm for normal stereo

cameras without coded apertures can be used, because

the input images defocused by common coded aper-

tures are still identical at any distance.

Next, the input image is deblurred by applying

Wiener deconvolution. Since the size of the blur ker-

nel (diameter of circle of confusion) depends on the

distance to the object, disparity of the stereo matching

is used to calculate the size of the blur kernel. Since

0 1 2 3 4 5 6 7 8 9

error ratio[%]

variance

Coded Aperture

Conventional Aperture

Figure 7: Experiment 1: comparison of error ratio in stereo

matching.

Figure 8: Experiment 2: disparity map with coded aperture,

where a high intensity denotes a large disparity.

the scene consists of various distances, the input im-

age is clipped to many overlapping small regions us-

ing a window function. The ﬁnal result of the whole

deblurred image is created by integrating all clipped

regions using a weighted average of the window func-

tion.

In this section, we ﬁrst discuss the improvement

in depth estimation using a coded aperture. Then, we

show that the disparity of stereo matching is linear

with the size of the blur kernel.

3.1 Effect of a Coded Aperture on

Stereo Matching

Since the scene to be measured by the stereo cam-

era has various depths, input images are inevitably

affected by the optical blur phenomenon caused by

lenses focused at a ﬁxed depth. In general, such

blurring effect degrades the accuracy of stereo depth

measurement, so the aperture of the lens is usually

stopped down as much as possible to extend the depth

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

106

of ﬁeld. However, as described before, this decreases

the amount of light passing through the lens, and the

longer exposure time introduces motion blur. There-

fore, we propose coded aperture stereo, that is, stereo

depth measurement using images captured with a

coded aperture inserted in the lenses.

Since a coded aperture changes the shape of the

blur kernel, it is able to control the effect of opti-

cal blur to the desirable characteristics. From the

viewpoint of a spatial frequency domain, the high fre-

quency component of the scene texture should be kept

to make the stereo matching robust. This is the rea-

son that we use pan-focus settings for the stereo cam-

eras. For example, the blur kernel of an extremely

small aperture can be assumed to be a delta function,

which is considered to be one of the broadband sig-

nals. However, the transmission ratio inside the lens

aperture is less than 1, so the exposure value decreases

if we use small apertures. Therefore, we use a spe-

cially designed aperture to keep the high spatial fre-

quency component with a sufﬁcient amount of light

using a coded aperture.

Several aperture shapes have been proposed in

various studies on coded apertures (Levin et al., 2007;

Veeraraghavan et al., 2007). In particular, Zhou et

al. (Zhou and Nayar, 2009) tried to ﬁnd an optimal

aperture shape for the given signal-to-noise ratio of

the sensor. Henceforth, this code is referred to as

Zhou’s code. A genetic algorithm was used to ﬁnd

Zhou code that is optimal for Wiener deconvolution

under the condition of a 1/ f distribution of the spa-

tial frequency for the scene as a prior. The ﬁnal result

varies according to the noise level σ of the sensors as

shown in Figure 2.

Figure 3 shows the spatial frequency response of

the convolution using both circular and Zhou code

aperture shapes. A conventional aperture has periodi-

cal low values even at low spatial frequency (near the

center of the image), whereas even the high frequency

components are well kept with Zhou’s code. These

characteristics are expected to enhance the robustness

of the stereo matching like pan-focus settings as veri-

ﬁed later through an experiment.

3.2 Disparity of Stereo Matching and

Circle of Confusion

In traditional studies on extending the depth of ﬁeld

using a coded aperture (Hiura and Matsuyama, 1998;

Levin et al., 2007; Veeraraghavan et al., 2007; Zhou

et al., 2009; Levin, 2010), determining the size of the

blur kernel corresponds directly to the depth estima-

tion. In other words, the depth of a scene is estimated

through the recovery of the original images using a

deblurring technique. In our research, however, the

blur kernel must be independently estimated from the

disparity computed by the stereo matching. There-

fore, it is necessary to determine the relation between

disparity and blur size. In this subsection, we show

that the disparity in stereo measurement corresponds

linearly with the size of the circle of confusion.

Figure 4 depicts a stereo camera with optical axes

parallel with each other, and the two cameras having

lenses with the same diameter, D. Here, the optical

images of planes p

and p

are at planes q

and q

behind the lens, respectively. Without loss of gener-

ality, we can assume that the object is on the optical

axis of the left camera. The distances between the

lens and the four planes denoted by a

, a

, b

, and b

in Figure 4 have the following relationships with the

raw lenses:

(1)

where f is the common focal length of the lenses.

Then, we assume that two image sensors are

placed on plane q

, and an object on plane p

is out

of focus while the one on p

is in focus. Since the

two lenses have the same aperture shape, images of

the point on plane p

are observed as the same ﬁgures

on images I

and I

. In Figure 4, these are depicted as

red circles. Images of the points on planes p

and p

have disparities d

and d

, respectively. Using these

parameters, we can calculate the relative disparity, d,

from the focus distance as

d = d

− d

(

−

)

l (2)

where l is the length of the baseline of the stereo cam-

era.

Next, the diameter of the circle of confusion c for

the point on plane p

can be expressed as

c =

− b

D (3)

using the distance between q

and q

. Thus, using

Eqs. (2) and (3), we can calculate the ratio between

the size of the blur kernel and the disparities as

− b

(

−

)

. (4)

However, we can replace the terms in parentheses as

follows

−

− b

(5)

to obtain the ﬁnal equation,

− b

(6)

CODED APERTURE STEREO - For Extension of Depth of Field and Refocusing

107

(a) Captured image with circular aperture. (b) Captured image with coded aperture.

Figure 9: Experiment 2: Deblurring of scene with depth variation.

where the ratio between the diameter of the blur circle

is directly proportional to the relative disparity from

the focus distance, and the constant of proportion is

the ratio between the diameter of the lens and the

length of the baseline.

More intuitively, as shown in the right image I

in Figure 4, the circle of confusion simultaneously

scales and shifts along with the distance, and the enve-

lope of the circle of confusion forms two lines cross-

ing at the focal point.

This conclusion makes it very simple to convert

the disparity between two images to the size of the

blur kernel. If the two optical parameters, the size

of the aperture, and the baseline length are precisely

known, we can directly convert the disparity to the

blur size. If not, we can simply use two point light

sources at different distances in the scene, and we

can measure the size of the blur kernel and dispar-

(a) Close-up of green

region in Figure 9(c).

(b) Close-up of green

region in Figure 9(d).

gion in Figure 9(c).

(d) Close-up of red re-

gion in Figure 9(d).

Figure 10: Close-ups of deblurred images (Figures 9(c) and

9(d)).

ity from the captured images to obtain the coefﬁcient.

If a more precise estimate is needed, we can use the

simple least squares method.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

108

Figure 5 illustrates an example of the relation-

ship between disparity and blur size. With point light

sources placed at varying distances, we measure the

size of the blur kernel and disparity. In the ﬁgure,

green crosses indicate measured points, while the red

line is a ﬁtting line calculated using the least squares

method. Since the focus distance of the lens was set to

inﬁnity, the size of the blur kernel size was estimated

to be zero when the disparity was also zero.

3.3 Extension of Depth of Field

With captured image y and known blur kernel f , a

latent, blur-free image x can be estimated by Wiener

deconvolution. Using a Fourier transform, we can cal-

culate Y (ω) as the frequency domain representation

of y and F (ω) as the frequency domain representa-

tion of f . Then, the Fourier transform of latent image

x can be calculated by

X (ω) =

∗

(ω)Y (ω)

F (ω)

+ σ

(7)

where F

∗

(ω) is the complex conjugate of F (ω) and σ

is a constant to avoid emphasis of noise where the blur

kernel has low power components or division by zero.

This term should be determined by the noise level of

the input images, and also used to select the appropri-

ate Zhou code (Zhou and Nayar, 2009). The original

scene x can be calculated by an inverse Fourier trans-

form of X (ω).

Since Wiener deconvolution is a processing in the

frequency domain, blur kernel f should be uniform

within the processed image. However, as the depth

of the scene is not uniform, the captured image must

be clipped out from the captured image using a win-

dow function, and the Wiener deconvolution applied

to each region. In the experiment, we used a Ham-

ming window as the window function, and the image

was clipped to 64 pixels square, shifting 8 pixels.

4 EXPERIMENTS

In this section, the results of three experiments are

given. First, robustness of stereo matching by Zhou’s

code is investigated by evaluating the matching er-

ror with images to which white noise has been in-

tentionally added. Second, an image of the depth of

ﬁeld extension is shown by removing blur from the

captured image using the process shown in Figure 1.

And ﬁnally, we present the refocusing result, com-

puted from an all-in-focus image and depth map, to

be artiﬁcially focused on a distance different from the

captured image, and otherwise blurred.

The camera and lens used in the experiments were

a Nikon D200 and SIGMA EX 30mm f/1.4 EX DC,

respectively. The image format was 8 bit JPEG. In-

stead of using two cameras, a camera was placed on

a sliding stage, and images were captured by mov-

ing the camera laterally. The distance of the transla-

tion (length of the baseline) in the experiments was 14

mm. The aperture code used in the experiments was

one of Zhou’s codes for noise, σ = 0.005, in Figure

2, inserted at the rear of the lens. To avoid vignetting,

the f-number of the original lens aperture was set to

f/1.4. For comparison with normal aperture shapes,

the code mask was removed from the lens, and the f-

number of the original lens was set to f/5.0 to keep the

exposure value and shutter speed equal. As a result,

the area of the coded aperture was equal to that of the

circular aperture.

4.1 Experiment 1: Robustness of Stereo

Matching

We conducted an experiment to evaluate the robust-

ness of the stereo matching with Zhoufs code. While

we used actual captured images, we intentionally

added white noise to the images.

A random black-and-white pattern with a 1-mm

grid size was printed on a sheet of paper and placed

on a table. Cameras were placed at oblique angles,

with the distance from the camera to the object vary-

ing along the vertical axis of the image. The depth

range was around 50 cm to 100 cm from the bottom

to the top of the image, and the focus distance was ad-

justed at the nearest distance of the object. Captured

images with circular and coded apertures are shown

in Figures 6(a) and 6(b), respectively.

From these images, we can see that the exposure

values of the normal and coded apertures are almost

the same, but compared with the image by the circular

aperture, the image with the coded aperture preserves

some texture information well, even in the heavily de-

focused regions.

To evaluate robustness of stereo matching, zero-

mean white noise was added to both captured images.

The variance of the noise ranged from 0 to 9.0 with

a 0.5 step, and the error ratio of stereo matching was

calculated.

Figure 7 shows the error ratio of stereo match-

ing, where the error ratio is deﬁned as the number of

pixels whose disparity differs from that in the noise-

less image. The average error ratio is 3.22% and

1.72% for the circular and coded apertures, respec-

tively. As the variance increases, so too does the er-

ror ratio. However, the error ratio of the coded aper-

ture is always lower than that of the circular aperture.

CODED APERTURE STEREO - For Extension of Depth of Field and Refocusing

109

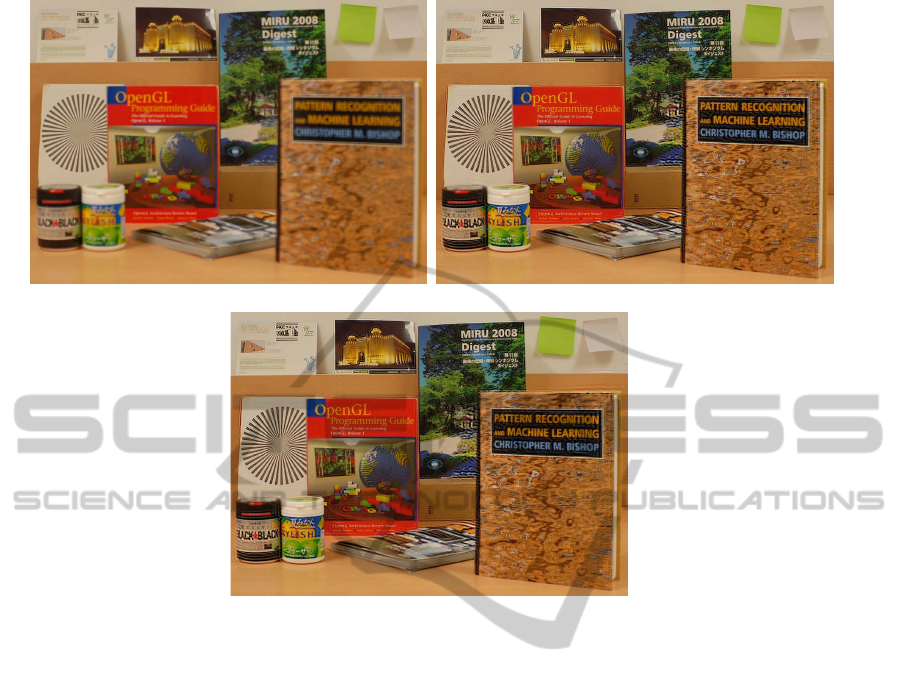

(a) Captured image. (b) All-in-focus image

Figure 11: Experiment 3: Refocusing.

This shows that broadband code such as Zhou’s code

makes stereo matching robust.

4.2 Experiment 2: Robustness of

Deblurring

We conducted a depth of ﬁeld extension experiment

using a real scene.

For the scene shown in Figure 9, images were cap-

tured with circular and coded apertures, and we con-

ducted stereo matching and deblurring using our sys-

tem. In this experiment, the focus distance of the lens

was set to a point further than the furthest distance in

the scene to show the deblurring effect clearly. The

disparity map using the coded aperture is shown in

Figure 8.

Figures 9(a) and 9(b) show one of the captured im-

ages with circular and coded apertures, respectively,

while Figures 9(c) and 9(d) give the corresponding

results after deblurring. Figure 10 shows close-ups

of the rectangles in Figures 9(c) and 9(d). It is clear

that sharpness is greatly improved in images with the

coded aperture, while the result with the circular aper-

ture has slightly improved sharpness and does not

show much effect of deblurring.

4.3 Experiment 3: Refocusing

As an application of our method, we show an example

of a refocused image computed from an all-in-focus

image and a disparity map. The same setup as in ex-

periment 2 was used, with the focus set to the furthest

part in the scene to clearly show the effect of refo-

cusing. For the input image shown in Figure 11(a),

we can see the effect of blurring on a book placed

on the right side. In Figure 11(b), an all-in-focus im-

age is shown. Optical blur of the objects on the table

and the PRML book has been removed and the im-

age sharpened. The refocused image created by blur-

ring the all-in-focus image with the circular aperture

kernel and disparity map is shown in Figure 11(c).

Contrary to the input image, close objects are seen

sharply, while other distant objects are blurred in the

refocused image.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

110

5 CONCLUSIONS

In this paper, we presented a depth of ﬁeld extension

method for defocused images, which removes blur in

the captured image using coded aperture stereo and

Wiener deconvolution. We proved that disparity of

stereo matching is proportional to the size of the blur

kernel, and this theory makes PSF estimation from

disparity easy. We also showed that stereo matching

with a coded aperture makes stereo matching robust.

We showed through experiments that our system can

remove defocus blur from captured images accurately

by estimating the PSF from disparity and deblurring.

As an application, we presented a refocused image

computed from an all-in-focus image and a disparity

map.

In the experiments, instead of using a stereo cam-

era, we set a camera on a sliding stage and captured

the static scene. Nevertheless, using two cameras, it

is possible to use our method to capture a dynamic

scene.

In this paper, the same aperture pattern and focus

distance were used in the cameras. Our future work

aims to integrate Depth from Defocus and stereo, and

extend the theory to the case with different apertures

and focal settings.

ACKNOWLEDGEMENTS

This work was partially supported by Grant-in-Aid

for Scientiﬁc Research (B:21300067) and Grant-

in-Aid for Scientiﬁc Research on Innovative Areas

(22135003).

REFERENCES

Green, P., Sun, W., Matusik, W., and Durand, F. (2007).

Multi-aperture photography. In ACM SIGGRAPH

2007 papers, SIGGRAPH ’07, New York, NY, USA.

ACM.

Hiura, S. and Matsuyama, T. (1998). Depth measurement

by the multi-focus camera. In Computer Vision and

Pattern Recognition, 1998. Proceedings. 1998 IEEE

Computer Society Conference on, pages 953 –959.

Lam, E. Y. and Goodman, J. W. (2000). Iterative statistical

approach to blind image deconvolution. J. Opt. Soc.

Am. A, 17(7):1177–1184.

Levin, A. (2010). Analyzing depth from coded aperture

sets. In Proceedings of the 11th European conference

on Computer vision: Part I, ECCV’10, pages 214–

227, Berlin, Heidelberg. Springer-Verlag.

Levin, A., Fergus, R., Durand, F., and Freeman, W. T.

(2007). Image and depth from a conventional cam-

era with a coded aperture. In ACM SIGGRAPH 2007

papers, SIGGRAPH ’07, New York, NY, USA. ACM.

Liang, C.-K., Lin, T.-H., Wong, B.-Y., Liu, C., and Chen,

H. H. (2008). Programmable aperture photography:

multiplexed light ﬁeld acquisition. In ACM SIG-

GRAPH 2008 papers, SIGGRAPH ’08, pages 55:1–

55:10, New York, NY, USA. ACM.

Nayar, S., Watanabe, M., and Noguchi, M. (1995). Real-

time focus range sensor. In Computer Vision,

1995. Proceedings., Fifth International Conference

on, pages 995 –1001.

Richardson, W. H. (1972). Bayesian-based iterative method

of image restoration. J. Opt. Soc. Am., 62(1):55–59.

Schechner, Y. Y. and Kiryati, N. (2000). Depth from defo-

cus vs. stereo: How different really are they? Int. J.

Comput. Vision, 39:141–162.

Veeraraghavan, A., Raskar, R., Agrawal, A., Mohan, A.,

and Tumblin, J. (2007). Dappled photography: mask

enhanced cameras for heterodyned light ﬁelds and

coded aperture refocusing. ACM Trans. Graph., 26.

Zhou, C., Lin, S., and Nayar, S. (2009). Coded aperture

pairs for depth from defocus. In Computer Vision,

2009 IEEE 12th International Conference on, pages

325 –332.

Zhou, C. and Nayar, S. (2009). What are good apertures

for defocus deblurring? In Computational Photogra-

phy (ICCP), 2009 IEEE International Conference on,

pages 1 –8.

CODED APERTURE STEREO - For Extension of Depth of Field and Refocusing

111
