WHITEBOARD-BASED TELECONFERENCING APPLICATION

ON MOBILE DEVICES OVER EXISTING XMPP SERVERS

John Bennedict T. Lorenzo and Rowel O. Atienza

Electrical and Electronics Engineering Institute, University of the Philippines, Diliman, Quezon City, Philippines

Keywords: Remote Collaboration, Digital Whiteboard, VoIP, Mobile Application.

Abstract: The need for internet teleconferencing is fueled by businesses which do not have the time and resources to

transport all the needed employees located around the world to work on a project or collaborate on an idea.

Current solutions to internet teleconferencing include VoIP and video conferencing, e.g. Skype. VoIP

permits a natural way of communication through voice but lacks visual information communication. On the

other hand, video conferencing requires a lot of bandwidth. The proposed approach uses a shared drawing

board, which all collaborators can see in realtime, together with VoIP to provide an intuitive and effective

communication medium. Our approach requires less bandwidth than video conferencing and is able to

communicate ideas such as ways of solving a circuit problem, collaborating on an interface prototype for a

new project, or strategizing a basketball game. Our approach utilizes the touch screen interface of current

tablets and smartphones as an intuitive way to draw. The application uses Google’s existing XMPP servers,

for three reasons: (1) most people already have accounts on them, (2) those accounts have existing contacts,

and (3) offload server maintenance to another entity. The system obtained a passing SUS score and a lower

than expected MOS.

1 INTRODUCTION

Collaboration over the internet is a convenient way

to meet people from across the globe without having

to wait for them to arrive and without spending for

airfare. People often need to collaborate to produce

meaningful work. The lecture hall of a university for

example, collaborate the lecturer with the students to

educate them. These lecture halls sometimes have a

video projector that commonly projects a whiteboard

onto a larger screen that all the students can see. The

benefit obtained in that situation is sharing of

information through graphs and writings. Therefore,

even if the students and the lecturer are remotely

located from each other, what is important is the

communication that leads to sharing of information.

When the students provide feedback to the lecturer

via questions and queries, would it not be better to

also allow them to draw on that whiteboard?

Provided their insight and what they are going to

draw there is meaningful. Having both students and

lecturer being able to access the whiteboard makes

the whiteboard shared, and if both parties are

cooperative, collaboration between them begins. Our

approach is inspired by great lectures made on

whiteboards or blackboards on lecture halls in a

university.

Looking at the available technologies for remote

collaboration, videoconferencing systems can bring

a more realistic collaboration experience to users.

However it requires enormous bandwidth, requires

the cameras to be fixed on the collaborators' object

of interest, and costs a lot. Videoconferencing also

does not allow people to modify a shared object,

such as a whiteboard. VoIP collaboration systems

require less bandwidth than videoconferencing,

however, they lack the ability to relay visual

information. Meanwhile, pure text-based

conferencing is similar to VoIP, both of which

cannot easily relay visual information. However this

kind of conferencing requires little bandwidth as it

has been used since the 56k era. To be able to relay

visual information while using as little bandwidth as

possible, drawings can be represented as a series of

line strokes, which can be transmitted as text

containing its start and end points. Using this low

bandwidth text transmission to relay visual

information and at the same time enabling users to

communicate naturally with their voice, using VoIP,

one can build a system from tablets and smartphones

129

T. Lorenzo J. and O. Atienza R..

WHITEBOARD-BASED TELECONFERENCING APPLICATION ON MOBILE DEVICES OVER EXISTING XMPP SERVERS.

DOI: 10.5220/0003820901290134

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 129-134

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

of today to produce a portable productivity and

collaboration tool.

The number of smartphone owners worldwide

has increased from 41 million users in 2009 to 80.5

million users in 2010 (Gartner, 2011). That figure

does not yet include other mobile devices such as

tablets, e.g. the iPad, and non- phone devices, e.g.

iPod Touch. Due to this large and growing user base,

mobile collaboration services provide tremendous

new opportunities that are not possible on PCs (Li et

al., 2008). In addition, due to the fact that

smartphones use a touch screen interface, the user

has an intuitive way to draw on the device. Our

proposed approach uses these advantages of the

mobile device, specifically the iOS devices, both

increasing user base and usability, as a leading edge

over existing whiteboard collaborative systems.

There are existing applications like the proposed

system in the Apple App Store. These are Netsketch

(Gotow, 2011) and Whiteboard Pro (GreenGar

Studios, 2011). These applications provide

collaboration on a shared whiteboard. However, the

applications only works on local network due to

absence of a server for user presence. Having a

collaboration tool work only on the local network

prevents use cases of the system where collaborators

are geographically challenged. The proposed system

works outside of the local network by utilizing an

existing presence and messaging server. In addition,

the proposed system provides voice over IP, not

found on other existing apps, that would possibly

improve the perceived usability by users.

There are existing work on using electronic

whiteboard on mobile devices. Work by

Ambikairajah et al. (2007) focuses on using tablet

PCs for use with teaching DSP education. Demeure

et al., (2005) used PDAs with whiteboards as

supplement to lectures and meetings. Liu et al.

(2002) did an earlier attempt to use wireless

technologies as a tool in a classroom environment.

The system would also work for people located

remotely from each other.

The application without its Voice over IP

capabilities has also been released on the Apple App

Store under the name DoodleTalk.

The next section contains details about how the

system was implemented from building the digital

whiteboard and voice over IP features, call signaling

and NAT traversal. Then in the succeeding section

the system is tested and results are presented.

2 DESIGN AND

IMPLEMENTATION

To implement the application, several libraries and

frameworks were used. A library that implements

the RTP stack called oRTP (Morlat, n.d.) was used.

A library that implements XMPP related functions

called xmppframework was used.

The shared digital whiteboard implemented

allows two or more people to share a digital

whiteboard. A person's changes to the digital

whiteboard can also be seen by others. This enables

communication not limited to text.

To complement the digital whiteboard feature,

voice over IP is implemented. Voice communication

will potentially allow easier communication than

with the shared digital whiteboard only. The

expected experience on the final application will be

similar to listening to a classroom lecture while

looking at notes being made shown on a digital

video projector.

The voice over IP feature is implemented by

parts in the following sequence: audio related

functions, peer to peer communication, call

signaling, and NAT traversal but most details of the

implementation will not be discussed here. The

audio related functions provide access to the voice

data captured by the microphone and also the buffers

that the speakers use when playing audio. Peer to

peer communication provides wrapping of audio

data into RTP packets, and facilities to send and

receive RTP packets. Call signaling provides

automatic discovery of the peer's IP address and port

and exchange those information with that peer to

establish a working call. Finally, NAT traversal

allows the voice over IP feature to work through

most NAT topologies.

Call signaling is derived XEP-0166 (Ludwig et

al., 2009) and the Google Talk Call Signaling

protocol document (Google, n.d.a).

NAT traversal was implemented by using STUN,

which is defined in RFC 5389 (Rosenberg et al.,

2008). It uses Google’s own STUN server that

echoes the public address and port number where a

packet originated. Even with this utility, the

application will work only on some network

topologies.

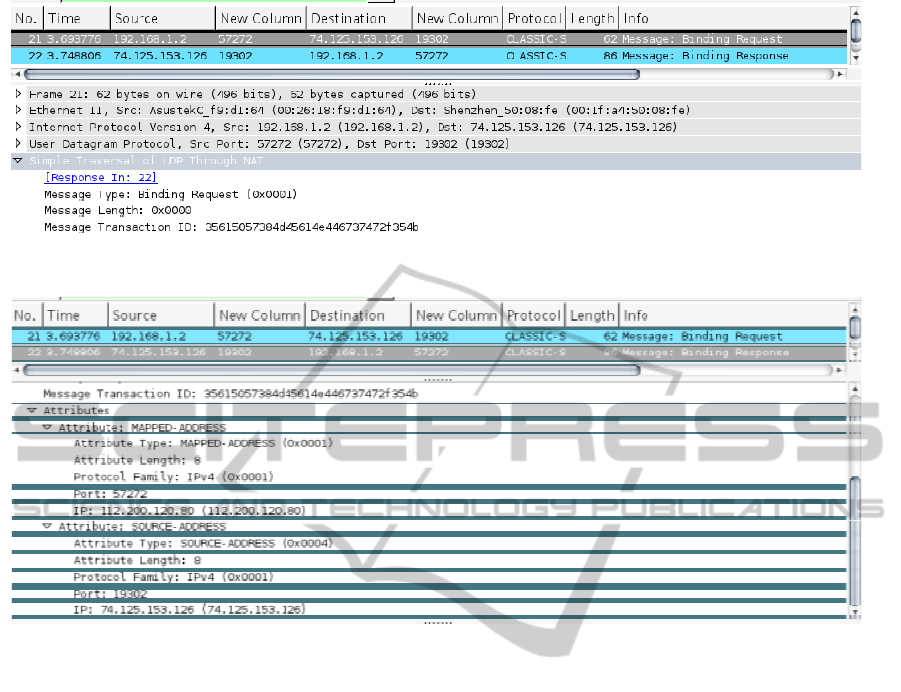

The packet sniffer used is Wireshark on Mac

OSX. The network setup used when sniffing packets

is as follows. A laptop running Mac OSX was setup

to make an ad-hoc network that shares its ethernet

connection. Then an iPod Touch is made to connect

to the ad-hoc network. That way, packets going to

and from the iPod Touch can be sniffed including

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

130

packets to and from the iPhone Simulator running on

the laptop.

2.1 Digital Whiteboard

The protocol for implementing communication for

the devices using the digital whiteboard is partially

derived from Postscript commands.

There are four PostScript derived commands

used in drawing: lineto, moveto, color, and width.

The functions of these instructions are as follows.

The instruction `lineto x y` is used to represent a line

drawing from a previous saved point (x',y') to the

coordinate (x,y) and then changes the saved point to

(x,y). The instruction `moveto x y` is used to

represent a state change that moves the saved point

to (x,y). The instruction `color c` changes the state to

use the color c for the succeeding drawing

instructions. The instruction `width w` changes the

state of drawing to draw lines of thickness w in the

succeeding drawing instructions. Finger painting can

be simulated using these four instructions and that is

the reason for choosing just these four instructions

from Postscript. These instructions are passed to the

participants of the digital whiteboard using XMPP

messages.

The protocol for group communication used in

described in XEP-0045: Multi-user Chat of the

XMPP Standards Foundation (Saint-Andre, 2008).

The XEP-0045 standard describes the messages that

are being sent to and from the XMPP server and the

users. It describes messages for various commands

used in the multi-user chat. The commands

particularly used in the implementation of the multi-

user digital whiteboard are creating or joining a

room, sending a message to all participants in the

room, and receiving chat from the room.

A screenshot of the digital whiteboard is shown

in Figure 1.

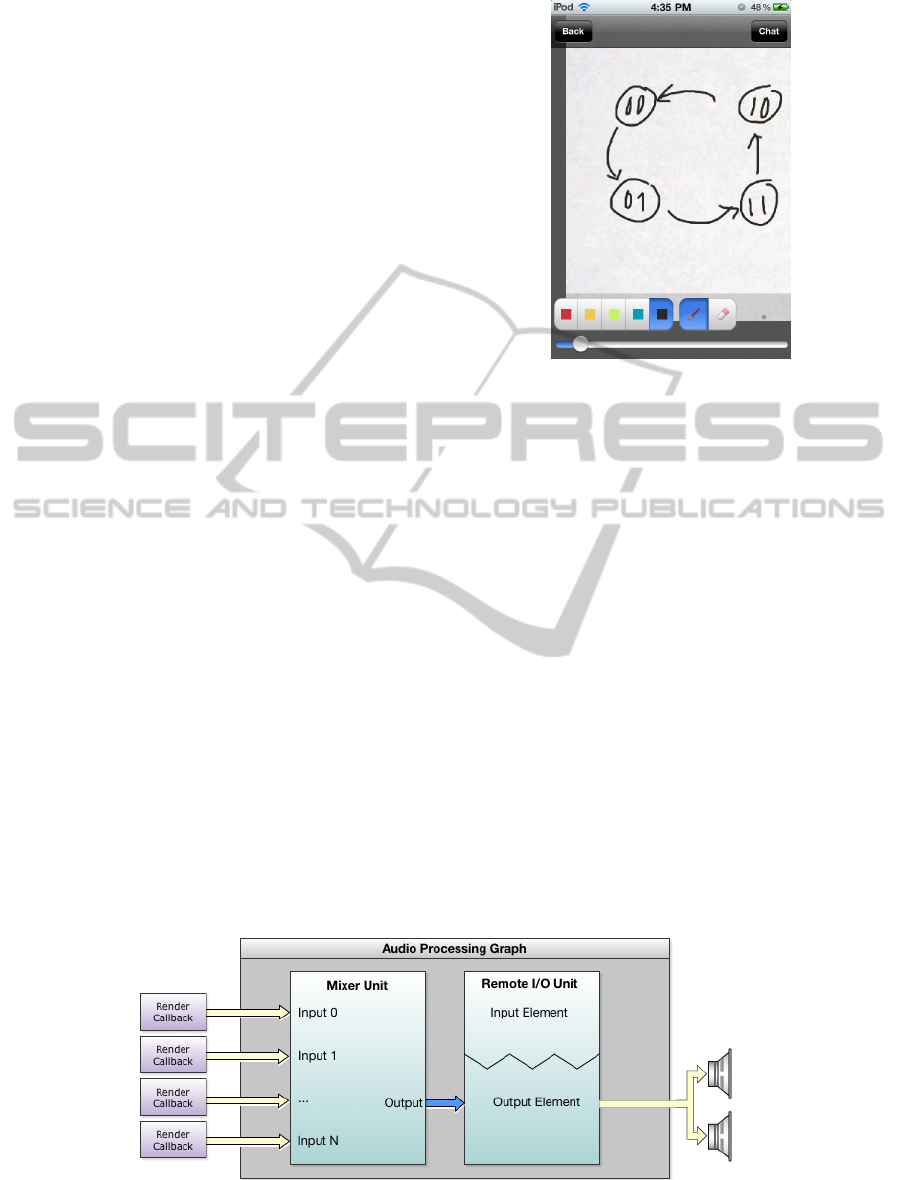

Figure 1: A screenshot of the application showing the

shared digital whiteboard and controls.

2.2 Voice over Internet Protocol (VoIP)

The voice over internet protocol feature of this

project was implemented to be compatible with

Google Talk's implementation. That means the

application developed can be used to initiate or

receive calls to or from a Google Talk user. That is

aside from other users using the same application

developed in this project. This made it easy to test

the functionality of the VoIP features. The codec

chosen is iLBC in 30ms mode.

A visual diagram of how audio is processed in

the application is seen on Figure 2. The audio data

from the microphone is supplied to the application

from the remote i/o unit's input element. In one of

the render callbacks, the audio data from the

microphone is collected and copied into a buffer that

eventually gets sent to the remote peer/s. On the

other hand the audio data received from the remote

peers get processed into a designated render callback

for that peer.

Figure 2: A graph showing how the audio units are connected. Render callbacks are triggered when they need audio data.

The mixer unit combines audio from its inputs into a single stream of audio on its output. The remote i/o unit's input and

output elements represent the buffers for the iOS device's microphone and speakers respectively.

WHITEBOARD-BASED TELECONFERENCING APPLICATION ON MOBILE DEVICES OVER EXISTING XMPP

SERVERS

131

Figure 3: Wireshark capturing STUN binding request from Google Talk to a STUN server at 74.125.153.126.

Figure 4: Wireshark capturing STUN binding response to Google Talk from a STUN server at 74.125.153.126.

2.3 Call Signaling

The protocol for call signaling used in the

application is implemented to be compatible to

Google Talk's. Therefore we derived the protocol

from Google Call Signaling (Google, n.d.a) with

some modifications. The modifications were derived

by first following the call signaling protocol

specification and inspecting the response of Google

Talk’s web client. The call signaling protocol by

Google does not completely describe the protocol in

use by Google Talk’s voice chat call signaling.

2.4 NAT Traversal

STUN was implemented for NAT traversal, which

according to Google (Google n.d.b) is enough to

enable VoIP to work most network topologies

without the need for a relay server. By inspecting the

packets sent by

Google Talk while generating its candidates, it is

found out that the binding request sent has no

attributes and is just a plain STUN binding request

addressed to some IP address assumed to be

Google's STUN server, as seen in Figure 3. The

binding response for the request is a STUN packet

containing mapped-address and source-address

attributes, as seen in Figure 4. From the packet

captures obtained, the ip address of Google's STUN

server is dynamically obtained. Google's STUN

server is used to discover the public ip:port pair for

the application's VoIP socket.

3 RESULTS AND ANALYSIS

Two user studies were done to test the application.

The first one is using Mean Opinion Score (MOS)

test that aims to measure the satisfaction of users on

the audio and conversational quality of the

application. Testers for MOS test were gathered

from a university. There were 6 testers for MOS test,

5 of them are male and 1 of them is female. They

were asked to form pairs and test and application by

pair. Pair by pair, they were oriented on the testing

procedure. First, they are give two devices both

running the application. Those devices running the

application already has the VoIP call set-up so that

testing is focused on the quality of audio. The two

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

132

Table 1: SUS questionnaire mean ratings.

Question Mean Rating

I think that I would like to use this system frequently. 3.69

I found the system unnecessarily complex. 2.31

I thought the system was easy to use. 3.63

I think that I would need the support of a technical person to be able to use this system. 2.00

I found the various functions in this system were well integrated. 3.63

I thought there was too much inconsistency in this system. 1.88

I would imagine that most people would learn to use this system very quickly. 4.00

I found the system very cumbersome to us. 2.75

I felt very confident using the system. 3.94

I needed to learn a lot of things before I could get going with this system. 2.00

devices were connected to a common access point

through WiFi, therefore the test is for voice chat on

the local network. There are many other access

points running 802.11g/b/n in the test environment

aside from the access point used. The access point

used for testing is a Ruckus Wireless ZoneFlex.

Then one person in a pair is asked to read out to

his/her buddy the five phrases recommended by

(ITU-T, 1998) for MOS test.

The MOS of the system, as rated by the testers is

2.67. Compared to the MOS of iLBC codec in

(Bhatia, 2006), iLBC has a MOS of 3.9, the

application's MOS is lower.

Another test performed is for measuring usability

of the whole application. It includes using both the

shared whiteboard and voice chat. The test was

performed by 16 people, one pair at a time. The

testers were all students at a university with an

average age of 20.69 years old and standard

deviation of 0.82 years old. Of the 16 testers, 3 are

female and 13 are male. They were asked to perform

task completion and then fill up a questionnaire at

the end of the task. The questionnaire items were

derived from (Brooke, 2007). The task they

performed was about building a floor plan, similar to

the task performed by users in (Kunz et al., 2010). In

a pair of testers, each is given a unique set of

requirements. They have to draw a floor plan that

satisfies both of their requirements. The results of

the test is shown in Table 1. The system obtained a

SUS score with a mean of 69.84 and standard

deviation of 14.21.

4 CONCLUSIONS AND

RECOMMENDATIONS

From the results obtained by performing MOS, SUS,

and benchmarking tests, the application can be said

to be usable but still needs to improve its MOS and

SUS score. It is advised that more tests be performed

with a larger sample size to make a more accurate

measurement of the application’s audio quality and

usability from user’s perspective. It is also

recommended to perform the test on a more diverse

set of users, because the tests performed are

concentrated on getting feedback on people around

the age of 20.

REFERENCES

Ambikairajah, E., Epps, J., Sheng, M., Celler, B., 2007.

Tablet PC and Electronic Whiteboard Use in Signal

Processing Education [DSP Education]. In Signal

Processing Magazine, IEEE, vol.24, no.1, pp.130-133,

Jan. 2007

Bhatia, M., Davidson, J., Kalidindi, S., Mukherjee, S. and

Peters, J., 2006.VoIP: An In-Depth Analysis. October,

2011, from http://www.ciscopress.com/articles/article.

asp?p=606583&seqNum=4

Brooke, J., 2007. SUS - A quick and dirty usability scale.

Retrieved October, 2011, from http://hell.meiert.org/

core/pdf/sus.pdf

Demeure, I., Faure, C., Lecolinet, E., Moissinac, J.-C.,

Pook, S., 2005. Mobile computing to facilitate

interaction in lectures and meetings. In Distributed

Frameworks for Multimedia Applications, 2005.

DFMA '05. First International Conference on, vol.,

no., pp. 359- 366, 6-9 Feb. 2005

Gartner, 2010. Gartner Says Worldwide Mobile Phone

Sales Grew 35 Percent in Third Quarter 2010;

Smartphone Sales Increased 96 Percent. Retrieved

January, 2011, from http://www.gartner.com/it/

page.jsp?id=1466313

Google (n.d.a). Google talk call signaling. Retrieved

January, 2011, from http://code.google.com/apis/talk/

call_signaling.html

Google (n.d.b). Important Concepts - Google Talk for

WHITEBOARD-BASED TELECONFERENCING APPLICATION ON MOBILE DEVICES OVER EXISTING XMPP

SERVERS

133

Developers. Retrieved January, 2011, from

http://code.google.com/apis/talk/libjingle/important_c

oncepts.html#connections

Gotow, B., 2010. Netsketch collaborative drawing

application for the iphone and ipod touch. Retrived

January, 2011, from http://itunes.apple.com/us/app/

netsketch-collaborative- drawing/id284939612?mt=8

GreenGar Studios, 2010. Whiteboard pro: Collaborative

drawing for the iphone and ipod touch. January, 2011,

from http://itunes.apple.com/us/app/whiteboard-pro-

collaborative/id321986541?mt=8

ITU-T Study Group 12, 1998. ITU-T Rec. P.800 (08/96)

Methods for subjective determination of transmission

quality. Retrieved October, 2011, from

http://www.itu.int/rec/T-REC-P.800-199608-I/en

Kunz, A., Nescher, T., and Kuchler, M., 2010 .

Collaboard: A novel interactive electronic whiteboard

for remote collaboration with people on content. In

Cyberworlds (CW), 2010 International Conference on,

oct. 2010, pp. 430 –437.

Li, D. & Chandra, U., 2008. Building web-based

collaboration services on mobile phones. In

Collaborative Technologies and Systems, 2008. CTS

2008. International Symposium on, may 2008, pp. 295

–304.

Liu, T.-C. Wang, H.-Y., Liang, J.-K., Chan, T.-W., Yang,

J.-C., 2002. Applying wireless technologies to build a

highly interactive learning environment. In Wireless

and Mobile Technologies in Education, 2002.

Proceedings. IEEE International Workshop on , vol.,

no., pp. 63- 70, 2002

Ludwig, S., Beda, J., Saint-Andre, P., & McQueen, R.,

2009. XEP-0166: Jingle. Retrieved January, 2011,

from http://xmpp.org/extensions/xep-0166.pdf

Morlat, S., (n.d.). oRTP, a Real-time Transport Protocol

(RTP,RFC3550) library. Retrieved October, 2011,

from http://www.linphone.org/eng/documentation/dev/

ortp.html

Rosenberg, J. et al, 2008. RFC 5389 - Session Traversal

Utilities for NAT(STUN). Retrieved January, 2011,

from http://tools.ietf.org/html/rfc5389

Saint-Andre, P., 2008. XEP-0045: Multi-user chat.

Retrieved January, 2011, from http://xmpp.org/

extensions/xep-0045.pdf

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

134
