UNIFIED PARALLEL EXPERIMENT INTERFACE FOR MEDICAL

RESEARCH SYSTEM

Michal Kratochv´ıl, Petr Vcel´ak and Jana Kleckov´a

Department of Computer Science and Engineering, University of West Bohemia, Univerzitni 8, Plzen, Czech Republic

Keywords:

Medical research system, ITK, Parallel processing, Interoperability.

Abstract:

When we are processing large quantity of a data, and/or we are computing complex tasks, computational

performance of one computer is not enough. Solution is parallel processing. However proper approach to

parallel programming doesn’t need to well-known to medical experts or computational tool doesn’t have native

support for parallel programming. Our goal is to design uniﬁed interface, which allows parallel approach to

our medical researchers. It must provide support for existing medical experiments and it must provide full

interoperability.

1 INTRODUCTION

The aim of this article is demonstration of uniﬁed

parallel interface for implementation medical exper-

iments. General design of our research information

system will be presented in (Vcelak and Kleckova,

2011). There is some interoperability issues between

experiments, which we need to solve during develop-

ment. Original design of research system supposed

running experiments as executable tasks. Our main

ideas were that each task must implement. Exper-

imental Application programming interface (EAPI)

and experiments are planned by Experiment Execu-

tion Planner (EPP). When we execute large amount

of experiments on large medical data, we have to deal

with following problems.

• Users (medical doctors) requested different tasks

priority, than experiment composers (program-

mers), e.g. they awaited examination result as-

sessments in short time (optimal in real-time),

while programmers assumed execution in night

time.

• There are development teams from different de-

partments. Each of them is using different pro-

gram tools, e.g. C, C++, C#, Perl, .NET, OWL

(Bodenreider and Stevens, 2006) and Matlab.

• There are different visualisation methods in use.

• An additional libraries e.g. .NET, or frameworks

e.g. ITK/VTK (Ib´a˜nez L., Schroeder W., Ng L.,

Cates J., 2003), MITK (Wolf et al., 2005) are re-

quired. Some of them are not open source (which

we prefer).

• There are experiments, which need large value of

RAM, or they consume large CPU time e.g. huge

matrix operations.

• It is hard to maintain all libraries and programs

without software conﬂicts.

• Dedicated machine is overloaded frequently..

• Some programming tools doesn’t native support

for working with medical data – DICOM (Na-

tional Institute of Neurological Disorders and

Stroke, 2010) and/or HL7 (Health Level Seven,

Inc., 2010) ﬁles.

We need to adapt current interface EAPI to pro-

vide fully interoperability between experiments

and programming languages. There are extra re-

quests to new EAPI.

• We required to provided functions for Parallel

computations.

• New EAPI have to be able to split up computa-

tions to single dedicated machines.

• Each of computation has to be able processed on

whatever machine, which is registered in research

system.

We designed extension to EAPI – Parallel Exper-

iment API (PEAPI), which is able to provide new

possibilities. Programmers are now able to use

parallel computation without special parallel pro-

gramming skills. The new PEAPI fulﬁlled these

requests, the following properties are achieved.

449

Kratochvíl M., Vcelák P. and Klecková J..

UNIFIED PARALLEL EXPERIMENT INTERFACE FOR MEDICAL RESEARCH SYSTEM.

DOI: 10.5220/0003873404490452

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2012), pages 449-452

ISBN: 978-989-8425-88-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

• Central system not deal requests itself now.

• Central system distribute incoming requests to

single computers or computer centres/clouds.

2 PEAPI INTERFACE

DESCRIPTION

The new design is based on current design, so the hi-

erarchy of EAPI was preserved. There are new layers,

which provide functionality for new computer reg-

istration and a data distribution between them. The

PEAPI hierarchy is shown at Figure 1.

Planner Layer. There are new properties, which al-

low experiments priority planning based on avail-

able resources in computing network and on-

demand data processing with highest priority

(needed for real-time results).

Execution Layer. This layer cooperates with new

distribution layer. Now it selects what type of

computation is used. This layer also provides

computation assigning to single computer, which

comply computation requests (when no parallel

computation is used).

Distribution Layer. It is a new layer. It tests avail-

able availability of computing machines with

proper programming languages, tools and/or

frameworks. It selects suitable parallelisation type

(depends on experiment code) and sends data to

a cipher layer, or DAO request to client comput-

ers. Distribution layer also includes planning al-

gorithms for node load and/or performance as-

sessment. Distribution layer is load-balancing

data to maximise system performance. This load-

balancer is based on current load and computer

performance indexes e.g. in the computing net-

work with many multi-processors and one single-

processor computer distribution layer assign only

small part of computation to single-processor

computer.

Cipher Layer. Most of the data are anonymised. But

their still has personal status. We need to secure a

data transfer through LAN or internet. We encrypt

only selected data e.g. DICOM or HL7 ﬁles or

VTK matrixes. We send raw or partial data not

encrypted, because we try to lower CPU load. The

data transfer still using DAO layer.

Query and Result Layers. Function of these layers

remain untouched. There are some new prop-

erties for composing partial results for/from net-

work nodes only. These layers were also ex-

tended with new functions to provide interoper-

ability with tools without native support of DI-

COM and/or HL7 ﬁles. It is often needed to dis-

tribute whole DICOM ﬁle set, but programs ex-

tracts only Meta data, or image data for further use

during computation. These main properties were

added to Query and Result layer which transfer

data as 3D matrix and meta-data objects. So we

can use DICOM/HL7 data in whole set of pro-

gram tools.

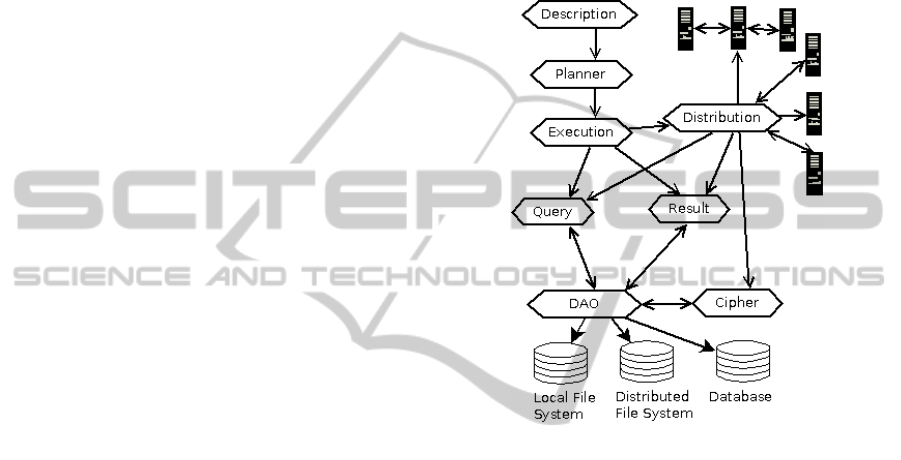

Figure 1: Description of new research system with parallel

support.

3 COMPUTING NETWORK

One of main problem, which we need to be solved,

was strongly heterogeneous programming language

environment. For example: we need to run liver seg-

mentation, followed-up by vein system reconstruction

and blood ﬂowing rate computation. For these we

need 3 experiments. Each of them is using differ-

ent programming language (different research depart-

ments) – .NET, C++ with ITK/VTK and Matlab. We

designed the computing network (CN) to solve this

problem. The CN observe following rules.

• Experiments are assigned by central node (Client-

Server topology).

• The data distribution are managed by DAO layer,

which can be distributed to several computers.

• The computations are using master-slave or peer-

to-peer topology. Computers processing equal

data are using master-slave topology, but unde-

pendable nodes are using peer-to-peer connection,

when needed.

HEALTHINF 2012 - International Conference on Health Informatics

450

• We are using PVM (Oak Ridge National Labo-

ratory, 2011) and MPI (ANL Mathematics and

Computer Science, 2011) standards for parallel

computations.

We are using dedicated research system server

with database and WWW server to running central

node on it. Users can register their own computer, or

any other computer to the system. These computers

must have some of needed environment installed and

conﬁgured on it. The system executes compatibility

and performance tests ﬁrst and creates performance

indexes and set of suitable computers, witch is shown

on Figure 2. After that, the distribution layer is able to

use these computers for computation, when it’s avail-

able.

4 PARALLEL PROCESSING

WITH PEAPI

There are several cases, we must deal with.

• Single Data, Multiple Processes (SDMP). Typ-

ically used, when we need parallelisation on ex-

periment level.

• Multiple Data, Multiple Process (MDMP). Typ-

ically used, when we need to process large data

quantity repeatedly and when we need to compare

single iteration results.

• Multiple Experiment, Multiple Process

(MEMP). Used, when we need repetition of

experiments (calculation faults, pre-processing or

partial computations, sets of computations).

The PEAPI allows programmers to call PEAPI

methods in their code. After that, PEAPI handles

process and data distribution, sub-process communi-

cation and parallel computation itself. There are not

extra demands on programmers. Programmers mark

parts of code as ready for parallel computation. Sim-

ple example code is shown below:

Program test;

Some variable declarations;

...

PEAPI_run_experiment_MEMP(

experiment_descriptor, count, data)

{

MyData[] = PEAPI_read_DAO_MDMP(

requested_data, cryptedKey);

...

Some operations

...

//call SDMP function to existing array

For (int I = 0; I <= sizeOf(MyData); i++)

{

MyProcessedData[] =

PEAPI_do_SDMP(MyData[i], PEAPI_function)

}

//create own SDMP code

For (int I = 0; I <= sizeOf(MyData); i++)

{

//create integer monitor

PEAPI_doMyCode_SDMP(){

PEAPI_protected_int myNumber;

Some code

...

myNumber++;

...

}

};

5 RESULTS

The liver segmentation and liver vein reconstruction

from CT example was selected for demonstration.

Experiment was executed on set of 50 patient’s DI-

COM CT studies. Some patients has damaged liver

with tumors, etc. A result of experiment is VTK ma-

trix with 3D surface and vein tree for each patient.

First measurement was serial computation. Reference

computer conﬁguration was Pentium i5-750, 16 GB

RAM DDR3, SSD HDD, Debian Linux 6.0.2, stan-

dard package C++ compiler, VTK/ITK version 3.20.

Second and third measurement used this computer as

main node. CN consist of different 15 PC. Each of

them has 2 – 8 x processors (from old Pentium III

servers to new 6-core Xeon processors, with 1 – 8GB

RAM) CN is connected together by 100 Mbit Eth-

ernet. Second run used MEMP, third MDMP, fourth

MEMP + MDMP. Each measurement was executed 5

times, and averaged. Results are shown in the Table

Table 1: Performance test: serial, MEMP and MDMP ap-

proaches.

Test Fastest

compu-

tation

[s]

Slowest

compu-

tation

[s]

All

jobs

done

[s]

Serial 140.2 145.1 7250.8

MEMP 98.3 358.3 479.1

MDMP 99.1 196.3 230.2

MEMP

MDMP

98.1 355.2 410.6

UNIFIED PARALLEL EXPERIMENT INTERFACE FOR MEDICAL RESEARCH SYSTEM

451

Figure 2: Experiment planning and resource checking

screen.

6 CONCLUSIONS

As is shown in Table 1, we can see large perfor-

mance increase after MEMP and/or MDMP is used.

Because we used real environment, we have hetero-

geneous node conﬁguration. This is reason why in

MEMP the shortest and the longest time values dif-

fer so much (It means time computed on slowest and

fastest computer in network). We can also see that us-

ing both methods givesus similar results. It is because

of slowest computer on network. It is still working on

its data, while other computers are already done. In

worse case (which did not arise), the slowest com-

puter will start compute new task short moment be-

fore other ﬁnished. MDMP is shown as the best ap-

proach. It’s because the fastest computers do the most

jobs. The load-balancing is the most effective.

Thanks to PEAPI, we can process time-

demanding experiments. Distribution of environment

from one computer to many gives us better control on

each computer system and whole research system.

7 FUTURE WORK

Our future work is oriented to create PEAPI for other

programming languages, such as Matlab (now it’s

available for C/C++, Perl, .NET and other languages,

which supports PVM or MPI). Now we can only use

MEMP approach for others. We are also planning

connection to meta-centre for further computations,

which give us access to hundreds of computers.

ACKNOWLEDGEMENTS

The work presented in this paper was supported

by the project Czech Science Foundation number

106/09/0740.

REFERENCES

ANL Mathematics and Computer Science (2011). Message

passing interface (mpi) standard. Online, 2011-10-02.

http://www.mcs.anl.gov/research/projects/mpi/.

Bodenreider, O. and Stevens, R. (2006). Bio-ontologies:

current trends and future directions. Brieﬁngs in

Bioinformatics, 7(3):256 – 274.

Health Level Seven, Inc. (2010). What is hl7? Online,

2011-10-02. http://www.hl7.org/about/index.cfm.

Ib´a˜nez L., Schroeder W., Ng L., Cates J. (2003). The ITK

Software Guide, Kitware.

National Institute of Neurological Disorders and Stroke

(2010). Digital Imaging and Communications

in Medicine (DICOM). Online, 2011-10-01.

http://medical.nema.org.

Oak Ridge National Laboratory (2011). Parallel

Virtual Machine (PVM). Online, 2011-10-02.

http://www.csm.ornl.gov/pvm/.

Vcelak, P. and Kleckova, J. (2011). Semantically inter-

operable research medical data and meta data extrac-

tion strategy. 2011 4rd International Conference on

Biomedical Engineering and Informatics BMEI 2011,

4:1950 – 1954.

Wolf, I., Vetter, M., Wegner, I., B¨ottger, T., Nolden, M.,

Sch¨obinger, M., Hastenteufel, M., Kunert, T., and

Meinzer, H.-P. (2005). The medical imaging interac-

tion toolkit. Medical Image Analysis, 9(6):594 – 604.

HEALTHINF 2012 - International Conference on Health Informatics

452
