THREE DIFFERENTIAL EMOTION CLASSIFICATION

BY MACHINE LEARNING ALGORITHMS

USING PHYSIOLOGICAL SIGNALS

Discriminantion of Emotions by Machine Learning Algorithms

Eun-Hye Jang

, Byoung-Jun Park

, Sang-Hyeob Kim

and Jin-Hun Sohn

BT Convergence Technology Research Department, Electronics and Telecommunications Research Institute,

Daejeon, Republic of Korea

Department of Psychology/Brain Research Institute, Chungnam National University, Daejeon, Republic of Korea

Keywords: Emotion classification, Machine learning algorithm, Physiological signal.

Abstract: In HCI researches, human emotion classification has done by machine learning algorithms based on

physiological signals. The aim of this study is to classify three different emotional states (boredom, pain,

and surprise) by 5 machine learning algorithms using features extracted from physiological signals. 200

college students participated in this experiment. The audio-visual film clips were used to provoke emotions

and were tested their appropriateness and effectiveness. EDA, ECG, PPG, and SKT as physiological signals

were acquired for 1 minute before each emotional state as baseline and for 1-1.5 minutes during emotional

state and were analyzed for 30 seconds from the baseline and the emotional state. 23 parameters were

extracted from these signals: SCL, NSCR, mean SCR, mean SKT, maximum SKT, sum of negative SKT,

and sum of positive SKT, mean PPG, mean RR interval, standard deviation RR interval, mean BPM,

RMSSD, NN50, percenet of NN50, SD1, SD2, CSI, CVI, LF, HF, nLF, nHF, and LF/HF ratio. For emotion

classification, the difference values of each feature subtracting baseline from the emotional state were used

for analysis using 5 machine learning algorithms. The result showed that an accuracy of emotion

classification by SOM was lowest and SVM was highest. This could help emotion recognition studies lead

to better chance to recognize various human emotions by using physiological signals. Also, it is able to be

applied on human-computer interaction system for emotion detection.

1 INTRODUCTION

Emotion recognition in studies on human-computer

interaction is the one of topic that researcher are

most interested in. To recognize human's emotions

and feelings, various physiological signals have been

widely used to classify emotion (Wagner, Kim, &

Andre, 2005), because signal acquisition by non-

invasive sensors is relatively simple and

physiological responses are less sensitive in social

and cultural difference (Drummond & Quah, 2001).

Also, it is known that physiological responses are

significantly correlated with human emotional state.

Many studies have reported relation between

emotion and physiological responses and mainly

focused on physiological responses induced by basic

emotions such as happiness, sadness, anger, fear,

and disgust (Ax, 1953; Boiten, 1996; Kanade &

Tian, 2000; Palomba, Sarlo & Angrilli, 2000). On

the other hand, other emotions such as boredom,

pain and surprise have been least investigated and

reported by single-channel physiological signal such

as respiratory (de Melo, Kenny & Gratch, 2010;

Flor, Knost & Birbaumer, 2002; Jolliffe & Nicholas,

2004). But it is needed to study the emotion

classification using multi-channel physiological

signals because emotion is related to other signal

such as GSR, EMG, HR, Cortisol response, etc.

Recently, although emotion recognition based on

physiological signals was performed by various

algorithms such as FP (Fisher Projection), SFFS

(Sequential Floating Forward Search), KNN (k-

Nearest Neighbor algorithm), and SVM (Support

Vector Machines), it needed to study for

development of methods and algorithm to exactly

classify some emotion.

528

Jang E., Park B., Kim S. and Sohn J..

THREE DIFFERENTIAL EMOTION CLASSIFICATION BY MACHINE LEARNING ALGORITHMS USING PHYSIOLOGICAL SIGNALS - Discriminantion

of Emotions by Machine Learning Algorithms.

DOI: 10.5220/0003880605280531

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 528-531

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

The purpose of this study was to classify three

different emotions (boredom, pain, and surprise) by

using multi-channel physiological signals. Surprise

emotion may be divided into ‘wonder’ that people

feel when perceiving something rare or unexpected

(Collet et al., 1997), and ‘startle’ response to a

sudden unexpected stimulus such as a flash of light,

a loud noise, or a quick movement near the face

(Nasoz et al., 2004; Verhoef et al., 2009). In this

study, ‘startle’ surprise emotion was induced by

emotional stimuli and 5 machine learning

algorithms, linear discriminant function (LDF),

classification and regression tree (CART), self

organizing map (SOM), Naïve Bayes and support

vector machine (SVM) for emotion classification

were used.

2 METHODS FOR EMOTION

CLASSIFICATION

200 college students (mean age: 21.7years ± 2.3)

participated in this experiment. They reported no

history of medical illness due to heart disease,

respiration, or central nervous system disorder or

psychotropic medication. They were introduced to

the experiment protocols and filled out a written

consent before the beginning of experiment. Also,

they were paid $30 USD per session to compensate

for their participation.

The audio-visual film clips that had been tested

their appropriateness and effectiveness were used to

provoke three different emotions (Figure 1). The

appropriateness of emotional stimuli means the

consistency between the emotion designed to

provoke each emotion and the category (e.g., boring,

painful, and surprising) of participants’ experienced

emotion. The effectiveness was determined by the

intensity of emotions that participants rated on a 1 to

7 point Likert-type scale (e.g.., 1 being “least bring”

or “painful” and 7 being “most boring” or

“painful”).

Figure 1: The example of emotional stimuli.

The apporiateness and effectiveness of these stimuli

were as follows; boredom had appropriateness of

86.0% and effectiveness of 5.23±1.36, the results

showed appropriateness of 97.3% and effectiveness

of 4.96±1.34 in pain and appropriateness of 94.1%

and effectivess of 6.12±1.14 in surprise.

EDA, ECG, PPG, and SKT were acquired by

MP150 Biopac system Inc. (USA) during 1 minute

long baseline prior to the presentation of emotional

stimuli and for 1 to 1.5 min long while participants

watch emotional stimuli as emotional state. The

obtained signals were analyzed for 30 sec from the

baseline and the emotional state by AcqKnowledge

(Ver. 3.8.1) software (USA). Total 23 features were

extracted from these signals (Table 1).

Table 1: Features extracted from physiological signals.

signal feature

EDA SCL, NSCR, mean SCR

SKT

mean SKT, maximum SKT, sum of negative SKT,

sum of positive SKT

PPG Mean PPG

ECG

time domain

mean RRI, std RRI, mean HR,

RMSSD, NN50, pNN50, SD1, SD2,

frequency

domain

LF, HF, nLF, nHF, LF/HF ratio

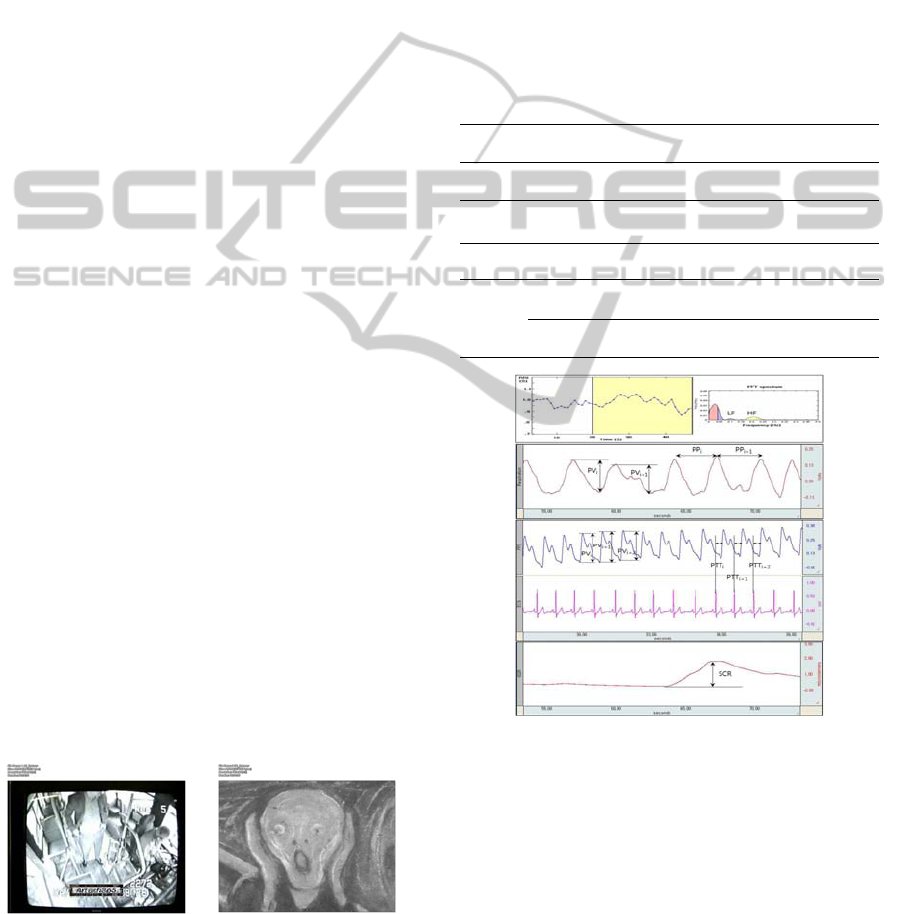

Figure 2: The example of feature extraction.

To identify the difference of physiological

signals between baseline and emotional state,

statistical analysis were done as paired t-test (SPSS

16.0). And for emotion classification, five different

machine learning algorithms were applicated by

difference values substracting signals of baseline

from emotional state. The used algorithms are as

follows; LDA which is one of the linear models,

CART of decision tree model, SOM of Neural

Network, Naïve Bayes of probability model, and

SVM of non-linear model, which are used the well-

THREE DIFFERENTIAL EMOTION CLASSIFICATION BY MACHINE LEARNING ALGORITHMS USING

PHYSIOLOGICAL SIGNALS - Discriminantion of Emotions by Machine Learning Algorithms

529

known emotion algorithms.

3 RESULTS OF EMOTION

CLASSIFICATION

The result of difference between baseline and each

emotional state showed that physiological responses

during emotional states were significantly differed

from baseline (Table 2). Boredom significantly

differed from baseline in SCL, NSCR, meanSCR,

s_n SKT, meanRRI, stdRR, meanHR, and SD2. The

features of SCL, NSCR, mean SCR, s_n SKT, s_p

SKT, meanPPG, stdRR, RMSSD, NN50, pNN50,

SD1, SD2, CVI, and LF during painful state showed

significant difference from baseline. In surprise,

there were significant differences between baseline

and emotional state at all parameters except for max

SKT and LF, HF, nLF, nHF, and LF/HF ratio.

Table 2: The result of difference between baseline and

emotional states.

emotion

arameter

boredom pain surprise

SCL 2.59* 5.53*** 14.36***

NSCR 3.55*** 11.64*** 10.75***

meanSCR 2.68** 8.45*** 7.45***

meanSKT 0.20 -1.05 2.04*

s_n SKT -2.49* -9.93*** -4.62***

s_p SKT -1.75 -5.86*** -4.84***

meanPPG 0.93 2.66** -4.64***

meanRRI -3.11** -0.44 -4.29***

stdRR 2.00* 2.97** 5.43***

meanHR 3.00** 0.93 3.32**

RMSSD 1.31 3.21** 3.45**

NN50 -0.16 4.19*** 5.95***

pNN50 -0.42 4.10*** 4.72***

SD1 1.11 3.09** 3.68***

SD2 2.07* 2.71** 5.73***

CSI 0.65 -1.30 5.56***

CVI 1.68 4.10*** 9.66***

LF 1.48 2.78** 1.49

* p < .05, ** p < .01, *** p < .001

23 features extracted from physiological signals

were applied to emotion classification algorithms for

emotion classification of 3 emotions. Table 3 shows

the result of emotion classification by 5 algorithms.

Table 3: Result of emotion classification.

algorithm accuracy (%) features (N)

LDA 78.6 23

CART 93.3 23

SOM 70.4 23

Naïve Bayes 83.4 23

SVM 100.0 23

In analysis of LDA, accuracy of all emotions was

78.6% and in each emotion, boredom was

recognized by LDA with 77.3%, pain 80.0%, and

surprise 78.6% (Table 4). CART provided accuracy

of 93.3% when it classified all emotions. In

boredom, accuracy of 94.3% was achieved with

CART, 95.9% in pain, and 90.1% in surprise (Table

5). The result of emotion classification using SOM

showed that according to orders of boredom, pain,

and surprise, recognition accuracy of 80.1%, 65.1%,

and 66.2% were obtained by SOM (Table 6).

Table 4: Result of emotion classification by LDA.

boredom pain surprise total

boredom

77.3 4.5 18.2

100.0

pain

1.2 79.9 18.9

100.0

surprise 4.2 17.2 78.6 100.0

Table 5: Result of emotion classification by CART.

boredom pain surprise total

boredom

94.3 1.1 4.5

100.0

pain

1.2 95.9 3.0

100.0

surprise 5.7 4.2 90.1 100.0

Table 6: Result of emotion classification by SOM.

boredom pain surprise total

boredom

80.1 5.1 14.8

100.0

pain

7.7 65.1 27.2

100.0

surprise 13.0 20.8 66.2 100.0

The accuracy of Naïve Bayes algorithm to classify

all emotion was 83.4%. And each emotion was

recognized by Naïve Bayes with 84.7% of boredom,

82.8% of pain, and 84.4% of surprise (Table 7).

Finally, accuracy of SVM was 100.0% and

classifications of each emotion were 100.0% in all

emotions (Table 8).

Table 7: Result of emotion classification by NAÏVE BAYES.

boredom pain surprise total

boredom

84.7 0.6 14.8

100.0

pain

1.2 82.8 16.0

100.0

surprise 5.2 10.4 84.4 100.0

ICAART 2012 - International Conference on Agents and Artificial Intelligence

530

Table 8: Result of emotion classification by SVM.

boredom pain surprise total

boredom

100.0 0.0 0.0

100.0

pain

0.0 100.0 0.0

100.0

surprise 0.0 0.0 100.0 100.0

4 CONCLUSIONS

This study was to classify three different emotional

states (boredom, pain, and surprise) by machine

learning algorithms using physiological features.

Our results showed that physiological responses of

three emotions were differed and SVM were the best

algorithm for classification of three emotions. This

result could help emotion recognition studies lead to

better chance to recognize human emotions by using

physiological signals. Also, it can be useful in

profiling various emotion-specific physiological

responses or establishing the basis for emotion

recognition system in human-computer interaction.

However, this result was the classification

accuracy using only training set which didn’t divide

training and test sets. An average accuracy of

classification is necessary for repeated sub-sampling

validation using training and test sets as the choice

of training and test sets can affect the results.

Therefore, we will perform the average classification

in further analysis. Also, although it is known that

physiological signals offer a great potential for the

recognition of emotions in computer systems, in

order to fully exploit the advantages of physiological

measures, standardization needs to be established on

the emotional model, stimulus used for the

identification of physiological patterns,

physiological measures, parameters for analysis, and

model for pattern recognition and classification

(Arroyo-Palacios & Romano, 2008).

ACKNOWLEDGEMENTS

This research was supported by the Converging

Research Center Program funded by the Ministry of

Education, Science and Technology (No. 2011K000

655 and 2011K000658).

REFERENCES

Wagner, J., Kim, J., Andre, E., 2005. From physiological

signals to emotions: Implementing and comparing

selected methods for feature extraction and

classification, IEEE International Conference on

Multimedia and Expo, Amsterdam, pp. 940-943.

Drummond, P. D., Quah, S. H., 2001. The effect of

expressing anger on cardiovascular reactivity and

facial blood flow in Chinese and Caucasians,

Psychophysiology, vol. 38, pp. 190-196.

Ax, A. R., 1953. The physiological differentiation between

fear and anger in humans, Psychosomatic Medicine,

vol. 15, pp. 147-150.

Boiten, F. A., 1996. Autonomic response patterns during

voluntary facial action, Psychophysiology, vol. 33, pp.

123-131.

Kanade, T. C., Tian, Y., 2000. Comprehensive database

for facial expression analysis, Proceeding of the 4th

IEEE International Conference on Automatic Face

and Gesture Recognition, pp. 46-53.

Palomba, D., Sarlo, M., Angrilli, A., Mini, A., 2000.

Cardiac responses associated with affective processing

of unpleasant film stimulus, International Journal of

Psychophysiology, vol. 36, pp. 45-57.

de Melo, C. M., Kenny, P. G., Gratch, J., 2010. Influence

of autonomic signals on perception of emotions in

embodied agents, Applied Artificial Intelligence, vol. 6,

pp. 494-509.

Flor, H., Knost, B., Birbaumer, N., 2002. The role of

operant conditioning in chronic pain: an experimental

investigation pain, Pain, vol. 95(1-2), pp. 111-118.

Jolliffe, C. D., Nicholas, M. K., 2004. Verbally reinforcing

pain reports: an experimental test of the operant model

of chronic pain, Pain, vol. 107(1-2), pp. 167–175.

Collet, C., Vernet-Maury, E., Delhomme, G., Dittmar, A.,

1997. Autonomic nervous system response patterns

specificity to basic emotions, Journal of the

Autonomic Nervous System, vol. 62, pp. 45-57.

Nasoz, F., Alvarez, K., Lisetti, C. L., Finkelstein, N., 2004.

Emotion recognition from physiological signals using

wireless sensors for presence technologies, Cognition,

Technology and Work, vol. 6, pp. 4-14.

Verhoef, T., Lisetti, C., Barreto, A., Ortega, F., Zant, T.,

Cnossen, F., 2009. Bio-sensing for emotional

characterization without word labels, Human-

Computer Interaction: Ambient, ubiquitous and

intelligent interaction, 13th International Conference,

San Diego, CA, USA, pp. 693-702.

Arroyo-Palacios, J., Romano, D. M., 2008. Towards a

standardization in the use of physiological signals for

affective recognition systems, Proceedings of

Measuring Behavior 2008.

THREE DIFFERENTIAL EMOTION CLASSIFICATION BY MACHINE LEARNING ALGORITHMS USING

PHYSIOLOGICAL SIGNALS - Discriminantion of Emotions by Machine Learning Algorithms

531
