ACOUSTIC MODELLING FOR SPEECH PROCESSING

IN COMPLEX ENVIRONMENTS

Nora Barroso, Karmele López de Ipiña and Aitzol Ezeiza

Polytechnic College, Department of Systems Engineering and Automation, University of the Basque Country,

Europa Plaza 1, Donostia 20018, Spain

Keywords: Multivariate Hidden Markov Models, Automatic Speech Recognition, Acoustic Modelling, Complex

Environments, Speech Processing.

Abstract: Automatic Speech Recognition (ASR) is one of the classical multivariate statistical modelling applications

that involves dealing with issues such as Acoustic Modelling (AM) or Language Modelling (LM). These

tasks are generally very language-dependent and require very large resources. This work is focused on the

selection of appropriate acoustic models for Speech Processing in a complex environment (a multilingual

context in under-resourced and noisy conditions) oriented to general ASR tasks. The work has been carried

out with a small trilingual speech database with very low audio quality. Thus, in order to decrease the

negative impact that the lack of resources has in this task there have been selected two techniques: In the

one hand, Hidden Markov Models have been enhanced using hybrid topologies and parameters as acoustic

models of the sublexical units. In the other hand, an optimum configuration has been developed for the

Acoustic Phonetic Decoding system, based on multivariate Gaussian numbers and the insertion penalty.

1 INTRODUCTION

Appropriate speech signal resources are required for

multivariate statistical modelling applications, such

as Hidden Markov Models for Automatic Speech

Recognition (ASR). These applications require very

large or optimum resources for training all the

components of the system. Most of the ASR

applications have to be developed for complex

environments and in under-resourced conditions.

Therefore, the development of a robust system for

under-resourced languages, even if they are

integrated in multilingual regions or coexist

geographically with languages in best conditions

needs high inversions (Le and Besacier, 2009; Seng

et al., 2008; Barroso et al., 2007; Schultz. and

Waibel, 1998)

These languages have the required resources in a

very limited quantity and quality, and new strategies

must be explored to tackle the challenge of creating

robust systems in this area. Automatic Speech

Recognition is a broad research area that absorbs

many efforts from the research community. Indeed,

many applications related to ASR have progressed

quickly in recent years, but these applications are

generally very language-dependent. Moreover, the

creation of a robust system is a much tougher task

for under-resourced languages, even if they count

with powerful languages beside it. The development

of these systems involves issues such as Acoustic

Modelling, Language Modelling, and the

development of Language Resources.

Figure 1 shows the classical scheme of an ASR

system. During the Acoustic Phonetic Decoding

(APD) stage, the speech signal is segmented into

fundamental acoustic units that will be integrated

into other system components. Classically, words

have been considered the most natural unit for

speech recognition, but the large number of potential

words in a single language, including all inflected

and derived forms, might become intractable in

some cases for the definition of the basic

components. In these cases, smaller phonologic

recognition units like phonemes, triphonemes or

syllables are used to overcome this problem. These

recognition units, which are shorter than complete

words are the so-called sublexical units (SLU) or

sub-word units.

Multivariate Hidden Markov Models are

undoubtedly the most employed technique for ASR

construction, but when the data is affected by a high

noise level, ASR systems are sometimes far from an

507

Barroso N., López de Ipiña K. and Ezeiza A..

ACOUSTIC MODELLING FOR SPEECH PROCESSING IN COMPLEX ENVIRONMENTS.

DOI: 10.5220/0003894105070516

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (MPBS-2012), pages 507-516

ISBN: 978-989-8425-89-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

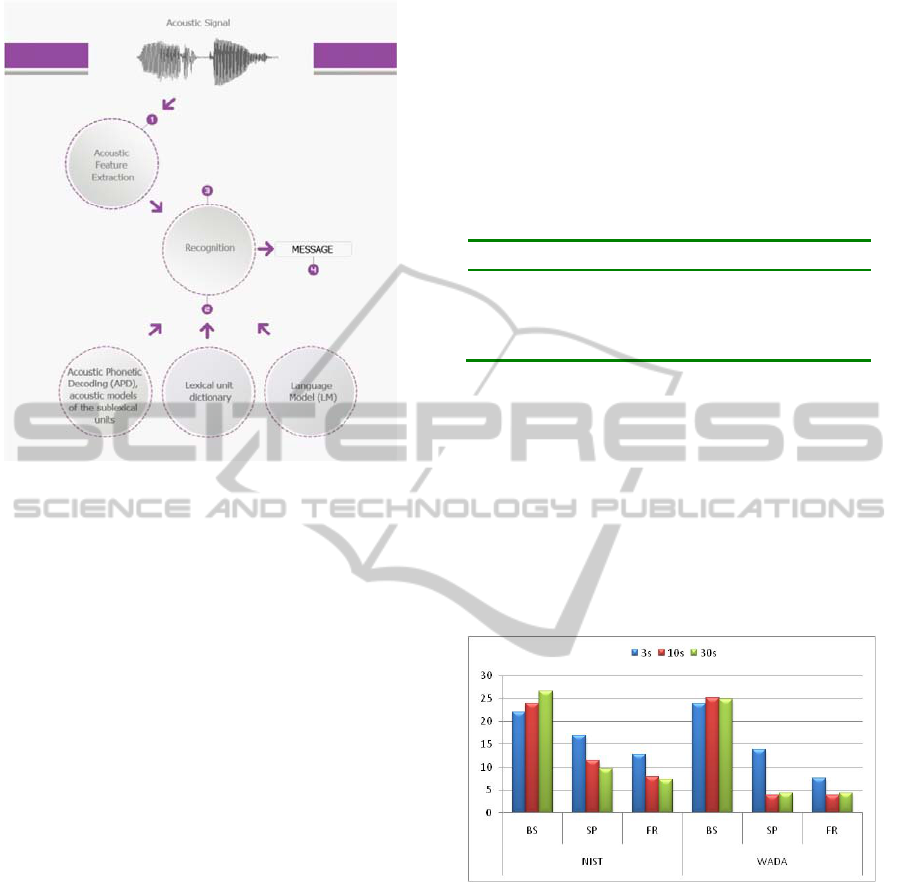

Figure 1: Scheme of the process of Speech Recognition.

acceptable performance (Le and Besacier, 2009;

Smith, 2000). Several hybrid proposals can be found

in the bibliography (Smith, 2000; Cosi, 2000,

Friedman, 1989; Martinez, 2001) dealing with this

problem based on Machine Learning paradigms such

as: Support Vector Machines or Neural Networks.

Indeed, the long term goal of this project is the

development of robust ASR systems in real and

complex environments, but this work is focused to

the selection of appropriate acoustic models with

under-resourced and noisy conditions. Specifically,

the current work is oriented to Broadcast News (BN)

in the Basque context. Thus, in order to decrease the

negative impact that the lack of resources has in this

issue several hybrid methodologies are applied for

Acoustic Modelling.

The paper is organised as follows: next section

describes the resources and the features of the

languages. Section 4 presents the used methods,

mainly oriented to the selection of appropriate

acoustic models in complex environments. Section 5

gives the experimentation results, and finally, some

conclusions are explained in section 6.

2 SPEECH RESOURCES

The basic audio resources used in this work have

been mainly provided by Broadcast News sources.

Specifically Infozazpi radio (Infozazpi, 2011), a

trilingual (Basque (BS), Spanish (SP), and French

(FR)) has provided audio and text data from their

news bulletins for each language (semi-parallel

corpus). The texts have been processed to create

XML files which include information of distinct

speakers, noises, and sections of the speech files and

transcriptions. The transcriptions for Basque also

include morphological information such as each

word’s lemma and Part-Of-Speech tag. The

Resources Inventory is summarised in table 1.

Table 1: Resources inventory.

Languages

BCN Audio hh:mm:ss

BS 2:55:00

FR 2:58:00

SP 3:02:00

Total 7:55:00

In the audio for French and Spanish there is a

high background noise from the signature tunes of

the programmes. For Basque, there is no signature

tune mixing with the speakers’ voices. In the other

hand, they are radio study recordings, so in

consequence there are very few instantaneous

noises. Most of the noises are common ones. In the

transcription process, there have been mainly

labelled the inspirations produced by the speakers,

the instantaneous noises from the microphone, and

the noises of the movement of papers.

Figure 2: NIST and WADA noisy level with regard to the

signal length.

The noise level and its effect over the signal is a

crucial factor. In order to measure it, the standards

NIST and WADA measures have been employed

(Ellis, 2011). Figure 2 presents the results of these

measures for Basque, Spanish, and French. It is

straightforward to infer a higher level of noise for

these last two corpora, being the French the noisiest

corpus. For Spanish and French, the cleanest

segments are those of 3 seconds. For Basque, the

longest segments have the lowest level of noise. The

two methodologies, NIST and WADA, use different

calculation methods, so the results are different in

level, but the general trends are kept similar in both.

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

508

Table 2: Sound Inventories for Basque, French and Spanish in the SAMPA notation.

Sound T

pe Basque French S

anish

Plosives

b t d k g c

b t d k g

Affricates ts ts´ tS ts

Fricatives

gj jj f B T D s s´ S x G

Z v h

f v s z S Z gj jj F B T D s x G

asals m n J m n J N m n J

Liquids l L r r

l R l L r r

Vowel glides w j w H j w j

Vowels i e a o u @

i e E a A O o u y 2 9

e~ a~ o~ 9~,

i e a o u

3 FEATURES OF THE

LANGUAGES

The analysis of the features of the languages chosen

is a crucial issue because they have a clear influence

on both the performance of the APD and on the

vocabulary size of the system. In order to develop

the APD, an inventory of the sounds of each

language was necessary. Table 2 summarises the

sound inventories for the three languages expressed

in the SAMPA notation. Each sound would be taken

into account in the phonetic transcription tools used

in the training process.

In order to get an insight of the phonemes system

of these three languages, we would like to remark

some of the features mentioned above. In the one

hand, Basque and Spanish have very similar vowels

if not the same. The Basque language itself has

many odd occurrences of other vocals, but many of

them have fallen into disuse or they are used only in

very local environments.

For example, only Basque speakers from the

Northern side (bilingual Basque and French

speakers) are used to pronouncing the Basque “@”

(i.e. Sorrapürü). This vowel's pronunciation is

between the Basque vocals “u” and “i”. In

comparison to Basque or Spanish, French has a very

much richer vocal system, but it is fair to say that

some of their older forms have fallen into disuse too.

Anyway, they keep on being different to those in

Basque or Spanish, especially in the case of nasal

vowels.

In the other hand, some of the consonants that

are rare in French such as “L” (i.e. Feuille) are very

common in Basque or Spanish. Therefore, a cross-

lingual Acoustic Model could be very useful in these

cases. Another special feature in this experiment is

the richness of affricates and fricatives present in

Basque.

These sounds will be very difficult to differ and

the cross-lingual approach won't work for them, but

it has to be said that even some native Basque

speakers don't make differences between some

affricates and fricatives due to dialectal issues.

Consequently, the Acoustic decoder would have

difficulties in these cases and further Language

Modelling would be needed in order to get accurate

results.

Finally, some sounds that are differentiated

theoretically are very difficult to model, and many

state-of-the-art approaches cluster these cases as the

same sound. This is the case of the plosives in the

three languages; there is little acoustic difference

between “b”, “B”, “p”, and “P” depending on the

context, and the Language Model should be able to

manage the ambiguity derived of not separating

those phonemes in this first stage.

4 METHODS

4.1 Multivariate Hidden Markov

Models

In ASR classical Acoustic Modelling is carried out

by Hidden Markov Models (HMMs) (Baum and

Eagon, 1967; Baum et al., 1970; Baker, 1975;

Jelinek, 1976).

The basic components of the HMMs are the

states and the transitions between states. A Markov

chain is, in short, a set of states and a set of

transitions between them. Every state has a symbol

and every transition has a probability associated to

it. In each instant t, the system is in a certain state,

and to regular intervals of time it goes on from one

state to another as the transitions indicates. Finally, a

symbol sequence is obtained from each of the states

which have been crossed. HMMs are similar to

Markov chains but, in this case, every state isn’t

ACOUSTIC MODELLING FOR SPEECH PROCESSING IN COMPLEX ENVIRONMENTS

509

associated to a fixed symbol, but the event provided

by the state forms a part of a probabilistic function.

Thus, all the symbols are possible in every state and

each one has its own probability. Consequently, an

HMM consists of a not observable "hidden" process

(Markov chain), and an observable process, which

connects the input with the state of the hidden

process. In order to do this, an HMM has to be a

process doubly stochastic since it has, on the one

hand, a set of transition probability coefficients that

determine state sequence to continue and, on the

other hand, there are defined probability functions

associated with every state that determine the output

that is observed in this state.

An HMM is defined as (Rabiner, 1989):

• q

: state as the t time.

• N: the number of states in the model. The most

used HMMs have 5 states. However both 1

state and 5 states do not generate any output.

• S: The individual states,

{, ,..., }

Sss s=

• M: the number of distinct observation symbols

per state, i.e., the discrete alphabet size.

• V: The individual symbols,

{

}

, ,...,

Vvv v=

•

{

}

:The state transition probability

distribution where,

()

| 1 1 ,

ij t j t i

aPqsq s ijN== −= ≤≤

•

()

{

}

bk=

: The observation symbol

probability distribution in where,

()

| 1 , 1

jk k t j

bO PO q s j N k M==≤≤≤≤

where

is a symbol of the observation set V.

•

{}π= π

: The initial state distribution, where:

()

Pq s i Nπ= = ≤ ≤

Thus, an HMM is described by:

{

}

, , ABλ= π

In the acoustic modelling, the likelihood of the

observed feature vectors is computed given the

linguistic units. Gaussian Mixture Model (GMM)

classifiers can be used to compute for each HMM

state q, corresponding to a SLU unit, the likelihood

of a given feature vector given this phone p(o|q)

where Gaussians are multivariate. A way of thinking

about the output of this stage is as a sequence of

probability vectors, one for each time frame, and

each vector at each time frame contains the

likelihoods that each unit generated the acoustic

feature vector observation at that time. Finally, in

the APD phase, the acoustic model (AM) is

employed. The AM consists of the sequence of

acoustic likelihoods integrated in an HMM

dictionary of Lexical Unit (LU) pronunciations, and

then it is combined with the language model (LM).

The output of the APD system is the most likely

sequence of LUs. An HMM dictionary, is a list of

LUs pronunciations, each pronunciation represented

by a string of phones. Each LU can then be thought

of as an HMM, where the SLUs are states in the

HMM, and the Gaussian likelihood estimators

supply the HMM output likelihood.

4.2 Selection of Sublexical Units and

Acoustic Models

The lack of resources produces unwished effects in

SLUs with very few samples. In consequence, it is

necessary to define new HMM topologies that could

optimize the own internal structure of the different

sounds of the language. Two different HMM

structure configurations were tested:

1. The HMMs had the same state number (SN)

for all of the SLUs (EEK

allSN)

2. Then it was analysed the effect of assigning

different SNs to each SLUs with regard to its

nature. For this purpose the classification was

based on (Puertas, 2000).

a. Vowels: 5 states

b. Semivowels: 4 states

c. Unvoiced plosives: 5 states

d. Voiced plosives: 3 states

e. /B/, /D/,/G/, /l/,/z_a/,/r\/: 4 states

f. /s_a/, /R\/: 5 states

Table 3 shows the defined topologies for each

language: Basque, Spanish, and French (1

column).

In the second column the nomenclature is defined, in

the third the SN and in the last one the allophones of

each set.

Several HMM structure proposals were tested,

not only by different model topologies, but also by

the Gaussians Number (GN). In a first phase, only

one Gaussian is used. Then, a range from 1 to 50

Gaussians was explored. Finally, the unit insertion

penalty p was also adjusted implementing

experiments for a range from -1 to -60.

Usually, an expert defines the broad sub-word

classes needed during Acoustic Modelling. This

method becomes very complex in the case of

multilingual ASR tasks with incomplete or small

databases. In search of alternatives, it is interesting

to explore the data-driven methods that generate

SLUs broad classes based on the confusion matrices

of the SLUs. The similarity measure is defined using

the number of confusions between the master sub-

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

510

Table 3: HMM topologies for the SLUs of the three languages with different topologies and State Number (SN).

Description

Language Top. SN SLU

EEK

3 /b/,/d/,/g/

4 /j/,/w/,/B/,/D/,/G/,/l/,/r\/,/z_a/

5 /a/,/e/,/i/,/o/,/u/,/p/,/t/,/k/,/x/,/f/,/m/,/F/,/n/,/N/,/n_d/,/J/,/L/,/j\/,/c/,/J\/, /r/, /s_a/,/S/,/s_m/,/T/

6 /ts_a/,/ts_m/,/tS/,/INS/

EEK

4 /b/,/d/,/g/

5 /j/,/w/,/B/,/D/,/G/,/l/,/r\/,/z_a/

6 /a/,/e/,/i/,/o/,/u/,/p/,/t/,/k/,/x/,/f/,/m/,/F/,/n/,/N/,/n_d/,/J/,/L/,/j\/,/c/,/J\/, /r/, /s_a/,/S/,/s_m/,/T/

7 /ts_a/,/ts_m/,/tS/,/INS/

EEK

5 /j/,/w/,/p/,/t/,/k/,/b/,/d/,/f/,/x/,/m/,/n/,/J/,/l/,/c/,/J\/,/r\/,/s_a/,/z_a/,/s_m/, /S/

6 /a/,/e/,/i/,/o/,/u/,/B/,/D/,/g/,/G/,/F/,/N/,/n_d/,/L/,/j\/,/r/,/T/

7 /ts_a/,/ts_m/,/tS/,/INS/

EEK

5 /j/,/w/,/p/,/t/,/k/,/b/,/d/,/f/,/x/,/m/,/n/,/J/,/l/,/c/,/J\/,/r\/,/s_a/,/z_a/

6 /a/,/e/,/i/,/o/,/u/,/B/,/D/,/g/,/G/,/F/,/N/,/n_d/,/L/,/j\/,/r/

7 /s_m/,/S/,/T/,/ts_a/,/ts_m/,/tS/,/INS/

EEK

5 /j/,/w/,/p/,/t/,/b/,/f/,/m/,/n/,/J/,/l/,/c/,/J\/,/r\/,/s_a/

6 /a/,/e/,/i/,/o/,/u/,/d/,/F/,/N/,/L/,/r/

7 /k/,/B/,/D/,/g/,/G/,/x/,/n_d/,/j\/,/z_a/,/s_m/,/S/,/T/,/ts_a/,/ts_m/,/tS/, /INS/

EEK

3 /b/,/d/,/g/

4 /j/,/w/,/B/,/D/,/G/,/l/,/r\/,/z_a/

5 /a/,/e/,/i/,/o/,/u/,/y/,/p/,/t/,/k/,/x/,/f/,/m/,/F/,/n/,/N/,/n_d/,/J/,/L/,/j\/,/c/,/J\/, /r/, /s_a/,/S/,/s_m/,/T/

6 /ts_a/,/ts_m/,/tS/,/INS/

EEK

4 /b/,/d/,/g/

5 /j/,/w/,/B/,/D/,/G/,/l/,/r\/,/z_a/

6 /a/,/e/,/i/,/o/,/u/,/y,/p/,/t/,/k/,/x/,/f/,/m/,/F/,/n/,/N/,/n_d/,/J/,/L/,/j\/,/c/,/J\/, /r/, /s_a/,/S/,/s_m/,/T/

7 /ts_a/,/ts_m/,/tS/,/INS/

EEK

4 /p/,/t/,/k/,/B/,/f/

/a/,/e/,/i/,/o/,/u/,/y,/j/,/w/,/b/,/d/,/g/,/D/,/G/,/x/,/m/,/F/,/n/,/N/,/n_d/,/J/,/l/,/L/,/j\/,/c/,/J\/,/r\/,/r/,/z_a/,/s_a/,/S/,/s_m/,

/T/

6 /ts_a/,/ts_m/,/tS/,/INS/

EEK

5 /j/,/w/,/p/,/t/,/k/,/b/,/d/,/g/

6 /a/,/e/,/i/,/o/,/u/,/y,/B/,/D/,/G/,/x/,/f/,/m/,/F/,/n/,/N/,/n_d/,/J/,/l/,/L/,/j\/,/c/,/J\/,/r\/,/r/,/z_a/,/s_a/

7 /T/,/S/,/s_m/,/ts_a/,/ts_m/,/tS/,/INS/

EEK

5 /p/,/t/,/k/

6 /a/,/e/,/i/,/o/,/u/,/j/,/w/,/b/,/d/,/g/,/B/,/D/,/G/,/x/,/f/,,/m/,/F/,/n/,/N/,/n_d/,/J/,/l/,/L/,/j\/,/c/,/J\/,/r\/,/r/,/z_a/,/s_a/

7 /T/,/S/,/s_m/,/ts_a/,/ts_m/,/tS/,/INS/

EEK

3 /b/,/d/,/g/

4 /j/,/w/,/B/,/D/,/G/,/l/,/r\/,/z_a/

/a/,/e/,/i/,/o/,/u/,/y/,/A/,/E/,/O/,/@/,/2/,/9/,/9~/,/a~/,/e~/,/o~/,/p/,/t/,/k/,/x/,/f/,/v/,/m/,/F/,/n/,/N/,/n_d/,/J/,/L/,/j\/,/c/,/

J\/, /r/, /s_a/,/S/,/s_m/,/T/

6 /ts_a/,/ts_m/,/tS/,/INS/

EEK

3 /b/,/d/,/g/

4 /j/,/w/,/B/,/D/,/G/,/l/,/r\/,/z_a/

/a/,/e/,/i/,/o/,/u/,/y/,/A/,/E/,/O/,/@/,/2/,/9/,/9~/,/a~/,/e~/,/o~/,/p/,/t/,/k/,/x/,/f/,/v/,/m/,/F/,/n/,/N/,/n_d/,/J/,/L/,/j\/,/c/,/

J\/, /r/, /s_a/,/S/,/s_m/,/T/

6 /ts_a/,/ts_m/,/tS/,/INS/

EEK

6 /p/,/t/,/k/,/B/,/f/

/a/,/e/,/i/,/o/,/u/,/y/,/A/,/E/,/O/,/@/,/2/,/9,/j/,/w/,/b/,/d/,/g/,/D/,/G/,/x/,/m/,/F/,/n/,/N/,/n_d/,/J/,/l/,/L/,/j\/,/c/,/J\/,/r\/,/r

/,/z_a/,/s_a/,/S/,/s_m/,/T/

8 /9~/,/a~/,/e~/,/o~/,/ts_a/,/ts_m/,/tS/,/INS/

EEK

6 /j/,/w/,/p/,/t/,/k/,/b/,/d/,/g/

7 /a/,/e/,/i/,/o/,/u/,/y/,/A/,/E/,/O/,/@/,/B/,/D/,/G/,/x/,/f/,,/m/,/F/,/n/,/N/,/n_d/,/J/,/l/,/L/,/j\/,/c/,/J\/,/r\/,/r/,/z_a/,/s_a/

8 /2/,/9/,/9~/,/a~/,/e~/,/o~/,/T/,/S/,/s_m/,/ts_a/,/ts_m/,/tS/,/INS/

EEK

6 /p/,/t/,/k/,/m/,/n/

7 /a/,/e/,/i/,/o/,/u/,/y/,/j/,/w/,/b/,/d/,/g/,/x/,/f/,/F/,/N/,/n_d/,/J/,/l/,/L/,/j\/,/c/,/J\/,/r\/,/r/,/z_a/,/s_a/

8 /A/,/E/,/O/,/@/,/2/,/9/,/9~/,/a~/,/e~/,/o~/,/B/,/D/,/G/,/T/,/S/,/s_m/,/ts_a/,/ts_m/,/tS/,/INS/

word unit and all other units included in the set, in

this case the global Phone Error Rate (PER). In our

approach the confusion matrices were calculated by

several methods oriented to data optimization with

ACOUSTIC MODELLING FOR SPEECH PROCESSING IN COMPLEX ENVIRONMENTS

511

small databases (Barroso, 2011a). The grouping for

the three languages is summarized in the table 4.

Finally, the training and testing methodology

was K-fold Cross Validation. This is one way to

improve the results of classical train/test methods

when the data set is small. The data set is divided

into k subsets, and the training and test method is

repeated k times. Each time, one of the k subsets is

used as the test set and the other k-1 subsets are put

together to form a training set. Then the average

error across all k trials is computed. Every data point

gets to be in a test set exactly once, and gets to be in

a training set k-1 times. Leave-One-Out (LOO),

cross validation is K-fold cross validation taken to

its logical extreme, with K equal to N, the number of

data points in the set. In this work more than one

value of K has been used, but the results show the

case of K=10.

5 EXPERIMENTATION

The input signal is transformed and characterized

with a set of 13 Mel Frequency Cepstral (MFCC),

energy and their dynamic components, taken into

account the high level of noise in the signal (42

features). The frame period was 10 milliseconds, the

FFT uses a Hamming window and the signal had

first order pre-emphasis applied using a coefficient

of 0.97. The filter-bank had 26 channels. Then,

automatic segmentation of the SLU units

(phonemes) is generated by Semi Continuous HMM

(SC-HMM). In a first stage, the Gaussian Number is

1 and no SLU data-driven or unit fusion is used. The

set of units is the described in the Table 2.

When the SN of the HMM (with regard to the

SLUs nature) are changed (configurations EEK1-

EEK5), it can be observed an ascending progression

in the value of Accuracy (Acc). EEK1 is the

configuration based on the proposal of (Puertas,

2000). EEK2 is similar to EEK1 adding one more

Table 4: Description of the different groups of Sublexical Unit for the three languages.

Language Group Type Description

/i/=/i/+/j/

/u/=/u/+/w/

/b/=/b/+/B/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/i/=/i/+/j/

/u/=/u/+/w/

/b/=/b/+/B/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/s_a/=/s_a/+/z_a/

/j\/=/j\/+/J\/+/c/

/l/=/l/+/L/

/i/=/i/+/j/

/u/=/u/+/w/

/b/=/b/+/B/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/s_a/=/s_a/+/z_a/

/j\/=/j\/+/J\/+/c/+/L/

/i/=/i/+/j/

/u/=/u/+/w/

/b/=/b/+/B/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/i/=/i/+/j/

/u/=/u/+/w/

/b/=/b/+/B/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/s_a/=/s_a/+/z_a/

/j\/=/j\/+/J\/+/c/+/L/

/e/=/e/+/E/ /i/=/i/+/j/

/u/=/u/+/w/ /o/=/o/+/O/

/y/=/y/+/H/ /@/=/@/+/2/+/9/

/a/=/a/+/a~/ /i/=/i/+/j/

/e/=/e/+/E/+/e~/+/9~/

/o/=/o/+/O/+/o~/ /@/=/@/+/2/+/9/

/u/=/u/+/w/+/y/+/H/

/b/=/b/+/B/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/s_a

nFR

/=/s_a

nFR

/+/z_a

nFR

/R\/=/R\/+/r/+/r\/

/a/=/a/+/a~/

e/=/e/+/E/+/e~/+/9~//i/=/i/+/j/

o=o+O+o~

u=u+w+y+H+@+2+9

/b/=/b/+/B/+/v/

/d/=/d/+/D/

/g/=/g/+/G/

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/s_a/=/s_a/+/z_a/

/s_a

nFR

/=/s_a

nFR

/+/z_a

nFR

/R\/=/R\/+/r/+/r\/

/a/=/a/+/a~/

/e/=/e/+/E/+/e~/+/9~/

/i/=/i/+/j/

/o/=/o/+/O/+/o~/

/u/=/u/+/w/+/y/+/H/+/@/+/2/+/9/

/b/=/b/+/B/+/v/

/d/=/d/+/D/

/g/=/g/+/G

/m/=/m/+/F/

/n/=/n/+/N/+/n_d/

/s_a/=/s_a/+/z_a/

/s_a

nFR

/=/s_a

nFR

/+/z_a

nFR

/R\/=/R\/+/r/+/r\/

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

512

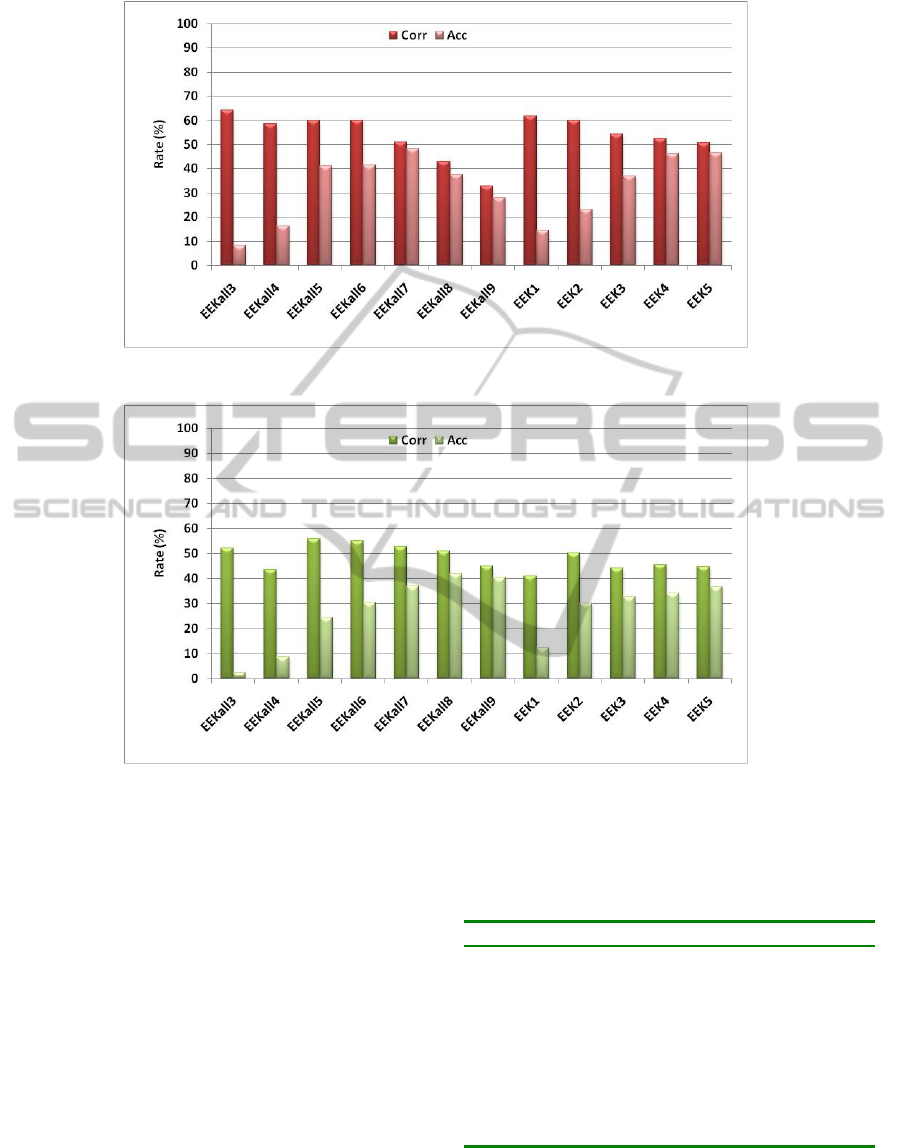

Figure 3: Results with different HMM topologies for Basque.

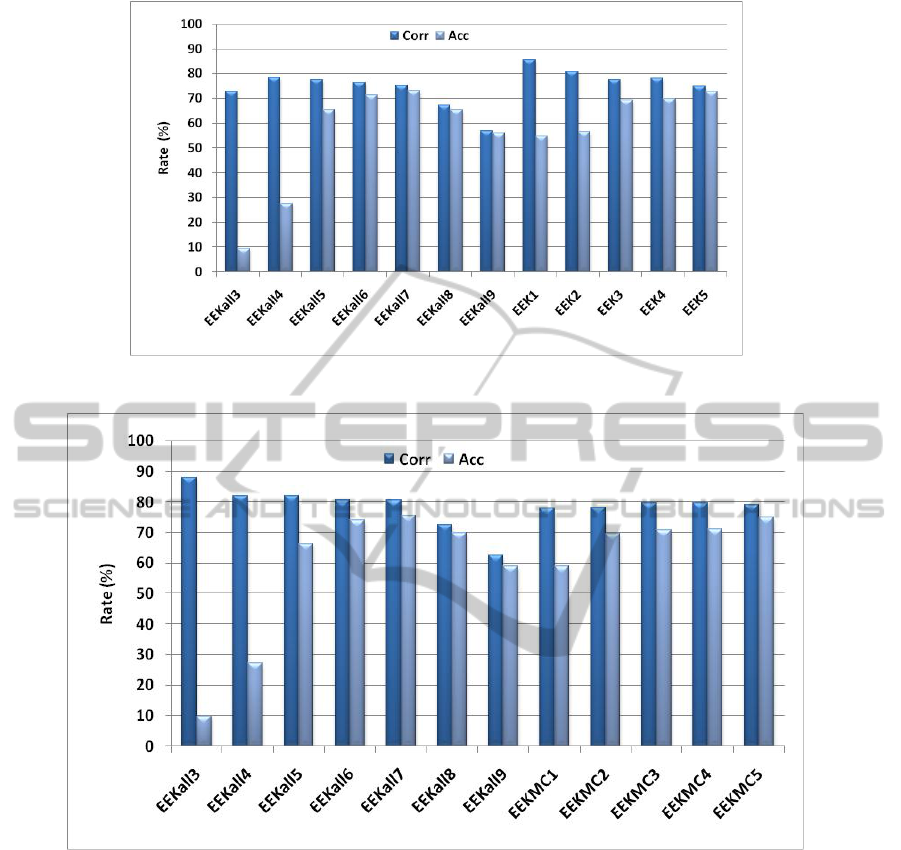

Figure 4: Results with different HMM topologies and the group type C for Basque.

stage to each SLU. Then, following stage

distributions of the SLUs were adjusting taken into

account the recognition rates and the insertion value

for every unit obtained in the previous analysis

(EEKall1 to EEKall9, EEK1 and EEK2). EEK5

configuration proposal provides the best results

(figure 3).

In this case, the weakest units have been

modelled with many states. Moreover, the unit

definition tries to support cohesion among the

articulatory characteristics of the units. EEK5 does

not overcome the recognition rate of EEKall7, but it

approaches to it very much while using less global

state numbers: Corr = 75 % and Acc = 72.85 %. The

same effect appears for all allophone groups in the

case of Basque. The best results are obtained with

the type C. In figure 4 the results obtained for this

unit grouping can be seen.

The best rates are obtained for the EEKall7

configuration: Corr =80.60 % and Acc = 75.62 %,

the next best result is obtained by EEK5 with these

rates: Corr = 79.16 % and Acc = 75.05 %. Though

the values of Corr and Acc change, the evolution of

the results with regard to the different configurations

is kept for types A and B. In the figure 5 it can see

the results for Spanish without using SLU groups.

The analysis carried out for Spanish and French is

the same. Nevertheless, because both languages are

different with regard to phonetic characteristics and

the audio signal, they have evolved towards different

topologies (figure 5).

ACOUSTIC MODELLING FOR SPEECH PROCESSING IN COMPLEX ENVIRONMENTS

513

Figure 5: Results with different HMM topologies for Spanish.

Figure 6: Results with different HMM topologies for French.

As with Basque, with regard to the evolution of

topologies in which all the SLUs have the same SN

the maximum value of Acc is obtained by 7 state:

Corr = 51.04 % and Acc =48.39 %. With (Puertas,

2000) configuration the results are very poor but

after several tests the following results are obtained

for EEK5: Corr = 50.63 % and Acc = 46.63 %. In

this case, it does not manage to overcome the rate of

EEKall7, but the configuration EEK5 has less

computational cost since fewer states are used. The

same effect appears in for the SLU groups proposed

for Spanish (table 3). Here the best result is provided

for the Type B and EEKall7: Corr = 53.33 % and

Acc = 50.58 %. For the EEK5 the following results

are obtained: Corr = 51.08 % and Acc = 49.41 %.

The French database presents the highest level of

noise among the three languages. Figure 6 shows

these results. For French, the best result with regard

to Accuracy is obtained with the EEKall8 topology:

Corr = 52.65 % and Acc =36.97 %.

Table 5: Summary of the best results obtained with regard

to the topologies and the languages.

LG Rate (%) SLU Type

EEKall7 EEK5

Corr (%) 80.60 79.16

Acc (%) 75.62 75.05

EEKall7 EEK5

Corr (%) 53.33 51.08

Acc (%) 50.58 49.41

EEKall8 EEK5

Corr (%) 58.54 50.41

Acc (%) 49.46 46.08

Under noisy conditions, the increment of SN

improves the results but anyway for French the

results are very poor due to the under-resourced

conditions. EEK5 configuration does not overcome

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

514

the EEKall8 and obtains similar results: Corr =

44.75 % and Acc = 36.67 %. The SLU groups in

general provide better results. The maximum value

for French with regard to Acc is obtained for the

type C and the configuration EEKall8: Corr =

58.54 % and Acc = 49.46 %. For EEK5: Corr =

50.41 % and Acc = 46.08 %.

Then we can conclude that:

1. The best results are obtained for Basque.

2. Noise effects are better absorbed for

topologies with more states.

3. Each language has its own configuration

guided for both the phonetic features and the

noise level of the data.

4. The SLU groups provide better results for the

three languages.

5. The configurations EEK5 of each language

provides very interesting results, since the Acc

values are close to the maximum values with

fewer SN.

The most outstanding results are summarized in

table 5 with regard to the topologies and the

languages.

Finally, a new analysis has been carried out with

regard to the insertion penalty, p, the Gaussian

Number (GN), the topologies and the languages.

Table 6 presents the obtained results. The worst

results are obtained for French. In general it can be

observed that the models with high SN need a lower

GN and lower value for p because of the definition

of appropriately configurations fitted to the needs of

the system. In some cases Acc rates for APD

experiments are very small, but this weakness can be

absorbed in a later phase by a powerful LM as the

ontologies (Barroso, 2011b).

6 CONCLUDING REMARKS

The present work is focused on the selection of

appropriate Acoustic Models for Speech Processing

in a complex environment (multilingual context and

under-resourced and noisy conditions) oriented to

general ASR tasks. The work has been carried out

with a small trilingual speech database with very

low audio quality. In order to decrease the negative

impact that the lack of resources has in this task

there were selected as acoustic models of the

sublexical units several options such as hybrid

HMM topologies and parameters, and optimum

configuration for the APD system (Multivariate

Gaussian Number or the insertion penalty). With the

new Acoustic Modelling noise effects are better

absorbed for topologies with more states. Moreover,

Table 6: Summary of the best results obtained with regard

to the topologies, languages an APD configuration.

LG SLU GN

p Corr PER

BS EEK5 Allophone 24 -20 81.50 21.10

EEK5 Type A 24 -20 78.84 24.10

EEKall7 Type B 8 -10 78.90 25.50

EEKall7 Type B 4 -25 82.10 20.20

EEKall7 Type B 4 -10 79.70 24.00

EEK5 Type B 22 -20 80.50 23.95

SP EEK5 Type A 24 -20 53.25 52.5

EEKall7 Type B 8 -10 54.33 52.80

EEKall7 Type B 4 -25 58.80 46.04

EEKall7 Type B 4 -10 62.18 42.80

EEK5 Type B 22 -20 59.90 45.94

FR EEK5 Allophone 24 -20 46.33 58.28

EEK5 Type A 24 -20 46.50 56.28

EEKall7 Type B 8 -10 50.80 50.58

EEKall7 Type B 4 -25 58.59 48.80

EEKall7 Type B 4 -10 52.86 45.94

EEK5 Type B 22 -20 81.50 21.10

each language has its own configuration guided for

both the phonetic features and the noise level of the

data. In some cases rates for APD experiments are

very poor, but this weakness can be absorbed in a

later phase by a powerful LM.

In future lines of work, non-linear approaches,

low-level ontologies and new methodologies for

automatic features selection will be developed.

ACKNOWLEDGEMENTS

This work has been partially supported by the

programmes IKERTU and SAIOTEK of the Basque

Community Government. We are also very grateful

for the collaboration of Infozazpi radio and Irunweb

enterprise.

REFERENCES

Baker, J., 1975, Stochastic Modeling for Automatic

Speech Recognition, Speech Recognition, Reddy,

Academic Press.

Barroso, N. Ezeiza A., Gilisagasti, N., L Ipiña K., López

A. and López J. M.,2007, Development of Multimodal

Resources for Multilingual Information Retrieval in

the Basque context., INTERSPEECH Antwerp,

Belgium, 2007.

ACOUSTIC MODELLING FOR SPEECH PROCESSING IN COMPLEX ENVIRONMENTS

515

Barroso, N., Lopez De Ipiña K., Hernandez C. and Ezeiza

A., 2011a. Matrix covariance estimation methods for

robust security speech recognition with under-

resourced conditions, 45th IEEE International

Carnahan Conference on Security Technology, Mataro

Barcelona

Barroso, N., López de Ipiña, K., Ezeiza, A., Hernández,

C., Ezeiza, N., Barroso, O., Susperregi, U. and

Barroso, S., 2011. GorUp: an ontology-driven Audio

Information Retrieval system that suits the

requirements of under-resourced languages,

INTERSPEECH, Florence Italy.

Baum, E., Petrie, T., Soules, G., & Weiss, N., 1970, A

maximization technique occurring in the statistical

analysis of probabilistic functions of Markov chains.

Ann. Math. Statistics, vol. 41, no. 1, pp. 164–171.

Baum, L. E., and Eagon, J. A., 1967, An Inequality with

Applications to Statistical Estimation for Probabilistic

Functions of a Markov Process and to a Model for

Ecology., In Bulletin of the American Mathematical

Society, vol. 73, pp. 360-370.

Cosi P. “Hybrid HMM-NN architectures for connected

digit recognition”. Proc. of the IJC on Neural

Networks, vol. 5, 2000

Ellis, D., 2011, http://labrosa.ee.columbia.edu/

Friedman J. H., 1989, Regularized discriminant analysis.

Journal of the American Statistical Association, vol.

84, pp. 165-175, 1989.

infozazpi radio www.infozazpi.com

Jelinek., 1976, Continuous Speech Recognition by

Statistical Methods. Proceedings of the IEEE, vol. 64,

no. 4, pp. 532-556.

Le V. B. and Besacier L., 2009 Automatic speech

recognition for under-resourced languages: application

to Vietnamese language. IEEE Transactions on Audio,

Speech, and Language Processing, Volume 17, Issue

8, pp 1471-1482, 2

Martinez A. and Kak A., 2001, PCA versus LDA, IEEE

Transactions on Pattern Analysis and Machine

Intelligence, Vol. 23, No.2, 228-233

Puertas, I., 2000, Robustez de Reconocimiento fonético de

voz para aplicaciones telefónicas. Madrid: Tesis

doctoral.

Rabiner, H. R., & Juang, B. H., 1993, Fundamentals of

Speech Recognition, USA: Prentice Hall

Schultz, T. and Waibel, A., 1998, Multilingual and

Crosslingual Speech Recognition, Proceedings of the

DARPA BC. Workshop.

Seng S., Sam S., Le V. B., Bigi B. and Besacier L., 2008,

Which Units For Acoustic and Language Modeling

For Khmer Automatic Speech Recognition., 1st

International Conference on Spoken Language

Processing for Under-resourced languages Hanoi,

Vietnam

Smith N., Gales M. “Speech recognition using SVMs”,

Advances in Neural Information Processing Systems

14. MIT Press, 2002.

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

516
