NEW APPROACHES FOR XML DATA COMPRESSION

Márlon A. C. Teixeira

, Rodrigo S. Miani

, Gean D. Breda

Bruno B. Zarpelão

and Leonardo S. Mendes

Acre Federal Institute of Education, Science and Technology (IFAC), Rio Branco, Brazil

School of Electrical and Computer Engineering, University of Campinas (UNICAMP), Campinas, Brazil

Keywords: Data Compression, Data Exchange, Extensible Markup Language (XML), Interoperability.

Abstract: Integration of information systems is essential to organizations. Therefore, it is necessary to make different

technologies interoperate. Extensible Markup Language (XML) is often used for data exchange because it is

self-descriptive and platform-independent. However, XML is a verbose language which may bring

problems related to the size of documents. This work proposes two new approaches for XML data

compression and compares our solutions with three algorithms: WAP Binary Extensible Markup Language

(WBXML), Xmill and Efficient XML Interchange (EXI). The comparison is based on compression rate and

compression time for files with different sizes.

1 INTRODUCTION

Extensible Markup Language (XML) is a de facto

standard to exchange data in heterogeneous

environments. However, problems with the size of

XML documents are common due to the redundancy

contained in their repeated tags (Ng et al., 2006)

(Augeri et al., 2007). A possible solution to reduce

the size of XML documents is the application of data

compression algorithms. Yet, XML-conscious

compressors like WBXML (WAP Binary Extensible

Markup Language) (XBXML, 1999), XMill (Liefke

and Suciu, 2000) and EXI (Efficient XML

Interchange) (EXI, 2011) bring about, as a result,

compressed documents which are not in the XML

format. This way, one of the great advantages of the

XML language, which is the diversity of APIs

(Application Programming Interfaces) that can be

found for parsing and querying XML data, is

annulled.

In the present work, we propose two approaches

for the compression of XML documents. The first

solution, entitled Schema-aware algorithm, is based

on the elimination of redundant tags of the document

structure. The final compression outcome is still a

document in the XML format. So, it is possible to

handle the compressed document by using the

various XML parsing and querying solutions

available. The second solution is a hybrid algorithm

which applies the general purpose compressor GZIP

(Gailly and Addler, 2011) on the result of the

compression achieved from the Schema aware

algorithm.

To assess both propositions, we have carried out

a comparative with the WBXML, Xmill and EXI

algorithms taking in consideration two metrics:

compression rate and compression time. These two

metrics were collected during the compression of

files of 8 different sizes.

The remainder of the paper is structured as

follows. In section 2, the Schema aware algorithm is

presented. In section 3, the Hybrid algorithm is

presented. Section 4 brings the comparison between

the two proposed solutions and the compressors

WBXML, XMill and EXI. At last, section 5 frames

the final considerations on this work.

2 SCHEMA-AWARE

ALGORITHM

The Schema-aware algorithm consists of the

elimination of redundant tags which are in the same

level of the document, without neither compressing

the data, nor the tags existent in the document. To

demonstrate how this redundancy occurs, we shall

use the following XML document:

233

A. C. Teixeira M., S. Miani R., D. Breda G., B. Zarpelão B. and S. Mendes L..

NEW APPROACHES FOR XML DATA COMPRESSION.

DOI: 10.5220/0003896202330237

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 233-237

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

1 <customers>

2 <customer>

3 <organization>Org1</organization>

4 <type>Type1</type>

5 <name>Name1</name>

6 </customer>

7 <customer>

8 <organization>Org2</organization>

9 <type>Type2</type>

10 <name>Name2</name>

11 </customer>

12 </customers>

The XML document can be represented as a tree,

as in Figure 1. By looking at the tree structure, one

realizes that the nodes of the same level in the tree

have the same tags. For this reason, plenty of

redundant information is sent through the network

and stored in the destinations, as well. So, it is

exactly on the elimination of the redundant tags of

the same level that the Schema-aware algorithm has

its base for reducing XML document size. By

applying the algorithm in order to have the tag

redundancy eliminated in each level of the tree, the

nodes of the same level will become a single node.

Therefore, the redundant tags are eliminated and the

pieces of information inside the nodes are stored in

this unique resulting node.

Figure 1: XML document shown as a tree.

A detail needs to be considered in the

information storing process in the resulting node: the

data location is of extreme relevance, since the file

decompression is carried out based on the order of

the elements. The Figure 2 tree stands for the result

of the compression of the XML document in Figure

The following XML document shows the result

of the compression carried out by using the Schema

Aware algorithm. Clearly, there was a remarkable

reduction in the size of XML file, mainly in the use

of tags.

1 <customers>

2 <customer>

3 <organization>[Org1, Org2]

</organization>

4 <type>[Type1, Type2]</type>

5 <name>[Name1, Name2]</name>

6 </customer>

7 </customers>

Schema-aware algorithm, differently from the

WBXML, XMill and EXI compressors, generates

the same representation of the original XML file in

another XML file of smaller size. This is an

advantage, since self-descriptive characteristic of the

XML language is maintained and the tools which

handle XML can still be used.

Figure 2: Resulting compressed document.

3 HYBRID ALGORITHM

The hybrid algorithm is a variation of the Schema-

aware algorithm. This variation consists of the

application of a generic purpose data compressor on

the result of the Schema-aware algorithm

compression. The data compressor chosen was the

GZip, which is broadly used and spread out in the

proper literature (Snyder, 2010). Figure 3 presents

the Hybrid algorithm diagram.

Figure 3: Hybrid algorithm diagram.

The GZip compressor has been chosen because it

is one of the most popular data compressors (in the

market). It is widely used even in specialized XML

file compressors, for instance, the XMill (Lifke and

Suciu, 2000). The objective of applying the GZip is

the compression of information and tags, not done in

the first approach, where only the redundancy of

existent tags in the same level of the XML tree was

removed.

With this change, it is expected an improvement

in the compression rate, followed by a possible

degradation in the performance of the method

regarding to the compression time. Beyond the

impact on the performance resulted from this new

approach, other alterations arise due to this change.

The resulting file of the compression is no longer a

Customers

Customer

Organization

Type

Name

Customer

Organization

Type

Name

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

234

XML document. In other words, for the information

to be extracted, it is necessary the utilization of a

GZip decompressor. Therefore, there is a loss of

legibility leading to a bigger impact on the

interoperability. No less important is the

impossibility of using the available tools for

handling the XML language.

4 RESULTS

In this section, we present the evaluation of the

following XML compression algorithms: Schema-

aware, Hybrid, EXI, WBXML and XMill. The

scenario of tests was built in accordance with the

tests proposed by Cokus and Winkowski (2002).

The authors used a range of XML document size

from 6,010 bytes (approximately 6 Kbytes) to

11,421,822 bytes (approximately 11 Mbytes).

In the same way, five sets of files were created in

our work. Each set contains eight files with the

following sizes: 1 – 268 Kbytes; 2 – 538 Kbytes; 3 –

1073 Kbytes; 4 – 2238 Kbytes; 5 – 4482 Kbytes; 6 –

8957 Kbytes; 7 – 17922 Kbytes and 8 – 35850

Kbytes.

In these file sets, it was applied the EXI,

WBXML, XMill, Schema-aware and Hybrid

algorithms. Also, the following criteria were

assessed: compression rate and compression time.

4.1 Compression Rate

In this section, we will evaluate the compression rate

achieved by the methods. The five file sets were

submitted to the compression methods and, for each

file, the result of the compression rate was analyzed.

These results are exposed in the Figures 4, 5 and 6.

The analysis of the graphs in the Figures 4, 5 and

6 shows that the EXI method has reached the best

compression rate for all the sizes of the analyzed

files. By comparing the rates obtained by the XMill

method and Hybrid algorithm, one can notice very

similar outcomes. The WBXML method has reached

the worst rates in all the tests.

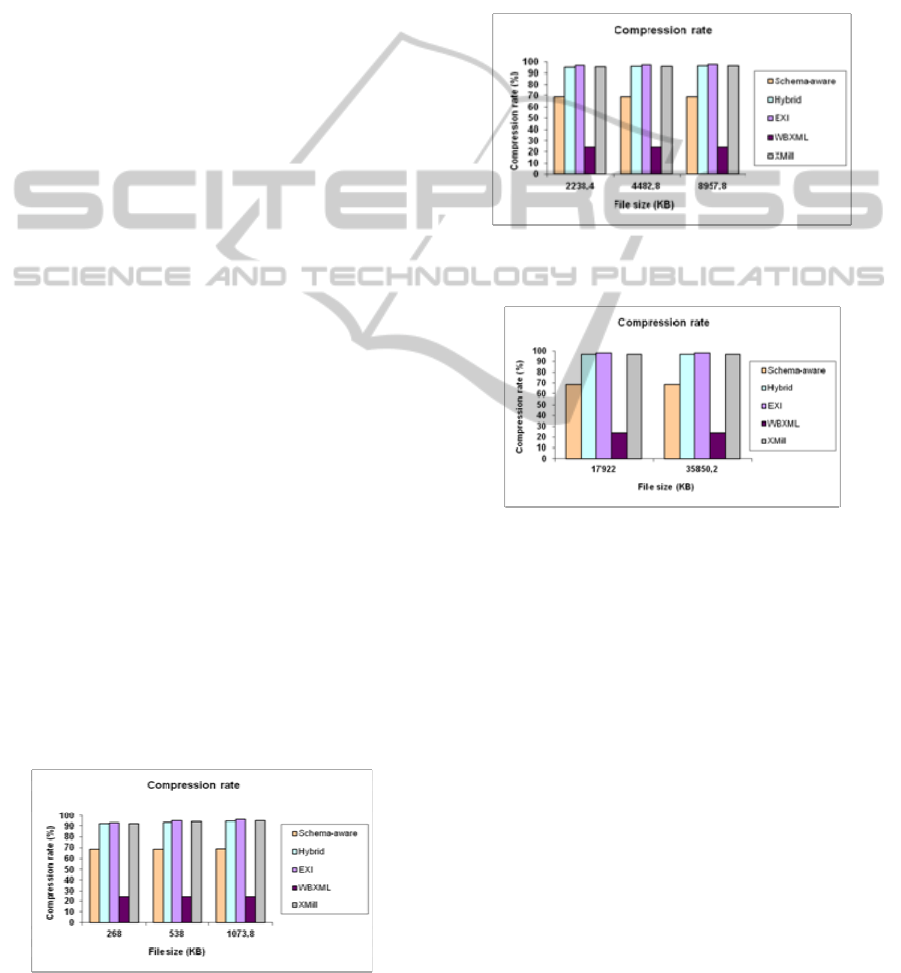

Figure 4: Compression rate for the 268, 538 and 1073.8

KB files.

The Schema-aware algorithm has reached a

reasonable compression rate, despite having lower

results than the other algorithms, except the

WBXML’s.

Analyzing the results achieved by the WBXML

method and the Schema-aware algorithm, one can

realize that the Schema-aware algorithm reaches

roughly rates of up to 68.81% and the WBXML

compressor reaches rates of up to 24.26%, which

means a meaningful difference.

Figure 5: Compression rate for the 2238.4, 4482.8 and

8957.8 KB files.

Figure 6: Compression rate for the 17922 and 35850.2 KB

files.

4.2 Compression Time

Another point analyzed was the compression time.

The compression algorithms were executed on a

computer with a processor at 1.33 GHz and 1 GB of

system RAM. The results are presented in Figures 7,

8 and 9.

According to Figures 7, 8 and 9, one can realize

that the XMill compressor has presented the best

performance for all the files and in all trials. One

factor that may explain this result is the algorithm

implementation, based on C++. The other

compression algorithms were implemented using

Java language. C and C++ compilers output

platform-specific native code, while Java compilers

output machine-neutral bytecode. Therefore, C++

programs usually have better performance than Java

programs.

According to the results, we can also notice that

NEWAPPROACHESFORXMLDATACOMPRESSION

235

the WBXML has obtained better performance than

the Schema-aware and Hybrid algorithms for files

which vary between 268 and 2238.4 Kbytes and

worse performance for files which vary between

17922 and 35850.2 Kbytes. The performance

difference is of 35% when compared to the Schema-

aware algorithm and of 52% when compared to the

Hybrid algorithm.

The EXI compressor has shown the worst

performance in all file sizes and all trials carried out.

The biggest difference of performance, compared to

XMill, is of approximately 96% and regarding to

WBXML it goes around 88%.

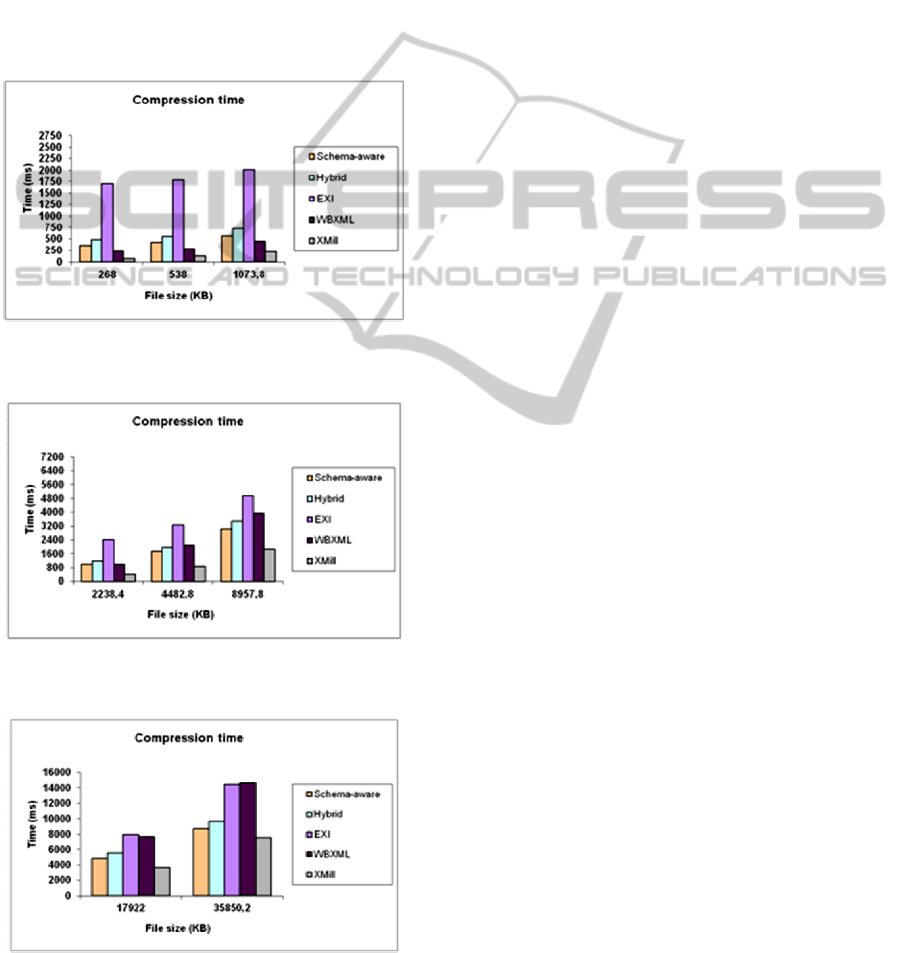

Figure 7: Compression time for the 268, 538 and 1073.8

KB files.

Figure 8: Compression time for the 2238.4, 4482.8 and

8957.8 KB files.

Figure 9: Compression time for the 17922 e 35850.2 KB

files.

5 CONCLUSIONS

This paper proposed two algorithms for XML

documents compression: Schema-aware algorithm

and Hybrid algorithm. Tests were designed and

applied to compare the two proposed approaches

with the following XML conscious compressors:

EXI, WBXML and XMill. The items compression

time and compression rate were evaluated.

No method was good enough in all requirements.

The method which reached the best compression rate

was the EXI. On the other hand, it is the slowest one

compared to the other two methods that most get

close to its compression rate, namely the XMill and

the Hybrid algorithm. Both the XMill and Hybrid

algorithm have reached compression rates very

much alike and also better performances compared

to the EXI. Finally, a remarkable characteristic of

Schema-aware approach is the preservation of

interoperability. The Schema-aware algorithm

outputs an XML document after the compression,

while other investigated methods output new

formats.

REFERENCES

Augeri, C. J., Mullins, B. E., Baird III, L. C., Bulutoglu,

D. A., Baldwin, R. O., 2007. An Analysis of XML

Compression Efficiency. In 2007 Workshop on

Experimental Computer Science (ExpCS). ACM New

York.

Cokus, M., Winkowski, D., 2002. “XML sizing and

compression study for military wireless data”. In XML

Conference and Exposition.

EXI - Efficient XML Interchange, 2011. W3C Recomen-

dation, http://www.w3.org/TR/exi/.

Gailly, J. and Adler, M., 2011. GZIP. http://www.gzip.

org/.

Huffman, D. A., 1952. A Method for the Construction of

Minimum-Redundancy Codes. In Proceedings of the

I.R.E, p. 1098-1102.

Liefke, H. and Suciu, D., 2000. XMill: An efficient

compressor for XML data. In Proceedings of the ACM

SIGMOD International Conference on Management of

Data, p. 153–164.

Ng, W., Lam, W., Cheng, J., 2006. Comparative Analysis

of XML Compression Technologies, World Wide

Web: Internet and Web Information Systems, v. 9, p.

5-33.

Open Mobile Alliance, 2011, http://www.openmobilealli

ance.org/.

Snyder, S. L., 2010. Efficient Xml Interchange (EXI)

Compression and Performance Benefits:

Development, Implementation And Evaluation. PhD

thesis, Naval Postgraduate School Monterey,

California.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

236

Winzip, 2011. http://www.winzip.com/.

WBXML - WAP Binary XML Content Format, 1999.

W3C NOTE, http://www.w3.org/TR/wbxml/.

NEWAPPROACHESFORXMLDATACOMPRESSION

237
