A CLOUD STORAGE PLATFORM IN THE DEFENSE CONTEXT

Mobile Data Management with Unreliable Network Conditions

Jan Sipke van der Veen

, Mark Bastiaans

, Marc de Jonge

and Rudolf Strijkers

2,3

TNO, Groningen, The Netherlands

TNO, Delft, The Netherlands

University of Amsterdam, Amsterdam, The Netherlands

eywords:

Cloud Storage, Storage Platform, Mobile Data, Synchronization, Caching, Discovery.

Abstract:

This paper discusses a cloud storage platform in the defense context. The mobile and dismounted domains

of defense organizations typically use devices that are light in storage, processing and communication capa-

bilities. This means that it is difﬁcult to store a lot of information on these devices locally, but also that it is

infeasible to rely on a central storage system that is accessible through a network. The concept of Information

of Interest (IoI) is introduced to denote the information demand of a user and its devices and applications.

A novel storage platform is designed and tested that uses well-known techniques such as synchronization,

caching and discovery, and uses the IoI to determine the storage strategy. A sample application was created

that runs on personal computers, mobile phones and tablets. Manual and automated tests were run to show

that the platform behaves as expected.

1 INTRODUCTION

The last decades have shown the importance of infor-

mation superiority in the defense context (Thomas,

2000). The information used in this context ranges

from high level information at the top of the defense

organization all the way down to the detailed infor-

mation of the individual soldier.

The static and deployed domains of defense orga-

nizations typically use devices with high storage and

processing capacity, which are connected with a re-

liable, high bandwidth network. This means that in-

formation can be stored on the devices themselves or

in a central storage system and accessed through the

network when needed.

However, the mobile and dismounted domains of

a defense organization typically use devices that are

light, not only in weight but also in storage, process-

ing capacity and communication capabilities. This

limits the amount of information that the device can

store locally. To make matters worse, the soldier is

regularly faced with unreliable and low bandwidth

networks, making remote information access difﬁ-

cult as well (Burbank et al., 2006). Standard cloud

storage platforms - both public such as S3 (Amazon,

2011) and private such as Swift (OpenStack, 2011)

- depend on a reliable network connection with their

users, which is why they cannot be used as-is in mo-

bile and dismounted domains.

Another problem defense organizations face is

that of unintended interaction between applications.

Each application typically uses the storage capacity of

the device it runs on and, when needed, uses the net-

work to communicate with a server elsewhere. This

may result in applications interfering with each other.

For example, an important application may need extra

storage capacity or network bandwidth, while a less

important application is using this capacity. Without a

layer between the applications and the resources they

use, one application cannot have precedence over oth-

ers.

There are standard techniques for caching infor-

mation on a local device (Halinger and Hohlfeld,

2010) (Nguyen and Dong, 2011) and accessing in-

formation remotely when needed, but they typically

assume a reliable, high bandwidth network connec-

tion between devices (Bohossian et al., 2001) (Rhea

et al., 2001). Other techniques try to deal with slow

networks (Suel et al., 2004) (Shinkuma et al., 2011),

but do not use the domain knowledge of applications

that use this storage.

This paper proposes a novel platform that com-

bines a set of well-known techniques that does not

depend on a reliable, high bandwidth network. It can

462

Van der Veen J., Bastiaans M., De Jonge M. and Strijkers R..

A CLOUD STORAGE PLATFORM IN THE DEFENSE CONTEXT - Mobile Data Management with Unreliable Network Conditions.

DOI: 10.5220/0003898404620467

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 462-467

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

continue storing and retrieving information locally,

until the network is available again. At the same time,

it can prioritize applications that need more capacity

at the expense of less important applications. It also

makes use of the domain knowledge of the applica-

tions to decide which pieces of information may be

deleted when storage capacity runs out.

2 INFORMATION OF INTEREST

It is both impractical and unnecessary to present sol-

diers in the ﬁeld with all information the army has

its disposal. The soldier’s devices simply contain too

little storage capacity to hold all information. And

even if the devices could hold so much information,

the soldier would be overwhelmed by it (Hancock and

Szalma, 2008).

A selection therefore needs to be made of the total

information space that is available. Good examples

of selection criteria for a soldier are: the author of the

information (e.g. the commanding ofﬁcer), the loca-

tion that the information refers to (e.g. a town nearby)

and the time when the information was entered. The

term Information of Interest (IoI) formalizes this as a

technical representation of information demand of a

user and its devices and applications.

Figure 1 contains an example of users A, B and C

with their own IoI and some shared interests. These

shared interests depend on the type of information,

e.g. B and C have an overlap in terrain information

interest, but none in information about persons. This

makes it possible for information to be shared among

users, but only the information that they are all inter-

ested in.

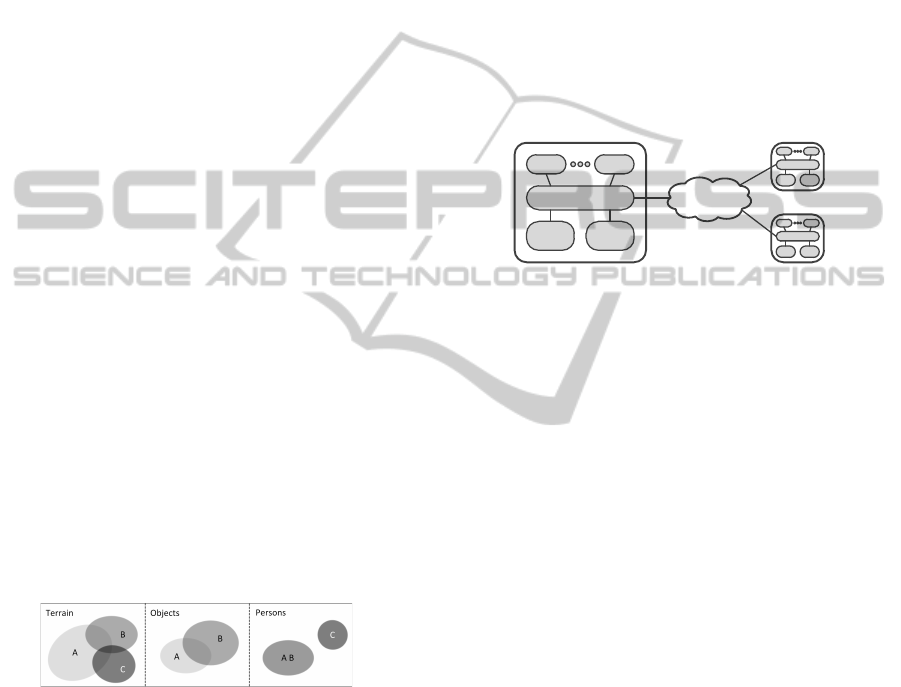

Figure 1: Information of Interest of parties A, B and C with

overlapping interests, depending on type of information.

3 STORAGE PLATFORM

Given the defense context there are several possible

requirements on a storage solution, but the one we

focus on in this paper is the ability to store all and

retrieve the most important information when there is

no or bad network connectivity.

The CAP theorem (Brewer, 2000) states that you

can obtain at most two out of three properties in a

shared data system: consistency (C), availability (A)

and tolerance to network partitions (P). As we can see

from our requirement, tolerance to network partition-

ing is important, as well as availability. This means

that consistency is no longer attainable and we should

deal with this by resolving conﬂicts that might arise.

Figure 2 shows how our platform resides in be-

tween the local storage and the applications. Synchro-

nization with other devices takes place through the

network. Queries for information (e.g. get items with

a certain author and within a speciﬁed time range)

and commands to store information (e.g. create a new

item or update the contents of an existing one) all pass

through this layer. Also, an interface to applications is

provided to set the IoI and resolve conﬂicts that can-

not be handled automatically.

Network

Local

Storage

App 1

Platform

App n

Device A

Device B

Device C

IoI

Registry

Figure 2: Platform on each device.

Because of the potentially bad network connectiv-

ity between the devices, there is no central entity the

platform can depend on. Instead, devices ﬁnd one an-

other by means of a distributed discovery mechanism

(see section 3.1).

In a distributed system with unreliable network

connections, data needs to be stored locally when an

application creates or updates an information item. If

the network is available at that time or becomes avail-

able again later, this item can be synchronized with

partners (see section 3.2).

Conﬂicts may arise when two or more partners

update the same piece of data without synchroniz-

ing between updates. When these pieces of data are

synchronized, conﬂict resolution is needed (see sec-

tion 3.3).

When the platform has been running for a while,

it may become necessary to delete information items

from the local storage. A cleanup process takes the

IoI into account and then decides which items should

be deleted (see section 3.4).

3.1 Discovery

Before synchronization between devices can occur,

each device needs to be able to identify potential part-

ners. DNS is typically used for translating host names

into IP addresses (using A records) and vice versa

(using PTR records), but it can also be used for ser-

vice discovery with SRV records (Gulbrandsen et al.,

2000). It provides a way for clients to query which

ACLOUDSTORAGEPLATFORMINTHEDEFENSECONTEXT-MobileDataManagementwithUnreliableNetwork

Conditions

463

servers provide a certain service, e.g. SIP, XMPP or -

in this case - a synchronization service.

However, this discovery mechanism cannot be a

centralized DNS system, because that would work

badly when there is no network connectivity between

a device and the DNS servers. Other systems exist

that supply the same kind of functionality as DNS,

but without the need for a centralized server, such as

multicast DNS (Steinberg and Cheshire, 2005).

Using multicast DNS, the devices in the platform

can query which other devices containing the plat-

form are present in the network. Each device pub-

lishes that it provides a synchronization service that

the other devices can use.

3.2 Synchronization

The information that is stored in the platform consists

of the actual data the application wants to store and

some pieces of meta data that are needed for synchro-

nization. Figure 3 shows that there are four pieces of

meta data:

• Universally unique identiﬁer (UUID). This iden-

tiﬁes the information in a unique way.

• Revision number. This identiﬁes the revision of

the information. If the information is changed, the

revision number is incremented.

• Modiﬁcation timestamps. This is an array of

timestamps of all modiﬁcations of the application

information. Its length is equal to the revision

number.

• Saved timestamp. This contains the timestamp of

the last change to this meta data, either due to a

local change to the application data (and therefore

an increase of the revision number) or because of

synchronization with a partner.

The technique we present here is a slightly mod-

iﬁed version of Multi-version Concurrency Control

(Bernstein and Goodman, 1983). It adds the saved

timestamp, which is used to speed up synchroniza-

tion. A synchronization client knows when the

last synchronization with a certain partner has taken

place. It asks this partner for revision information

since this timestamp. With the saved timestamp at

its disposal, the server is able to respond with revi-

sion information that has actually changed since the

last synchronization.

3.2.1 Platform Pseudocode

The following pseudocode contains the high level

synchronization code of the platform. The platform

Meta data User data

UUID

Revision number

Modification timestamps

Saved timestamp

Encoded data

n bytes

16 bytes

2 bytes

m * 8 bytes

8 bytes

Figure 3: Information needed for synchronization (left side)

and information stored by an application (right side).

switches between two states here, that of a client and

that of a server.

1. Start up a synchronization server and publish its

service through the discovery mechanism

2. Startup threads

3. Thread 0 (manage partner connections):

(a) Detect new partners through the discovery

mechanism

(b) If a connection with a partner has been lost, try

to reconnect

partner list

(d) When connected to a partner, start new syn-

chronization thread

4. Thread 1 to n (synchronizing with partner):

(a) Loop while connected:

i. If in server state, start server code (see sec-

tion 3.2.2)

ii. If in client state, start client code (see sec-

tion 3.2.3)

3.2.2 Synchronization Server Pseudocode

The following pseudocode contains the synchroniza-

tion code for the server role.

1. Wait for a synchronization client to send com-

mands and respond appropriately:

(a) If GetRevisionInfo command is received, return

a list of all revision info for the information

items in the IoI of the client and that has been

updated since the last synchronization

(b) If GetItem command is received, return the

whole information block for the information

item as indicated by the UUID

role to client and exit this server code

3.2.3 Synchronization Client Pseudocode

The following pseudocode contains the synchroniza-

tion code for the client role.

1. Determine last timestamp of synchronization and

local information of interest

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

464

2. Send the GetRevisionInfo command to receive

the remote revision information of all items from

partner since last synchronization and within local

information of interest

3. For all remote revision information:

(a) Determine local revision information based on

remote UUID

(b) Compare local with remote revision informa-

tion and determine which case should be ap-

plied:

i. If local and remote revision information are

the same: do nothing

ii. If remote revision information is a subset of

local revision info: do nothing

iii. If local revision information is empty: get re-

mote application informationwith the GetItem

command

iv. If local revision information is a subset of re-

mote revision info: get remote application in-

formation with the GetItem command

v. If local and remote revision information are

on different branches: conﬂict resolution is

needed; use the GetItem command to get the

remote application information and lookup the

locally stored application information

4. Determine information items with low rating that

can be cleaned up (see section 3.4)

5. Change the role to server by issuing the Switch-

Role command and exit this client code

(iii)

(iv)

local,

remote

(i)

local

(ii)

remote

(v)

remote

(no local)

remote

local

first

version

legend

latest

revision

local

Figure 4: Revisions: do nothing (i and ii), get remote appli-

cation information (iii and iv) and conﬂict resolution needed

(v). Time ﬂows from bottom to top.

Figure 4 shows the ﬁve options that exist for local and

remote revision information. In options (i) and (ii)

nothing needs to be done, because the local device al-

ready contains the newest information. In options (iii)

and (iv) the remote information needs to be sent from

the partner to the local device, because the remote in-

formation is newer or the local device does not have

the information at all. Option (v) requires conﬂict res-

olution, because both the remote and the local device

have changed the information since the last synchro-

nization.

3.3 Conﬂict Resolution

Systems such as CVS (Vesperman, 2006) and SVN

(Pilato et al., 2008) show that it is possible to auto-

mate some kind of conﬂict resolution (merging), but

also that manual intervention is sometimes necessary.

In this paper we propose a system in which the ap-

plication may choose to implement its own conﬂict

resolution scheme, or default to the latest revision of

the information.

It is crucial that the synchronization of informa-

tion does not lead to a livelock, i.e. it should not lead

to an endless synchronization loop when the informa-

tion stays the same. The merged information when

device A starts synchronizing with B must therefore

be the same as the merged information when B starts

synchronizing with A. This must also be true for more

complex situations with three or more partners syn-

chronizing with each other.

The left side of ﬁgure 5 shows how conﬂict res-

olution can lead to two different outcomes. The ﬁrst

outcome is the simple solution where the latest infor-

mation is treated as the ”winner” of the merge (r3a

is the latest timestamp). The second outcome is the

more complex solution where the application decides

to create a new version that is based on information of

the older revisions (r4 is the latest timestamp).

r2b

r3b

r2a

r3a

r2b

r3b

r2a

r3a

r2b

r3b

r2a

r3a

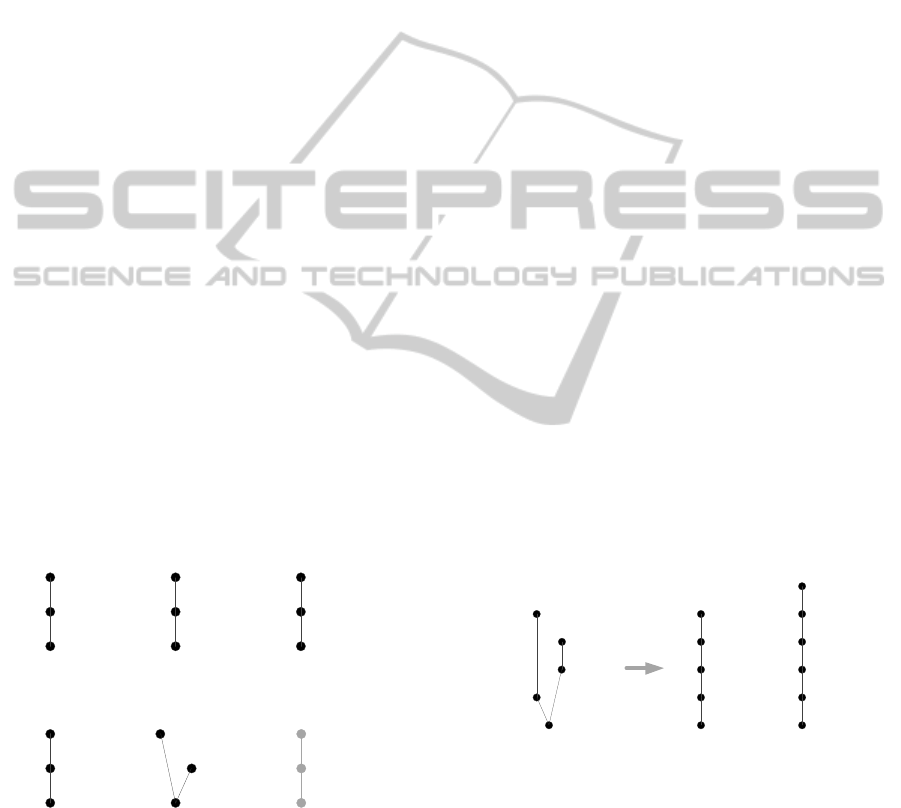

Figure 5: Conﬂict resolution leading to two possible out-

comes: the latest revision wins (middle graph) or a new re-

vision is created (right graph). Time ﬂows from bottom to

top.

When conﬂict resolution is needed, it is up to the

application to decide which action to take. The plat-

form provides an API that allows the application to

merge conﬂicted revisions. It receives the revision

information and historical application information of

both the partner and itself, and is asked to provide ei-

ther a new revision or agree to use the latest informa-

tion, i.e. the information with the highest timestamp.

ACLOUDSTORAGEPLATFORMINTHEDEFENSECONTEXT-MobileDataManagementwithUnreliableNetwork

Conditions

465

In the ﬁrst case, it must ensure that a merge carried out

by the same application on another device would lead

to the exact same answer, otherwise livelocks might

occur. In the second case, the platform handles the

merge itself, of course without knowledge of the ac-

tual information involved, but with the guarantee that

livelocks are avoided.

3.4 Cleanup

If an application decides to change the IoI or the stor-

age capacity of a device is almost depleted, it may be

necessary to perform some sort of cleanup.

If the IoI is decreased, the simple solution would

be to just delete the information. However, this may

result in information being deleted from the platform

altogether. If the device still has storage capacity left,

it retains this information until it actually runs out of

storage capacity.

If the IoI is increased and the resulting informa-

tion is too big for the local storage, the platform ﬁrst

checks if information was retained that is outside the

IoI and deletes this. If this is not enough, the platform

proceeds to delete information which is marked less

important, such as older information or information

located further away.

4 VERIFICATION

To verify that the storage platform is behaving as ex-

pected, a sample application was built that makes use

of the platform for all its storage needs. Running this

application shows that it is feasible to create applica-

tions using the storage platform and provides a means

to test the platform manually.

Also, automated test cases were written which

simulate that applications store new information, up-

date it and synchronize it. The actual behavior was

then checked with the expected behavior.

4.1 Sample Application

The application consists of a map where information

items, e.g. text and pictures, have been pinned to a

location. When a user clicks on a pin, the applica-

tion shows all the items at that location. A selected

item can then be edited by the user. If the user clicks

on a new location on the map, a new item is created.

All storage related tasks are handled by the storage

platform. See ﬁgure 6 for a screenshot of the appli-

cation. There are two versions of the application, the

ﬁrst running on regular personal computers and the

second running on mobile phones and tablets.

Figure 6: Screenshot of an application using the storage

platform.

4.2 Tests

Several manual and automated tests were performed

to check that the storage platform is behaving as ex-

pected. The ﬁgures presented in this section show

how information items progress in time when devices

create, update and synchronize these items. In man-

ual tests, the theoretical results were checked with the

experimental results in the log ﬁles of the platform. In

automated tests, these were checked automatically.

Figure 7 shows two devices updating a piece of

information one after the other and synchronizing in

between the updates. Figure 8 shows three devices

where two devices update a piece of information with-

out synchronizing in between. This conﬂict is re-

solved when all devices have synchronized with each

other.

Device 1 Device 2

A t

1 t

sync

A t

1 t

A t

1 t

A t

2 t

change

sync

A t

2 t

A t

2 t

A t

1 t

change

A t

3 t

sync

A t

2 t

A t

3 t

A t

3 t

Figure 7: Synchronization test with two devices and no con-

ﬂicts. Time ﬂows from top to bottom.

5 FUTURE RESEARCH

The current storage platform has been implemented

and tested on a small set of workstations, tablets and

mobile phones. In future research we would like to

test with many more devices and a much more di-

verse network setup, e.g. with real radio networks.

Also more quantitative measurements will be made to

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

466

Device 1 Device 2

A t

1 t

A t

1 t

A t

1 t

A t

2 t

A 2

Device

A t

1 t

t t A t

1 t

A 2 t

t t A 2 t

t tA t

2 t

A t

t A t

tA 2 t

t t

A t

t A t

Figure 8: Synchronization test with three devices and a con-

ﬂict, which is handled during the two synchronization steps

at the bottom. Time ﬂows from top to bottom.

assess the platform more thoroughly and compare it

to existing distributed storage solutions.

At the moment, the application informationblocks

are quite small, upto a few kilobytes. If these infor-

mation blocks are increased to several megabytes, it

becomes necessary to synchronize only the parts that

have actually changed, e.g. by using something simi-

lar to the rsync algorithm (Tridgell, 1999).

Some kinds of applications store hierarchical in-

formation, e.g. news postings with comments. At the

moment, the application is responsible for storing the

relationship between these information blocks. If the

storage platform is aware of these relationships, it can

make better decisions on their storage and possible

deletion.

Finally, the current storage platform uses only

time and location (i.e. a circle with a given center

and radius on a map) to denote the IoI. Other forms of

IoI are also interesting, such as author, clearance level

and labels.

6 CONCLUSIONS

The mobile and dismounted domains of defense orga-

nizations cannot use standard cloud storage platforms

because of unreliable network connections. This pa-

per shows that it is possible to design a storage plat-

form that does not depend on any centralized entity.

Instead, it relies on a distributed discovery mechanism

to ﬁnd partners to synchronize information with.

The term information of interest was introduced,

which is a way for applications to tell the storage plat-

form which information is important. The platform

uses this to decide what information to store and what

to delete when storage capacity is depleted.

A sample application was built to verify that the

proposed storage platform is a viable solution for the

problems we described earlier. It has been shown to

work on several devices, such as personal computers,

mobile phones and tablets. With some manual and

automated tests we also showed that the platform be-

haves as expected with regards to synchronization.

REFERENCES

Amazon (2011). Amazon simple storage service (s3).

http://aws.amazon.com/s3.

Bernstein, P. A. and Goodman, N. (1983). Multiversion

concurrency control - theory and algorithms. ACM

Transactions on Database Systems.

Bohossian, V., Fan, C. C., LeMahieu, P. S., Riedel, M. D.,

Xu, L., and Bruck, J. (2001). Computing in the rain:

A reliable array of independent nodes. IEEE Transac-

tions On Parallel And Distributed Systems.

Brewer, E. A. (2000). Towards robust distributed systems.

Symposium on Principles of Distributed Computing.

Burbank, J. L., Chimento, P. F., Haberman, B. K., and

Kasch, W. T. (2006). Key challenges of military tacti-

cal networking and the elusive promise of manet tech-

nology. IEEE Communications Magazine.

Gulbrandsen, A., Vixie, P., and Esibov, L. (2000). A dns

rr for specifying the location of services (dns srv).

http://www.rfc-editor.org/rfc/rfc2782.txt.

Halinger, G. and Hohlfeld, O. (2010). Efﬁciency of caches

for content distribution on the internet. Teletrafﬁc

Congress.

Hancock, P. A. and Szalma, J. L. (2008). Performance Un-

der Stress (Human Factors in Defence). Ashgate.

Nguyen, T. T. M. and Dong, T. T. B. (2011). An adaptive

cache consistency strategy in a disconnected mobile

wireless network. IEEE International Conference On

Computer Science and Automation Engineering.

OpenStack (2011). Openstack object storage.

http://openstack.org/projects/storage.

Pilato, C. M., Collins-Sussman, B., and Fitzpatrick, B. W.

(2008). Version Control With Subversion. O’Reilly

Media.

Rhea, S., Wells, C., Eaton, P., Geels, D., Zhao, B., Weather-

spoon, H., and Kubiatowicz, J. (2001). Maintenance-

free global data storage. IEEE Internet Computing.

Shinkuma, R., Jain, S., and Yates, R. (2011). In-network

caching mechanisms for intermittently connected mo-

bile users. Sarnoff Symposium.

Steinberg, D. and Cheshire, S. (2005). Zero Conﬁguration

Networking: The Deﬁnitive Guide. O’Reilly Media.

Suel, T., Noel, P., and Trenaﬁlov, D. (2004). Improved

ﬁle synchronization techniques for maintaining large

replicated collections over slow networks. Interna-

tional Conference on Data Engineering.

Thomas, T. L. (2000). Kosovo and the current myth of in-

formation superiority. Parameters.

Tridgell, A. (1999). Efﬁcient algorithms for sorting and syn-

chronization. PhD thesis, Australian National Univer-

sity.

Vesperman, J. (2006). Essential CVS. O’Reilly Media.

ACLOUDSTORAGEPLATFORMINTHEDEFENSECONTEXT-MobileDataManagementwithUnreliableNetwork

Conditions

467
