AUTOMATED EXTRACTION OF LECTURE OUTLINES FROM

LECTURE VIDEOS

A Hybrid Solution for Lecture Video Indexing

Haojin Yang, Franka Gruenewald and Christoph Meinel

Hasso Plattner Institute (HPI), University of Potsdam

P.O. Box 900460, D-14440 Potsdam, Germany

Keywords:

Recorded Lecture Videos, Tele-teaching, Video Indexing, Multimedia Retrieval.

Abstract:

Multimedia-based tele-teaching and lecture video portals have become more and more popular in the last few

years. The amount of multimedia data available on the WWW (World Wide Web) is rapidly growing. Thus,

ﬁnding lecture video data on the web or within a lecture video portal has become a signiﬁcant and challenging

task. In this paper, we present an approach for lecture video indexing based on automated video segmentation

and extracted lecture outlines. First, we developed a novel video segmenter intended to extract the unique slide

frames from the lecture video. Then we adopted video OCR (Optical Character Recognition) technology to

recognize texts in video. Finally, we developed a novel method for extracting of lecture outlines from OCR-

transcripts. Both video segments and extracted lecture outlines are further utilized for the video indexing. The

accuracy of the proposed approach is proven by evaluation.

1 INTRODUCTION

In the last decade, more and more universities and

research-institutions recorded their lectures and pub-

lished them on the WWW, which is intended to make

them accessible for students around the world (S. Tra-

hasch, 2009). Hence, the development of a process

for automated indexing of multimedia lecture content

is highly desirable and would be especially useful for

e-learning and tele-teaching.

Since most lecturers in colleges use slide-

presentations instead of blackboard writing today,

the state-of-the-art lecture recording systems usually

record two video streams parallelly: the main scene of

lecturers which is recorded by using a video camera,

and the second which captures the computer screen

during the lecture through a frame grabber. The sec-

ond stream may include a presentation of slides as

well as demonstrations, videos and other material.

The frame grabber output stream can be synchro-

nized with the camera stream automatically during the

recording process.

Fig. 1 shows an example lecture video that con-

sists of two video streams showing the speaker and

the current slide, respectively. In such kind of videos,

each part of the video can be associated with a cor-

responding slide. Thus, the indexing task can be per-

formed by indexing the slide video only.

Content-based video gathering is usually achieved

by using textual metadata which is provided by users

(e.g, manual video tagging (F. Moritz, 2011)) or has

to be extracted by automated analysis. For this pur-

pose, we apply video OCR technology to obtain texts

from the lecture videos. In video OCR, video frames

containing visible textual information have to be iden-

tiﬁed ﬁrst. Then, the text location within the video

frames has to be detected, and the text pixels have

to be separated from their background. Finally, the

common OCR algorithms are applied to recognize the

characters.

For lecture video indexing, most of the existing

OCR-based approaches only make use of the pure tex-

tual information (F. Wang, 2008; J. Waitelonis, 2010),

although the structure of lecture slides could provide

relevant information for the indexing task. In this pa-

per, we present a hybrid approach for the lecture video

indexing. First, an improved slide video segmentation

method is developed. The segmented unique video

frames can be used immediately for the video brows-

ing. Second, we applied video OCR technology to

recognize the texts from the segmented frames. The

subsequent lecture outline extraction procedure can

extract the timed lecture outlines by using geometri-

cal information of detected text lines from the video

Yang H., Gruenewald F. and Meinel C..

AUTOMATED EXTRACTION OF LECTURE OUTLINES FROM LECTURE VIDEOS - A Hybrid Solution for Lecture Video Indexing.

DOI: 10.5220/0003903700130022

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 13-22

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Video 1

Video 2

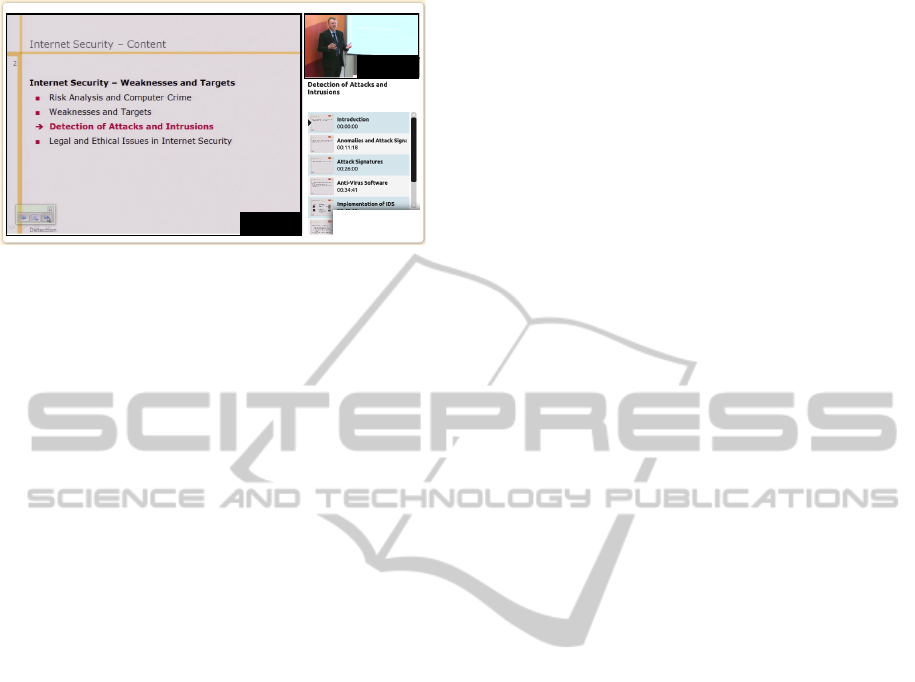

Figure 1: An example lecture video from (Yang et al.,

2011). Video 2 shows the speaker giving his lecture,

whereas his presentation is played in video 1.

OCR stage.

The accuracy of proposed methods have been

evaluated by using test data.

The rest of the paper is organized as follows: Sec-

tion 2 presents related work, whereas the sections 3,

4 and 5 describe our proposed methods in detail. The

experimental results are provided in section 6. Sec-

tion 7 concludes the paper with an outlook on future

work.

2 RELATED WORK

Hunter et al. proposed a SMIL (Synchronized

Multimedia Integration Language) based framework

to build a digital archive for multimedia presenta-

tions (J. Hunter, 2001). Their recording system con-

sists of two video cameras, and they record both the

lecturer scene and the slide scene during the presen-

tation. However, they do not apply text recognition

process on the slide video. Each speaker has to pre-

pare a slide ﬁle in PDF format and is requested to up-

load it to a multimedia server after the presentation.

Then the uploaded slide ﬁles have to be synchronized

with the recorded videos. Finally, they perform the

video indexing based on the text-resources of the cor-

responding slide ﬁles. In contrast to their approach,

since our system directly analyzes the videos, we do

not need to take care of the slide format. Synchro-

nization between the slide ﬁle and the video is also

not required. In a further contrast to our approach, the

synchronization method employed by Hunter et. al

is simply based on the pixel-based differencing met-

ric of the binary image. It might not work robustly

when animated content appears in the presentation

slide. Although the OCR based approach may intro-

duce a few errors, the recognized texts are still robust

enough for the indexing task by performing a dictio-

nary based ﬁltering.

Some other approaches e.g. Moritz et

al. (F. Moritz, 2011) and Waitelonis et al. (J. Wait-

elonis, 2010) make use of manual video tagging to

generate the indexing data. The user tagging-based

approaches work well for the recently recorded

lecture videos. However, for videos which were

created more than 10 years ago, there is no manually

generated metadata available. And it is hard to attract

the user’s interest to annotate the outdated videos.

Furthermore, regarding the quantitative aspect, the

automated analysis is more suitable than the user

annotation for large amounts of video data.

Wang et al. proposed a method for lecture video

browsing by video text analysis (F. Wang, 2008).

However, their approach does not consider the struc-

ture information of slides. Making use of the struc-

tured text lines (e.g, title, subtitle etc.) for building a

more efﬁcient search procedure is therefore impossi-

ble.

Yang et al. (H-J. Yang, 2011) and Leeuwis et

al. (E.Leeuwis et al., 2003) use the ASR (Automatic

Speech Recognition) output for lecture video retrieval.

However, since ASR for lecture videos is still an ac-

tive research area, most of those recognition systems

have poor recognition rates in contrast with OCR re-

sults. This will lead to a degrading of the indexing

performance.

In our previous work (Yang et al., 2011), we de-

veloped a novel approach for lecture video indexing

by using video OCR technology. We develop a novel

slide segmenter that is intended to capture the slide

transitions. A two-stage (text localization and text

veriﬁcation) approach is developed for the text detec-

tion within the video frames; and a multi-hypotheses

framework is adopted for the text recognition. How-

ever, the proposed video segmenter in (Yang et al.,

2011) is only deﬁned for slide videos. It is therefore

not suitable for videos, which are embedded in a slide

with a different genre. Thus, we improve the seg-

mentation method by a using machine learning classi-

ﬁer. The slide frames and the embedded video frames

could be classiﬁed correctly by using an image inten-

sity histogram feature and SVM (Support Vector Ma-

chine) classiﬁer. For the embedded videos, we apply a

common video segmenter. The proposed lecture out-

line extraction algorithm in this work is also based on

the video OCR results from (Yang et al., 2011).

3 VIDEO SEGMENTATION AND

VIDEO OCR

Fig. 2 shows the entire system workﬂow. The video

segmentation method is ﬁrst applied on the slide

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Segmentation

Text Detection

Frames

Text Detector

Key Frames

… … … … … …

0 25 n50

… …… …

Structured Text Transcript

Text Object

Veriﬁcation

Reﬁnement Process

[no text]

[text found]

text objects

Image Quality

Enhancement

Edge Enhancement

Size Adaption

Multi-Hypotheses

Framework

Seg. 1

OCR

Seg. 3Seg. 2

Spell Checking/Results Merging

quality-enhanced

text line image

Text Recognition

Slide Structure

Analysis

Title Identiﬁcation

Using Text Objects

Text Object

Classiﬁcation

Using SWT Maps

Lecture Outlines

Extraction

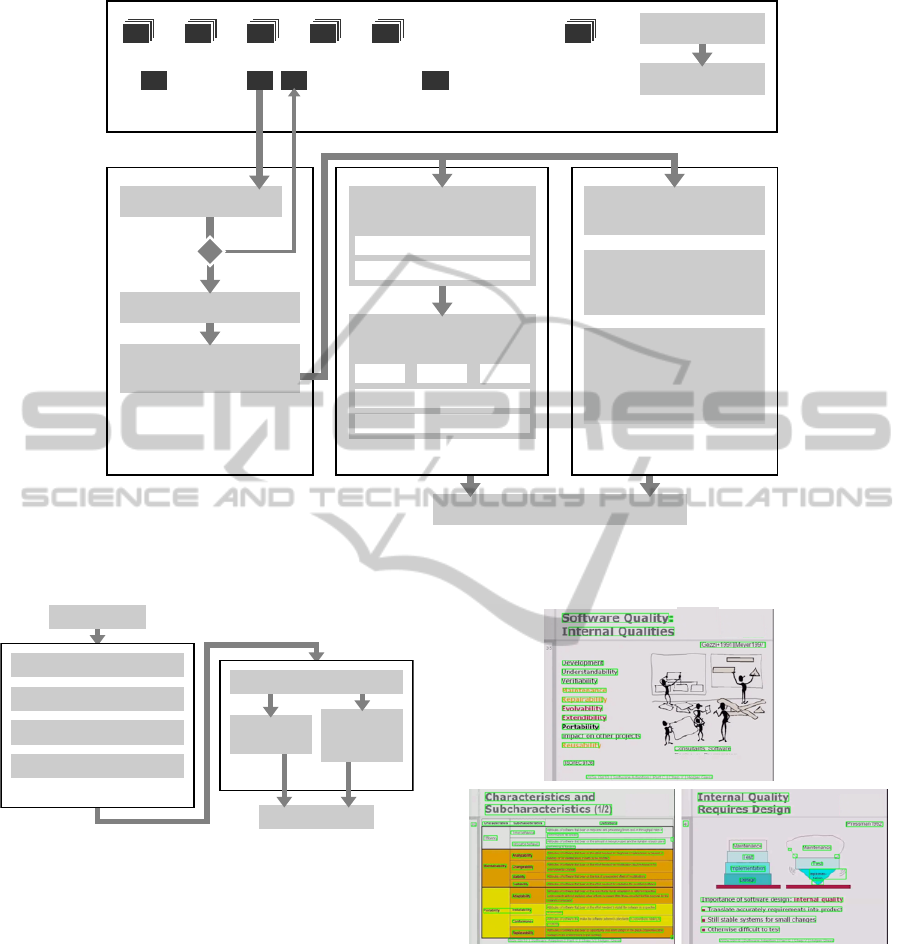

Figure 2: The entire system workﬂow. After having segmented frame sequences, text detection is performed on every single

key frame in order to ﬁnd text occurrences. The resulting text objects are then used for video OCR and slide structure analysis.

Frames

Canny Edge Map Creation

Diﬀerential Image Creation

CC Analysis

Thresholding Process

Slide Content Distribution

Key Frames

Content

Region

Analysis

Title Region

Analysis

Step 1

Step 2

extracted frames from step 1

Figure 3: Segmentation workﬂow (Yang et al., 2011). (Step

1) Adjacent frames are compared with each other by ap-

plying Connected Components Analysis on their differential

edge maps. (Step 2) Title and content region analysis ensure

that only actual slide transitions are captured.

videos. For reasons of efﬁciency, we do not perform

the analysis on every video frame. Instead, we estab-

lished a time interval of one second. Subsequently, we

adopt the text detection process on the unique frames

we obtained during the video segmentation process.

The occurrence duration of each detected text line is

determined by reading the time information of the

corresponding segment. The text recognition is ap-

plied on detected text line objects from the text detec-

tion stage. We also apply the slide structure analysis

and the lecture outline extraction procedures on the

detected text line objects.

Figure 4: Text detection results. All detected text regions

are identiﬁed by bounding boxes.

3.1 Video Segmentation

The video indexing process can be performed by

decomposing the video into a set of representative

unique frames. We call this process video segmen-

tation. In order to build a suitable segmenter for

slide videos, we have implemented a two-step anal-

ysis approach (cf. Fig 3): In the ﬁrst step, we try to

capture all changes from the adjacent frames by us-

ing CCs (Connected Component) based differencing-

AUTOMATEDEXTRACTIONOFLECTUREOUTLINESFROMLECTUREVIDEOS-AHybridSolutionforLecture

VideoIndexing

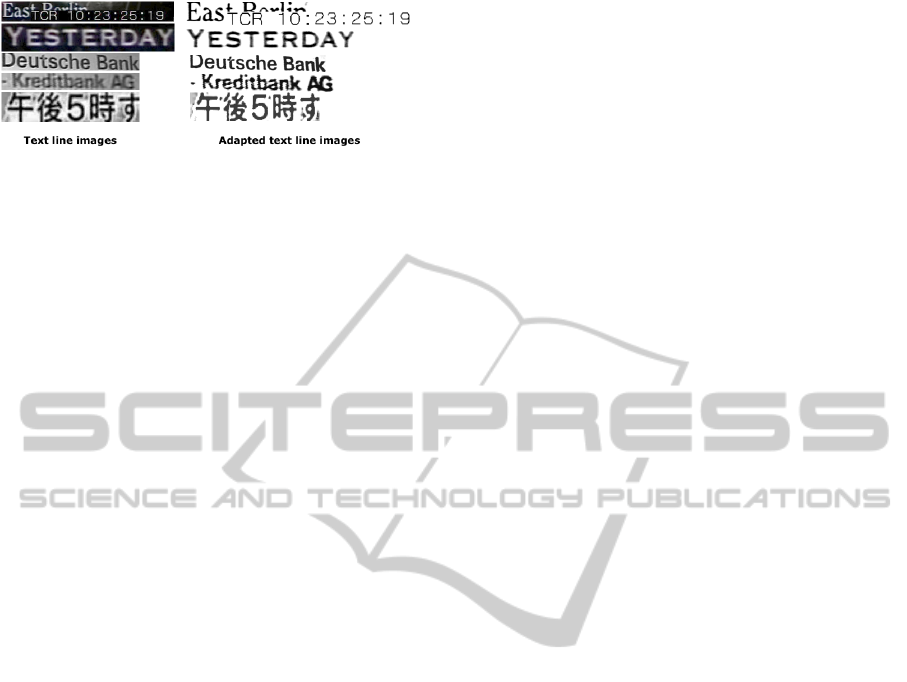

Figure 5: Text binarization results of our dynamic contrast-

brightness adaption method.

metric. In this way, the high frequency noises in the

video frames can be removed from the comparison by

enlarging the size of valid CCs. The segmentation re-

sults from the ﬁrst step are too redundant for indexing,

since they may contain the progressive build-up of a

complete ﬁnal slide over sequence of partial versions

(cf. Fig. 6). Therefore, the segmentation process con-

tinues with the second step: we ﬁrst perform a statisti-

cal analysis on large amount of slide videos, intending

to ﬁnd the commonly used slide content distribution

in lecture videos. Then, in the title region of the slide

we perform the same differencing-metric as in the ﬁrst

step to capture the slide transition. Any change in the

title region may cause the slide transition. While in

the content region, we detect regions of the ﬁrst and

the last text lines. Checking the same regions in two

adjacent frames. When the same text lines can not be

found in both of the adjacent frames, a slide transition

is then captured. More details about the algorithm can

be found in (Yang et al., 2011).

Since the proposed method in (Yang et al., 2011)

is deﬁned for slide frames, it might be not suitable,

when videos with varying genres were embedded in

the slides and/or are played during the presentation.

To ﬁx this issue, we have developed a SVM classi-

ﬁer to distinguish the slide frames and the other video

frames. In order to train an efﬁcient classiﬁer we eval-

uate two features: HOG (Histogram of Oriented Gra-

dient) feature and image intensity histogram feature.

The detailed evaluation for both features is discussed

in Section 6.

Histogram of oriented gradient feature has been

widely used in object detection (N. Dala, 2005) and

optical character recognition ﬁelds, due to its efﬁ-

ciency for description of the local appearance and the

shape variation of image objects. To calculate the

HOG feature, the gradient vector of each image pixel

within a predeﬁned local region is calculated by using

Sobel operator (Sobel, 1990). All gradient vectors are

then decomposed into n directions. A histogram is

subsequently created by using accumulated gradient

vectors, and each histogram-bin is set to correspond

to a gradient direction. In order to avoid sensitivity

of the HOG feature to illumination, the feature values

are often normalized.

Observing slide frames, the major slide content,

like texts and tables, consists of many horizontal and

vertical edges. The distribution of gradients would be

distinguishable from other video genres.

We have also adopted an image intensity his-

togram feature to train the SVM classiﬁer. Since

the complexity and the intensity distribution of slide

frames are strongly different from other video genres,

we decided to use this simple and efﬁcient feature to

make a comparison to the HOG feature.

3.2 Video OCR

The texts in video provide a valuable source for index-

ing. Regarding lecture videos, the texts displayed on

slides are strongly related to the lecture content. Thus,

we have developed an approach for video text recog-

nition by using video OCR technology. The com-

monly used video OCR framework consists of three

steps.

Text detection is the ﬁrst step of video OCR: this

process determines, whether a single frame of a video

ﬁle contains text lines, for which a tight bounding

box is returned (cf. Fig. 4). Text extraction: in this

step, the text pixels are separated from their back-

ground. This work is normally done by using a bi-

narization algorithm. Fig. 5 shows the text binariza-

tion results of our dynamic contrast-brightness adap-

tion method (Yang et al., 2011). The adapted text

line images are converted to an acceptable format for

a standard print-ocr engine. Text recognition: we

applied a multi-hypotheses framework to recognize

texts from extracted text line images. The subsequent

spell-checking process will further ﬁlter out incorrect

words from the recognition results.

The video OCR process is applied on segmented

key frames from the segmentation stage. The occur-

rence duration of each detected text line is determined

by reading the time information from the correspond-

ing segment. Our text detection method consists of

two stages: we develop an edge-based fast text detec-

tor for coarsely detection, and a SWT (Stroke Width

Transform) (B. Epshtein, 2010) based text veriﬁca-

tion procedure is adopted to remove the false alarms

from the detection stage. The output of our text detec-

tion method is an XML-encoded list serving as input

for the text recognition and the outline extraction.

For the text recognition, we develop a multi-

hypotheses framework. Three segmentation methods

are applied for the text extraction: Otsu threshold-

ing algorithm (Otsu, 1979), Gaussian based adaptive

thresholding (R. C. Gonzalez, 2002) and our dynamic

image contrast-brightness adaption method. Then, we

apply the OCR engine on each segmentation result.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

(a) (b) (c)

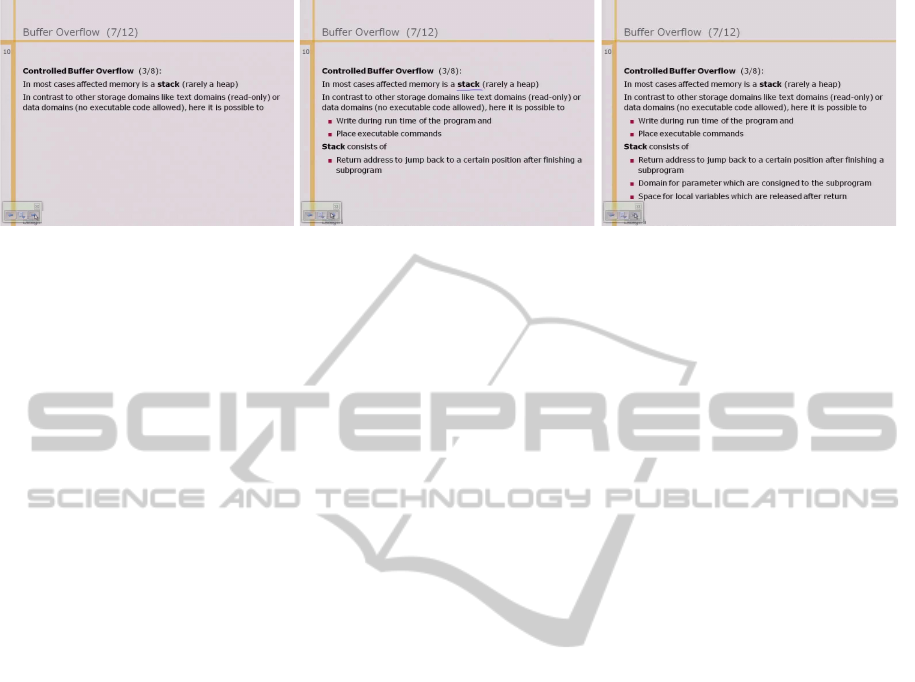

Figure 6: Segmentation result from the ﬁrst step. Adjacent frames are compared with each other by applying Connected

Components Analysis on their differential edge maps. The content build-up within the same frame can therefore not be

identiﬁed.

Thus, three text results are generated for each text line

image. Subsequently, the best OCR result is obtained

by performing spell-checking and result-merging pro-

cesses.

After the text recognition process, the detected

text line objects and their texts are further utilized in

the outline extraction process—which is described in

the next section.

4 LECTURE OUTLINE

EXTRACTION

In this section we will describe our text line extraction

method, in detail. Regarding lecture slides, we can

realize that the content of title, subtitle and key point

have more signiﬁcance than the content of the body,

because they summarize each slide. Unlike other ap-

proaches, we observe characteristics of detected text

line objects, and use geometrical information to clas-

sify the recognized OCR text resource. In this way,

a more ﬂexible search algorithm can be implemented

based on the classiﬁed OCR texts. Meanwhile, by us-

ing these classiﬁed text lines, we have developed a

method for automatic extraction of lecture outlines.

On the one hand, the extracted outline can provide an

overview about the lecture for the students. On the

other hand, each text line has a timestamp, therefore,

they can also be used to explore the video.

4.1 Slide Structure Analysis

The process begins with a slide structure analysis pro-

cedure. We identify the title text line by applying the

following conditions:

• the text line is in the upper third part of the frame,

• the text line has more than three characters,

• the horizontal start position of the text line is not

larger than the half of the frame width,

• it is one of three highest text lines and has the up-

permost vertical position.

A title is detected when it satisﬁes all of the above

conditions. Then, we label this text line object as a

title line, and repeat the processes on the remaining

text line objects in order to detect the next potential

title line. The further detected title lines must have a

similar height and stroke width as the ﬁrst one. We

have set the tolerance value of the height difference to

10 pixels, and the tolerance value of the stroke width

difference to 5 pixels, respectively. For our purpose,

we allow up to three title lines for each slide frame.

All of the none-title text line objects are further

classiﬁed into three classes: content text, subtitle-

key point and footline. The classiﬁcation algorithm

is based on detected text line height and the average

stroke width value of the text line object. The algo-

rithm can be described as follows:

subtitle/key point if s

> s

mean

∧ h

> h

mean

footline if s

< s

mean

∧ h

< h

mean

∧ y = y

max

normal content otherwise

where s

mean

and h

mean

denote the average stroke

width value and the average height of text line objects

within a slide frame. And y

max

denotes the maximal

vertical position of a text line object.

4.2 Lecture Outline Extraction

The workﬂow of the lecture outline extraction algo-

rithm is described in Fig. 7. In this step, we only con-

sider text line objects obtained from the previous pro-

cessing stage—which have a text line type of title or

subtitle-key point.

First, we perform a spell checking process to ﬁlter

out text line objects that do not satisfy the following

AUTOMATEDEXTRACTIONOFLECTUREOUTLINESFROMLECTUREVIDEOS-AHybridSolutionforLecture

VideoIndexing

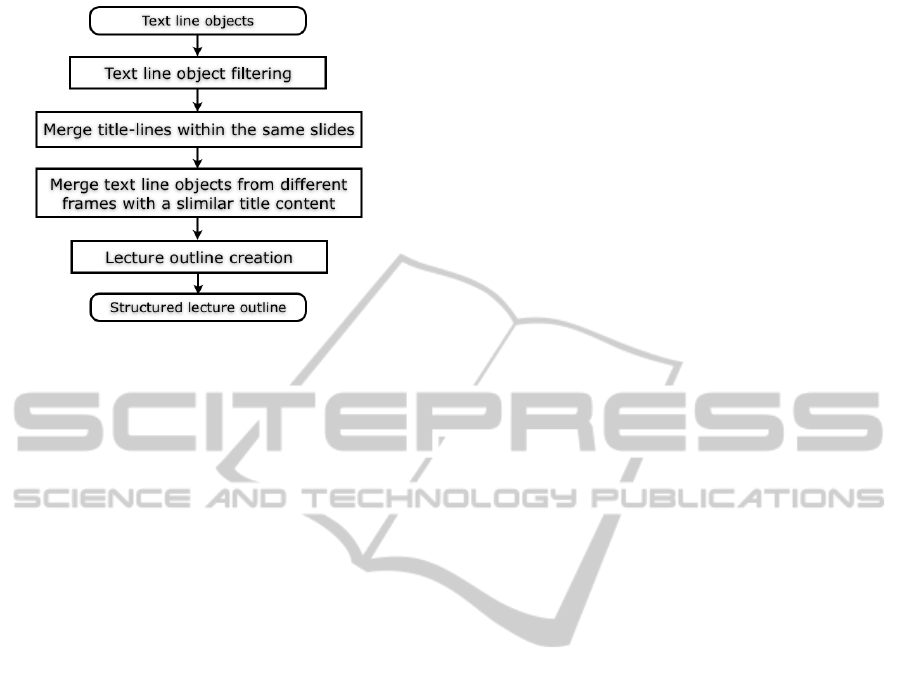

Figure 7: Workﬂow of outline extraction process.

conditions. A valid text line object will be considered

as an outline object.

• a valid text line object must have more than three

characters,

• a valid text line object must contain at least one

noun,

• the textual character count of a valid text line ob-

ject must be more than 50% of the entire string

length.

Then, we merge all title lines within the same slide

according to their positions. All the other text line ob-

jects from this slide will be considered as the subitems

of the title line. Subsequently, we merge all text line

objects from different frames which have a similar ti-

tle content. The similarity is determined by calculat-

ing the amount of the same characters and the same

words. During the merging process, all duplicated

subtitle-key points will be removed, since we want to

avoid the redundancy that might affect the further in-

dexing process. The ﬁnal lecture outline is created by

assigning all valid text line objects into a tree structure

according to their occurrences.

The visualization methodology and the utility of

our analysis results will be discussed in the next sec-

tion.

5 VISUALISATION AND UTILITY

OF THE RESULTS

The use case for our video slide segmenter and lecture

outline generator was implemented and evaluated in

the context of a video lecture portal used at a univer-

sity institute working with computer sciences. This

portal was developed in Python with the web frame-

work Django. The video player was developed in

OpenLaszlo. About 400 students and quite a number

of external people are using the portal on a regular

basis.

Before going into detail about the implementation

and interface design of the visualization of the seg-

mentation and the outline, the utility of those two fea-

tures for the users of the portal shall be elaborated.

5.1 Utility of Lecture Video Outline and

Extracted Slides

One of the most important functionalities of a tele-

teaching portal is the search for data. Since recording

technology has become more and more inexpensive

and easier to use, the amout of content produced for

these portals has become huge. Therefore it is nearly

impossible for students to ﬁnd the required content

without a search function.

But even when the user has found the right con-

tent, he still needs to ﬁnd the piece of information

he requires within the 90 minutes of a lecture. This

is where the lecture video outline and the extracted

slides come in to play. Without an outline the user

will not have any orientation about which time frame

within the video he is interested in. The outline will

thus help to guide the user with navigation within the

video. This can be both utilized by manual navigation

or with the help of a local search function that only

searches the current video.

The video slides extracted from the segementer

have a similar function. They help visually oriented

users to fulﬁll this task in an easier and quicker way.

Especially students repeating a lecture will beneﬁt

from the slide visualisation as they can jump to slides

they can remember as important from the ﬁrst time

they visited the lecture.

Also the slides can help for learning and repetition

tasks when used in connection with user-generated

annotations in the form of a manuscript, a function we

will further describe in the following paragraphs. This

is crucial, because it was proven that more than 80

percent of all learning tasks take place with the help

of the eye and visual memory (Addie, 2002). This

means that vision is an essential aspect of learning,

which can be supported by using the lecture slides

when repeating and studying for an exam.

5.2 Visualising the Video Outline in

Interaction with the Lecture Video

Player

There are two options to visualise the video outline

within the tele-teaching portal. So far chapters that

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

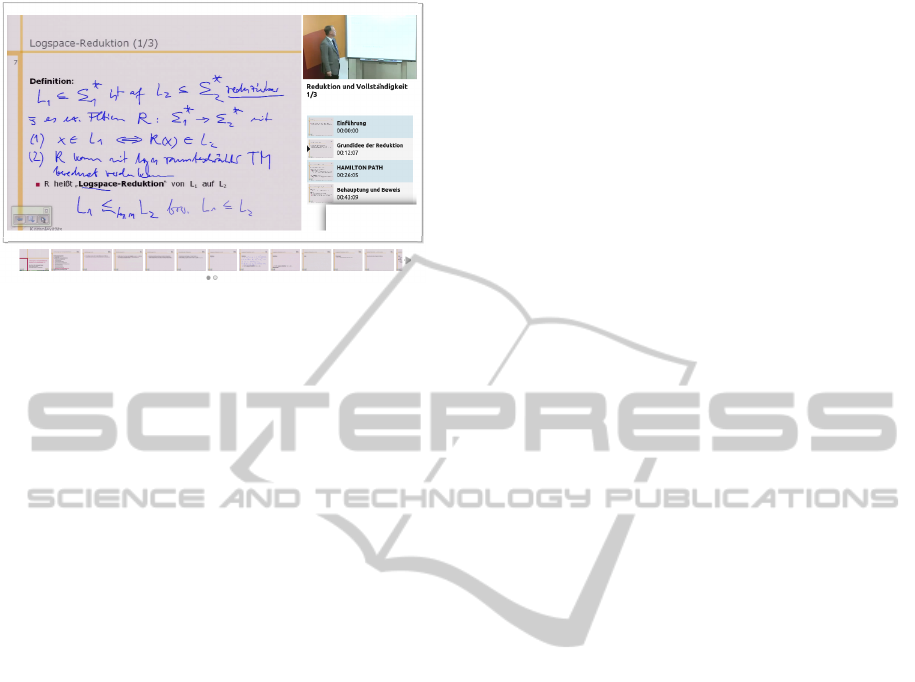

Figure 8: Visualisation of the slides extracted from the seg-

mentation process underneath the video player.

have been added manually from technical personnel

were visualised within the OpenLaszlo video player.

This was done to keep all related functionality in one

spot and thereby ensure a short and easy access from

the player to the navigation.

The extracted video outline is more detailed and

provides a more ﬁnegrained navigation option, which

is, however, more space consuming. Therefore, a

separate django plugin was developed that shows all

headlines and subheadlines with their corresponding

timestamp (cf. Fig. 9). Timestamps serve as links to

jump to the associated position in the lecture video.

5.3 Using Extracted Video Slides for

Navigation within Lecture Videos

As explained in section 5.1, the slides extracted from

the segmenter serve as visual guideline for the user to

navigate through a certain lecture video.

In order to fulﬁl that function, the slides are visu-

alised in the form of a time bar underneath the video

(cf. Fig. 8).

When sliding a mouse over the small preview pic-

tures, they are scaled up to a larger preview of the

slide. When clicking one of the preview slides in the

time bar, the video player will jump to the correct

timestamp in the lecture video that corresponds with

the timestamp stored in the database for that slide.

Those functions are realized with Javascript trigger-

ing the action within the OpenLaszlo player.

5.4 Visualising Extracted Slides in

Connection with User-generated

Lecture Video Annotations

An important aid for students in their learning process

are manuscripts. Traditionally, those were handwrit-

ten notes the student wrote during the lecture. With

the rise of tele-teaching, digital manuscript function-

alities have become available, where notes can be

written digitally in conjunction with a timestamp that

references at what time in the video the note was writ-

ten (Zupancic, 2006).

For some people, however, there is still the need to

have printed notes available. To make both available

with a minimum effort for the students, a PDF print-

out of the manuscript can be provided. Single notes

without reference to the lecture itself can be confusing

for the students though. Therefore the PDF should be

enriched with the lecture slides etracted from the seg-

menter. With the help of the timestamp of both the

slide and the notes, the slides can be printed with si-

multaneously written notes.

6 EVALUATION AND

EXPERIMENTAL RESULTS

We have evaluated our slide video segmentation algo-

rithm (without a consideration of embedded videos),

text detection and text recognition methods by using

20 selected lecture videos with varying layouts and

font styles (cf. Fig. 10) in (Yang et al., 2011). In this

paper, we extended our evaluation in the following

manner: a SVM classiﬁer has been trained and eval-

uated; the outline extraction algorithm has also been

evaluated by using our test videos. The test data and

some evaluation details are available at (Yang et al.,

2011).

For analyzing a 90 minutes lecture video, the en-

tire frame extraction, video segmentation, video OCR

and lecture outline extraction processes need about

10–15 minutes.

The experiments were performed on a Mac OS

X, 2.4 GHz platform. Our system is implemented in

C++.

6.1 Evaluation of SVM Classiﬁers

We have used 2597 slide frames and 5224 none-slide

frames to train the SVM classiﬁer. All slide frames

are selected from large amount of lecture videos. In

order to build a none-slide frame training set which

should have varying image genres, we collect about

3000 images from (ﬂickr, 2011), and other as well as

over 2000 none-slide video frames from our lecture

video database.

Our test set consists of 240 slide frames and 233

none-slide frames that completely differ from the

training set.

The evaluation results for HOG and image inten-

sity histogram features are shown in Table 1. We

AUTOMATEDEXTRACTIONOFLECTUREOUTLINESFROMLECTUREVIDEOS-AHybridSolutionforLecture

VideoIndexing

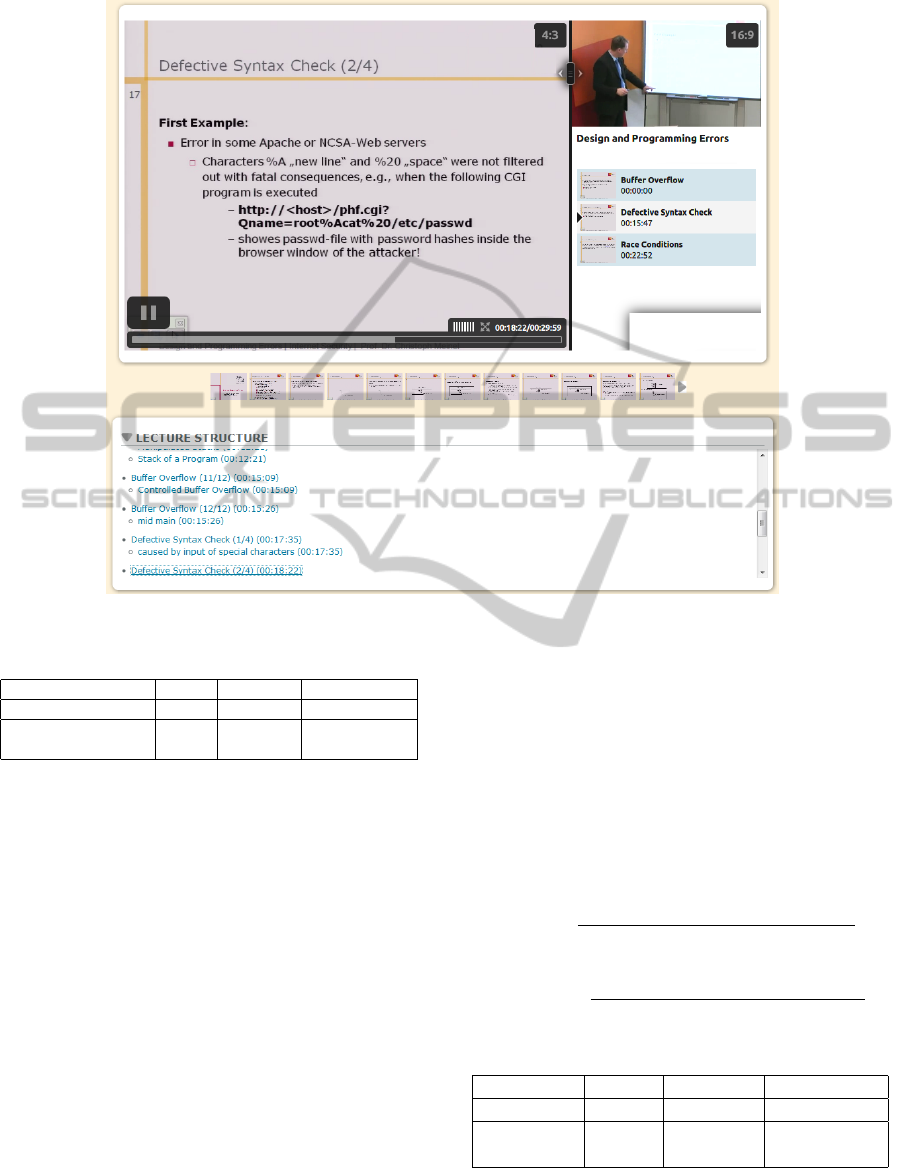

Figure 9: Visualization of the extracted outline of the lecture video underneath the video player.

Table 1: Slide Frame Classiﬁcation Results.

Recall Precision F

Measure

HOG feature 0.996 0.648 0.785

Image intensity

histogram feature

0.98 0.85 0.91

use HOG feature with 8 gradient directions, which

have been extracted from each 64x64 local image

block. The image intensity histogram features consist

of 256 histogram bins that correspond to 256 image

grayscale values. The classiﬁcation accuracy for slide

frames of both features have achieved close to 100%.

However, the HOG feature has a much worse per-

formance than intensity histogram feature for distin-

guishing images—that have varying genres—in con-

trast to slide frames. Although the recall of inten-

sity histogram feature is slightly lower than HOG fea-

ture, it could achieve a more signiﬁcant improvement

in precision and processing speed (about 10 times

faster).

6.2 Evaluation of Lecture Outline

Extraction

We evaluated our lecture outline extraction method

by randomly selecting 180 segmented unique slide

frames of 20 test videos. The achieved word recog-

nition rate of our text recognition algorithm is about

85%, which has been reported in (Yang et al., 2011).

To evaluate the outline extraction method, we deter-

mine not only whether the outline type is correctly

distinguished by slide structure analysis. We also cal-

culate the word accuracy for each detected outline ob-

ject. Therefore, the accuracy of our outline extraction

algorithm is based on the OCR recognition rate.

We have deﬁned recall and precision metrics for

the evaluation as follows:

Recall =

number o f correctly retrieved outline words

number o f all outline words in ground truth

Precision =

number o f correctly retrieved outline words

number o f retrieved outline words

Table 2: Evaluation Results of Lecture Outline Extraction.

Recall Precision F

Measure

Title 0.86 0.95 0.90

Subtitle-

key point

0.61 0.77 0.68

Table 2 shows the evaluation results for the title

and subtitle-key point extraction, respectively. Al-

though the extraction rate of subtitle-key point still has

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

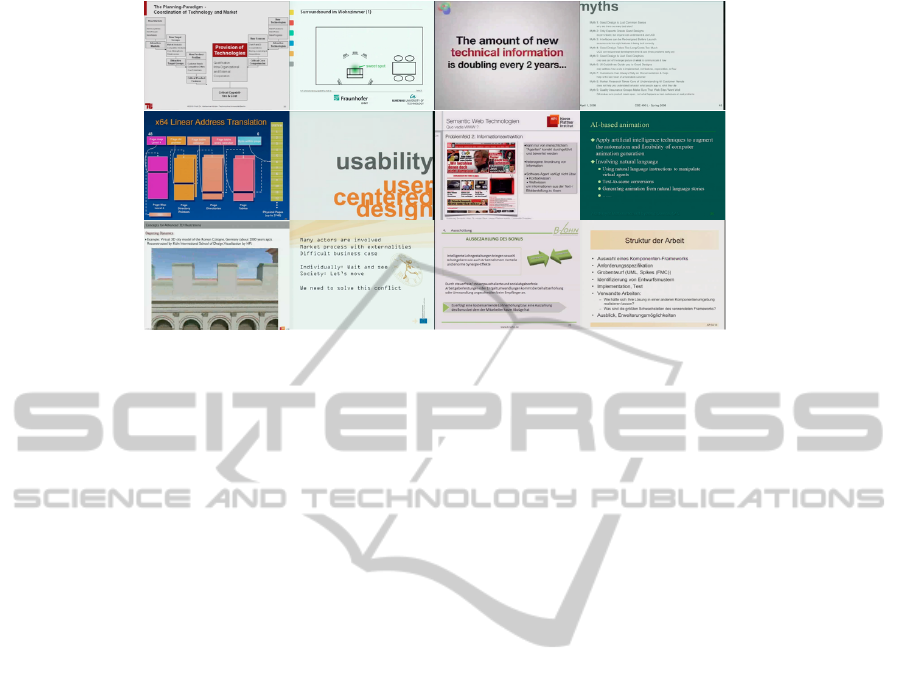

Figure 10: Example frames of our test videos which have varying layouts and font styles for the estimation of our segmentation

algorithm (Yang et al., 2011).

a improvement space, the extracted titles are already

robust for the indexing task. Furthermore, since the

outline extraction rate depends on the OCR accuracy,

it can be further improved by achieving a better text

recognition rate.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we have proposed a hybrid solution

for lecture video indexing: An improved slide video

segmentation algorithm has been developed by us-

ing CCs analysis and SVM classiﬁer. We have fur-

ther implemented a novel method for the extraction

of timed lecture outlines using geometrical informa-

tion and stroke width values. The indexing can be

performed by using both, unique slide frames (visual

information) and extracted lecture outlines (textual in-

formation).

As an upcoming improvement, implementing

context- and dictionary-based post-processing will

improve the text recognition rate further.

The extracted lecture outline as well as the OCR

transcripts we obtained can be used for the develop-

ment of intelligent search algorithms and new recom-

mendation methods in the future.

Therefore we plan to further extend the pluggable

search function (Siebert and Meinel, 2010) within our

sample tele-teaching portal. An extended plugin will

be built that enables the search among the lecture out-

line globally. A marking of the searched term or the

right video sequence, where the search term can be

found within the lecture outline, is a further step.

The features involving visualisation of the results

have been built as proof of concept for the segmen-

tation and OCR processes so far. Since it is desired

that those features become frequently used function-

alities within the tele-teaching portal, their usability

and utility need to be evaluated within a user study.

REFERENCES

Addie, C. (2002). Learning Disabilities: There is a

Cure–A Guide for Parents, Educators and Physicians.

Achieve Pubns.

B. Epshtein, E. Ofek, Y. W. (2010). Detecting text in natural

scene with stroke width transform. In Proc. of Com-

puter Vision and Pattern Recognition, pages 2963–

2970.

E.Leeuwis, M.Federico, and Cettolo, M. (2003). Language

modeling and transcription of the ted corpus lectures.

In Proc. of the IEEE ICASSP.

F. Moritz, M. Siebert, C. M. (2011). Community tagging

in tele-teaching environments. In Proc. of 2nd Inter-

national Conference on e-Education, e-Business, e-

Management and E-Learning.

F. Wang, C-W. Ngo, T.-C. P. (2008). Structuring low-quality

videotaped lectures for cross-reference browsing by

video text analysis. Journal of Pattern Recognition,

41(10):3257–3269.

ﬂickr (2011). http://www.ﬂickr.com.

H-J. Yang, C. Oehlke, C. M. (2011). A solution for ger-

man speech recognition for analysis and processing of

lecture videos. In Proc. of 10th IEEE/ACIS Interna-

tional Conference on Computer and Information Sci-

ence (ICIS 2011), pages 201–206, Sanya, Heinan Is-

land, China. IEEE/ACIS.

J. Hunter, S. L. (2001). Building and indexing a distributed

multimedia presentation archive using smil. In Proc.

of ECDL ’01 Proceedings of the 5th European Confer-

ence on Research and Advanced Technology for Digi-

tal Libraries, pages 415–428, London, UK.

J. Waitelonis, H. S. (2010). Exploratory video search with

yovisto. In Proc. of 4th IEEE International Confer-

AUTOMATEDEXTRACTIONOFLECTUREOUTLINESFROMLECTUREVIDEOS-AHybridSolutionforLecture

VideoIndexing

ence on Semantic Computing (ICSC 2010), Pittsburg,

USA.

N. Dala, B. T. (2005). Histograms of oriented gradients

for human detection. In Proc. IEEE Conf. Computer

Vision and Pattern Recognition, volume 1, pages 886–

893.

Otsu (1979). A threshold selection method from gray-level

histograms. IEEE Transactions on Systems, Man and

Cybernetics, SCM-9(1):62–66.

R. C. Gonzalez, R. E. W. (2002). Digital Image Processing.

Englewood Cliffs.

S. Trahasch, S. Linckels, W. H. (2009). Vor-

lesungsaufzeichnungen – Anwendungen, Erfahrungen

und Forschungsperspektiven. Beobachtungen vom

GI-Workshop eLectures 2009“. i-com, 8(3 Social Se-

mantic Web):62–64.

Siebert, M. and Meinel, C. (2010). Realization of an ex-

pandable search function for an e-learningweb portal.

In Workshop on e-Activity at the Ninth IEEE/ACIS In-

ternational Conference on Computer and Information

Science Article, page 6, Yamagata/Japan.

Sobel, I. (1990). An isotropic 3 3 image gradient opera-

tor. Machine Version for Three-Dimensional Scenes,

(376–379).

Yang, H., Siebert, M., L

uhne, P., Sack, H., and Meinel, C.

(2011). Lecture video indexing and analysis using

video ocr technology. In Proc. of 7th International

Conference on Signal Image Technology and Internet

Based Systems (SITIS 2011), Dijon, France.

Zupancic, B. (2006). Vorlesungsaufzeichnungen und dig-

itale Annotationen Einsatz und Nutzen in der Lehre.

Dissertation, Albert-Ludwigs-Universit

at Freiburg.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
