A SYSTEM FOR AUTOMATED LOAD ADAPTATION

IN CLOUD COMPUTING ENVIRONMENTS

Anna Schwanengel, Michael C. Jaeger and Uwe Hohenstein

Siemens AG, Otto-Hahn-Ring 6, Munich 81739, Germany

Keywords:

Monitoring of Services, Quality of Service, Service Level Agreements, Load Balancing, Cloud Architecture.

Abstract:

Nowadays, cloud computing promises to supply a theoretically inﬁnite resource amount, while enabling in-

stance elasticity. However, using extra capacity requires organizational activities and leads to costs. To keep

this overhead minimal, adding and releasing resources need to be well-scheduled. Therefore, it is inevitable to

prepare an appropriate allocation automatism that considers differences in dynamics and price models of cloud

computing. We present the idea for a system that effectively manages varying loads with regard to emerging

costs, provisioning time, and customer service level agreements (SLAs). Contrary to existing, threshold-based

solutions, our approach considers system observations oft he past, domain-speciﬁc load behaviours as well as

external knowledge. That way, the system detects load patterns and adapts accordingly.

1 INTRODUCTION

With the increasing of service variety and available

resource amount, distributed systems are expected to

handle much load. In cloud systems, almost inﬁnite

pools of virtualized resource capacities enable appro-

priate covering of demands. When load raises, ad-

ditional instances can be added in provider clouds

by paying extra fees. Vendors predetermine different

cost models and allow paying, e.g., per hours, data

transfers or average resource quantity

At the same time, customers prefer to keep ac-

cessory costs to a minimum. Besides, provisioning

time is i.a. affected by dealing with queues, tables and

compute instances. It must not take more time to al-

locate new instances than actual load peaks last. That

raises the question when to add how many instances

to meet load appropriately. Similarly, the inverse sit-

uation requires a solution: When should unused in-

stances be released to save costs?

Challenges of load monitoring were also re-

searched in the ﬁeld of grid computing since years.

However, with cloud computing some additional and

even novel aspects appear. E.g., the reaction to an

unpredictable increase of load is different with cloud

applications. Though, consequent resource allocation

can counteract a subsequent overload, it also leads de-

http://www.microsoft.com/windowsazure/offers

http://aws.amazon.com/de/ec2/#pricing

lays in provider cloud. With cloud applications, in-

stances are deployed at a certain cost and generate

revenue, which requires deployment decisions in ad-

vance. Herein, established solutions for distributed

system management do not offer optimal results.

We want to design a system that enables efﬁcient

load adaptation and management, while considering

costs, provisioning time, and SLAs. With this solu-

tion, correlations through load patterns are identiﬁed,

the design of representativeload curves based on vari-

ance and slope is possible, and suitable algorithms to

observe and describe load changes are offered.

This paper is organized as follows: Section 2 gives

a short research overview of load behaviour. Section

3 motivates main challenges in cloud environments.

Important load inﬂuencing aspects are illustrated in

Section 4. Within Section 5, we describe a basic ap-

proach to achieve automated load adaptation. Sec-

tion 6 discusses this solution and demonstrates further

work. Finally, Section 7 concludes the paper.

2 RELATED WORK

Virtualization technology facilitates “cloud comput-

ing’s ability to add or remove resources” (Armbrust

et al., 2009). E.g., if the current resource amount is

not sufﬁcient to handle all requests in a home cluster,

additional VMs are instantiated at remote providers

(Assunc¸˜ao et al., 2009). Thereby, customers can offer

562

Schwanengel A., Jaeger M. and Hohenstein U..

A SYSTEM FOR AUTOMATED LOAD ADAPTATION IN CLOUD COMPUTING ENVIRONMENTS.

DOI: 10.5220/0003904605620567

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 562-567

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

cloud services without wasting expensive resources

by over-provisioning nor missing potential proﬁts by

under-provisioning (Armbrust et al., 2010). However,

as studied in (Lucas et al., 2011), it is difﬁcult to fore-

cast exact resource amount a company needs to pro-

vide QoS to its clients, and ‘end-to-end fees’ are often

not considered – we want to anchor this in our system.

The varying number of data and instances affect

various load patterns and models. Therefore, (Kat-

saros et al., 2011) identify characteristics of cloud

monitoring infrastructures and present an architec-

tural approach. (Paton et al., 2009) deﬁne kinds of

load in consideration of load properties, SLAs, and

competition on the shared resources. Within work-

load execution, possible system states are mapped to a

common scale, which can i.a. embody response times,

QoS goals or throughput for requests. However, in

contrast to our approach this work concentrates on

limited instances, whereas we assume hypothetically

inﬁnite resource capacity in cloud environments.

To meet the lack of resources in case of load in-

creasing, (Moran et al., 2011) propose a rule-based

measure and control mechanism to allocate new in-

stances. Though this is a reasonable starting point,

they limit themselves on lower-level rule-mapping

and do not address scalability issues entirely.

Also (Gmach et al., 2006) present approaches to

react on load self-organizingly. Their ‘AutoGlobe’

system reacts on detected overload by distributing

load and transferring tasks to less loaded servers. For

services with periodic patterns, they formulate short-

term load predictions and for abnormal happenings,

they deduct hints on basis of, e.g., resource utilization

(Seltzsam et al., 2006). However, they only address

a short part of IT-business ﬁelds (ERP), whereas we

want to examine a larger area of applications.

(Chen et al., 2010) propose forecasting that uses

patterns to predict load at future time. That means

trusting historical data to forecast future data values.

Though trying to detect patterns, they concentrate on

cleaning abnormal data, which is only a part of au-

tomated load adaptation in our point of view and the

presented process of load cleansing is not automatic.

Similar to our approach, (Ferrer et al., 2012) in-

vestigate challenges for adaptive service provisioning

in clouds – like cost-dependences, self-preservation

and legislative issues. Unfortunately, their scenar-

ios only concentrate on infrastructure and service

providers, while ignoring the platform interlayering.

In summary, there are no clearly deﬁned patterns

to categorize load behaviour in different domains and

parameters are not identiﬁed entirely. Aspects con-

cerning load changes are to regard and trade-off be-

tween cost savings and SLA compliance is to solve.

3 PROBLEM STATEMENT

The problem, we want to tackle, is to handle var-

ious factors causing load changes in order to react

on extraneous circumstances. In addition, we want

to infer dynamic resource allocation in consideration

of arising costs and negotiated customer SLAs. Un-

fortunately, established load treatments are not able

to offer an optimal solution because of some facts,

which are explained in more detail in the following.

First of all, grid or high-performance computing sys-

tems and classical scheduling procedures can assume

queues for the overall system. These queues buffer

existing tasks and enable such processes to come to

a decision based on existing facts. With missing such

mechanisms in cloud offerings – which aim for public

use – we need novel procedures on basis of forecasts.

Furthermore, existing algorithms for scheduling

or load control in the Internet are based on best-

effort approaches (Meddeb, 2010) or aspire guaran-

teeing service level agreements. In cloud environ-

ments, SLAs can be handled more ﬂexible, and in

speciﬁc situations they can even be expected to get

violated because of beforehand negotiated compen-

sation strategies (Vaquero et al., 2008). Therefore,

SLAs must be adapted dynamically during actual ser-

vice provisioning or violated SLAs have to be com-

pensable. So it sometimes may be more expedient to

not react on load changes, which means neglecting

customer satisfaction for achieving cost savings.

An additional problem is the demand for an efﬁ-

cient and automated algorithm to detect whether new

capacities are needed. Today, cloud providers only of-

fer APIs (e.g., REST or SOAP) by which customers

have to implement individual load management but

no automated solution exists. We want to understand

load characteristics, identify affecting parameters and

consider cost aspects to create an automatism for load

management and the corresponding adaptation.

4 LOAD INFLUENCERS

With load patterns varying by different application ar-

eas and even within one single application, it is difﬁ-

cult to deﬁne a generalized load behaviour based on

collected observations in advance. But, as shown by

an IBM analysis about the Olympic Games of 1998,

pattern characterisation based on stored information

is possible (Iyengar et al., 1999). We demonstrate a

variety of load models by some examples and iden-

tify several load patterns and characteristics.

ASYSTEMFORAUTOMATEDLOADADAPTATIONINCLOUDCOMPUTINGENVIRONMENTS

563

(a)

(b)

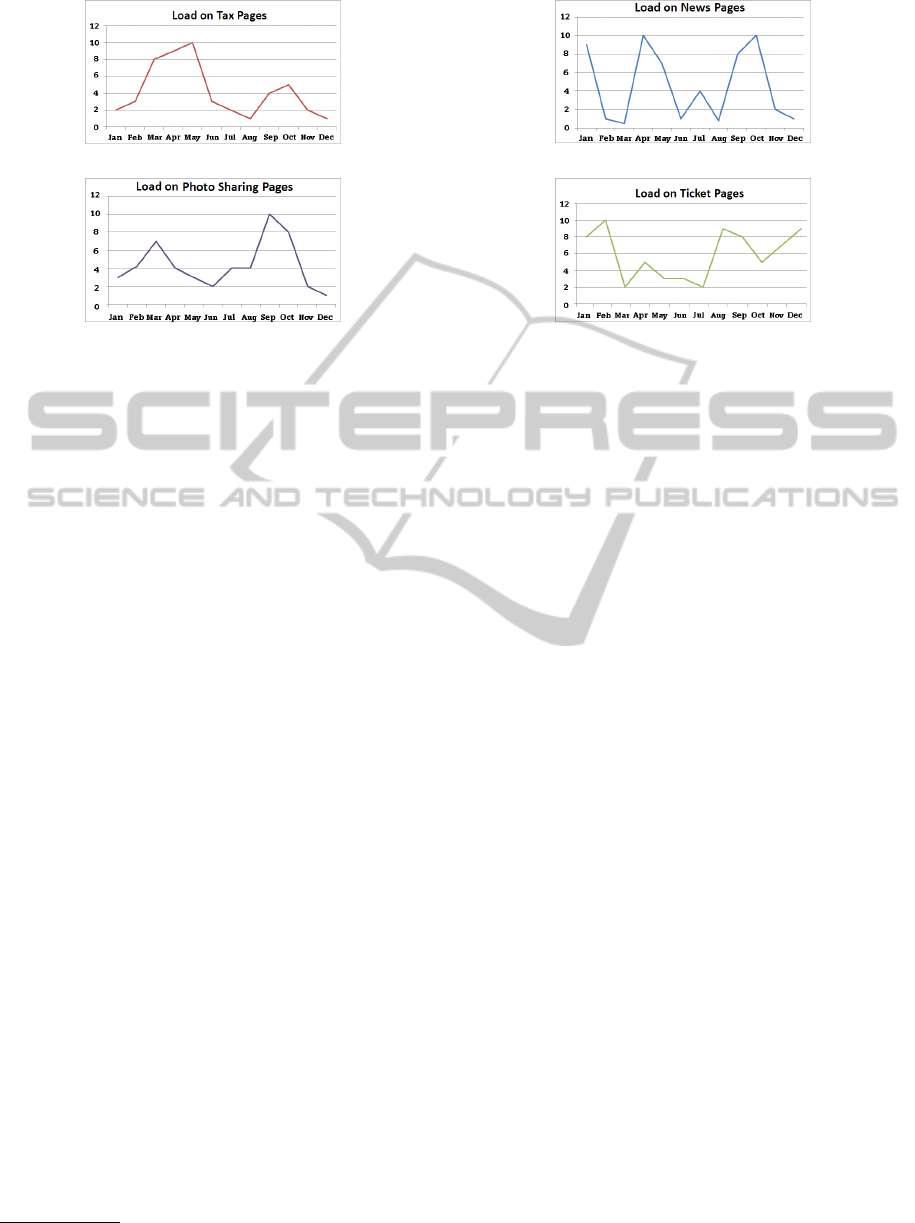

Figure 1: Load patterns on tax transaction (a) and photo

sharing applications (b).

4.1 Variety of Load Patterns

The ﬁrst and most common load behaviour are growth

situations, where load on required instances continu-

ously increases over time. On the other hand, we ﬁnd

on-off situations (e.g. in batch job execution), where

either a lot of instances are used to cover enormous

load or only few resources are required because less

load exists in the overall system.

As outlined in Figure 1 and 2, several load struc-

tures occur in everyday life with recurrent routine.

Thereby, load is mostly low in average with high

peaks in demand. Based on real life data, we assume

that load peaks on tax servers arise around May fol-

lowing an annual cycle, because of tax return dead-

lines (Figure 1a). On photo sharing platforms most

trafﬁc is detected in March/April and September due

to Alexa the Web Information Company

(Figure

1b). That ﬁts to the surmise that people upload pic-

tures after holidays to share vacation memories with

friends. To conclude, these examples describe recur-

ring yearly patterns, and histories can be generated.

We, further, identify processes following a cycli-

cal predictable daily pattern, e.g., in use cases about

electro mobility. During rush hours, an enormous

amount of data will come up to management servers.

When people drive to work, their cars produce numer-

ous data, which are automatically transferred to a cen-

tral management – such as telemetry data about car’s

technical conditions. Then, we can specify history-

based absolute load patterns, and our forecasting sys-

tem enables proactive actions to expected load in-

creases before the actual occurrence.

On the other hand, there are cases, in which it is

http://www.alexa.com/siteinfo/ﬂickr.com

(a)

(b)

Figure 2: Random load models on news (a) and ticket ap-

plications (b).

difﬁcult to extract obvious patterns – e.g., predict-

ing load behaviour on news applications – because

events happen rarely and by pure chance. This type

of data follows a random unpredictable scheme, as

illustrated in Figure 2a. Based on Leskovec’s state-

ment at ESWC’11 that “peak intensity from blogs

typically comes about 2.5 hours after peak intensity

from news” (Leskovec, 2011), we assume that after

relevant events awareness and further progression of-

ten behave in predictable manner with different inten-

sity. Therefore, relative models with regarding vari-

ance and slope in load curves enable short-termed pre-

diction of further progress after relevant events.

Furthermore, there exist events which – though,

not following a cyclical annual model – can be pre-

cisely planned, as in the case shown in Figure 2b on

servers selling tickets for concerts, football matches

or other big and rare events. To detect precise pat-

terns, information about external events are required.

We use these inputs for a prediction algorithm

based on slope and variance in load curves. Within

this model of unpredictable behaviour, the system has

to deﬁne load characteristics in order to identify less

important elements which can be ignored to give pref-

erence to more promising ones.

4.2 Load Curve Characteristics

Regardless of the domain, we determine characteristic

load curves by their amplitudes and their climb. When

such characteristics are observed in a non-recurring

or at least in a seldom manner, it may be sensible

not to react on load increases at all. If the addi-

tional machines need more time to come up than ac-

tual peaks remain, wasted over-provisioning is cre-

ated with no use and unnecessary costs. Otherwise, if

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

564

these short high amplitudes appear in a periodic man-

ner with high frequency, additional instances have to

be booted and should not be released in order to han-

dle the sum of queued requests. In highly distributed

environments often multi-dimensional SLAs exist as

requirements – e.g., availability and reliability, low

costs, high throughput and bandwidth, etc. So, not

reacting must not violate predeﬁned constraints!

Following these motivating thoughts, the problem

turns in a multi-criteria optimization mission. This is

challenging, because the parameters act in a contrar-

ian manner: when requiring constant availability, one

has to pay for permanent resource support. Further-

more, with a minimum of costs the customer calls for

a maximum of resources with abidance of different

service level agreements. Of course it is impossible

to achieve these claims in entirety, but we want to get

close to an implementation.

5 SYSTEM DESIGN

In the following of this section we describe how our

system (see Figure 3) acts in:

• system observations

• identiﬁcation of speciﬁc application domains

• integration of external knowledge

• load pattern detection and adaptation

• classiﬁcation of load characteristics & parameters

• consideration about costs and SLAs

• reaction to load variations by different ways

Our approach intends to determine load based on do-

main speciﬁc aspects. The basic statement here is ‘de-

sign for operation’, which indicates developing appli-

cations based on different domains.

5.1 Interaction Models

As an attempt, our system takes account of the fol-

lowing speciﬁc domains. First of all, we differen-

tiate between applications with machine-to-machine

(M2M) communication and human machine interac-

tion (HMI). M2M communication means less effort

to handle protocols for consecutive operations than

in case of user involvement. Consequently, future

utilization can be predeﬁned and pre-calculated with

statements such as ‘In x minutes the application y will

require z more resources...’ This performs worse with

humans being involved, because system users often

behave in a more unpredictable manner.

Another possibility is to specify categories of

communications as transactional, bi-directional or

uni-directional. This means identifying different

communication ways to build up an assumption about

load trends based on the amount of communications.

Within transactional communication there are also

differences regarding the complexity of execution. If

the application is primarily designed to perform com-

plicated business transactions, scalability and consis-

tency are more difﬁcult to handle than in systems

based only on atomic transactions. These different in-

teraction models will end up in clear load variations.

In this context, Alam et al. classify two groups of

performance counters: one that show processing may

go wrong in near future, and one that show the system

status is already dissatisfying. The former are for ex-

ample ‘Requests Queued’, ‘Request Execution Time’,

‘CPU Usage’, and ‘Requests per Second’. “Having

high numbers in these may indicate either the system

is utilized at the most optimum level, or is really get-

ting close to deteriorate” (Alam et al., 2011). ‘Appli-

cation Restarts’, ‘Worker Process Restarts’, and ‘Er-

rors Total’ are illustrations for the latter set of coun-

ters, which may result in the fact that the system is

suffering from a resource scarcity.

Our assumption is that in the majority of cases the

amount of waiting requests are sufﬁcient to make a

point about the load of the system. But we can also

imagine cases, where applications exist with several

request queues, so that one has to further observe,

e.g., ‘Request Execution Time’, ‘CPU Usage’ or ‘Ap-

plication Restarts’ in order to detect load variations.

5.2 Data Input for the System

Our system design covers the possibility to integrate

external knowledge via stored observations. Out of

a storage ﬁlled with information of beforehand an-

nounced events, the system can extract further impor-

tant knowledge about proceeding load behaviour.

Besides external statistics, the system also consid-

ers cost parameters. Analysing the pricing models of

relevant cloud computing providers, reveals that the

monthly bill depends on various factors. Important

are the numbers of reserved CPUs and time a virtual

machine is occupied. Furthermore, one has to pay for

the size of the database, respectivelythe amount of the

used storage space. Besides, bandwidth and the sum

of transactions are considered in billing. To conclude,

there exist a lot of factors causing costs for the cus-

tomer, which are dependent on load aspects produced

by their applications in the cloud. Hence, we consider

all inﬂuencing load parameters and match them to an

entire assumption of load in order to precise state-

ments about upcoming load and costs. Thereby, it is

easier to detect a reasonable amount ‘z’ of resources.

ASYSTEMFORAUTOMATEDLOADADAPTATIONINCLOUDCOMPUTINGENVIRONMENTS

565

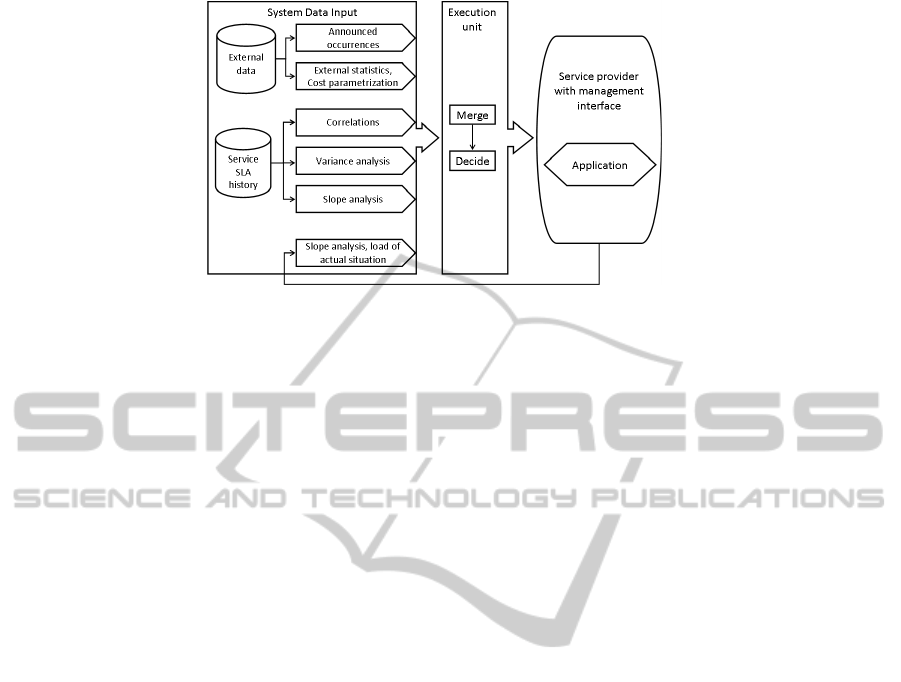

Figure 3: Overview of the system components.

Further, the system considers service level agree-

ments and implies also modelling for the optimization

problem with diametrically opposing attributes. Low

costs and high reliability, strong consistency and per-

manent availability, high distribution and less admin-

istrative effort are only some of the contrary elements

in this setting and one has to trade off which attribute

to prefer (Das and Panigrahi, 2008).

The system identiﬁes correlations through load

patterns and differentiates between load curves that

feature continuous increases, short high peaks in ei-

ther a frequently recurring, a one-time / seldom man-

ner or constant sinus amplitudes.

We, additionally, integrate a solution to design

a representative curve based on variance and slope.

With drawing out a pattern, which enfolds aspects

as peak intensity, time-shifting, slope of load after a

detected increase, etc., the systems succeeds in us-

ing suitable algorithms to observe and describe load

changes. If a change of the situation is detected –

e.g., the storage is ﬁlled with new external knowledge

or the application does not behave as predicted – the

pattern is re-deﬁned in order to ﬁt to load changes.

Beyond, the system deﬁnes load characteristics in

order to identify less important elements, which can

be ignored to give the preference to the more promis-

ing ones. Within these considerations, parameters in-

ﬂuencing load curves can be identiﬁed and anchored

inside our system design.

5.3 Execution Unit

As already stated before, it is essential to deﬁne how

to react on load changes based on overall system in-

formation. If short load amplitudes are measured,

they might be ignored, because costs and adminis-

trative effort bear no relation to increased value or

higher proﬁt. On the other hand, provided no one-

time appearance of load increasing, but cyclical load

escalations it is inevitable to act in order to preserve

customer demands. These considerations are impor-

tant for the execution unit, which merges all collected

information and decides how to (re-)act.

Handling load variations, there exist two potential

ways: foresighted acting in an absolute way based

on measured and recorded data and reacting to load

changes only afterwards. The former implies the need

for a predeﬁned model on which a proactiveact is per-

formed already before a load increase is measured.

Presuming load to ﬁnd a solution for unpredictable

behaviour, turns in the online problem. Coming up

from online-algorithms, one has to take an upfront de-

cision according to the present unprecised knowledge,

on condition of never paying more than if one would

have known the future.

We differentiate between a model based on math-

ematical analyses or simulations, and a model which

deals systems as black boxes and tries to deduct be-

haviours based in statistics or data mining (Machiraju

et al., 2004). When reacting to load changes only in

hindsight, one has to rely on measurements and ad-

hoc reactions in a quick way.

Further, we want to enter cost and SLA informa-

tion into the system. For this purpose, the system ex-

tracts the stored SLA history and takes different cost

models into account. For example, if the agreement

relating to costs provides to pay by hours, the system

will not release the booted instance too early.

Combining all these considerations, we will be

able to implement the system concept, which provides

an automated load adaptation regarding costs, provi-

sioning time and SLAs.

6 FUTURE WORK

Load modelling based on domain analysis is a com-

plex approach. Existing various applications, the pos-

sibilities for precise load pattern detection are not re-

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

566

searched exhaustively. This raises questions concern-

ing measurement and inﬂuencing parameters on load

behaviour, on which we concentrate on in future.

We want to decide how to measure and model load

and which load characteristics should preponderate.

Furthermore, inferring from a model, how single ser-

vices inﬂuence the total load in a multi-tenant cloud

environment, implies a lot of previously collected and

detailed knowledge. Thereby, we identify as an im-

portant task to minimize the amount of resources in

order to save money without violating SLA aspects as

availability, reliability or throughput.

As future work, we want to extract precise load

patterns from cloud simulation environments, rele-

vant literature and other observations and to develop

appropriate algorithms to react adequately and au-

tomatically to load changes. The research ﬁelds of

dynamic scalability and general load monitoring and

load management will also be taken into account.

7 CONCLUSIONS

Load management is a long-standing issue in several

computing areas but cloud computing generates new

aspects. In contrast to existing grid management solu-

tions, one has to deal with inﬁnite resources, and ﬂex-

ibility increases because of elasticity. Furthermore,

SLAs may now be treated less strictly and a violation

can be condone in cloud environments for cost sav-

ings. The basis for solutions of ‘computing problems’

has changed and is to be redeﬁned.

Within this paper we differentiate several contrib-

utors in the large world of load management in cloud

computing. The appropriate reaction on load vari-

ances will be essential in competition about a dom-

inate position on customer market. Handling SLAs in

a ﬂexible and reliable manner while satisfying cus-

tomer expectations, optimizing provisioning times,

and reducing costs by responsible resource decrease

are important factors in this setting.

Proposing this, we make a step towards identify-

ing different load patterns, which will be proven by

pattern mining, and categorize their load behaviours

in a domain-speciﬁc manner.

In future, we will inventa control entity for adding

and releasing instances at an optimal compromise of

low cost and simultaneous SLA compliance with in-

cluding an algorithm for load pattern detection. Ad-

ditionally, we will implement our system design and

prove its functionality via real data concerning mini-

mal costs, high availability, and scalability.

REFERENCES

Alam, K., Keresteci, E., Nene, B., and Swanson, T. (2011).

Dokumentation. http://cloudninja.codeplex.com/

releases/view/65798.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

and Zaharia, M. (2009). Above the clouds: A berkeley

view of cloud computing. Berkeley Uni California.

Armbrust, M., Stoica, I., and et al. (2010). A view of cloud

computing. Communication ACM, 53.

Assunc¸˜ao, M., Di Costanzo, A., and Buyya, R. (2009).

Evaluating the cost-beneﬁt of using cloud computing

to extend the capacity of clusters. 18th HPDC.

Chen, J., Li, W., Lau, A., Cao, J., and Wang, K. (2010). Au-

tomated load curve data cleansing in power systems.

IEEE Computer, 1.

Das, S. and Panigrahi, B. (2008). Multi-objective evolution-

ary algorithms, encyclopedia of artiﬁcial intelligence.

Idea Group Publishing.

Ferrer, A. J., Hernndez, F., Tordsson, J., and et al. (2012).

Optimis: A holistic approach to cloud service provi-

sioning. FGCS.

Gmach, D., Krompass, S., Seltzsam, S., Wimmer, M., and

Kemper, A. (2006). Dynamic load balancing of virtu-

alized database services using hints and load forecast-

ing. ICDE`06.

Iyengar, A. K., Squillante, M. S., and Zhang, L. (1999).

Analysis and characterization of large-scale web

server access patterns. World Wide Web.

Katsaros, G., Gallizo, G., K¨ubert, R., Wang, T., Fit´o, J. O.,

and Henriksson, D. (2011). A multi-level architecture

for collecting and managing monitoring information

in cloud environments. 1st CLOSER.

Leskovec, J. (2011). Rhythms of information ﬂow

through networks. http://videolectures.net/

eswc2011 heraklion/.

Lucas, J. L., Carrin, C., and Caminero, B. (2011). Flexible

advance-reservation (FAR) for clouds. 1st CLOSER.

Machiraju, V., Bartolini, C., and Casati, F. (2004). Tech-

nologies for business-driven IT management. Extend-

ing Web Services Technologies.

Meddeb, A. (2010). Internet QoS: Pieces of the puzzle.

Communications Magazine, 48(1).

Moran, D., Vaquero, L., and Galan, F. (2011). Elastically

ruling the cloud: Specifying application’s behavior in

federated clouds. 4th CLOUD.

Paton, N., De Arag˜ao, M., Lee, K., Fern, A., and Sakellar-

iou, R. (2009). Optimizing utility in cloud computing

through autonomic workload execution. IEEE.

Seltzsam, S., Gmach, D., Krompass, S., and Kemper, A.

(2006). AutoGlobe: An auto. admin. concept for

service-oriented DB applications. 17th CAiSE.

Vaquero, L., Rodero-Merino, L., Caceres, J., and Lindner,

M. (2008). A break in the clouds: Towards a cloud

deﬁnition. SIGCOMM.

ASYSTEMFORAUTOMATEDLOADADAPTATIONINCLOUDCOMPUTINGENVIRONMENTS

567
