PROPOSED OF A LOAD BALANCING METHOD FOR DATA

INTENSIVE APPLICATIONS ON A HYBRID CLOUD ACCOUNTING

FOR COST INCLUDING POWER CONSUMPTION

Yumiko Kasae and Masato Oguchi

Ochanomizu University, 2-1-1 Ohtsuka, Bunkyo-ku, 112-8610 Tokyo, Japan

Keywords:

Hybrid Cloud, Power Consumption, Middleware, Load Balancing, Evaluation of Costs, Data-intensive

Application.

Abstract:

Based on the recent explosive increase of information in computer systems, we need a system that can efﬁ-

ciently process large amounts of data with limited resources. In this paper, we propose a method to implement

such a system in its Hybrid Cloud environment, implemented as Middleware. Using this Middleware, the user

can not only efﬁciently process large amounts of data but can also control monetary costs, including power

consumption, by setting parameters. Furthermore, we evaluate the total costs, calculated by Execution Time,

Public Cloud’s Metered Rates and Charge of Power Consumption on the Private Cloud when running our

Middleware.

1 INTRODUCTION

Due to the recent explosive increase of information

in computer systems, we need a system that can ef-

ﬁciently process a large amount of data with lim-

ited resources. To achieve this, using cloud com-

puting is effective, and it has spread throughout the

world. However, this diffusion has caused power

consumption to increase in the equipment used to

build a cloud. Moreover, according to the global eco-

conscious trend, we should reduce the power con-

sumption of computer systems. To reduce power con-

sumption, it is possible to develop power-saving com-

puter systems and air-conditioning equipment. How-

ever, it is often difﬁcult to realize such a power-saving

system from the hardware perspective. We thus also

require a software effort to this end. In this research,

focusing on a hybrid cloud in cloud computing, which

is a combination of public and private clouds, we pro-

pose a method that can both process a large amount

of data and control monetary costs, including power

consumption. We have implemented the system as

middleware.

The middleware has two characteristics. First, as a

target job, we have used a data-intensive application.

Second, this system aims to realize power-saving load

balancing. This system considers two types of costs:

time and monetary cost. The time cost is the exe-

cution time, and the monetary cost is the sum of the

charge of a public cloud at a metered rate and the

charge of power consumption on a private cloud. In

this middleware, it is possible to realize power-saving

oriented load balancing by controlling the rate of pri-

vate/public cloud usage. By changing the parameters,

users can choose to lay weight on either execution

time or monetary cost. In this paper, we have mea-

sured and calculated execution time, the charge of a

public cloud at a metered rate, and the power con-

sumption charge on a private cloud while executing

the application with our middleware. Using these re-

sults, we have estimated the time and monetary costs.

Moreover, we have evaluated these costs when users

decide the importance of both costs.

The remainder of this paper is organized as fol-

lows. Section 2 introduces related research studies.

Section 3 shows an experimental system of the hy-

brid cloud that we have constructed in this study. Sec-

tion 4 describes our proposed method and introduces

how to implement it as middleware. Section 5 intro-

duces the results of the execution using our middle-

ware. Section 6 evaluates our middleware, and Sec-

tion 7 presents concluding remarks.

2 RELATED WORKS

Previous researchers have discussed load balancing

407

Kasae Y. and Oguchi M..

PROPOSED OF A LOAD BALANCING METHOD FOR DATA INTENSIVE APPLICATIONS ON A HYBRID CLOUD ACCOUNTING FOR COST

INCLUDING POWER CONSUMPTION.

DOI: 10.5220/0003911504070412

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 407-412

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

in the cloud computing (E.Kalyvianaki and S.Hand,

2009). In this papers, however, CPU-intensive appli-

cations were used as targets of load balancing jobs,

and not as data-intensive applications. In computing-

centric applications, like some scientiﬁc calculations,

performing appropriate load balancing based on the

CPU load of each node is possible. In this research,

however, we have used a data-intensive application as

a target of the jobs. In such a case, because the CPU

is often in the I/O waiting state, load balancing is al-

most impossible by CPU load. In this research, we

have used the disk I/O as a load indicator.

In data-intensive applications, load balancing

middleware was also developed using the amount

of disk access for load decisions (S.Toyoshima and

M.Oguchi, 2011). This middleware, based on disk ac-

cess, provided dynamic load balancing between pub-

lic clouds and a local cluster and performed the op-

timal job placement. As we have further developed

middleware by introducing user-speciﬁed parameters,

it becomes possible to reduce the monetary costs of

load balancing, including power consumption.

Power saving in cloud computing has also been

actively investigated. Unlike this study, researchers

have discussed an approach to power saving when ex-

ecuting CPU-intensive applications in a cloud (Che-

Yuan Tu, 2010). Another study (C.; Parr, 2011) exam-

ined power saving efforts for a cloud datacenter. Our

study aims to save power in entire clouds, including

private clouds. Researchers (Zhang, 2010) proposed

a scheduling algorithm considering power consump-

tion and a job’s execution time. However, these stud-

ies differ from our study, especially because we have

focused on the point at which total costs in the hybrid

cloud are discussed, consisting of job execution time,

public cloud charge at a metered rate, and power con-

sumption charge on a private cloud. In addition, we

have used data-intensive applications as target jobs.

3 ENVIRONMENT FOR

EVALUATION

In this paper, we have used the cloud-building soft-

ware, Eucalyptus (D.Nurmi, 2010) to build two cloud

systems.

We have built an emulated hybrid cloud environ-

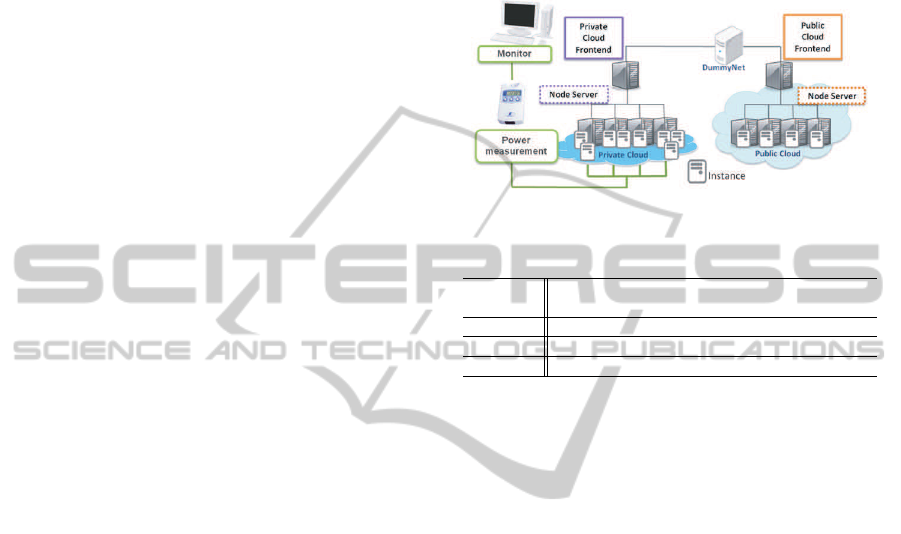

ment in our laboratory. Figure 1 shows an experimen-

tal system developed in this research. In the Hybrid

Cloud experimental system, the Private Cloud has a

Frontend Server and four Node Servers, in which in-

stances are created. Similarly, the Public Cloud has 1

Frontend Server unit and 4 Node Server units. The

Private and Public Clouds are connected to Dum-

mynet, which artiﬁcially causes delay. Tables 1 pro-

vide speciﬁcations for Node’s physical machine. The

two Frontend Servers have two network ports: one is

connected to the Node Servers, and the other to an

external network. With this conﬁguration, each Node

Server is independent from the external network.

Figure 1: The system for experiment.

Table 1: Public and private cloud node.

OS Linux 2.6.32-xen-amd64 and xen-4.0-amd64

/Debian GNU/Linux 6.0

CPU Intel(R) Xeon(R) CPU @ 3.60GHz

Memory 4GByte

Disk 141GByte or 222GByte

To measure power consumption in this environ-

ment, we have used the watt-hour meter SHW3A,

which is a high-precision power meter produced by

the System Artware Company in Japan. After plug-

ging an electric product into SHW3A, the power con-

sumption is instantly measured and displayed. This

study only measures the Private Cloud’s Node power

consumption. In reality, it is difﬁcult for users to

know the amount of power consumed by a Public

Cloud. Instead, in the Public Cloud, we have assumed

that the power consumption charge is included in the

Public Cloud charge at a metered rate. This is dis-

cussed later. The measured powerconsumptionis col-

lected by a monitoring PC.

4 PROPOSED LOAD BALANCING

METHOD AND MIDDLEWARE

INPLEMENTATION

4.1 Load Balancing Method used in

Hybrid Cloud

This Middleware performs load balancing of data-

intensive jobs during runtime. It estimates the num-

ber of jobs by monitoring the disk I/O of the private

and public clouds. In a sequence where data-intensive

application jobs are submitted consecutively, after all

resources in the private cloud are fully utilized, the

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

408

next job is distributed to the public cloud’s resources.

First, the middleware checks the status of the disk I/O

on the private cloud; it next examines the status of the

disk I/O on a higher priority instance on the public

cloud. By executing jobs at a vacant status instance

with higher priority, the middleware realizes well-

balanced load balancing while considering time and

monetary costs. In addition, by changing parameter

settings according to the user’s instructions, power-

saving load distribution can also be achieved.

4.2 Disk I/O Saturation Decision

This middleware uses the disk I/O to decide on

resource exhaustion because it focuses on data-

intensive jobs. For data-intensive jobs, as the system

often waits for I/O processing, it is difﬁcult to deter-

mine the CPU load. The disk I/O thus decides the

system load.

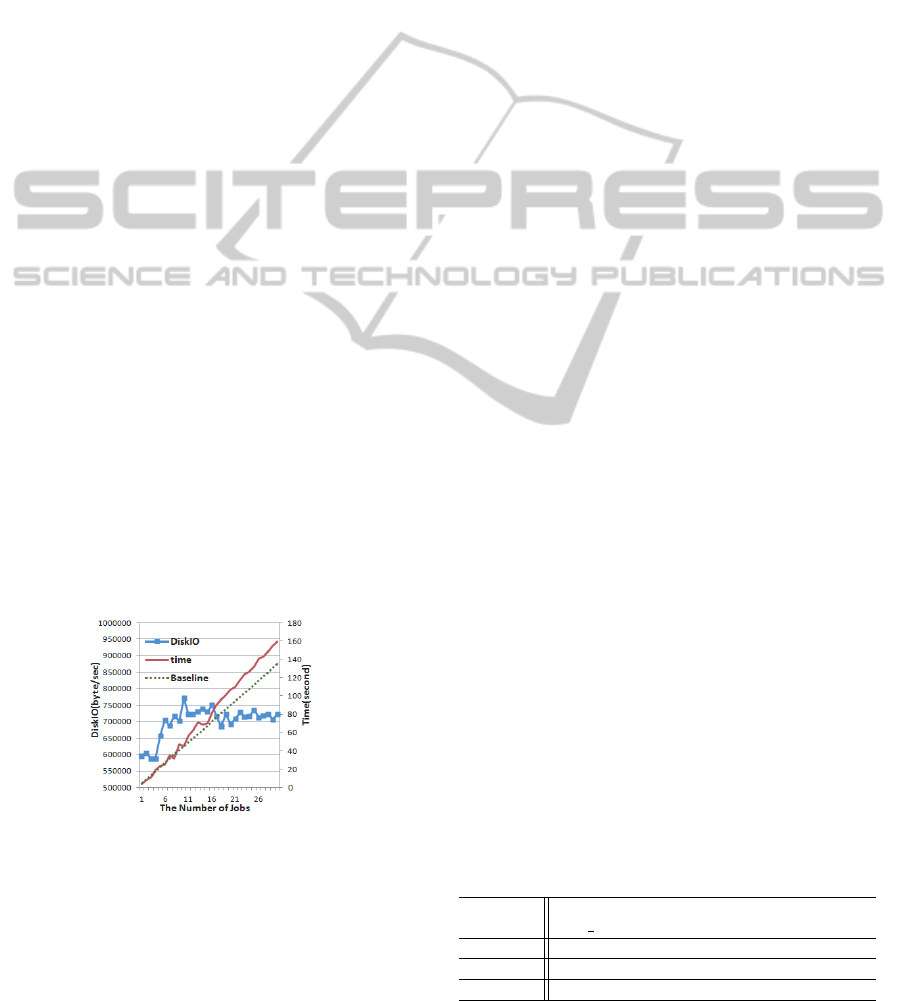

Figure 2 shows a graph of execution time and disk

I/O when data-intensive jobs are thrown in every two

seconds. According to Figure 2, as the number of jobs

increases, the value of disk I/O becomes saturated.

When this occurs, the execution time becomes longer

compared to the baseline condition, which is not the

case with the saturated disk I/O. This middleware thus

is used only within a range where resource usage is

not saturated. The middleware periodically measures

the disk I/O value. When the disk I/O exceeds a sat-

uration value (hereafter ’S’) designated times, the in-

stance is considered saturated, and load balancing to

another instance is performed. When the disk I/O falls

below the S value, the instance is not considered sat-

urated. This is one of the most suitable methods to

estimate saturation because the disk I/O value is un-

stable.

Figure 2: DiskIO and execution time of executing data in-

tensive application.

Users can determine the saturation level param-

eters of this middleware. Users can control load

balancing by weighting either the execution time or

monetary cost, which includes power consumption.

Changing the saturation level means changing the fol-

lowing two parameters: ”the number of times the in-

stance’s disk I/O exceeds the S value (hereafter ’M’)”

and ”the number of times the instance’s disk I/O falls

below the S value (hereafter ’L’)”.

4.3 Evaluation Indices of Middleware

Considering load distribution in a cloud, many tasks

can be executed in parallel using many instances on

a public cloud, and the overall execution time is thus

expected to be shortened. However, if many instances

on public cloud are employed, though the power con-

sumption charge on a private cloud is suppressed, the

public cloud charge at a metered rate increases. To

achieve load balancing on hybrid clouds while ac-

counting for power saving, it is important to allocate

resources based not only on execution time but also

on the cost and power consumption. As an evalua-

tion index for this middleware, the time and monetary

costs are thus considered. The time cost is the job ex-

ecution time. The monetary cost is sum of the power

consumption charge on a private cloud and the public

cloud charge at a metered rate.

5 MAIN EXPERIMENTS AND

MEASUREMENTS

5.1 Experiment Overview

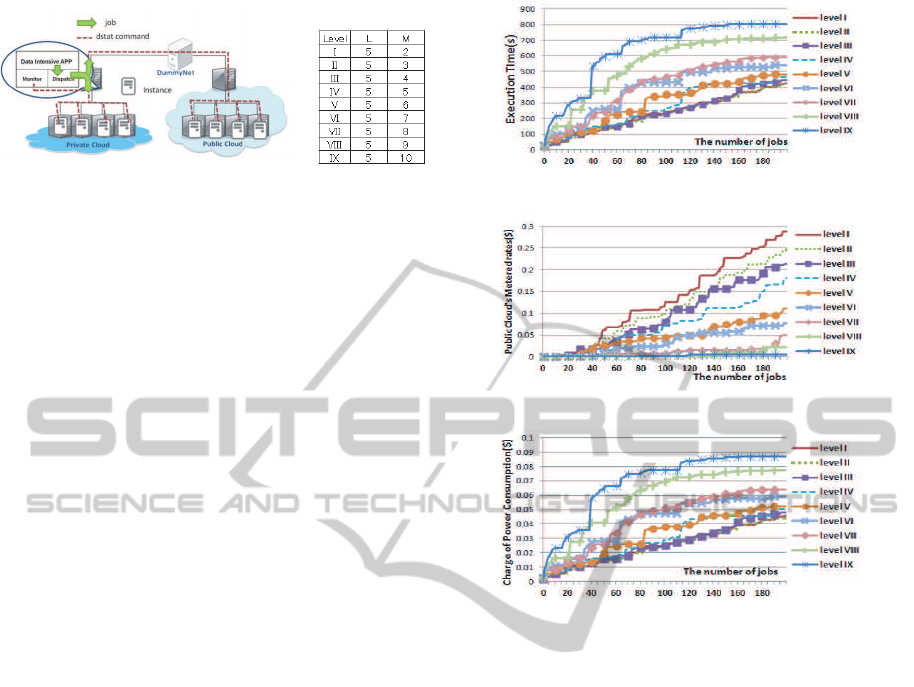

In this experiment, as shown in Figure 3, after gen-

erating one instance in every Node server in both

clouds, load balancing was performed in eight total

instances. Table 2 shows the performance of every

instance. In the public cloud, the instances are gener-

ally available without restriction. In this experiment,

the total number of thrown jobs is capable of load bal-

ancing within the public cloud’s 4 instances.

In the experiment, the saturation level varies by

changing the M values, as in Figure 4, but maintains

a ﬁxed L value, described in Chapter 4. In this sat-

uration level, if the level is small, the load is easily

distributed, and if the level is large, the load is hard to

be distributed. When varying the saturation level, we

thus measure the job processing time, metered pub-

lic cloud costs and private cloud’s power consumption

rates. We then evaluate these costs.

Table 2: Instance.

OS Linux 2. 6. 27. 21-0.1-xen /

x86 84 GNU / CentOS 5.3

CPU Intel(R) Xeon(R) CPU @ 3.60GHz 1 core

Memory 1024MByte

Disk 10GByte

PROPOSEDOFALOADBALANCINGMETHODFORDATAINTENSIVEAPPLICATIONSONAHYBRID

CLOUDACCOUNTINGFORCOSTINCLUDINGPOWERCONSUMPTION

409

Figure 3: The system for experiment.

Figure 4: Load

balance level.

5.2 About Populated Jobs

As a job to bring into this experiment, we sought a

data-intensive application and used pgbench, which is

the PostgreSQL benchmark. Pgbench is a simple tool

benchmark that is bundled with PostgreSQL. Tatsuo

Ishii created the ﬁrst version, published in 1999 by

the PostgreSQL mailing list in Japan. Because this

benchmark uses a basic server-side database based on

TPC-B, the performance can be judged by the num-

ber of transactions allowed per second in this experi-

ment to create a PostgreSQL database on the local 6

Gbyte in all instances. The number of clients in this

job is 1, and number of transactions is 500. We were

thrown jobs every two seconds 200 times. The pro-

cessing time per job is approximately 9 seconds. In

this experiment, we assumed that independently data-

intensive small jobs, including pgbench, were contin-

uously thrown.

5.3 Measurement Result

Figures 5, 6, and 7 show the measurements.

In each graph, the horizontal axis shows the num-

ber of submitted jobs. Figure 5 shows the entire time

until all jobs are submitted.

Figure 6 shows the public cloud charge. This is

computed by multiplying the metered charge by the

number of rented public cloud instances plus the job

execution time. The public cloud’s metered charge is

based on the metered charge AmazonEC2; instances

in this study had performance calculated as $0.5 per

hour. Figure 7 shows the power consumption until

all jobs are submitted to the private cloud. Power

consumption rates, with reference to Tokyo Electric

Power Company’s electricity rates, were calculated as

$0.5 per 1kwh.

In Figure 5’s graph, despite equal processing

times in levels I and II, the metered charge’s level

I is higher than its level II in Figure 6’s graph. For

this job, load balancing can have enough resources to

reach level II. The saturation level of level I is wasting

public cloud resources. From saturation levels III to

IX, the metered charge is lower as the level increases,

Figure 5: Execution time.

Figure 6: Public cloud’s metered rates.

Figure 7: Charges of power consumption on private cloud.

as in Figure 6, indicating that load balancing becomes

difﬁcult. Accordingly, job processing also takes time.

As Figures 7 and 5 are similar, the processing time

clearly has a signiﬁcant impact on energy consump-

tion. By varying saturation levels in this middleware,

we thus realized ways to control the power consump-

tion rates in a private cloud, metered rates in a public

cloud and job execution time.

6 EVALUATING MIDDLEWARE

IMPLEMENTATION USING

THE PROPOSED METHOD

6.1 Evaluation Overview

In this section, based on the results of measurements

in Chapter 4, we have evaluated the middleware. In

this middleware, consider the following equation as

an evaluation index.

Total cost = F* T

total

+ ( T

* N

* C

)

total

:Execution time of Total Jobs

:Execution time on the Public Cloud

:Number of Instances used on the Public Cloud

:Public Cloud Charges

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

410

:Power Consumption on the Private Cloud

:Charges of Power Consumption on Private Cloud

:Power Consumption Charges on the Private Cloud

F:The Factor for Converting Money into Time

The ﬁrst term represents the time cost of the execution

time. The second term represents the monetary cost,

which is the sum of the power consumption rates on a

private cloud and the charge of metered costs on pub-

lic cloud. We have considered the power consumption

charge on a public cloud, which includes the metered

cost, because it is difﬁcult for a user to know the ac-

tual charge.

Factor F is intended to be converted into mone-

tary and time costs. The users use factor F to decide

how to balance the time and monetary costs. In this

chapter, we ﬁrst discuss the ﬁnancial costs using the

metered and power rate pricing. Based on the mone-

tary costs considered, we then evaluate the total cost

by varying the factor F in the above formula.

6.2 Discussion of Monetary Costs

In this study, we have considered the monetary cost,

which is the sum of the metered public cloud charges

and power consumption rates of the private cloud.

These two amounts are not always constant, as many

cloud provider’s recent metered rates have not neces-

sarily been constant. Moreover, as such providers in-

crease in the future, metered rates may decrease based

on price competition, but may be higher now. This

is also true for energy consumption rates. Based on

these facts, we have considered the various ﬁnancial

costs when evaluating this experiment, as the prices

of both energy consumption and metered rates vary.

In the experiment, we have converted the metered

charges as $0.5 per instance and power consumption

rates as $0.5 per 1 kwh. In this evaluation, as in

Figure8, metered rates varied from $0.5 to $1.5, and

power consumption rates varied from $0.5 to $3.0.

When changing one value, the other was ﬁxed at its

initial value.

Figure 8 shows that, for most pricing, the ﬁnancial

costs of level 1 were larger. In this experiment, this

means that the metered costs are more expensive than

the energy consumption charge.

Figure 8 presents the typical results: Power-

Consumption: CloudCost = $3.0:$0.5, $1.5:$0.5,

$0.5:$0.5, $0.5:$1.0, $0.5:$1.5. We have assumed

that these results are representative examples.

6.3 Evaluation of Total Cost

When evaluating the total cost, we have used the for-

mula described in section 5.1. In this formula, factor

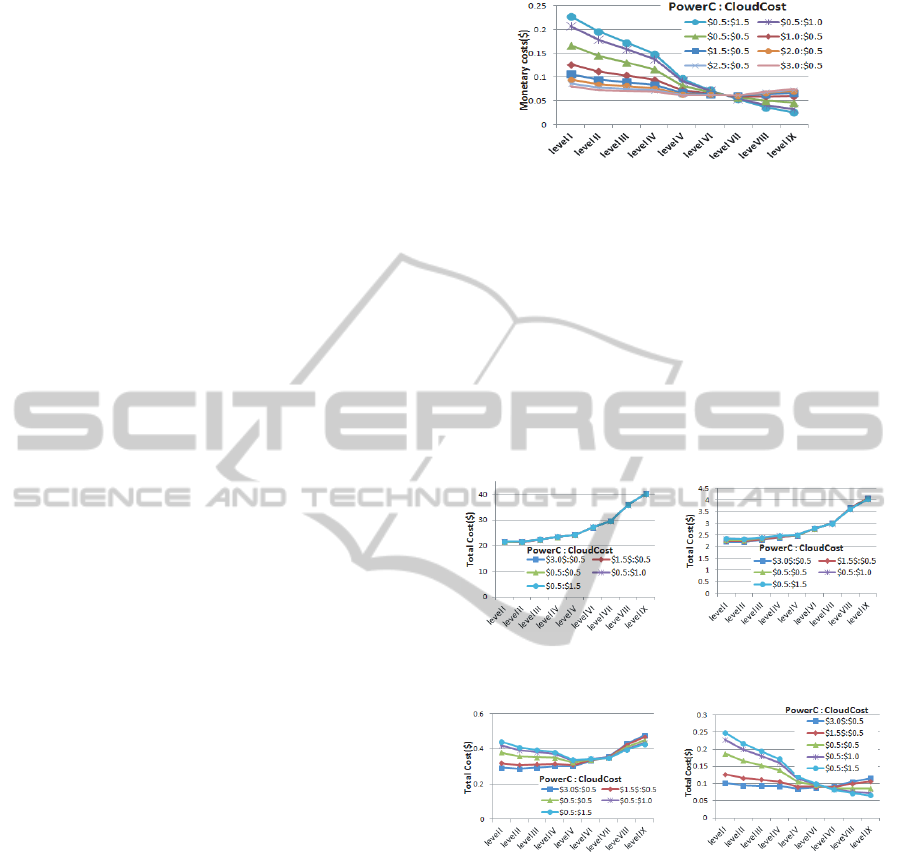

Figure 8: The monetary costs.

F is important. Using factor F, the total job execution

time is converted into monetary costs. In this evalu-

ation, the F value has changed between 1/20, 1/200,

1/2000 and 1/20000. Using F=1/20 means that the

user considers processing time to be the most impor-

tant cost, whereas using F=1/20000 means that the

user considers monetary cost to be the most impor-

tant. Figures 9, 10, 11, and 12 show that the Total

Cost of factor F varies. In addition, as discussed in

Section 5.2, monetary cost pricing is also changed in

these ﬁgures.

Figure 9: Total cost

(F=1/20).

Figure 10: Total cost

(F=1/200).

Figure 11: Total cost

(F=1/2000).

Figure 12: Total cost

(F=1/20000).

As Figure 9 is the result that considered process-

ing time to be the most important cost, there is little

change in the pricing of each. To provide the time-

critical load distribution processing by the user re-

quires setting the level I parameters, at the lowest sat-

uration level. In Figure 10, as in Figure 9, the user

specifying level I, which is the lowest saturated level,

can reduce the total cost.

However, these results are different in Figure 11.

This result is a cost evaluation, which suppresses pro-

cessing time and monetary costs. Figure 11 indi-

cates a difference in Total Cost when examining the

pricing. PowerConsumption: CloudCost = $0.5:$0.5,

$0.5:$1.0, $0.5:$1.5, if the power consumption of the

PROPOSEDOFALOADBALANCINGMETHODFORDATAINTENSIVEAPPLICATIONSONAHYBRID

CLOUDACCOUNTINGFORCOSTINCLUDINGPOWERCONSUMPTION

411

private cloud charges are ﬁxed, and the pricing of

the rates change metered is change, the total cost is

the smallest in level VI or level V. In this pricing, if

the user set up parameters of level V from those in

level I, the middleware thus provides load balancing

that controls both Time and Monetary Costs. Pow-

erConsumption: CloudCost = $0.5:$0.5, $0.5:$1.0,

$0.5:$1.5 such that if the private cloud charges power

consumption is ﬁxed and the rate change metered

pricing changes, the total cost is the smallest in levels

V or VI. When considering the Total Cost of the im-

portance of metered rate pricing, following the user-

set parameters for levels V or VI, execute load bal-

ancing that reduces both Time and Monetary Costs.

In Figure 12, because it is little consider of time

cost, and largely reﬂected the impact of monetary

cost. PowerConsumption: CloudCost = $3.0:$0.5,

$1.5:$0.5 such that if the monetary costs are dom-

inated by power consumption rate pricing on a pri-

vate cloud, the Total Cost creates little difference be-

tween levels. This pricing causes no change in the

Total Cost when executing this middleware, as the

pricing is more important to monetary costs, even fol-

lowing the user parameter settings. In addition, Pow-

erConsumption: CloudCost = $0.5:$0.5, $0.5:$1.0,

$0.5:$1.5 such that if the private cloud rate power

consumption is ﬁxed and the metered cost rate has

changed, as in level IX, and if most jobs were exe-

cuted in the Private Cloud without using the Public

Cloud, the user can control the Total Cost. Therefore,

when considering the Total Cost of the importance of

metered rate pricing and Monetary Cost, the middle-

ware, following the user-set parameters for level IX,

executes load balancing that reduces Monetary Costs.

7 CONCLUSIONS

In this research, especially focusing on hybrid clouds,

we have proposed a method that can process large

amounts of data and control the monetary cost, which

includes power consumption. We have also imple-

mented the System as Middleware. To evaluate the

Middleware, we have used a data-intensive applica-

tion as target of jobs. The middleware measures disk

I/O periodically as an indicator for load-balancing de-

cisions. Using this Middleware, the user can not only

efﬁciently process large amounts of data, but also con-

trol the monetary cost, which includes power con-

sumption, by setting parameters.

By varying the parameters to run the middleware,

we have measured and calculated processing time,

public cloud metered rates and power consumption

charge on a private cloud. We have evaluated the to-

tal cost by calculating the sum of the costs and the

ﬁnancial time costs. This evaluation showed that this

middleware perform load balancing can reduce costs

if the actual user sets the parameters. To reduce load

balancing in both the Time and Financial costs, we

have demonstrated that this middleware is success-

fully implemented.

In the future work, this middleware will be applied

to wide variety of data-intensiveapplications. We will

also evaluate the effectiveness of the middleware. In

addition, data placement in a cloud is also a key issue

in the future.

ACKNOWLEDGEMENTS

This work is partly supported by the Ministry of Edu-

cation, Culture, Sports, Science and Technology, un-

der Grant 22240005of Grant-in-Aid for Scientiﬁc Re-

search. The authors would like to thank to Drs. At-

suko Takefusa, Hidemoto Nakada, Ryousei Takano,

and Tomohiro Kudoh at the National Institute of Ad-

vanced Industrial Science and Technology (AIST) for

the conscientious advice and help with this work.

REFERENCES

C.; Parr, G.; McClean, S. (2011). Energy-aware data centre

management. pages 1–5. Communications (NCC),

2011 National Conference.

Che-Yuan Tu, Wen-Chieh Kuo, W.-H. T. Y.-T. W. S. S.

(2010). A power-aware cloud architecture with smart

metering. pages 497–503. Parallel Processing Work-

shops (ICPPW), 2010 39th International Conference.

D.Nurmi, R.Wolski, C. G.-S. L. D. (2010). The eucalyptus

open-source cloud-computing system. pages 62–73.

Distributed Computing Systems (ICDCS), 2010 IEEE

30th International Conference.

E.Kalyvianaki, T. and S.Hand (2009). Self-adaptive and

self-conﬁgured cpu resource provisioning for virtu-

alized servers using kalman ﬁlters. In Proc. 6th In-

ternational Conference on Autonomic Computing and

Communications (ICAC2009).

S.Toyoshima, S. and M.Oguchi (2011). Middleware for

load distribution among cloud computing resource

and local cluster used in the execution of data-

intensive application. DBSJ Journal, Vol.10, No.1.

Zhang, L. M. Z. K. L. Y.-Q. (2010). Green task schedul-

ing algorithms with speeds optimization on heteroge-

neous cloud servers. pages 76–80. Green Computing

and Communications (GreenCom), 2010 IEEE/ACM

Int’l Conference on and Int’l Conference on Cyber,

Physical and Social Computing (CPSCom).

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

412
