NEW FRONTIERS IN MUSIC EDUCATION

THROUGH THE IEEE 1599 STANDARD

Adriano Barat

e and Luca A. Ludovico

Laboratorio di Informatica Musicale, Dipartimento di Informatica e Comunicazione, Universit

a degli Studi di Milano

Via Comelico 39/41, 20135 Milano, Italy

Keywords:

Music, XML, IEEE 1599.

Abstract:

IEEE 1599 is an international standard conceived for a comprehensive description of music. Inside a unique

XML document, all the data and meta-data related to a single music piece can be coded, ranging from cata-

logue to structural, from notational to performance, from audio to graphic information. This format is partic-

ularly ﬁt for computer-supported music education, since it allows a number of applications such as evolved

score following, real-time comparison among different performances, studies on score transcriptions, musi-

cological analyses, etc. After describing the key features of the standard, a number of case studies will be

presented in order to demonstrate its applicability to music education.

1 INTRODUCTION

IEEE 1559 is a multilayer music code whose inter-

national standardization was achieved in 2008. Its

development followed the guidelines known as IEEE

P1599 - Recommended Practice Dealing With Appli-

cations and Representations of Symbolic Music Infor-

mation Using the XML Language. The ultimate goal

of the IEEE 1599 standard is providing a highly in-

tegrated representation of music, where score, audio,

video, and graphical contents can be encoded together

in a fully synchronized framework.

As Section 2 will explain, the format focuses on

single music pieces and is based on the concept of

“music event”, namely an atomic entity which can

be described from different perspectives. In fact, the

mission of IEEE 1599 is taking into account the dif-

ferent facets music is made of. Please refer to (Steyn,

2002) and (Haus and Longari, 2005) for further de-

tails. Needless to say, multimedia descriptions of mu-

sic events are supported too, so a number of digital

objects can be attached to the XML document in or-

der to provide the symbolic score with graphical rep-

resentations as well as audio/video recordings.

The information encoded into an IEEE 1599 doc-

ument can be rich and heterogeneous. In this context,

heterogeneity is involved from two standpoints: i)

many categories of descriptors (metadata, music sym-

bols, text, still graphics, audio, and video), and ii) the

possibility to insert many instances for each category

(different score editions, audio performances, etc.).

The former item catches the various aspects music is

made of, whereas the latter allows comparisons or in-

tegrations among different instances of the same type

of description.

Since IEEE 1599 was born as a format for a com-

prehensive, integrated and synchronized representa-

tion of music information, it constitutes a good base

for advanced applications oriented to music enjoy-

ment and entertainment. But soon the format has re-

vealed its applicability to music training and educa-

tion as well. This subject has been already addressed

in (Barat

e et al., 2009). The present paper draws in-

spiration from the mentioned one and takes into ac-

count the most relevant experiences made in the last

two years. Sections 2 and 3 will introduce the key

features of the standard, Section 4 will show its ap-

plicability to the ﬁeld of music education, and ﬁnally

Sections 5 and 6 will provide some practical exam-

ples.

2 IEEE 1599 IN BRIEF

In IEEE 1599 music can be described in all its as-

pects. In order to support heterogeneous materials,

this standard employs six different layers to represent

information: General (catalogue metadata about the

piece), Logic (logical description in terms of score

symbols), Structural (identiﬁcation of music objects

146

Baratè A. and A. Ludovico L..

NEW FRONTIERS IN MUSIC EDUCATION THROUGH THE IEEE 1599 STANDARD.

DOI: 10.5220/0003912601460151

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 146-151

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

and their mutual relationships), Notational (graphical

representations of the score), Performance (computer-

based performances), and Audio (digital or digitised

recordings of the piece). IEEE 1599 adopts XML as

the language to encode symbolic contents and multi-

media synchronization information.

The main focus of an IEEE 1599 document is

the description of a single music piece. The Logic

layer contains a list and a deﬁnition of the music sym-

bols that compose the score. Music events, intended

as logic entities, can correspond to one or many in-

stances in other layers. In detail, each music event

(note, rest, etc.) can be described in up to n layers, in

up to n instances within the same layer, and in up to n

occurrences within the same instance.

IEEE 1599 is not a simple container for hetero-

geneous descriptions related to a music piece. Dif-

ferent logic or multimedia descriptions of the same

music events present references to a common logical

structure, known as the spine. For example, given

a note, its logical description (e.g. G]5), the corre-

sponding area in a graphical ﬁle (e.g. a rectangle with

vertex coordinates in pixels) and its timing in a num-

ber of different audio/video ﬁles (e.g. 1200 ms, 2.35

s, 712 frames) are in relationship with the same mu-

sic event. This aspect creates synchronization among

the instances within a layer (intra-layer synchroniza-

tion), and also synchronization among the contents

disposed in many layers (inter-layer synchronization).

The mentioned common data structure, namely

the spine, is a list of music events that are sorted and

labelled in order to allow references from other layers.

Against common sense, score symbols do not corre-

spond necessarily to the list of the events contained

in the spine. Because if it were, music works with

no notation, such as pieces where the performance is

improvised, or music whose score is unknown, could

not be supported by IEEE 1599, unless the user re-

constructs the score. On the contrary, a traditional

notated score or a complete encoding of the piece is

not required to produce a valid IEEE 1599 document.

Moreover, the author of the encoding can choose the

deﬁnition and granularity of events.

The spine has a fundamental theoretical impor-

tance within the format, thanks to its “glue” function

in such a multilayer environment. However, it sim-

ply lists (and does not deﬁne) events in order to pro-

vide a unique label for them. As a consequence, the

mere presence of an event in the spine has no seman-

tic meaning: what is listed in the spine structure must

have a counterpart in some layer, otherwise the music

event would not be deﬁned.

For further details about the structure and the syn-

tax of the format, please refer to the ofﬁcial IEEE doc-

umentation or to scientiﬁc papers such as (Ludovico,

2008) and (Ludovico, 2009).

3 CHARACTERISTICS OF THE

FORMAT

A number of characteristics applicable to music rep-

resentation and education can be derived from what

stated in Section 2. First, the standard and its appli-

cations present no constraint about music genres, cul-

tural areas, historical periods, or different approaches

to music composition and analysis. IEEE 1599 is ﬁt

to baroque counterpoint as well as jazz improvisation,

to operatic arias as well as pop songs. The features

of the encoding can change noticeably, but the over-

all approach preserves its capability to convey infor-

mation in an integrated, intuitive and immediate way.

The case studies presented in the following sections

will provide examples of the heterogeneity of sources

and materials which IEEE 1599 supports.

As regards multimedia contents, in IEEE 1599

they are represented by adopting in-use formats for

digital objects. Thus, multimedia contents are not

translated into XML format, as existing formats are

more suitable. Rather, multimedia documents are

synchronized with the other contents within the ap-

propriate layer and linked to the common data struc-

ture, i.e. the spine. For instance, IEEE 1599 supports

common graphical formats for score scans (e.g. BMP,

GIF, JPEG, TIFF, etc.), and well-known audio/video

ﬁle types for recordings (AIFF, MP3, WAV, etc.). This

approach presents some advantages:

• Existing collections and archives of digital objects

in standard formats can be reused;

• The design and implementation efforts of the

IEEE 1599 format are limited to the logical de-

scription of music events, and not to their multi-

media counterparts;

• The verbosity typical of an XML-based language

afﬂicts only the strictly necessary part of the en-

coding. When binary formats are more efﬁcient

and effective, they are used to convey the required

information. For instance, this is the typical case

of compressed multimedia formats.

Another important matter is the possibility of mul-

timodal interaction with music contents. This feature

is not properly a characteristic, rather a consequence

of the structure and potentialities of the IEEE 1599

standard. Speciﬁc implementations apply the con-

cept of “multimodal interaction” with music contents

to the ﬁelds of music training and education, as ex-

plained in Section 6.

NEWFRONTIERSINMUSICEDUCATIONTHROUGHTHEIEEE1599STANDARD

147

4 APPLICABILITY TO MUSIC

EDUCATION

An IEEE 1599 document is potentially very rich in in-

formation. The characteristics illustrated before let us

design a wide range of applications. For example, the

matter of evolved music enjoyment for entertainment

has been addressed by (Baggi et al., 2005), whereas

the valorisation of music as a lively cultural heritage

through IEEE 1599 has been cited in (Barat

e et al.,

2011).

Another ﬁeld where IEEE 1599 can ﬁnd applica-

tion is music education and training. In fact, such a

format supports a number of features that can be em-

ployed to create ad hoc implementations, e.g. a guide

to music listening or a tool for instrumental and ear

training. The heterogeneity of both descriptions and

instances within each layer opens up new ways to en-

joy a music piece.

Let us explore the different ways to render a “log-

ical” score, i.e. the information encoded within the

Logic layer in terms of music symbols. First, it can be

dynamically reconstructed by a viewer/editor starting

from the XML document. Besides, it can be linked

to the Notational layer, which could contain not only

printed or even hand-written scores, but also other

forms of graphical description. This feature makes

IEEE 1599 support even those scores not belonging

to Common Western Notation. Now, let us couple

two of the mentioned characteristics of the format,

namely i) the possibility to watch and listen to mu-

sic together, in a context of advanced score following,

and ii) the support of non-traditional scores: a tool

based on these features can be used to teach e.g. con-

temporary music, as regards both score reading and

performance.

The Audio layer can host various performances

of the same piece, which in general correspond to

many different interpretations. But - once again - the

purpose of this layer can be extended and somehow

forced. For instance, a multiplicity of tracks can be

used to encode cover versions of the piece, which can

substantially differ from the original one. It sounds

natural to apply this concept to jazz music and im-

provisation. Another possibility, employed in one of

the case studies below, consists in linking as differ-

ent audio instances the single tracks of a multi-track

recording.

Also ear training and instrumental practice can be

based on the adoption of IEEE 1599. By using audio

source separation techniques or multi-track record-

ings, some parts and voices can be easily removed

from (or differently mixed in) the audio output by a

speciﬁc software; then a score-following application

can highlight the part the student has to perform.

Some layers, intentionally ignored till now, may

allow many other applications. This is the case of the

Structural layer, which permits the identiﬁcation of

music objects and their relationships in a score. The

possibilities of the format are wide enough to embrace

harmonic grids, segmentation, and different kinds of

musicological analysis, as shown in (Dalmonte and

Spampinato, 2008).

Other interesting applications can emerge, partic-

ularly for those cultures and music genres far from

Western tradition, a ﬁeld where there has been little

investigation and methodological research.

In general terms, the IEEE 1599 standard becomes

more and more interesting when its contents are in-

creasingly rich. In fact, the applications cited above

are based on the contemporaneous presence of het-

erogeneous media descriptions. An IEEE 1599 docu-

ment would be valid even when only the Logic layer

has been compiled, but the most advanced character-

istics of its applicability would be lost.

Creating a rich IEEE 1599 document presents

some problems related to media linking and synchro-

nization. Since a key concept of the format is the

mutual synchronization of all associated media, the

process of adding a certain kind of material cannot

be viewed merely as linking a ﬁle, but it needs an

automatic, semi-automatic, or manual synchroniza-

tion procedure. A promising research ﬁeld consists in

the automatic discover of symbols inside digital ob-

jects such as score scans (optical music recognition)

or tracks (audio-to-score applications). However, in

IEEE 1599 all the materials have an explicit relation

only with the spine. As a consequence, adding a new

media has a linear cost, and both intra-layer and inter-

layer synchronization with the other objects are auto-

matically achieved.

5 IEEE 1599-BASED MUSIC

VIEWERS

After the creation of an IEEE 1599 document, the

goal becomes playing it appropriately. The charac-

teristics of the format suggest not only the implemen-

tation of a traditional viewer, but the design of a tool

to deeply interact with music contents. The guidelines

of such an application have been described in (Barat

and Ludovico, 2008).

In our opinion, a format such as IEEE 1599 sup-

ports three models of music fruition. The ﬁrst model

involves score following, possibly with advanced fea-

tures. In this case, users concentrate on the synchro-

nization among audio and graphical contents. This

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

148

activity can be a way either to enjoy music in a rich

context or to learn score following. If we introduce

some kind of annotation, this application can be a

means of musicological analysis, too.

A more advanced model provides the possibility

to switch in real time the media currently playing or

appearing in the interface. This lets the user com-

pare on the ﬂy different performances and scores of

the piece. The alignment between the old and the new

current media is easily reconstructed thanks to the in-

formation contained in the spine; similarly, the over-

all synchronization between audio and score is not af-

fected, and the effect from the user’s perspective is a

real-time substitution for a kind of media. Such an ap-

plication can be useful for instrument players, singers,

and musicologists.

Finally, a model supporting interaction with mu-

sic contents can be implemented. In fact, thanks to

the mappings encoded in the Audio and Notational

layers, graphic ﬁles’ areas as well as time sliders can

be sensible to mouse clicks and cause a prompt re-

synchronization of music contents.

A number of applications following the men-

tioned guidelines have been designed, implemented

and presented during international conferences, sym-

posia and exhibitions in order to demonstrate the ap-

plicability of IEEE 1599 standard to different ﬁelds,

ranging from education to dissemination, from mu-

sic information retrieval to entertainment, from ad-

vanced fruition of multimedia contents to music cul-

tural heritage. Among the most relevant experiences

related to music education, let us cite the opening

of 2006/07 season at Teatro alla Scala (Celeste Aida

- Percorso storico e musicale tra passato e futuro,

Teatro alla Scala, Milan, Italy, December 2006 - Jan-

uary 2007) and 2007 Salzburg Festival (Napoli, nel

nobil core della musica, ResidenzGalerie, Salzburg,

Austria, May - June 2007).

As regards IEEE 1599 players, currently there are

two research ﬁelds. On one side, our staff at Labora-

torio di Informatica Musicale is developing the ﬁrst

multi-platform player using C] and GTK] technolo-

gies, whereas all the applications released till now

were custom installations. On the other side, a strong

interest is rising towards an IEEE 1599 Web player

based on HTML5. See (Baldan et al., 2010) for tech-

nical details. The case studies shown in Subsections

6.1 and 6.2 are examples of ofﬂine viewers, whereas

the one presented in Subsection 6.3 works over the

Internet.

6 CASE STUDIES

The present section describes three recent approaches

to music education based on the IEEE 1599 standard.

6.1 Advanced Score Following

A recent example of application developed for both

entertainment and education is That’s Butterﬂy. This

IEEE 1599-based installation focuses on the famous

aria “Un bel d

ı vedremo” from Madama Butterﬂy by

Giacomo Puccini. The project has been developed in

the framework of an itinerant international exhibition

sponsored by the Archivio Storico Ricordi.

The purpose of the application, whose interface

was conceived for touch-screen systems (see Figure

1), was allowing easy interaction with music contents

also by untrained people. Multimedia materials in-

cluded score scans of the autographic score and three

historical recordings. This application implements

the three fruition models described in Section 5.

The possibility to compare in real time a number

of historical performances is interesting both for peo-

ple keen on music and for experts. But from the edu-

cational point of view, this installation lets further as-

pects emerge. First, it implements an advanced score

follower where the standard vertical line marking the

current notes is substituted by a number of coloured

rectangles. This evolution is required by the charac-

teristics of the handwritten score by Puccini, where all

the revisions and adjustments cause several misalign-

ments among simultaneous notes. From a didactic

standpoint, this allows: the exploration and analysis

of the compositional process; the comparison among

handwritten symbols and printed ones, as they appear

in the ofﬁcial score version; and ﬁnally the listen-

ing of audio with reference to the autographical doc-

ument.

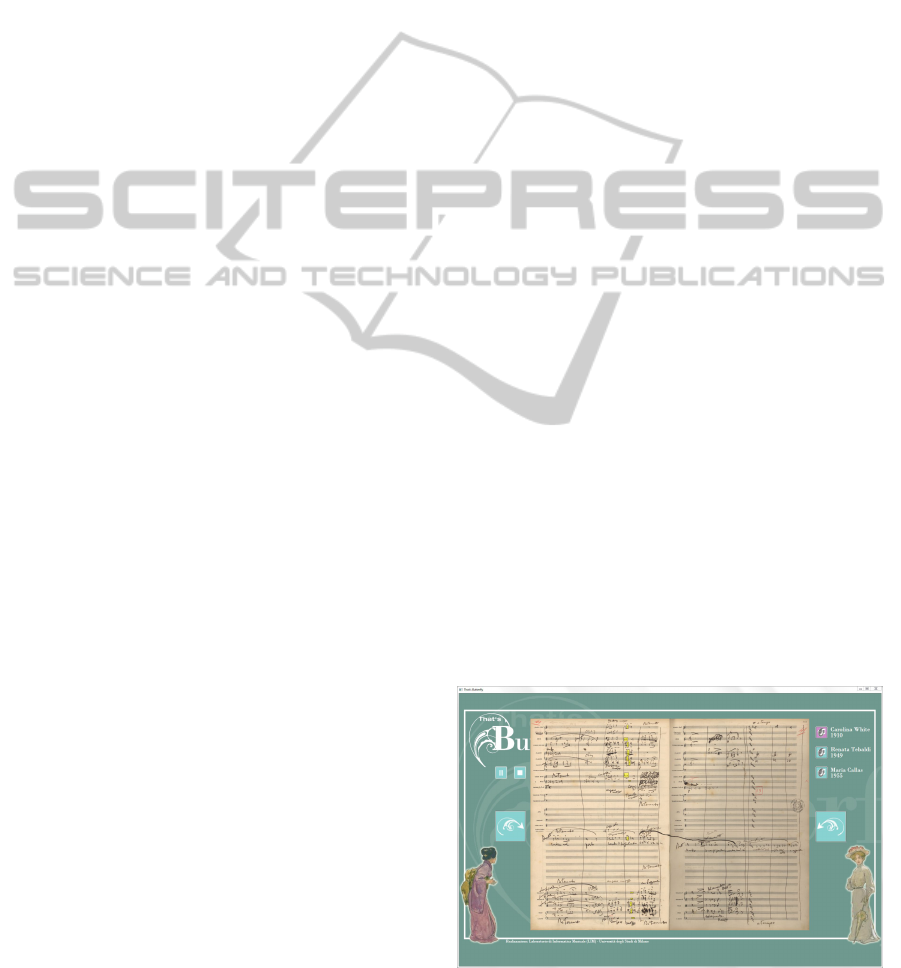

Figure 1: An interface for advanced score following.

NEWFRONTIERSINMUSICEDUCATIONTHROUGHTHEIEEE1599STANDARD

149

6.2 Musical Practice and Ear Training

The case study shown below is an application aiming

at musical instrument practice and ear training (see

Figure 2). For this kind of projects, a good integration

among logic, structural, audio and video contents is

fundamental.

The example focuses on the Messa da Requiem

by Giuseppe Verdi. Its multimedia materials embrace

only one printed score and many audio/video record-

ings of a single evening, i.e. 6 multi-angle video-takes

and 24 independent audio tracks. Since the piece is

quite long, it has been segmented into movements and

the granularity of the encoding is represented by the

measure instead of the single note.

The interface puts the score in great evidence, and

presents a number of ﬂoating panels to enable partic-

ular functions. The left panel lists the movements the

whole piece is made of. Let us recall that each move-

ment corresponds to a different IEEE 1599 ﬁle. The

upper panel lets the user select which instrument to

listen at. This is made possible by the availability of

as many tracks as the instrumental groups of the or-

chestra, including solo parts. The complete ensemble

- i.e. the standard stereo recording - can be selected

as well. The right panel, ﬁnally, contains the mul-

timedia player for videos. Six takes are available for

each movement, including a front view of the conduc-

tor, a full-orchestra overview and most instrumental

groups.

Let us concentrate on musical instrument learning.

In an interactive multimedia environment, the student

can see the score to perform, listen to a pre-recorded

version of his/her part, and even watch at the perfor-

mance made by expert musicians. This aspect is rele-

vant not only for players and singers, but also for or-

chestra conductors. IEEE 1599 standard allows also

comparisons among different performances, a feature

important for education and not exploited in this case

study.

The support of multiple audio tracks is another

key feature in this ﬁeld. An ad hoc mixing of such

single-instrument recordings is useful for both instru-

ment and ear training. For instance, a trumpet student

and a double bass practitioner could decide to play to-

gether with the orchestra by removing only the audio

tracks referred to their parts. As regards ear training,

a student could try to follow a given part in an or-

chestral recording, and then validate his/her reading

capabilities by listening to a demixed audio track.

6.3 Valorisation of Gregorian Chant

The last case study we present is an online viewer to

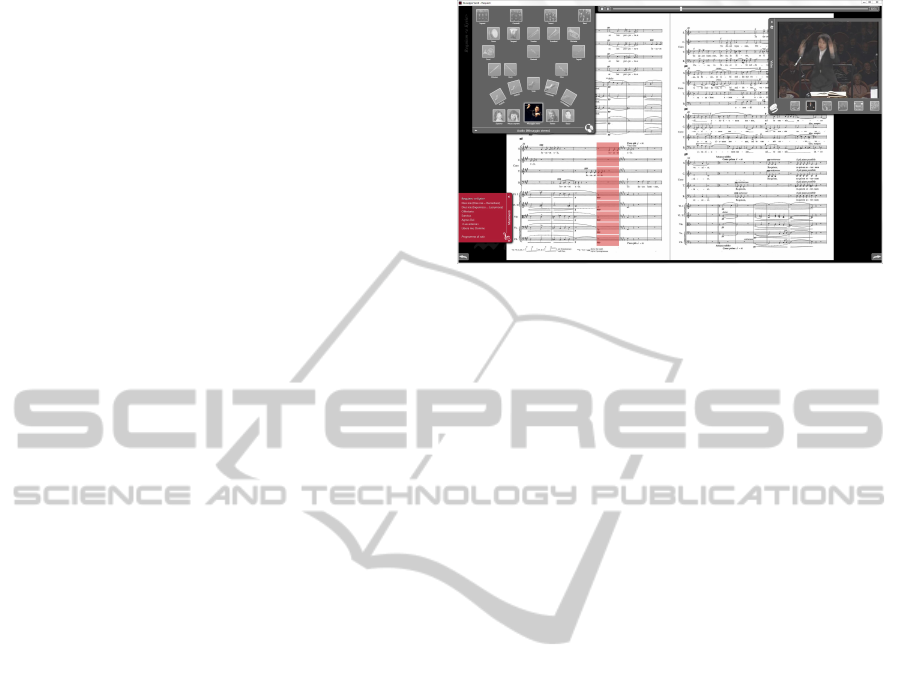

Figure 2: An interface for musical instrument practice and

ear training.

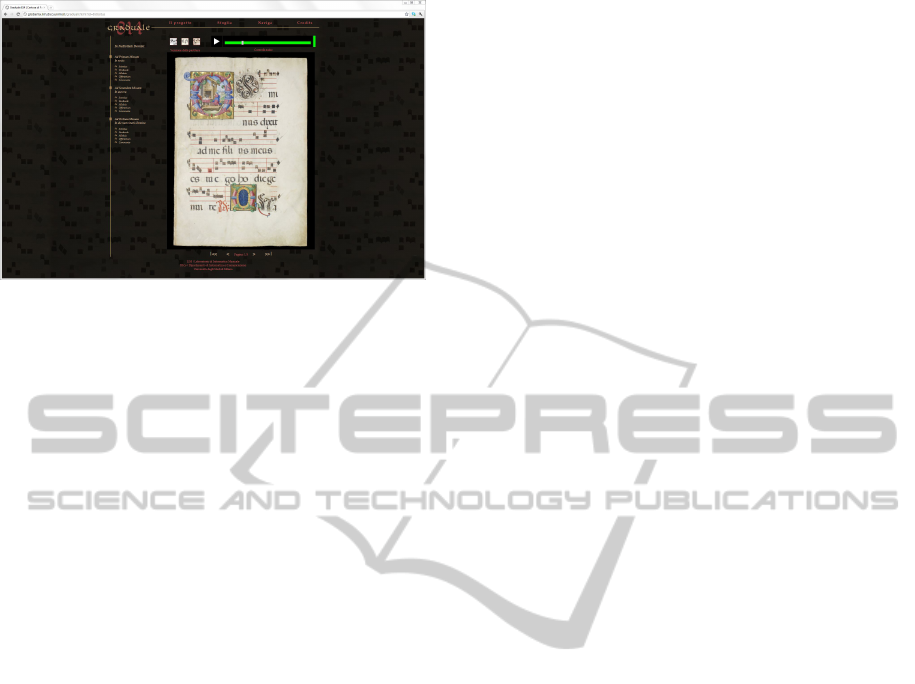

enjoy Gregorian chant (see Figure 3). This applica-

tion is the public outcome of a digitization campaign

held at the Certosa of Pavia (Italy): 13 graduals dat-

ing back to the XVI century and containing masses in

neumatic notation have been digitized. In this project,

IEEE 1599 has been employed to relive Gregorian

chant and to make it readable also by non-experts.

The key features of the format let us implement

those fruition models described in Section 5 and al-

ready used in the other case studies. However, the pe-

culiarities of this music genre are unique from many

points of view.

First, the notation in use substantially differs from

the current one. There are methods and transcription

rules, well-known in literature, to convert neumes into

modern notation, so that also a symbolic encoding

could be provided inside the XML document. More-

over, a part of the IEEE 1599 Logic layer is devoted

to the explicit description of neumes. In this way, not

only single notes but also their original aggregations

into neumes could be encoded.

As regards the Notational layer, this time it is very

rich in heterogeneous digital objects. At least, both

the original score and its modern transcription can

be linked to music events. Moreover, in this sense

an aspect of further richness and interest emerges:

neumatic notation, due to the extremely wide diffu-

sion of the repertoire and to the hand-made process of

copying, often presents small variants as regards note

pitches or grouping into neumes. For this reason, it

has been interesting to compare other score versions.

For Gregorian chant, an IEEE 1599-based appli-

cation provides not only a way to make scores enjoy-

able by untrained people through its score-following

features, but also a professional tool to explore in real

time melodic and notational variants.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

150

Figure 3: A web interface for Gregorian chant.

7 CONCLUSIONS

This paper has shown the applicability of the inter-

national XML-based standard known as IEEE 1599

to the ﬁeld of computer-supported education, paying

particular attention to music.

After describing the key features of the format, our

work has introduced several innovative applications

recently realized, and it has suggested new ways to

use the standard in this context.

The adoption of XML constitutes an important

step towards interoperability, since it allows the im-

plementation of open and free languages to encode

score information. Moreover, IEEE 1599 not only

provides organized structures for music symbols, but

it is also a wrapper to bind multimedia information to

music events within a synchronized framework.

Heterogeneity as regards both the cardinality and

the type of music descriptors is supported and even

encouraged.

Such a rich environment allows the implementa-

tion of a number of ofﬂine and online tools to enjoy,

teach, learn and analyse music through a computer

system. The present paper has shown only three case

studies, focusing on different periods and genres of

vocal music. Nevertheless, many other applications

can easily emerge. In conclusion, thanks to the adop-

tion of IEEE 1599 standard, computer-based methods

prove to be particularly effective in the music educa-

tional ﬁeld.

ACKNOWLEDGEMENTS

The authors wish to acknowledge the members of the

Laboratorio di Informatica Musicale for their partic-

ipation in the IEEE 1599 initiative. This work has

been partially funded by the Enhanced Music Inter-

active Platform for Internet User (EMIPIU) project.

REFERENCES

Baggi, D., Barat

e, A., Ludovico, L. A., and Haus, G.

(2005). A Computer Tool to Enjoy and Understand

Music. In The 2nd European Workshop on the Inte-

gration of Knowledge, Semantics and Digital Media

Technology (EWIMT 2005)., pages 213–217. IET.

Baldan, S., Ludovico, L. A., and Mauro, D. A. (2010). Al-

gorithms for an Automatic Transcription of Live Mu-

sic Performances into Symbolic Format. In Genesis of

Meaning in Sound and Music. 6th International Sym-

posium, CMMR/ICAD 2009, Copenhagen, Denmark,

May 18-22, 2009, revised papers, volume 5954 of

Lecture Notes in Computer Science, pages 422–438.

Springer.

Barat

e, A., Haus, G., Ludovico, L. A., and Mauro, D.

(2011). A Web-oriented Multi-layer Model to Interact

with Theatrical Performances. In International Work-

shop on Multimedia for Cultural Heritage (MM4CH

2011), Modena, Italy, volume 247 of Communications

in Computer and Information Science. Springer.

Barat

e, A. and Ludovico, L. A. (2008). Advanced Interfaces

for Music Enjoyment. In Proceedings of the work-

ing conference on Advanced visual interfaces: AVI 08:

Napoli, Italy, May 28-30, 2008. ACM Press.

Barat

e, A., Ludovico, L. A., and Haus, G. (2009). IEEE

1599: a New Standard for Music Education. In

Proceedings of the 13th International Conference on

electronic publishing, Milan, Italy, June 10-12, 2009,

pages 29–45. Edizioni Nuova Cultura.

Dalmonte, R. and Spampinato, F. (2008). Il Nuovo in Mu-

sica: Estetiche, Tecnologie, Linguaggi. Atti Del Con-

vegno, Trento, 18-20 Gennaio 2008. Libreria Musi-

cale Italiana.

Haus, G. and Longari, M. (2005). A multi-layered, time-

based music description approach based on XML.

Computer Music Journal, 29(1):70–85.

Ludovico, L. A. (2008). Key concepts of the IEEE 1599

Standard. In Proceedings of the IEEE CS Conference

The Use of Symbols To Represent Music And Multi-

media Objects, IEEE CS, Lugano, Switzerland, pages

15–26. IEEE CS.

Ludovico, L. A. (2009). IEEE 1599: a Multi-layer Ap-

proach to Music Description. Journal of Multimedia,

4(1):9–14.

Steyn, J. (2002). Framework for a Music Markup Lan-

guage. In Proceedings of the First International

IEEE Conference on Musical Application using XML

(MAX2002), pages 22–29.

NEWFRONTIERSINMUSICEDUCATIONTHROUGHTHEIEEE1599STANDARD

151
