EVALUATING SOFTWARE ARCHITECTURE SOLUTIONS IN

THE CLOUD ERA

Irit Hadar

, Mor Brokman

and Ethan Hadar

Department of Information System, University of Haifa, Haifa, Israel

CA Technologies, Inc., Herzelia, Israel

Keywords: Software Architecture, Cloud Solutions, Private Cloud, Hybrid Cloud, Public Cloud, Survey.

Abstract: The quality of software architecture solutions is difficult to evaluate, making selection between architecture

alternatives cumbersome. The cloud offerings add alternatives, by increasing complexity and dynamic

flexibility of underlying deployment considerations. This research aims to identify the architects' main

quality concerns regarding the system in three different environments: physical (static) deployment, virtual

(private) cloud and public cloud. In this position paper, we present our evaluation of the importance

architects attribute to applications characteristics (Functionality, Availability, Usability) and infrastructure

and platform characteristics (Efficiency, Serviceability, Portability) in each of the above deployment

environments. A survey, in which 34 experienced software architects participated, reveals the differences

between quality concerns of architects and end-users, and between the different environments and system

layers. Architects consider Portability (dynamic nature of applications and systems) as more important in

private and public clouds than in static environments, while in the other quality attributes no significant

difference was observed. In addition, architects perceive that end-users do not distinguish between cloud

and non-cloud environments, and significantly consider that applications characteristics are more important

than infrastructure ones.

1 INTRODUCTION

Over the years, the complexity and scale of software

systems have grown significantly in enterprise IT

environments. Economic and other forms of cloud

volatility require multiple solution approaches

(Howard et al., 2011). Managing multiplicity

requires versatile design; overcoming and managing

software complexity and versatility calls for

increased effort in software architecture. Many of

the difficulties in architecture decision-making stem

from the fact that architecture solutions are difficult

to evaluate and predict, in particular, the future

architecture quality of the designed system. Many

existing evaluation approaches were found to be

unsuitable for the evaluation of the quality attributes

(e.g., performance) of the software system

(Eskenazi et al., 2002). Some researches try to

predict the performance of software architecture

solutions without benchmarking them (e.g.,

Eskenazi et al., 2002; Cortellessa et al., 2007).

The cloud era has added yet more considerations

and dilemmas, as well as opportunities, to the

traditional work and decision-making of the

architect. The tasks of evaluating a software

architecture solution or selecting the best of several

architecture alternatives become increasingly

complex. As more possibilities for designing

software system architecture are available, the

architect needs to compare and examine different

values of the same software solution offered, by

different cloud vendors.

Various types of cloud computing exist and

should be taken into consideration by the IT

architect. Each type refers and is relevant to a

different layer of the system: Application, Platform,

or Infrastructure. One of the goals of this research

was to identify the relative importance of different

quality characteristics in each of the system layers.

In addition, while focusing on software architects,

we used their perspectives to understand end-users’

perspectives, in addition to their own.

The motivation for using cloud services is

influenced by the offered value and quality, such as

scalability and availability characteristics, and

accurate billing according to consumption. In order

275

Hadar I., Brokman M. and Hadar E..

EVALUATING SOFTWARE ARCHITECTURE SOLUTIONS IN THE CLOUD ERA.

DOI: 10.5220/0003912802750278

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 275-278

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

to be able to choose between different cloud vendors

offering similar services, on alternative

environments (physical, virtual, or cloud), there is a

need to understand the characteristics’ importance,

as architects perceive them.

This article seeks to capture the importance of

architecture quality characteristics deployed on

different cloud environments relative to regular

static ones, from the perspective of both software

architects and end-users.

The rest of the paper is organized as follows:

Section 2 describes our research method and Section

3 presents the results obtained. We discuss the

results and conclude in Section 4.

2 RESEARCH METHOD

In order to investigate architects’ perceptions and

attitudes toward different types of computing

services, via either public cloud, virtual private

cloud, or physical deployment, we conducted an

exploratory study with experienced practitioners

(software architects) at a large international IT firm.

By identifying and understanding the software

architects’ perspective, we aimed to identify best

practices for evaluating software architecture

solutions with and without the cloud, and illuminate

future research directions.

2.1 Settings

A total of 34 practitioners participated in the study,

including 24 R&D architects, 4 field architects and

6 senior software developers, with an average

experience of 7 years, all from the same large,

international IT firm. Following a short pilot study,

which included several observations of architecture

meetings and follow-up interviews, we prepared a

questionnaire for our survey. The survey was first

evaluated and validated by two experts from the

investigated firm and refined accordingly prior its

distribution. The survey focused on the importance

of each characteristic in non-cloud environments

and in two types of cloud computing: private and

public.

2.2 Data Gathering and Analysis

The questionnaires were electronically distributed

and received via email. The data were statistically

analyzed for each question using the SPSS software

(Statistical Package for the Social Sciences; see

http://www-01.ibm.com/software/analytics/spss/).

We created Paired Samples Correlations and Paired

Samples Tests (Paired t-tests; see http://

www.ats.ucla.edu/stat/mult_pkg/whatstat/choosestat

.html).

Missing values were treated as missing.

Statistics for each analysis were based on the cases

with no missing or out-of range data for any

variable in the analysis.

The results were considered significant at the

0.05 level, under the assumptions that the paired

differences are dependent and identically normally

distributed (or have a number of practitioners which

is higher than 30).

3 RESULTS

3.1 Non-functional Requirements

Rather than focusing on the commonly handled non-

functional requirements (NFR) of Data Recovery,

Resource Redundancy and Scalability, we aimed at

identifying the next NFR software that architects

believe should be handled by the cloud. According

to the survey, 52.9% of the architects believe that

the next NFR to become the cloud vendors’

responsibility should be Security. Moreover, many

of the architects who did not rate security as the first

NFR to move to the cloud rated it as the second or

third. In order to calculate and scale all

characteristics mentioned in all ratings, first, second

and third, we made a calculated average as follows.

The characteristics mentioned as the first NFR got

three points; the characteristics mentioned as the

second NFR got two points; and the characteristics

mentioned as the third NFR got one point.

According to this calculation, the highest rated NFR

was Security, with 67 points, followed by (with a

big difference) Performance with 12 points, and

Availability with 10 points.

3.2 The Different Layers in the

Different Environments

A proposed or existing software system is usually

evaluated using long lists of requirements,

expressed as attributes, and measures for indicating

how well they are satisfied by the system. The

system must exhibit several system-wide properties,

commonly referred to as “the ities”, such as

reliability, maintainability, usability, and portability.

Our first goal here was to find whether the

perceived relative importance of each characteristic

in each part of the system (Application / Platform /

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

276

Infrastructure) depends on the type of the system.

Accordingly, we asked the architects to consider

two types of potential application: MS-Project

application and one for CRM-SAP system, with the

percentage of importance (0-100%) of each

characteristic in each part of the system

(Application / Platform / Infrastructure). For

analyzing the results, we created a paired t-test as

follow: Given two paired sets:

for MS-Project

and

Y for CRM-SAP of n

34 measured values.

From these matched pairs, we compared the two

measurements by subtracting one from the other and

basing test hypotheses upon the differences. Our

null hypothesis H0 assumes that the mean of these

differences is equal to 0, while the alternative

hypothesis H1 claims that the mean of the

differences is not equal to zero (the alternative

hypothesis may be either one- or two-sided). Our

paired t-test determined there is no significant

difference between the two applications, thus

confirming H0. This illustrates that the relative

importance of each characteristic in each part of the

system (Application / Platform / Infrastructure) does

not depend on the type of the system. This

conclusion strengthens the approach to developing a

general framework for evaluating a software

architecture solution.

Our next test aimed to identify what difference,

if any, exists in the relative importance of each

characteristic between the different layers of the

system (Application / Platform / Infrastructure).

Our analysis revealed that the relative

importance of both Functionality and Usability are

significantly greater in the Application layer of the

system than in the other layers. In all other NFRs,

no significant difference between the layers of the

system was identified.

3.3 The Different Perspectives

The software architect, who is responsible for

designing the system, and the end-user, who is

intended to use the system, each has specific views

and considerations. We examined whether the

concern level (0-10) for each characteristic in the

different deployment environments differs when

examining these two points of view, as the

architects perceive them. Here, too, we used the

sensitivity to application type of MS-Project and

CRM-SAP, with regard to the results.

The architects filled four tables: for each

application, a table for the architects’ perspective

and another for the end-users’ perspective. Concern

levels (0-10) for each characteristic in the three

different deployment environments were defined:

from 0 = Irrelevant or no concern to 10 = the highest

level of concern. We created paired t-test for the two

systems, and here, too, we found no significant

difference (based on significance level of 0.05).

4 RESULTS ANALYSIS

Analysis of the data revealed several insights with

regard to differences between the concern levels of

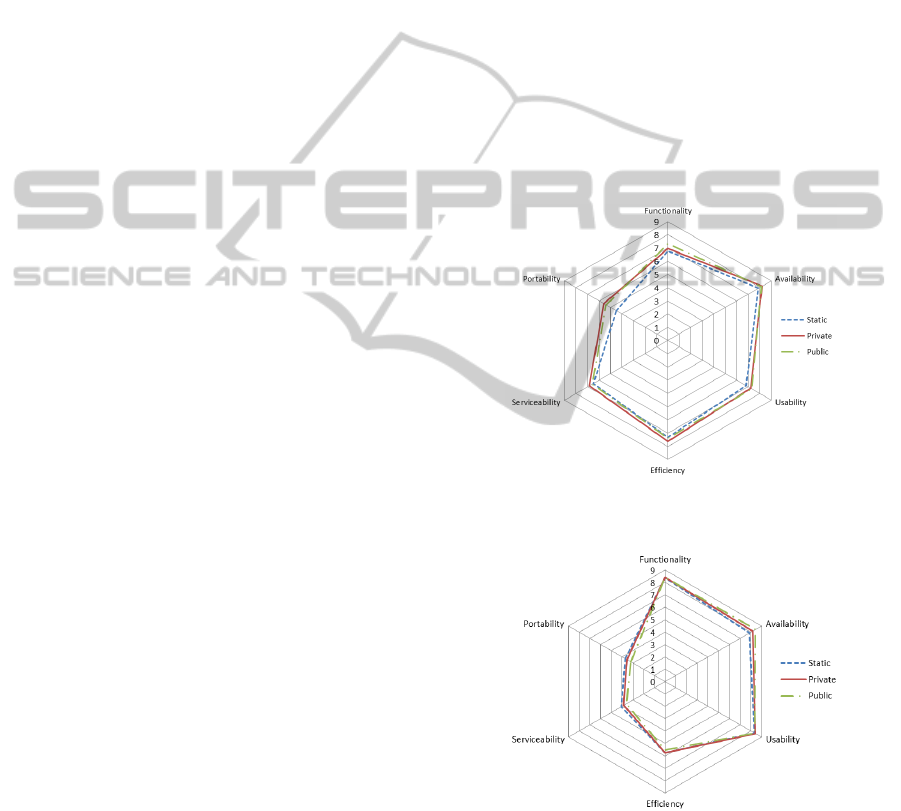

architects and end-users. Figure 1 highlights higher

level of concern of Portability (dynamic changes) in

private and public cloud environments, than in static

one. In general, architects exhibit higher concerns

for all other characteristics as well in both private

and public environments based applications than

static ones, yet, not significantly different.

Figure 1: Preferences of architects in static, private and

public deployment.

Figure 2: Preferences of end-users as perceived by

architects in static, private and public deployment.

Architects perceive that end-users are insensitive

to the application’s environment; most of the

concern levels are similar in each characteristic (see

Figure 2). According to the architects, end-users

consider that applications characteristics (Usability,

Availability, Functionality) are more important than

EVALUATINGSOFTWAREARCHITECTURESOLUTIONSINTHECLOUDERA

277

the underlying infrastructure ones (Efficiency,

Serviceability, Portability). This confirms the lack

of end-users’ sensitivity between the different

platforms. A possible conclusion is that if end-users

are not concerned with artifacts that are driven from

the underlying infrastructure, they will not be

concerned with the nature of the infrastructure

(static/physical, private or public).

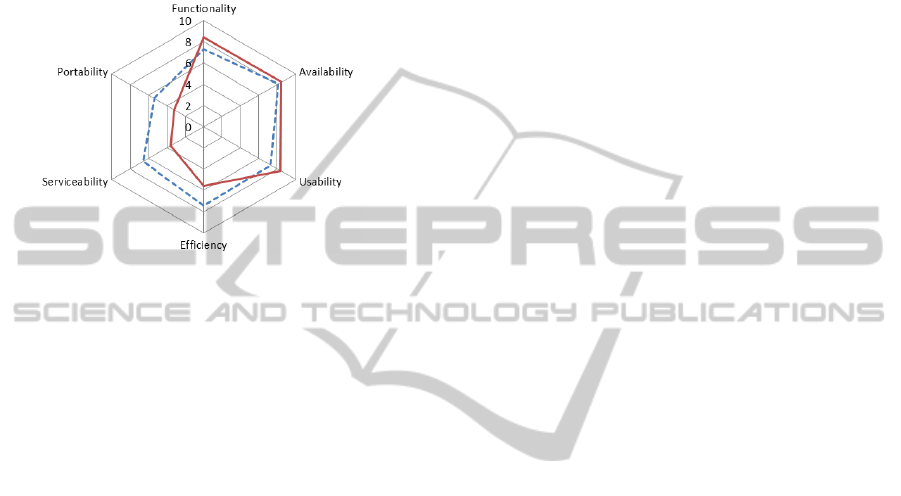

Figure 3: Preferences of public cloud deployment

(architect line is dashed, end-users line is rigid).

Figure 3 shows there is no match between

architects’ levels of concerns, and their perception

on end-users’ concerns. This phenomenon is similar

in all environments. Architects consider their

responsibility to handle additional quality

characteristics that are not usually visible by end-

users.

5 DISCUSSION

The results presented in this paper are part of our

ongoing research with the long-term objective of

establishing a framework for the evaluation of

architecture solutions in the cloud era.

In this paper we evaluated the importance

architects attribute to applications characteristics

(Functionality, Availability, Usability) and

infrastructure and platform characteristics

(Efficiency, Serviceability, Portability) in physical

(static), private (virtual) and public clouds. Our

survey results of 34 experienced software architects

showed that Portability (dynamic nature of

applications and systems) was considered more

important in private and public clouds than in static

environments. In addition, architects perceive that

end-users do not distinguish between cloud and non-

cloud environments, and consider applications

characteristics to be more important that

infrastructure ones.

Our future work will validate the results with

end-users as well as include software architects

from several different firms. An evaluation

framework taking these results into consideration

would be effective for evaluating an overall system

solution in the cloud era.

REFERENCES

Cortellessa V., and Frittella. L., 2007. A framework for

automated generation of architectural feedback from

software performance analysis. In K. Wolter, editor,

Proc. of Fourth European Performance Engineering

Workshop, volume 4748 of Lecture Notes in

Computer Science, pp. 171-185. Springer.

Eskenazi, E. M., Fioukov, A.V., Hammer, D.K., and

Obbink, H., 2002. Performance prediction for

software architectures. In: Proceedings of PROGRESS

2002 workshop, Netherlands.

Howard C., Nelson E., Rollings M., and Santos J., 2011.

2012 IT Professionals Planning Guide: Volatility,

Multiplicity, Versatility, and Mobility. Burton IT1

Research, G00226064, 1 November 2011.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

278
