SELF-AWARE DEPLOYMENT ENFORCEMENT

OF VIRTUALIZED AND CLOUD-BASED IMAGES

Ethan Hadar

, Amir Jerbi

and Irit Hadar

CA Technologies, Inc., Herzelia, Israel

Department of Information System, University of Haifa, Haifa, Israel

Keywords: Cloud Virtualization, Infrastructure as a Service, Cloud Security Vulnerabilities, Privileged Access

Management.

Abstract: This position paper presents our approach for deployment enforcement of virtual images (VM), in order to

prevent an unauthorized usage, potential insider threat, and theft of VMs. In existing systems, regular

images in a virtual environment can be mounted and installed in a different location, while our system

prevents the intentional and unintentional roaming of these images, triggered by either humans or

automation tools. This paper proposes an approach that secures installation location according to policy in

virtualized environments, by intercepting the image installation process.

1 INTRODUCTION

In the domain of cloud virtualization (Gurav and

Shaikh, 2010), virtual machines (VM) and

configured appliances are used to drive the dynamic

capacity of the infrastructure, facilitate

configuration, and enable the elasticity of roaming

systems that lever the abstraction of the physical

location. This abstraction enables VMs to be active

in one virtual environment, suspended, and then

roamed to another virtual environment where they

can resume the exact state. When the VM is moved,

it is handled as a regular file. These roaming

capabilities enable capacity bursting as well as

improved performance in terms of energy or

physical CPU utilization. Such value propositions

created by the VM abstraction of the physical server

layers introduce new security vulnerabilities (Blum

et al., 2011; Heiser and Nicolett, 2008; Kresimir and

Zeljko, 2010) , such as: (1) the ability of non-

privileged administrators to access data and the VM

when the image is in dormant state; (2) theft of the

VM by copying and activating it in a non-approved

environment; (3) the ability to disrupt compliance

and privacy (Pearson, 2009) regulations

unintentionally by activating the image (VM) in a

non-monitored environment.

This position paper proposes an approach that

precludes these virtual environment security

vulnerabilities (Lombardi and Pietro, 2011; Mather

et al., 2009) using a self-aware security deployment

enforcement system. The enforcement policy is

aimed primarily at the prevention of theft or

unauthorized roaming of virtualized and cloud-based

images. Moreover, this paper suggests a

combination of a centralized enforcement approach,

and the VM self-aware security capabilities of

deployable image.

The proposed system addresses several security

vulnerabilities and challenges:

• Prevention of theft of images.

• Governing the compliance of an authorized

deployment within the enterprise boundaries.

• Rapid feedback in the case of suspected non-

authorized deployment.

• Indication of and alerts of a potential insider

threat.

• Optional self-protection and self-destruction of

the data and image upon detection of non-

authorized usage.

• Increased efficiency of deployment of approved

images, which expedites the synchronization of

the latest policies based on level of importance.

Namely, separation of deployment enforcement

from other policies for privileged users that are

updated based on the normal security process.

• The ability to certify secured locations for

images to be deployed centrally, while,

however, enforcing the actual deployment on a

standalone, self-aware mechanism.

602

Hadar E., Jerbi A. and Hadar I..

SELF-AWARE DEPLOYMENT ENFORCEMENT OF VIRTUALIZED AND CLOUD-BASED IMAGES.

DOI: 10.5220/0003912906020605

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 602-605

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Conceptual architecture.

• Enabling a real-time prevention and visibility

into the deployed image.

2 CONCEPTUAL

ARCHITECTURE

The proposed system extends existing Privileged

Access Management solutions, with additional

security enforcement capabilities. These capabilities

relate to deployment and installation of VM on top

of virtualized, such as VMware, or hosted, such as

on Amazon EC2, environments.

This section describes the fundamental

components relevant to this position paper. Yet, it

extends a basic use case of Privileged Access

Management for centralized security control. The

basic use case provides a centralized definition of

security policies according to compliance,

regulation, or any other security need of the

enterprise. The centralized system sends security

policies to security agents that are deployed on the

managed servers (VMs or physical servers). The

agents interpret every administrator command, and

either permit or deny the execution of that

command, with appropriate reporting and auditing.

2.1 System Structure

Figure 1 depicts our incremental conceptual

architecture, where components in green represent

new components and . Ccomponents in light blue

represent virtualization vendor’s and native

operating system (OS) components. Components in

blue represent the native operating system (OS)

components. The components are:

Deployment Enforcer Agent - This component

is installed on guest virtual machines (VM). The

agent validates that the guest VM is working on a

verified environment by checking the existence of a

trusted Deployment Enforcer Monitor on one of the

virtual machines running on the Virtualization

Product.

Deployment Validator - Communicates with

the Deployment Enforcer Monitor and validates

whether it is trusted. Communication with

Deployment Enforcer Monitor is through using the

virtualization product API (provided by the vendor).

The Deployment Validator uses OS native API to

shut down an image if cannot locate the trusted

Deployment Enforcer Monitor.

Deployment Enforcer Monitor - This

component is installed on a dedicated virtual

machine (Virtual Appliance) and deployed on the

Virtualization Product (such as Vmware ESXi,

Microsoft Hyper-v or other vendors). It

communicates with Deployment Enforcer Agents,

installed on guest VMs running on the same

Virtualization Product host, and provides proofs that

the environment is safe.

The Deployment Enforcer Monitor validates that

guest VMs running on the Virtualization Product are

in compliance with enterprise policies. If they are

not compliant the Deployment Enforcer Monitor

prevents a guest VM from running. The Deployment

Enforcer Monitor inner components are:

• Agent Communicator – Responsible for

communicating with Deployment Enforcer

SELF-AWAREDEPLOYMENTENFORCEMENTOFVIRTUALIZEDANDCLOUD-BASEDIMAGES

603

Agents, installed on guest VM running on the

same Virtualization Product host where the

Deployment Enforcer Monitor is. Agent

Communicator uses the virtualization product

API to communicate with Deployment Enforcer

Agents.

• Identification – Responsible for supplying

identification information of the Deployment

Enforcer Monitor to Deployment Enforcer

Agents.

• Deployment Verification - Verifies whether

guest VMs deployed on the Virtualization

Product are compliant with the enterprise

security policy.

• Deployment Rules Cache – Maintains a local

cache of enterprise deployment policies.

• Deployment Rules Fetcher - Fetches enterprise

deployment policies from the centralized

enterprise security management server. The

enterprise security management server is an

existing component that contains deployment

policies as defined by a Privileged Access

Management administrator.

• Deployment Status - Sends deployment status

information of VMs running on the virtualization

product to the Access Control Enterprise

Management Server.

2.2 Prototypical Scenarios

In order to exemplify the conceptual architecture,

several scenarios (use cases) are presented.

2.2.1 Activation Scenario – Theft Prevention

Every time an administrator tries to load a guest VM

on the Virtualization Product, the Deployment

Validator (which is a component of Deployment

Enforcer Agent) sends a request for environment

verification from the Deployment Enforcer Monitor

(installed on a virtual appliance on the same

Virtualization Product). The Agent Communicator

component receives this request and passes it to the

Identification component. The Identification

component replies back through the Agent

Communicator component with information which

uniquely identifies the Deployment Enforcement

Monitor. The Deployment Validator component

receives the information and validates whether it is

trusted. When the validation fails, it will prevent the

VM from becoming active; when validation is

successful, it will allow running the virtual machine.

2.2.2 Activation Scenario – Governance and

Compliance

Deployment Rules Fetcher (a component of

Deployment Enforcer Monitor) receives enterprise

deployment rules from the existing Enterprise

Management component. Enterprise deployment

rules are saved on the Deployment Rules Cache

component. Deployment Verification component

validates that the deployed VMs are compliant with

the enterprise deployment rules. In the case of

deviation, the Deployment Status component reports

to the Enterprise Management security server with

the deviation information.

2.3 Prototypical Implementation

Figure 2 describes the implementation of our

solution in a VMware environment that has several

virtualization products, such as VMware ESXi.

The ESXi virtualization product can run many

VMs on it, such as Windows and Linux VMs. The

system administrator installs Deployment Enforcer

Agents on these VM. The administrator deploys

Virtual Appliance VM with the Deployment Enforcer

Monitor on the ESXi virtualization product system.

2.3.1 Use Case 1: Theft Prevention

When a VM starts the Deployment Enforcer Agent

that is installed on it, it verifies the existence of a

trusted Deployment Enforcer Monitor on the ESXi

Virtualization Product. Different methods can be

used for verification, for example, validating that the

Deployment Enforcer Monitor passes a certificate

(token) issued by a trusted source. If the Deployment

Enforcer Agent fails to validate the Deployment

Enforcer Monitor, it will not allow the virtual

machine to be started. This act prevents theft of

virtual machines.

2.3.2 Use Case 2: Governing the Compliance

of Deployment within the Enterprise

Boundaries

The Deployment Enforcer Monitor receives the

enterprise’s deployment rules from the Enterprise

Management security component. The Deployment

Enforcer Monitor validates that every image

deployed on the local VMware ESXi server is

compliant with the deployment rules it fetched from

Access Control Enterprise Management. An

example of such validation is that Deployment

Enforcer Monitor can check that all VMs are

compliant with the enterprise deployment policy that

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

604

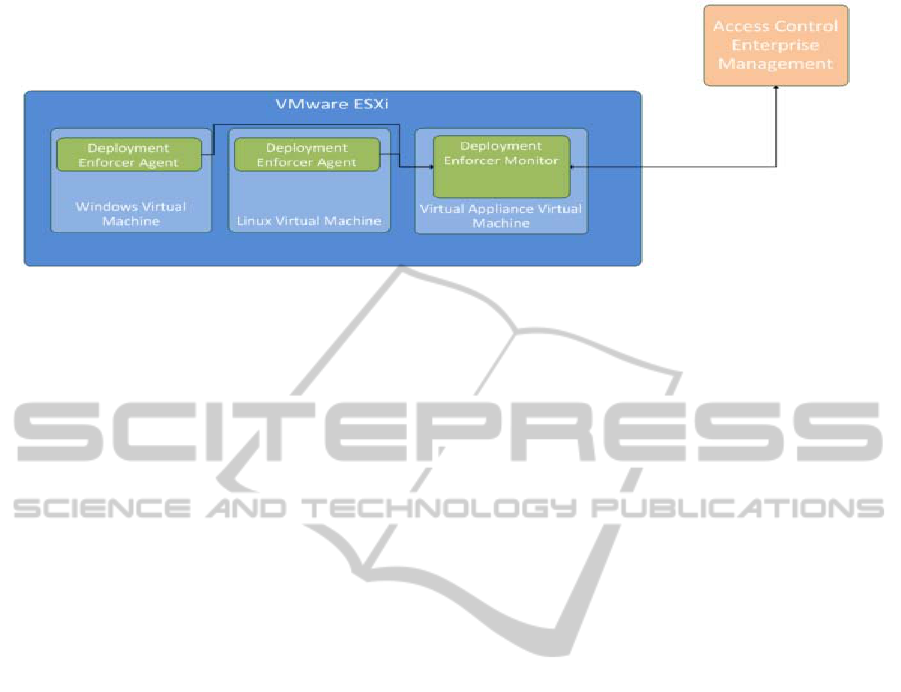

Figure 2: Deployment enforcer implementation for VMware.

requires that on same ESXi there should not be a

mixture of Windows and Linux VMs. Deployment

Enforcer Monitor can notify Access Control

Enterprise Management about deviation from this

requirement.

3 DISCUSSION AND

CONCLUSION

This position paper addresses security vulnerability

issues in virtualized cloud environments, where the

scale-up, bursting scenario of virtual images (VM) is

common. In such environments, an IT management

service should provide an agile response: the

deployment of a VM by the centralized managing

tool, supporting rapid security responses. In these

virtual environments, the VM can be stored in a

managed repository, or extracted and installed in

different unauthorized location, exposing it to

intentional theft of data.

The presented approach offers a way to separate

the deployment security needs from other security

needs in order to increase efficiency of deployed

images that are controlled in terms of location only.

Furthermore, when a VM is mounted in an external

or un-authorized virtualization environment, the

system prevents the installment of the protected

image, thus, preventing theft or insider threat.

As a result, the presented system prevents the

intentional and unintentional deployment and

consequent activation of a virtual image. Our

approach secures the enterprise’s recommended pre-

built VMs that cannot be accessed except with the

approval and verification of the organization policy.

Consequently, our solution addresses a new form of

security vulnerability in the virtualization domain

according to compliance and regulations needs.

REFERENCES

Blum D., Schacter P., Maiwald E., Krikken R., Henry T.,

Boer M., Chuvakin A., 2011. 2012 Planning Guide:

Security and Risk Management, G00224667, Burton

IT1 Research, 1 November 2011.

Gurav U., Shaikh R., 2010. Virtualization: a key feature of

cloud computing. ICWET '10 Proceedings of the

International Conference and Workshop on Emerging

Trends in Technology. Mumbai, India — February 26

- 27, 2010.

Heiser H, Nicolett M, 2008. Assessing the Security Risks

of Cloud Computing. Gartner Research Report

G00157782, 3 June 2008.

Kresimir P., Zeljko H., 2010. Cloud computing security

issues and challenges, MIPRO, 2010 Proceedings of

the 33rd International Convention, Opatija, Croatia,

24-28 May 2010.

Lombardi F., Pietro R. D., 2010. Secure virtualization for

cloud computing. Journal of Network and Computer

Applications, Volume 34, Issue 4, pp. 1113-1122.

Mather T., Kumaraswamy S., Latif S., 2009. Cloud

security and privacy: an enterprise perspective on risks

and compliance. Book, publisher Sebastopol, CA:

O'Reilly.

Pearson, S., 2009. Taking account of privacy when

designing cloud computing services. ICSE Workshop

on Software Engineering Challenges of Cloud

Computing, CLOUD '09. Vancouver, BC, 23-23 May

2009

SELF-AWAREDEPLOYMENTENFORCEMENTOFVIRTUALIZEDANDCLOUD-BASEDIMAGES

605
