INTEGRATING COMPUTATIONAL THINKING WITH K-12

SCIENCE EDUCATION

A Theoretical Framework

Pratim Sengupta

1, 3

, John S. Kinnebrew

, Gautam Biswas

and Douglas Clark

Mind, Matter and Media Lab, Vanderbilt University, Nashville, Tennessee, U.S.A.

Department of EECS/ISIS, Vanderbilt University, Nashville, Tennessee, U.S.A.

Department of Teaching and Learning, Peabody College, Vanderbilt University, Nashville, Tennessee, U.S.A.

Keywords: Computational Thinking, Agent-based Modelling and Simulation, Visual Programming, Constructionism,

Learning by Design, Explanation and Argumentation, Computational Modelling.

Abstract: Computational thinking (CT) draws on concepts that are fundamental to computing and computer science,

however, as an approach, it includes practices, such as problem representation, abstraction, decomposition,

simulation, verification, and prediction that are also central to modelling, reasoning, and problem solving in

many scientific and mathematical disciplines. Recently, arguments have been made in favour of integrating

programming and CT with K-12 curricula. In this paper, we present a theoretical investigation of key issues

that need to be considered for integrating CT with K-12 science. We identify the synergies between pro-

gramming and CT on one hand, and scientific expertise on the other. We then present a critical review of

literature on educational computing, and propose a set of guidelines for designing learning environments in

science that can jointly foster the development of computational thinking with scientific expertise. Finally,

we describe the design of a learning environment that supports CT through modelling and simulation to help

middle school students learn physics and biology.

1 INTRODUCTION

Wing (2006, 2008) and others (NRC, 2010) have de-

scribed computational thinking as a general, analytic

approach to problem solving, designing systems, and

understanding human behaviours. Computational

thinking (CT) draws on concepts that are fundamen-

tal to computing and computer science, however, as

an approach, it includes practices (e.g., problem rep-

resentation, abstraction, decomposition, simulation,

verification, and prediction) that are also central to

modelling, reasoning, and problem solving in a large

number of scientific and mathematical disciplines

(NRC, 2010). Several scholars (Soloway, 1993);

(diSessa, 1986, 2000); (Sherin, 2000); (Pea, 1986);

(Guzdial, 1995) have used the synergies between

scientific thinking, analysis and engineering design,

and evaluation to establish close links between CT

and modeming, reasoning, and problem solving in

STEM disciplines.

Developing scientific reasoning and expertise

requires sustained, immersive educational

experiences, as is reflected in the recent efforts to

develop learning progressions for science in K-12

classrooms (Lehrer, Schauble, and Lucas, 2008;

Krajick et al., 2008). Similarly, fostering a

curriculum that integrates CT with science and

mathematics requires the design of coherent, long-

term curricula (ACM K-12 Taskforce, 2003).

However, there exists no theoretical framework that

can support such an endeavour, and empirical

studies show that integrating computational

modelling and programming with K-12 science and

math curricula can be extremely challenging (Sherin

et al., 1992). Our goal in this paper is to establish

such a framework and present the design of a

computer-based learning environment, which

supports middle school science learning through

Computational Thinking in Simulation and Model-

building (CTSiM).

Sengupta P., S. Kinnebrew J., Biswas G. and Clark D..

INTEGRATING COMPUTATIONAL THINKING WITH K-12 SCIENCE EDUCATION - A Theoretical Framework.

DOI: 10.5220/0003915500400049

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 40-49

ISBN: 978-989-8565-07-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 REVIEW OF LITERATURE ON

EDUCATIONAL COMPUTING

Table 1: Computational thinking and STEM expertise.

Computational

Thinking and

Programming

STEM Expertise

Abstractions

Models, laws and other generalizable

representations in science; Variables and

functional forms in mathematics

Encapsulation

Creating coherent, formal representations

of scientific processes and phenomena;

Understanding functions as dynamic ob-

jects in mathematics

Classes/Agents and

Class Inheritance

Agent-based thinking (micro-level rea-

soning, species vs. individuals, classifi-

cation and hierarchy – inheritance)

Emergence and

Aggregation

Macro-level reasoning;

Generating aggregate-level equations

and functional forms from individual-

level variables

Algorithms

(Behaviours) and

Causal Reasoning

(Interactions and

Rules)

Mechanistic reasoning; Natural laws;

Mathematical equations and functions

Software Engineering

/ Iterative Design

Iterative theory refinement through mod-

elling; Model matching; Model Refine-

ment

Unit Testing and

Verification

Experimentation; Hypothesis Testing;

Verification

Formal

representations

Mathematical models and inscriptions

Perkins and Simmons (1988) argued that novice

misconceptions in math, science, and programming

exhibit similar patterns in that misunderstandings in

these domains have domain-specific (e.g., challeng-

ing concepts) and domain general (e.g., difficulties

pertaining to conducting inquiry, problem solving,

and epistemological knowledge) causes. Harel and

Papert (1991) argued that programming is reflexive

with other domains, i.e., learning programming in

concert with concepts in another domain can be eas-

ier than learning each separately. Along similar

lines, several researchers have shown that program-

ming and computational modelling can serve as ef-

fective vehicles for learning challenging science and

math concepts (Guzdial, 1995); (Sherin, 2001);

(Hambrusch et al., 2009); (Blikstein and Wilensky,

2009); (diSessa, 2000); (Kaput, 1994); (Kynigos,

2007). Table 1 illustrates components of CT that are

central to our framework and establishes their rela-

tionship to scientific practices.

2.1 Pedagogical Benefits of Integrating

CT with Science Curricula

We discuss a number of pedagogical benefits that

may be derived from integrating CT and K-12 sci-

ence curriculum units.

A. Lowering the learning threshold by reorganizing

scientific and mathematical concepts around intui-

tive computational mechanisms: Several studies

have shown that through programming, students can

construct representations of physics concepts such as

speed and acceleration, which in turn provides moti-

vation for learning programming and leads to a

deeper understanding of concepts in both domains

(Sherin, 2001); (Soloway, 1996); (Guzdial, 1995);

(diSessa, 2000); (Papert, 1980). Sherin (2001) and

diSessa (2000) argued that programming enables

novice learners to access their intuitions about the

physical world. Redish and Wilson (1993) argued

that computational representations enable us to in-

troduce discrete forms of the fundamental laws,

which can be much simpler to explain and under-

stand than the continuous forms traditionally pre-

sented in equation-based instruction. Furthermore,

these studies also suggest that in the domains of

physics and biology, rather than organizing scientific

phenomena and domains in terms of abstract

mathematical principles, these phenomena can be

organized in a more intuitive fashion around compu-

tational mechanisms and principles (Redish and

Wilson, 1993); (Sengupta and Wilensky, 2011);

(Wilensky and Reisman, 2006).

B. Programming and computational modelling as

embodiments of core scientific practices: Soloway

(1993) argued that learning to program amounts to

learning how to construct mechanisms and explana-

tions. Therefore, the ability to build computational

models by programming corresponds to core scien-

tific practices, such as model building and verifica-

tion. Lehrer, Schauble and Lucas (2008) indicate

that modelling is a fundamental component of in-

quiry in science. Regardless of the domain, scien-

tists’ work involves building and refining models of

the world (Stewart and Golubitsky, 1992).

C. Developing pre-algebra concepts through graph-

ing functions and linked representations: Much like

computational environments for science, environ-

ments like SimCalc (Kaput, 1994; Hegedus and Ka-

INTEGRATINGCOMPUTATIONALTHINKINGWITHK-12SCIENCEEDUCATION-ATheoreticalFramework

put, 2004) ESCOT (Roschelle et al., 1999), and E-

slate (Kynigos, 2001, 2007) enable students to learn

algebra by creating their own dynamic representa-

tions of concepts, such as rate and proportion,

through animations of actors. Based on this research,

our goal is to provide students with the following

opportunities within an integrated modelling plat-

form by (a) linking the underlying computational

model (i.e., agent-based program) with the resultant

visualization of the programmed behaviours as well

as mathematical inscriptions (e.g., graphs) to meas-

ure salient aspects of the simulated behaviours; (b)

importing physical data into the mathematical realm

in active ways, and (c) manipulating functional

forms to develop mathematical narratives and expla-

nations of scientific phenomena.

D. Contextualized representations make it easier to

learn programming: When computational mecha-

nisms are anchored in real (world) problem contexts,

programming and computational modelling become

easier to learn. Hambrusch et al. (2009) found that

introducing computer programming to undergradu-

ate non-CS major students in the context of model-

ling phenomena in their major domains (physics and

chemistry) resulted in higher learning gains (in pro-

gramming), as well as a higher level of engagement.

2.2 Agent-based Computation

In this work, we focus on multi-agent-based compu-

tational modelling (MABM). An example of a multi-

agent programming platform widely used by both

researchers and educators is NetLogo (Wilensky,

1999); (Sengupta and Wilensky, 2009). The term

“agent” in the context of MABMs denotes individual

computational objects or actors (e.g., cars), which

are controlled by simple rules assigned by the user.

It is the interactions between agents (based on these

rules) that give rise to emergent, aggregate-level be-

haviour (e.g., formation of a traffic jam – while in-

dividual cars move forward, the traffic jam moves

backward – see Resnick, 1994).

When students learn using MABMs, they use

their intuitive knowledge at the agent level as they

are asked to manipulate and reason about the behav-

iours of individual agents. Then, by visualizing and

analyzing the aggregate-level behaviours that are

dynamically displayed in MABM simulations, stu-

dents can develop multi-level explanations by con-

necting their relevant agent-level intuitions with the

emergent phenomena (Resnick, 1994); (Wilensky

and Resnick, 1999); (Klopfer et al., 2005); (Sen-

gupta and Wilensky, 2011); (Blikstein and Wilen-

sky, 2009). These scholars have argued that in most

science classrooms, aggregate-level formalisms are

typically used to teach scientific concepts and phe-

nomena, such as using the Lotka-Volterra differen-

tial equation to explain how populations of different

species in a predator-prey ecosystem evolve over

time (Wilensky and Reisman, 2006). In contrast,

when complex phenomena (e.g., microscopic proc-

esses of electrical conduction) that are traditionally

taught in college are represented in the form of

multi-agent based models, much younger students

(e.g., 4

and 5

graders) can access and understand

those phenomena (Sengupta and Wilensky, 2011);

(Dickes and Sengupta, 2011).

Among the earliest and best-known agent-based

programming languages is Logo (Papert, 1980),

which has been widely used to support children’

learning through constructionist activities (i.e.,

through the creation of personally meaningful com-

putational artifacts). The core building blocks for

constructionist (or design-based learning) activities

in Logo are computational procedures, which facili-

tate simultaneous learning of concepts about the

phenomena being modelled and computational con-

cepts, such as procedure abstraction, iteration, and

recursion.

2.3 Visual Programming

In visual programming environments, students can

construct programs using graphical and physical ob-

jects, typically using a drag-and-drop interface (Kel-

leher and Pausch, 2005); (Hundhausen and Brown,

2007). This significantly reduces students’ chal-

lenges in learning the language syntax (compared to

text-based programming), and thus makes program-

ming more accessible to novices, This is an impor-

tant affordance of visual programming, because

prior research showed that students in a LOGO pro-

gramming-based high school physics curriculum

faced significant challenges in writing programs for

modelling kinematics even after multiple weeks of

programming instruction (Sherin et al., 1992)

Some examples of visual agent-based program-

ming are AgentSheets (Reppening, 1993), StarLogo

TNG (Klopfer et al., 2005), Scratch (Maloney et al.,

2004), ToonTalk (Kahn, 1996), Stagecast Creator

(Smith et al., 2000), Kedama (Oshima, 2005) and

Alice (Conway, 1997). Common characteristics of

all these environments are: (a) users can construct or

design their programs by arranging icons or blocks

that represent programming commands and (b) these

platforms employ animations to represent the en-

actment (i.e., the execution) of the user-generated

algorithm (i.e., program), albeit with varying de-

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

grees of algorithm visualization (Hundhausen and

Brown, 2007).

3 SYSTEM DESIGN

FRAMEWORK

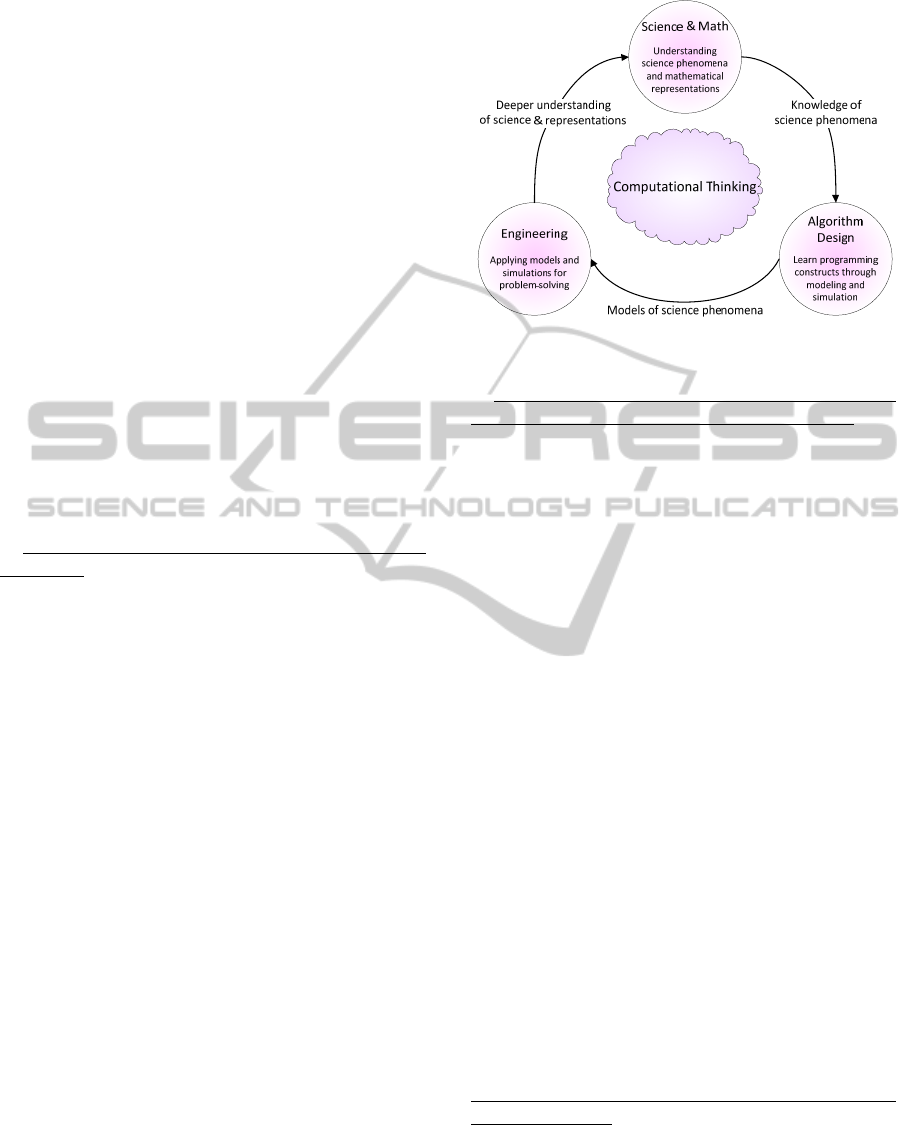

Figure 1 illustrates the conceptual framework for our

integrated approach to science learning through

computational thinking. The framework captures a

typical learning-by-design progression, which in-

cludes learning the basics of a science unit, model-

ling the entities and processes in the unit using a

visual agent-based computational framework, simu-

lating and studying the behaviour of the model, us-

ing explanation and argumentation skills to fully un-

derstand and verify the model, and finally applying

the developed model and the learned science con-

cepts to problem-solving situations.

In what follows, we outline our key design prin-

ciples, some of which has been adapted from Sen-

gupta (2011).

A. Achieving Low Threshold and High Ceiling – The

Trade-offs: For a computing medium to be widely

usable in K-12 science classrooms it must have the

following affordances: (1) it should be easy to use

for novice students; (2) learning activities should be

well-integrated with the existing science curricula;

(3) teachers, who are likely to have little or no com-

puting background, should be able to master the sys-

tem with minimal or no professional development;

and (4) while low-threshold is a definite requirement

for our system, it should not impose arbitrary ceil-

ings on the levels of complexity for modelling and

analysis by students over time. Therefore, our goal

here is to find a sweet spot that encapsulates low-

threshold (i.e., easy to program, similar to NetLogo

and Logo), wide walls (i.e., students should be able

to design a wide range of artifacts, such as anima-

tions, games, and science experiments, much like

Scratch), and high ceiling (e.g., NetLogo supports

advanced programming and modelling of complex

phenomena using a library of intuitive programming

primitives). While many of these design principles

are shared by other modelling platforms (e.g., Logo,

NetLogo, and Scratch), CTSiM is being designed

specifically for pedagogical use in science class-

rooms, keeping both teachers and students in mind

as users. This is reflected in the design of domain-

specific programming primitives, scaffolds to make

algorithms “live” and to support experimentation,

and an explicit focus on curricular integration. We

discuss these in detail in the rest of this section.,

Figure 1: CTSiM conceptual framework.

B. Incorporate Multiple “Liveness” Factors as Sup-

port for Programming and Learning by Design: Our

challenge is to design a system that lets students

seamlessly progress through cycles of construction,

execution, analysis, reflection, and refinement using

timely feedback from the simulation environment

and scaffolding provided by the system. To support

learning activities that involve rapid prototyping, our

CTSiM system will offer learners a range of “live-

ness” factors for algorithm construction, visualiza-

tion, analysis, and reflection (Tanimoto, 1990). This

primary design objective is to enable the learners to

identify the relationship between their programs

(i.e., algorithms) in the Construction World (see

Section 4.1), and the resultant enactment of their

simulations in the Enactment World (see Section

4.2). This involves developing scaffolds for support-

ing algorithm visualization (e.g., highlighting step-

by-step execution of commands; controlling the de-

lay between execution of successive commands).

The goal is to provide timely feedback to students in

order to avoid situations where lack of feedback and

scaffolding may cause errors to accumulate late into

the construction process, which makes the source of

errors harder to detect. Accumulation of errors often

leads to students being overwhelmed in terms of

their cognitive abilities, resulting in their applying

trial and error rather than systematic methods to

conduct scientific inquiry (Segedy, Kinnebrew, and

Biswas, in review).

C. Verification and Validation to Support Learning

of Expert Models: True scientific expertise involves

understanding how knowledge is generated, justi-

fied, and evaluated by scientists and how to use such

knowledge to engage in inquiry (Driver, Newton,

and Osborne, 2000; Duschl and Osborne, 2002).

Novice science learners engaging in these aspects of

INTEGRATINGCOMPUTATIONALTHINKINGWITHK-12SCIENCEEDUCATION-ATheoreticalFramework

inquiry often struggle without extensive scaffolding

(e.g., Klahr et al., 1990); (Schauble et al., 1991);

(Sandoval and Millwood, 2005). This is a challenge

in computational modelling environments, where

learning is often assumed to arise as students build

their models and then verify them by comparing the

behaviours generated against real data or behaviours

of reference models representing the actual phenom-

ena (Bravo et al., 2006). Therefore, building appro-

priate scaffolding and feedback is vital to the suc-

cess of such environments. In CTSiM, learners will

iteratively refine their programs by effectively com-

paring results of their simulation to an “expert” (i.e.,

canonically correct) simulation, understand the dif-

ferences, and then map elements and constructs in

their model to behaviours exhibited by their simula-

tion and vice-versa. We will extensively scaffold

this process to support experimentation and meas-

urement activities, as discussed in Section 4.3.

D. Choice of Curricular Topics

: The phenomena we

have chosen as contexts for disciplinary learning are

kinematics (physics) and ecology (biology), which

are common and important curricular topics. Re-

searchers have shown that K-12 students find these

phenomena quite challenging to understand (Chi et

al., 1994). Furthermore, it has been argued that stu-

dents’ difficulties in both the domains have similar

epistemological origins, in that both kinematic phe-

nomena (e.g., change of speed over time in an accel-

eration field) and system-level behaviours in an eco-

system (e.g., population dynamics) involve under-

standing aggregation of interactions over time

(Reiner et al., 2000); (Chi, 2005). As discussed in

Section 2.2, agent-based modelling is ideally suited

for representing such phenomena, as it enables the

learner to recruit their intuitions about agent-level

behaviours and organize them through design-based

learning activities (Kolodner et al., 2003), in order to

explain aggregate-level outcomes.

4 IMPLEMENTING CTSIM:

ARCHITECTURE AND

MODULES

The CTSiM environment will be made up of three

primary modules:

1. The Construction World: This module provides

the visual programming interface for the student to

build a computational model by composing pro-

grams. Students select primitives from a library of

commands and arrange them spatially, using a drag-

and-drop interface to generate their programs. These

programs control behaviours of individual-level

agents in a NetLogo simulation.

2. The Enactment World: This module is a mi-

croworld (Papert, 1980; White and Frederiksen,

1990) in the form of a NetLogo simulation, which

simulates the agent-level behaviours modelled by

the student in the Construction World.

3. The Envisionment World: This module works

closely with the enactment world, helping the stu-

dent to set up experiments to analyze the behaviour

of their models and to compare their model against

an expert model. Much of the scaffolding and feed-

back to help students refine, understand, and verify

their models is also provided in this module.

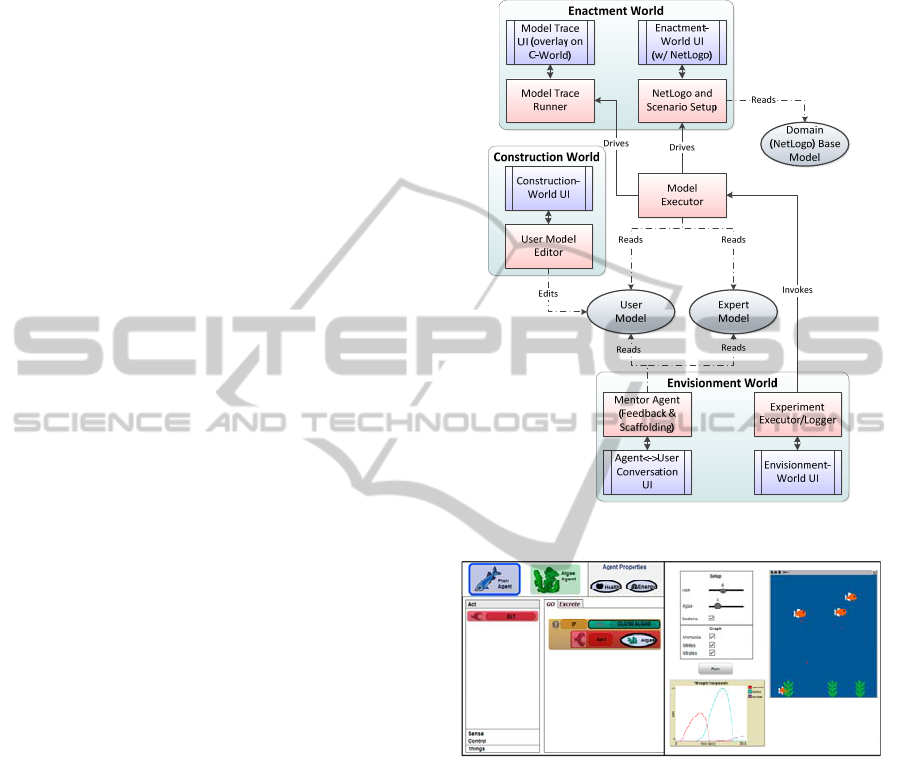

The overall system architecture is illustrated in Fig-

ure 2Error! Reference source not found.. The rest

of this section provides a brief description of the

three modules, and illustrates their functionality us-

ing a biology learning unit – a simple fish tank eco-

system that includes fish, algae, and bacteria that

break down organic waste.

4.1 Construction World

The construction world allows students to build the

relevant science model using an agent-based frame-

work with relevant computational constructs. Figure

3 presents a mock-up of the drag-and-drop model-

ling interface (illustrated on the left side of the fig-

ure) in which students define their computational

models for a simplified fish tank microworld. The

students define the model for each type of agent by

arranging and parameterizing a set of visual primi-

tives, as illustrated for a partial fish agent model in

Figure 3.

The visual primitives are named and iconically

depicted in terms of their scientific function. These

primitives are of three types: agent actions in the mi-

croworld (e.g., movement, eating, reproducing),

sensing (e.g., vision, colour, touch, toxicity), and

controlling the flow of execution in the computa-

tional model (e.g., conditionals, loops). Each visual

primitive, in turn, is defined in terms of an underly-

ing computational primitive (with appropriate con-

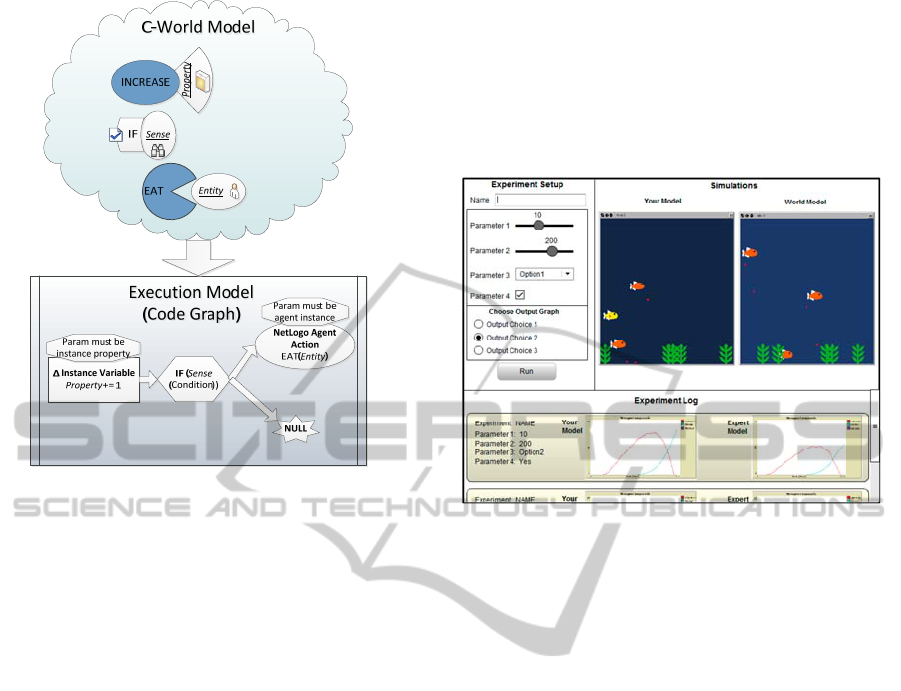

straints and parameters), as illustrated in Figure 4.

The computational primitives provide a domain-

independent set of computational constructs in a va-

riety of categories: 1) changing (e.g., increasing or

decreasing) a property of the agent, 2) sensing con-

ditions of the agent or its environment (e.g., reading

local or global variable values), 3) creating or de-

stroying agents (e.g., to model birth and death), and

4) conditionals and logical operators for controlling

execution flow.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

4.2 Enactment World

The enactment world interface allows the student to

define a scenario (as a set of initial parameters) and

visualize the multi-agent-based simulation driven by

their model. The CTSiM environment, implemented

in Java, includes an embedded instance of NetLogo

to implement the visualization and mechanics of the

simulation. As the student builds a model, it is repre-

sented in the system as a code graph of parameter-

ized computational primitives, illustrated in Figure

4. This code graph remains hidden from the end-user

(the learner), who accesses the environment using

the UI as shown in Figures 3 and 5. The code graph

enables the system to simulate the user-generated

model for a given scenario by stepping through the

graph and executing the computational primitives.

The execution of the computational primitives indi-

cated by the current (user) model drives the NetLogo

simulation, as illustrated in Figure 2. NetLogo visu-

alization and plotting/measurement functionality (il-

lustrated in Figure 4) provide the students with a dy-

namic, real-time display of how their agents operate

in the microworld, thus making explicit the emer-

gence of aggregate system behaviours (e.g., from

graphs of the population of a species over time).

Furthermore, since there is a one-to-one corre-

spondence between the visual primitives in the con-

struction world model and the computational primi-

tives in the execution model (code graph), the sys-

tem can highlight each primitive in the construction

world as it is executed in the enactment world. This

model-tracing functionality will be leveraged to pro-

vide important scaffolding that supports model re-

finement and debugging activities.

5 ENVISIONMENT WORLD

The envisionment world provides students with a

space where they can systematically design experi-

ments to test their constructed models and compare

their model behaviours against behaviours generated

by an “expert” model. A typical experimental setup

would involve assigning values to agent parameters

and variables defined in the student model, and si-

multaneously simulating the expert model with the

same parameter values. Although the expert model

is hidden, students may observe its behaviour in

comparison to their own model with side-by-side

plots and microworld visualizations. With additional

scaffolding and support, this allows students to make

decisions on what components of their models they

need to investigate, develop further, or check for er-

rors to correct. Figure 5 illustrates a mock-up of the

envisionment world window that we are designing

from CTSiM.

Figure 2: CTSiM architecture.

Figure 3: Construction- and enactment-worlds interface

mock-up.

Work by Basu, Sengupta, and Biswas (in review)

details our approach to simulation investigation and

discusses the scaffolds that we have developed to

help students study and understand underlying

model concepts and relations in a desert ecosystem

microworld. With proper support and scaffolding,

we believe that the overall process of model con-

struction, analysis, comparison, and refinement will

help students gain a better understanding of science

(e.g., science phenomena and the scientific reason-

ing process), mathematics (e.g., measurement,

graphs, and equations), and computational constructs

and methods.

INTEGRATINGCOMPUTATIONALTHINKINGWITHK-12SCIENCEEDUCATION-ATheoreticalFramework

Figure 4: Construction-world and execution models.

To further support learning science by model

building, analysis, and verification, we plan to de-

velop a module for critique, explanation, and argu-

mentation that will engage students in authentic

analysis and inquiry practices. For example, each

cycle of modelling will begin with students critiqu-

ing the fit between the current version of their

model, and the target agent- and aggregate-level be-

haviours generated from the expert model. If differ-

ences in system behaviour (between the expert

model and the student’s model) are identified

through the critique phase, the student will then be

scaffolded in creating an explanation/claim about the

mechanisms in their constructed model that could

lead to the observed differences. The methods dis-

cussed in the construction and enactment worlds will

support this interaction and help students identify the

segments of their model that are contributing to dif-

ferences in system behaviour. The goal is to scaffold

explanation about the underlying causal mechanism

that simultaneously identifies an issue and proposes

corrective action.

After creating an explanation about the source of

differences between the agent-level program and ag-

gregate-level outputs, the student will be scaffolded

to identify and collect further evidence for, or

against, the proposed causal mechanism. This can

include evidence collected during the critiquing

phase or during subsequent experimentation. Re-

search has shown that students initially tend to focus

only on evidence that supports their claims and ig-

nore the evidence that contradicts their claims, in a

manner very similar to the ways in which scientists

have historically dealt with anomalous data (Chinn

and Brewer, 1993). Therefore, the scaffolding

should help students search for evidence that might

contradict their claims, as well as evidence that sup-

ports their claims.

Figure 5: Envisionment world interface mock-up.

6 SEQUENCE OF CURRICULAR

MODULES AND ACTIVITIES

We are currently developing two curricular models

in the CTSiM environment: (1) a kinematics unit

that focuses on modelling Newtonian mechanical

phenomena such as the trajectory, velocity, and ac-

celeration of balls placed on different inclined

planes, as well as using mathematically meaningful

aesthetic representations (e.g., geometric shapes) to

represent various classes of kinematic phenomena

(e.g., constant speed, constant acceleration) (Sen-

gupta, 2011); (Sengupta, Voss Farris, and Wright,

under review); and (2) an ecological unit (Tan and

Biswas, 2007) that emulates a simplified fish tank

environment, which includes fish, algae, and bacte-

ria for breaking down organic waste; it primarily

models a simplified food chain and the waste cycle

focusing on how organic waste is broken down in

steps by bacteria to produce nitrates, which provide

nutrition for algae. The focus of this unit is on the

study of interdependence and balance in ecosystems.

In terms of learning programming, these model-

ling activities will introduce students to fundamental

programming constructs (e.g., agents, conditionals,

loops, variables, etc.). For example, the first two

modelling tasks in both kinematics and ecology in-

volve students using three main types of constructs:

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

agents (various species of organisms in ecology;

physical objects in kinematics), conditionals (indi-

cating need-based interactions between agents in

ecology, and effect of different conditions, e.g., ter-

rains, in kinematics), and loops (for repetitions of an

action(s) based on the current value of an agent’s or

environmental property/variable). In subsequent

modelling activities, students will learn to define

variables (e.g., defining attributes of agents and

breeds of agents), as well as code-reuse and encap-

sulation (e.g., using portions of existing code to

model behaviour of new agents). In later, more

complex, modules, students will explore class hier-

archy/inheritance connected to science through rela-

tion to taxonomy and class/type properties and be-

haviours, as well as the nature of physical “laws”

that apply to all objects (e.g., in kinematics).

From the mathematical perspective, students in

both curricular units will focus on: (1) generating

graphs of aggregations (e.g., averages) over time, (2)

identifying and developing basic mathematical rela-

tionships between variables and statistical properties

of populations evident from graphs (e.g., linear vs.

quadratic relationships, averages, range, vari-

ance/standard-deviation), and (3) understanding

rates through designing multiple, linked representa-

tions of rates and other time-based/time-variant rela-

tionships. For example, students would start out

visualizing a variable’s value changing over time, ei-

ther step-by-step or plotted on a graph, and then

learn to represent it as a simple equation.

7 DISCUSSION AND

CONCLUSIONS

In general, computational thinking involves being

able to reason at multiple levels of abstraction

(Kramer, 2007), mathematical and design-based

thinking (Wing, 2008), as well as using these kinds

of reasoning for contextual problem solving (Guz-

dial, 2008); (Wing, 2008). Our paper proposes a

theoretical framework through which these aspects

of CT can be integrated with curricular modules in

K-12 science classrooms via agent-based modelling.

We also presented the computational architecture of

a learning environment based on this theoretical

framework that includes a visual programming lan-

guage and a modelling environment. In designing

this system, our goal is to integrate computational

thinking with existing K-12 science curricula (as has

been recommended by the ACM K-12 Taskforce

(2003)), without necessitating the development of

new curricular standards or introducing a program-

ming course separately from the curricular science.

This also lays the groundwork for the development

of a long-term curricular progression in which stu-

dents can engage in learning science using computa-

tional modelling and thinking over a span of multi-

ple years. This is consistent with the findings from

research in developmental psychology and science

education, which show that the development of sci-

entific thinking, even when it builds on students’ in-

tuitive knowledge and competencies, happens over a

period of multiple years through meaningful immer-

sion in authentic learning experiences (Lehrer et al.,

2008).

By engaging students in agent-based modelling

across multiple domains, but using the same pro-

gramming constructs and modelling environment,

our primary goal is to enable students to realize the

commonalities across domains in terms of the under-

lying computational/mathematical constructs and

practices (e.g., control flow, variables, debugging),

as well as the domain-general representational prac-

tices involved in modelling (e.g., problematizing,

experimentation, generating inscriptions, verifica-

tion, and validation). We will run classroom studies

with the first prototype of our system in Spring

2012, to study some of these claims and to collect

data for refining and continuing the development of

CTSiM.

ACKNOWLEDGEMENTS

Thanks to Satabdi Basu, Amanda Dickes, Brian Sul-

cer, Jaymes Winger, and Mason Wright (in no par-

ticular order). This work is partially supported by

NSF IIS # 1124175.

REFERENCES

ACM K-12 Taskforce (2003). A Model Curriculum for K-

12 Computer Science: Final Report of the ACM K-12

Task Force Curriculum Committee, CSTA, New York,

NY.

Basu, S., Sengupta, P. and Biswas, G., (In Review). A

scaffolding framework to support learning in multi-

agent based simulation environments. Computers and

Education.

Baumgartner, E. and Reiser, B. J., (1998). Strategies for

supporting student inquiry in design tasks. Annual

Conference of the American Educational Research As-

sociation, San Diego, CA, April 13, 1998.

Blikstein P. and Wilensky, U., (2009). An Atom is Known

by the Company it Keeps: A Constructionist Learning

INTEGRATINGCOMPUTATIONALTHINKINGWITHK-12SCIENCEEDUCATION-ATheoreticalFramework

Environment for Materials Science Using Agent-

Based Modeling. Int J Comput Math Learning, 14:81–

119.

Bravo, C., van Joolingen, W. R., and deJong, T., (2006).

Modeling and Simulation in Inquiry Learning: Check-

ing Solutions and Giving Advice. Simulation, 82(11),

769-784.

Chi, M. T. H., (2005). Common sense conceptions of

emergent processes: Why some misconceptions are

robust. Journal of the Learning Sciences, 14: 161-199.

Chi, M. T. H., Slotta, J. D. and de Leeuw, N., (1994).

From things to processes: A theory of conceptual

change for learning science concepts. Learning and

Instruction, 4: 27-43.

Chinn, C. A., and Brewer, W. F., (1993). The role of

anomalous data in knowledge acquisition: A theoreti-

cal framework and implications for science instruc-

tion. Review of Educational Research, 63, 1–49.

Conway, M., (1997). Alice: Easy to Learn 3D Scripting

for Novices, Technical Report, School of Engineering

and Applied Sciences, University of Virginia, Char-

lottesville, VA.

diSessa, A. A., (1986). BOXER: A Reconstructible Com-

putational Medium. Communications of ACM, 29(9):

859-868.

diSessa, A. A., (2000). Changing Minds: Computers,

Learning, and Literacy. Cambridge, MA: MIT Press.

Dickes, A., and Sengupta, P., (2011). Learning Natural

Selection in 4th Grade With Multi-Agent-Based Com-

putational Models. In Sengupta, P. (Chair), and Hall,

R. (Discussant). Models, Modeling, and Naïve Intui-

tive Knowledge in Science Learning. Symposium pre-

sented at the 41st Annual Meeting of the Jean Piaget

Society, Berkeley, CA.

Driver, R., Newton, P., and Osborne, J., (2000). Establish-

ing the norms of scientific argumentation in class-

rooms. Science Education, 84(3), 287-313.

Duschl, R. A., and Osborne, J., (2002). Supporting and

promoting argumentation discourse in science educa-

tion. Studies in Science Education, 38, 39-72.

Guzdial M., (1995) Software-realized scaffolding to facili-

tate programming for science learning. Interactive

Learning Environments, 4(1). 1-44.

Guzdial, M., 2008. “Paving the way for computational

thinking.” Education Column. Communications of the

ACM, 51(8)

Hambrusch, S., Hoffmann, C., Korb, J. T., Haugan, M.,

and Hosking, A. L., (2009). A multidisciplinary ap-

proach towards computational thinking for science

majors. In Proceedings of the 40th ACM technical

symposium on Computer science education (SIGCSE

'09). ACM, New York, NY, USA, 183-187.

Harel, I. and Papert, S., (1991). "Software design as a

learning environment". Constructionism. Norwood,

NJ: Ablex Publishing Corporation. pp. 51–52. ISBN

0-89391-785-0.

Hegedus, S. J. and Kaput, J. J., (2004). An Introduction to

the Profound Potential of Connected Algebra Activi-

ties: Issues of Representation, Engagement, and Peda-

gogy, Proceedings of the 28th Conference of the In-

ternational Group for the Psychology of Mathematics

Education

, 3, 129–136.

Hundhausen, C. D., Brown, J. L., (2007). What You See Is

What You Code: A “live” algorithm development and

visualization environment for novice learners. Journal

of Visual Languages and Computing, 18: 22-47.

Kafai, Y., and Soloway, E., (1994). Computational Gifts

for the Barney Generation. Commun. ACM, 37(9): 19-

22.

Kahn, K., (1996). ToonTalk: An Animated Programming

Environment for Children, Journal of Visual Lan-

guages and Computing.

Kaput, J., (1994). Democratizing access to calculus: New

routes using old routes. In Schoenfeld, A. (ed.), Ma-

thematical Thinking and Problem Solving, Lawrence

Erlbaum, Hillsdale, NJ, 77-156.

Kelleher, C. and Pausch, R., (2005) Lowering the barriers

to programming: a taxonomy of programming envi-

ronments and languages for novice programmers,

ACM Computing Surveys, Vol. (37) 83–137.

Klahr, D., Dunbar, K., and Fay, A. L., (1990). Designing

good experiments to test bad hypotheses. In J. Shrager

and P. Langley (Eds.), Computational models of scien-

tific discovery and theory formation (pp. 355-401).

San Mateo, CA: Morgan Kaufman.

Klopfer, E., Yoon, S. and Um, T., (2005). Teaching Com-

plex Dynamic Systems to Young Students with Star-

Logo. The Journal of Computers in Mathematics and

Science Teaching; 24(2): 157-178.

Kolodner, J. L., Camp, P. J., Crismond, D., Fasse, B.,

Gray, J., Holbrook, J., Puntambekar, S., and Ryan, M.,

(2003). Problem-Based Learning meets Case-Based

Reasoning in the Middle-School Science Classroom:

Putting Learning by Design into Practice. The Journal

of Learning Sciences, 12(4) 495-547.

Krajcik, J., McNeill, K. L. and Reiser, B., (2008). Learn-

ing-goals-driven design model: Curriculum materials

that align with national standards and incorporate

project-based pedagogy. Science Education, 92(1), 1-

32.

Kramer, J., (2007). Is abstraction the key to computing?

Commun. ACM 50, 4 (April 2007), 36-42.

Kynigos, C., (2007). Using half-baked microworlds to

challenge teacher educators’ knowing, Journal of

Computers for Math Learning, 12(2), 87-111.

Kynigos, C., (2001). E-slate Logo as a basis for construct-

ing microworlds with mathematics teach-

ers. Proceedings of the Ninth Eurologo Conference,

Lintz, Austria, 65-74.

Lehrer and Romberg (1996). Exploring Children’s Data

Modeling, Cognition and Instruction, 14(1): 69-108.

Lehrer, R., Schauble, L., and Lucas, D., (2008). Support-

ing development of the epistemology of inquiry. Cog-

nitive Development, 23 (4), 512-529.

Maloney, J., Burd, L., Kafai, Y., Rusk, N., Silverman, B.,

and Resnick, M., (2004) Scratch: A Sneak Preview. In

Proc. of Creating, Connecting, and Collaborating

through Computing,

104-109.

NRC (2010). Report of a Workshop on The Scope and Na-

ture of Computational Thinking.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Oshima, Y., (2005). Kedama: A GUI-based Interactive

Massively Parallel Particle Programming System.

Proceedings of the 2005 IEEE Symposium on Visual

Languages and Human-Centric Computing

(VL/HCC’05).

Papert, S., (1980). Mindstorms: children, computers, and

powerful ideas. Basic Books, Inc. New York, NY.

Papert, S., (1991). Situating constructionism. In I. Harel

and S. Papert (Eds.), Constructionism. Norwood, NJ:

Ablex Publishing Corporation.

Pea, R. D., (1986). Language-independent conceptual

bugs in novice programming. Journal of Educational

Computing Research, 2(1), 25-36.

Perkins, D. N., (1986). Knowledge as design. Hillsdale, N.

J.: Lawrence Erlbaum Associates.

Perkins, D. N. and Simmons, R., (1988). Patterns of mi-

sunderstanding: An integrative model for science,

math, and programming. Review of Educational Re-

search, 58(3), 303-326.

Redish, E. F. and Wilson, J. M., (1993). Student pro-

gramming in the introductory physics course:

M.U.P.P.E.T. Am. J. Phys. 61: 222–232.

Reiner, M., Slotta, J. D., Chi, M. T. H., and Resnick, L. B.,

(2000). Naive physics reasoning: A commitment to

substance-based conceptions. Cognition and Instruc-

tion, 18(1), 1-34.

Repenning, A., (1993). Agentsheets: A tool for building

domain-oriented visual programming, Conference on

Human Factors in Computing Systems, 142-143.

Resnick, M., (1994). Turtles, Termites, and Traffic Jams:

Explorations in Massively Parallel Microworlds.

Cambridge, MA: MIT Press.

Roschelle, J., Digiano, C., Pea, R. D. and Kaput, J.,

(1999). Educational Software Components of Tomor-

row (ESCOT), Proceedings of the International Con-

ference on Mathematics/Science Education and Tech-

nology (M/SET), March 1-4, 1999. San Antonio, USA.

Sandoval, W. A., and Millwood, K., (2005). The quality of

students' use of evidence in written scientific explana-

tions. Cognition and Instruction, 23(1), 23-55.

Schauble, L., Klopfer, L. E., and Raghavan, K., (1991).

Students' transition from an engineering model to a

science model of experimentation. Journal of Re-

search in Science teaching, 28, 859-882.

Segedy, J. R., Kinnebrew, J. S., and Biswas, G., (In Re-

view). Promoting Metacognitive Learning Behaviors

using Conversational Agents in a Learning by Teach-

ing Environment, Educational Technology Research

and Development.

Sengupta, P., (2011). Design Principles for a Visual Pro-

gramming Language to Integrate Agent-based model-

ing in K-12 Science. In: Proceedings of the Eighth In-

ternational Conference of Complex Systems (ICCS

2011), pp 1636 - 1637.

Sengupta, P., Voss Farris, A., and Wright, M., (In Re-

view). From Agents to Aggregation via Aesthetics:

Learning Mechanics with Visual Agent-based Compu-

tational Modeling. Technology, Knowledge and Learn-

ing.

Sengupta, P. and Wilensky, U., (2011). Lowering the

Learning Threshold: Multi-agent-Based Models and

Learning Electricity. In Khine, M.S., and Saleh, I.M

(Eds.). Dynamic Modeling: Cognitive Tool for Scien-

tific Inquiry, pp 141 - 171. Springer, New York, NY.

Sherin, B., (2000). How students invent representations of

motion: A genetic account.

Journal of Mathematical

Behavior, 19(4), 399-441.

Sherin, B., (2001). A comparison of programming lan-

guages and algebraic notation as expressive languages

for physics. International Journal of Computers for

Mathematics Learning: 6, 1-61.

Smith, D., Cypher, A., and Tesler, L., (2000). Program-

ming by example: novice programming comes of age.

Communications of the ACM, 43(3), 75-81.

Soloway, E., (1993). Should We Teach Students to Pro-

gram? Commun. ACM 36(10): 21-24

Stewart, I. and Golubitsky, M. (1992). Fearful Symmetry:

Is God a Geometer?, Blackwell Publishers, Oxford.

Tan, J., and Biswas, G., (2007). Simulation-based game

learning environments: Building and sustaining a fish

tank. In Proceedings of the First IEEE International

Workshop on Digital Game and Intelligent Toy En-

hanced Learning (pp. 73-80). Jhongli, Taiwan.

Tanimoto, S. L., (1990) VIVA: a visual language for im-

age processing. Journal of Visual Languages and

Computing. 1, 127–139.

White, B. Y., and Frederiksen, J. R., (1990). Causal model

progressions as a foundation for intelligent learning

environments. Artificial Intelligence, 42(1):99-157.

Wilensky, U., (1999). NetLogo. Center for Connected

Learning and Computer-Based Modeling

(http://ccl.northwestern.edu/netlogo). Northwestern

University, Evanston, IL.

Wilensky, U., and Resnick, M., (1999). Thinking in Le-

vels: A Dynamic Systems Perspective to Making

Sense of the World. Journal of Science Education and

Technology, 8(1).

Wilensky, U., and Reisman, K., (2006). Thinking like a

wolf, a sheep or a firefly: Learning biology through

constructing and testing computational theories - An

embodied modeling approach. Cognition and Instruc-

tion, 24(2), 171-209.

Wing, J. M., (2006) Computational Thinking CACM,

Viewpoint, vol. 49, no.3 March 2006, pp. 33-35.

Wing, J. M., (2008). Computational thinking and thinking

about computing. Philosophical Transactions of the

Royal Society, vol. 366, pp.

INTEGRATINGCOMPUTATIONALTHINKINGWITHK-12SCIENCEEDUCATION-ATheoreticalFramework
