TRACESHEETS

Spreadsheets of Program Executions as a Common Ground between Learners and

Instructors

Soichiro Fujii and Hisao Tamaki

Department Computer Science, School of Science and Technology, Meiji University, Tama, Kawasaki, 214-8571, Japan

Keywords:

Tracesheet, Spreadsheet, Introductory Programming Course, Tracing Program Execution, Debugging.

Abstract:

We propose the use of spreadsheets representing program executions in introductory programming courses.

Each row of a spreadsheet is a snapshot of the execution at each time step showing the values of variables

and each column corresponds to a particular variable showing the entire history of its updates. We call such

a spreadsheet a tracesheet. We discuss the motivation and potential beneﬁts of the use of tracesheets in intro-

ductory programming courses, discuss some design issues, and report on a preliminary implementation of a

tracesheet generator for Java.

1 INTRODUCTION

It is observed in introductory programming courses

that insufﬁciently performing students tend to view a

program as a static textual object rather than a dy-

namic object that generates a process. Most of them

are capable of step-by-step tracing of a code but ex-

ercise this ability only when they are forced. Thus,

their preferred way of determining the correctness of

a code is to compare it with what they believe is a

correct code: one given in the textbook, on the black-

board, written by a reliable friend, or posted on the

internet. These tendencies are severe obstacles not

only for debugging but also for the entire process of

leaning to program.

Based on this observation, we believe that the re-

search on programming education should focus not

only on how to teach each subject in most understand-

able manners but also on a long-term methodology

and tools for remedying the above mentioned unde-

sirable tendencies of some students and enhancing

their capability and willingness to use step-by-step

tracing for understanding a code. One might hope

that extensive uses of program animation (Moreno

et al., 2004), (Levy et al., 2003), (Sajaniemi and

Kuittinen, 2003), (Sutinen et al., 2003), (Lahtinen

et al., 1998), (Baecker, 1998), (see (Urquiza-Fuentes

and

Angel Vel´azquez-Iturbide, 2009), (Shaffer et al.,

2010) for a recent survey) would serve this purpose

well. Program animators, however, are designed for

different purposes. They are meant to help students

understand a code by giving a graphical and often

conceptual view of the behavior of the code, rather

than encouraging the students to develop such a view

themselves from the given code. Thus, it is possi-

ble that a student perfectly understands how a code

operates through the given visualization and yet is in-

capable (or more likely reluctant) of tracing a simi-

lar or even the same code when left on his/her own.

While the program animators could be adapted for

our present purposes, for example by engaging stu-

dents (which is getting recognized as indispensable

in effective uses of program animation (Hundhausen

et al., 2002), (Urquiza-Fuentes and

Angel Vel´azquez-

Iturbide, 2009)), we pursue a different approach in

this paper.

Based on experiences in introductory program-

ming courses, we believe in the need of treating the

raw, unabridged, and unstructured description of a

program execution as a ﬁrst class object that is ex-

plicitly shared by instructors and students. When a

program code is shown in traditional programming

courses, the precise execution process speciﬁed by

the code is usually implicit. The instructors verbally

summarize the execution of the code and only oc-

casionally spell out the full details of the execution.

Here we recognize a serious gap between the instruc-

tor and students: they are looking at the same code

but may not be seeing the same thing. For the in-

structors, mentally generating the process behind the

code is easy and automatic, so in a sense they see the

process whenever they see a code. On the other hand,

158

Fujii S. and Tamaki H..

TRACESHEETS - Spreadsheets of Program Executions as a Common Ground between Learners and Instructors.

DOI: 10.5220/0003916701580163

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 158-163

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

for beginning students, the same mental activity is de-

manding if at all possible and the code they are look-

ing at may remain a purely textual static object in their

view.

Since the instructors’ view of the process behind

the code is structured, they explain the code based on

this structure. This itself is a right approach but, in

doing so, they often forget the fact that their ability to

see the structure comes from their long experience in

which they dealt with the raw execution of the code.

Since the structure of the execution process reﬂects

the structure of the code, the instructors expect that

students accept their explanations without any difﬁ-

culty – our experiences show that this expectation is

not always fulﬁlled. We ascribe the cause of this fail-

ure to the above mentioned gap between the views of

the two parties: since the students do not have the

basis (the raw execution) in their mind to build the

structure on, the structure given to them can be ab-

stract, fragile, and intangible.

In this paper, we propose the use of spreadsheets

to explicitly represent the raw, full detailed execution

of codes. Each row of the spreadsheet represents a

program state at each time step in terms of the values

stored in the variables and each column represents the

changing values of each variable. We call this repre-

sentation a tracesheet. Such representations are quite

natural but, to the best of the present authors’ knowl-

edge, no report of their use in programmingeducation

is found in the literature. We are, however,inspired by

the use of spreadsheets in teaching logic design and

computer architecture (Timsit and Zertal, 2010).

First of all, we have to emphasize that a tracesheet

is in no way intended for visualization. Although it is

2-dimensional, it is basically textual and as the num-

ber of variables and the number of execution steps

increase, it becomes painful to read its entries. It is

simply an explicit representation of an awkward ex-

istence, which is usually left implicit, which both the

instructors and students prefer to stay away from, but

which yet is to be closely examined by both parties in

crucial occasions. It is meant to pave the gap between

the instructors’ and students’ views discussed earlier:

by looking at the same explicit representation of the

code’s behavior, the chances of both parties seeing the

same thing would be increased.

In closing this introduction, we compare conven-

tional debuggers with tracesheets in the context of

introductory programming education. It is true that

such debuggers can provide all the information on a

tracesheet. They are, however, not meant to present

such information in their entirety. Rather, they are

designed to help the user navigate through the mas-

sive body of information unsuitable, if not impos-

sible, to be put on a single sheet. For such navi-

gations to be successful, the user must have sufﬁ-

cient knowledge of programming, of debugging and

of the particular debugger being used. For small pro-

grams that appear typically in introductory program-

ming courses, the entire description of program exe-

cution on a tracesheet is manageable through the sim-

ple user interface of scrolling and has a deﬁnite advan-

tage for beginning students that no additional knowl-

edge of the tool is required.

The rest of this paper is organized as follows.

In Section 2, we illustrate the possible uses of

tracesheets with a few examples. In Section 3,

we discuss issues to be considered in the design of

tracesheets and describe our decisions. In Section 4,

we describe our preliminary implementation of a tool

that generates a tracesheet from a Java source code.

2 EXAMPLES

In this section, we illustrate the use of tracesheets by

some examples.

Our ﬁrst example is a simple for-statement. Fig-

ure 1 shows a tracesheet generated from the following

code.

int n = 3;

int s = 0;

for (int i = 0; i < n; i = i + 1) {

s = s + i;

}

Instructors can use this tracesheet in a tutorial in-

troducing for-statements. As they verbally describe

the behavior of the code, they can point to or high-

light the particular entry in the sheet corresponding to

the event they are referring to. While following the in-

structors’ description, students are also able to resolve

many small questions they ask themselves, based on

the entire scenario of execution shown on the sheet.

In our implementation of tracesheets, the initial

values of variables can be edited on the sheet so

that the sheet dynamically changes depending on the

edited values (see Section 3). Thus, for example, af-

ter describing the behavior of the code and the roles

of variables, the instructors may announce that he will

change the initial value of n to 5, ask the students to

predict the result, and then show the changes on the

sheet for conﬁrmation. Changing the initial value of s

or i may also be instructive. If the tutorial is done in a

lab, then the tracesheet can be distributed to the PCs

of students and students can play with this feature on

their own until they have full understandings of the

behavior of the code and its dependence on the initial

values of the variables.

TRACESHEETS-SpreadsheetsofProgramExecutionsasaCommonGroundbetweenLearnersandInstructors

159

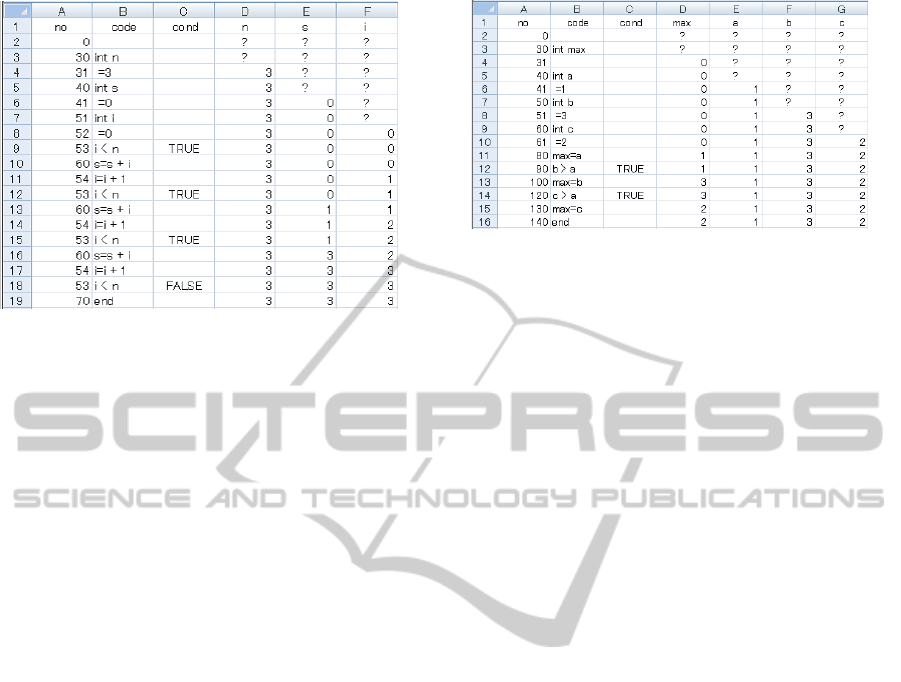

Figure 1: Example 1: a simple for-statement.

Tracesheets can be used not only in tutorials but

also in a more personal session between a student and

a (human or automated) instructor. Suppose that a

student submitted the following incorrect code for the

problem of assigning the maximum value of a, b, and

c to variable max.

max = a;

if (b > a) {

max = b;

}

if (c > a) {

max = c;

}

When the instructor explains when this code goes

wrong, a tracesheet for such a case, with say a = 1,

b = 3, and c = 2, (see Figure 2) would deﬁnitely help

the student to grasp the problem. If the emphasis of

the session is more on letting the students discover

the bugs on their own, then the instructor may provide

the student with the tracesheet with initial values say

a = 1, b = 2, and c = 3, for which the code achieves

the correct result, and ask the student to experiment

on the values to ﬁnd a case in which the code fails.

Although such an experiment can also be done with

the code itself, the task of ﬁnding the cause of the in-

correct result would be much easier on the tracesheet.

We end this section with an example involving an

array. Figure 3 shows a tracesheet generated from the

following incorrect code for selection sort, again sub-

mitted by some student.

for (int i = 0; i < n; i++) {

int m = i;

for (int j = 0; j < n; j++) {

if (a[j] < a[m]) {

m = j;

}

int w = a[i];

a[i] = a[m];

a[m] = w;

}

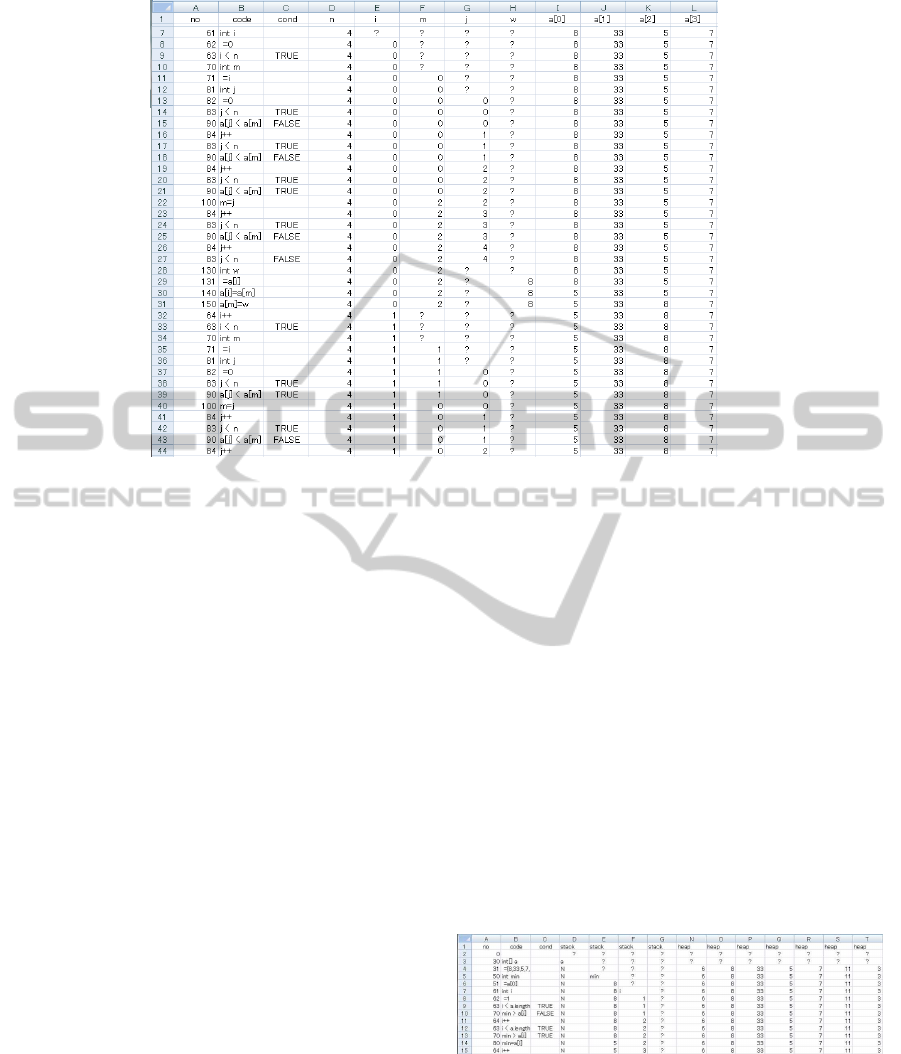

Figure 2: Example 2: the maximum of three with a bug.

To be correct, the inner for-statement must start

with j = i or j = i+ 1 rather than j = 0 as in the code.

The entire execution history as given in the tracesheet

may appear intimidating to the student at ﬁrst. With

suitable guidance of the instructor, however, the task

of locating the problem on the tracesheet should not

be so difﬁcult. For example, the instructor may ask

the student to ﬁnd the ﬁrst step at which the values in

the arrays look wrong. A student with a clear abstract

level algorithm in mind should be able to answer this

question fairly easily. Then, the student will be asked

to analyze the cause of the wrong value of m at that

step. Many students will notice that the range of the

inner for-statement must be corrected. Others will be

encouraged to examine the previous steps that deter-

mined the value of m. If the student fails to answer the

ﬁrst question, then probably the discussions must be

directed toward the idea of the algorithm at a higher

level.

A more traditional alternative to the above sce-

nario is to let the students trace the code themselves.

Although this approach has its own advantages, the

problem is that the task is too laborious for many be-

ginning students. We may guide (or force) them, in

the session, to trace the code and discover bugs, but

our experiences show that most of them do not adopt

this practice for their everyday use. Our approach is

intended to make the task less laborious in the be-

ginning phase. Given the tracesheet, the students can

skip the laborious part and can concentrate on exam-

ining the trace. The hope is that, after seeing many

traces explicitly given to them and experiencing suc-

cesses in analyzing them, they will eventually be able,

and willing, to generate traces on their own.

3 DESIGN ISSUES

3.1 Target Language and Subsetting

The idea of tracesheets can be applied to any proce-

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

160

Figure 3: Example 3: incorrect code for selection sort.

dural language. The choice of Java as our target lan-

guage simply comes from a larger project involving

the authors which is aimed at developing contents and

support for leaning Java programming. Having cho-

sen Java, we still have to choose a suitable subset for

the tracesheets to cover. It is clear that we do not need

the entire Java language as described in the language

speciﬁcation (Sun Microsystems, 1995) in introduc-

tory courses. Whether or not to include the following

features is crucial in the design of tracesheets:

1. dynamic variable declarations,

2. method calls, and

3. objects.

Omission of all of these features would lead to a

simple sheet layout and the induced subset of Java

would still be useful in the very early stages of intro-

ductory courses. Our decision, however, is to include

all of these three features. The reason of this deci-

sion is because method calls and objects are the main

causes of students’ difﬁculty in understanding the be-

havior of codes and we should at least try to see if our

approach can be used to reduce the difﬁculty. A con-

sequence of our decision is that our tracesheets must

simulate both a stack, for allocating dynamic vari-

ables, and a heap, for storing objects. This somewhat

complicates the layout of tracesheets (see below). For

very beginning learners, we may need a separate ba-

sic mode in which variables are statically allocated to

ﬁxed columns, as in the examples used in Section 2.

3.2 Sheet Layout

Because of our decision to include dynamic variable

declarations and objects, each column of a tracesheet

corresponds to a memory cell rather than to a variable

as in the examples in Section 2. Thus, columns are

organized into a stack and a heap just as memory cells

are organized into a stack and a heap in standard Java

implementations.

Besides the columns corresponding to memory

cells, we have three columns on the left of the sheet:

the second column shows the code fragment executed

in the step, the ﬁrst column shows the number identi-

fying the code fragment, and the third column shows

the value of the boolean expression evaluated at the

step if the expression is used as the condition in an

if-statement or a for-statement.

Figure 4: Array allocation in heap.

The tracesheet shown in Figure 4, generated from

the following code, illustrates how an array object is

allocated in heap and how the object is referenced by

a variable. In row 3 of the sheet, variable a is allo-

cated in the stack. Then in row 4, an array object is

created in the heap space, initialized as speciﬁed by

TRACESHEETS-SpreadsheetsofProgramExecutionsasaCommonGroundbetweenLearnersandInstructors

161

the initializer in the code. This array object is refer-

enced by variable a by the column identiﬁer N. Thus,

the column identiﬁers serve as memory addresses in

the sheet.

10 public class Sample {

20 public static void main(String[] args) {

30 int[] a = {8,33,5,7,11,3};

50 int min = a[0];

60 for(int i=1;i<a.length;i++) {

70 if(min>a[i])

80 min = a[i];

90 }

100 }

110 }

3.3 User Interaction

Tracesheets can be read-only: once they are gener-

ated, they do not change unless regenerated from a

modiﬁed source code. However, it would be helpful

for them to be interactive, as “engagement” is recog-

nized as a vital factor in determining the effective-

ness of programming education tools (Hundhausen

et al., 2002), (Urquiza-Fuentes and

Angel Vel´azquez-

Iturbide, 2009). We may expect a tracesheet to re-

spond to

1. a change of the initial value of a variable, or

2. minor changes in a code fragment,

as the changes are typed directly into the sheet. We

believe that both types of interactions are useful. The

ease of implementation, however, differ substantially

between the two types. The ﬁrst type of interactions

can be implemented without difﬁculty using the usual

feature of spreadsheet applications: automatic recal-

culation of the entire sheet upon a change in a single

cell. Implementing the second type of interactions us-

ing the same feature is not theoretically impossible

but would be extremely complicated.

Moreover, we envision various uses of tracesheets

in an interactive learning system where more sophisti-

cated user interactions are necessary. For example, to

learn the semantics of a new programming construct,

ﬁlling in empty cells of a partially-ﬁlled tracesheet

may be helpful. Another example is when a learner

completes a programming task and submits the re-

sulting program to the system. To conﬁrm the un-

derstanding of the learner, the system may ask several

questions regarding the behavior of the submitted pro-

gram, where a tracesheet will be an appropriate media

of communication. It is the topic of our ongoing re-

search to decide what types of interactions are needed

in such situations.

4 IMPLEMENTATION

In this section, we describe a preliminary implemen-

tation of a tracesheet generator for Java. Although the

only frontend supported is Excel (Microsoft Corpora-

tion, 1985) in the current version, it is easy to adapt

the output of the generating engine to any widely used

spreadsheet applications or to custom-made frontends

to be developed for more sophisticated user interac-

tions as mentioned in the previous section.

The Java languages features covered by the cur-

rent version include dynamic variable declarations,

assignments, if-statements, for-statements, break-

statement, and read-only arrays.@Of the primitive

data types, only the “int” type is supported. The next

version currently under development will cover gen-

eral classes and objects, including array objects, and

general methods.

In order to provide user interactions of type 1 as

described in Section 3.3, the entry of each sheet cell

is an Excel formula that evaluates to the value of the

cell. In the subsequent subsections, we describe these

formula entries and how they are generated from the

given Java code.

4.1 Formula Entries

The value of a cell of a column corresponding to a

memory cell is determined by the following:

1. the code fragment being executed, and

2. the values of memory cells in the previous step.

Thus, the formula for such a cell consists of a refer-

ence to the line number givenin the ﬁrst column of the

same row and to the cells of the previous row corre-

sponding to memory cells. For example, the formula

entry in cell F10 of the sheet shown in Figure 4 is as

follows.

=IF(A10=61,"i",IF(A10=62,1,IF(A10=64,F9+1,F9)))

If the current code fragment is the initialization of the

variable i (line number 62), then this formula evalu-

ates to 1. Otherwise, if the current code fragment is

the increment of i (line number 64), then this formula

computes the value of cell F9 plus 1. If neither of

these apply, then the value of this formula equals the

value of cell F9.

The formula entries are universal in the sense that

they are identical throughout the column except that

the row numbers referring to the current and the pre-

vious rows are adjusted.

The formula in the ﬁrst column (labeled with

“no”) determines the line number of the current step

based on the line number of the previous step and the

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

162

value of the condition in the previous step. For exam-

ple, the formula entry in cell A3 of the sheet shown in

Figure 4 is as follows.

=IF(A2=0,30,IF(A2=30,31,IF(A2=31,50,

IF(A2=50,51,IF(A2=51,61,IF(A2=61,62,

IF(A2=62,63,IF(AND(A2=63,C2=TRUE),70,

IF(AND(A2=70,C2=TRUE),80,IF(AND(A2=70,

C2=FALSE),64,IF(A2=80,64,IF(A2=64,63,

IF(AND(A2=63,C2=FALSE),90,90)))))))))))))

This formula compares the line number of the previ-

ous step to all line numbers in the program and, pos-

sibly depending on the value of condition in the pre-

vious step, decides the current line number.

The formula for the second column (labeled as

“code”) is straightforward. It compares the current

line number with all line numbers and, when the num-

bers match, returns the string for the code fragment

corresponding to the number.

The formula for the third column representing the

value of the condition, when the current code frag-

ment is a condition expression, is similar to the one

for memory cells.

4.2 How to Generate Formula Entries

In this section, we show how the formula entries of

a tracesheet is generated from a source code of Java

program.

First, we parse the source code and get an Abstract

Syntax Tree (AST) using Eclipse JDT libraries. Then

we analyze the AST and create a transition diagram,

which is a directed graph where the vertices are code

fragments and the edges are transitions. A transition

is unconditional if it represents the usual sequential

ﬂow in the execution. It is a true-transition it cor-

responds to conditional branches prescribed by an if-

statement or a for-statement and occurs when the con-

dition evaluates to true. False-transitions are deﬁned

similarly. In addition to the transition graph, we com-

pute the list of updates for each variable. An update

for a variable is a pair consisting of the line number of

a code fragment that is an assignment to the variable

and the right-hand-side expression of the code frag-

ment.

Given the transition graph and the list of updates,

it is rather straightforward to generate formula entries

of the tracesheet. We omit the details.

5 CONCLUDING REMARKS

We have proposed the use of tracesheets in introduc-

tory programming courses, discussed the motivation

and potential beneﬁts of their use, and described a

preliminary implementation of a tracesheet genera-

tor for Java. We plan to evaluate the effectiveness of

tracesheets through their use in actual classes and ses-

sions and in a web-based programming course we are

developing.

REFERENCES

Baecker, R. (1998). Sorting out sorting: a case study of soft-

ware visualization for teaching computer science. In

SoftwareVisualization: Programming as a Multimedia

Experience, pages 369–381. MIT Press.

Hundhausen, C. D., Douglas, S. A., and Stasko, J. T.

(2002). A meta-study of algorithm visualization ef-

fectiveness. Journal of Visual Languages and Com-

puting, 13(3):259–290.

Lahtinen, S.-P., Sutinen, E., and Tarhio, J. (1998). Auto-

mated Animation of Algorithms with Eliot. Journal

of Visual Languages and Computing, 9(3):337–349.

Levy, R. B.-B., Ben-Ari, M., and Uronen, P. A. (2003). The

Jeliot 2000 program animation system. Computers

and Education, 40(1):1–15.

Microsoft Corporation (1985). Microsoft excel.

http://ofﬁce.microsoft.com/en-us/excel.

Moreno, A., Myller, N., Sutinen, E., and Ben-Ari, M.

(2004). Visualizing programs with Jeliot 3. In Pro-

ceedings of the Working Conference on Advanced Vi-

sual Interfaces, pages 373–376. ACM Press.

Sajaniemi, J. and Kuittinen, M. (2003). Program anima-

tion based on the roles of variables. In Proceedings of

the 2003 ACM symposium on Software visualization,

pages 7–16. ACM Press.

Shaffer, C. A., Cooper, M. L., Alon, A. J. D., Akbar, M.,

Stewart, M., Ponce, S., and Edwards, S. H. (2010).

Algorithm Visualization: The State of the Field. ACM

Transactions on Computing Education, 10(3):1–22.

Sun Microsystems (1995). Java.

http://www.oracle.com/technetwork/java/index.html.

Sutinen, E., Tarhio, J., and Ter¨asvirta, T. (2003). Easy Al-

gorithm Animation on the Web. Multimedia Tools and

Applications, 19(2):179–194.

Timsit, C. and Zertal, S. (2010). Using spreadsheets to teach

computer architecture. In CSEDU 2010 2nd Interna-

tional Conference on Computer Supported Education,

pages 101–105. INSTICC.

Urquiza-Fuentes, J. and

Angel Vel´azquez-Iturbide, J.

(2009). A Survey of Successful Evaluations of Pro-

gram Visualization and Algorithm Animation Sys-

tems. ACM Transactions on Computing Education,

9(2):1–21.

TRACESHEETS-SpreadsheetsofProgramExecutionsasaCommonGroundbetweenLearnersandInstructors

163
