XSpRES

Robust and Effective XML Signatures for Web Services

Christian Mainka

, Meiko Jensen

, Luigi Lo Iacono

and J

org Schwenk

Horst G

ortz Institute for IT-Security, Ruhr-University Bochum, Bochum, Germany

Institute of Media and Imaging Technology, Cologne University of Applied Sciences, Cologne, Germany

Keywords:

XML Signature, XML Signature Wrapping, Web Services, WS-security, SOA, Cloud.

Abstract:

XML Encryption and XML Signature are fundamental security standards forming the core for many applica-

tions which require to process XML-based data. Due to the increased usage of XML in distributed systems

and platforms such as in SOA and Cloud settings, the demand for robust and effective security mechanisms

increased as well. Recent research work discovered, however, substantial vulnerabilities in these standards as

well as in the vast majority of the available implementations. Amongst them, the so-called XML Signature

Wrapping attack belongs to the most relevant ones. With the many possible instances of this attack type, it is

feasible to annul security systems relying on XML Signature and to gain access to protected resources as has

been successfully demonstrated lately for various Cloud infrastructures and services.

This paper contributes a comprehensive approach to robust and effective XML Signatures for SOAP-based

Web Services. An architecture is proposed, which integrates the required enhancements to ensure a fail-safe

and robust signature generation and veriﬁcation. Following this architecture, a hardened XML Signature li-

brary has been implemented. The obtained evaluation results show that the developed concept and library

provide the targeted robustness against all kinds of known XML Signature Wrapping attacks. Furthermore the

empirical results underline, that these security merits are obtained at low efﬁciency and performance costs as

well as remain compliant with the underlying standards.

1 INTRODUCTION

XML is a dominant standard for encoding documents

or messages. The range of XML applications is broad.

It can be roughly divided into ﬁle formats for data at

rest such as Docbook, Open Ofﬁce and WordML for

documents or SVG for images and messages for data

in transit such as SOAP, XML-RPC or ebXML. The

ability of being platform-independent made XML a

driving force especially in terms of systems integra-

tion. Here resides one important reason why XML is

widely used in distributed system and platform con-

texts such as SOA and Cloud.

With the increased adoption of SOA and Cloud

in sensitive application domains, the demands for se-

curity increase as well. The use of message-oriented

security for business information based on standards

such as Universal Business Language (UBL)

, eXten-

sible Business Reporting Language (XBRL)

and

http://ubl.xml.org/

http://www.xbrl.org/

Bank Internet Payment System (BIPS)

is one exam-

ple. Others can be found in the e-government do-

main where in Europe, e.g., the digital agenda explic-

itly includes SOA concepts as one building block for

establishing ICT for public services. Based on pan-

European interoperable e-signatures and e-IDs, SOA

is recognized as the enabler for cross-border inter-

operability of e-government systems (Ticau, 2010).

Many pilots build upon these foundations such as the

e-PRIOR platform for e-procurement, which key de-

sign principles include standardized XML documents

and SOAP Web Services

XML Encryption (Imamura et al., 2002) and XML

Signature (Bartel et al., 2008) are the core security

standards to protect XML data. Recent research re-

sults show, however, that these upmost important se-

curity mechanisms include serious ﬂaws. Amongst

them, the so-called XML Signature Wrapping attack

is the most relevant one. As described in detail in

Section 2, this attack bypasses security means based

http://www.bits.org/

http://www.osor.eu/projects/openeprior

187

Mainka C., Jensen M., Lo Iacono L. and Schwenk J..

XSpRES - Robust and Effective XML Signatures for Web Services.

DOI: 10.5220/0003925701870197

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 187-197

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

on digital signatures. Thus, from the XML Signature

Wrapping attack arises a serious security threat which

is of practical relevance especially in scenarios as the

ones depicted above. Therefore, the XML Signature

Wrapping attack needs to be carefully considered and

treated in these environments.

The proposed countermeasures—if effective at

all—usually provide protection only in very speciﬁc

settings. No comprehensive approach is available

yet. This paper contributes such a holistic and in-

tegrated approach—named XML Spooﬁng Resistant

Electronic Signature (XSpRES)—by providing an ar-

chitecture and an open-source implementation of an

XML Signature library that enables the standard-

compliant, robust and effective protection of XML

data.

Although the emphasize of the developments has

been on protecting SOAP-based Web Services and

the paper will remain focused on this, still the gen-

eral protection strategies can be applied to other XML

messages or documents to form equivalent solutions.

The rest of the paper is structured and organized

as follows. The next section provides a brief review

of the technologies necessary for understanding the

paper. It introduces the required background and dis-

cusses the available countermeasures in particular. It

concludes by motivating the lack of a comprehensive

defense approach which is effective and in confor-

mance with current standardization. Section 3 then

introduces an architecture that describes such a com-

prehensive approach named XSpRES. It integrates

and combines relevant components out of the already

available work with newly developed ones which are

deployed on the client as well as on the server side.

An in-depth description of the components and their

implementation is part of Section 4 and 5. Section 6

analyzes the developments in terms of effectiveness

and efﬁciency. The paper concludes with future work

in Section 7.

2 XML SIGNATURE WRAPPING

ATTACK FOUNDATIONS

To build the foundations for this paper, the basics be-

hind XML Signature Wrapping attacks are described

in the following accomplished with an analysis of

available countermeasures.

2.1 XML Signature

XML Signature (Bartel et al., 2008) is the standard

protection means for XML data. It speciﬁes how to

digitally sign XML fragments for ensuring integrity

and prooﬁng authenticity. The XML Signature ele-

ment has the following (slightly simpliﬁed) structure:

</ R e f e r e n c e>

</ S i g n e d I n f o >

</ S i g n a t u r e >

The signing process undertakes the following

ﬂow: for each document part to be signed, a

Reference element is created and the corresponding

part is canonicalized and hashed. The resulting di-

gest is added into the DigestValue element and a

reference to the signed message part is inserted into

the URI attribute. Finally the SignedInfo element is

canonicalized and signed. The result of the signing

operation is placed in the SignatureValue element.

2.2 XML Signature Wrapping Attack

The so-called XML Signature Wrapping attack intro-

duced in 2005 by McIntosh and Austel (McIntosh

and Austel, 2005) illustrates that the naive use of

XML Signature may result in signed XML documents

remaining vulnerable to undetectable modiﬁcations.

Thus, with the typical usage of XML Signature an ad-

versary may be able to alter valid documents in order

to gain unauthorized access to protected resources.

In general, the attack injects unauthorized data

into a signed XML document alongside with a pos-

sible reconstruction of that document so that the in-

tegrity and authenticity is still veriﬁed but untruly ver-

iﬁed. The consequence is that the undetected mod-

iﬁcations are treated as authorized input during any

further processing steps.

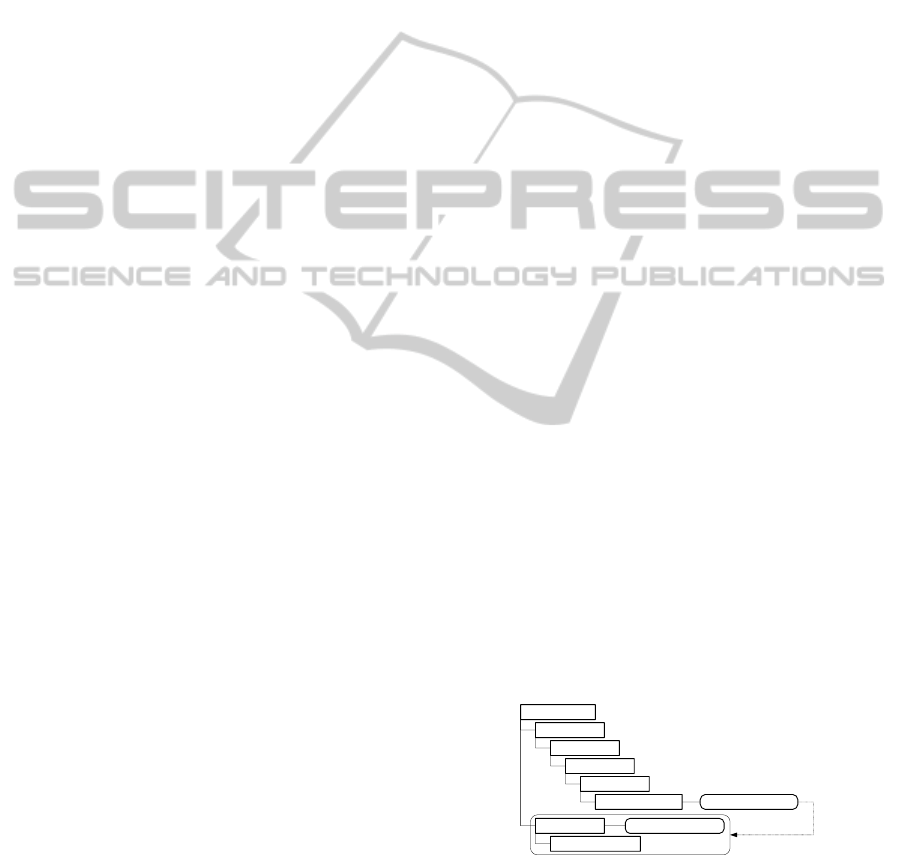

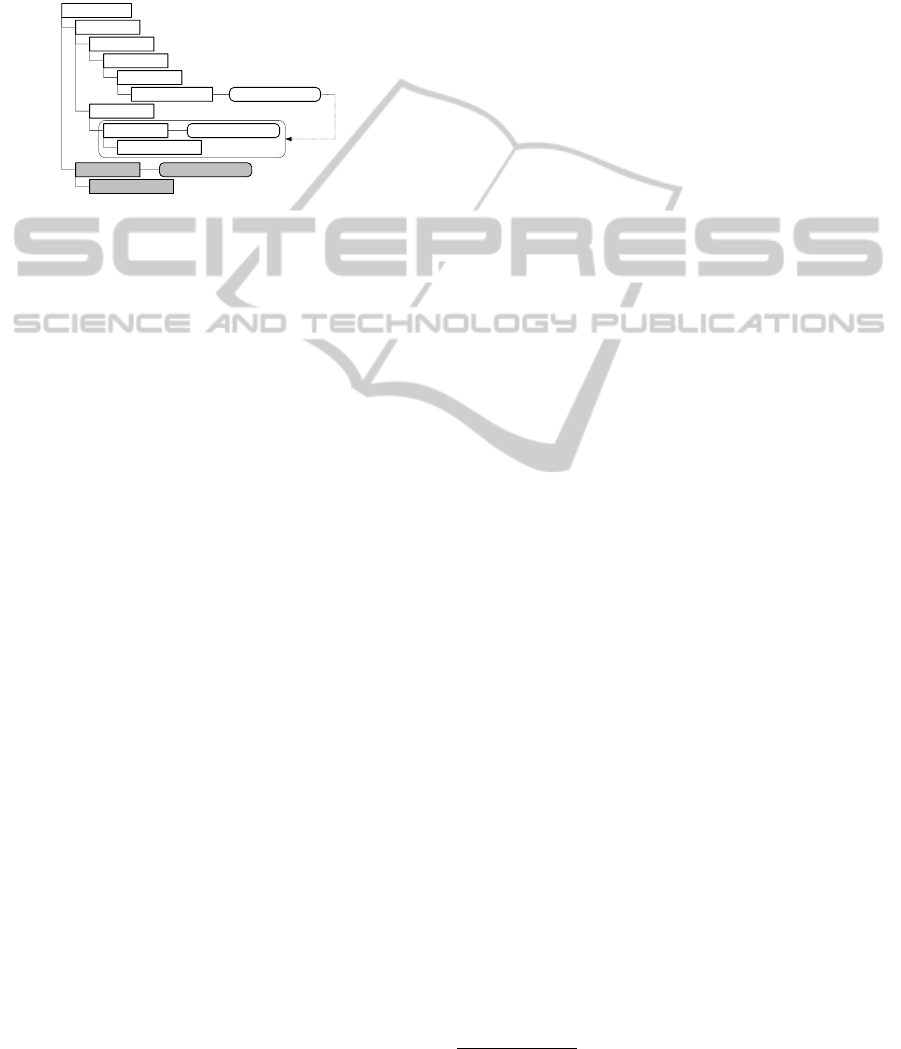

soap:Envelope

soap:Header

wsse:Security

ds:Signature

ds:SignedInfo

ds:Reference URI="#body"

soap:Body

DescribeImages

wsu:Id="body"

Figure 1: Signed SOAP message.

To illustrate this attack, let’s assume that an at-

tacker intercepts an XML-based SOAP message. The

slightly simpliﬁed structure and content of the ob-

tained SOAP message is shown in Figure 1. The mes-

sage addresses a Web Service interface for a particular

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

188

Cloud service, that allows controlling the Cloud re-

sources via such a SOAP-based API. In this example,

the intercepted message has been issued by the legiti-

mate user in order to get an overview of the available

virtual machine images. The attacker needs to trans-

form the operation in the SOAP body in order to reach

the attack goals.

soap:Envelope

soap:Header

wsse:Security

ds:Signature

ds:SignedInfo

ds:Reference URI="#body"

soap:Body

DescribeImages

wsu:Id="body"

soap:Body

CreateKeyPair

wsu:Id="attack"

Wrapper

Figure 2: XML signature wrapped SOAP message.

One possible result of a modiﬁed SOAP message

based on XML Signature Wrapping is shown in Fig-

ure 2. The original SOAP body element is moved to

a newly added bogus wrapper element in the SOAP

security header. Note that the moved body is still ref-

erenced by the signature using its identiﬁer at-

tribute Id="body". The signature is still cryptograph-

ically valid, as the body element in question has not

been modiﬁed (but simply relocated). Subsequently,

in order to make the modiﬁed message again compli-

ant to the XML Schema of SOAP messages, the at-

tacker changes the identiﬁer of the cogently placed

SOAP body (in this example the Id="attack" is

used). In this newly added and still empty SOAP body

the attacker can now enter any of the operations de-

ﬁned by Cloud control API. In the given example, the

adversary initiates a key generation process on behalf

of the legitimate user being attacked.

2.3 Related Countermeasures

Since the discovery of XML Signature Wrapping at-

tacks by McIntosh and Austel, several countermea-

sures against them have been proposed and inten-

sively discussed in the last years. In fact, McIntosh

and Austel themselves discussed in their original pa-

per on XML Signature Wrapping attacks what re-

quirements a server-side security policy must contain

in order to uncover the attack. The ﬁnal policy in-

cluded assertions such as:

• a signature must be present in the security header

• the element speciﬁed by /soap:Envelope/

soap:Body must be referenced from the signature

• the element matching /soap:Envelope/

soap:Header/wsse:Security/wsu:Timestamp

must be referenced from the signature

• the signature veriﬁcation key must be provided by

an X.509 certiﬁcate issued by a trusted CA

In 2009 Gruschka and Lo Iacono showed with the

ﬁrst practical XML Signature Wrapping attack that

the proposed checks by McIntosh and Austel are not

sufﬁcient to effectively detect XML Signature Wrap-

ping attacks (Gruschka and Lo Iacono, 2009).

Bhargavan, Fournet and Gordon also used secu-

rity policies for fending XML Signature Wrapping

attacks. They developed a formal model for pol-

icy veriﬁcation (Bhargavan et al., 2005a) and derived

from these results a policy adviser (Bhargavan et al.,

2005b) for testing and generating security policies.

They use an abstract policy language for prooﬁng se-

curity properties and map between this proprietary

language and WS-SecurityPolicy (Kaler and Nadalin,

2005). The policy adviser proposes the following se-

curity assertions:

• Mandatory Elements: wsa:To, wsa:Action,

soap:Body.

• Signed Elements: all mandatory,

wsa:MessageID, wsu:Timestamp.

• Recommended: use of X.509 certiﬁcates for au-

thentication.

The security requirements for an incoming mes-

sage to the Amazon EC2

service are not stated as a

formal security policy but in a human readable form.

These requirements are:

• Mandatory Elements: wsu:Timestamp,

soap:Body, wsse:BinarySecurityToken

containing X.509 certiﬁcate.

• Signed Elements: wsu:Timestamp, soap:Body.

One can see that the Amazon security policy ful-

ﬁlls the requirement from Bhargavan et al. except

for the WS-Addressing (Gudgin et al., 2006) require-

ment, which have no inﬂuence on this attack (as AWS

does not honor WS-Addressing headers). But despite

the fact that these requirements were formally proven,

obviously such a pure policy-driven approach is not

sufﬁcient for mitigating signature wrapping attacks.

The gap between the formal policy requirement and

a real-world policy checking application can still be

misused for attacks. A further problem with the pol-

icy adviser approach is that strong restrictions to the

security policy are made. For example a lot of el-

ements are claimed as mandatory and the signature

of the body is absolutely required which reduces the

ﬂexibility of SOAP security mechanisms. However,

this is supposably not a restriction for most practical

applications.

Most XML Signature Wrapping attacks modify

the structure of the original message from the legit-

imate sender in some way. In the example attack

http://aws.amazon.com/ec2

XSpRES-RobustandEffectiveXMLSignaturesforWebServices

189

described in Section 2.2 a second SOAP body is in-

serted by the attacker while the original one is be-

ing relocated into the SOAP header. Therefore, Ra-

haman, Schaad and Rits introduced a method—called

inline approach—to protect some key properties of

the SOAP message structure (Rahaman et al., 2006).

In this system some characteristic information are col-

lected over the SOAP message and inserted into a new

element called SOAP Account. This element is added

to the SOAP header and additionally signed by the

sender. The protected properties are:

• Number of child elements of soap:Envelope.

• Number of child elements of soap:Header.

• Number of references in each signature.

• Successor and predecessor of each signed object.

If an attacker changes the structure of the mes-

sage in a way that one of these properties are mod-

iﬁed the attack can be uncovered. This is for exam-

ple true for the example attack given in Section 2.2.

The number of child elements of the SOAP header is

changed from one to two. Thus the usage of the inline

approach would have detected this attack. Nonethe-

less, this protection method has some disadvantages.

First, the introduced SOAP Account element as well

as the veriﬁcation of this element is not standardized.

Thus, it can for example not be claimed by a WS-

SecurityPolicy (Lawrence and Kaler, 2007). Second

and more importantly, this method does not generally

protect from XML Signature Wrapping attacks. If an

attacker is able to modify the message structure while

keeping the structure properties the inline approach

can be circumvented as has been shown by Gajek,

Liao and Schwenk in (Gajek et al., 2007). They im-

prove the above discussed inline approach, but for this

improved version the just mentioned disadvantages—

especially the standardization issue— still remain.

The authors of (Gajek et al., 2007) give in their

paper some more solution ideas for fending XML

Signature Wrapping attacks. The main idea is us-

ing the veriﬁcation component as a ﬁlter. In contrast

to common methods where the signature veriﬁcation

just returns a boolean value, here the result of the

transformation and canonicalization step is returned.

This ensures that the following processing entities in-

side the Web Service framework operate truly on the

message that was originally signed. One problem of

this approach—as already remarked by the authors—

is that the Web Service cannot operate on the SOAP

envelope as a single well-formed message document

but only on parts of the message which may also be

divided into a forest of message trees. This problem

can be solved by passing the signed elements together

with its parent nodes as a spanning DOM tree to the

business logic part of the Web Service. This works

only, if the signature transformation does not change

the content of the elements. But even this improved

version is inadequate if the Web Service operates on

signed as well as on unsigned parts of the SOAP mes-

sage. In this case the signature component cannot op-

erate as a ﬁlter.

Until 2009 this research work was mainly treated

as theoretical, due to the rare usage of WS-Security

in sensitive applications and the absence of a real-life

XML Signature Wrapping attack. In 2009 it was dis-

covered, that Amazon’s Cloud services were vulner-

able to XML Signature Wrapping attacks (Gruschka

and Lo Iacono, 2009). Using a variation of the attack

example presented in Section 2.2 an attacker was able

to perform arbitrary operations in the Cloud on behalf

of a legitimate user. A number of related results have

been published in the following, leading to the dis-

covery of novel attack instances (Somorovsky et al.,

2011).

Along with these developments, novel defense

techniques have been proposed. In (Gajek et al.,

2009) the authors turn toward a major charac-

teristic of the XML Signature Wrapping attack,

which is the missing conﬁdence of location in-

formation when using ID-based references to link

the XML Signature metadata to its signed con-

tent. Since the ID attribute does not provide any

details on the signed content’s location in the doc-

ument (and sometimes not even on its property

of uniqueness), the default referencing scheme

possess major challenges with respect to XML

Signature Wrapping attacks. Hence, the use of a

location-aware referencing scheme is favorable. With

XML Signature, this can be achieved using XPath

expressions for referencing. For instance, an XPath of

/soap:Envelope/soap:Header/wsse:Security/wsu:Time

stamp leaves little doubt on which part of the XML

document is intended to be protected by a digital

signature. Furthermore, an attacker can only trick this

reference in an XML Signature Wrapping attack if he

manages to trick the XPath evaluation into mapping

to another XML subtree than anticipated—a way

more challenging task as compared to moving an

ID-equipped subtree to an arbitrary location within

the XML document tree as has been used in the above

example.

A critical issue with respect to XPath-based ref-

erencing is the robustness of the actual XPath ex-

pression. For instance, an XPath expression of

//*[@ID="foo"] is a valid XPath expression, but

is equivalent to an ID-based reference with respect

to XML Signature Wrapping attempts. As analyzed

in (Gajek et al., 2009), the most favorable subset of

XPath when it comes to XML Signature Wrapping

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

190

Web

Service

Client

Web

Service

Server

http://server

XSpRES

Client

Gateway

http://gateway

SOAP

XSpRES

Server

Gateway

http://gateway

SOAP

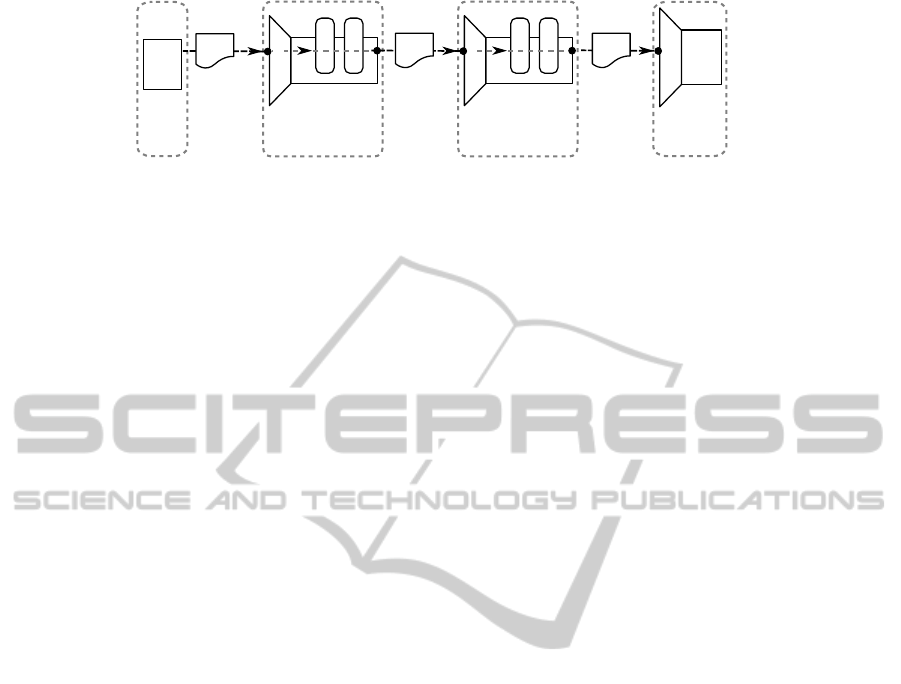

Figure 3: XSpRES Architecture overview.

robustness is the subset called FastXPath, which pro-

hibits the use of several potentially vulnerable XPath

properties. For instance, the use of so-called wildcard

axes such as descendant:: are prohibited, since they

allow an attacker to move the referenced XML frag-

ment arbitrarily within the range of that XPath loca-

tion step. Analogously, the use of position indica-

tor predicates is mandatory in FastXPath. An XPath

of /soap:Envelope[1]/soap:Body[1] clearly se-

lects exactly one—the ﬁrst—child element of match-

ing name, thereby fending XML Signature Wrapping

attacks that use element duplication (as e.g. used

against Amazon EC2 in (Gruschka and Lo Iacono,

2009)).

In (Jensen et al., 2011) the authors introduce

and evaluate the possibility of hardening the XML

Schema in conjunction with XML Schema validation

to construct an effective protection against XML Sig-

nature Wrapping attacks. The authors identiﬁed the

following weak deﬁnitions in the SOAP Schema:

• Element: xs:any allows an element to have any

kind of child elements, which are not deﬁned by

any schema. The main idea of this is to have an

extensible layout, e.g. the SOAP Header can have

any not yet deﬁned child elements (reserved for

future use).

• Attribute: processContents="lax" instructs

the validator to only process the content if an

XML Schema for it is present, otherwise just

leave it out. A more drastically direction is

processContents="skip" which causes simply

no validation.

• Attribute: namespace="##any" and

namespace="##other" allows the usage of

elements from any, respectively from any but its

parents namespace.

Each of these nodes allows an attacker to inject

own elements, e.g. to place a XML Signature Wrap-

ping element. To eliminate this leakage, each in-

struction is removed from the hardened Schema by

substituting it directly with the needed Schema parts

(e.g. WS-Security). This constricts the whole docu-

ment to deny any user-deﬁned elements. It has been

shown that XML Schema validation with a hardened

XML Schema is capable of fending XML Signature

Wrapping attacks, but bears some pitfalls and disad-

vantages amongst which the increased resource con-

sumption is the biggest obstacle.

This analysis of the related work can be concluded

by noting the fact, that the XML Signature Wrapping

attack has been moved from a hypothetical to a practi-

cal security threat which needs to be urgently targeted

and that there is no comprehensive approach avail-

able which provides the required protection against

this attack in a standard-compliant and effective man-

ner. This lack is targeted by XSpRES as will be intro-

duced in the following.

3 THE XSPRES APPROACH AND

ARCHITECTURE

As can be seen from the discussions on available

countermeasures, several proposals for fending the

XML Signature Wrapping attack threat exist. Unfor-

tunately, each countermeasure has shown to become

ineffective at some point for certain XML Signature

Wrapping attack variations. Hence, in order to estab-

lish a robust protection, it is necessary to combine a

suitable subset of these countermeasures to come up

with a holistic, integrated approach.

3.1 Attack Model

An initial step for the development of such a holistic

defense architecture against XML Signature Wrap-

ping attacks consists in the deﬁnition of a formalized

model for the attack scenario. Based on the existing

previous work presented in (Gajek et al., 2009; Jensen

et al., 2009), and derived from the semi-formal Web

Services Attacker Model described in (Jensen, 2011),

the scenario model for the XML Signature Wrapping

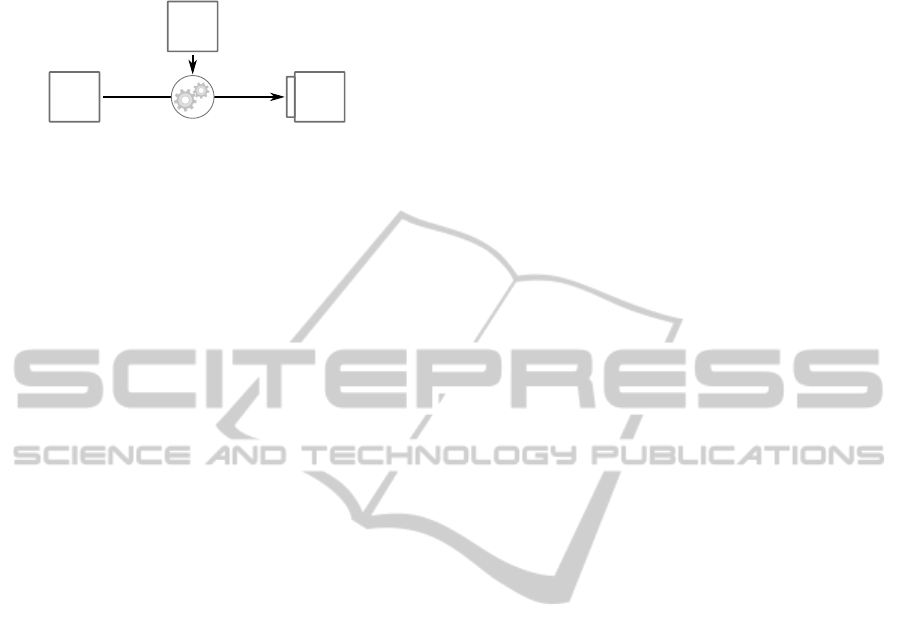

attack consists of three main entities: (1) a Web Ser-

vice client, (2) a Web Service server (3) and an exter-

nal attacker (cf. Figure 4). The attacker is assumed to

be able to access and alter XML messages exchanged

between the Web Service client and the Web Service

server, but is not able to interfere with the client-side

or server-side implementations of the Web Services

XSpRES-RobustandEffectiveXMLSignaturesforWebServices

191

software stack directly.

Web

Service

Client

Web

Service

Server

Attacker

Figure 4: Attack Model for XML Signature Wrapping.

Based on this abstract yet formal scenario model,

the XSpRES approach derives the ability to extend the

Web Service stacks at both Web Service client and

Web Service server arbitrarily, as long as these ex-

tensions remain within the particular trusted domain

and outside of the scope of the attacker. Thus, the

XSpRES architecture introduces two new entities to

the scenario: a client-side extension and a server-side

extension. Depending on the real-world instantiation

of this model, these extensions can be realized as ad-

ditional modules in the particular Web Services soft-

ware stack or as external gateways interlinked to the

network connection between client and server. For

the proof-of-concept implementation of the XSpRES

approach (which is discussed in detail in Sections 4, 5

and 6) the realization as gateways has been chosen, as

shown in Figure 3.

Either way, the two new entities are responsible

for performing a set of additional processing and ver-

iﬁcation steps in relation to the creation and veriﬁca-

tion of signed XML messages.

3.2 Client-side Approach

Though XML Signature Wrapping attacks commonly

only affect the Web Service server operations, there

nevertheless exists the need to consider also the Web

Service client-side to improve the overall robustness

of the secured XML-based communication. The goal

of the XSpRES client-side processing is to bind the

XML Signature in the course of signature creation

as uniquely and strongly as possible to its referring

content. This is achieved by chaining a set of sep-

arate modules, which seamlessly integrate into the

client-side Web Service processing ﬂow. The devel-

oped modules deal with Referencing Veriﬁcation, Pre-

ﬁx Transformation and the Signature Creation itself

(cf. Figure 5). Each of these components is described

in detail in Section 4.

3.3 Server-side Approach

In correspondence with the client-side approach, the

server-side Web Service processing ﬂow is extended

using an integrated architecture of ﬁve modules that

protect the server-side implementation from being

compromised by a XML Signature Wrapping attack.

The goal of the XSpRES server-side processing is to

extend the veriﬁcation steps to include checks on the

message structure and to evaluate the strict and unique

binding enforced by the client-side modules. The de-

veloped modules deal with the tasks of Denial of Ser-

vice Detection, XML Schema Validation, Referencing

Veriﬁcation, Preﬁx Transformation and the XML Sig-

nature Veriﬁcation itself (cf. Figure 6). Each of these

modules is described in detail in Section 5.

3.4 Backwards Compatibility and

Standards Compliance

An important characteristic of the XSpRES archi-

tecture is the backward compatibility, meaning that

all parts of the XSpRES architecture are able to

handle communication not originating from another

XSpRES-instrumented client or server. More pre-

cisely, the server-side XSpRES extension is able to

process arbitrary types of XML Signatures, even if

they originate from a different XML Signature cre-

ation framework than the XSpRES client-side mod-

ules. Vice versa, the XML Signatures generated by

the XSpRES client-side modules remain fully com-

pliant to the XML Signature speciﬁcation, hence can

also be veriﬁed by any other XML Signature veriﬁ-

cation implementation, even if it is not following the

XSpRES approach.

However, obviously, the effectiveness of the

XSpRES defense against the XML Signature Wrap-

ping attack is reduced drastically by using non-

XSpRES components at either side, since this breaks

the comprehensiveness of XSpRES falling back to the

present state of the art.

4 THE XSPRES CLIENT-SIDE

MODULES

The XSpRES client-side modules ensure the creation

of secure signatures. Figure 5 illustrates the process

ﬂow. At ﬁrst, the WS-SecurityPolicy is veriﬁed to

only use FastXPath expressions. Afterwards, those

expressions are transformed to their preﬁx-free equiv-

alent. Finally, the document is signed using standard

mechanisms but building on the previous processing

steps.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

192

SOAP

XSpRES Client Gateway

http://gateway

SOAP

Referencing

Verification

Signature

Creation

Prefix

Transformation

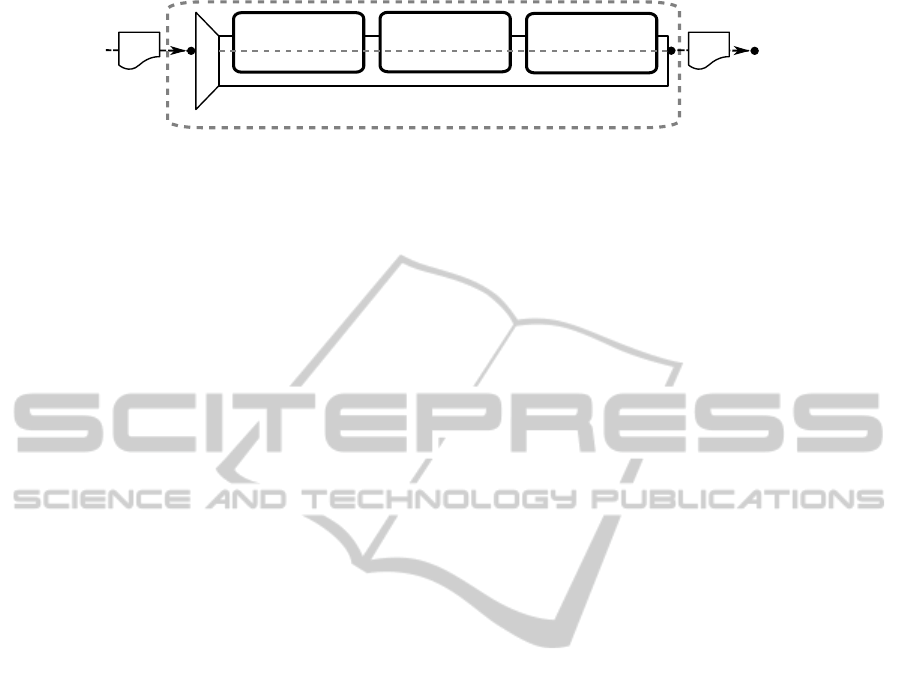

Figure 5: The XSpRES client-side modules and message processing ﬂow.

4.1 Referencing Veriﬁcation

As discussed in Section 2.3, when sticking to the

FastXPath subset deﬁned in (Gajek et al., 2009), the

robustness of the resulting XML Signatures against

XML Signature Wrapping is improved signiﬁcantly.

XSpRES integrates FastXPath-based referencing on

the client-side for binding the XML Signature meta-

data more tightly to its signed contents.

The Referencing Veriﬁcation module of the

XSpRES client-side is not directly accessing the

SOAP messages, but is merely used to preprocess the

WS-SecurityPolicy ﬁle that deﬁnes which parts of the

bypassing SOAP messages are to be signed. Com-

monly, the WS-SecurityPolicy document is created

and provided by the Web Service server, describing

its expectations with respect to signed parts in SOAP

messages it is targeted with. Hence, it acts as a basis

for determining the parts-to-be-signed at the client-

side. However, if the XPath expressions given in the

WS-SecurityPolicy ﬁle are not following the FastX-

Path grammar as discussed above, their effectiveness

in terms of fending XML Signature Wrapping attacks

are reduced. Thus, this module’s task is to preprocess

all XPath expressions given in the server-provided

WS-SecurityPolicy document, verifying that all of

the contained XPath expressions strictly stick to the

FastXPath grammar. If the WS-SecurityPolicy ﬁle

fulﬁlls this requirement, it is used in the FastXPath-

based referencing module introduced previously, sim-

ply by using the FastXPath expressions from the WS-

SecurityPolicy document as the reference in the XML

Signatures created. Otherwise, the module throws an

error and stops the client gateway.

4.2 Preﬁx Transformation

As pointed out in (Jensen et al., 2009), the use of

XPath in conjunction with XML namespaces has its

issues, potentially leading to an exploitable XML Sig-

nature Wrapping vulnerability despite the existence

of a strict XPath expression for referencing. By bind-

ing the same namespace preﬁx to different namespace

URIs at different locations within a signed SOAP

message document, the server-side processing stack

can be misled into a XML Signature Wrapping attack,

even when using a strict FastXPath expression.

The Preﬁx Transformation module trans-

forms the FastXPath expressions from the server-

provided WS-SecurityPolicy into an equivalent,

but preﬁx-free variant. The FastXPath expression

of /soap:Envelope[1] gets e.g. transformed

into the semantically equivalent XPath expres-

sion of /*[local-name()="Envelope" and

namespace-uri()="http://www.w3.org/2003/05/

soap-envelope"][1]. As can be seen, the prob-

lematic use of the soap: preﬁx is resolved into an

equivalent representation holding the full namespace

URI of the SOAP speciﬁcation. Hence, binding the

soap: preﬁx to another namespace URI does no

longer affect the result of the transformed XPath

expression, protecting against the XML Signature

Wrapping threat of Namespace Injection as described

in (Jensen et al., 2009).

In principle, it would be a valid approach to use

the transformed version of the FastXPath expressions

already within the WS-SecurityPolicy document it-

self, however, due to limited readability and consid-

erations in respect to available tools, the XSpRES

prototype sticks to the presented XPath transforma-

tion approach. This implies, that after the success-

ful FastXPath compliance veriﬁcation of each XPath

expression extracted from the server-provided WS-

SecurityPolicy, this expression is transformed into the

preﬁx-free notation, and then used directly within the

created XML Signature as XPath Filter2 referenc-

ing expression. Thereby, it can be guaranteed that

a location change of a signed XML subtree within

a SOAP message automatically causes an invalida-

tion of the respective XML Signature. Even with-

out a server-side defense mechanism, this approach

provides already an effective protection against nu-

merous XML Signature Wrapping attack variations.

However, since the server-side application logic itself

might not be implemented in a way that recognizes

and uses the same ﬁxed position as input for its oper-

ations, XML Signature Wrapping attacks remain pos-

sible even with using the preﬁx-free FastXPath ref-

erencing as outlined here. Thus, a strong server-side

defense is still required in addition, in order to further

reduce possible sources of errors and to decouple the

veriﬁcation processes from the application logic pro-

XSpRES-RobustandEffectiveXMLSignaturesforWebServices

193

cesses as much as possible.

4.3 Signature Creation

The Signature Creation module then creates the XML

Signature for the to be signed document parts. The

signature creation is in conformance with the corre-

sponding standards. To reach the targeted goal of a

more unique and strict binding of the signature to its

content all references are given as preﬁx-free FastX-

Path expressions.

5 THE XSPRES SERVER-SIDE

MODULES

The XSpRES server-modules use a modular chain of

detectors to identify an attack as early as possible.

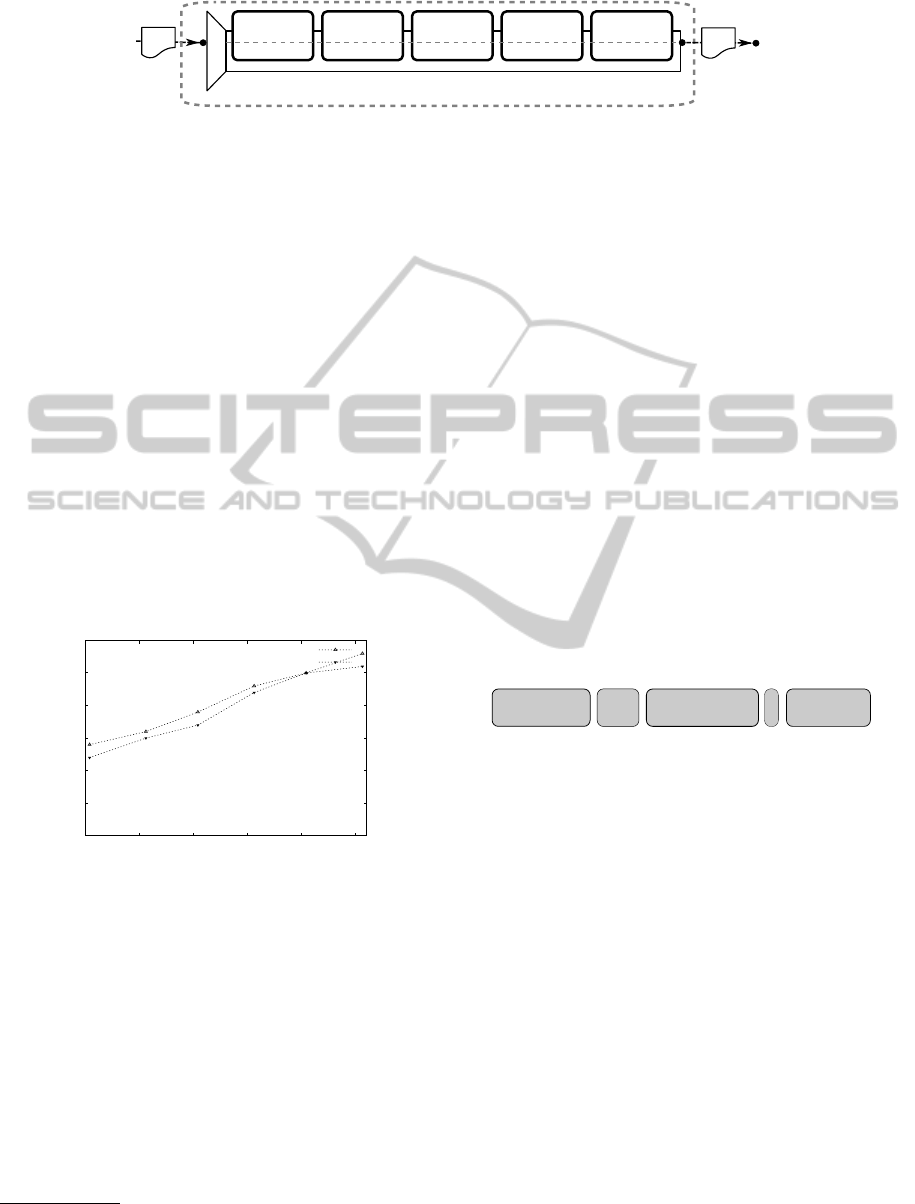

Figure 6 illustrates the processing ﬂow. First, the in-

coming message is processed by the DoS Protector

module to ensure that the XML document is of ﬁnite

length. The XML Schema Validator module uses a

hardened XML Schema to guarantee that there are

no unexpected elements. The Referencing Veriﬁca-

tion module and the Preﬁx Transformation module as-

sure that the signed parts are accessed by the correct

FastXPath expression and the XML Signature Veriﬁ-

cation module ﬁnally veriﬁes the signature.

5.1 DoS Detection

The DoS Detection module is not a required compo-

nent from the XML Signature Wrapping perspective,

but is a general must have protection. Such a DoS

detector ensures that the XML document is of ﬁnite

length and henceforth prevents the overﬂooding of the

machine’s memory – especially in the case in which a

DOM based parser is used, since each element in the

XML message is instantiated as an object in memory.

The XSpRES system includes a DoS detector and

uses it to also check on the appearance of ID at-

tributes. If an ID attribute occurs twice, the process-

ing of the message on the server-side is aborted. This

addition to the DoS Detector suppresses basic XML

Signature Wrapping attacks, in which the signed mes-

sage part is duplicated or moved (including the ID at-

tribute), in an very early processing stage.

5.2 XML Schema Validation

The XML Schema Validation module uses a hard-

ened XML Schema to validate the incoming SOAP

messages. This schema overrides the default XML

Schema for SOAP messages by removing any possi-

bility for placing arbitrary elements in the document

as described in (Jensen et al., 2011) and pointed out

in Section 2. The drawback of this approach is that

the schema validation of a hardened XML Schema is

slower compared to the standard one, as each element

must be validated. Therefore, the XSpRES imple-

mentation merges as few schemas as possible to min-

imize the total schema size. The considered schemas

include WS-Security, WS-Utilities, XML Signature,

XPathFilter2 and WS-Addressing (whereas the latter

might also be negligible depending on the require-

ments of the underlying application scenario).

Note, that the server gateway schema must be ad-

justed to the document structure of each to be pro-

tected Web Service, since the SOAP body element

does no longer allow xs:any child elements.

5.3 Referencing Veriﬁcation

The Referencing Veriﬁcation module veriﬁes the se-

curity policy. Therefore, it extracts the XPath ex-

pressions from a local policy ﬁle and, analogue to its

client-side complement, validates if these are valid

FastXPath expressions. This ensures that the hori-

zontal and vertical position of the signed fragments

is ﬁxed.

5.4 Preﬁx Transformation

Afterwards, the Preﬁx Transformation module trans-

forms the FastXPath expressions to their namespace-

free equivalents to prevent namespace injection at-

tacks.

In contrast to the corresponding client-side mod-

ule, the received message is checked in addition. An

incoming message is parsed and a lookup for a valid

Timestamp element is made. Thereafter, the ex-

pressions in the XPath element children of the sig-

nature’s Reference element are string-compared to

those transformed FastXPath expressions from the

policy ﬁle. This assures that both, the client and the

server side, use the same policy.

5.5 Signature Veriﬁcation

The XML Signature Veriﬁcation module simply veri-

ﬁes the XML Signature in the document. As the WS-

SecurityPolicy modules assures that the signed ele-

ments use the correct XPath expressions, the signed

fragments are horizontally and vertically ﬁxed, so that

no known attack moved these message parts.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

194

SOAP

XSpRES Server Gateway

http://gateway

SOAP

DoS

Detection

Schema

Validation

Signature

Verification

Referencing

Verification

Prefix

Transform

Figure 6: The XSpRES server-side modules and message processing ﬂow.

6 IMPLEMENTATION AND

EVALUATION

The implementation of each single XSpRES compo-

nent is realized by only standard Java libraries. The

client gateway acts as a simple HTTP server and signs

an incoming message by using the FastXPath expres-

sions extracted from a local policy ﬁle. These expres-

sions are validated and transformed as described in

Section 3.2. The signed message is afterwards for-

warded to the server gateway.

The server gateway is based on the Apache Axis2

Web Services Framework and the XSpRES compo-

nents are integrated as an Axis2 module. Thus, by

this integration method, the XSpRES module can re-

place the signature veriﬁcation of the commonly used

Apache Rampart

security module.

0 50 100 150 200 250

Runtime (in ms)

Document Size (in KB)

XSpRES

Rampart

Figure 7: Runtime comparison of XSpRES and Rampart.

Figure 7 compares the signature veriﬁcation of

the Rampart module with all security features of the

XSpRES prototype. The setup uses an AMD Athlon

II X3 440 Processor with 4GB RAM.

Both, the XSpRES and the Rampart module do se-

mantically the same: They validate the timestamp in

the message header and verify the signature over the

Timestamp element as well as the SOAP body ele-

ment. The technical difference is that Rampart uses

two ID-based references, one for the timestamp and

the other for the SOAP body. XSpRES instead uses

http://ws.apache.org/axis2/

http://axis.apache.org/axis2/java/rampart/

only one reference which selects both elements with

the transformed FastXPath expressions from the pol-

icy ﬁle.

The measurement of the time required to verify

the signature starts after the HTTP request has been

received and ends just before the veriﬁed message is

forwarded to the application logic. The processing

time is then computed as the average of 1000 mes-

sages. The measurements have been conducted for

different message sizes.

As can be seen from the visualized evaluation re-

sults given in Figure 7 both modules operate approx-

imately equal in speed, but the Rampart module has

the lack of the additional security features in relation

to XML Signature Wrapping attacks. It is also no-

table, that the runtime for Rampart is the same for

any kind of invalid messages, whereas the XSpRES

module will abort the veriﬁcation process in an early

stage if the message violates the schema or the policy.

Schema

Validation

DoS Detection

Policy

Validation

Signature

Verification

Object

Conversation

7ms

3ms

8ms

1ms

6ms

Figure 8: Runtime analysis of single XSpRES components

for a 200KB message.

A detailed runtime analysis for each XSpRES

component is shown in Figure 8 for one common

message size. The DoS detection takes 7ms although

the StAX parser has to process the whole document.

The DOM based Schema validation needs only 3ms,

because the instantiation of the XMLSchemaFactory,

which processes the Schema ﬁles, is done once in the

startup phase and thus saves 9ms per validation. The

signature component can be divided into three parts:

The slowest part is the conversion from the Axis2 Ob-

ject Model to a Java Document Object. The policy

validation is extremely fast, as it just searches for the

transformed FastXPath expressions in the Reference

element and string-compares them to those in the lo-

cal policy ﬁle. The signature validation requires 6ms.

In its current implementation, XSpRES uses the com-

mon DOM-based processing model. In future work,

this will be replaced by a faster streaming-based sig-

nature validation (Gruschka et al., 2011; Somorovsky

XSpRES-RobustandEffectiveXMLSignaturesforWebServices

195

et al., 2010).

It must be mentioned, that the XSpRES proto-

type implementation is focused on security and not

on efﬁciency in the ﬁrst place. Nevertheless, Figure 7

shows that it is comparable to the Rampart security

module. One reason for this is, that XSpRES is very

light-weight, i.e., it is only capable of handling dig-

ital signatures. Rampart, in contrast, is much more

complete in the sense of standards-compliance, in-

cluding features such as encryption, username token,

which impacts on the time required for signature ver-

iﬁcation. On the other hand, the processing time of

the XSpRES modules can be improved signiﬁcantly.

By aligning the object models of the various deployed

Java components, the need for the costly object con-

version would be eliminated, reducing the processing

time by one third.

7 CONCLUSIONS

The use of SOA and Cloud concepts for the construc-

tion of distributed applications handling more and

more sensitive data is on the rise. XML is playing an

important role in such applications, since it is used for

encoding data at rest as well as data in transit. The se-

curity demands coming with the processing and stor-

age of sensitive data rely on robust and effective se-

curity technologies. Recent discoveries showed that

the XML Security speciﬁcations include serious ﬂaws

and thus can currently not fulﬁll the required protec-

tion levels readily.

This paper contributes a comprehensive approach

to face these vulnerabilities providing an architec-

ture which compiles a set of inter-linked protec-

tion mechanisms for the client-side as well as the

server-side. The selection and composition of the

protection means have been guided by the require-

ments to realize the targeted architecture in an ef-

fective, but still standard-compliant and cost efﬁcient

way. Based on this ground work, an open-source

XML Signature Wrapping attack protection library

has been implemented, which is robust against all

known instances of the XML Signature Wrapping at-

tack and thus provides a vehicle to generate and verify

signed XML documents and messages in a fail-safe

and standard-compliant manner. The seamless inte-

gration of the developed library into standard Web

Services frameworks has been another requirement,

enabling—amongst others—to evaluate the develop-

ments in a common SOAP setting. The obtained re-

sults emphasize that the proposed approach fulﬁlls

the targeted goals and provides an effective protec-

tion against XML Signature Wrapping attacks at low

computational extra costs and by still being standard-

compliant.

Future work will target the publishing of the pre-

sented XML Signature Wrapping protection library

XSpRES. Additionally, a more in-depth and formal

analysis of the protection provided by XSpRES in

case of not yet known variations of the XML Signa-

ture Wrapping attack will bexy performed.

ACKNOWLEDGEMENTS

This work was funded by the Federal Ofﬁce for Infor-

mation Security in Germany (BSI) under the contract

number 882/2010.

The authors would like to thank Holger Junker and

Juraj Somorovsky for many fruitful discussions and

their valuable input.

REFERENCES

Bartel, M., Boyer, J., Fox, B., LaMacchia, B., and Simon, E.

(2008). XML Signature Syntax and Processing. W3C

Recommendation.

Bhargavan, K., Fournet, C., and Gordon, A. D. (2005a). A

semantics for Web Services authentication. Theoreti-

cal Computer Science, 340(1):102–153.

Bhargavan, K., Fournet, C., Gordon, A. D., and O’Shea, G.

(2005b). An advisor for Web Services Security poli-

cies. In SWS ’05: Proceedings of the 2005 Workshop

on Secure Web Services, pages 1–9, New York, NY,

USA. ACM Press.

Gajek, S., Jensen, M., Liao, L., and Schwenk, J. (2009).

Analysis of signature wrapping attacks and counter-

measures. In ICWS, pages 575–582.

Gajek, S., Liao, L., and Schwenk, J. (2007). Breaking and

ﬁxing the inline approach. In Proceedings of the 2007

ACM Workshop on Secure Web Services (SWS’07),

pages 37–42, Fairfax, Virginia, USA. Association for

Computing Machinery.

Gruschka, N., Jensen, M., Lo Iacono, L., and Luttenberger,

N. (2011). Server-side streaming processing of ws-

security. IEEE T. Services Computing, 4(4):272–285.

Gruschka, N. and Lo Iacono, L. (2009). Vulnerable Cloud:

SOAP Message Security Validation Revisited. In

ICWS ’09: Proceedings of the IEEE International

Conference on Web Services, Los Angeles, USA.

IEEE.

Gudgin, M., Hadley, M., and Rogers, T. (2006). Web Ser-

vices Addressing 1.0 - SOAP Binding. W3C Recom-

mendation.

Imamura, T., Dillaway, B., and Simon, E. (2002). XML

Encryption Syntax and Processing. W3C Recommen-

dation.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

196

Jensen, M. (2011). Analysis of Attacks and Defenses in the

Context of Web Services. PhD thesis, Ruhr-University

Bochum.

Jensen, M., Liao, L., and Schwenk, J. (2009). The curse of

namespaces in the domain of xml signature. In SWS,

pages 29–36.

Jensen, M., Meyer, C., Somorovsky, J., and Schwenk, J.

(2011). On the effectiveness of xml schema valida-

tion for countering xml signature wrapping attacks. In

First International Workshop on Securing Services on

the Cloud (IWSSC 2011).

Kaler, C. and Nadalin, A. (2005). Web Services Security

Policy Language (WS-SecurityPolicy) 1.1.

Lawrence, K. and Kaler, C. (2007). Web Services Security

Policy Language (WS-SecurityPolicy) 1.2.

McIntosh, M. and Austel, P. (2005). XML signature ele-

ment wrapping attacks and countermeasures. In SWS

’05: Proceedings of the 2005 Workshop on Secure

Web Services, pages 20–27, New York, NY, USA.

ACM Press.

Rahaman, M. A., Schaad, A., and Rits, M. (2006). Towards

secure SOAP message exchange in a SOA. In SWS

’06: Proceedings of the 3rd ACM workshop on Se-

cure Web Services, pages 77–84, New York, NY, USA.

ACM Press.

Somorovsky, J., Heiderich, M., Jensen, M., Schwenk, J.,

Gruschka, N., and Lo Iacono, L. (2011). All your

clouds are belong to us security analysis of cloud

management interfaces. In Proceedings of the ACM

Cloud Computing Security Workshop (CCSW).

Somorovsky, J., Jensen, M., and Schwenk, J. (2010).

Streaming-based veriﬁcation of xml signatures in soap

messages. In Proceedings of the 2010 6th World

Congress on Services, SERVICES ’10, pages 637–

644, Washington, DC, USA. IEEE Computer Society.

Ticau, S.-A. (2010). Security – a centrail issue of the fu-

ture EU digital agenda. Service Oriented Architecture

pushed to the limit in eGovernment.

XSpRES-RobustandEffectiveXMLSignaturesforWebServices

197
