LIMITING DISCLOSURE FOR DATA STREAMS IN THE CLOUD

Wee Siong Ng, Huayu Wu, Wei Wu and Shili Xiang

Institute for Infocomm Research, A*STAR, Singapore, Singapore

Keywords:

Access Control, Limited Disclosure, Cloud Computing, Stream Data Management.

Abstract:

The rapidly increasing number of sensors and surveillance devices as well as the coming of age of pervasive

and cloud computing are fostering applications driven by real-time stream data management. As more and

more data stream processing engines (and services) will be deployed in the cloud, we feel it is critical to enable

the data stream owners to control who can access their data streams for what purposes under what conditions.

Therefore, we design an architecture to support data stream management in the cloud with privacy-preserving

capabilities. In this paper, we focus on one of the premier principles of data privacy, limited disclosure. We

design an access control framework, to deﬁne privacy policies and efﬁciently enforce these privacy policy

rules from stream-level to tuple-level granularity.

1 INTRODUCTION

The rapidly increasing number of sensors and surveil-

lance devices are generating tremendous amount of

streaming data to transform our physical world into

computingplatform. On the other hand, there is grow-

ing demand for applications from a large variety of

domains to consume these real-time data. This fuels

the need for real-time stream management. However,

data streaming environments are highly-demanding

environments, where issues such as the sheer size of

data, distributed and heterogeneous nature of data,

and dynamic rates of data make it challenging for

data providers and consumers to cope with (Golab and

Ozsu, 2003).

We believe that using cloud service (Vaquero

et al., 2008) to manage and process stream data is

promising for many existing and foreseeable appli-

cations thanks to cloud computing’s elasticity. For

example, multiple stream processing engine instances

can be deployed in multiple virtual machines to make

the stream engine’s capacity dynamically scale with

data stream rate (Knauth and Fetzer, 2011).

However, increasing privacy and conﬁdentiality

requirements impose a major obstacle. Very often,

stream data convey information related to individu-

als or information which are critical to organizations.

While companies collecting and processing sensitive

stream data (in the cloud) from users have realized

that they have to cope with privacy issues, what they

do is only showing a privacy policy statement to the

users and promise that they will only use the collected

informationaccording to the privacy policy. The users

do not have real control on how their data are used.

In our project, we endeavor to provide an archi-

tecture that supports data stream management in the

cloud with privacy-preserving capabilities. One focus

of our system is to provide data owners with the abil-

ity to control how their data is managed and used by

a particular organization or individual. Our system is

called HipCloudS, which extends the functionality of

traditional data stream management to satisfy Hippo-

cratic principles (Agrawal et al., 2002).

In the process of realizing the HipCloudS, we fo-

cus on providing limited disclosure. Out of the Hip-

pocratic principles, Limited Disclosure is one of the

most premier principles of data privacy. The limited

disclosure principle is based on the premise that a

stream owner should be given total control over who

is accessing his/her data, under which circumstances

and for what purpose. That is, the system is not al-

lowed to release any information to a user without

the owner’s approval. Limiting disclosure is partic-

ularly critical to ease data owners’ reluctance to pro-

vide their data.

In our system, data stream owner speciﬁes pri-

vacy policies, and these policies are thereafter en-

forced with respect to all data access. Privacy poli-

cies are expressed in high-level privacy speciﬁcation

languages. Essentially, a privacy policy is comprised

of a set of rules that describe which part of data may

be disclosed to who (the users) and how the data may

574

Ng W., Wu H., Wu W. and Xiang S..

LIMITING DISCLOSURE FOR DATA STREAMS IN THE CLOUD.

DOI: 10.5220/0003927005740579

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 574-579

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

be used (the purposes). Additional conditions may be

speciﬁed to govern disclosure as well.

We adopt an approach similar to EPAL (Enter-

prise Privacy Authorization Language) (Ashley et al.,

2003) to design an access control model. However,

our access control model is different from EPAL in

that our model is speciﬁcally designed for an open

platform (e.g., cloud) where there are many data

stream owners and many data stream consumerswhile

EPAL is designed for an individual enterprise. Each

data stream owner manages his/her own access con-

trol policies for his/her own data stream. This work

also differs from EPAL in that we elaborate on the

management of the components in our access control

model and present our strategy of enforcing the access

control policies in a data stream query processing en-

vironment.

2 RELATED WORK

Lindner and Meier (Lindner and Meier, 2006) design

a ﬁltering operator and apply it to the stream query

processing results to ﬁlter the output based on relevant

access control policies. Similar to many other post-

processing approaches, performancebecomes the ma-

jor problem of this attempt, because a large set of use-

less intermediate result may be generated.

Nehme et al. (Nehme et al., 2008) embed secu-

rity policies into data stream, by security punctuations

(SPs). Their query processor analyzes the SPs in each

data stream, and enforces the policies during query

processing. This framework is further improved by

supporting dynamic access authorization of query is-

suers (Nehme et al., 2010; Nehme et al., 2009). Com-

pared to the ﬁltering approach, the punctuation-based

framework has better performance, as useless inter-

mediate result can be avoided.

Carminati et al. (Carminati et al., 2010) propose

another framework to enforce access control policies

for stream query processing. They model continu-

ous queries as graph of algebraic operators, and focus

on query rewriting to incorporate policies into query

graphs. Finally, the rewritten query graph can be

translated into different query languages according to

different stream query processors (Cao et al., 2009).

The difference between (Carminati et al., 2010) and

our system is that we use a different model for access

control policies, in which user roles, data categories

and query purposes are all modeled as hierarchies.

Our model is more comprehensive to cope with most

general cases in applications.

Recently, Raman and Thomas (Adaikkalavan and

Perez, 2011) argue that enforcing security checking

during continuous query processing, such as query

plan re-generation in (Nehme et al., 2008) and query

rewriting in (Carminati et al., 2010), may affect the

sharing of similar query execution. However, they

only offer a simple solution for sharing exactly the

same query, rather than sharing the same operator

across different queries. The latter is more general

for multi-query processing.

This work differs from existing work in that our

system focus on access control on data streams con-

tributed by many stream owners in an open (i.e.,

cloud) environment. In our access control model each

data stream owner can manage his/her own data cate-

gory and set access control policies at stream level, at-

tribute level, and tuple level. The way we enforce ac-

cess control policies is also unique: we check stream

level and attribute level access control conditions be-

fore a query is admitted to the system while enforcing

tuple-level conditions during query processing.

3 SYSTEM OVERVIEW

The design paradigm of the HipCloudS system is

based on Cloud Computing. Our system deploys the

SaaS (Software as a Service) paradigm and runs on

top of existing cloud provider’s PaaS (Platform as a

Service) or IaaS (Infrastructure as a Service) service

offerings. This approach enables the development of

Hippocratic data stream applications by providing a

set of Hippocratic Data Stream Service APIs to allow

data to be queried or analytic algorithms to be exe-

cuted (as indicated in Figure 1).

Due to space limit, we will only brieﬂy describe

the components that are closely related to access con-

trol in our system.

The Stream Producer and Stream Consumer com-

municate with the HipCloudS through Web Service

interfaces: Stream Producer Service and Stream Con-

sumer Service. While invoking a Stream Producer

Service, a user is allowed to use the Stream Deﬁni-

tion Language (SDL) statements to deﬁne the schema

of a new stream along with the privacy preferences

of the stream owner. On the other hand, a stream

consumer can invoke a Stream Consumer Service to

submit queries in the Stream Manipulation Language

(SML), e.g., an SQL query.

The Privacy Controller is the core of the privacy

policy enforcement unit to assure the compliance of

limited disclosure, and to enforce access control. Ba-

sically, it examines the set of queries for each purpose

in order to determine if any information is being dis-

closed violating the stream providers’ privacy policy.

LIMITINGDISCLOSUREFORDATASTREAMSINTHECLOUD

575

Application Layer

Hippocratic Data Stream Platform Core

Stream Manager Privacy Controller

Query Management

Fault Torelance

Cloud

Database

Service

API

Audit Unit

Catalogs

Summary Pool

Other Data Sources

Massive cloud data sources

available through common

interfaces

This layer executes against

the Cloud Service and calls

also algorithm against

propriety data or other cloud

data

These services allow data to

be queries or algorithms to

be executed

Multiple run-time instances

allow developers to use

common tools and reuse

existing algorithms

Stream Producer

Services

Stream Consumer

Services

Data Analytics Services

Hippocratic Data Stream Service API

Security and Privacy

Preference

Core Service API

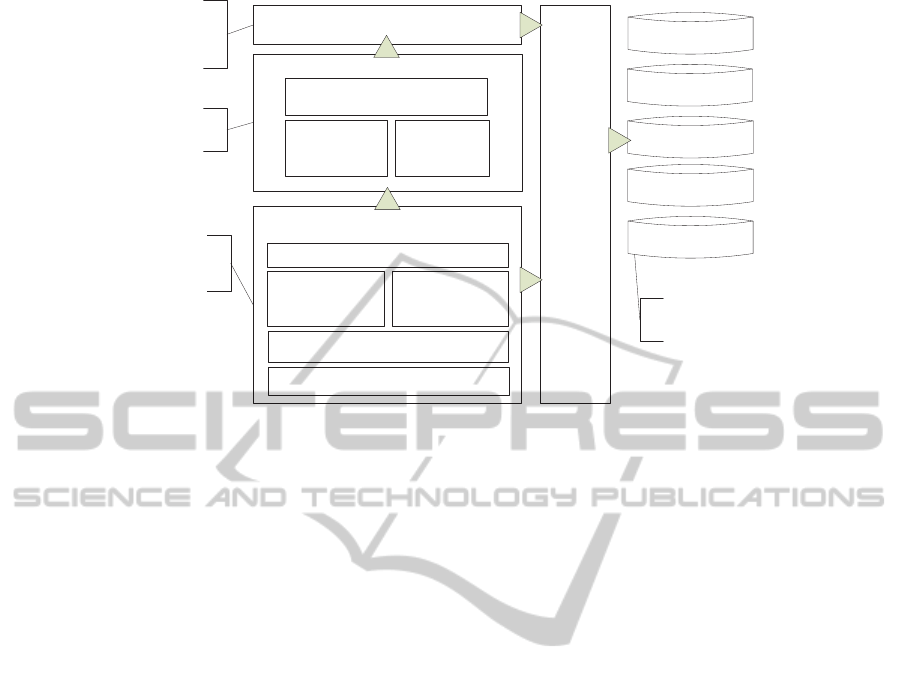

Figure 1: HipCloudS – A logical design.

4 PRIVACY CONTROLLER

In this section we describe the privacy controller in

our HipCloudS. In particular, we present the access

control model that we designed for limited disclo-

sure and privacy protection in HipCloudS, and brieﬂy

present how the access control policies are enforced

during query processing.

We will use the following taxi data stream in our

writing as a user case. CompanyX is a taxi service

provider. The taxis of this company are all equipped

with GPS devices. They periodically send their status

informationincluding time, longitude, latitude, speed,

and occupancy-status to our system as a data stream.

In this case, the stream is “taxi”, and we use “t”, “x”,

“y”, “v”, and “s” to refer to the the stream attributes.

The taxi company wants to share the taxi data stream

(since it is very useful in many applications) but at

the same time limit the disclosure of data to avoid po-

tential privacy problems. For example, they want to

make the data stream only available to trafﬁc man-

agement authority and to researchers in a speciﬁc de-

partment of a speciﬁc research institute.

4.1 Access Control Model

In our access control model, users and data are or-

ganized in hierarchical structures. The hierarchical

structures of users is called the user-category. The

hierarchical structures of data, including streams and

stream attributes, is called the data-category. Basi-

cally, the access control model enables a data stream

owner to specify who can access which part of his/her

data stream.

The other two important concepts in our data ac-

cess model are purpose-category and conditions. The

purpose-categoryis a classiﬁcation of data access pur-

poses. A stream owner can specify that a user can

access the data stream only for a speciﬁc purpose.

For example, the owner of the taxi stream can specify

that users from TrafﬁcAuthority can access this data

stream only for Trafﬁc-Management purpose. Condi-

tions are provided for data stream owners to set tuple-

level access control which is discussed below.

Our access control model supports three levels of

access control, namely stream-level, attribute-level,

and tuple-level access control. The stream-level ac-

cess control enables a stream provider (a.k.a. stream

owner) to grant the access to the stream to a group of

users or a speciﬁc user. The attribute-level access con-

trol empowers a stream owner to control the access to

stream attributes. The tuple-level access control lets a

stream provider grant access to speciﬁc stream tuples

satisfying certain conditions to a group of users or a

speciﬁc user. For example, the owner of the taxi data

stream can specify that user A can access the whole

taxi data stream, user B can access the latitude, longi-

tude and speed attributes of the taxi stream, and user C

can access the tuples in the taxi stream if the status of

the taxi is FREE. They are examples of stream-level,

attribute-level, and tuple-level access control respec-

tively.

4.1.1 Access Control Policies

In our access control model, a data stream owner con-

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

576

All

Transport

Authority

RoadUser Researcher

InstituteA UniversityN

DepartmentB DepartmentC

TaxiDriver

User category

Legends:

CompanyX

UserX1

DriverA DriverB

Staff1 Staff2 Staff3

Staff4

user

Figure 2: An example of a User-Category hierarchy.

trols the access to his/her stream data by setting access

control policies.

An access control policy is represented as:

User-category

data-category

purpose-category

conditions

It means the users under the speciﬁed user-

category can access the data under the speciﬁed data-

category for the speciﬁed purpose-category if the

speciﬁed conditions on stream tuples are satisﬁed.

While the user-category, data-category, and

purpose-category are necessary for an access control

policy, the conditions are optional. In our current data

access model, we require that the conditions (if given)

to be represented in SQL selection conditions syn-

tax, i.e., the expressions used in SQL WHERE clause.

For example, if the owner of taxi stream wants to set

a condition to only allow a user to access tuples in

which the speed of the taxi is less than 80km per hour,

he/she would write “taxi.v < 80” as the condition in

his/her access control policy.

Now we describe the user-category, data-category,

and purpose-category hierarchical structures. We will

also elaborate on who can manage these hierarchical

structures in our HipCloudS.

4.1.2 User Category

User category is modeled as a tree.

• Nodes of the tree are categories.

• Leaves of the tree are users.

• The root of the user-category tree is “All”.

Figure 2 shows an example of the user-category

hierarchical structure. Note that users are the leavesof

the tree. A user has the access privileges of all its an-

cestors. For example, if a stream owner speciﬁes that

CompanyXdata

by UserX1

taxi bus

t x y v t x y

MyGPS

by Staff2

t x y

Maritime

by userS

cruise container

Merry

t x y

Data category

created by user

stream

attribute

Legends:

Figure 3: An example of Data-Category hierarchies.

“Researcher” category can access his/her stream, then

user “Staff1” is allowed to access the data stream be-

cause “Staff1” is under the “Research” category. If a

stream owner wants to make her stream open to all the

users of the system, she can set “All” as user-category

in her access control policy.

The user-category is managed by HipCloudS sys-

tem administrator. When a user registers in the sys-

tem, its category is “All”. A user can request to

join a speciﬁc user-category. A user can also re-

quest the system administrator to create a new cate-

gory (e.g., “CompanyX”). The system administrator

can accept/reject the request. The system administra-

tor can assign a user to a speciﬁc category.

4.1.3 Data Category

Data-categories are modeled as a forest where the

stream owners can manage their own trees in the for-

est.

• A tree in the forest is a data-category.

• A stream itself can form a data-category, i.e., a

tree.

• A leaf of a tree is a stream attribute.

• Parent of a leaf is a stream.

• Parent of a stream, if applicable, is a category.

Data categories are created and managed by

stream providers. A stream owner can only set access

control policies for her own data-categories.

Figure 3 shows an example of data-categories.

In this example, three stream providers “UserX1”,

“Staff2”, and “userS” have created their own data-

categories. UserX1 created data categories for her

company’s data streams including taxi data stream

and bus data stream. The attributes in the taxi stream

include time (t), longitude (x), latitude (y), and speed

(v), and status (s).

Before a stream provider registers a stream in the

system, she can create data-categories and sub data-

categories. A stream provider can also choose not to

LIMITINGDISCLOSUREFORDATASTREAMSINTHECLOUD

577

All

TrafficManagement

Navigation

Research

Figure 4: An example of Purpose-Category hierarchy.

create data categories for her streams. In this case,

his/her streams are independent trees (in the forest)

and each tree forms its own data-category.

A data access policy speciﬁed on a node in a data-

category is applicable to all the nodes and leaves in

its subtree. For example, if user “UserX1” spec-

iﬁes that Researcher can access “CompanyXdata”,

then Researcher can access all the data under the

“CompanyXdata” category including taxi and bus

data streams and their attributes.

4.1.4 Purpose Category

The main objective of having the purpose category is

to record the purpose of each data access query so

that this information can be logged and audited when

necessary.

Purpose category is modeled as a Tree.

• Nodes of the tree are categories.

• The root of the purpose-category tree is “All”.

The purpose-category is managed by system ad-

ministrator. Figure 4 shows an example of a purpose-

category.

4.1.5 Specifying Access Control Policy

Access control policies are managed by stream

providers. A stream provider can only specify access

control policies for her own data-categories, streams,

and stream-ﬁelds. For example, user UserX1 (and

owner of data category CompanyXdata in Figure 3)

can specify the following access control policies:

DepartmentB, taxi, research, taxi.v

TransportAuthority, CompanyXdata,

traffic-management

The ﬁrst access control policy means that users

under the “DepartmentB” user category can access

the tuples in the “taxi” stream where speed (attribute

v) is less than 80km per hour for “research” pur-

pose. The second access control policy means that

users under the “TransportAuthority” can access all

the data under “CompanyXdata” category for “trafﬁc-

management” purpose.

As another example, user “Staff2” (i.e., owner of

data category MyGPS) can specify the following poli-

cies:

All, MyGPS, All, (hour(t)

8 AND

hour(t)

18)

This access control policy means that all users can

access the “MyGPS” stream for all purposes if the

time in data stream tuple if between 8am to 6pm. Note

that this condition is speciﬁed with the condition ex-

pression (hour(t)>8 AND hour(t)<18).

4.2 Enforcing the Access Control

Policies

Our system will enforce all the access control policies

set by the data stream owners. Here we brieﬂy present

our design for access control policies enforcement.

We differentiate stream-level access control and

attribute-level access control from tuple-level access

control. We enforce stream-level and attribute-level

conditions when a query is submitted to our sys-

tem for running. For tuple-level access conditions,

we combine the conditions with the original query

through query rewriting.

When a query (together with its purpose) is sub-

mitted to the system by a user for processing, a query

parser will ﬁrst check syntax and extract the stream

and stream attributes that the query will access. These

information together with the query will be passed on

to do stream-level (and attribute level) checking. This

phase of checking looks at the category of the user

who submitted the query, the data the query wants to

access, and the purpose of the query (given by the

query owner) and checks whether there is an access

control policy (speciﬁed by the stream owner) that al-

lows the query to be executed. If so, the query passes

the stream-level and attribute level checking.

The query rewriting function will check whether

the applicable access control policy has tuple-level

conditions. If so, they will be combined with the orig-

inal query to form a new query. Since the rewritten

query contains the tuple-level access control condi-

tions, the query engine will enforce these conditions

during query processing.

For example, user “Staff2” may submit the follow-

ing query to the system and select “Research” as the

purpose.

SELECT t, x, y FROM taxi WHERE

103.81 AND x

103.86

Our access control policy enforcement component

will ﬁnd out the the query wants to access stream

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

578

“taxi” and its attributes “t”, “x”, and “y”. Dur-

ing stream-level and attribute-level checking, our sys-

tem will ﬁnd out that the access control policy “De-

partmentB, taxi, research, taxi.v < 80” allows the

query to be executed, because user “Staff2” is under

user-category “DepartmentB”, and the stream and at-

tributes are under data-category “taxi”, and the pur-

pose is also allowed. The query rewriting function

then will transform the query to the following query

for execution.

SELECT t, x, y FROM taxi WHERE

103.81 AND x

103.86

AND v<80

Note that the condition “taxi.v < 80” in the access

control policy is attached to the query as another se-

lection condition. This makes the query processing

engine to help enforce the tuple-level access control

during query processing time.

The overhead on policy enforcement in our sys-

tem is acceptable. Based on our evaluation, the time

of stream/attribute-level policy checking, i.e., search-

ing user, data and purpose categories, is linear to the

number policies and is constant to the size (fanout and

height) of each category. For the tuple-level access

control enforcement, i.e., query rewriting to incorpo-

rate policy constraints, if the selectivity of original

query is high, policy checking will not bring in any

obvious overhead; if the query selectivity is not high,

the overhead of checking access control policy could

be either positive or negative, depending on the se-

lectivity of the policy. Due to space limit, we do not

describe our prototype implementation and detailed

performance evaluation result in this paper.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we propose a framework to provide lim-

ited disclosure to data stream management systems

deployed in cloud. The key concept of our design is to

incorporate a privacy policy enforcement component,

which is called privacy controller, into the normal

stream system. In our access control model, users,

data, and data access purposes are organized into hi-

erarchies. The access control model enables each

stream owner to specify who can access what data

for what purpose under what condition. All stream

level, attribute level, and tuple level access controls

are possible. The privacy controller enforces stream-

level and attribute-level access control immediately

when a query is registered into the system. By this

way, unauthorized access to particular streams and at-

tributes can be prevented at the very ﬁrst time. Then

tuple-level access control is achieved by query rewrit-

ing, i.e., adding tuple-level access control constraints

to original queries.

Another focus of our project is to make our Hip-

pocratic data stream system cloud friendly, i.e., make

it able to scale with elastic computing resources. To

this end, we are investigating the problem of deploy-

ing multiple instances of our Hippocratic data stream

system on multiple (virtual or physical) machines and

making them collaborate with each other to scale with

the dynamic stream rate and query processing load.

ACKNOWLEDGEMENTS

This work was supported by A*STAR Grant No. 102

158 0037.

REFERENCES

Adaikkalavan, R. and Perez, T. (2011). Secure shared con-

tinuous query processing. In SAC, pages 1000–1005.

Agrawal, R., Kiernan, J., Srikant, R., and Xu, Y. (2002).

Hippocratic databases. In VLDB, pages 143–154.

Ashley, P., Hada, S., Karjoth, G., Powers, C., and Schunter,

M. (2003). Enterprise Privacy Authorization Lan-

guage (EPAL 1.2). Technical report, IBM.

Cao, J., Carminati, B., Ferrari, E., and Tan, K.-L.

(2009). ACStream: Enforcing access control over data

streams. In ICDE, pages 1495–1498.

Carminati, B., Ferrari, E., Cao, J., and Tan, K. L. (2010).

A framework to enforce access control over data

streams. ACM Trans. Inf. Syst. Secur., 13:28:1–28:31.

Golab, L. and

Ozsu, M. T. (2003). Issues in data stream

management. SIGMOD Record, 32(2):5–14.

Knauth, T. and Fetzer, C. (2011). Scaling non-elastic ap-

plications using virtual machines. In IEEE CLOUD,

pages 468–475.

Lindner, W. and Meier, J. (2006). Securing the borealis data

stream engine. In IDEAS, pages 137–147.

Nehme, R. V., Lim, H.-S., and Bertino, E. (2010). FENCE:

Continuous access control enforcement in dynamic

data stream environments. In ICDE, pages 940–943.

Nehme, R. V., Lim, H.-S., Bertino, E., and Rundensteiner,

E. A. (2009). StreamShield: a stream-centric ap-

proach towards security and privacy in data stream en-

vironments. In SIGMOD, pages 1027–1030.

Nehme, R. V., Rundensteiner, E. A., and Bertino, E. (2008).

A security punctuation framework for enforcing ac-

cess control on streaming data. In ICDE, pages 406–

415.

Vaquero, L. M., Rodero-Merino, L., Caceres, J., and Lind-

ner, M. (2008). A break in the clouds: towards a

cloud deﬁnition. SIGCOMM Comput. Commun. Rev.,

39:50–55.

LIMITINGDISCLOSUREFORDATASTREAMSINTHECLOUD

579
