PaaS ELEMENTS FOR HOSTING SERVICE-BASED

APPLICATIONS

∗

Sami Yangui

1, 2

and Samir Tata

Institut Telecom, Telecom SudParis, UMR CNRS Samovar, Evry, France

Faculty of Science of Tunis, University Tunis El Manar, Tunis, Tunisia

Keywords:

PaaS, Service Deployment, Application Deployment.

Abstract:

Cloud Computing is a new supplement, consumption, and delivery model for IT services based on Internet

protocols. It typically involves provisioning of dynamically scalable and often virtualized resources. In this

environment, there are several issues related to the inadequacies of hosting platforms and mechanisms to

ensure the smooth developing and running of service-based applications (communication protocols, ESB,

Service containers, etc.). In this paper, we present a new comer of platform as a service (PaaS) based on

our already developed service micro-containers to avoid compatibility and portability constraints imposed by

classical Cloud platforms. Several platform use cases are discussed.

1 INTRODUCTION

Cloud Computing is a specialized distributed comput-

ing paradigm (Foster et al., 2008). It differs from tra-

ditional ones on the fact (1) it is massively scalable,

(2) it can be encapsulated as an abstract entity that de-

livers different levels of services to customers outside

the Cloud, (3) it is driven by economies of scale and

(4) can be dynamically conFigured (via virtualization

or other approaches) and delivered on demand.

As a part of our work, we focus on deploy-

ment and execution application aspects in the Cloud

especially for service-based applications. Taxon-

omy of Cloud Computing systems shows that all

the existing systems which supports service-based

application deployment and execution are limited

to a programming framework which makes the use

of those Clouds difﬁcult, since Cloud clients need

to use the related programming language before

using the Cloud (Rimal et al., 2009). For ex-

ample, Amazon imposes Amazon Machine Image

(AMI) and Amazon MapReduce framework (Ama-

zon, 2011), Force.com imposes Apex language for

database service (Force, 2011), Azure imposes Mi-

crosoft.Net (Microsoft, 2011), Google App Engine

imposes MapReduce programming framework (Dean

∗

The work presented in this paper was partially sup-

ported by the French FUI CompatibleOne project. http://

compatibleone.org/bin/view/Main/

and Ghemawat, 2004) (Engine, 2011), and so on.

Similarly, the same type of constraints are im-

posed on developers to deploy service-based applica-

tions in the Cloud raises often portability and com-

patibility issues. Concretely, Cloud providers tries to

diversify to the maximum the offered API to access

to their Cloud services. We can cite among other the

following APIs: Amazon API (Varia, 2011), GoGrids

API (GoGrid, 2011), Suns Cloud API (Sun, 2011) and

VMwares vCloud. However, no Cloud provider can

provide the all existing API for access and deploy-

ment in Cloud platforms and therefore cannot satisfy

all the portability and compatibility constraints that

can meet developers community in the Cloud. In this

paper, we propose a newcomer of platform as a ser-

vice (PaaS) which allows developers to deploy, host

and run service-based applications regardless of their

implementations and APIs. The paper is organised as

follows : Section 2 presents a state of the art of clas-

sical Cloud platforms. Our ﬁndings are discussed in

section 3. Finally, we conclude our paper and present

our future work in Section 4.

2 STATE OF THE ART

In this section, we present a state of the art of different

classical PaaS architectures. We are interested essen-

tialy on PaaS components and containers which inter-

476

Yangui S. and Tata S..

PaaS ELEMENTS FOR HOSTING SERVICE-BASED APPLICATIONS.

DOI: 10.5220/0003932204760479

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 476-479

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

venes in service deployment and execution processes

to study platforms behavior on deployment taks and

highlight API limitations support of these platforms.

Google offers Google App Engine (GAE) (En-

gine, 2011) is one of the platforms which offer de-

vlopement and deployment features for applications

coupled to the GAME API (Zahariev, 2009). Among

the interesting features that provide the platform,

there is a possibility to connect to the internal SI se-

curely. There is also Heroku PaaS which is optimized

for Web applications developement using Ruby and

Rack (Heroku, 2011). The functioning of Heroku is

quite simple: The infrastructure used is Amazon Web

Services (AWS) through Internet while the deploy-

ment and the management of applications is done us-

ing Git. Microsoft is also a main actor in Cloud PaaS

solutions. Microsoft Azure offers typical data storage

(SQL Azure Storage), running applications on Web

servers (IIS Web Role), an equivalentof Windows ser-

vices (Work Role), bus systems and data management

access (Microsoft, 2011).

We can also quote open source PaaS like Cloud

Foundry (Xebia, 2011), CloudBees (CloudBees,

2011) or OpenShift (OpenShift, 2011)

A comprehensivestudy of these platformsallowed

us to highlight limitations and constraints imposed by

classical PaaS to developer community. For exam-

ple, in CloudBees platform, RUN@CLOUD service

supports only languages that are based on JVM like

Scala, Clojure or Jruby, even if that there is one plat-

form user who deﬁne a Grails CloudBees plugin (Plu-

gin, 2011) and he still to maintain it regularly. Sim-

ilarly, the speciﬁc JVM and APIs offered by GAE

are not 100% standard and requires adapting applica-

tions to deploy to take advantage of the power of the

platform even if the API is high-level and a number

of common frameworks and JVM-based languages

are supported. Another limitation observed concerns

Microsoft Azure which supports only .NET applica-

tions. In addition to that, we note the restrictions

on platforms communication protocols and on bind-

ings implementations of deployed services. For ex-

ample, Router component from Cloud Foundry and

Reverse proxy component from Heroku allows only

HTTP messages ingoing and outgoing platforms.

Our objective is to propose a new comer of PaaS

which is independent of any API Cloud platform. To

do this, we have to resume our previous work on

micro-service containers. Service micro-containers

are scalable and come adress limitations of classi-

cal service containers in Cloud environments (Yangui

et al., 2011).

3 CLOUDSERV: A PaaS FOR

SERVICE-BASED

APPLICATIONS

In this section, we ﬁrstly explain brieﬂy our previous

works on scalable service micro-containers. Then, we

present our PaaS called CloudServ. We describe sev-

eral deployment scenarios using CloudServ. We ﬁrst

treat the case of simple construction and deployment

of an elementary service before moving to the case of

deploying a service-based applications.

3.1 Previous Work

As a part of our work, we deﬁned a new approach for

service-based application deployment and execution

on the Cloud. We designed a newcomer of service

containers which can be scalable (Mohamed et al.,

2011). We got the idea to create a service micro-

container that is able to contain not more than one

service. This micro-container provides the minimal

functionalities to manage the life cycle of the de-

ployed service. With this idea we have shown that we

used the minimal resources to encourage the pay as-

you-gomodel of Cloud Computing (Grossman, 2009)

and we could enforce the elasticity of Cloud because

we use just the resources needed. We have also con-

ducted conclusive experiments against classical ser-

vice containers (like Apache Axis2) to validate the

reliability and scalability on micro-containers (Yan-

gui et al., 2011).

Since we consider several types of services (lan-

guages, bindings, etc.), we are able to generate the

correspondent micro-container for each service to be

deployed. Micro-containers are built dynamically

from the deployment frameworkthat we have realized

as part of our work (Yangui et al., 2011).

As shown in (Figure 1) , each service micro-

container consists of three modules: (1) Communica-

tion module to establish communication and to sup-

port connection protocols, (2)Processing module to

process ingoing and outgoing data into and out of the

server (packing and unpacking data) and (3)Service

module to store and invoke the requested service.

In the following subsection, we show how micro-

containers are generated and deployed in order to de-

ploy elementary services on ClouServ. In subsection

3.3, we show how CloudServ support service-based

application deployment from deploying a set of ele-

mentary service compositions.

3.2 Elementary Service Deployment

Figure 1 presents our deployment framework. To de-

PaaSELEMENTSFORHOSTINGSERVICE-BASEDAPPLICATIONS

477

ploy an application in a micro-container, one must

mainly provide for the deployment framework two

elements: the application with all its components

(code, resources, etc.) and a deployment descriptor

that speciﬁes the container options to run the applica-

tion (Figure 2, action 1). Processing module analyzes

then the sources, detects the service bindings types

and associate to the service sources a communication

module implementing these bindings and a process-

ing module to run the service. The resulting code rep-

resents the generated micro-container code. It is com-

posed only of the necessary modules for the deployed

service, no more, no less (Yangui et al., 2011). The

framework generates then a micro-container which

hosts the service and implements its bindings regard-

less of its communication protocol support as long as

they are included in Generic communication package

(Figure 2, action 2).

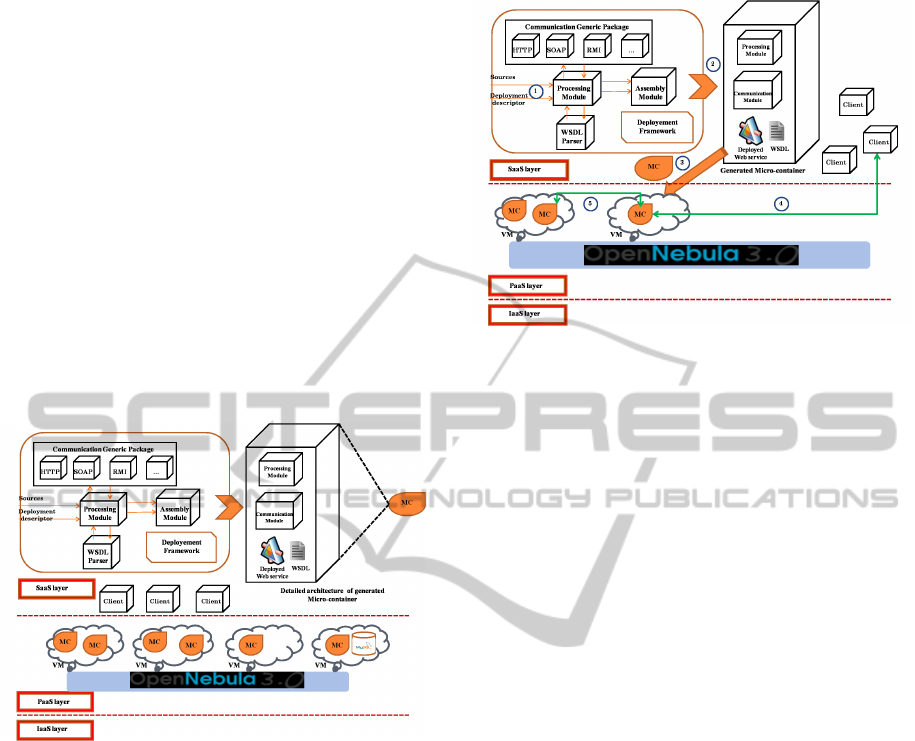

Figure 1: Global architecture of the performed system.

Henceforth we can proceed to the deployment

task. We deploy the obtained micro-container in one

of the created platform VMs (Figure 2, action 3). Af-

ter that, we can invoke it using a client from the SaaS

layer (Figure 2, action 4) or even from another de-

ployed micro-container on CloudServ (Figure2, ac-

tion 5).

Once deployed, the service is completely au-

tonomous. If it is invoked via its micro-container,

it runs locally and returns the execution result to the

requester before processing any other requests. The

Cloud platform we used is very simple. It consists

of a set of VMs created using OpenNebula from IaaS

layer resources as described in Figure 2.

3.3 Application Deployment

For service-based applications deployment on Cloud-

Serv, we proceed by decomposing the application into

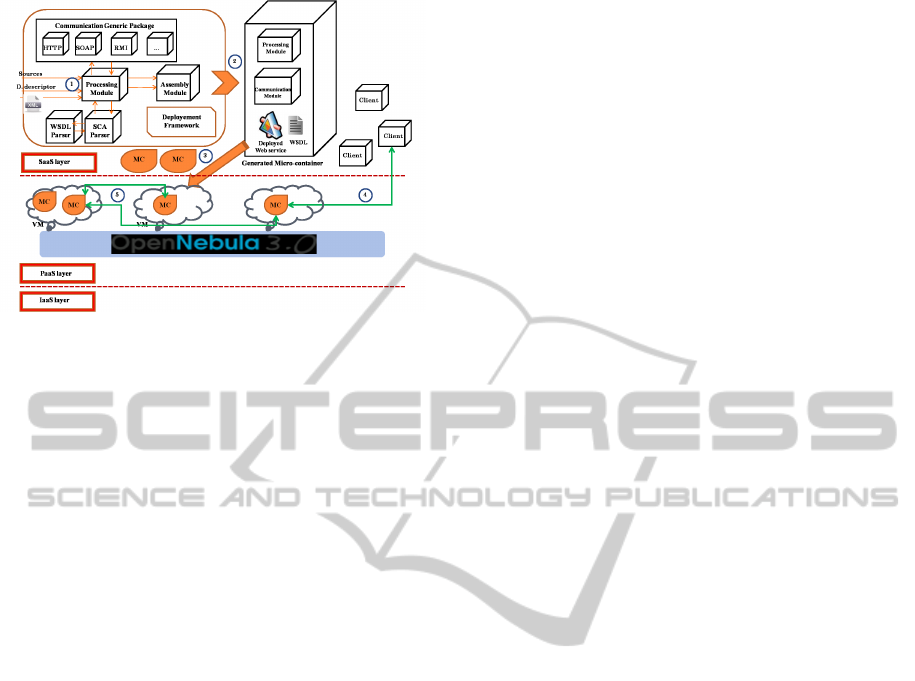

Figure 2: Deployment steps of an elementary service on the

platform.

a set of elementary services. More explicitly, for

each application deployment request, we try to divide

it into multiple elementary services deployment re-

quests. We consider two speciﬁcation of service com-

position: Service Component Architecture (SCA)

(SCA, 2011) and Business Process Execution Lan-

guage (BPEL) (Juric, 2006). BPEL consumes only

SOAP-based service orchestrations (Weaver, 2005).

Besides, SCA supports heterogeneous protocols re-

covering several binding component implementation.

In this paper, we treat the case of SCA. BPEL treat-

ment can be easily deduced from our proposal.

Deﬁning an orchestration between such compo-

nents, which have different implementations and vari-

ous bindings types, makes deployment task very con-

sistent and complicated in a Cloud platform due to

the difﬁculty to satisfy all the compatibility and porta-

bility constraints on the platforms mentioned later.

Overall, the developer has to provide to the deploy-

ment framework the composite which describes an

orchestration scenario. It should be noted that the

developer can provide only the services that are not

already deployed on the platform; it can make a sim-

ple reference to the elementary deployed (processed

in subsection 3.2) services in the composite.

We performed a new component called SCA

parser and we integrated it into the deployment frame-

work (Figure 3). This component is responsible for

parsing the composite provided by developer with the

service-based application at the submission of the de-

ployment request (Figure 3, action 1). Deployment

framework generates correspondent micro-containers

taking into account the orchestration scenario and ser-

vice binding types interacting between these compo-

nents (Figure 3, action 2). Thus, once the micro-

containers deployed on the VMs platform, they can

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

478

Figure 3: Deployment steps for service-based application.

participate in a composition scenario to achieve func-

tionality of a service-based application (Figure 3, ac-

tions 4 and 5). Speciﬁcally, each micro-container re-

trieves a set of inputs needed to the execution of its

service from the preceding in the global execution

process of a service-based application, runs locally,

and sent to its successor a set of references for its ex-

ecution.

4 CONCLUSIONS

In this paper, we highlighted portability and com-

patibility constraints imposed by classical Cloud

providers and platforms making development and de-

ployment tasks difﬁcult and delicate for users. We

have proposed a new prototype of platform as a

service (PaaS) that tackles these drawbacks called

CloudServ. CloudServ is based on reuse of the scal-

able service micro-containers introduced as a part

of our previous work. Only necessary resources to

implement service binding types, such as communi-

cation protocols, are selected from the deployment

framework of the system and encapsulated in the gen-

erated micro-container to host the deployed service.

We also presented and described several CloudServe

use cases for deployment of service-based applica-

tion. In the near future, we plan to deepen our exper-

iments of CloudServ versus several Cloud platforms

with various scenarios to validate it.

REFERENCES

Amazon (2011). Amazon web services. http://

aws.amazon.com/fr/.

CloudBees (2011). Cloudbees. http://www.cloudbees.com/.

Dean, J. and Ghemawat, S. (2004). Mapreduce: Simpli-

ﬁed data processing on large clusters. In Sixth Sym-

posium on Operating System Design and Implementa-

tion, OSDI’04, San Francisco, USA.

Engine, G. A. (2011). Google app engine. http://

code.google.com/appengine.

Force, D. (2011). Salesforce.com and force.com developer

resources. http://developer.force.com/.

Foster, I., ans I. Raicuand, Y. Z., and Lu, S. (2008). Cloud

computing and grid computing 360-degree compared.

In The IEEE Grid Computing Environments, GCE’08,

Austin, USA.

GoGrid (2011). Gogrid. http://www.gogrid.com.

Grossman, R. (2009). The case for cloud computing. IT

Professional, 11 Issue:2:23–27.

Heroku (2011). Heroku platform. http://www.heroku.com/.

Juric, M. B. (2006). Business Process Execution Language

for Web Services BPEL and BPEL4WS 2nd Edition.

ISBN:1904811817.

Microsoft (2011). Microsoft azure. http://

www.microsoft.com/azure/default.mspx.

Mohamed, M., Yangui, S., Moalla, S., and Tata, S. (2011).

Service micro-container for service-based applica-

tions in cloud environments. In IEEE WETICE, Paris,

France.

OpenShift (2011). Red hat openshift. https://

openshift.redhat.com/app/.

Plugin, G. C. (2011). Grails cloudbees plugin. http://

grails.org/plugin/cloud-bees.

Rimal, B., E.Choi, and Lumb, I. (2009). A taxonomy and

survey of cloud computing systems. In In the ﬁfth In-

ternational Joint Conference on INC, IMS and IDC.

SCA (2011). Sca speciﬁcations. http://www.ibm.com/

developerworks/library/speciﬁcation/ws-sca/.

Sun (2011). The sun cloud api. http://kenai.com/projects/

sunCloudapis.

Varia, J. (2011). Amazon white paper on cloud archi-

tectures. http://aws.typepad.com/aws/2008/07/white-

paper-on.html.

Weaver, R. (2005). The business value of the service

component architecture (sca) and service data objects

(sdo). In IBM whitepape.

Xebia (2011). Xebialabs deployement lifecycle man-

agement. http://blog.xebia.fr/2011/04/13/lancement-

du- projet-platform- as-a- service-cloud- foundry-de-

spring-source/.

Yangui, S., Mohamed, M., Tata, S., and Moalla, S. (2011).

Scalable service containers. In IEEE International

Conference on Cloud Computing Technology and Sci-

ence, (IEEE CloudCom 2011), Athenes, Greece.

Zahariev, A. (2009). Google app engine. TKK T-110.5190

Seminar on Internetworking.

PaaSELEMENTSFORHOSTINGSERVICE-BASEDAPPLICATIONS

479
