XIDE: EXPANDING END-USER WEB DEVELOPMENT

Evgenia Litvinova, Markku Laine and Petri Vuorimaa

Department of Media Technology, Aalto University, P.O. Box 15400, FI-00076 Aalto, Finland

Keywords:

End-user Programming, Web Development, Uniﬁed Programming Model, Markup Languages, XForms.

Abstract:

Most Web end-user development tools assume that users create Web applications entirely visually. However,

such tools have a limited functionality and support inadequately the transition from visual editing to source

code editing. In this paper, we introduce a tool, XIDE, that supports end users in creation of database-driven

Web applications. The proposed tool is based on three main approaches: (1) visual composition of applications

from reusable components, (2) source code editing of both applications and components, and (3) uniﬁed

programming model based on markup languages.

1 INTRODUCTION

The increasing popularity of the Internet and Web

2.0 has made end users more familiar with the con-

cepts and possibilities of the Web. End users oc-

casionally use markup languages for writing in fo-

rums and wikis, creating mashups, editing media rich

blog pages, and creating basic HTML pages. Be-

sides static content, users want to create interactive

database-driven applications to assist them in their

daily lives (Rosson et al., 2005; Cypher et al., 2009).

Developing such applications from scratch is

complicated for end users, mainly because it involves

using of several programming languages and com-

bining them together (Cardone et al., 2005). Vi-

sual tools, such as survey builders, mashup editors

or component-based tools, assist end users (Ko et al.,

2011). End users can create applications using wiz-

ards and visual manipulations without making any

manual changes in the source code (Grammel and

Storey, 2008). However, if the demanded function-

ality of the application cannot be achieved using a vi-

sual editor, a user is forced to edit the background

source code. This task immediately requires ad-

vanced knowledge of a variety of technologies and

concepts (Zang et al., 2008).

In this paper, we focus on active Web users, who

already have an experience in using end-user devel-

opment tools. We aim to expand the scope of applica-

tions they are capable of creating without them facing

major learning challenges.

We address this problem with an end-user de-

velopment tool, which combines the following ap-

proaches. First, it is a component-based tool with

a visual editor. Second, unlike other visual tools, it

does not aim to hide source code editing. Instead, it

facilitates end users to do changes in the source code.

Third, a background technology used in the tool has

lower complexity and allows users to utilize the con-

cepts they are already familiar with.

As a proof-of-concept implementation, we devel-

oped a prototype tool called XIDE, which uses a uni-

ﬁed markup-based platform called XFormsDB as a

background technology. Since XFormsDB is based

on HTML

, end users can leverage their knowledge

of markup language concepts. We validate this ap-

proach by conducting preliminary user studies.

Our contribution is twofold. Firstly, we present

a classiﬁcation of end-user Web development activi-

ties. Secondly, our main practical contribution is the

component-based architecture founded on a uniﬁed

background technology, which enables end-user code

editing and component modiﬁcation.

The paper is organized as follows. The next Sec-

tion discusses different levels of end-user Web de-

velopment activities. Requirements for a background

technology and the tool are presented in Section 3. A

proof-of-concept implementation is described in Sec-

tion 4 and evaluated in Section 5. Section 5 also con-

tains the discussion and directions for future work. Fi-

nally, Section 6 presents conclusions.

XFormsDB extends XForms 1.1, which is part of

XHTML 2.0

123

Litvinova E., Laine M. and Vuorimaa P..

XIDE: EXPANDING END-USER WEB DEVELOPMENT.

DOI: 10.5220/0003934201230128

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 123-128

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

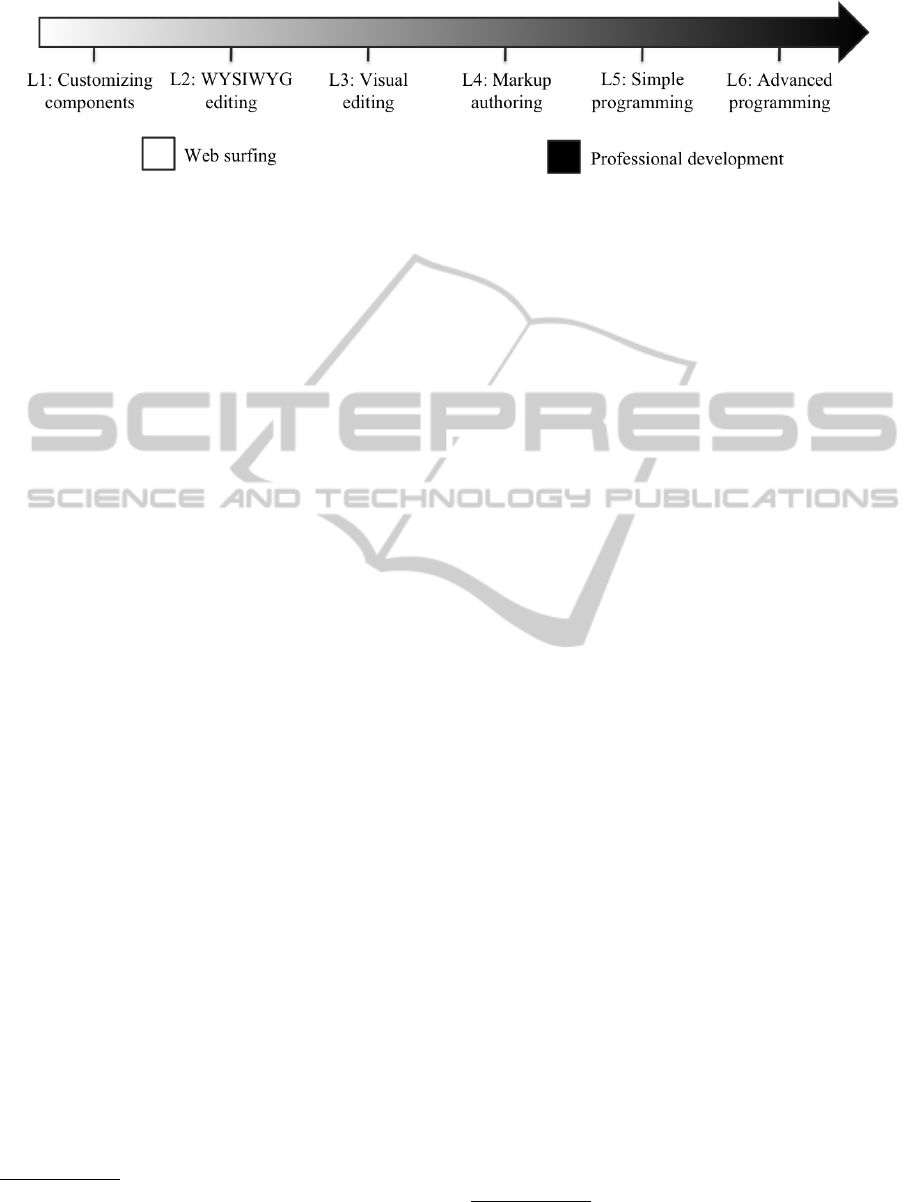

Figure 1: Spectrum of end-user Web development activities.

2 LEVELS OF END-USER WEB

DEVELOPMENT ACTIVITIES

Traditionally, end users and developers were consid-

ered as two mutually exclusive groups. In the Web,

these are pure end users, who do Web surﬁng, and

educated expert developers, who do professional de-

velopment and implement software products for other

people. However, nowadays end users are more and

more involved in actual Web development activities in

order to solve their problems by themselves, and thus

become end-user programmers (Ko et al., 2011).

We expanded the idea of end-user development

activities classiﬁcation described in (Costabile et al.,

2008) by applying it to the Web. We deﬁne six levels

of end-user Web development activities between Web

surﬁng and professional development, as depicted in

Figure 1. Each level deﬁnes activities a user is able

to perform and corresponding skills a user needs to

possess.

L1: Customizing Components. Users adjust exist-

ing Web applications by setting values to parameters,

e.g., adjusting colors on a personal blog page.

L2: WYSIWYG Editing. Users develop static Web

pages or targeted applications, e.g., surveys, in What

You See Is What You Get (WYSIWYG) editors. They

design only the visual representation of resulting ap-

plications using drag-n-drop and applying styles. Ex-

ample tools are Google Sites

, a page creation tool,

and JotForm

, a form builder.

L3: Visual Editing. Users create applications visu-

ally by adding, customizing, and connecting compo-

nents, to compose a ﬁnal application (Repenning and

Ioannidou, 2006). Common examples are mashup ed-

itors, such as Yahoo! Pipes

and DashMash (Cap-

piello et al., 2011), and component-based editors

(Won et al., 2006). The functionality of visual tools

is strongly limited to the library of components. The

Google Sites, sites.google.com

JotForm, www.jotform.com

Yahoo!Pipes, pipes.yahoo.com/pipes

visual editing does not require programming skills or

syntax knowledge, however users often need to un-

derstand the programming paradigm of a tool and the

logic of how applications are created.

L4: Markup Authoring. Users contribute to wiki

and write advanced posts to blogs using plain markup

languages. This is a code editing activity, however,

used markup languages are often simpliﬁed for better

understanding.

L5: Simple Programming. Users, who are familiar

with programming languages, extend the limitations

of visual tools. They do not have enough skills to de-

velop applications from scratch, but they can modify

the background source code of visually generated ap-

plications or predeﬁned components.

In Dreamweaver

, users can create a page visu-

ally in a drag-n-drop editor and manually edit its

auto-generated source code to make more advanced

changes. However, end users complain about difﬁ-

culties while switching between visual to source code

editors. (Park and Wiedenbeck, 2010).

In WordPress

, users can create interactive appli-

cations with wide functionality using predeﬁned tem-

plates and widgets. The background technology of

the widgets is PHP, which is rarely known among

users with skill level 5. Users need to know Word-

Press internal architecture and API before they can

do even minor changes to a widget.

In Click (Rode et al., 2005), users can create data

collection and management Web applications using

component-based approach. The tool provides sev-

eral layers of modiﬁcation complexity, starting from

customizing templates to modifying and extending

the component framework by editing PHP code.

L6: Advanced Programming. Users are amateur

programmers, but they know several complemen-

tary technologies and are able to construct interactive

client-server Web applications for their personal use.

Users are often forced to use professional tools and

Dreamweaver, adobe.com/products/dreamweaver.html

WordPress, wordpress.org

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

124

Integrated Development Environments (IDEs). End-

user tools for creating complex Web applications, in-

cluding server-side logic, and database, are missing.

3 REQUIREMENTS

In this paper, we address the problem of smoothing

the transition from the level 4 to the level 5 and 6.

We aim to allow level 4 users to create Web appli-

cations, which are more advanced than those they

could afford previously - including server-side and

database functionality. It is a challenge because end

users natively have an opportunistic approach to their

tasks (Mosemann and Wiedenbeck, 2001). They at-

tempt to approach the task with their current skills,

and often lack a motivation to learn new technologies.

However, when entering the level 5, users face prob-

lems, such as the limitations of visual tools, new back-

ground technology language, and missing server-side

functionality.

Based on the review of end-user activities pre-

sented in Section 2, we propose a tool with a

component-based architecture. In such a tool, users

can create applications with higher functionality that

they can attain by doing the development from

scratch. Users can modify existing components to ad-

just them to the task. We aim to design a tool that

supports editing activities from previous levels (1–3),

such as parameter editing, visual editing, WYSIWYG

editing, etc. Most Web development tools assume that

end users avoid source code editing (levels 4 and 5).

Because of this, the background technology and ar-

chitecture are often selected without any considera-

tion of end-user needs. We especially focus on source

code editing activities.

R1: Background Technology must Be Uniﬁed and

based on Markup Languages. The need of learning

and combining different technologies is a problem for

end users. Using fewer technologies or even one pro-

gramming language could ease the development and

client-server communication (Laine et al., 2011).

If the background technology looks familiar and

allows to leverage existing knowledge, end users can

start understanding and editing the source code with-

out preliminary training. In this paper, we focus on

the level 4 users, i.e. those who have some experience

in markup editing. Thus, markup languages, such as

HTML and XML, qualify as a basic technology for

the end-user Web development. However, currently

pure HTML supports only the creation of static pages

only.

R2: Applications and Components both must Use

the Same Background Technology. Source code

editing activities include both applications and com-

ponents code editing. If the background technology in

components is the same as in applications, there is no

additional learning barrier for end users when they de-

cide to edit components. Moreover, components can

be considered not only as bricks to build applications

from, but also as examples of what can be achieved

with the technology (Park and Wiedenbeck, 2010) .

R3: The Architecture of both Components and

Applications must Be Similar and Transparent.

When users edit components or contribute new ones,

no additional knowledge must required to understand

how to use a component and how to edit it.

R4: A Transition from Visual Editing to Source

Code Editing must Be Smooth. Considering how

end users approach the development process, a tool

that is used on levels 5 and 6 must be extended with

several important features, such as code editing activ-

ities assistance, immediate feedback on user actions,

full-functional preview, highlighting of the link be-

tween the source code and the result.

4 PROOF-OF-CONCEPT

IMPLEMENTATION

Based on the requirements, we designed and imple-

mented a tool called XIDE. In this section, we present

the tool and describe the background technology it

uses for both applications and components.

4.1 XIDE

XIDE

is a tool for end-user Web development that

assists end users in developing advanced, interactive

database-driven Web applications. XIDE supports all

development activities displayed in Figure 1 and ful-

ﬁlls the requirement R4. It aims to gently lead end

users from the level 4 to the level 5 and 6 without

them facing any major learning barriers.

In order to achieve this goal, XIDE combines

three approaches. First, it helps end users to lever-

age the knowledge they have already gained on the

levels 1 - 4. Users can create applications using pre-

deﬁned customizable components (level 1). Com-

ponents and pages have WYSIWYG-like representa-

tions (level 2), which reveal the contents. In XIDE

visual editor (level 3), presented in Figure 2, users vi-

sually add components on the page and connect them.

XIDE supports direct manipulation for components,

XIDE, code.google.com/p/xformsdb-ide

XIDE:EXPANDINGEND-USERWEBDEVELOPMENT

125

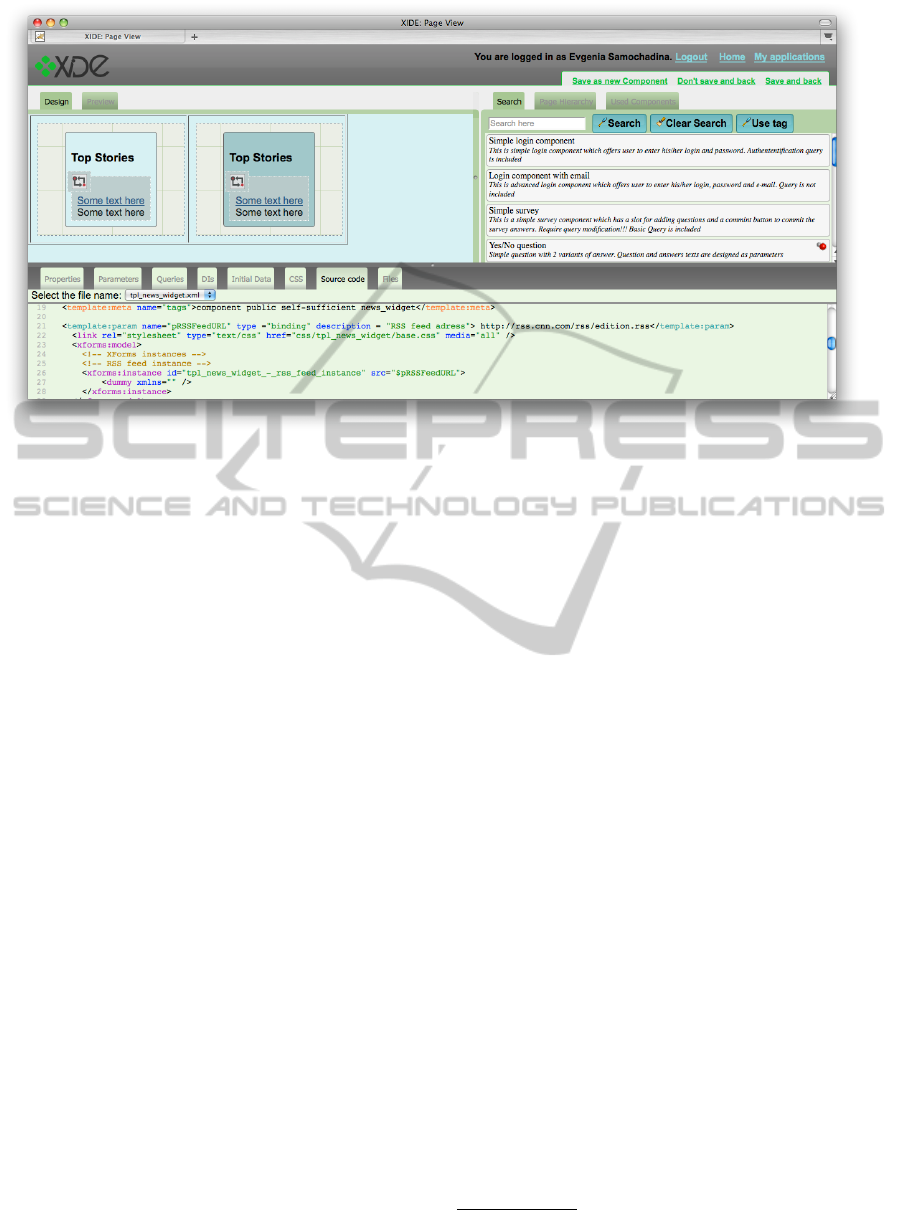

Figure 2: Editing a page in XIDE.

i.e., drag-n-drop for adding, managing, and deleting

components in order to lower getting started barriers.

Users can edit the source code of each component,

written in a markup based language (level 4).

Second, XIDE provides an advanced source code

editing functionality. The source code is written in

the markup based framework, so editing activity be-

longs to the level 4. The framework is uniﬁed, so it al-

lows to build interactive Web applications, including

server-side and database functionality. Hence, users

can achieve the tasks from the level 5. Moreover,

users can incrementally learn the technology and be-

come capable of editing more advanced code (level

6). XIDE provides wizards and an intelligent auto-

matic generation of source code for conﬁguring tech-

nical issues that can be complicated for end users. The

built-in text editor supports advanced code highlight-

ing and error checking. Syntax highlighting aims to

focus attention of users to the most important parts of

the source code, e.g., parameters.

Finally, XIDE reveals the connection between vi-

sual and source code editing activities, which is a

challenging issue for end users (Ko et al., 2004).

XIDE uses multiple coordinative windows to show

one concept from different perspectives or different

degrees of abstraction. That allows end users to dis-

cover the link between, e.g., component source code

and component visual output. XIDE also supports de-

sign at runtime: changes made in the source code of

the page or component instantly appear in design or

preview representation.

XIDE has four views for different development

activities: getting started, list of applications, applica-

tion management, and page editing. Each view con-

tains information and functionality related to the ac-

tivity at hand.

Extending the approach of (MacLean et al., 1990),

XIDE provides several levels of modiﬁcation, such as

component customization, visual manipulation, page

source code modiﬁcation, component source code

modiﬁcation, etc.

4.2 Background Technology

In XIDE, XFormsDB

(Laine et al., 2012) is used as

background technology for both components and ap-

plications. XFormsDB is a comprehensive Web appli-

cation development and hosting platform that allows

users to implement interactive, database-driven Web

applications using only markup languages. It is based

on the XForms

markup language and its extensions

that specify common server-side and database-related

functionalities.

The presentation-centric approach of XFormsDB

offers an attractive solution for users with little tech-

nical knowledge (Laine et al., 2011). For users with

the skill level 4, this selection is even more promising,

because they are already familiar with HTML and the

concept of markup languages. Thus, XIDE meets the

requirements R1 and R2.

In order to fulﬁll requirement R3, we designed an

intermediate markup language, called Template Lan-

guage (TL). TL is used to support the component-

based architecture, i.e., deﬁne components and build

them into Web pages. TL was designed as a XML-

XFormsDB, code.google.com/p/xformsdb

XForms standard, http://www.w3.org/TR/xforms11

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

126

based language in order to natively build TL into

XFormsDB and utilize the same concepts.

Except the TL, there is no internal API or library

that a developer is forced to use while editing existing

or creating new components. That makes the modiﬁ-

cation and contribution of new components a straight-

forward task, because it requires minimum additional

skills and knowledge of technology (Lieberman et al.,

2006). Thus, XIDE meets requirement R3.

5 EVALUATION

We conducted a preliminary user study to observe

how the level 4 users perform editing tasks related to

level 5 and 6 in XIDE.

In total, there were 9 participants: 5 male and 4

female. Participants were recruited from Economics

and Computer Science students. We limited the back-

ground of participants to the level 4. They were active

Internet users, had tried to create a simple Web page

using a visual editor or tried to use some XML-based

markup language. None of the participants studied

Web development as a major. None of them had ever

used XIDE, XForms or XFormsDB.

For the study, we used usability evaluation

method, combined with thinking aloud and semi-

structured interviews. Each evaluation took approx-

imately 1.5 – 2 hours.

Each participant was asked to perform predeﬁned

tasks, which were designed to investigate the tran-

sition from visual editing to source code editing in

XIDE. Brieﬂy, the participants were asked to: mod-

ify the application using a visual editor and manually

in the source code; modify the page source code; do

minor and major modiﬁcations to TL and component

logic; and contribute new components. For example,

participants were asked to introduce a second param-

eter to a RSS Reader component and use the modiﬁed

component in the code.

5.1 Results and Discussion

Our hypothesis was that users often need to edit the

source code when they are using a visual tool. More-

over, they could start editing the source code if they

had some minor skills in the background technology

and if they were facilitated to do so. The results of

the study showed that participants were able to com-

plete all the tasks related to code editing. Participants

were able to understand the concepts of the TL and

modify it. In general, participants said they found the

approach implemented in XIDE promising and would

use such kind of a tool to solve the problems occurred

at work. They found it useful and ﬂexible, because it

supported different levels of modiﬁcation.

During the interviews, participants reported they

have previously faced problems due to narrow scope

of existing visual tools. Those problems forced them

to switch from visual modiﬁcation to direct code edit-

ing. Their experience showed that no visual ap-

proach can cover all possible needs, and thus direct

editing is required anyway. Some participants com-

plained about difﬁculties they experienced previously

while editing auto-generated source code produced by

WYSIWYG tools for HTML editing.

While performing tasks in XIDE, participants

widely employed the copy-paste approach. XIDE

does not provide any vocabulary of XFormsDB or

HTML tags that could be used or any code comple-

tion. Thus, the only way how a novice user could

contribute a piece of new code was to ﬁnd the exist-

ing code that did relatively similar thing, copy it, and

modify it according to the task. Two main observa-

tions of this study were that users natively intended to

use the copy-paste approach and were able to use it

successfully with XFormsDB.

During those copy-paste activities, an immediate

response from the system was highly appreciated. It

allowed experimental programming, in which users

tried different options to see which option lead to the

desired result.

XIDE advanced source code highlighting is a

powerful tool. Besides highlighting markup language

tags and syntax, it emphasized TL structure and user

interface elements. We had a hypothesis that novice

users most likely would edit the code related to com-

ponent management and representation of the infor-

mation. Therefore, we used grey color to dim less im-

portant areas, such as a data model and a header. Par-

ticipants focused on code that most likely contained

the needed information. Yet, all code was visible, so

participants could check it if needed. All users named

this feature among the most usable features in XIDE.

Users generally were able to read the code, be-

cause they knew the concept of tag and guess the

functionality of unknown tags based their names.

However, some of the tag names were not self-

descriptive enough. This issue should be taken into

account during future redesign of languages, e.g., the

next versions of XFormsDB and HTML. Ids, which

developers widely use in the source code to address

XML structures, should be more descriptive and close

to the natural language.

Another issue users complained about was the

lack of debug information and error descriptions. Al-

though users were satisﬁed with the on-time preview

feature and error code highlighting, they asked for

XIDE:EXPANDINGEND-USERWEBDEVELOPMENT

127

more descriptive feedback from the system when an

error occurred.

The highlight approach used in XIDE can be ex-

panded to have different code highlighting schemas

for different types of tasks users perform. For exam-

ple, managing parameters or changing user interface.

Generally, the component-based approach imple-

mented in XIDE, together with features that facilitate

source code editing can be used for education pur-

poses. A person who has a superﬁcial knowledge of

some technology can use a tool for a period of time

for self-education (Zang et al., 2008). While a person

uses a tool, he or she gains practical knowledge and

can increase skills relatively gently, without having

big educational barriers.

6 CONCLUSIONS

In this paper, we addressed the problem of expanding

end-user Web development possibilities. We classi-

ﬁed end-user Web development activities into levels,

and addressed the problem of smoothing the transition

from the level where end users use visual tools to the

next one, where they can edit the source code. Our

main contribution is a combination of a component-

based visual tool with a uniﬁed, markup-based back-

ground technology. Our approach allows end users

to leverage the knowledge they already have to cre-

ate more advanced Web applications with server-side

functionality.

In our proof-of-concept implementation, we de-

signed and implemented a visual component-based

tool called XIDE. XIDE is designed to support visual

modiﬁcation and especially direct code editing with

different features, such as code highlighting and im-

mediate previewing. We used XFormsDB as a back-

ground technology. It is a recently developed tier-

expanding framework based on markup languages.

End users, who have a basic knowledge of HTML,

can intuitively guess the meaning of the source code

written in XFormsDB. The XIDE prototype was pre-

liminary evaluated by means of a user study, in which

users were able to complete all tasks successfully.

Thus, the proposed approach enables users to make

changes in the source code and expands users possi-

bilities in Web development.

REFERENCES

Cappiello, C., Matera, M., Picozzi, M., Sprega, G., Barba-

gallo, D., and Francalanci, C. (2011). DashMash: a

mashup environment for end user development. Web

Engineering, 6757:152–166.

Cardone, R., Soroker, D., and Tiwari, A. (2005). Using

XForms to simplify Web programming. In Proc. of

the 14th international conference on World Wide Web,

WWW ’05, pages 215–224. ACM.

Costabile, M. F., Mussio, P., Parasiliti Provenza, L., and

Piccinno, A. (2008). End users as unwitting software

developers. In Proc. of the 4th International Work-

shop on End-User Software Engineering, pages 6–10.

ACM Press.

Cypher, A., Lau, T., Nichols, J., and Dontcheva, M. (2009).

Workshop on end user programming for the web. In

Proc. of the 27th International Conference Extended

Abstracts on Human Factors in Computing Systems,

pages 4779–4782. ACM Press.

Grammel, L. and Storey, M.-A. (2008). An end user per-

spective on mashup makers. In University of Victoria,

Tech. Rep. DCS-324-IR.

Ko, A., Myers, B., and Aung, H. (2004). Six learning barri-

ers in end-user programming systems. In Proc. of the

2004 IEEE Symposium on Visual Languages-Human

Centric Computing, pages 199–206. IEEE.

Ko, A. J., Myers, B., and Rosson, M. B. (2011). The state of

the art in end-user software engineering. ACM Com-

puting Surveys, 43(3):21.

Laine, M., Shestakov, D., and Vuorimaa, P. (2012). Extend-

ing XForms with Server-Side Functionality. In Proc.

of the 27th ACM Symposium on Applied Computing

(to appear).

Laine, M. P., Shestakov, D., Litvinova, E., and Vuorimaa,

P. (2011). Toward Uniﬁed Web Application Develop-

ment. IT Professional, 13(5):30–36.

Lieberman, H., Paterno, F., Klann, M., and Wulf, V. (2006).

End-user development: An emerging paradigm. End

User Development, pages 1–8.

MacLean, A., Carter, K., L

ovstrand, L., and Moran, T.

(1990). User-tailorable systems: pressing the issues

with buttons. In Proc. of the SIGCHI conference on

Human factors in computing systems: Empowering

people, pages 175–182. ACM.

Mosemann, R. and Wiedenbeck, S. (2001). Navigation and

comprehension of programs by novice programmers.

In Proc. of the 9th International Workshop on Pro-

gram Comprehension, pages 79–88. IEEE.

Park, T. H. and Wiedenbeck, S. (2010). First Steps in Cod-

ing by Informal Web Developers. In Proc. of the 2010

IEEE Symposium on Visual Languages and Human-

Centric Computing, pages 79—-82. IEEE.

Repenning, A. and Ioannidou, A. (2006). What makes end-

user development tick? 13 design guidelines. End

User Development, 9:51–85.

Rode, J., Bhardwaj, Y., P

erez-Qui

nones, M., Rosson, M.,

and Howarth, J. (2005). As easy as Click: End-user

web engineering. Web Engineering, 3579:478–488.

Rosson, M. B., Ballin, J. F., Rode, J., and Toward, B.

(2005). Designing for the Web Revisited : A Survey

of Informal and Experienced Web Developers. Web

Engineering, pages 605–620.

Won, M., Stiemerling, O., and Wulf, V. (2006).

Component-based approaches to tailorable systems.

End User Development, pages 115–141.

Zang, N., Rosson, M. B., and Nasser, V. (2008). Mashups:

who? what? why? In Proc. of the CHI’08 Extended

Abstracts on Human Factors in Computing Systems,

pages 3171–3176. ACM.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

128
