A MESSAGE-PASSING MODEL FOR SERVICE ORIENTED

COMPUTING

∗

Diana Allam, R

emi Douence, Herv

e Grall, Jean-Claude Royer and Mario S

udholt

ASCOLA group; EMN-INRIA, LINA, D

epartement Informatique,

Ecole des Mines de Nantes, Nantes, France

Keywords:

Service-oriented Computing, Message-passing Model, Type Checking.

Abstract:

Web services can be built according to multiple service models and technologies. Although there is a clear

need for a model integrating them in multiple real-world contexts, no integrated model does (yet) exist. In

this paper, we introduce a model as a foundation for heterogeneous services, in particular, SOAP/WS* and

RESTful services. The model abstracts away from service implementations, composes services in a truly

concurrent manner and supports asynchronous message passing as well as mobility of typed channels.

1 INTRODUCTION

Web services can be built according to multiple

service models, technologies and protocols (Alonso

et al., 2004). Despite the different architectures un-

derlying these service models and the applications

they target, web service models have similar char-

acteristics and are often used together. In such a

heterogeneous system, despite existing security stan-

dards, sophisticated attacks regularly emerge (Lind-

strom, 2004). Most of these attacks are enabled by

weaknesses in web service security policies. A solu-

tion to this problem of heterogeneous service compo-

sitions can, in principle, be based an message-passing

models that mediate between different service mod-

els. There are some existing models in the market

satisfying this message-passing principle, like the En-

terprise Service Bus (ESB) that is available for differ-

ent service models and technologies. However, these

models are not systematically used: frequently, e.g.,

WS* services call RESTful services directly. Further-

more, ESB-based implementations are not amenable

to formal reasoning over properties of service compo-

sitions. In order to ensure properties over heteroge-

neous service compositions, a more general and rig-

orous abstract model is needed.

Actually, service models can be uniﬁed based on a

few concepts: distributed agents are built by means of

interacting distributed services that are composed in a

black-box manner using well-deﬁned service interfac-

∗

This work has been supported by the CESSA ANR

project (see http://cessa.inria.gforge.fr).

es. These agents provide services while requiring

other services that are consumed. Such a global ab-

straction based on the notion of black-boxes for SOAs

provides signiﬁcant beneﬁts for the management of

distributed services: their security properties, in par-

ticular, can then be speciﬁed through contracts at the

interaction level. A formal and uniﬁed model can then

be used to enforce security properties by means of a

security monitor that mediates between an encapsu-

lated agents and the network.

We propose a uniﬁed model as a foundation for

service compositions that represents services in terms

of an abstract pivot language that is independent from

the service model and corresponding implementation

technology. Once all distributed services are uni-

ﬁed, the implementation and reasoning about secu-

rity properties can be performed at the message ex-

change level and enforced before the execution of ser-

vice compositions. In this paper, we motivate and in-

formally deﬁne such a uniﬁed model (respectively in

sections 2 and 3). We then illustrate by an example the

conversion of services interfaces conforming to the

WS* and RESTful service models into our language

(sec. 4). We then illustrate the beneﬁts to the rea-

soning about service composition properties through

a simple application to service type checking (Sec. 5).

We show how well-typed services solve problems that

might occur because of programmer mistakes or lack

of information during runtime service discovery.

The formal account of the model and its appli-

cation to the veriﬁcation of several security proper-

ties are provided in a companion report (Allam et al.,

2011).

136

Allam D., Douence R., Grall H., Royer J. and Südholt M..

A MESSAGE-PASSING MODEL FOR SERVICE ORIENTED COMPUTING.

DOI: 10.5220/0003936101360142

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 136-142

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

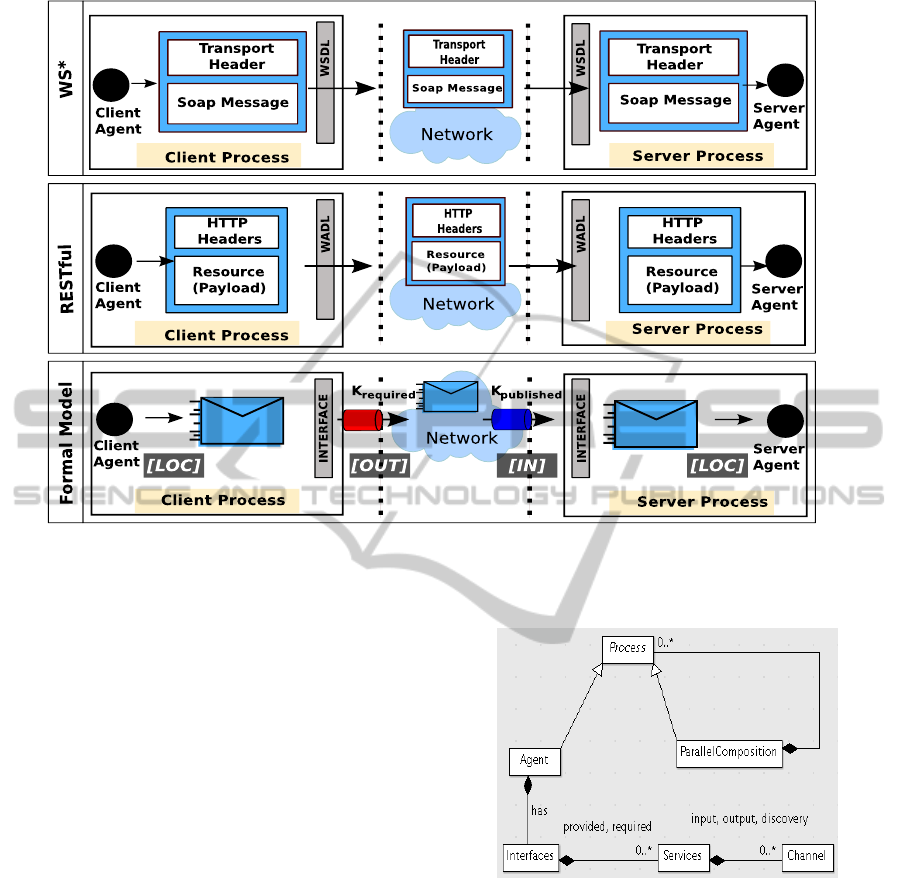

Figure 1: Flight booking request: relationship between WS*/RESTful and our formal model.

2 MOTIVATION BY EXAMPLE

We motivate and illustrate our approach through a

running example, a service-based system for ﬂight

reservation. We focus our illustration on the two most

competing models in web services: SOAP/WS* and

RESTful. We consider a two-step scenario: a client

agent ﬁrst searches a ﬂight travel from a source city

to a target one at a speciﬁc date; in a second step, it

receives a list of possible ﬂights, makes its choice and

books a ﬂight. We investigate two different imple-

mentations for this example, respectively using WS*

and RESTful services. Here, we aim to ﬁnd the main

concepts allowing to deﬁne a uniﬁed abstract model

for both technologies: RESTful and WS*. In the fol-

lowing, we discuss three core concepts in light of the

ﬂight service example: message exchange, black box

agent and channel mobility.

Message Exchange. The ﬁrst two rows of Figure 1

show message exchanges that are part of a ﬂight book-

ing request. This request may hold a SOAP mes-

sage over a transport protocol (HTTP, FTP, SMTP or

others) governed by the WS* standards or a simple

HTTP message wrapping a payload for RESTful ser-

vices. Thus, an abstract formal model unifying these

two technologies must specify a message format com-

Figure 2: UML diagram for processes.

patible with both of them.

As illustrated in the bottom row of Figure 1,

our abstraction of message exchanges corresponds

to three communication rules : (i) [LOC]: abstracts

local executions that consume incoming messages

and produce messages to be sent over the network;

(ii) [OUT]: enables the passage of a message through-

out the agent interface to the network; and (iii) [IN]:

enables the receipt of a message from the network to

the designated agent throughout its interface.

Black Box Agent. The service-based implementa-

tion of the ﬂight reservation process requires a whole

AMESSAGE-PASSINGMODELFORSERVICEORIENTEDCOMPUTING

137

stack of different layers and business components:

data bases and associated access interfaces, business

processes that coordinate (e.g., using BPEL) the ex-

ecution of business components that implement en-

terprise functionalities and a suitable interfaces must

be deﬁned that expose the business processes as ser-

vices. To specify such an interface, we can use WS-

Management WSDL (Web Services Description Lan-

guage) for the WS* implementation, a method more

expressive than a simple WSDL ﬁle. Typically inter-

action contracts based on exchanged SOAP messages

are deﬁned using WS-Addressing, WS-Discovery,

WS-Policy, WS-Security and others. As for REST-

ful services, no standard exists that provides such in-

terface descriptions. For our example, we consider a

WADL (Web Services Application Language) ﬁle.

In accordance with the black-box principle, we are

interested in an abstraction that hides all the imple-

mentation details of web services. We model an ele-

mentary process as a composition of an interface and

an agent having an internal state which evolves during

its execution. The agent abstraction hides all imple-

mentation details for the data base access layer and

the business process layer. The interface is composed

of provided or required services. Each service is a set

of channels to receive incoming messages or to send

messages over the network. This abstraction is illus-

trated in Figure 1 for a client and a server on a channel

K refering to the ”book ﬂight” service.

Channel Mobility. We describe two practical im-

portant aspects of this feature.

Request/Reply Mechanism. In the client/server

communication of the ﬂight reservation scenario, the

server does not initially know the client. Thus for the

reply, the server uses the callback information con-

tained in the received message. Concretely, this infor-

mation could correspond to a source IP address and

port over a transport protocol (e.g. HTTP) or an end-

point reference (EPR) in the ReplyTo block of a WS-

Addressing header for a SOAP message or a speciﬁc

location in an HTTP message. This way, the call-

back mechanism can be performed synchronously,

usually over one session of the transport protocol, or

asynchronously over two distinguished client/server

sessions. Our formal model must therefore be ex-

pressive enough to represent both synchronous and

asynchronous communications. However, since syn-

chronous communication can be implemented with

message passing (Lamport and Lynch, 1990), our

model only supports asynchronous communication,

via one-way channels. A reply channel, correspond-

ing to a callback, must therefore be sent by the client.

Discovery Mechanism. Suppose that the client do-

es not know the location of the ﬂight reservation ser-

vice while knowing its interface. Thus, at runtime,

before invoking the service, the client needs to dis-

cover a target location for the service. In case of WS*

technology, several techniques can be used for ser-

vice discovery. The UDDI standard can be used if

a centralized registry is appropriate to discover web

services. As part of an ad-hoc architecture, the WS-

Discovery standard provides endpoint references for

the ﬂight service. In the case of a RESTful implemen-

tation, search engines, like Google, could be used for

getting the root resource URL. Then a RESTful ser-

vice could be ”self-discovery” by deﬁning links be-

tween resources. Service discovery thus means look-

ing up a set of channels.

3 MODEL OVERVIEW

In this section we give an overview of the concepts

of our abstract model for unifying web services tech-

nologies. Our model belongs to the class of message-

passing models (Lamport and Lynch, 1990): agents

exchange messages by using a buffer and without

sharing memory or without synchronizing the send-

ing and the receiving of messages in a rendez-vous.

Communication is assumed to be completely

asynchronous. The buffer used to communicate mod-

els the network. We consider it as a ﬁnite multiset

of messages, with no bound and no order. Actually,

a message is deﬁned as some content on a channel.

The channel determines the unique target of the mes-

sage. Initially, coordination is only possible between

agents that share a channel, for instance between a

server providing a channel and its clients, requiring

the same channel. Gradually, agents discover new

channels since messages can contain channels: chan-

nel mobility makes network topology evolve.

The two main requirements of our model, asyn-

chronous communication and true concurrency, has

led us to resort to a chemical model (Berry and

Boudol, 1992). Here, we describe the concepts us-

ing UML class diagrams and informally present the

main semantic rules.

Processes and Agents. Processes are described in

Figure 2. This UML diagram describes distributed

agents implementing web-services. A process is

made from several agents acting in a parallel compo-

sition. This concept is represented thanks to a com-

posite pattern in Figure 2. An agent has a name, a

state and an interface. The state of agents is kept

abstract, in accordance with the black-box principle.

Different formalisms, like process algebras or tempo-

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

138

ral logics, could therefore be used to model agents.

An interface declares a set of provided and required

services by the agent. A service is a set of channels

with ”Input”, ”Output” or ”Discovery” roles. ”In-

put” channels correspond to the channels receiving

messages from the network. ”Output” channels cor-

respond to the channels sending messages to the net-

work. ”Discovery” channels can be communicated

to another agent by putting them in the message con-

tent in order to be discovered at receipt as ”Output”

channels.

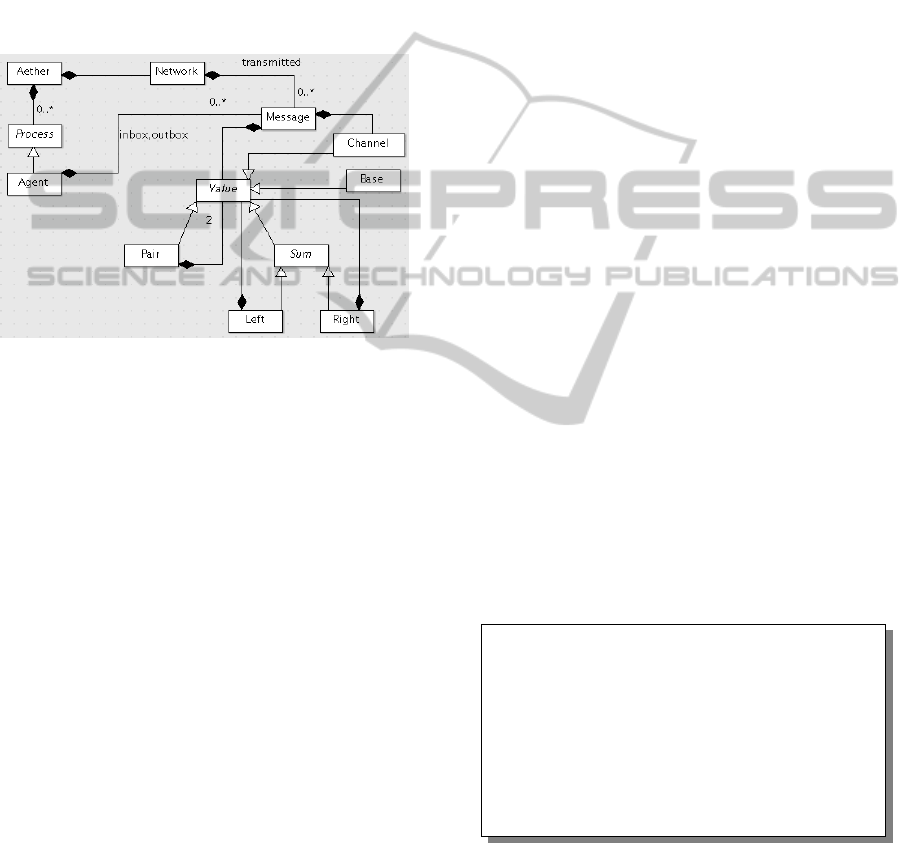

Figure 3: Simpliﬁed UML diagram for Aether.

Aether. Processes deﬁned previously are deployed

in a chemical solution which we call ”Aether”. Aether

represents the global state of the computing world of

processes. The UML diagram of the aether descrip-

tion is depicted in Figure 3. The aether is a set of par-

allel agents and a network which contains messages

in transit. An agent has two mailboxes associated re-

spectively to incoming (outgoing) messages from (to)

the network. A message is deﬁned as a value on a

channel. As different messages can have exactly the

same form (same channel, same content), and, gen-

erally, emission ordering is not respected by commu-

nications, we use multisets to store messages. Dur-

ing aether’s evolution (by reduction), messages are

emitted by agents into the network or consumed from

the network. We abstract away message contents and

strictly consider constructions required with a black

box view of web service communications. Our aim

is to abstract important constructions in SOAP and

HTTP messages, which are the two most common

transport formats of messages in web services. In our

model, message values carried by channels support

base values, mobile channels, pairs of two values and

left and right injections associated to disjoint union of

values. The two abstract constructions, product and

sum, are common in data format like XML and JSON.

Informal Semantics. The formal semantics can be

given by using a chemical abstract machine as deﬁned

by Berry and Boudol in (Berry and Boudol, 1992).

Here we informally describe the three speciﬁc rules

of the machine, corresponding to reaction rules: see

Figure 1.

[LOC]: An agent consumes a multiset, possibly

empty, of input messages, produces a multiset,

possibly empty, of output messages, creates dy-

namically new sessions and updates its current

state to a new state.

[OUT]: An agent sends message from its outbox

over the network via channels. If the sent message

contains channels, these channels must be ”Dis-

covery” channels known by the agent.

[IN]: An agent receives message in its inbox from the

network. The message channel must be declared

as an input channel by the agent. At receipt there

is dynamic discovery of unknown channels. The

agent upgrades its declaration of ”Output” chan-

nels by adding all the channels discovered in the

content of the message.

4 EXAMPLE REVISITED

We now show how to apply our uniﬁed model to the

ﬂight reservation scenario of Sec. 2. We discuss, in

particular, the relation of the formal model with the

WS* and RESTful models. We use a java syntax to

represent this scenario in our model.

Processes Initialization. The client/server system

of the ﬂight reservation scenario requires the deﬁni-

tion of four channels, as declared in the following:

/ / Channel for requesting trips from a

/ / source to a target city at a specific date

Channel searchTravel = new Channel(searchType);

/ / Channel for getting a list of trips

Channel getSearchReply = new Channel(searchReplyType);

/ / Channel for booking requests for a

/ / specific flight of a client

Channel bookFlight = new Channel(bookingType);

/ / Channel for getting a booking confirmation

Channel getBookingReply = new Channel(notifReplyType);

According to these channels declarations, now we

are able to deﬁne the server and the client processes.

The server provides the service named

”FlightReservation” composed of two ”Input”

channels: searchTravel and bookFlight. Now, we

give a declaration of the server process, according to

the UML description given in Sec. 3.

AMESSAGE-PASSINGMODELFORSERVICEORIENTEDCOMPUTING

139

/ / Creation of the service with two

/ / input channels

Service s = new Service(”FlightReservation”);

s.addInputChannel(searchTravel);

s.addInputChannel(bookFlight);

/ / Creation of an interface providing "s"

Interface i = new Interface();

i.provide(s);

/ / Creation of the server process

/ / with interface i

Process server = new Agent(i);

As for the client process, it requires the ser-

vice provided by the server. The two channels

searchTravel and bookFlight are then declared as

”Output” channels. The client must declares the two

channels getSearchReply and getBookingReply

for getting replies from requests on searchTravel

and bookFlight respectively. The two channels,

getSearchReply and getBookingReply, are ”In-

put” channels. They have also the role of ”Discov-

ery” channels in the sense that these two channels can

be communicated to the server in order to get replies.

The client declaration is given in the following:

/ / Creation of the service with two

/ / output channels and two

/ / Input/Discovery channels

Service s = new Service(”FlightReservation”);

s.addOutputChannel(searchTravel);

s.addOutputChannel(bookFlight);

s.addInputDiscoveryChannel(getSearchReply)

s.addInputDiscoveryChannel(getBookingReply)

/ / Creation of an interface requiring "s"

Interface i = new Interface();

i.require(s);

/ / Creation of the client process

/ / with interface i

Process client = new Agent(i);

Finally, the global system is seen as a parallel

composition of the client and the server processes.

WS*-based Implementation. In case of an imple-

mentation based on WS* services, a WSDL ﬁle is

used with a WS-Management speciﬁcation as we

mentioned in Sec. 2. The resulting WSDL ﬁle is used

by the client to invoke the services of the ﬂight server.

In this ﬁle, the ﬂight service is represented by a port

linked to a binding description and to an EndPoint

Reference (EPR). The EPR associates:

• A URI address that identiﬁes the service, L

server

= ”http://ﬂight-travel-service”.

• A port type which deﬁnes the two methods:

”searchTravelOp” and ”bookFlightOp”,

• Properties which may contain the individual

properties that are required to identify the entity or

the resource being conveyed.

• A service name, e.g., ”FlightReservation”.

• A Policy deﬁned using WS-Policy.

In our scenario, we consider a policy which re-

quires an EPR in the ”ReplyTo” block of the WS-

Addressing SOAP header for the request messages.

We suppose that the two methods ”searchTravelOp”

and ”bookFlightOp” are request/reply, thus they de-

ﬁne an input (InMsg) and an output (OutMsg) mes-

sages. Suppose that the client is accessible via a loca-

tion L

client

, which is the URI address communicated

in the SOAP header ReplyTo. According to this brief

interface description, we associate channels with their

corresponding formal deﬁnitions as follows:

• searchTravel is L

server

.searchTravelOp.InMsg

• bookFlight is L

server

.bookFlightOp.InMsg

• getSearchReply is L

client

.searchTravelOp.OutMsg

• getBookingReply is L

client

.bookFlightOp.OutMsg

Implementation using RESTful Services. The im-

plementation of our service interface is different using

the RESTful technology. The ﬂight reservation ser-

vice is composed from two resources:

• ”ﬂightTravel” accessible by the URL: L1

server

”http://ﬂight/travel”

• ”ﬂightReservation” accessible by the URL:

server

= ”http://ﬂight/reservation”

Each resource has four methods: GET, PUT,

POST and DELETE. The GET method for the ﬂight-

Travel resource replaces the ”searchTravelOp” oper-

ation of the previous WSDL example. The POST

method for the ”ﬂightReservation” resource replaces

the ”bookFlightOp” operation deﬁned in the WSDL

ﬁle. Both of these two methods are request/reply and

can be deﬁned using the Web Application Description

Language (WADL) proposal for standardization.

Suppose that L

client

is a source IP address and port

over HTTP, we associate the following meaning for

our declared channels:

• searchTravel is L1

server

.GET.RequestMsg

• bookFlight is L2

server

.POST.RequestMsg

• getSearchReply is L

client

.GET.ResponseMsg

• getBookingReply is L

client

.POST.ResponseMsg

5 APPLICATION TO TYPE

CHECKING

As an application of our model to the securization

of distributed services, we consider type checking.

There is rather few formal work on type checking in

the context of web services, a notable exception being

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

140

the work of Sans and Cervesato (Sans and Cervesato,

2010), which presents an abstract model for web ap-

plications. Considering once again the ﬂight reserva-

tion scenario, we wish to apply type checking on the

client agent.

Scenario and Problems. Let us consider that the

client process is implemented by using the cxf frame-

work of the Apache foundation framework

; the

server process is exposed as a RESTful server. As

multiple ways exist to call the ﬂight reservation ser-

vice, there are different implementation cases for the

client developer:

(i) The programmer knows the server ”EndPoint”

and he refers to the WADL ﬁle provided by the server

to generate his code. In this case the programmer of

the client agent can type-check his code.

(ii) The programmer knows the server ”EndPoint”

but he does not want to use the WADL ﬁle. Instead,

he wishes to call the RESTful service by making ex-

plicit HTTP invocations, using the HTTP-centric API

exposed by cxf framework. Thus, the client could

send ill-typed HTTP messages; the developer needs

to be careful to ensure that only correct messages are

sent.

(iii) The programmer does not know the server

and he discovers it, potentially at runtime; a discov-

ery problem could occur in this case if the discov-

ered service is sent or modiﬁed by a malicious agent.

For example, an agent could communicate with the

malicious one and believe, erroneously, that the lat-

ter one provides a particular service. Such an error

gives the opportunity to attackers on the network for

hacking web services by simply ﬂooding servers with

erroneous messages.

Our Proposed Solution. To avoid all of these is-

sues, we propose to use a framework to represent the

client and the server agents in our abstract model, in

terms of the description given in Sec. 4

. Before ex-

ecution, the two agent interfaces must be checked in

order to exclude typing errors. This check consists

in the evaluation whether each required channel has

a type compatible with the corresponding provided

channel. Moreover, if a discovery mechanism is re-

quired at run-time to probe for an ”EndPoint” ref-

erence, an authentication mechanism is required to

avoid discovering services with fake information sent

by hackers. If the system is not well typed, the imple-

mentation generates a set of typing errors. To cor-

http://cxf.apache.org

For lack of space we only present a brief informal de-

scription of our typing method. A detailed account can be

found in (Allam et al., 2011).

rect this problem, the developer has two possibili-

ties: 1) he can modify statically his code to correct all

the type problems, or 2) type checking can be imple-

mented separately from the implemented agent, thus

the check will occur at runtime before emitting the

message or at the moment of reception if we allow

messages to be emitted by unchecked agents. Such

dynamic type checking can be assured, e.g., by a

proxy that wraps the local agent.

6 RELATED WORK

In the following we present related work for black-

box models. There is some interesting works,

like (Seehusen and Stolen, 2009; Keller et al., 2006).

In (Seehusen and Stolen, 2009), authors deﬁne a for-

mal and abstract model for services. The semantics

are based on a notion of trace which is a sequence of

events. The intent of this formalization is to abstract

message sequence chart as they are used in UML 2.

While in (Keller et al., 2006), authors use the notion

of abstract state space to specify the functional de-

scriptions of web services. The authors demonstrate

the applicability of the formal model by showing how

to deﬁne and determine realizability and semantic re-

ﬁnement. Comparing these two models to ours, there

is different abstraction interests. Our model con-

tributes mainly in the abstraction of existing standards

and is applied to type soundness. While (Seehusen

and Stolen, 2009) presents an advanced formalization

of some conﬁdentiality issues and (Keller et al., 2006)

focuses on a particular functional description without

a clear deﬁned syntax. Another interesting work is

(Sans and Cervesato, 2010) where authors share with

us a general view of the web services interactions but

without parallelism and asynchrony. Their work cov-

ers code mobility which we do not address here, we

are only concerned with the remote procedure call.

7 CONCLUSIONS

In this paper, we have presented an abstract model

unifying web service composition in heterogeneous

environments, such as those requiring interaction be-

tween backend servers that use WS* services and mo-

bile appliances that use RESTful services. We have

illustrated the model in the context of a ﬂight booking

example. Finally, we have brieﬂy presented an appli-

cation of the model to type checking. We have shown

how to support the detection of security-critical type

errors, notably security ﬂaws due to service discovery

attacks, an interesting topic for future work.

AMESSAGE-PASSINGMODELFORSERVICEORIENTEDCOMPUTING

141

REFERENCES

Allam, D. et al. (2011). Extension of the service model for

security and aspects. Deliverable D1.3, CESSA ANR

project, no. 09-SEGI-002-01.

Alonso, G., Casati, F., Kuno, H., and Machiraju, V. (2004).

Web Services: Concepts, Architectures and Applica-

tions. Springer, Berlin.

Berry, G. and Boudol, G. (1992). The chemical abstract

machine. Theoretical Computer Science, 96(1).

Keller, U. et al. (2006). On the semantics of functional de-

scriptions of web services. In Sure, Y. and Domingue,

J., editors, The Semantic Web: Research and Appli-

cations, 3rd European Semantic Web Conference, vol-

ume 4011 of LNCS, pages 605–619. Springer.

Lamport, L. and Lynch, N. (1990). Distributed comput-

ing: models and methods. In Handbook of Theoretical

Computer Science vol B. Elsevier.

Lindstrom, P. (2004). Attacking and defending web ser-

vices. In A Spire Research Report.

Sans, T. and Cervesato, I. (2010). Qwesst for type-

safe web programming. 3rd International Workshop

on Logics, Agents, and Mobility (LAM’10) Edin-

burgh, Scotland, http://www.qatar.cmu.edu/ tsans/in-

dex.php?page=research.

Seehusen, F. and Stolen, K. (2009). Information ﬂow secu-

rity, abstraction and composition. IETF Information

and Security, 3(1):9–33.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

142
