CONVERTING DB TO RDF WITH ADDITIONAL DEFINED

RULES

Mamdouh Farouk and Mitsuru Ishizuka

Creative Informatics Department, The University of Tokyo, Tokyo 1138656, Japan

Keywords: DB to RDF, Inference Rules, Searching RDF.

Abstract: In linked data, web resources and data are represented into RDF. The new web of linked data should be

completely machine-understandable. Moreover, since the start of Linking Open Data project, more and

more providers publish linked data. Therefore, converting DB into RDF is important because a large amount

of web data stored in databases. This work presents an approach for converting DB to RDF with additional

inference rules. The generated data contains not only RDF data that represents relational DB but also

additional discovered relation based on a set of predefined rules. Moreover, this paper proposes a simple

search engine, which consumes the generated data and the defined inference rules. A prototype for the

proposed approach and results of experiments show the effectiveness of the proposed approach.

1 INTRODUCTION

In Semantic web vision, web agents can understand

web data and do actions to help the user (

Berners-Lee ,

2001). To enable web agent to understand web

content, web data should be represented into a

machine understandable format. Moreover, there are

many languages formalized to represent web data

and resources such as RDF, DAML and OWL.

The Resource Description Framework (RDF) is a

W3C recommendation that represents current web

into machine understandable format.

Further, a huge amount of web data is stored in

databases (

Siegfried, 2003). Therefore, many

researchers pay much care to convert relational DB

to RDF triples. Moreover, many researchers try to

represent dynamic web pages, which retrieve their

content from underlying DB, into semantic format

(

Zhuoming, 2006)(Mamdouh, 2005). In the other hand,

the process of converting DB to RDF should be

simple (

Svihla, 2005) to encourage the DB owner to

convert his data.

There are different approaches to convert DB to

RDF (

Siegfried, 2003) (Pan, 2003) (Ismael, 2004). A

common step in these approaches is mapping

between DB schema and ontology structure. Based

on this mapping, the DB can be accessed

semantically either by generating RDF triples

corresponding to original data or by keeping the data

in the DB, where it can be managed better, and

generating RDF on demand. There are different

approaches for the latter way. One approach is

converting SQL query result to RDF on the fly when

the DB is queried (

Svihla, 2005). This approach is

suitable in case of dynamic web pages that retrieve

content from underlying DB. Another approach is

developing a semantic access layer as an intermediate

layer between web agents and normal DB (

Ismael,

2004).

Although, the main objective of converting

relational DB to RDF is to enable web agents to

understand this data, there are some difficulties

facing web agents to understand this data. One

important issue that should be faced is finding

implicit data. In other words, how the web agent can

infer the implicit data like a human who read the

normal web pages. Showing this implicit data will

enables web agent to deeply understand web data.

For example, a query asks about an author who is

interested in semantic web that is run over a corpus

such as semantic web conference corpus may return

no result. The answer of such query already exists in

the RDF data but the query answering process cannot

get the answer because the answer implicitly exist.

Although, DB is an excellent tool to store and

manage data, it needs simple inference to improve its

performance of querying data (

Pan, 2003). This work

is an extension to DB2RDF approach that converts

DB to RDF data. This paper does not focus on

converting DB to RDF. However, it focuses on

709

Farouk M. and Ishizuka M..

CONVERTING DB TO RDF WITH ADDITIONAL DEFINED RULES.

DOI: 10.5220/0003939907090716

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 709-716

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: System architecture.

adding extra knowledge (user-defined rules) during

mapping process. These rules are useful to discover

extra relations. Using these rules, web agents can

understand web data easily. In the proposed

approach, the generated RDF data contains not only

original DB data but also inferred data that supports

query answering process.

This paper proposes an approach to convert

relational DB to RDF with additional relations

discovered based on user-defined rules. Unlike other

approaches, our approach provides not only mapping

and generating RDF but also adding extra

knowledge, which is very useful in query answering

process. In other words, this work proposes adding

extra knowledge (user-defined rules) to the mapping

schema level to improve the query-answering

process. The generated RDF semantic representation

together with the added knowledge can be used by

intelligent search engines to infer more data and

obtain accurate search results. Moreover, an

extension to SPARQL search engine which exploits

the added rules to answer more queries is presented.

One approach that maps and converts DB to RDF is

D2R (

Chris, 2010). D2R tool auto-generates the

mapping file and the user should modify this

generated file to fit the appropriate meaning.

Moreover, D2R server enables the user to query the

DB using SPARQL queries. Dumping RDF data that

represents DB is also supported by D2R.

Moreover, a related approach, which tries to

express rules and infer additional RDF data, is SPIN

(

Holger, 2011). SPIN is a group of RDF properties that

can be used to express rules. These rules attached to a

specific ontology class and can be applied to infer

data, or modify the current data. spin:rule property

can be used to defined an inference rule using

SPARQL construct or insert/delete.

Moreover, SPIN adds rules to ontology level.

However, our approach separates between rules level

and ontology level. Separation between ontology and

rules levels gives the user flexibility to add rules. In

other words, it is difficult for the user to update the

standard shared ontology to add his rules. Moreover,

there are many users may add rules to infer the same

property depending on their own data. The user

wants to extend his data depending on the semantics

of the data and the expected queries to be asked.

Therefore, the users have different data want to make

many rules even for the same ontology. Attaching

rules to dataset gives flexibility to the users and

avoids rules conflicts on ontology level.

The remainder of this paper is organized as

follows. Section 2 describes the overall system

architecture. Section 3 explains the proposed

approach for converting DB to RDF. Section 4

describes an extension for SPARQL search engine

that exploits the generated RDF and defined rules.

The experiments and results are discussed in section

5. Finally, section 6 provides the conclusion of this

research.



2 SYSTEM ARCHITECTURE

The proposed system is divided into two main parts.

The first part is converting relational DB to RDF.

The second part is searching the generated RDF

triples using SPARQL queries.

As shown in figure 1, there are three tasks for

representing DB into RDF: the first task is mapping

between DB schema and ontology. The second

process is adding user-defined rules to the generated

semantic schema. The last task is generating RDF

data. This task includes two sub-processes which are

generating RDF data represents relational database

and generating RDF data represents the inferred RDF

triples using the defined rules. A simple search

engine is designed to query the generated RDF using

SPARQL queries. The search engine exploits the

Search

MappingDBto

webontology

Addinguser‐

definedrules

DumpingDBintoRDF

Inferringextradata

Mapping

schema

Mapping

schema+rules



RDF

DB

Ontology

SPARQL query

Queryresult

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

710

predefined rules to improve query answers.

Moreover, two ways for using the user-defined

rules are applied. Forward chaining is applied during

the process of generating RDF to add the inferred

RDF triples. However, backward changing is applied

during the searching process to use the rules without

storing the inferred data.

3 CONVERTING RELATIONAL

DB TO RDF

In the proposed approach, the mapping between

relational DB and RDF is a manual process in which

the user maps between schema of DB and ontology

structure. The user uses the developed tool, figure 2,

to map between DB and different ontologies. The

generated mapping is expressed into XML

intermediate format.

3.1 Mapping DB to Ontology

There are three steps for this mapping process. The

first step is mapping DB tables to ontology classes.

In this step, the user selects ontology class

corresponding to each table. The user can select

classes belong to different ontologies. The second

step is mapping between DB fields and ontology

properties. The user selects a suitable property for

each field. The mapping tool helps users to do this

mapping easily and correctly. The last step is

mapping relations of the DB. In this step, the user

represents M-M and 1-M relation in terms of

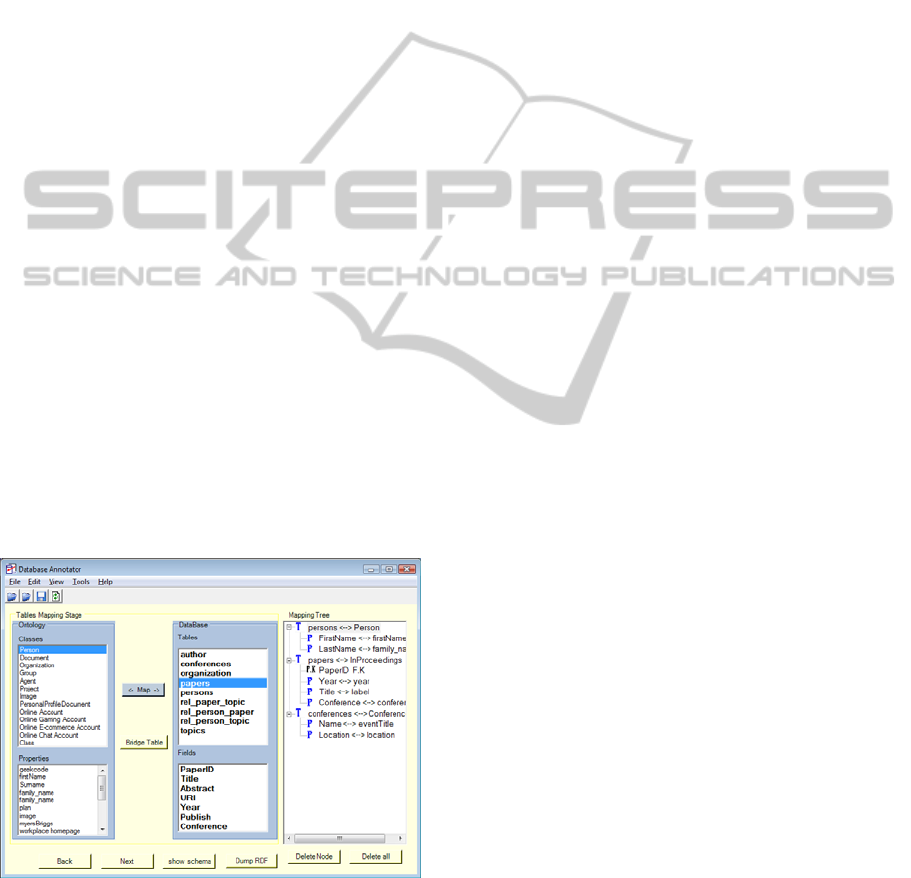

Figure 2: The mapping tool.

ontology relations. M-M relation is considered as

two relations each one is 1-M relation. The user

maps the foreign key field to the appropriate

ontology property that represents same relation

between ontology classes. For example, consider a

DB for university researchers contains two tables:

researchers, and departments. The field deptID in

researchers table is a foreign key refers to

departments table. In such case, the user may map

deptID field to hasaffiliation property in person

class. The domain of hasaffiliation property is

organization class. hasaffiliation property represents

the relation between researchers table and

departments table.

3.2 Adding Rules

The next step after mapping between DB schema and

ontology is adding extra knowledge to the mapping

file. This extra knowledge is considered as an

extension for the original data stored in the DB.

Moreover, this knowledge is used to infer more data

from the DB and to support query answering process.

To clarify the idea of adding user-defined rules,

consider this scenario. The database of international

semantic web conferences (ISWC) contains

information about some conferences in semantic web

field and other related data such as published papers,

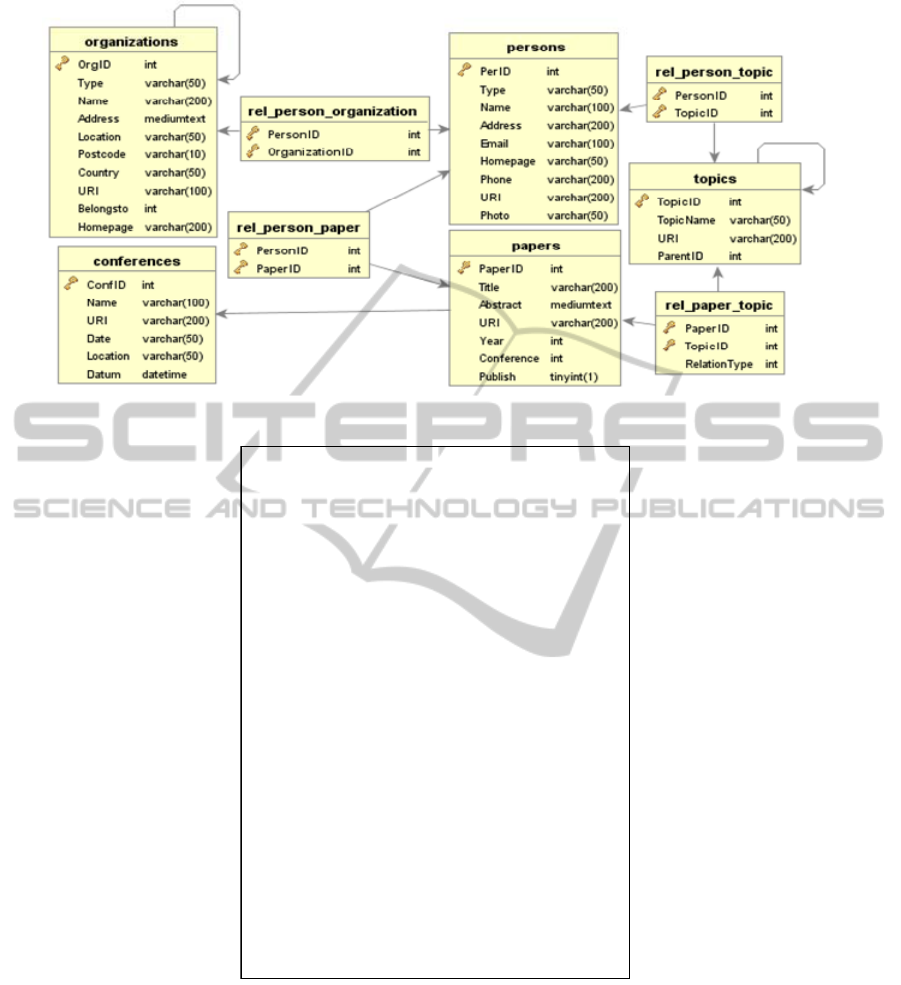

authors and so on. Figure 3 shows the schema of

ISWC DB. Normally, this database is queried about

authors and their interest points or their publications.

For example, who is interested in “semantic

representation”?. Who knows Prof. John? The DB or

the traditionally generated RDF data cannot properly

answer these questions based on the available data.

Moreover, neither in DB nor in the generated RDF

data contains knows relation in foaf ontology.

However, a human can suggest an answer based on a

simple inference. Consequently, adding some

inference rules helps web agents to understand the

data and answer such queries. For example, the

following rules can be added:

• If a person A is an author to a paper Y, and a

person B is an author to the same paper Y Æ A

knows B.

• If a person A is an author to a paper Y, and the

main topic of Y is T then Æ A is interested in T.

Using these rules is considered as a DB extension

that adds more relations to the original relational

database. For example, the above DB contains little

information about research points of authors.

However, the second rule enriches this information

by discovering more research points for authors

depending on their publications. As a result, these

rules enable search engines to answer more queries.

Adding user-defined rules depends on the meaning of

the DB schema and the queries that used to be asked.

CONVERTINGDBTORDFWITHADDITIONALDEFINEDRULES

711

Figure 3: ISWC DB schema.

Figure 4: Example of user-defined rules.

These rules are added during the mapping

process, which occurs only once. Using these rules

solves the problem of finding the implicit

information and enables web agents to go one more

step to understand web data.

Production rule format, “condition Æ action”, is

used to represent the user defined rules. The syntax

production rule is carefully designed to be easy for

implementation of generating extra data and to be

easy for reasoning. The condition part syntax is the

same as SPARQL query condition syntax. The action

part is also represented into SPARQL syntax to be

easy for execution. Figure 4 shows an example for

the added rules. The first part of the rule is xml

namespaces for the used vocabularies. The second

part is the conditions of the rule represented into

SPARQL syntax. The last part is the action part,

which is true if the conditions are true.

<rule id="2" xmlns:rdf="http://www.w3.org/1999/02/22-rdf-

syntax-ns#"

xmlns:foaf="http://xmlns.com/foaf/0.1/"

xmlns:dc="http://purl.org/dc/elements/1.1/"

xmlns:iswc="http://annotation.semanticweb.org/iswc/iswc.d

aml#"

xmlns:rdfs="http://www.w3.org/2000/01/rdf-schema#" >

<text>

if two people are authors for the same paper, then they

know each others.

</text>

<con>

{

?ppr rdf:type iswc:InProceedings.

?person rdf:type foaf:Person.

?person2 rdf:type foaf:Person.

?ppr dc:Creator ?person.

?ppr dc:Creator ?person2.

FILTER (?person != ?person2)

}

</con>

</condition>

{ ?person foaf:knows ?person2. }

</action>

</rule>

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

712

Moreover, there are two approaches to use these

rules. The first one is using forward chaining to

expand the original data with adding new inferred

information. For example, adding the inferred

relations between DB objects to RDF data. In this

way, the generated RDF data contains more relations

than relational DB. One advantage of this approach is

that there is no need for new web agents that can use

the new added rules. In other words, a normal

semantic agent can make the use of these rules and

consume the new added data in the same way as the

original data without change its behavior. However,

adding new data to the original one increases the size

of data. However, size of data should be in a

reasonable range that does not affect the web agent

performance (

Minsu, 2004).

The other approach to use the defined rules is

using these rules during the processing of original

data to infer more data on the fly without storing the

new data. This approach keeps the size of the

original data. However, there is overhead processing

of using inference rules during searching or

processing the original data. The proposed system

supports both approaches.

3.3 Dumping RDF Data

The process of dumping or generating RDF data

corresponding to DB contains two steps. The first

step is automatic generation for RDF triples that

represent the relational DB. This step is based on the

mapping between DB schema and ontology. The

second step is applying the user-defined rules on the

generated RDF and adding the inferred data to the

original RDF.

3.3.1 Dumping Relational DB into RDF

This process auto-generates RDF data corresponding

to the data stored in the DB. Moreover, the

proposed

system dumps RDF data based on the mapping file

generated by the developed mapping tool. The

following steps should be executed to generate RDF

data.

1- From the mapping file, get all tables mapped to

ontology classes.

2- For each table

a) Create an SQL select query to retrieve all

data in the table

b) For each retrieved record, create an

instance of the corresponding ontology

class of the current table. // uri of the

created instance is constructed from the

following pattern (table name/ auto-

increment number). i.e papers/23.

c) For each mapped field belongs to this table

in mapping file, create an instance of the

corresponding property inside the created

class instance

d) Assign a value to the created property from

the retrieved data.

e) If the field represents a foreign key, the

value of the created property will be a

reference to another class instance

This algorithm is implemented using Java. It

generates the corresponding RDF of a DB including

the relations between DB objects depending on

mapping schema file.

3.3.2 Adding Extra Inferred RDF Data

Using the user-defined rules, our approach inferred

additional RDF triples. These triples are added to

RDF data that represents DB. Rule syntax that

facilitates the process of inferring and adding extra

RDF is adopted. The decided format quoted from

SPARQL syntax. As a result, it is easy to use

SPARQL engine in inference process.

Furthermore, the proposed algorithm for inferring

extra RDF data uses forward chaining to fire the

rules. This means that if the condition part of a rule is

true based on the available RDF data then the action

part should be inserted as a new RDF triple into the

RDF data. The algorithm of adding RDF triples

based on the user-defined rules is as follows.

Inputs: RDF data, user-defined rules

Output: new RDF data

For each user-defined rule

1- Get condition part of the rule

2- Construct a SPARQL select query

3- Execute the SPARQL query on RDF data

4- Replace variables in the action part of the

rule with the values from the query result

5- Construct a SPARQL update query using

the action part

6- Execute the update query to insert the new

information to the RDF data.

This algorithm takes RDF data that represents DB

and the extra rules as inputs and adds inferred RDF

triples to RDF data based on rule execution. The

second step in the above algorithm constructs a

SPARQL query from the condition part of the current

rule. The query construction process is simple in

which, the common variables in the condition part

and action part of the rule are extracted and a select

query for these variables is constructed with the same

conditions stated in condition part of the rule. The

CONVERTINGDBTORDFWITHADDITIONALDEFINEDRULES

713

variables in the action part are replaced with the

resulted values. In addition, a new SPARQL query

(insert query) is constructed from action part after

replacing the variable with its values. The new query

adds inferred data to the RDF data.

Moreover, the process of adding discovered

relations in the proposed approach is simple and

powerful. This process implemented as execution of

two SPARQL queries: a select query to check rule

conditions, and an insert query to execute the action

part of the rule. These two queries are constructed

directly based on the adopted SPARQL syntax rule

format. Consequently, adding discovered relations to

RDF data is easy to implement and can be executed

in a high performance way based on SPARQL

engine.

4 SEARCHING RDF

The proposed engine is an extension to the normal

SPARQL engine. An inference step is added to the

SPARQL engine to make the use of the generated

RDF data and the user-defined rules. The proposed

engine can answer some queries that cannot be

answered using normal engines. In other words,

sometime the dataset contains the desired result but

the engine cannot extract it. Using inference, the

engine goes behind the raw data to find query

answer.

The proposed engine is developed based on Jena

SPARQL API with additional inference step. The

actual usage of the added inference step is not to

infer more data. However, the inference step is used

for query expansion process to get more detailed

queries that can be answered using the normal

engines.

The user can custom the engine behavior though

options panel. The user determines when the engine

should apply inference and to what extent. For

example, the engine can be adapted to run inference

only in case of no result returned by normal search.

In addition, the user may stop the inference

whenever a result comes. The default is that the

engine will get all possible solutions.

4.1 Query Expansion

The proposed approach applies backward chaining

in query answering process for query expansion. The

algorithm of SPARQL query expansion is a

recursive algorithm that gets all possible queries

based on a set of predefined rules. Indexing for the

defined rules are established to link different rules

based on the inferred relations. This index for the

published rules facilitates finding the appropriate

rules to expand a SPARQL query. The basic idea of

this query expansion is to replace query condition

with other conditions based on backward chaining of

the rules.

Query expansion based on backward chining

algorithm is as follows:

Input: SPARQL query, rules

Output: list of new queries equivalent to the inputted

query

- Get list of properties (predicates) used in query

conditions.

- Get related rules that can be used to expand the

inputted query (based on rule index)

- For each rule in the related rules list

• Match between rule actions and query

conditions

• Bind matched variables and keep them in a

mapping state

• Replace the matched query conditions with rule

premises

• Recursive call to expand the new query // this

call starts matching the new query and only the

rest of rule set

- Combine all new queries in one list

A mapping state holds the mapping between

different matched objects in order to construct a

proper query that gets the answer of the user query.

The resulted queries are executed using the normal

SPARQL query engine. The results of these queries

are combined and sent back to the client.

5 EXPERIMENTS

In these experiments, a large DB is converted to

RDF using the proposed approach. Moreover, a set

of queries are tested to show the effectiveness of

adding rules to the original dataset. In addition, we

applied both ways of using user-defined rules. A

comparison between both approaches is presented.

5.1 Converting DB to RDF

A prototype for the proposed approach of converting

DB to RDF is implemented using C#. In this

experiment, the proposed approach applied on a

large DB, International Semantic Web Conferences

(ISWC) DB, which contains information about

papers and authors involved in some conferences

related to semantic web field. Figure 3 shows the

schema of this DB. The total numbers of records in

ISWC DB is 11213 records. It contains information

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

714

about 2595 authors and more than 1100 published

papers.

The first step to convert ISWC DB to RDF is to

map between DB schema and ontology. In this

mapping, we used eight different ontologies:

rdf=http://www.w3.org/1999/02/22-rdf-syntax-ns#

foaf=http://xmlns.com/foaf/0.1/

iswc=http://annotation.semanticweb.org/iswc/iswc.daml#

rdfs=http://www.w3.org/2000/01/rdf-schema#

dc=http://purl.org/dc/elements/1.1/

swrc= http://swrc.ontoware.org/ontology#

swc=http://data.semanticweb.org/ns/swc/ontology#

owl= http://www.w3.org/2002/07/owl#

Figure 5: Mapping between DB and ontology.

A part of the mapping result is shown in Figure 5.

In this mapping, the DB table papers is mapped to

Inproceedings class in iswc ontology. Fields of

papers table are mapped to ontology properties as

shown in Figure. 5. For example, the field title in the

table papers mapped to Title property in Dublin Core

(dc) ontology.

In addition, we add user-defined rules to the

mapping file to be used as an extension to the

original data. According to the meaning of ISWC DB

and the queries to be asked, we added some rules to

the mapping file. The following rules are added

during the experiment.

1. If a person A is an author to a paper Y, and

a person B is an author to the paper Y then Æ A

knows B.

2. If a person A is an author to a paper Y, and

the main subject of Y is T Æ A is interested in T.

The first rule adds knows relation to the DB.

Knows is a relation in foaf standard ontology that

relates two people. ISWC DB does not contain

relations between people. The second rule adds

author’s interest_points relation, which relates

between person and topic.

The next step after mapping DB to ontology and

adding rules is auto-generation for RDF triples

represent the DB. The developed tool, figure 2, is

used to generate RDF triples. The total number of

generated RDF triples is 29703. This conversion

process takes 7.757 seconds. Moreover, by applying

the algorithm of adding inferred data to RDF, more

relations are added to the original data. The number

of inferred RDF triples is 18063 using the previous

two rules. Execution time of the inferring and adding

new triples is 39.440 seconds

A large number of RDF triples represent inferred

relations are added to the original data. This extra

data improves query answering process and enables

web agents to get implicit information.

Our approach provides conversion from

relational DB to RDF in an efficient way within

reasonable execution time. In addition, it uses extra

user-defined rules to generate more RDF data.

Finally, our approach generates more information

represented into RDF that helps semantic search

engines to answer more queries.

5.2 Querying RDF Data

We prototype the query engine proposed in section

four using java and Jena API (http://jena.sourceforge

.net/ARQ). The generated RDF data were queried

using different SPARQL queries to test different

cases. Table 1 shows some queries that are used in

this experiment. In this experiment, we run these

queries three times against different datasets. The

first is the RDF data that represents relational DB.

The second dataset is the same as the first with

additional inferred RDF triples. The last experiment

runs the queries against the RDF that represents

original DB and using the user-defined rules to

expand the user queries. Table 2 shows the results of

these experiments.

For example, the following SPARQL query, Q1,

asks about people who know Prof. Evgeniy

Gabrilovich.

Table 1: List of queries used in the experiment.

Number Query

Q1 Who knows Prof. Deepa Arun Paranjpe

Q2 Who is interested in Semantic search

Q3 Get all papers in Semantic web topic

Who is interested in ranking for search and knows

Evgeniy Gabrilovich

Q5 Get all papers in WWW 2010 conference

Q6 Who knows Prof. Evgeniy Gabrilovich

<DB>

<bridge_table name="rel_person_paper">

<foreignkey field="PersonID"

belongToClass="InProceedings" mapToProp="Creator"

refToClass="persons" corespondFK="PaperID"

ontoIndex="dc" />

</bridge_table>

<table name="papers" RTClass="InProceedings"

ontoIndex="iswc">

</primarykey>

<foreignkey name="Conference"

RTProperty=

"conference" RTTable="conferences"

ontoIndex="iswc" />

<field name="Abstract" RTProperty="Abstract"

ontoIndex="dc" />

</table>

….

CONVERTINGDBTORDFWITHADDITIONALDEFINEDRULES

715

PREFIX foaf: <http://xmlns.com/foaf/0.1/>

SELECT distinct ?x

WHERE

{

?per foaf:name Evgeniy Gabrilovich.

?x foaf:knows ?per .

}

By running this query on the original data, no

result will be returned. However, after applying our

approach the query returns 20 results. This means

that there are 20 people know Prof. Edward Benson

in our dataset.

Table 2: Query result using normal technique and the

proposed approach.

Dataset/

size

Query

number

RDF data that

represent DB

RDF + inferred

triples

RDF + rules

(2.71 MB) (3.39 MB) (2.71 MB)

Number

results

Execution

time

umber of

results

Execution

time

umber of

results

xecution

time

Q1 0 0.0040 2 0.0040 2 0.159

Q2 0 0.0040 39 0.0070 39 0.037

Q3 119 0.0100 119 0.0110 119 0.012

Q4 0 0.0040 9 0.0060 9 0.385

Q5 105 0.0090 105 0.0100 105 0.013

Q6 0 0.0040 20 0.0040 20 0.227

Using the user-defined rules in SPARQL engine

gets better result and improves the query answer

process. Moreover, the execution time of querying

the RDF with additional inferred data is almost the

same as RDF dataset only. However, querying RDF

with additional data gives better results. On the other

hand, query RDF dataset with the added rules gives

same results in a little higher execution time. The

execution time of the last dataset depends on the

number of expanded queries not the number of

results. The last dataset saves storage space.

However, the second dataset saves execution time.

Finally, the proposed approach can answer some

queries that cannot be answered by normal

approaches.

6 CONCLUSIONS

This paper proposes an approach for converting DB

to RDF. Moreover, to enable web agent to deeply

understand the generated data, we propose adding

user-defined rules. The added rules are very useful

for query answering process. Using forward

chaining the proposed approach adds inferred RDF

triples to the original RDF. On the other hand, the

propped system uses backward chaining for query

expansion and run these queries on the original

dataset that represents the DB. The experiments

show the effects of the proposed approach in

answering queries. Moreover, the effects of using

both approaches (adding inferred data and using rule

in the querying process) are shown in the

experiments.

REFERENCES

T. Berners-Lee, J. Hendler, O. Lassila, “The Semantic

Web,” Scientific American, Vol. 284, No. 5, 2001, pp.

34-43.

Siegfried Handschuh, Raphael Volz, Steffen Staab,

Annotation for the Deep Web, IEEE Intelligent

Systems, v.18 n.5, September 2003, pp.42-48.

Zhuoming Xu, Shichao Zhang, and Yisheng Dong,

Mapping between Relational Database Schema and

Owl Ontology for Deep Annotation, WI'06:

Proceedings of the 2006 IEEE/WIC/ACM

International Conference on Web Intelligence, IEEE

Computer Society, 2006, pp. 548-552.

Mamdouh Farouk, Samhaa R. El-Beltagy, Mahmoud

Rafea, "On-the Fly Annotation of Dynamic Web”

Proceedings of the First International Conference on

Web Information Systems and Technologies (WEBIST

2005),” Miami (USA), may 2005, pp 327-332.

Svihla, M., Jelinek, I.: The Database to RDF Mapping

Model for an Easy Semantic Extending of Dynamic

Web Sites. Proceedings of IADIS International

Conference WWW/Internet, Lisbon, Portugal, 2005,

pp.27-34

Pan, Z. and Heflin, J.: DLDB: Extending Relational

Databases to Support Semantic Web Queries, In

Workshop on Practical and Scaleable Semantic Web

Systems, The 2nd International Semantic Web

Conference (ISWC2003) (2003).

Ismael Navas Delgado, Nathalie Moreno Vergara, Antonio

C. Gomez Lora, María del Mar Roldán García, Iván

Ruiz Mostazo, José Francisco Aldana Montes:

“Embedding Semantic Annotations into Dynamic Web

Contents”. Proceeding of 15th international workshop

on database and Expert Systems Applications, 2004,

pp. 231-235

Chris Bizer, and Richard Cyganiak: D2R server

Publishing Relational Databases on the Semantic Web,

www4.wiwiss.fu-berlin.de/bizer/d2r-server/, 2010

Holger Knublauch, James A. Hendler, Kingsley Idehen

“SPIN - Overview and Motivation”, http://www.w3.

org/Submission/2011/SUBM-spin-overview-2011022

2/, February 2011.

J. Minsu and J. C Sohn, "Bossam: An Extended Rule

Engine for OWL Inferencing," In Proc. RuleML 2004,

pp. 128-138, 2004.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

716
