HOW TO PROVIDE MONITORING FACILITIES TO SERVICES

WHEN THEY ARE DEPLOYED IN THE CLOUD?

Mohamed Mohamed, Djamel Bela¨ıd and Samir Tata

Institut TELECOM, TELECOM SudParis, UMR CNRS Samovar, Evry, France

Keywords:

Cloud Computing, Monitoring, Scalability, Service Containers.

Abstract:

Cloud computing is a new maturing model providing efﬁcient solutions in IT domain involving provisionning

of virtualized ressources. Meanwhile, monitoring issue remains an active ﬁeld of research. In this paper,

we introduce a new scalable micro-container that enables different monitoring modes. Unlike the existing

initiatives in this ﬁeld, we propose a framework that automatically adds monitoring capabilities to a given

service and encapsulate it in a scalable micro-container.

1 INTRODUCTION

In the last decade, Cloud Computing is gaining more

and more attention in the IT (Information Technolo-

gies) domain. Different levels of enterprises, are try-

ing to beneﬁt the most from this revolutionary tech-

nology. However, a consensus on deﬁnition of Cloud

Computing is not yet obtained. The National In-

stitute of Standards and Technologies (NIST, 2011)

deﬁnes Cloud Computing as ”a model for enabling

ubiquitous, convenient, on-demand network access to

a shared pool of conﬁgurable computing resources

(e.g., networks, servers, storage, applications and ser-

vices) that can be rapidly provisioned and released

with minimal effort or service provider interaction”.

Provisioning such a huge number of heterogeneous

resources needs an efﬁcient management to ﬁt cos-

tumers requirements. Many projects are addressing

issues of monitoring in the Cloud (e.g. RESERVOIR

(Metsch et al., 2010), mOSAIC (Rak et al., 2011)) at

different levels of granularities.

In the state of the art, there are different mod-

els of monitoring; we are interested in monitoring by

polling and monitoring by subscription. First, mon-

itoring by polling is the simplest way of monitoring.

In fact, in this model, a service can express its need to

know the state of a property provided by another ser-

vice. To make this possible, the interested service can

generally interact with a speciﬁc interface that pro-

vides a getter of the needed property.

Second, the monitoring by subscription in which

there are two modes: 1) the subscription on Interval:

it implies that the monitored service broadcasts the

state of its properties periodically to the subscribed

services and 2) the subscription OnChange: it im-

plies that the monitored service have to notify the sub-

scribed services whenever its properties change.

Almost all of the proposed solutions for monitor-

ing are shallow in the way of collecting data from its

producers and the way of using this data. Moreover,

in these solutions, to monitor a service in the Cloud,

this service must be designed to be monitorable and it

must offer an interface to answer monitoring queries.

However, some services may not offer any interface

to answer such type of queries. These services cannot

be monitored by any of the existing approaches.

In order to overtake this limit, we aim to render

services monitorable. Our work will ease the task of

services’ developers, so they can focus in the func-

tional properties of services and leave to our mecha-

nisms the non functional aspects of monitoring.

In our previous work (Yangui et al., 2011), we pre-

sented a scalable micro-container that enables deploy-

ing and executing services in the Cloud with a proven

efﬁciency and minimal resources consumption. And

due the need of monitoring, we aim at adding mon-

itoring facilities to services deployed on top of our

micro-container. We started by designing a frame-

work that allows to encapsulate services in a compos-

ite adding monitoring interfaces to original ones. We

integrated this framework with the micro-container to

offer monitoring services using this latter.

In this paper, we will describe how can our

new micro-container supports scalability and enables

monitoring capabilities in Cloud environments.

The remainder of this paper is structured as fol-

258

Mohamed M., Belaïd D. and Tata S..

HOW TO PROVIDE MONITORING FACILITIES TO SERVICES WHEN THEY ARE DEPLOYED IN THE CLOUD?.

DOI: 10.5220/0003940602580263

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 258-263

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

low: the second section will describe brieﬂy our pre-

vious work including the architecture of the micro-

container and the component model we used to rep-

resent services. Section 3 describes the monitor-

ing framework, different transformations we added to

render a service monitorable and the new architecture

of the micro-container that supports monitoring. Sec-

tion 4 describes implementation aspects. Section 5

presents related works. We end the paper with con-

clusions and our future work.

2 BACKGROUND

In this section, we will present the component model

we use in our work. Then, we will deﬁne the different

types of monitoring that we are interested in. Finally,

we will describe the micro-container that we use to

deploy components in the cloud.

In our work, we are interested in monitoring of

component-based applications in the Cloud. The key

element for these applicationsis the component which

is a unit of composition with contractually speci-

ﬁed interfaces and explicit context dependencies only

(Szyperski, 2002). Figure 1 shows main characteris-

tics of a component that provides a service through an

interface and may require a service from other compo-

nents through a reference. The component also may

expose properties through which it can be conﬁgured.

In addition, the component also speciﬁes its depen-

dency on a certain property. This required property,

which appears at the bottom of the component, will

be satisﬁed if we can link this component with an-

other component that offers the requested property,

thus, solving the dependency.

Components can be combined together in an as-

sembly of components to build complex applications

as represented in Figure 1.

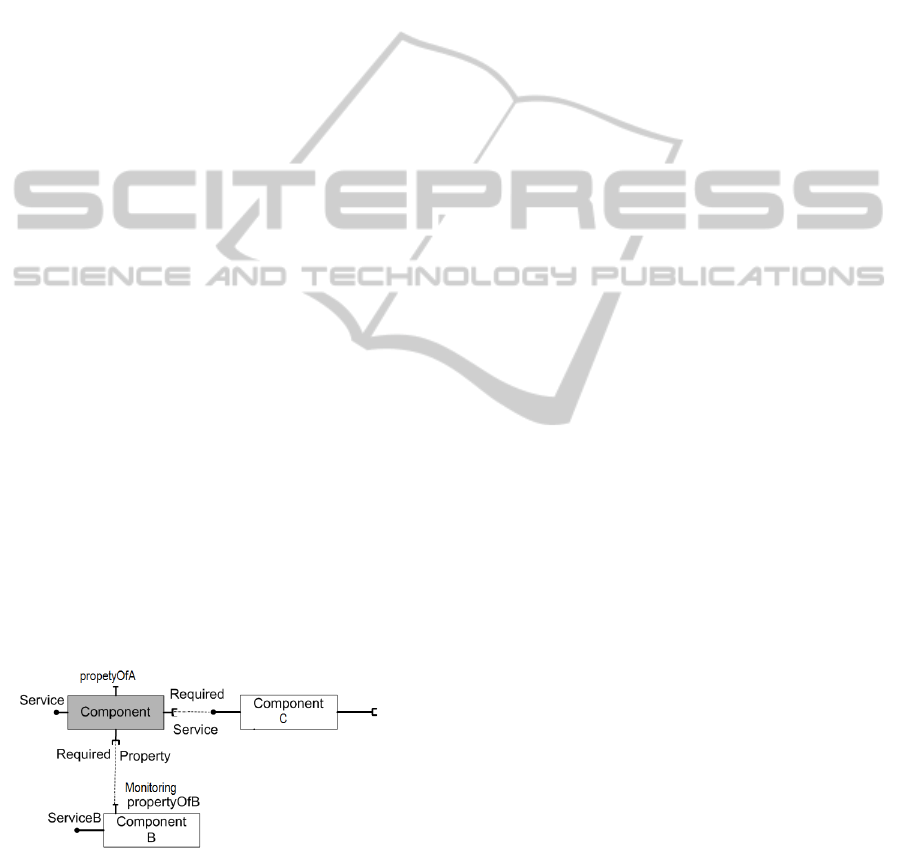

Figure 1: Component-based Application.

2.1 Monitoring

Monitoring process consists in informing the inter-

ested component about the changes of required prop-

erties or notifying it on a regular way or for each prop-

erty variation. We consider two types of monitoring:

monitoring by polling or by subscription.

Polling is the simpler way of monitoring, as it

allows the observer to request the current state of a

property whenever there is a need. Subscription al-

lows an observing component to be notiﬁed about

changes of monitored properties. There are two

modes of monitoring by subscription: 1) subscription

on change which speciﬁes that the subscribed com-

ponent is notiﬁed every time the value of the property

changes; 2) subscription on interval which speciﬁes

that the subscribed component is to be notiﬁed after

a speciﬁed time interval. For notiﬁcation on change,

a component must precise the starting time and the

duration of notiﬁcations. For notiﬁcation on interval

it must specify the notiﬁcation interval value. It may

also specify the starting time and the duration of no-

tiﬁcations. The component A must also implement

a notiﬁcation callback through which it will receive

appropriate notiﬁcation messages.

2.2 Scalable Micro-container

In (Yangui et al., 2011), we introduced a scalable

and platform independent micro-container that en-

ables services deploymentand execution in the Cloud.

For optimality and performance constraints, fea-

tures of our micro-container are as minimal as pos-

sible. After studying the features provided by the

container architectures of Axis2 (Perera et al., 2006),

Tomcat 6 (Langlet, 2008) and WSCRA (Dhesiasee-

lan and Ragunathan, 2004), we drew up a list of basic

features that should satisfy our micro-containerwhich

directly reﬂects the different modules that make up its

architecture. These basic modules ensure the mini-

mal main process of our micro-container (component

hosting, interaction with clients, etc.).

The platform contains a processing module to

ensure minimal micro-containers generation process

(WSDL Parser, Compiler, etc.) and a set of generic

elements on the submission and treatment of non-

functional features to be included in the micro-

container (HTTP, RMI or other generic Communi-

cators, service administration tools, service billing,

etc.). The global architecture of the performed sys-

tem is composed of several modules detailed in Fig-

ure 2: 1) a deployment platform for addressing the

component code and a deployment descriptor for the

generation of a corresponding micro-container within

the component to deploy, 2) micro-container to host

the deployed component and handle various clients

requests, and 3) thin clients to invoke services offered

by components via micro-containers.

The deployment framework is responsible of

HOWTOPROVIDEMONITORINGFACILITIESTOSERVICESWHENTHEYAREDEPLOYEDINTHECLOUD?

259

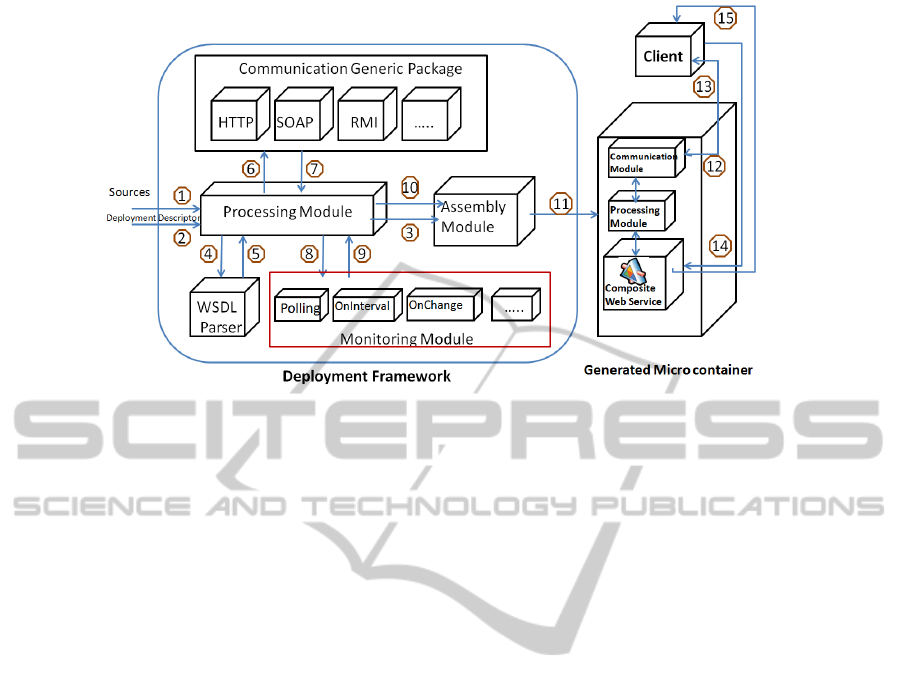

Figure 2: Extension of the Micro container architecture with monitoring.

the generation of the micro-container.To generate a

micro-container with a component hosted in, one

must provide the component’s source and a deploy-

ment descriptor which describe how to assemble and

deploy the micro-container into a Cloud environment.

The micro-container is responsible of managing

the communication with the client, holding the com-

ponent and processing all the incoming or outgoing

messages of the micro-container. It is composed only

of the necessary modules for the offered services of

the hosted component.

The architecture of the generated micro-container

shows three main modules: 1) a Communication

module to establish communication and to support

connection protocols, 2) a Processing module to pro-

cess ingoing and outgoing data in the server (packing

and unpacking data), and 3) a Service module to store

and invoke the requested service.

To add monitoring capabilities to this micro-

container, we use the component model we described

earlier to represent components and their offered ser-

vices. Since some properties can be deﬁned as non

monitorable, we integrated mechanisms that allow us

to transform these properties to monitorable ones.

In the next section, we describe the different trans-

formations to add monitoring facilities to services us-

ing our micro-container. Then, we present the result-

ing extended micro-container architecture.

3 MONITORING FRAMEWORK

Our objective is that given a component without mon-

itoring facilities that we would like to transform in or-

der to be aware in its properties changes. A transfor-

mation may apply to this component by encapsulat-

ing it in a new composite delivering the same services

of the original component and enhancing it with non

functional services of monitoring.

Assuming that these components are not moni-

torable by default, we need to make them monitorable

by transformation. We are interested in monitoring by

polling and monitoring by subscription.

A transformation of a component is applied dy-

namically when generating the associated micro-

container and is carried out by some predeﬁned com-

ponents of our framework. For different types of

transformation, the framework deﬁnes different com-

ponents. In the next subsections, we introduce fea-

tures of the monitoring mechanisms and their trans-

formation processes.

3.1 Generic Proxy Service

The transformations that render a component moni-

torable uses a Generic Proxy Component that imple-

ments the Generic Proxy Interface presented in Fig-

ure 3 and can be applied to any component.

public interface GenericProxy {

Property[] getProperties();

Object getPropertyValue(String propertyName);

void setPropertyValue(String propertyName,

Object propertyValue);

Object invoke(String methodName,

Object[] params);}

Figure 3: Description of the Generic Proxy interface.

We have deﬁned a general purpose interface

GenericProxy that provides four generic methods.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

260

Each implementation of this interface is associated

with a component for which the ﬁrst method getProp-

erties() returns the list of the properties of the com-

ponent, the getPropertyValue() returns the value of a

property, the setPropertyValue() changes the value of

a property and the invoke() method invokes a given

method on the associated component and returns the

result.

3.2 Monitoring Transformations

In (Bela¨ıd et al., 2010), we have presented a monitor-

ing approach to allow a component to be aware of re-

quired properties changes. We have considered mon-

itoring by polling and monitoring by subscription.

3.2.1 Monitoring by Polling

A component may express its need to monitor by

polling a required property provided by another com-

ponent. The monitoring by polling of a property can

be made by calling its getter. However, the compo-

nent that wishes to monitor a property of another com-

ponent does not know a priori the type of this compo-

nent. To complete the monitoring of any component

from the name and type of a property, the interested

component uses an appropriate interface that provides

the method getPropertyValue(propertyName) to re-

quest the current state of a property (Figure 4).

However, the component to monitor may not de-

ﬁne its offered properties as monitorable by polling

resources despite the request. So, we need to trans-

form the component to make its properties to be mon-

itorable by offering an appropriate interface of mon-

itoring. This can be done dynamically by our frame-

work by encapsulating the component with the pre-

deﬁned GenericProxy component as deﬁned above.

The two components are combined together in a sin-

gle composite that offers the services of the original

component as well as services of the GenericProxy

component. The component can be then monitored

using the getPropertyValue() method provided by the

composite. The framework then replaces the origi-

nal service with the newly created composite in the

micro-container.

3.2.2 Monitoring by Subscription

For the monitoring by subscription we encapsulate the

original component with the two predeﬁned compo-

nents: GenericProxy and MonitoringBySubscription.

For the monitoring with notiﬁcation mode on interval,

as shown in the Figure 5, each time the MonitoringBy-

Subscription component have to notify the subscriber

(the component A), it gets (or monitor by polling) the

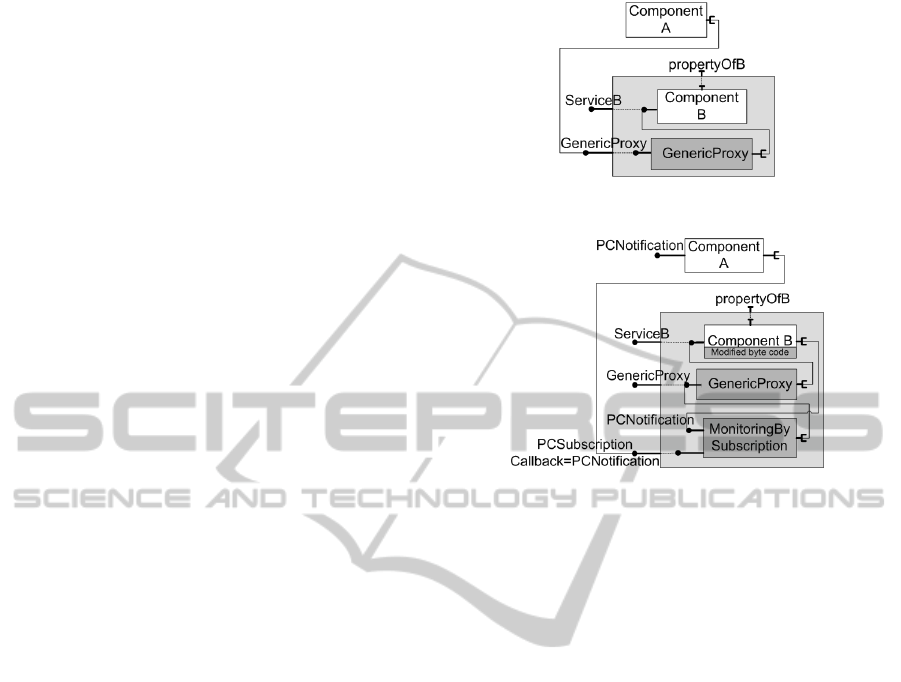

Figure 4: Monitoring by polling.

Figure 5: Transformation for monitoring by subscription.

value of the required property of the component B via

the GenericProxy component.

When the notiﬁcation mode is on change for a re-

quired property of B (Figure 5), the MonitoringBySub-

scription component offers a (callback) service of no-

tiﬁcation PCNotiﬁcation to the component B so that it

can be notiﬁed of the changes of a required property

and in turn inform all the subscribers of this change.

To allow the component B to notify the Monitoring-

BySubscription for the change of its properties, our

framework adds the needed instructions in the byte-

code of the component B when generating the associ-

ated micro-container.

3.3 Monitoring within Micro-container

In order to integrate these transformations with our

micro-container, we added the new monitoring mod-

ule to the architecture described in section 2.

The extended architecture adds monitoring capa-

bilities to the scalable micro-container. In fact, as de-

scribed in section 2, the same steps of generating the

micro-container are followed. The processing mod-

ule follows actions from 1 to 7 as in the Figure 2, then

it instantiates the chosen monitoring module and ap-

plies the needed transformations to the service (Fig-

ure 2 Actions 8 and 9) before sending the new result-

ing code to the assembly module (Figure 2 action 10).

The latter generates the new micro-container integrat-

ing monitoring capabilities.

The client can interact with the micro-container

HOWTOPROVIDEMONITORINGFACILITIESTOSERVICESWHENTHEYAREDEPLOYEDINTHECLOUD?

261

either to invoke the contained service (Figure 2 ac-

tions 12 and 13), or to request monitoring information

(Figure 2 action 14). It can also send subscription re-

quests to receive notiﬁcation on change or on interval.

In order to prove the efﬁciency of our work, in the

next section we will describe the implementation of

our scalable micro-container renforced with monitor-

ing capabilities.

4 IMPLEMENTATION

To validate our work, we took the choice to exploit

Java Web services with WSDL 2.0 description. A

Web service is an elementary service-based applica-

tion. We have developed a minimal Java deploy-

ment framework which allows developers to deploy

a Java Web service on a micro-container before de-

ploying both of them in the Cloud. We have also

developed Java clients which invoke services in the

micro-container and display the result. Furthermore,

we deﬁned a module that contains generic communi-

cation packages supporting different communication

protocols that can support a service. Later, during the

deployment, only necessary communication protocol

is encapsulated in the micro-container.

The last phase was implementing a prototype of

the monitoring framework as services that offer the

transformation mechanisms to the applications. To

allow a component to notify the MonitoringBySub-

scription for the change of its properties, we need to

inject the notiﬁcation code in the byte-code of the

component implementation (class). For this required

dynamic manipulation at byte code level we used

the open source software JAVA programming ASSIS-

Tant (Javassist) library (JAVA programming Assis-

tant, 2010). Javassist is a class library for editing Java

byte codes; it enables Java programs to deﬁne a new

class and to modify a class ﬁle when the Java Vir-

tual Machine (JVM) loads it. The implementation of

the GenericProxy component is based on the Java re-

ﬂection API which provides classes and interfaces for

obtaining reﬂective information about classes and ob-

jects.

5 RELATED WORK

The mOSAIC framework offers a Monitor-

ing/Warning system that monitors applications’

components and Cloud resources (Rak et al., 2011).

From their point of view, this system should realize

the following tasks: monitor Cloud resources, mon-

itor applications’ components and discover warning

conditions. The proposed framework contains four

basic elements: 1) monitoring event buses that col-

lects monitoring events from resources, 2) connectors

related to the event buses to enable the interception

of monitoring events by suitable components, 3)

connectors receiving the events from applications to

event buses, and 4) monitoring/Warning component.

In (Ferretti et al., 2010), authors proposed a design

of a middleware that supports SLA-driven resource

provisioning. This middleware supports monitoring

of virtual machine provisioning to honor the service

layer agreements (SLA). A load balancer is used to

forward requests to their suitable execution environ-

ment and to monitor the efﬁciency of the platform by

calculating the average response time. The load bal-

ancer analyses this time and can take decisions to add

or to retrieve resources in the environment.

Authors in (Huang and Wang, 2010) proposed an

approach to monitor resources in the Cloud using an

hybrid model combining the push model and the pull

one. In these models, there are three basic compo-

nents, the Producer, the Consumer and the Directory

services. In the Push model, whenever the producer

detects that the status of a resource changed, he sends

information to the consumer. Otherwise, in the Pull

model, it’s the consumer who ask the producer peri-

odically about the resources status. However, these

two models have advantages and weakness, the au-

thors are proposing an hybrid model that can switch

the suitable model to the user’s requirements. The

user can deﬁne his tolerance to the status inaccuracy

between the producer and the consumer. Switch this

value, an algorithm can swing between pull and push

models.

In (Brandt et al., 2009), authors proposed a

tool for monitoring Cloud resources enhancing high-

performance computing in Cloud computing environ-

ments. This tool can extract the application and re-

sources state, and based on that state can assign new

resources or retrieve unused ones during the runtime

of the application or for the next usage. The data is

collected from the resources using data collectors able

to collect information and save it in a distributed data

base. Then, a statistical analysis is necessary to take

decisions to keep or to reconﬁgure the resources’ as-

signment for the application.

In their work (Katsaros et al., 2011) proposed

an architectural approach spanning over virtualiza-

tion and physical levels to collect monitoring data.

They combined many existing open source solutions

to get one holistic application that cover different lay-

ers. They use collectors to extract data from different

layers and externalize it to the upper layer using an

external data collector. Moreover, a monitoring man-

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

262

ager serves as the orchestrator of the whole monitor-

ing process by controlling it and providing the needed

interfaces to add or to consume monitoring informa-

tion. In this approach, an aggregator is responsible of

aggregating and storing the collected data.

Almost all of these approaches expect monitoring

just for monitorable components and don’t suppose

the case where components are not designed to be

monitored. Moreover, in these works, the monitoring

system can form a bottleneck in the application since

they use just one component as a channel for send-

ing monitoring information (buse, channel, integrator,

etc). In contrast, in our approach, we provide transfor-

mations to apply on components to render them mon-

itorable even if they where not designed with moni-

toring facilities. Furthermore, in our work, we are not

limited to one channel since we propose a ﬂexible so-

lution to use one channel for all micro-containers or

to use one channel per micro-container.

6 CONCLUSIONS

In this paper, we addressed the issue of monitoring in

Cloud environments. In this direction, we proposed

the architecture and the implementation of a scalable

micro-container that enables monitoring capabilities

avoiding bottlenecks problems. Our solution, pro-

vides needed mechanisms to monitor services. In fact,

we provided a framework that allows to add non func-

tional services of monitoring to the functional inter-

faces of components. The framework that we pro-

posed, chooses the needed components to generate

the micro-container that enables a scalable execution

of a service with monitoring capabilities. In our future

work, we will start by experimenting our architecture

in a Cloud environment using OpenNebula IaaS man-

ager to see the overhead of monitoring mechanisms

on our micro-container. Indeed we want to prove,

by experiments, the efﬁciency of our approach even

with complex applications. Then, we aim at adding

the needed mechanisms for monitoring capabilities in

micro-containers at their runtime and not only at de-

ployment time.

REFERENCES

Bela¨ıd, D., Ben Lahmar, I., and Mukhtar, H. (Dec 2010).

A Framework for Monitoring and Reconﬁguration of

Components Using Dynamic Transformation. Inter-

national Journal On Advances in Software, vol 3 no

3&4:pages 371–384.

Brandt, J., Gentile, A., Mayo, J., Pebay, P., Roe, D., Thomp-

son, D., and Wong, M. (2009). Resource monitor-

ing and management with ovis to enable hpc in cloud

computing environments. In Parallel Distributed Pro-

cessing, 2009. IPDPS 2009. IEEE International Sym-

posium on, pages 1–8.

Dhesiaseelan, A. and Ragunathan, A. (2004). Web services

container reference architecture (wscra). In Web Ser-

vices, 2004. Proceedings. IEEE International Confer-

ence on, pages 806–807.

Ferretti, S., Ghini, V., Panzieri, F., Pellegrini, M., and Tur-

rini, E. (2010). Qos #150;aware clouds. In Cloud

Computing (CLOUD), 2010 IEEE 3rd International

Conference on, pages 321–328.

Huang, H. and Wang, L. (2010). P amp;p: A com-

bined push-pull model for resource monitoring in

cloud computing environment. In Cloud Computing

(CLOUD), 2010 IEEE 3rd International Conference

on, pages 260–267.

JAVA programming Assistant (2010). http://

www.csg.is.titech.ac.jp/simchiba/javassist/.

Katsaros, G., Gallizo, G., K¨ubert, R., Wang, T., Fit´o, J. O.,

and Henriksson, D. (2011). A multi-level architecture

for collecting and managing monitoring information

in cloud environments. In CLOSER, pages 232–239.

Langlet, E. (2008). Apache Tomcat 6 Guide

d'administration du serveur Java EE sous Win-

dows et Linux. ENI.

Metsch, T., Edmons, A., and Bayon, V. (2010). Using

cloud standards for interoperability of cloud frame-

works. Technical report, A technical Reservoi report.

NIST (2011). Final version of nist cloud comput-

ing deﬁnition published. http://www.nist.gov/itl/csd/

cloud-102511.cfm.

Perera, S., Herath, C., Ekanayake, J., Chinthaka, E., Ran-

abahu, A., Jayasinghe, D., Weerawarana, S., and

Daniels, G. (2006). Axis2, middleware for next gener-

ation web services. In Web Services, 2006. ICWS '06.

International Conference on, pages 833–840.

Rak, M., Venticinque, S., Mahr, T., Echevarria, G., and Es-

nal, G. (2011). Cloud application monitoring: The

mosaic approach. In Cloud Computing Technology

and Science (CloudCom), 2011 IEEE Third Interna-

tional Conference on, pages 758–763.

Szyperski, C. (2002). Component Software: Beyond

Object-Oriented Programming. Addison-Wesley/

ACM Press, Boston, MA, USA, 2nd edition.

Yangui, S., Mohamed, M., Tata, S., and Moalla, S. (2011).

Scalable service containers. In Lambrinoudakis, C.,

Rizomiliotis, P., and Wlodarczyk, T. W., editors,

CloudCom, pages 348–356. IEEE.

HOWTOPROVIDEMONITORINGFACILITIESTOSERVICESWHENTHEYAREDEPLOYEDINTHECLOUD?

263
