USING DNS FOR GLOBAL DISCOVERY OF ENVIRONMENTAL
SERVICES
Andreas Kamilaris and Andreas Pitsillides
Networks Research Laboratory
Department of Computer Science, University of Cyprus, Nicosia, Cyprus
Keywords:
Domain Name System, Service Discovery, Web of Things, DNS-SD, REST, Environmental Services.
Abstract:
Embedded sensor devices are getting pervasive in our everyday lives. Due to the penetration of the Internet in
the real world, sensor devices become globally addressable, while the Web of Things envisions Web presence
to these devices and their services. Future abundance of Web-enabled sensors would imply the need for effi-
cient techniques for globally discovering them. To solve this problem using the existing Internet infrastructure,
we explore the exploitation of the Domain Name System (DNS) as a scalable, ubiquitous, real-time directory
mechanism for embedded devices. We investigate some practical issues that could arise from such an attempt
and we discuss the potential of this approach.
1 INTRODUCTION
Embedded computing is becoming an integral part of
our lives. It is expected that millions of tiny sen-
sors are measuring with high precision environmental
conditions such as wind and temperature or physical
events such as pressure and motion.
Lately, the Internet is penetrating slowly-slowly
into the real world of physical objects. The introduc-
tion of IPv6 and the efforts for porting the IP stack on
embedded devices (Dunkels et al., 2004), enable the
vision of a global Internet of Things (IoT) (Gershen-
feld et al., 2004).
While the IoT brings interoperability between het-
erogeneous devices at the network layer, there is still
a need for consensus at the application layer. To ad-
dress this need, the Web of Things (WoT) (Wilde,
2007), (Guinard et al., 2010) reuses well-accepted
and understood Web standards to interconnect IP-
enabled resource-constrained devices. Thus, embed-
ded sensors can become fully integrated to the Web,
directly by embedding Web servers on them (Yazar
and Dunkels, 2009) or indirectly by means of gate-
ways (Kamilaris et al., 2011).
In the future, Web-enabled sensor devices will
constitute the large majority of the Web popula-
tion. These devices will be deployed around the
world to measure with high accuracy the physical
environment, exposing their functionalities as open
Web APIs. These Web APIs would probably con-
form to the REST architectural style (Fielding, 2000),
(Richardson and Ruby, 2007), which is a core element
of the WoT.
indent In general, there do not exist yet standard-
ized, scalable and flexible ways to globally discover
these embedded devices, based on their characteris-
tics and capabilities. Dyser (Ostermaier et al., 2010)
and Snoogle (Wang et al., 2008) are early efforts to-
wards real-time discovery of physical entities, how-
ever, they either require additional Web infrastructure
or they do not scale for the World Wide Web. On the
other hand, microformats
1
suggest ways for making
HTTP data available for indexing and searching, but
their utilization for sensor devices would augment our
dependency to commercial search engines.
We believe that service discovery of embedded
sensor devices needs to be ubiquitous to the users of
the Web. The proposed solution must comply with ex-
isting Internet standards and should not require major
changes to the existing technical equipment and pro-
tocols. Users should be able to discover environmen-
tal services simply by typing related keywords in their
favorite Web browser. In this way, discovery of phys-
ical devices may be similar to the way we discover
Web sites through search engines.
In this paper, we propose to exploit the existing
Internet infrastructure to achieve real-time discovery
of embedded devices and environmental services. We
investigate the utilization of the Domain Name Sys-
tem (DNS) as a scalable, pervasive, global meta-data
1
http://microformats.org/
280
Kamilaris A. and Pitsillides A..
USING DNS FOR GLOBAL DISCOVERY OF ENVIRONMENTAL SERVICES.
DOI: 10.5220/0003953302800284
In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 280-284
ISBN: 978-989-8565-08-2
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
repository for embedded devices, and its extension for
supporting location-based discovery of Web-enabled
physical entities.
Applying an existing technology for discovery of
environmental services, especially one that has been
ubiquitous for decades, offers many advantages, in-
cluding well-defined support, easy configuration, ex-
perienced developers and users, as well as availability
of open-source implementations.
The general idea of exploiting DNS for service
discovery is not new. DNS-based Service Discovery
(DNS-SD) (Cheshire and Krochmal, 2011a) proposes
using standard DNS programming interfaces, servers
and packet formats to browse a network for ser-
vices. Similarly, Multicast DNS (mDNS) (Cheshire
and Krochmal, 2011b) provides the ability to perform
DNS-like operations on a local network in the absence
of any conventional unicast DNS server.
Even though both protocols have been originally
designed for device/service discovery in local net-
works, DNS-SD has been extended to provide wide-
area service discovery. However, this functionality for
service advertising is domain-centric, meaning that
users are only able to be informed about services of-
fered in some particular domain. In contrast, our pro-
posal is service-centric, envisioning to enable global,
real-time, location-based discovery of pervasive ser-
vices, offered by Web-enabled sensor devices.
In the rest of the paper we examine the feasibil-
ity of this idea, addressing a number of practical is-
sues. Our approach conforms to the DNS-SD proto-
col, where possible.
2 ENVIRONMENTAL SERVICE
DISCOVERY THROUGH DNS
DNS is a hierarchical, distributed naming system for
computers. Its main functionality is the translation
of domain names meaningful to humans into IP ad-
dresses meaningful to machines. DNS distributes the
responsibility of assigning domain names and map-
ping those names to IP addresses by specifying au-
thoritative name servers for each domain. Authori-
tative name servers are responsible for their particu-
lar domains, and in turn can assign other authoritative
name servers for their sub-domains. This mechanism
allowed the DNS to be distributed and fault-tolerant.
Domain names consist of labels that are concate-
nated and delimited by dots, such as www.webist.org.
The right-most label indicates the top-level domain,
which is org in the previous example.
In the following subsections, we examine how to
change the organization of DNS to support location-
based, real-time discovery of environmental services.
2.1 Device Registration
We propose the inclusion of a new top-level domain
at the DNS, which is the env domain. This domain
is intended to support all embedded devices and envi-
ronmental services which are enabled to the Web and
registered to the DNS.
Specialized authoritative name servers may be re-
sponsible for this domain. These .env domain name
servers shall allow real-time registration of physical
devices and their (RESTful) Web services through
Dynamic DNS (DDNS) (Rekhter et al., 1997).
In general, a particular service
2
instance can be
described in DNS using SRV (Gulbrandsen et al.,
2000) and TXT (Mockapetris, 1987) records. A SRV
record has a name of the form:
< Instance > . < Service > . < Domain > (1)
and gives the target host and port where the service
instance can be reached. The DNS TXT record of
the same name gives additional information about this
instance, in a structured form using key/value pairs
Whenever a Web-enabled sensor device becomes
available on the Web, it would create a request to the
.env DNS server, asking for registration. In this re-
quest, the device must specify its name, location and
the services it offers. The .env server could offer a
Web API, allowing sensor devices to POST their dis-
covery details in HTTP requests. In case all informa-
tion is provided, the .env DNS server would acknowl-
edge the request, assigning a fully qualified domain
name to the device, registering it in a SRV record.
Hence, each sensor device will be assigned a
unique hostname that has the following format:
devicename. htt p. tcp.service.location.env (2)
where devicename is the user-friendly name of the
sensor device (<Instance> portion of the SRV
record), service is the actual Web service offered by
it and location is the absolute location of the device.
Service and location define the <Domain> portion,
which becomes service.location.env. The <Service>
section is either http. tcp or http. udp.
A sensor device may offer various environmental
services. Thus, multiple hostnames will be created
for this device, each for a different offered service.
Since the WoT proposes a resource-oriented archi-
tecture (Richardson and Ruby, 2007), services must
2
To avoid confusion, we note that by the notion of a ”ser-
vice”, the DNS refers to the Internet protocols used to inter-
act with some domain. In the WoT, services are meant as
the Web-based functionalities offered by Web-enabled sen-
sor devices.
USINGDNSFORGLOBALDISCOVERYOFENVIRONMENTALSERVICES
281

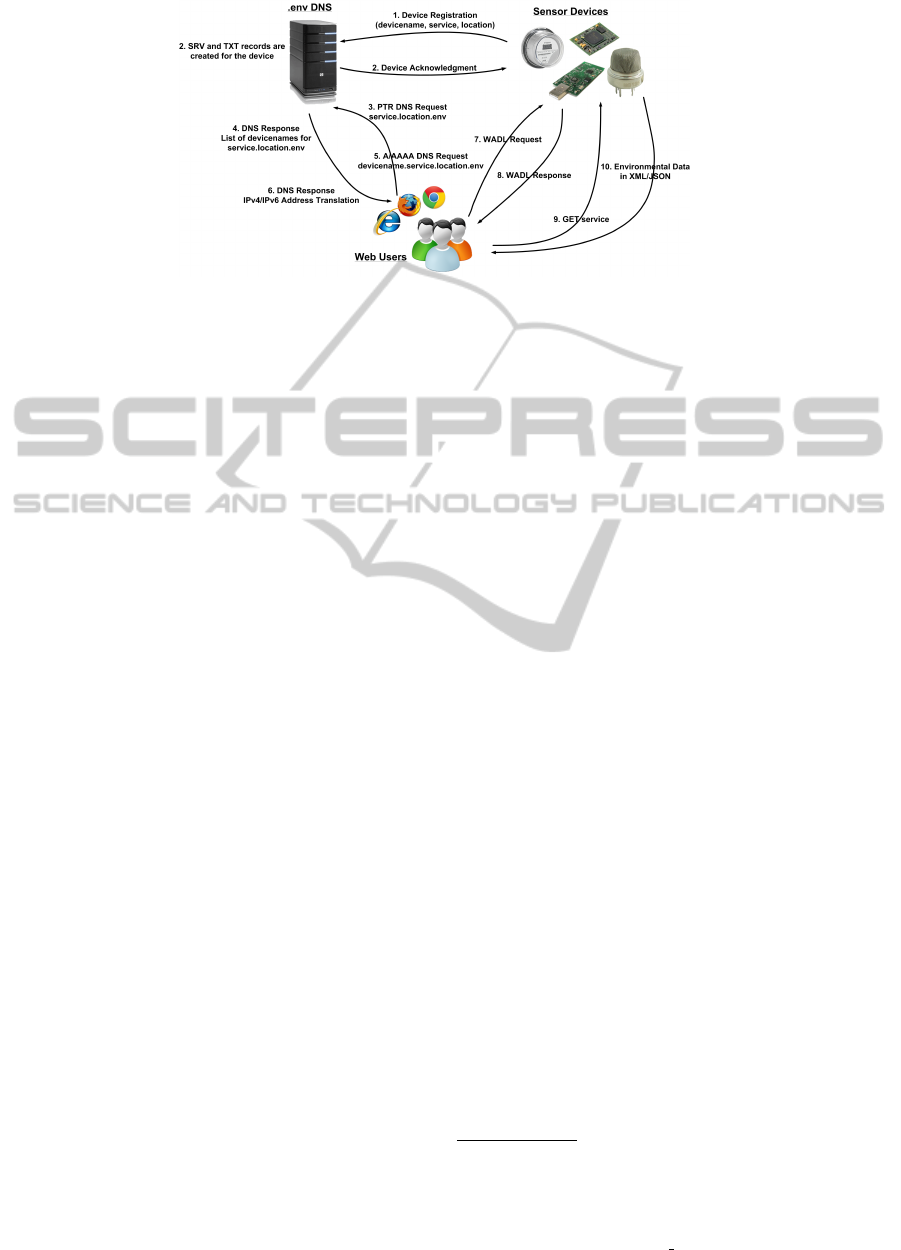

Figure 1: Environmental Service Discovery Procedure using DNS.
be described with uniform resource identifiers (URIs)
(see Section 3). This avoids ambiguities when users
construct environmental URLs in their Web browsers.
2.2 Service Discovery
Service discovery begins when a user types in his Web
browser a URL ending with the .env label. Since the
user may not be able to construct the equation shown
in (2), he could ask about all sensor devices offer-
ing service and deployed in location. This would be
achieved by using the PTR DNS record type (Mock-
apetris, 1987), as shown in Table 1, by specifying a
query of the form <Service>.<Domain>. In this
case, DNS would respond to the PTR lookup with a
list of relevant <Instance> records.
In case there exist numerous relevant records, a
technique such as round-robin DNS could be em-
ployed. Round-robin DNS is a technique for achiev-
ing load distribution and load balancing by respond-
ing to requests from various client computers accord-
ing to an appropriate statistical model.
After the user receives the list of relevant in-
stances, he can use any of them to construct a query
similar to the equation shown in (2). By typing this
URL in his Web browser, the DNS will translate it
to the actual IPv4/IPv6 address of the corresponding
sensor device. This translation is realized by using
the A and AAAA DNS record types, as shown in Ta-
ble 1. The user can also use the TXT DNS record type
to receive general characteristics/capabilities of some
sensor device, in case they are available.
When the IP address is resolved and the request is
forwarded to the appropriate sensor device, the device
needs to respond with a description of its functional-
ity. This is necessary in order to understand the se-
mantics of the device (e.g. indoor/outdoor, degree of
accuracy, measurement unit) and how to interact with
it to get informed about the environmental conditions.
Thus, a description language must be defined, which
declares the device semantics, but also explains the
interaction possibilities with it.
Example description languages that could be
adopted are Extended Environments Markup Lan-
guage (EEML)
3
and SensorML
4
. These are languages
that describe the capabilities of sensor devices, but do
not describe effectively the interaction with them.
Therefore, we propose to employ Web Appli-
cation Description Language (WADL)
5
, which is
an XML-based language that provides a machine-
readable description of HTTP-based applications. It
can be considered as the RESTful equivalent of Web
Services Description Language (WSDL)
6
, which is
a standard for describing SOAP-based Web services.
WADL is intended for applications based on the
Web architecture, and it is meant as a platform- and
language-independent way of describing services.
After the user receives the WADL description, he
can construct the appropriate request, query the sen-
sor device and get informed about the environmental
conditions in the selected location, in a well-known
format such as XML or JSON. The whole discovery
procedure can be observed in Figure 1.
Environmental service discovery may involve not
only humans but also machines, for automated M2M
communication. In this case, machines could discover
useful services on demand, and take decisions auto-
matically based on current environmental conditions.
2.3 Freshness of Information
The idea of online directories for Web services (e.g.
UDDI
7
for WS-*) never worked, mainly because
of information inconsistency and unavailability.
Through DNS, these inconsistencies can be avoided.
3
http://www.eeml.org/
4
http://www.opengeospatial.org/standards/sensorml
5
https://wadl.dev.java.net/
6
http://www.w3.org/TR/wsdl
7
http://uddi.org/pubs/uddi v3.htm
WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies
282
Table 1: DNS Record Translation.
No DNS Record Explanation Example Record/URL
1 SRV Records the service instance of a device offering service at location mydevice. http. tcp.pollution.porto.env
2 PTR Lists which devices support service at location http. tcp.pollution.porto.env
3 A Translates an environmental URL to a 32-bit IPv4 address mydevice.pollution.porto.env
4 AAAA Translates an environmental URL to a 128-bit IPv6 address mydevice.pollution.porto.env
5 TXT Meta-data about the selected sensor device mydevice. http. tcp.pollution.porto.env
In general, the DDNS service allows the DDNS
server to allocate a static hostname to a physical de-
vice, and whenever the device is allocated a new IP
address, this is communicated to the DDNS provider
by software running on the device.
Furthermore, Dynamic DNS Update Leases
(Cheshire et al., 2006) constitutes a method of extend-
ing DDNS to contain an update lease life, allowing a
DNS server to perform DNS dynamic updates with
an attached lease time, that are automatically deleted
unless renewed before the lease expires.
Hence, the name server ”forgets” after some time
interval the registration of the sensor devices. Devices
may be forced to state frequently their operability to
the DNS server, by re-registering, e.g. every some
hours. In this way, dynamic IP address assignment to
devices could be supported and also device unavail-
ability could be identified in a relatively small delay.
3 PRACTICAL ISSUES
Our approach creates numerous practical issues that
must be effectively addressed. The general operation
of the DNS is expected to be affected, mainly in terms
of management, security and increased traffic.
Concerning management issues, since the DNS
follows a hierarchical structure, the addition of the
.env top-level domain is not expected to be a compli-
cated task. Availability of devices and services may
be assured by DDNS update leases.
Partial reliability could be ensured by checking
the IP addresses of the sensor devices, if they fall in
the locations claimed by them during the registration
process. More reliability and trust would be achieved
if some user-based feedback system was applied for
sensor devices and their environmental services, sim-
ilar to the way eBay works for rating its users.
User-based rating could be realized if sensor de-
vices had a social presence on the Web. Towards this
direction, Evrythng
8
company aims to create Web-
based social profiles for physical devices. It would
then be easy for users to rate them, according to
their quality of service. Such an initiative would also
provide more advanced privacy, allowing the owners
8
http://evrythng.net/
of the devices to share them only with their family,
friends or everyone. In general, the social Web could
be harnessed for authenticating and authorizing users
to interact with environmental services.
Our approach requires unique devicename assign-
ment to sensor devices that have same services and
location. Upon a conflict, the DNS server should au-
tomatically select a new name for the device, typically
by appending a digit at the end of its name. Since the
.env DNS server would constitute a distributed repos-
itory, the devicename assignment should be visible to
all .env name servers. Due to the massive amount of
Web-enabled devices in the near future, this could be
the cause of high load to DNS. However, this issue
may be mitigated by area- or location-based assign-
ment of devices to the .env DNS servers.
Another important issue concerns naming of ser-
vices and locations. For example, locations are named
differently in each language (e.g. ”Lisbon” in English
vs ”Lisboa” in Portuguese). To avoid these ambigu-
ities and guarantee uniqueness, electronic directory
services such as X.500
9
could be used, where a dis-
tributed database would contain unique translations
for services and locations.
Since the DNS system supports a built-in caching
mechanism, this mechanism could be exploited to
support caching of sensory data. During their regis-
tration, sensor devices would include their latest mea-
surements, stored in TXT resource records. These
measurements could then be forwarded to users who
query the .env DNS server for a relevant service,
while they are still fresh
10
. Nonetheless, current DNS
infrastructure can not tolerate such high loads.
Finally, the whole system would be optimized by
forcing the .env DNS server to return directly the
IP addresses of relevant sensor devices and not their
hostnames. However, this may not be practical since
the IP addresses of the devices may change frequently
while their hostnames remain the same. Furthermore,
some users might prefer to use some particular sensor
devices they found more reliable than others. By ex-
changing only IP addresses, this connection between
Web clients and sensor devices can not be maintained.
9
http://www.x500standard.com/
10
Defining the freshness of measurements varies between
devices and services.
USINGDNSFORGLOBALDISCOVERYOFENVIRONMENTALSERVICES
283
4 DISCUSSION
The procedure of discovering environmental services
can be automated by selecting some sensor device
from the list returned by the .env DNS server, pars-
ing its WADL file and constructing HTTP requests.
This process can even be personalized, by select-
ing only devices that meet particular user preferences.
For example, some users may wish to interact solely
with devices having positive online feedback or those
belonging to well-known authorities such as govern-
mental organizations. User characteristics could be
extracted from their online social networking status.
Since the whole idea is participatory-based, only
people who are willing to share their sensor devices
with the online community would do so. We believe
that in the future a culture could be created around
the concept of sharing environmental services with
the rest of the world.
Even though our proposal targets environmental
services, it could be well generalized to support any
kind of physical devices and/or pervasive services.
To achieve this, standardized ”domain vocabularies”
need to be created, for facilitating the construction of
queries by end users. For example, a user that wishes
to park his car in Barcelona could just need to type in
his Web browser parking.cars.Barcelona.
Finally, defining extended environmental ontolo-
gies would encourage automatic information re-
trieval, generalized inferences and advanced Web
mashup development very easily. For example, when
the temperature in Porto is obtained, then the general
temperature of Portugal can be automatically inferred.
5 CONCLUSIONS
Embedded computing is becoming ubiquitous in our
everyday lives, being slowly-slowly blended with the
Web. Discovering in real-time miniaturized Web-
enabled sensor devices, deployed around the world,
is a problem that needs to be effectively solved.
In this paper, we investigated theoretically how the
DNS could be extended to support global discovery of
environmental services. Our small research indicates
that it may be feasible to achieve automatic, real-time
discovery of sensor devices, by means of specialized
domain name servers. Definitely, our proposal con-
stitutes only a novel idea and it would require a great
willingness from Web engineers to be realized.
It would be interesting to study ways for extending
DNS-based discovery of any Web resource offering a
RESTful Web API. Security is another crucial factor
not discussed that requires extensive research.
For future work, we plan to experiment with
BIND
11
, which is an open-source DNS software for
Linux, implementing a .env DNS server in a local
environment, demonstrating the potential of this ap-
proach. In parallel, we will develop a Mozilla Firefox
extension that automatically discovers sensor devices
just by typing relevant URLs, constructs their host-
names and interacts with them.
REFERENCES
Cheshire, S. and Krochmal, M. (2011a). DNS-Based Ser-
vice Discovery. IETF Draft, draft-cheshire-dnsext-
dns-sd.txt.
Cheshire, S. and Krochmal, M. (2011b). Multicast DNS.
IETF Draft, draft-cheshire-dnsext-multicastdns.txt.
Cheshire, S., Krochmal, M., and Sekar, K. (2006). Dynamic
DNS Update Leases. IETF Draft, draft-sekar-dns-ul-
01.txt.
Dunkels, A., Voigt, T., and Alonso, J. (2004). Making
TCP/IP Viable for Wireless Sensor Networks. In Proc.
EWSN 2004, Berlin, Germany.
Fielding, R. T. (2000). Architectural Styles and the Design
of Network-based Software Architectures. PhD thesis,
University of California, Irvine, California.
Gershenfeld, N., Krikorian, R., and Cohen, D. (2004). The
Internet of Things. Scientific American, 291(4):76–81.
Guinard, D., Trifa, V., and Wilde, E. (2010). Architecting a
Mashable Open World Wide Web of Things. Techni-
cal Report No. 663, ETH Zurich.
Gulbrandsen, A., Vixie, P., and Esibov, L. (2000). A DNS
RR for specifying the location of services. RFC 2782.
Kamilaris, A., Trifa, V., and Pitsillides, A. (2011). The
Smart Home meets the Web of Things. IJAHUC Jour-
nal, 7(3):145–154.
Mockapetris, P. (1987). Domain Names - Implementation
and Specifications. STD 13, RFC 1035.
Ostermaier, B., Roemer, K., Mattern, F., Fahrmair, M., and
Kellerer, W. (2010). A Real-Time Search Engine for
the Web of Things. In Proc. of the Internet of Things
2010 Conference, Tokyo, Japan.
Rekhter, Y., Thomson, S., Bound, J., and Vixie, P. (1997).
Dynamic Updates in the Domain Name System (DNS
UPDATE). RFC 2136.
Richardson, L. and Ruby, S. (2007). RESTful Web Services.
O’Reilly.
Wang, H., Tan, C., and Li, Q. (2008). Snoogle: A Search
Engine for the Physical World. In IEEE INFOCOM
2008, pages 1382 –1390, Phoenix, AZ, USA.
Wilde, E. (2007). Putting things to REST. Technical Report
UCB iSchool Report 2007-015, UC Berkeley.
Yazar, D. and Dunkels, A. (2009). Efficient Application In-
tegration in IP-based Sensor Networks. In First ACM
Workshop On Embedded Sensing Systems For Energy-
Efficiency In Buildings (BuildSys), California, USA.
11
http://www.isc.org/software/bind
WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies
284
