SMILE - SMARTPHONES IN LECTURES

Initiating a Smartphone-based Audience Response System as a Student Project

Linus Feiten, Manuel Buehrer, Sebastian Sester and Bernd Becker

Chair for Computer Architecture, University of Freiburg, Georges-Koehler-Allee 51, 79110 Freiburg, Germany

Keywords:

Audience Response System, Smartphone, Academic Lecture.

Abstract:

In this position paper we are presenting the recent progress in developing our audience response system,

SMILE, whose aim is to bring more interactivity into academic lectures. Development started in December

2010 with a programming task force of undergraduate Computing Science students. The constant integration

of students as developers is a main concept of SMILE. A ﬁrst prototype included a multiple-choice quiz

module and a slider-based real-time feedback module. The client runs as a native Android-smartphone/tablet

app or as a JavaScript web-browser application on any platform. In the winter semester 2011/2012 we have

been applying the prototype permanently in a ﬁrst year Computing Science lecture with approx. 90 attending

students. This has been accompanied by a formative evaluation in cooperation with learning psychologists.

Final results of the evaluation will be subject to a later publication later. Here we are sharing ﬁrst tendencies

already observable and details of the conception and the ongoing development phases.

1 INTRODUCTION

The idea for an audience response system (ARS) like

SMILE emerges from an experience well known to

every student in higher education: lectures are often

visited by a great number of students; 100 and above.

During the lecture all students are sitting in an audito-

rium listening to a lecturer giving the talk at the black

board or in front of the white board with presenta-

tion slides. The students remain passive for most of

the time unless they get to ask the lecturer a question.

This, however, requires the lecturer to give the word

to the students which in turn requires the students to

make themselves noticeable ﬁrst.

From our experience students are very reluctant to

ask questions in mass lectures. We hypothesised that

this is mainly due to the fact that in large audiences it

is difﬁcult to judge whether it is just yourself having a

question or whether a question is shared by the major-

ity. It is most natural that somebody hesitates to inter-

rupt the ﬂow of a lecture if his question might turn out

to be just interesting for himself but not for his 100 or

more fellow students. Thus, he might let the moment

pass in which his question occurred, which might in

turn lead to him not understanding the rest of what the

lecturer is putting forward. If the lecturer then stops

at a later point to explicitly asks if there are still any

questions, our reluctant student is already left so far

behind in understanding that he would not even know

where to begin his question. Furthermore, he might

want to spare himself the moment of being exposed

before his peers and the lecturer, if he still does not

know whether it is just himself - and maybe the per-

son sitting next to him who he has discussed with -

but not the rest of the audience having the question.

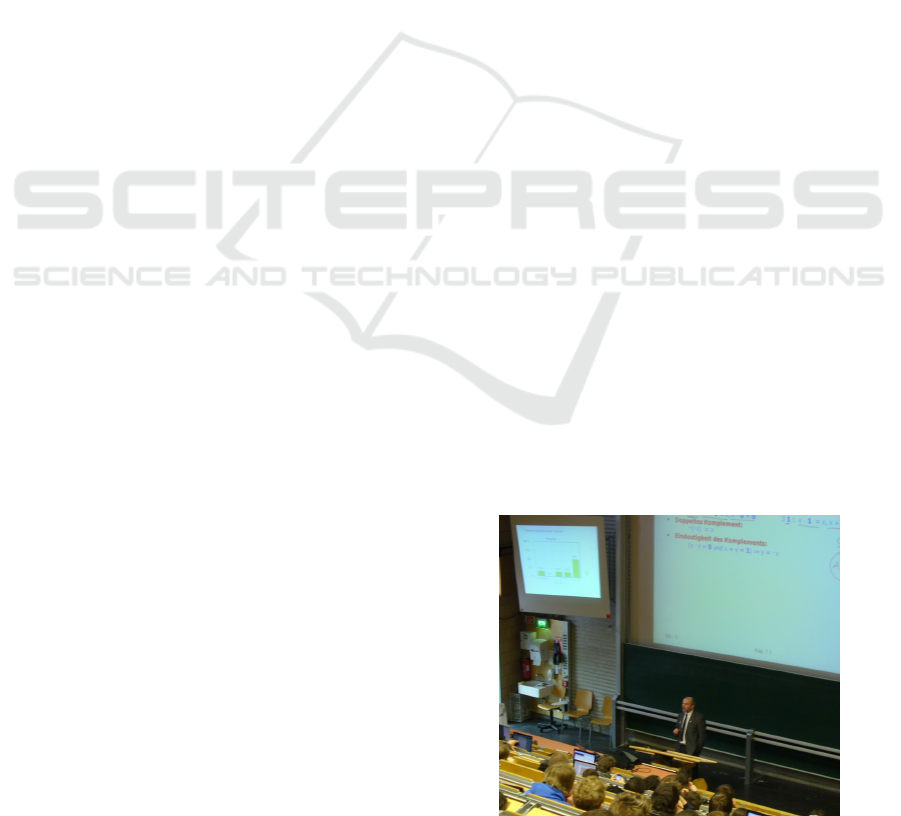

Figure 1: The ﬁrst prototype of SMILE in action.

As a consequence the lecturer too can only guess or

must trust his intuition about whether the students un-

derstood and approved of the lecture or whether they

were merely physically present most of the time and

are taking home the frustration of not having under-

stood much while not being noticed.

An obvious way to overcome such drawback

288

Feiten L., Buehrer M., Sester S. and Becker B..

SMILE - SMARTPHONES IN LECTURES - Initiating a Smartphone-based Audience Response System as a Student Project.

DOI: 10.5220/0003958802880293

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 288-293

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

would be to decrease the size of classes and get rid of

anonymous teaching events like mass lectures, such

that a more direct and personal contact could be es-

tablished both among students and between those and

the lecturer. This would naturally be the favourable

approach. But decreasing the size of classes would

imply to accept less students for higher education or

to employ more personnel. Society seems to agree

that the former is not desirable, still the latter - which

means more capital investment into education - has

always been difﬁcult to convey.

Hence, given the situation that mass lectures ap-

pear to be a necessary phenomenon in today’s higher

education, one might go on to think about how to

overcome the aforementioned drawback while keep-

ing the lecture setting as it is. In an age of com-

puterisation, where electronic media and communi-

cation devices are ubiquitous, the idea for an ARS

like SMILE emerges. It envisions a scenario in which

all students are equipped with mobile computer de-

vices enabling them to interactively share their current

state of understanding among each other and with the

lecturer. Further applications to intersperse the peri-

ods of passive listening with more activating tasks are

thinkable.

Such approaches have been made (Kopf et al.,

2005) and taken up by group of ﬁrst years Computing

Science students in December 2010 in a study project

involving the programming of smartphones. This was

the beginning of the SMILE project. In this position

paper we are sharing details from the process of de-

velopment, what questions we were facing and which

decisions we took (Section 2). We describe the func-

tionalities of our ﬁrst SMILE prototype in Section

3 before giving initial reports about our experiences

from an ongoing ﬁeld test of SMILE in a ﬁrst year

Computing Science lecture with approx. 90 students

in Section 4. This ﬁeld test includes a formative eval-

uation which was conceived and is carried through

in cooperation with learning psychologists. Section

4 includes descriptions about this evaluation as well

as ﬁrst tendencies observable from preliminary eval-

uation results. Section 5 concludes the paper with a

summary and outlines our plans for future develop-

ments.

2 DEVELOPMENT

As described in Section 1, the desire for an electronic

ARS can emerge naturally from the everyday expe-

rience of students. In earlier times German students

knew how to anonymously utter their discontent with

the lecturer by loudly shufﬂing their feet under the

tables. This custom, however, has today mostly dissi-

pated. Anyway, one would wish for more elaborated

ways of giving the lecturer feedback, just as an open-

minded lecturer wishes to get constructive feedback

from his otherwise mostly anonymous audience.

The problem of sitting in a lecture and not know-

ing what the lecturer is talking about might be a prob-

lem more typical for mathematical and natural scien-

tiﬁc lectures than for the humanities, because in the

former it seems more likely that the lack of under-

standing of one concept drastically hampers the un-

derstanding of following concepts. This - and the fact

that Computing Sciences students and researchers are

said to be rather adventurous when it comes to the

application of new technologies - might have led to

one of the ﬁrst academic electronic ARSs emerging

at a Computing Science faculty (Kopf et al., 2005).

The authors developed WIL/MA, which was the main

source of inspiration for SMILE. Kopf et al. evalu-

atied WIL/MA by splitting up a class for one semester

giving the same lecture to three groups: one without

the ARS and two with differently speciﬁed versions

of it. Although WIL/MA was well received by the

students, the exam results of the three groups did not

signiﬁcantly differ, and eventually the project was dis-

continued.

In December 2010 a group of ﬁrst year students

at our chair was given the opportunity to do a student

project as part of their syllabus in which they should

investigate the potentials of applying smartphones

and tablet computers in academic teaching. When

confronted with the idea of developing an ARS, the

group was quickly convinced that their learning expe-

rience would beneﬁt from such a system. Thus, the

development began and the project was later named

SMILE for SMartphones In LEctures. As research

staff it was our priority to give the students as much

freedom as possible in their design decisions, because

we supposed that they were most likely to implement

SMILE in a way which would be acceptable from

a student’s perspective. Furthermore, it turned out

that the students’ enthusiasm and motivation was at

a maximum when they were able to follow their own

ideas and initiatives.

We were well aware that from an educational sci-

entiﬁc point of view we were merely repeating the

experiments of Kopf et al. But their work was done

seven years ago when PDAs or programmable cell-

phones were still a curiosity, whereas today almost

every student is equipped with a smartphone or tablet

computer. We thus decided to give the idea another

chance to prove itself.

To implement SMILE, we ﬁrst needed a concept

for a client/server architecture. The SMILE server

SMILE-SMARTPHONESINLECTURES-InitiatingaSmartphone-basedAudienceResponseSystemasaStudent

Project

289

would be permanently running on a university com-

puter. As operating system for the virtual machine we

took Debian 6 and the SMILE developer students got

full remote access with their university user accounts.

As programming language for the SMILE server PHP

5 was chosen, executed by the Apache HTTP server

and optimised with mod pagespeed. The database is

MySQL 5.

The communication between the SMILE server

and the SMILE clients - both student and lecturer

clients - was designed to take place over the internet

via TCP, exchanging messages including JSON ob-

jects. Every communication between the server and

a client is securely encrypted through an implementa-

tion of the Kerberos

protocol. This encryption pro-

tocol was chosen because it allows for anonymous lo-

gins. We will come back to this difﬁcult issue in Sec-

tion 4.1.

The SMILE client should be implemented both as

a web application to run within a browser on any plat-

form and as a native smartphone app. The web ap-

plication was programmed with JavaScript using the

libraries jQuery and jqPlot. The choice for the smart-

phone platform was made in favour of Google’s An-

droid operating system, as it is not restrictive with

installing self-made apps unlike its big competitor

iOS, which only allows checked software by regis-

tered developers to be installed. To become a regis-

tered iOS developer, Apple demands an annual fee.

Notice though, that all software used for the develop-

ment of SMILE is free!

It turned out that the students quickly and mostly

autodidactically learned how to ﬁnd and use the soft-

ware they needed by means of online tutorials and

help forums. The programming of the Android app

was done with the Android plug-in

for the integrated

development environment Eclipse. Eclipse also al-

lowed for the seamless integration of SVN version

control via the plug-in subclipse. The SVN repository

was hosted on a university server.

The software architecture of both the SMILE

client and server was conceived in a modular way,

such that a main component - we called the backbone

- handled all basic operations like user authentica-

tion, session management and securing the communi-

cation. The actual ARS functionalities would be han-

dled by extra software modules which would interact

with the backbone via a uniform interface. This was

done to easily allow the extension of SMILE with new

functionalities (modules) without having to change its

whole architecture every time. Thus, a lecturer can

also customize SMILE for her needs by adding or re-

http://web.mit.edu/kerberos

http://developer.android.com/sdk/eclipse-adt.html

moving the modules she would like to use.

3 FIRST PROTOTYPE

Thanks to the talent and dedication of our SMILE de-

veloper students, we had a ﬁrst prototype ready and

running by summer 2011, which we presented to the

public at a stall of the university’s Science Fair. Its

ARS functionalities comprised a real-time feedback

module and a multiple-choice quiz module, which

are both conceptually adopted from WIL/MA (Kopf

et al., 2005).

We also had a forum module programmed, which

was inspired by ActiveClass (Ratto et al., 2003). It

allows users to post short messages in a forum-like

manner. A message is part of a thread whose topic is

deﬁned by the user posting its ﬁrst message. Users

can add messages and cast their vote on a thread

showing that they ﬁnd its topic relevant. Such a vot-

ing system allows to ﬁlter all threads by relevance.

The lecturer and students can thus easily see which is-

sue is shared by the majority and should be discussed.

We decided though not to promote its use in the ﬁeld

test (Section 4) because we saw a high risk in distrac-

tion from the actual lecture and wanted to evaluate the

other two modules separately, ﬁrst. Hence, we will

also not explain this module in more detail here. A

later version of SMILE will pick up the forum con-

cept again (Section 5).

Real-time Feedback. The real-time feedback mod-

ule of SMILE gives students the opportunity to make

themselves noticeable during the lecture without ex-

plicitly interrupting its ﬂow. When the module is se-

lected in a student’s client, the graphical user interface

(GUI) shows a slider bar with a text label indicating

the dimension this slider is rating. The left and right

end of the slider are labelled indicating what the ex-

tremes of its scale mean. Figure 2 shows such a slider

as seen within the native Android client of SMILE.

Its label is ”Verstaendnis” (understanding) and its ex-

treme positions mean ”I lost track!” and ”Everything

clear!” respectively. The top line shows the name of

the current lecture and is part of the Android client’s

navigation scheme. Figure 3 shows the same slider as

it is displayed in the SMILE web client running in a

browser window. The tabs above the slider are part

of the web client’s navigation scheme. The designs

of the Android client and the web client differ signif-

icantly but their functionalities are equivalent.

The user administration of SMILE allows different

user roles. This makes it possible that students and

lecturers use the same client software to log in but

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

290

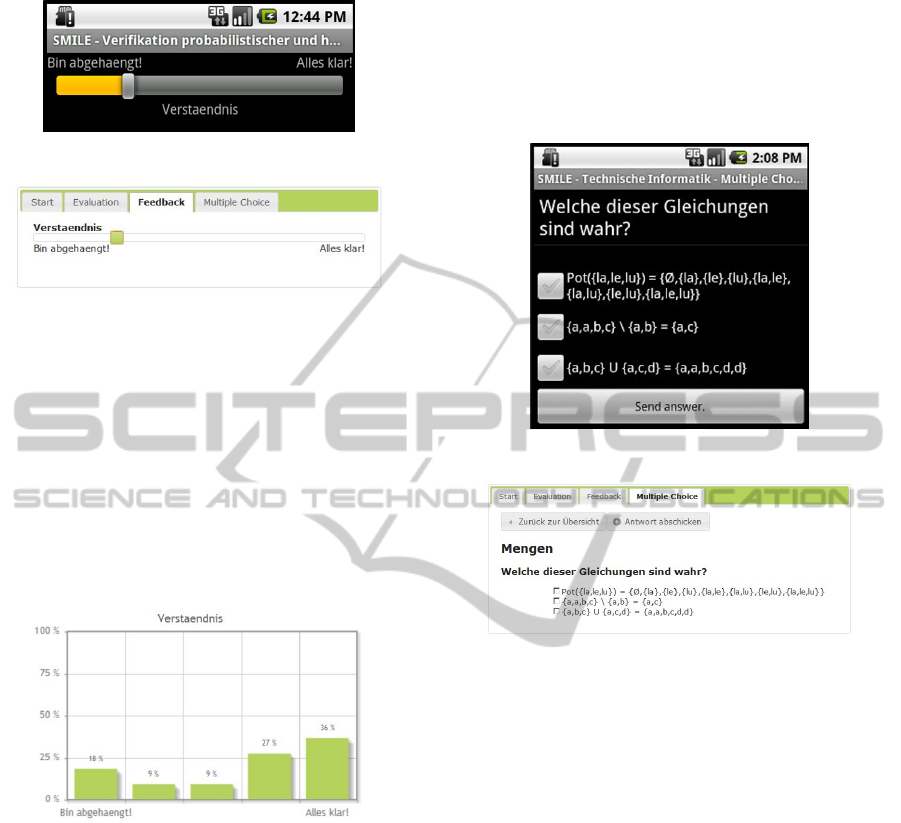

Figure 2: Feedback slider in the students’ Android client.

Figure 3: Feedback slider in the students’ web client.

get access to different functionalities. Thus, when a

lecturer views the real-time feedback module in the

web client, she can access the live results of the feed-

back. These are visualised as a bar diagram as shown

in ﬁgure 4. Each bar represents the percentage of par-

ticipating students who have set their slider to the cor-

responding position. The number of bars can be ad-

justed. As the students’ sliders are stepless, each bar

of the result view subsumes the slider positions in its

adjacency until the adjacency of a neighbouring bar

begins.

Figure 4: Feedback live results in the lecturer’s web client.

A slider for ”understanding” is just one possibility.

Slider bars can be created and edited arbitrarily by

the lecturer. If more than one slider is created, the

sliders and results are shown one below the other. We

will talk about the possibilities of several sliders in

Section 4.1 as well as about the hypothesised effects

of the module.

Multiple-choice Quiz. The multiple-choice quiz

module is - just as the feedback module - adopted

from WIL/MA (Kopf et al., 2005). It enables the lec-

turer to create a question with different answer possi-

bilities, which she can present to the students at an

appropriate time of the lecture. In SMILE a quiz

question can either have one possible answer (radio-

buttons) or several (check-boxes). Figure 5 and 6

show the students’ view of an open question in the

Android client and in the web client respectively. As

for the feedback module the designs differ, but the

functionalities are the same. The shown question has

several answer possibilities and asks which of the

three given equations (taken from set theory) are true.

Figure 5: Multiple-choice in the students’ Android client.

Figure 6: Multiple-choice in the students’ web client.

The lecturer can open, close, show or hide questions

at any time. If a question is hidden, it cannot be seen

by a student user. In order to accept votes for a ques-

tion it must be opened and not hidden. Every user is

only allowed one vote per question and the number of

received votes is displayed in the lecturer’s web client

view. As the lecturer sees ﬁt, she can close the ques-

tion which leads to no further answers being accepted.

Now, the results can be viewed both on the lec-

turer’s and on the students’ clients. Questions with

one answer possibility are visualised as a pie chart,

questions with several as a bar diagram. Figure 7

shows the results for the above question. It was not

too difﬁcult: most students got it right, that only an-

swer 1 and 3 are correct. But three students fell for the

little trap of answer 2. A good quiz question always

has typical misconceptions as some of its answer pos-

sibilities!

4 FIELD TEST AND

EVALUATION

When we presented the SMILE prototype at the uni-

SMILE-SMARTPHONESINLECTURES-InitiatingaSmartphone-basedAudienceResponseSystemasaStudent

Project

291

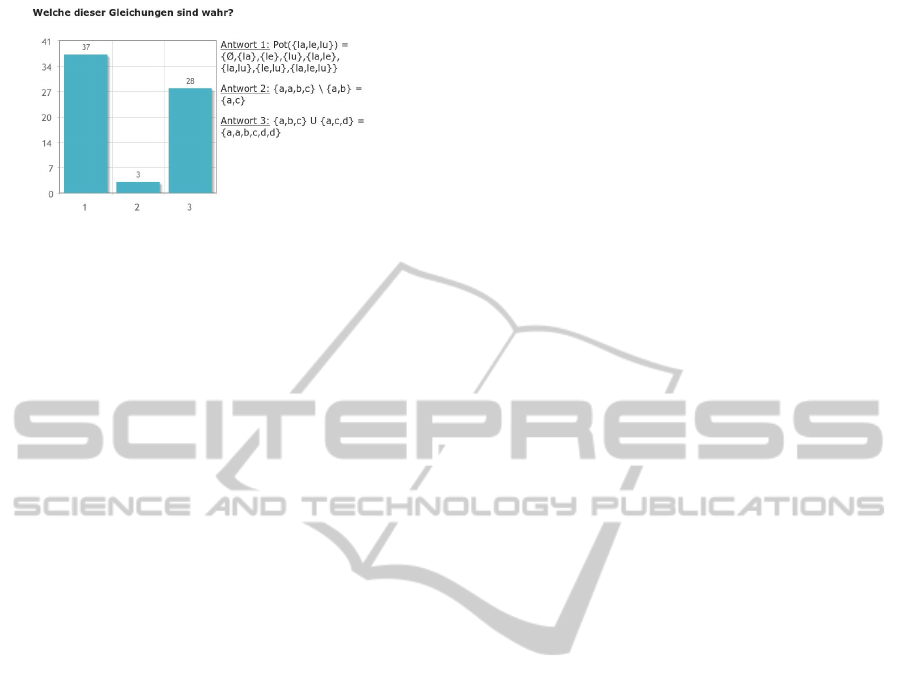

Figure 7: Multiple-choice results in the web client.

versity’s Science Fair in summer 2011, reactions were

mostly positive. People liked the idea but some where

also sceptical about the practicability. Would the ARS

not be more a distraction than a beneﬁt? Our an-

swer was that this would have to be empirically eval-

uated. And so in the winter semester 2011/2012 we

were given the chance to utilise SMILE in a ﬁrst year

Computing Science lecture on ”Computer Engineer-

ing”. As the students’ attendance is not compulsory

for the lecture, the number of participants differs but

in average there have been around 90 students in each

lecture, which takes place twice a week for two hours.

4.1 Setup

In the ﬁrst session of the lecture we introduced

SMILE to the ﬁrst semester students with a short pre-

sentation and demonstration. This was done by the

lecturer, the responsible research assistants but mainly

by the SMILE developer students, because we wanted

to authentically convey that SMILE is a project by

students for students. We also introduced the accom-

panying evaluation (see Section 4.2).

A difﬁcult issue was how to achieve anonymity

within SMILE while at the same time avoid abuse. It

is understood that some students like to be anonymous

when giving their real-time feedback or multiple-

choice answers. Otherwise they might fear SMILE

could accumulate their data to see for example which

student always puts his slider to ”I lost track!”. But

on the other hand, if we have no user authentication, it

would be possible for one person (or malicious script)

to log in multiple times and thus tamper with the feed-

back or quiz results.

As mentioned in Section 2 we implemented the

Kerberos encryption protocol because it allows for

anonymous user authentication. This is however only

possible when the service (SMILE) is not cooperat-

ing with another separated authentication server. So it

would theoretically be possible to use the university’s

user account administration for authentication, such

that the SMILE server would only know that some-

body is authenticated but not who the actual person is.

But from the student’s point of view he would have to

read and understand his SMILE client’s source code

to conﬁrm that his user data is only sent to the user

administration and not to the SMILE server. And

even then he would not be sure that the people behind

SMILE are not secretly cooperating with the former.

This is still an unresolved question. So for our

ﬁeld test we did the following workaround. We cre-

ated a ﬁxed number of random user names and corre-

sponding initial passwords and printed them on pa-

per sheets which were handed out randomly to the

students in the lecture. The password could later be

changed by the students. Thus, each student could

only login once, but it could not be known which per-

son is behind which user name.

Our hypothesis was that students will feel more en-

couraged to ask questions in the lecture when they

know that is it not just themselves having difﬁculties.

Thus, it would be necessary to let them see the lec-

turer’s view of the live-feedback results all the time.

This is achieved by running the lecturer’s SMILE

web client in the browser of an extra laptop computer

whose screen is projected on a separate big screen

next to the actual white board, as seen on the photo

in ﬁgure 1. The screen of the extra computer is facing

the lecturer such that he can observe the live results

too while facing the students.

Kopf et al. had two feedback sliders for their ex-

periments with WIL/MA: one for the lecture’s com-

plexity (too high – too easy) and one for its speed

(too fast – too slow). We decided to only use one

slider for understanding (”I lost track!” – ”Everything

clear!”) as described in Section 3. Thus, our slider’s

desired position is on the far right; unlike those used

in WIL/MA whose desired positions were in the mid-

dle.

The feedback live results are visible for the whole

lecture on the extra screen. When a multiple-choice

quiz happens, the lecturer switches the view in his

SMILE web client so that the students see it as well

on the extra screen. The question and answer pos-

sibilities are read aloud followed by a period of 2-5

minutes during which the students can send their an-

swers. Then, the results are viewed and discussed be-

fore the lecture continues and the extra screen goes

back to showing the feedback live results. On average

we have 1-2 quizzes per 2 hour lecture.

4.2 Evaluation

In summer 2011 we showed our ﬁrst prototype to

learning psychologist, who agreed to assist us in a

formative evaluation accompanying the planned ﬁeld

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

292

utilisation of SMILE. Our main aim was to ﬁnd out if

students experience SMILE as a beneﬁt or not. An

electronic questionnaire with 22 items was created

to assess possible developments in the students opin-

ion. We implemented the questionnaire as an addi-

tional SMILE module called ”Evaluation”, which al-

lows students to answer the questionnaire once be-

tween two consecutive lecture sessions.

Most items are questions which can be answered

via a 5-step slider ranging from ”agree” to ”not

agree”. Abstaining from answering a question is pos-

sible via a corresponding check-box which is acti-

vated by default and automatically deactivated when

the slider is moved. A more detailed description of

the evaluation setup and results will be subject to a

later publication. For now we can share the following

observations:

Students seem to appreciate the multiple-choice

module more than the real-time feedback and would

wish that there are more than just 1-2 quizzes per

lecture. The number of students participating in the

quizzes is approx. 50% of the attending students. The

feedback is only constantly used by approx. 15%.

This seems primarily due to technical difﬁculties we

have had with the wireless LAN in the lecture hall.

Glitches in the students’ internet connections lead to

frequent automatic logouts making the constant us-

age of the feedback module a nuisance. Further-

more, many students have the security functionalities

of their smartphones enabled which requires them to

enter a password or gesture each time after the device

has been shortly inactive.

We also realised that the percentage of students

taking part in the evaluation questionnaire regularly

has been low. We therefore conducted another eval-

uation via paper questionnaire with items aiming at

these issues as well. The results will be subject to the

later publication explaining the whole ﬁeld testing pe-

riod in detail.

5 CONCLUSIONS AND FUTURE

DEVELOPMENTS

We were able to show that it is possible for a group of

talented undergraduate students to autonomously im-

plement and maintain a complex system like SMILE

using university hardware and contemporary free

software and online resources. The development is

in ongoing progress. At the moment we are in discus-

sion with a group of new students, who have taken

part in the ”Computer Engineering” lecture where

SMILE is tested and want to join the development

team. With some of the former SMILE developers

leaving the team, SMILE might thus be passed down

from year to year and from students to students.

A next development would be to get rid of the ex-

tra screen in the lecture hall and transform the lec-

turer’s SMILE client into an expandable toolbar be-

low the whiteboard slides. Furthermore, we are tak-

ing up the forum idea again, thus implementing a

backchannel as recently suggested by (Gehlen-Baum

et al., 2011). Aiming at devices with larger screens

(i.e. tablet or laptop computers), forum entries could

be associated to positions in the lecture slides as sug-

gested by (Anderson et al., 2003).

Beside various modiﬁcations to improve the us-

ability of SMILE, we are particularly thinking about

integrating the multiple-choice quizzes more seam-

lessly into the lecture slides. A perfect way to do this

has recently been demonstrated by Thrun and Norvig

in their online ai-class.com with several thousand

participants worldwide. Concepts like ai-class.com

might eventually more and more replace the classical

lecture model. With a project like SMILE we hope to

make it still worthwhile for larger crowds of students

and lecturers to physically meet from time to time.

REFERENCES

Anderson, R. J., Anderson, R., VanDeGrift, T., Wolfman,

S. A., and Yasuhara, K. (2003). Promoting interaction

in large classes with computer-mediated feedback. In

Proceedings of CSCL’03: the International Confer-

ence on Computer Support for Collaborative Learn-

ing, pages 119–123, Bergen, Norway. Kluwer.

Gehlen-Baum, V., Pohl, A., and Bry, F. (2011). Assessing

Backstage–A Backchannel for Collaborative Learning

in Large Classes. In Proceedings of the 14th Interna-

tional Conference on Interactive Collaborative Learn-

ing (ICL 2011), pages 154–160, Piestany, Slovakia.

Kopf, S., Scheele, N., and Effelsberg, W. (2005). The inter-

active lecture: Teaching and learning technologies for

large classrooms. Technical Report TR-05-001, Math-

ematics and Computer Science Department, Univer-

sity of Mannheim.

Ratto, M., Shapiro, R. B., Truong, T. M., and Griswold, W.

(2003). The activeclass project: Experiments in en-

couraging classroom participation. Computer Support

for Collaborative Learning 2003.

SMILE-SMARTPHONESINLECTURES-InitiatingaSmartphone-basedAudienceResponseSystemasaStudent

Project

293
