A Constraint-based Mining Approach for Multi-attribute Index Selection

B. Ziani

, F. Rioult

and Y. Ouinten

LIM, Computer Science Department, University of Laghouat, Laghouat, Algeria

GREYC (CNRS - UMR 6072), Universit

e de Caen, Caen, France

Keywords:

Data Warehouse Physical Design, Bitmap Join Index Selection, Data Mining, Constraint Mining.

Abstract:

The index selection problem (ISP) concerns the selection of an appropriate indexes set to minimize the total

cost for a given workload under storage constraint. Since the ISP has been proven to be an NP-hard problem,

most studies focus on heuristic algorithms to obtain approximate solutions. The problem becomes more dif-

ﬁcult for indexes deﬁned on multiple tables such as bitmap join indexes, since it requires the exploration of

a large search space. Studies dealing with the problem of selecting bitmap join indexes mainly focused on

proposing pruning solutions of the search space by the means of data mining techniques or heuristic strategies.

The main shortcoming of these approaches is that the indexes selection process is performed in two steps. The

generation of a large number of indexes is followed by a pruning phase. An alternative is to constrain the input

data earlier in the selection process thereby reducing the output size to directly discover indexes that are of

interest for the administrator. For example, to select a set of indexes, the administrator may put limits on the

number of attributes or the cardinality of the attributes to be included in the indexes conﬁguration he is seek-

ing. In this paper we addressed the bitmap join indexes selection problem using a constraint-based approach.

Unlike previous approaches, the selection is performed in one step by introducing constraints in the selection

process. The proposed approach is evaluated using APB-1 benchmark.

1 INTRODUCTION

Data Warehousing and On-line Analytical Processing

(OLAP) are becoming critical components of deci-

sion support. They are especially designed to enable

executives, managers, and analysts to take better and

faster decisions. Data warehouses are generally mod-

elled according to a star schema that contains a cen-

tral, large fact table, and several dimension tables that

describe the facts (Inmon, 2002), (Kimball and Ross,

2007).

Queries deﬁned on a star schema are called star

join queries. They are complex and use several

join operations that are very costly. Such queries

will be performed on tables having potentially bil-

lions of records. As a result, it becomes crucial

to accelerate query evaluation. Among the tech-

niques adopted in relational data warehouses to im-

prove query performance, materialized views and in-

dexes are presumably the most effective ones (Chaud-

huri and Narasayya, 2007). Data warehouses admin-

istrators then handle the fastidious task of choosing an

advantageous conﬁguration of indexes to enhance the

system performance.

For a given data warehouse, the total number of dis-

tinct indexes can be extremely large; hence it is not

always practicable to create all the indexes due to the

limited amount of storage space that we can physi-

cally maintain. The approaches dealing with the in-

dex selection problem are composed of two steps:

1. Generation of candidate indexes for a given work-

load;

2. Selection of a ﬁnal conﬁguration that minimizes

the cost of the workload, while observing the stor-

age space limit.

The ﬁrst step reduces the space of potential in-

dexes by eliminating non relevant attributes. The ﬁnal

conﬁguration (step 2) is mostly selected using greedy

algorithms (Agrawal et al., 2000). The proposed ap-

proaches prune the set of generated indexes so that the

constraint space is satisﬁed. However, this pruning

process is performed after the generation of a large

number of candidate indexes.

An alternative is to constrain the generation of in-

dexes in order to produce fewer and more relevant

outputs. In this paper we propose a constraint-based

mining approach to solve the index selection problem.

We believe that constraint-based mining will enable

Ziani B., Rioult F. and Ouinten Y..

A Constraint-based Mining Approach for Multi-attribute Index Selection.

DOI: 10.5220/0003964600930098

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 93-98

ISBN: 978-989-8565-10-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

administrators to focus on a subset of most advanta-

geous indexes and that it avoids the generation of un-

wanted indexes.

The remainder of this paper is organized as fol-

lows: in Section 2 we present existing works re-

lated to bitmap join indexes selection problem and

constraint-based mining. Section 3 describes the pro-

posed approach for the bitmap join indexes selec-

tion. We experimentally study the efﬁciency of our

approach in Section 4. We conclude the paper and

present future directions in Section 5.

2 RELATED WORK

2.1 Bitmap Join Index Selection

The index selection problem has been studied ﬁrst

in traditional databases context (Chaudhuri and

Narasayya, 1997), (Agrawal et al., 2000), (Chaudhuri

et al., 2004), (Feldman and Reouven, 2003), (Frank

et al., 1992), (Valentin et al., 2000). With the ad-

vent of data warehouse, indexation has become an im-

portant option in physical design and its importance

is well recognized (Golfarelli et al., 2002). The in-

dex selection problem has been proven to be NP-hard

(Chaudhuri et al., 2004). Thus, most studies in the

literature have focused on ﬁnding approximate solu-

tions using greedy strategies or heuristics-based ap-

proaches.

The aim of the proposed approaches is to deter-

mine a set of candidate indexes from a given work-

load of queries, then to propose a ﬁnal indexes conﬁg-

uration providing the best proﬁt, under storage space

constraint. However, considered indexes usually con-

cern one table. Bitmap join indexes are multi-attribute

indexes involving several tables. Selecting a suitable

conﬁguration of Bitmap join indexes is more compli-

cated than the classical mono-table indexes, since it

requires the exploration of a large search space. To

the best of our knowledge, only few studies dealing

with the problem of selecting bitmap join indexes are

carried out (Aouiche et al., 2005), (Bellatreche et al.,

2007), (Bellatreche and Boukhalfa, 2010), (Ziani and

Ouinten, 2011). Due to the large number of can-

didate indexes, the proposed approaches mainly fo-

cused on pruning the search space of potential in-

dexes. They have used frequent itemsets (Aouiche

et al., 2005), (Bellatreche et al., 2007), (Ziani and

Ouinten, 2011) or heuristic strategies (Bellatreche and

Boukhalfa, 2010) to perform the pruning process. In

(Aouiche et al., 2005), (Bellatreche et al., 2007) the

Close algorithm (Pasquier et al., 1999) for mining

closed frequent itemsets is used to prune the search

space of candidate indexes. Due to the large number

of indexes generated as closed frequent itemsets, the

authors in (Ziani and Ouinten, 2011) propose a max-

imal frequent itemsets based approach to perform the

selection.

In (Bellatreche and Boukhalfa, 2010), the authors

propose an intuitive algorithm for bitmap join indexes

selection. As an initial conﬁguration, the algorithm

selects an index for each query having indexable at-

tributes. When the size of the conﬁguration exceeds

the storage capacity S , some selected indexes should

be reduced until the satisfaction of S.

The principal weakness of the proposed ap-

proaches is the large number of generated indexes,

that is very difﬁcult to manage, according to the sys-

tem limitations (number of indexes per table and stor-

age space constraint). Indeed, the pruning is done af-

ter the generation of the indexes conﬁguration.

An alternative is to constrain the input data earlier

in the selection process, thereby reducing the output

size to directly discover indexes that are of interest

for the administrator. We believe that a constraint-

based approach will help to mine a reduced and more

relevant indexes conﬁguration.

2.2 Constraint-based Pattern Mining

Mining frequent itemsets (FI) in datasets is a de-

manding task common to several important data min-

ing applications, that look for interesting patterns

within databases (e.g., association rules, correlations,

sequences, episodes, classiﬁers, clusters). It was

originally proposed in (Agrawal and Srikant, 1994),

(Agrawal et al., 1993) with the Apriori algorithm.

The drawback of mining frequent itemsets is that,

if there is a large frequent itemset with size s, then

almost all 2

candidate subsets of the itemset might

be generated and tested. Furthermore, the number of

frequent itemsets grows very quickly as the minimum

support threshold decreases.

Moreover, the huge size of the output compli-

cates the task of the analyst, who has to extract use-

ful knowledge from a very large amount of frequent

patterns. To overcome this problem, the paradigm of

pattern discovery based on constraints was introduced

with the aim at providing a tool for driving the discov-

ery process towards potentially interesting patterns.

Using constraints can be of a great help to purge a

lot of patterns that are irrelevant for the user.

Constraint-based mining has then been widely ad-

dressed, with really different approaches. The mostly

used constraints are the minimum or maximum sup-

port threshold, including (or being included in) some

speciﬁc itemset, aggregated computation (sum, aver-

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

age, min, max, when items are associated to a mea-

sure). As this paper does not speciﬁcally contribute

to the ﬁeld of constraint-based mining, we just brieﬂy

recall below the main contributions.

Most of them combine anti-monotone constraints

and monotone one (Pei and Han, 2000; Bucila et al.,

2003). A constraint is monotone (resp. anti-) if it

preserved while itemset specialization (resp. gener-

alization). Many useful constraints fall within the

anti-monotone category, such as the minimum sup-

port threshold or uper-bounding the aggregated sum.

This allows for powerful pruning of the search space,

because this space is built through specialization. The

maximum support threshold is a typical monotone

constraint.

Other approaches directly prune the

dataset (Bonchi et al., 2003) or consider the problem

as an inductive database issue and formalize the

constraints as queries, in a dedicated constraint-base

mining environment (Boulicaut et al., 2005),(Jeudy

and Boulicaut, 2002).

3 CONSTRAINT-BASED INDEX

SELECTION

To illustrate the motivation of our approach, let us see

an example. Suppose that a given approach recom-

mends a set C

idx

= {I

, I

, . . . , I

} of k indexes. The

administrator may keep an index I

knowing that it

needs acceptable storage space, or reject it because it

has previously shown negligible improvement for the

system performance.

Indeed, depending on the cardinality of the at-

tributes, the indexing process may be more or less ef-

ﬁcient. If the cardinality is very large or very small, an

index might not bring a very signiﬁcant improvement

(Vanichayobon and Gruenwald, 1999). On the other

hand, it is not beneﬁcial to create an index on a small

table. Hence, table size is another parameter which

can be taken into account. The administrator decides

whether a table is large or not, and only the indexes

on attributes belonging to large tables are selected.

More formally, let A = {a

, a

, . . . , a

} be the

set of indexable attributes and D the extraction con-

text (Query/Attributes) for a given workload W . If

C = {C

, C

, . . . , C

} is a set of k functions, denoting

the properties of interest (constraints) for each index

I ⊆ A, our approach to solve the index selection prob-

lem requires to compute all the itemsets (indexes) oc-

curring in the extraction context D and satisfying the

set of constraints C , i.e:

{I ⊆ A|C

(I ) ∧C

(I ) ∧· ·· ∧ C

(I )}

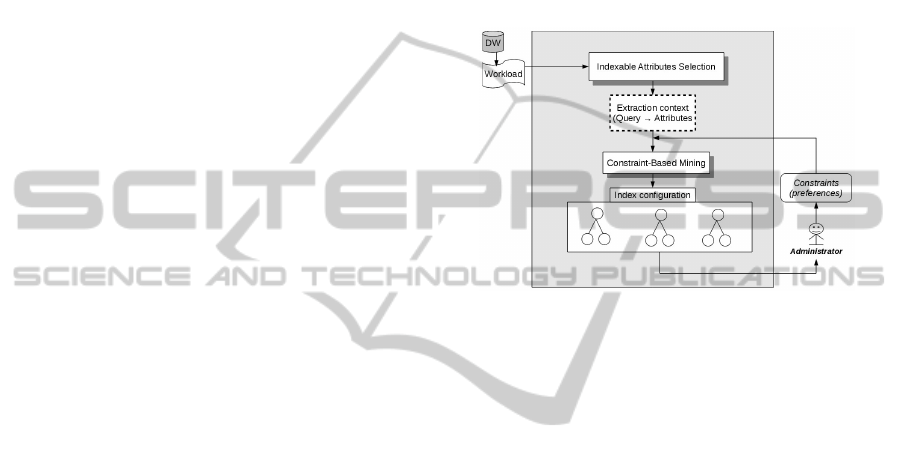

The architecture of our approach is illustrated in

Figure 1. As data mining based approaches, it con-

structs an extraction context by identifying the in-

dexable attributes from a given workload. Then, it

performs a constraint-based extraction (involving ad-

ministrator expertise) to generate the desired indexes.

Unlike the classical frequent itemsets mining based

approaches, we do not built an initial indexes conﬁg-

uration and we do not need to use a greedy algorithm

to recommend a ﬁnal conﬁguration.

Figure 1: Constraint-based indexes selection.

4 EXPERIMENTAL STUDY

4.1 Description of the Experiment

The aim of our experiments is to evaluate our ap-

proach by observing the impact of using various con-

straints on the selected indexes. In the ﬁrst experiment

we study the impact of including constraints in the

mining process on the number of generated indexes

and the corresponding storage space. In the second

expriments, we compare the performance of our ap-

proach with the baseline case where no indexes are

created as well as the approaches using classical fre-

quent itemsets mining, where the attributes frequency

is the unique parameter used to generate a conﬁgura-

tion of indexes. To evaluate the interestingness of the

indexes generated by our approach, we use the same

cost models proposed in similar works (Aouiche et al.,

2005).

To perform a constraint-based selection, we have

used the MUSIC-dfs tool (Mining with a User-

SpecifIed Constraint, Depth-First Search approach)

(Soulet et al., 2006). This tool provides a ﬂexible and

rich constraint query language. The user can itera-

tively develop complex constraints integrating various

knowledge types.

In this study we are more interested in the qual-

ity of the generated indexes. Thus, our comparisons

AConstraint-basedMiningApproachforMulti-attributeIndexSelection

are performed with no restrictions on available disk

space. We have used the APB-1 Benchmark of the

OLAP Council (OLAP-Council, 1998). The APB-1

Benchmark simulates a star schema data warehouse.

It consists of one fact table Actvars and four di-

mension tables ProLevel, TimeLevel, CustLevel, and

ChanLevel. We have considered 12 indexable at-

tributes (Table 1).

Table 1: Characteristics of the indexable attributes.

Code Attribute Cardinality Size of the di-

mension table

A Class Level 605 9

B Quarter Level 4 900

C Group Level 300 9

D Family Level 75 9

E Line Level 15 9

F Division Level 4 9

G Year Level 2 900

H Month Level 12 900

I Retailer Level 99 9000

J Gender Level 2 9000

K All Level 5 24

L City Level 4 9000

We have also used the same workload used in

(Bellatreche and Boukhalfa, 2010). It consists of

60 star join queries involving aggregation operations

and multiple joins between the fact table and dimen-

sion tables. We considered the following constraints:

• the support (frequency) of the generated indexes.

This support shows the representativity of the in-

dex in the workload of queries;

• the length (number of attributes) of the generated

indexes. It directly impacts on the width of the

space needed for storing the index;

• the cardinality of the attributes in the generated

indexes. This factor also impacts on the storage

space width;

• the size of the dimension table to which an at-

tribute belongs, that impacts on the height to the

index.

4.2 Experimental Results

Experiment 1: Number and Size of Indexes vs

Constraints. We begin with a baseline experiment

where the frequency is the unique parameter taken

into account (as classical approaches). Then, we con-

ducted several experiments using the MUSIC-dfs to

compute the generated conﬁgurations, for different

combinations of constraints. The experiments de-

picted here are performed with a minimum support

of 5% (3 queries). Using this threshold, the workload

basically generates 56 indexes. This represents a very

high value when compared to the size of the workload

(60 queries).

Consequently, constraints are added to improve

the number of generated indexes. Figures 2 and 3

show respectively the number and the total size occu-

pied by the generated indexes for different constraint

combinations. We applied different constraints to ex-

amine their impact on the generated conﬁgurations. It

is interesting to observe that the characteristics of a

generated conﬁguration (i.e, number of indexes and

total indexes size) depends on the complexity of the

constraint (i.e., the number of combinations). This

behavior allows the administrator to experiment with

a broad set of conﬁgurations to select the most inter-

esting one.

Experiment 2: Workload Cost vs Constraints.

We compare the performance of our approach with

the baseline case where no indexes are created as well

as the approaches using classical frequent itemsets

technique. For each constraint, we evaluate the work-

load cost using the generated indexes. The results

we obtained are ploted in Figure 4. They show that

we achieve a better performance using constraints on

both the support (frequency) of indexes and the cardi-

nality of the attributes. For complex constraints, there

are very few or no generated indexes and thus the cost

of the workload increases.

5 CONCLUSIONS

In this paper we have proposed a constraint-based

framework for the index selection problem. Our ap-

proach leverages and extends principled methods of

mining frequent itemsets for the index selection prob-

lem. The key contribution is that we show how

constraint-based mining can be adapted in a ﬂexible

way that balances the characteristics of the workload

and the administrator preferences for the index selec-

tion problem.

The existing approaches consist of a fully auto-

matic procedure. Like any conventional process of

data mining, this can lead to obvious, unhelpful, or

undesirable knowledge (indexes). Our approach as-

sociates, on the one hand the high capacity of auto-

matic selection mining frequent itemsets, and in the

other hand, the necessary expertise of the administra-

tor. Experimental results show that our approach is

effective because it allows for more directly comput-

ing the useful indexes with precisely describing the

requirements.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

0. Support Only

1. Support and Cardinality

2. Support and Length

3. Support and Dimension Tables Size

4. Support and Cardinality and Length

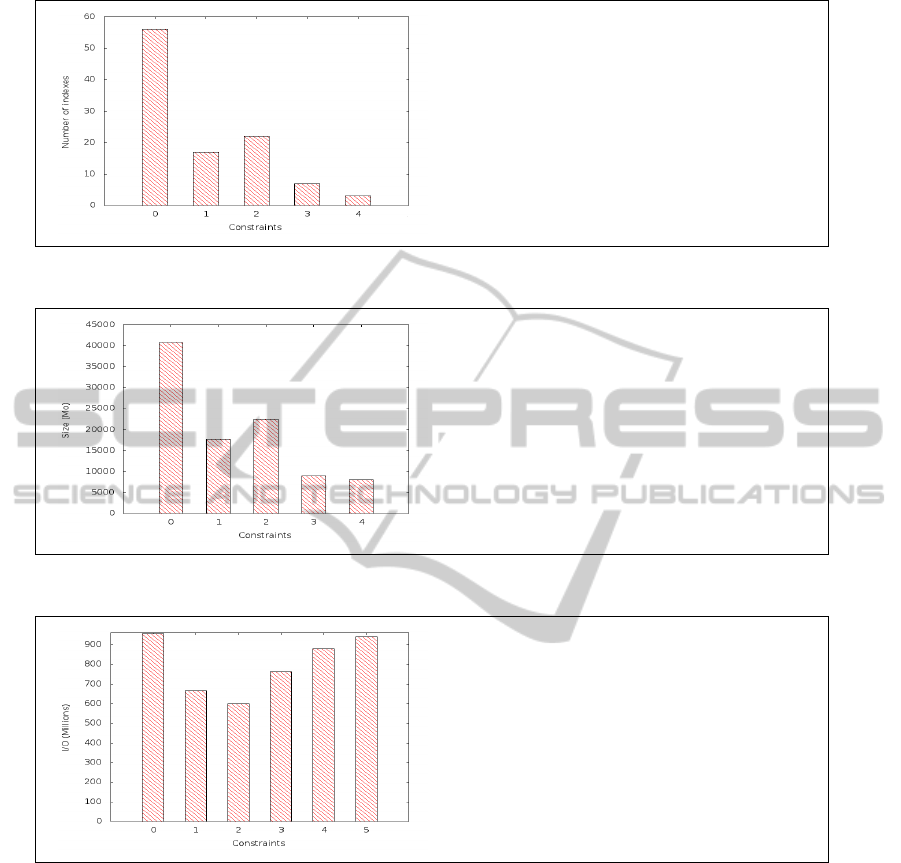

Figure 2: Number of generated indexes vs constraints.

0. Support Only

1. Support and Cardinality

2. Support and Length

3. Support and Dimension Tables Size

4. Support and Cardinality and Length

Figure 3: Size of generated indexes vs constraints.

0. Without indexes

1. Support Only

2. Support and Cardinality

3. Support and Length

4. Support and Dimension Tables Size

5. Support and Cardinality and Length

Figure 4: Workload cost vs constraints.

REFERENCES

Agrawal, R., Imielinski, T., and Swami, A. (1993). Min-

ing association rules between sets of items in large

databases. In ACM SIGMOD International Con-

ference on Management of Data, Washington, D.C,

pages 207–216.

Agrawal, R. and Srikant, R. (1994). Fast algorithms for

mining association rules in large databases. In Inter-

national Conference on Very Large Data Bases, San-

tiago de Chile, Chile, pages 487–499.

Agrawal, S., Chaudhuri, S., and Narasayya, V. (2000). Au-

tomated selection of materialized views and indexes

in sql databases. In VLDB, pages 496–505.

Aouiche, K., Darmont, J., Boussaid, O., and Bentayeb, F.

(2005). Automatic selection of bitmap join index in

data warehouses. In 7th International Conference,

DaWaK, Copenhagen, Denmark, pages 64–73.

Bellatreche, L. and Boukhalfa, K. (2010). Yet another algo-

rithms for selecting bitmap join index. In 12th Inter-

national Conference, DAWAK , Bilbao, Spain, pages

105–116.

Bellatreche, L., Missaoui, R., Necir, H., and Drias, H.

(2007). Selection and pruning algorithms for bitmap

index selection problem using data mining. In 9th

International Conference, DaWaK, Regensburg, Ger-

many, pages 221–230.

Bonchi, F., Giannotti, F., Mazzanti, A., and Pedreschi, D.

AConstraint-basedMiningApproachforMulti-attributeIndexSelection

(2003). Exante: Anticipated data reduction in con-

strained pattern mining. In Conference on Principles

and Practice of Knowledge Discovery in Databases

(PKDD’03), Cavtat-Dubrovnik, Croatia, pages 47–

58.

Boulicaut, J.-F., Raedt, L. D., and Mannila, H., ed-

itors (2005). Constraint-Based Mining and In-

ductive Databases, European Workshop on Induc-

tive Databases and Constraint Based Mining, Hin-

terzarten, Germany, March 11-13, 2004, volume 3848

of Lecture Notes in Computer Science. Springer.

Bucila, C., Gehrke, J. E., Kifer, D., and White, W. (2003).

Dualminer: A dual-pruning algorithm for itemsets

with constraints. Data Mining and Knowledge Dis-

covery, 7(4):241–272.

Chaudhuri, S., Datar, M., and Narasayya, V. (2004). Index

selection for databases: A hardness study and a prin-

cipled heuristic solution. IEEE Trans. Knowl. Data

Eng, 16:1313–1323.

Chaudhuri, S. and Narasayya, V. (1997). An efﬁcient cost-

driven index selection tool for microsoft sql server.

In 23rd International Conference on Very Large Data

Bases, pages 146–155.

Chaudhuri, S. and Narasayya, V. (2007). Self-tuning

database systems: a decade of progress. In 33rd inter-

national conference on Very large data bases, pages

3–14.

Feldman, Y. A. and Reouven, J. (2003). A knowledge-based

approach for index selection in relational databases.

Expert Syst. Appl., 25:15–37.

Frank, M., Omiecinski, E., and Navathe, S. (1992). Adap-

tive and automated index selection in rdbms. In 3rd In-

ternational Conference on Extending Database Tech-

nology, Vienna, Austria, pages 277–292.

Golfarelli, M., Rizzi, S., and Saltarelli, E. (2002). Index

selection for data warehousing. In 4th Intl. Workshop

DMDW, Toronto, Canada.

Inmon, W. (2002.). Building the Data Warehouse. John

Wiley & Sons, Inc., New York, NY, USA, 2nd edition.

Jeudy, B. and Boulicaut, J.-F. (2002). Constraint-based dis-

covery and inductive queries: Application to associa-

tion rule mining. In Hand, D. J., Adams, N. M., and

Bolton, R. J., editors, Pattern Detection and Discov-

ery, volume 2447 of LNCS, pages 110–124. Springer.

Kimball, R. and Ross, M. (2007). The Data Warehouse

Toolkit: The Complete Guide to Dimensional Model-

ing. John Wiley & Sons, Inc., New York, NY, USA,

2nd edition.

OLAP-Council (1998). Apb-1 olap benchmark, release ii.

http://www.olapcouncil.org/.

Pasquier, N., Bastide, Y., Taouil, R., and Lakhal, L. (1999).

Discovering frequent closed itemsets for association

rules. In 7th International Conference on Database

Theory, pages 398–416.

Pei, J. and Han, J. (2000). Can we push more constraints

into frequent pattern mining? In Proceedings of

the 6th International Conference on Knowledge Dis-

covery and Data Mining (KDD’00), pages 350–354,

Boston, USA. New York : ACM Press.

Soulet, A., Klema, J., and Crmilleux, B. (2006). Efﬁ-

cient mining under ﬂexible constraints through several

datasets. In Workshop on Knowledge Discovery in In-

ductive Databases co-located with PKDD’06.

Valentin, G., Zuliani, M., Zilio, D., Lohman, G., and Skel-

ley, A. (2000). Db2 advisor: An optimizer smart

enough to recommend its own index. In ICDE, pages

101–110.

Vanichayobon, S. and Gruenwald, L. (1999). Indexing tech-

niques for data warhouses queries. Technical report,

University of Oklahoma, School of computer science.

Ziani, B. and Ouinten, Y. (2011). Enhancing multi-attribute

indexes selection using maximal frequent itemsets. In

EGCM, Tanger, Morocco, pages 65–77.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems
