Roles as Modular Units of Composition

Fernando Barbosa

and Ademar Aguiar

Escola Superior de Tecnologia, Instituto Politécnico de Castelo Branco, Av. do Empresário, Castelo Branco, Portugal

Departamento Informática, Faculdade de Engenharia da Universidade do Porto, Rua Dr. Roberto Frias, Porto, Portugal

Keywords: Modularity, Inheritance, Roles, Composition, Reuse.

Abstract: Object oriented decomposition is the most successful decomposition strategy used nowadays. But a single

decomposition strategy cannot capture all aspects of a concept. Roles have been successfully used to model

the different views a concept may provide but, despite this, roles have not been used as building blocks.

Roles are mostly used to extend objects at runtime. In this paper we propose roles as a way to compose

classes that provides a modular way of capturing and reusing those aspects that fall outside a concept’s main

purpose, while being close to the OO approach. We present how roles can be made modular and reusable.

We also show how we can use roles to compose classes using JavaStage, a java extension that support roles

To validate our approach we developed generic and reusable roles for the Gang of Four patterns. We were

able to develop reusable roles for 10 out of 23 patterns, which is a good outcome.

1 INTRODUCTION

To deal with the complexities of any problem we

normally use abstractions. In Object-Oriented (OO)

languages classes are the usual abstraction

mechanism. Each class represents a specific concept.

A single decomposition technique however cannot

capture all possible views of the system (Tarr, 1999)

and each concept may be viewed differently

depending on the viewer: a river may be a food

resource to a fisherman, a living place to a fish, etc.

Roles can accommodate these different views.

Roles were introduced by Bachman and Daya

(Bachman, 1977) but several role models have since

been proposed. But the definitions, modeling ways,

examples and targets are often different (Graversen,

2006) (Steimann, 2000). The research on roles has

focused largely on its dynamic nature (Herrmann,

2005) (Baldoni, 2007) (Tamai, 2007), modelling

with roles (Riehle, 1998) and relationships (Pradel,

2008).

Role modelling, by decomposing the system into

smaller units than a class, has proved to be effective,

with benefits like improved comprehension,

documentation, etc (Riehle, 2000). However, no

language supports such use of roles. To overcome

this fact we’ll focus our role approach in class

composition and code reuse.

We propose roles as a basic unit we can compose

classes with. A role defines state and behaviour that

are added to the player class. Roles provide the basic

behaviour for concerns that are not the class’s main

concern, leading to a better modularization. A class

can then be seen either as being composed from

several roles or as an undivided entity.

To maximize role reuse we’ll use modularity

principles as guidelines. We intend to develop roles

as modular units, making them reusable. We argue

that developing roles independently their players

will make them much more reusable. To express our

ideas we created JavaStage, an extension to Java.

We will use JavaStage in the examples so we will

give a brief introduction so examples are clear.

To show that roles can be reusable modules we

show that it is possible to build a role library. We

started our role library with the analysis of the Gang

of Four (GoF) design patterns (Gamma, 1995). We

were able to develop generic roles for 10 patterns.

We can summarize our paper contributions as: a

way of composing classes using roles as modular

units; a java extension that supports roles; a role

library based on the GoF patterns.

This paper is organized as follows: Section 2

gives a brief description of decomposition problems.

Section 3 discusses how to enhance role reuse.

Section 4 shows how to use roles to compose classes

using JavaStage. Our roles for the GoF patterns are

debated in Section 5. Related work is presented in

Section 6, and Section 7 concludes the paper.

Barbosa F. and Aguiar A..

Roles as Modular Units of Composition.

DOI: 10.5220/0003972600130022

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2012), pages 13-22

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 DECOMPOSITION PROBLEMS

How do we decompose a system? There still isn’t a

definitive answer and there are many decomposition

techniques. The most used today is Object Oriented

Decomposition, but some argue that a single

decomposition strategy cannot adequately capture all

the system’s details (Tarr, 1999).

Consequences of using a single decomposition

strategy are crosscutting concerns. They appear

when several modules deal with the same problem,

which is outside their main concern, because one

cannot find a single module responsible for it. This

leads to scattered, replicated code.

Because a module must deal with a problem that

is spread by several others, changes to that code will,

quite probably, affect other modules. Independent

development is thus compromised, evolution and

maintenance are a nightmare because changes to a

crosscutting concern need to be done in all modules.

We will tackle this problem by using roles as a

building block for classes. We put the crosscutting

concern in a role and the classes play the role. Any

changes to the concern are limited to the role, impro-

ving maintenance and reducing change propagation.

The crosscutting concerns become more modular.

2.1 Multiple Inheritance

To overcome decomposition restrictions some

languages use multiple inheritance. But multiple

inheritance also has multiple problems, caused

mostly by name collisions when a class inherits from

two or more superclasses that have methods with the

same signature or fields with the same name. It can

even occur when a class inherits twice from the

same superclass – the diamond problem. Different

languages provide different solutions (virtual classes

in C++) and others simply forbid it like Java.

Java uses interfaces when a class must be seen as

conforming to another type. Interfaces only declare

constants and methods signatures so they have no

state or method implementations. This may result in

the code duplication in classes implementing the

same interface but with different superclasses.

It is usual to start an inheritance hierarchy with

an interface and then a superclass providing the

default behaviour for that hierarchy. We argue that

the default implementation should be provided by a

role and the superclass plays that role. This way we

can reuse the basic behaviour whenever we need to,

thus preventing the use of multiple inheritance. This

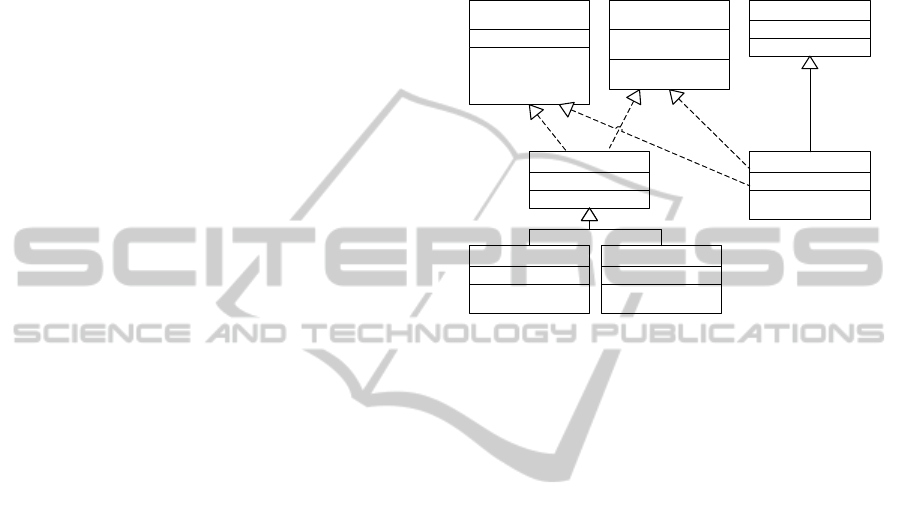

is depicted in Figure 1. The example shows a Figure

hierarchy with an interface and a role at the top. The

DefaultFigure class implements the interface and

plays the role. All its subclasses inherit this default

behaviour. The ImageFigure, a subclass from

another hierarchy, also becomes part of the Figure

hierarchy by implementing the Figure interface. It

also plays the BasicFigure role so it has the same

default behaviour every DefaultFigure subclass has.

DefaultFigure

+draw()

+setBoudingBox()

LineFigure

+draw()

+setBoudingBox()

TextFigure

+draw()

+setBoundingBox()

+setLineColor()

+setFilColor()

«interface»

Figure

+setLineColor()

+setFilColor()

‐lineColor:Integer

‐fillColor:Integer

«role»

BasicFigure

+draw()

+setBoundingBox()

ImageFigure

+complexMethod()


Figure 1: Example of a Figure hierarchy with both an

interface and a role as top elements.

2.2 Aspect Oriented Programming

There are other attempts to remove crosscutting

concerns, like Aspect Oriented Programming (AOP)

(Kickzales, 2001). However AOP is not close to OO

and requires learning many new concepts. And

while the modularization of crosscutting concerns is

the flagship of AOP several authors disagree

(Steimann, 2006) (Przybyłek, 2011).

Concepts like pointcuts and advices are not easy

to grasp, and their effects are more unpredictable

than any OO concept. A particular one is the fragile

pointcut (Koppen, 2004): simple changes in a

method can make a pointcut either miss or

incorrectly capture a joint point thus incorrectly

introducing or failing to introduce the required

advice.

AOP obliviousness (Filman, 2000) means that

the class is unaware of aspects and these can be

plugged or unplugged as needed. This explains why

some dynamic role languages use AOP. But it also

brings comprehensibility problems (Griswold,

2006). To fully understand the system we must

know the classes and the aspects that may affect

them. This is a major drawback when maintaining a

system, since the dependencies aren’t always

explicit and there isn’t an explicit contract between

both parts.

With roles all dependencies are explicit and the

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

system comprehensibility is increased compared to

the OO version (Rielhe, 1998). Roles do not have

AOP obliviousness because the class is aware of the

roles it plays. Any changes to the class do not affect

the role, if the contract between them stays the same.

Our approach does not replace AOP. They are

different and approach different problems. We

believe that for modelling static concerns our

approach is more suitable while AOP is better suited

for pluggable and unpplugable concerns.

2.3 Traits

Classes’ composition using alternatives to multiple

inheritance have been proposed such as mixins

(Bracha, 1990) (Bracha, 1992) and traits (Scharli,

2003) (Ducasse, 2004)(Black, 2004). Traits have one

advantage over mixins and single inheritance: the

order of composition is irrelevant. Traits have first

appeared in smalltalk but some attempts have been

made into bringing traits in to java-like languages

(Quitslund, 2004) (Smith, 2005).

Traits can be seen as a set of methods that

provide common behaviour. Traits are stateless, the

state is supplied by the class that uses it and

accessed by the trait through required methods,

usually accessors. Trait’s methods are added to the

class that uses them. The class also provides glue

code to compose the several traits it uses.

Traits don’t have visibility control, meaning that

a trait cannot specify an interface and all trait

methods are public, even auxiliary ones. Since traits

cannot have state then this is a minor problem, but it

does limit a class-trait interface.

Traits have a flattening property: a class can be

seen indifferently as a collection of methods or as

composed by traits, and that a trait method can be

seen as a trait method or as a class method.

In our approach a class can be seen as being

composed from several roles or as an undivided

entity. This is not to be confused with the flattening

property of traits. A super reference in a trait refers

to the super of the class that uses the trait, while a

super reference in the role refers to the super role.

Our roles can have state, visibility control and

their own inheritance hierarchy while traits cannot.

In our approach the order of role playing is also

irrelevant except for a specific conflict resolution,

but it is so to facilitate development and can be

overridden by the developer or by the compiler.

3 REUSING ROLES

This section is dedicated to what we believe are the

factors that will enhance role reuse: independent

evolution of roles and players, role configuration,

and roles being used as components for classes.

3.1 Roles as Modules

Modularization (Parnas, 1972) is one of the most

important notion in software development. Breaking

a system into modules allows each module to be

independently developed, shortening development

time. Other advantages are better comprehensibility,

enhanced error tracing, etc, but the one developers

treasure most is the modules’ high reusability. It

allows library development and libraries reduce the

amount of code one must write to build a system.

A key concept is encapsulation. When a module

is encapsulated changes in the module, even drastic

ones, do not affect other modules. A module has an

interface and an implementation. The interface

defines how clients interact with the module, and it

shouldn’t change much along the module life-cycle

as clients must be aware of the changes and change

their own implementation accordingly.

Modules interact with each other but intra-

modules interactions are more intense than inter-

modules interactions. Intra-modules interactions

may require a specialized interface. To cope with

this, most languages declare different levels of

access, usually private, protected and public.

To maximize role reuse we have to enable the

independent evolution between roles and players. If

we treat a role as a module and the player as another

module then we can strive for a greater

independence between them. Thus roles must

provide an interface and ensure encapsulation.

Providing an interface is simple if we use roles

as first class entities. Encapsulation and independent

development raises a few issues. We must consider

that roles only make sense when played by a class.

But classes cannot have access to role members and

vice-versa. If they did roles and classes could not be

developed independently, because any change to the

role structure could cause changes in the class and

vice-versa. Therefore roles and classes must rely

solely on interfaces.

3.2 Dropping the Playedby Clause

Many role approaches focus on the dynamic use of

roles: extending objects by attaching roles. Roles are

usually bounded to a player by a playedBy clause

that states who can play the role. In dynamic

situations where roles are developed for extending

existing objects this is acceptable, even if it restricts

RolesasModularUnitsofComposition

role reuse, but not in static situations.

Using an example derived from (Ingesman,

2011) we show, in Figure 2, a Point class

representing a 2D cartesian coordinate and a

Location role that provides a view of Point as a

physical location on a map. We also present a

PolarPoint class that represents a coordinate in polar

coordinates. The role could apply to both classes but

the playedBy forbids it as these classes are not

related. Making one a subclasse of the other would

violate the “is a” rule of inheritance. We could use a

Coordinate interface with getX and getY methods

with both classes implementing that interface. This

cannot be done in a dynamic context where both

classes are already developed and cannot be

modified.

Our purpose is to use roles as building blocks

and not for extending objects. This is a totally

different way of viewing role-class relationships.

Our roles are meant to be used to compose classes so

roles are developed without knowledge of all classes

that can play them. Thus using the playedBy clause

would limit role reusability. In the example, if we

develop a role for both classes the role must state

that it needs the player to have getX and getY

methods. Some form of declaring these requirements

must be used but not by using a playedBy clause.

class Point {

int x, y;

Point(int x, int y){this.x= x; this.y= y;}

int getX( ) { return x; }

int getY( ) { return y; }

}

class PolarPoint {

int r; double beta;

PolarPoint(int r, double b) {

this.r = r; beta = b; }

int getX(){return (int)(r*Math.cos(beta));}

int getY(){return (int)(r*Math.sin(beta));}

}

role Location playedBy Point {

string getCountry() {

int x = performer.getX();

int y = performer.getY();

// converting point to a country name

String country = "PT";

return country;

}

Figure 2: A Point class, a Location role playable by it and

a PolarPoint class that could also play the Location role.

3.3 The Need to Rename Methods

Methods names are specific to an interaction. For

example, Observer (Gamma, 1995) describes an

interaction between subjects and observers. It is used

in many systems with minor changes, usually the

methods used to register an observer with a subject

and the update methods used by the subject to notify

its observers. A Subject role for a MouseListener

instance of the pattern would define methods like

addMouseListener, or removeMouseListener. That

role could not be reused for a KeyListener instance

which uses methods like addKeyListener or

removeKeyListener.

A method’s name must indicate its purpose, so a

name like addListener reduces comprehensibility,

and can limit the class to play only one subject role.

Thus, renaming methods expands role reusability. A

class that plays a role must ensure a specific

interface, but that interface should be configurable,

at least in what respects to method names.

Some languages (Tamai, 2007) use a “rename”

clause that allow classes to rename a role method. If

the role interface is big this task is tedious and error

prone. We need a more expedite way of doing this.

Roles also interact with other objects. Again

method names are important. For example, each

subject has a method that calls the observer’s update

method. In the Java AWT implementation of the

pattern there are several methods like mousePressed,

mouseReleased, etc. The rename clause is not usable

here because it applies only to the role methods.

We need a mechanism that allows fast renaming

for role methods and methods called by the role.

3.4 Summary

For roles to be fully reusable then they must provide

an interface; ensure encapsulation; be developed

independently from its players; state requirements

player must fulfil; provide a method renaming

mechanism that enables the role to be configured by

the player.

4 COMPOSING CLASSES USING

ROLES

To support roles we developed JavaStage, an

extension to Java. Examples in this paper have been

compiled with our JavaStage compiler. We will not

discuss JavaStage’s syntax in detail but it will be

perceptible from the examples and we will explain it

briefly so that examples are understandable.

4.1 Declaring Roles

A role may define fields, methods and access levels.

A class can play any number of roles, and can even

play the same role more than once. We refer to a

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

class playing a role as the player of that role.

When a class plays a role all the non private

methods of the role are added to the class. To play a

role the class uses a plays directive and gives the

role an identity, as shown in Figure 3. To refer to the

role the class uses its identity.

As an example we will use the Subject role from

the Observer pattern. Consider a Figure in a drawing

application. Whenever the Figure changes, the

drawing must be updated so the figure plays the role

of an observer’s subject. Being a subject is not the

Figure main concern so it’s wise to develop a subject

role, shown in Figure 3, to capture that concern and

let figures play it. In the code we omitted access

modifiers for simplicity, but they should be used.

4.2 Stating Role Requirements

A role does not know who will be its players but

may need to exchange information with them so it

must require the player to have a particular interface.

We do that using a requirements list. The list can

include required methods from the player but also

required methods from objects the role interacts

with. The list states the method owner and the

method signature. To indicate that the owner is the

player we use the Performer keyword. Performer is

used within a role as a place-holder for the player’s

type. This enables roles to declare fields and

parameters of the type of the player. This is shown

in Figure 4 which shows a singleton role.

4.3 Method Renaming

We developed a renaming mechanism, to enhance

role reuse and facilitate role configuration, which

allows method names to be easily configured. Each

name may have three parts: one configurable and

two fixed. Both fixed parts are optional so the name

can be fully configurable by the player. The

configurable part is bounded by # as shown next.

fixed#configurable#fixed

The name configuration is done by the player in

the plays clause as depicted in Figure 5. To play the

role the class must define all configurable methods.

We can take our figure subject role and make it

more generic with this renaming mechanism. In

Figure 5 we show how we can use method renaming

to make our subject role more generic. It also shows

a class playing that role as a FigureObserver subject

and as a FigureHandlerObserver subject.

role FigureSubject {

Vector<FigureObserver> observers =

new Vector<FigureObserver>();

void addFigureObserver( FigureObserver o){

observers.add( o );

}

void removeFigureObserver(FigureObserver o){

observers.remove( o );

}

protected void fireFigureChanged( ){

for( FigureObserver o : observers )

o.update( );

}

class DefaultFigure implements Figure {

plays FigureSubject figureSbj;

void moveBy(int dx, int dy) {

// code for moving the figure

// firing change, using role identity

figureSbj.fireFigureChanged();

}

Figure 3: A Figure subject role for an instance of the

observer pattern and a class playing it.

public role Singleton {

requires Performer implements Performer();

private static Performer single = null;

public static Performer getInstance( ){

if( single == null )

single = new Performer();

return single;

}

Figure 4: A Singleton role requiring its player to have a

default constructor.

public role GenericSubject<ObserverType> {

requires ObserverType implements

void #Fire.update#();

public void add#Observer#( ObserverType o){

observers.add( o );

}

protected void fire#Fire#( ){

for( ObserverType o : observers )

o.#Fire.update#( );

}

class DefaultFigure implements Figure {

plays GenericSubject<FigureObserver>

(Observer = FigureObserver,

Fire = FigureChanged,

Fire.update = figureChanged

) figureSbj;

plays GenericSubject<FigureHandleObserver>

( Observer = FigureHandleObserver,

Fire = FigureHandleChanged,

Fire.update = figureHandleChanged

) figHandleSbj;

public void moveBy(int dx, int dy) {

figureSbj.fireFigureChanged();

}

Figure 5: The generic subject role now with configurable

methods (in bold) and a class playing that role twice.

RolesasModularUnitsofComposition

4.4 Multiple Versions of a Method

It’s possible to declare several versions of a method

using multiple definitions of the configurable name.

Methods with the same structure are defined once.

We can expand FigureObserver to include more

update methods to specify which change occurred,

like figureMoved. Such plays clause would be:

plays GenericSubject<FigureObserver>

( Fire = FigureChanged,

Fire.update = figureChanged,

Fire = FigureMoved,

Fire.update = figureMoved,

Observer = FigureObserver ) figureSbj;

4.5 Making Use of Name Conventions

Another feature of our renaming strategy is the class

directive. When class is used as a configurable part

it will be replaced by the name of the player class.

This is useful in inheritance hierarchies because we

just need to place the plays clause in the superclass

and each subclass gets a renamed method. It does

imply that calls will rely on name conventions.

One such case is the Visitor pattern. This pattern

defines two roles: the Element and the Visitor. The

Visitor declares a visit method for each Element.

Each Element has an accept method with a Visitor as

an argument that calls the corresponding method of

the Visitor. Visitor’s methods usually follow a name

convention in the form of visitElementType. We

used this property in our VisitorElement role, as

shown in Figure 6. The example shows it being used

in a Figure hierarchy with figures as Elements. It

also shows that Figure subclasses don’t have any

pattern code, because they will get an acceptVisitor

method that calls the correct visit method.

4.6 Roles Playing Roles or Inheriting

from Roles

Roles can play roles but can also inherit from roles.

When a role inherits from a role that has

configurable methods it cannot define them. When a

role plays another role it must define all its

configurable methods.

For example managing observers is a part of a

more general purpose concern that is to deal with

collections. We can say that the subject role is an

observer container and develop a generic container

role and make the subject inherit from the container.

If the FigureSubject role can be played by

several classes then we’ll create a FigureSubject

based on GenericSubject. Because we need to

rename the role methods the FigureSubject role must

play the generic Subject role and define all its

methods. DefaultFigure would then use

FigureSubject without any configuration.

Both situations are depicted in Figure .

role VisitorElement<VisitorType> {

requires VisitorType implements

void visit#visitor.class#( Performer t );

void accept#visitor#( VisitorType v ){

v.visit#visitor.class#( performer );

}

class DefaultFigure {

plays VisitorElement<FigureVisitor>

( visitor = Visitor ) visit;

// … rest of class code

}

class LineFigure extends DefaultFigure {

// no Visitor pattern code

}

interface FigureVisitor {

void visitLineFigure( LineFigure f );

void visitTextFigure( TextFigure f );

//…

}

Figure 6: The VisitorElement role, a class Figure that

plays the role, a subclass from the Figure hierarchy and

the Visitor interface.

role GenericContainer<ThingType> {

Vector<ThingType> ins =

new Vector<ThingType>();

void add#Thing#( ThingType t ) {

ins.add( t );

}

void insert#Thing#At(ThingType t,int idx){

ins.insertElementAt( t, idx );

}

protected Vector<ThingType> get#Thing#s(){

return ins;

}

role GenericSubject<ObserverType>

extends GenericContainer<ObserverType>{

requires ObserverType implements

void #Fire.update#();

protected void fire#Fire#( ){

for( ObserverType o : get#Thing#s() )

o.#Fire.update#( );

}

role FigureSubject {

plays GenericSubject<FigureObserver>

( Fire = FigureChanged,

Fire.update = figureChanged,

Fire = FigureMoved,

Fire.update = figureMoved,

Thing = FigureObserver ) figureSbj;

}

class DefaultFigure implements Figure {

plays FigureSubject figureSbj;

}

Figure 7: Role inheritance and role playing roles.

4.7 Conflict Resolution

Class methods have precedence over role methods.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Conflicts may arise when a class plays roles that

have methods with the same signature or when an

inherited method has the same signature of a role

method. When conflicts arise the compiler issues a

warning. The conflict can be resolved by redefining

the method and calling the intended method. This is

not mandatory because the compiler uses, by default,

the method of the first role in the plays order and

role methods override inherited methods. This may

seem a fragile rule, but we believe it will be enough

for most cases. Even if a conflicting method is later

added to a role the compiler does issue a warning so

the class developer is aware of the situation. He can

solve the situation as he wishes and not as imposed

by the role or superclass’ developers.

5 TOWARDS A LIBRARY OF

ROLES

To start our role library we analysed the 23 GoF

patterns (Gamma, 1995). They are a good starting

point because of its wide use. If we create roles for

these patterns then our approach will have impact on

many of today frameworks and applications.

Each pattern defines a number of collaborating

participants. Some participants can be seen as roles

while others cannot. This distinction is made in

(Hannemann, 2002) by considering the roles

defining or superimposed. For each pattern we took

the roles of each participant and focused on similar

code between pattern instances to find reusable

code. We present our results by groups of patterns.

They were grouped by similarities between

implementation or problems. We’ve built a sample

scenario for each pattern but will not discuss them,

due to space constraints.

5.1.1 Singleton, Composite, Observer,

Visitor

Singleton, Observer and Visitor were already

discussed. Composite uses the Container role. Each

composite maintain a collection of child components

and implements the operations defined by the

component hierarchy. Children management is

common between instances, so we reused the

Container role. Component operations are instance

dependent and not suitable for generalization, even

if they mostly consist in iterating through the

children and performing the operation on each child.

5.1.2 Factory Method, Prototype

With these patterns we developed roles that provide

a greater modularity and dynamicity not present in

traditional implementations. The use of the class

directive for renaming is common to these roles.

Factory Method defines an interface for creating

an object, but let subclasses decide which class to

instantiate. Implementation of this pattern is instance

dependent. There is, however, a variation whose

purpose is to connect parallel class hierarchies: each

class from a hierarchy delegates some tasks to a

corresponding class of another hierarchy. Each class

has a method that creates the corresponding class

object (product). We moved the creation of the

product to a creator class, which provides methods

to create all products, one method each. Classes just

call the right method in the creator. One advantage is

the modularization of the pattern as the association

between classes is made in a single class not on a

class by class basis. Future changes are made to the

creator class only. Because the creation process is in

a single class we can dynamically change the

creator. We developed a role that allows the

specification of the factory method that creates the

object of the parallel class. The method uses the

class directive so the plays clause is used only in the

top class. It implies the use of naming conventions,

but that is a small price to pay for the extra

modularity. We also developed a role with a fixed

creator, when dynamic creators aren’t needed.

The Prototype pattern specifies the kind of

objects to create using a prototypical instance, and

creates new objects by cloning this prototype. The

prototype class has a clone method that produces a

copy of the object. Every class has its own cloning

method but it may not be sufficient because the

clone method may do a shallow copy where a deep

copy is needed, or vice-versa. The client should

choose how the copy is made. We developed a role

that moves the creation of the copy to another class,

as we did for FactoryMethod. That class is now

responsible for creating the copies of all classes used

as prototypes and thus may choose how to make the

copy. Because it uses the class directive Prototype

subclasses don’t need to declare the clone method.

5.1.3 Flyweight, Proxy, State, Chain of

Responsibility

Roles developed for these patterns are basically

management methods. They are useful as they

provide the basic pattern behaviour and developers

need to focus only on the specifics of their instance.

Flyweight depends on small sharable objects that

clients manipulate and on a factory of flyweights

that creates, manages and assures the sharing of the

RolesasModularUnitsofComposition

flyweights. The concrete flyweights are distinct but

many flyweight factories have a common behaviour:

verify if a flyweight exists and, if so, return it or, if

not, create, store and then return it. Our flyweight

factory role manages the flyweights. Players supply

the flyweight creation method.

In Proxy a subject is placed inside one object,

the proxy, which controls access to it. Some

operations are dealt by the proxy, while others are

forwarded to the subject. Which methods are

forwarded or handled are instance dependent as is

the creation of the subject. Forwarding and checking

if the subject is created or accessible is fairly similar

between instances. Our proxy role stores the subject

reference and provides the method that checks if the

subject exists and triggers its creation otherwise.

The State pattern allows an object to alter its

behaviour when its internal state changes. There are

almost no similarities in this pattern because each

instance is unique. Our role is responsible for

keeping the current state and for state transitions.

The state change method terminates the actual state

before changing to, and starting, the new state.

Chain of Responsibility avoids coupling the

sender of a request to its receiver. Each object is

chained to another and the request is passed along

the chain until one handles it. Implementations of

this pattern often use a reference to the successor

and methods to handle or pass the request. Each

instance differs in how the request is handled and

how each handler determines if it can handle the

request. Some implementations use no request

information, others require some context

information and in others the request method returns

a value. We developed a role for each variation.

5.1.4 Abstract Factory, Adapter, Bridge,

Decorator, Command, Strategy

The code for these patterns is very similar between

instances but we could not write a role for any. For

example, many abstract factories have methods with

a return statement and the creation of an object.

However the object’s type and how it is created are

unique. Adapter instances are similar in the way the

Adapter forwards calls to the adaptee, but the call

parameters and return types vary for each method.

5.1.5 Builder, Façade, Interpreter, Iterator,

Mediator, Memento,Template Method

These patterns showed no common code between

instances, because they are highly dependent on the

nature of the problem. For example, an iterator is

developed for a concrete aggregate and every

aggregate has a unique way to traverse.

5.2 Summary

We developed roles for a total of 10 patterns out of

23, which is a good outcome, especially because

every developed role is reusable in several scenarios.

We believe that our Subject role, for example, will

be useful for a large number of Observer instances.

There are also additional advantages in some roles,

like a better modularity in Factory Method and

Prototype. Some roles are limited in their actions,

like State but are highly reusable, nevertheless.

From our study there are a few patterns that do

not gain from the use of roles. These roles are quite

instance specific and the classes built for their

implementation are dedicated and are not reusable

outside the pattern. There are a few patterns that

could benefit from using roles to emulate multiple

inheritance and provide a default implementation to

operations done in a class inheritance hierarchy, like

Abstract Factory and Decorator. We also found

similar code between instances that we could not put

into a role. This was the case of patterns that

forwarded method calls, like Adapter, Decorator and

Proxy. However the variations were not supported

by roles because they were in the methods return

type and parameters types and number.

5.3 Testing Role-Player Independency

In order to asses if our roles are independent of their

players we took the sample scenarios that illustrated

its use and built a dependency structure matrix

(DSM) for each. We use our sample of the Observer

role and its DSM as an example of that work.

For an Observer sample we developed a Flower

class that notifies its observers when it opens, as

shown in Figure 8. Flower plays the FlowerSubject

role, which is the Subject role configured to this

particular scenario. As an observer we developed a

Bee class that when notified prints a message saying

it is seeing an open flower. The code for the bee,

observer interface and the flower event are not

shown for simplicity. The FlowerSubject role is not

really necessary as the Flower could configure the

Subject role directly but it is good practice to do so.

From that sample we obtained the DSM of

Figure 9. Here we can find that there is no

dependency between the Subject role and the Flower

class and that the FlowerSubject depends only on the

Subject role and not vice-versa. If we group the

classes into modules as shown in the figure we can

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

see that the module where the role is included does

not depend on any other module. It shows that the

flower module is dependent from the role module

via the role. It also shows that the Flower module

does not depend on its concrete observers, as

expected from the observer pattern. The Subject role

is therefore independent of its players as could be

inferred from the use of the subject role in a total of

3 examples in this paper alone. We may also add

that we also used that same role in the JHotDraw

Framework.

public role FlowerSubject {

plays Subject<FlowerObserver,FlowerEvent>(

Thing=FlowerObserver,

Fire=Open,Fire.update=flowerOpened) sbj;

}

public class Flower {

plays FlowerSubject flwrSubject;

private boolean opened = false;

public void open(){

opened = true;

fireOpen( new FlowerEvent( this ) );

}

Figure 8: The FlowerSubject role and the Flower class

from our subject role sample.

Name 12345678

EventType 1

ObserverType 2 1

Subject 3 1 1

FlowerEvent 4 1

FlowerObserver 5 1

FlowerSubject 6 1 1 1

Flowe

711

Bee 8 1 1 1

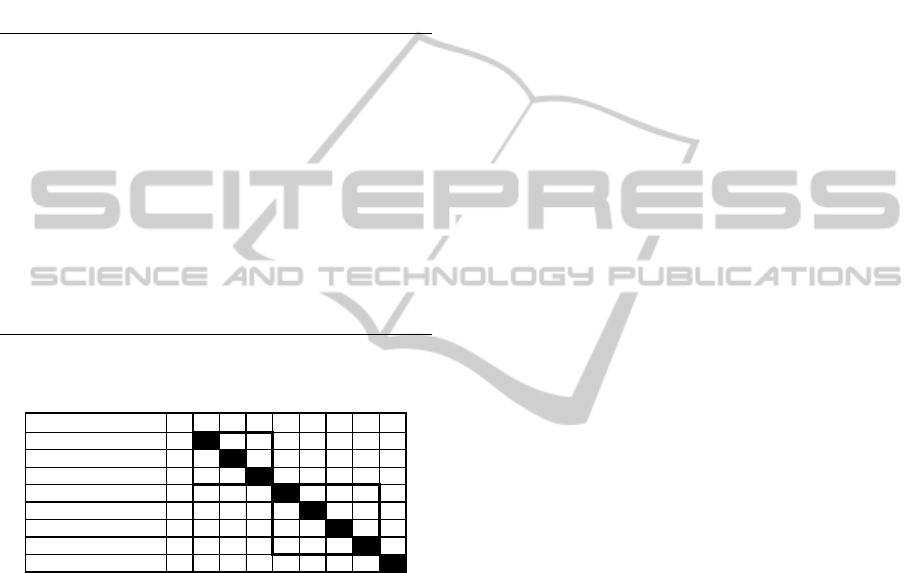

Figure 9: DSM of the Observer role sample.

6 RELATED WORK

To our knowledge there’s never been an attempt to

implement roles as static types and as components of

classes. Riehle (Riehle, 2000) lays the foundations

for role modeling using static roles. He proved role

usefulness in the various challenges frameworks are

faced with, like documentation, comprehensibility,

etc. He does not propose a role language, but simply

explains how roles could be used in some languages.

Chernuchin and Dittrich (Chernuchin, 2005B)

use the notion of natural types and role types that we

followed. They also described ways to deal with role

dependencies which we didn’t consider as it would

introduce extra complexity to the role language.

They suggest programming constructs to support

their approach but no role language has emerged.

Chernuchin and Dittrich (Chernuchin, 2005)

compared five approaches for role support in OO

languages. They were multiple inheritance, interface

inheritance, the role object pattern, object teams and

roles as components of classes. They used criteria

such as encapsulation, dependency, dynamicity,

identity sharing and the ability to play the same role

multiple times. Roles as components of classes

compared fairly well and the only drawback, aside

dynamicity, was the absence of tools that supported

it. With JavaStage that drawback is eliminated.

Object Teams (Herrmann, 2005) is an extension

to Java that uses roles as first class entities. They

introduce the notion of team. A team represents a

context in which several classes collaborate. Even

though roles are first class entities they are

implemented as inner classes of a team and are not

reusable outside that team. Roles are also limited to

be played by a specific class.

EpsilonJ (Tamai, 2007) is another java extension

that, like Object Teams, uses aspect technology. In

EpsilonJ roles are also defined as inner classes of a

context. Roles are as-signed to an object via a bind

directive. EpsilonJ uses a requires directive similar

to ours. It also offers a replacing directive to rename

methods names but that is done on an object by

object basis when binding the role to the object.

PowerJava (Baldoni, 2007) is yet another java

extension that supports roles. In PowerJava roles

always belong to a so called institution. When an

object wants to interact with that institution it must

assume one of the roles the institution offers. To

access specific roles of an object castings are

needed. Roles are written for a particular institution,

therefore we cannot reuse roles between institutions.

7 CONCLUSIONS

We presented a way of composing classes using

roles. With roles we are able to capture the concerns

that are not the class main concern and modularize

them. We presented an, hitherto missing, language

that supports roles as components of classes and

showed how we can use it to compose classes.

Moreover we showed that roles can be made

reusable to a great extent. The result was the

development of generic roles for 10 GoF patterns.

REFERENCES

Bachman, C. W., Daya, M., (1977): The role concept in

RolesasModularUnitsofComposition

data models, in Proceedings of the 3rd International

Conference on Very Large Databases 464–476.

Baldoni, M., Boella, G. van der Torre, L., (2007):

Interaction between Objects in powerJava, journal of

Object Technologies 6, 7 - 12.

Black, A. and Scharli, N. (2004) Programming with traits.

In Proceedings of the International Conference on

Software Engineering 2004, May 2004.

Bracha, G. and Cook, W. (1990): Mixin-Based

Inheritance. In Proceedings of the OOPSLA/ECOOP,

pages 303–311, Ottawa, Canada. ACM Press.

Bracha, G. (1992): The programming language jigsaw:

mixins, modularity and multiple inheritance. PhD

thesis, University of Utah.

Chernuchin, D., and Dittrich, G. 2005. Role Types and

their Dependencies as Components of Natural Types.

In 2005 AAAI Fall Symposium: Roles, an

interdisciplinary perspective.

Chernuchin, D., Lazar, O. S., and Dittrich, G., (2005)

Comparison of Object-Oriented Approaches for Roles

in Programming Languages, Papers from the 2005

Fall Symposium, ed.

Devanbu, P.; Batory, B.; Kiczales, G.; Launchbury, J.;

Parnas, D.; Tarr, P. (2003); "Modularity in the new

millennium: a panel summary", Proc. of the 25th

International Conference on Software Engineering

Ducasse, S., Schaerli, N., Nierstrasz, O., Wuyts, R. and

Black, A. (2004): Traits: A mechanism for fine-

grained reuse. In Transactions on Programming

Languages and Systems.

Filman, R. E., Friedman, D. P.: Aspect-oriented

programming is quantification and obliviousness. In:

Workshop on Advanced Separation of Concerns at

OOPSLA (2000)

Gamma, E., Helm, R., Johnson, R. and Vlissides, J.,

(1995): Design Patterns: Elements of Reusable Object-

Oriented Software, Addison-Wesley.

Griswold, W.G., Sullivan, K., Song, Y., Shonle, M.,

Tewari, N., Cai, Y., Rajan, H., 2006: Modular

Software Design with Crosscutting Interfaces. IEEE

Software 23(1), 51–60 (2006)

Graversen, K. B., (2006): The nature of roles - A

taxonomic analysis of roles as a language construct,

Ph. D. Thesis, IT University of Copenhagen, Denmark

Hannemann J., Kiczales G. 2002. Design Pattern Imple-

mentation in Java and AspectJ. Proceedings of the

17th Conference on Object-Oriented Programming,

Systems, Languages, and Applications, Seattle, USA.

Herrmann, S., (2005): Programming with Roles in

ObjectTeams/Java. AAAI Fall Symposium: "Roles, An

Interdisciplinary Perspective".

Ingesman, M. D., Ernst, E. 2011. Lifted Java: A Minimal

Calculus for Translation Polymorphism, in Proceeding

of the International Conference on Objects, Models,

Components and Patterns, Zurich, Switzerland

Kiczales, G., Hilsdale, E., Hugunin, J., Kersten, M., Palm,

J., Griswold. W. G., (2001): An overview of AspectJ.

In proceedings of ECOOP 2001, Budapest, Hungary,

(LNCS, vol. 2072), Springer; 327–335, 200

Koppen, C., Störzer, M.: PCDiff, 2004: Attacking the

fragile pointcut problem. In: European Interactive

Workshop on Aspects in Software, Berlin, Germany

Parnas, D. L., (1972): On the criteria to be used in

decomposing systems into modules. Commun. ACM

15, 12, Dec. 1972, 1053-1058

Pradel, M., (2008): Explicit Relations with Roles - A

Library Approach. Workshop on Relationships and

Associations in Object-Oriented Languages (RAOOL)

Przybyłek, A. Systems Evolution and Software Reuse in

Object-Oriented Programming and Aspect-Oriented

Programming, J. Bishop and A. Vallecillo (Eds.):

TOOLS 2011, LNCS 6705, pp. 163–178, 2011.

Quitslund, P. and Black, A. (2004): Java with traits -

improving opportunities for reuse. In Proceedings of

the 3rd International Workshop on Mechanisms for

Specialization, Generalization and inheritance

Riehle, D. and Gross, T. 1998. Role Model Based

Framework Design and Integration.” In Proceedings of

the 1998 Conference on Object-Oriented

Programming Systems, Languages, and Applications

Riehle, D. 2000. Framework Design: A Role Modeling

Approach, Ph. D. Thesis, Swiss Federal Institute of

technology, Zurich.

Scharli, N., Ducasse, S., Nierstrasz, O. and Black, A.

(2003): Traits: Composable units of behavior. In

Proceedings of ECOOP 2003, volume 2743 of Lecture

Notes in Computer Science. Springer.

Smith, C. and Drossopoulou, S. (2005): Chai: Traits for

Java-like languages. In Proceedings of ECOOP 2005.

Steimann, F., (2000): On the representation of roles in

object-oriented and conceptual modeling. Data &

Knowledge Engineering 35(1):83–106.

Steimann, F., 2006, The paradoxical success of aspect-

oriented programming“, in OOPSLA '06, Proceedings

of the 21st Annual Conference on Object-Oriented

Programming Languages, Systems, and Applications

Tamai, T., Ubayashi, N., and Ichiyama, R., (2007):

Objects as Actors Assuming Roles in the

Environment, in Software Engineering For Multi-

Agent Systems V: Research Issues and Practical

Applications, Lecture Notes In Computer Science, vol.

4408. Springer-Verlag, Berlin, Heidelberg, 185-203

Tarr, P. L., Ossher, H., Harrison, W. H., and S. M. S. Jr.

1999. N degrees of separation: Multi-dimensional

separation of concerns. In International Conference on

Software Engineering.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
