SOURCE CODE VALIDATION AND PLAGIARISM DETECTION

Technology-rich Course Experiences

Ivana Bosnić, Branko Mihaljević, Marin Orlić and Mario Žagar

Faculty of Electrical Engineering and Computing, University of Zagreb, Unska 3, Zagreb, Croatia

Keywords: e-Learning, Programming Assignments, Validation, Plagiarism.

Abstract: Learning various programming languages in a short amount of time is a challenging task. To help students

tackle several programming languages during the course of a semester, while reducing the teaching

assistants’ support efforts, a system named ORVViS was implemented and integrated with Moodle

Learning Management System. ORVViS is used to assist students validate assignment solutions, and also to

check for source code plagiarism. This paper presents the course Open computing, our motivation, system

use cases, as well as our results and experiences. These observations helped us improve the assignments to

better suit our teaching goals and help students learn the course concepts more quickly.

1 INTRODUCTION

Higher education computer science courses vary

greatly in the breadth and depth of syllabi, from very

focused courses to the general ones with a broad set

of topics. Deciding how to test students’ knowledge

in broader courses can be a challenge, especially if

the course has practical programming assignments.

The work described in this paper focuses on

helping students with exercises based on various

programming, scripting and markup languages in a

course Open computing. In the course, students are

given an overview of a wide range of concepts and

recent technologies. As the course is quite broad and

attempts to teach a lot of concepts, there is no time

to thoroughly describe the programming languages

and frameworks used, nor is that the course

objective. However, students need to acquaint

themselves with the languages, solve programming

tasks based on their prior programming skills and

quickly adopt new knowledge.

During the process, students encounter different

types of problems, from environment setup and

configuration issues to common problems associated

with learning a new programming language like

Java, PHP, or a descriptive language like XML or

HTML. Solutions for common problems, although

usually quite simple in essence, are either obtained

from the provided code snippets, answers on the

course forum, or by trial-and-error.

help students overcome most common prob-

lems, automated validation of student assignments

was introduced, using a system called ORVViS

. It

is integrated with an existing LMS (Learning

Management System) where students submit their

assignment solutions. It checks basic code validity

using validators for various languages required by

the assigmnent, tests general exercise requirements

and existence of all parts of solution, and finds the

similarities between the submissions, which helps

reduce plagiarism.

The paper is organized as follows. After the

introduction and related work presented in section 2,

section 3 describes the course where this system is

used. System use cases are described in section 4.

Experiences and results are outlined in section 5.

2 RELATED WORK

Most of modern LMSs (e.g. Moodle, WebCT,

Blackboard) offer functionalities such as course

management and organization, content repositories,

student management and knowledge assessment, but

are limited in some specific areas. One of those

areas is automatic validation of solutions in courses

with programming exercises, where the code,

submitted by the student, is validated and the results

are reported to the students as well as to the teachers.

ORVViS is an acronym of ”Open Computing - Validation,

Verification and Simulation“ in Croatian

149

Bosni

c I., Mihaljevi

c B., Orli

c M. and Žagar M..

SOURCE CODE VALIDATION AND PLAGIARISM DETECTION - Technology-rich Course Experiences.

DOI: 10.5220/0003976401490154

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 149-154

ISBN: 978-989-8565-07-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

A number of automated assessment approaches

for programming assignments (Ala-Mutka 2005;

Ihantola et al. 2010) can be used in computer science

courses. Some of more popular free/open source

automated assessment systems are CourseMarker

(Higgins et al. 2003), BOSS (Joy et al. 2005), and

Web-CAT (Edwards & Perez-Quinones 2008).

Modern automated assessment systems provide

some level of integration with an LMS. Such

functionalities could be developed as extensions or

as individual systems integrated with LMSs.

Since our Faculty (FER) already extensively uses

a combination of FER e-Campus CMS and Moodle

(Tomić et al. 2006), compatibility with Moodle was

our goal. So far only a few similar systems have

been developed, validating VHDL, Matlab, SQL,

assembly languages and other programming

languages (C, Java etc.) (Ihantola et al. 2010). As

those products do not cover a required set of

programming, scripting and markup languages we

use, and cannot be easily adapted, we found them

not to be a solution to our problem.

Student cheating was always a problem on

computing courses (Wagner 2004) and is becoming

easier with widespread communication devices and

software, which allow simple sharing of solutions

and code in a matter of seconds.

Another problem is the lack of ethics, since a

large number of students do not perceive some

actions (e.g. unsolicited collaboration on

assignments, public posting of solutions, reuse of

past year solutions) as serious offences ((Dick et al.

2001; Sheard & Dick 2003; Cosma & Joy 2006),

even if these are explicitly prohibited by the Student

code of conduct. Detection of similarities between

student assignment solutions can be used to prevent

cheating (Dick et al. 2003). The presence of such a

system, publicly announced, discourages cheating.

The presentation of validation results is a reminder

that the solutions are validated and similarities are

going to be detected.

Since most of computer science assignments use

scripting, markup and programming languages, it is

necessary that the anti-plagiarism solution can

analyze source code written in such languages to

detect similarities. Most of the code comparison

tools process only code written in the most common

languages (Java, C, C++, and C#). In addition, the

tool should be easily configurable to support other

languages, and also to compare code structure with

string tokenizing and similar techniques.

A number of free/open source comparison tools

can be used to detect plagiarism (Goel & Rao 2005)

(Lancaster & Culwin 2004), including Sherlock

BOSS – Sherlock

, CtCompare

, JPlag

, Plaggie

MOSS

, PMD CPD

, and Comparator

, but only

some of them could be easily integrated with

ORVViS and Moodle. Two tools - both named

Sherlock - a simple application with a command-line

interface, and another, a standalone Java application

that supports languages within the C syntax family,

but can also detect similarities in other markup and

scripting languages, were selected as an appropriate

mix of usability and features.

3 COURSE OVERVIEW AND

MOTIVATION

The Open computing course is taught to 50 - 100

third-year students of computing at our faculty. It

gives a broad overview of various aspects of

openness in hardware, software and user experience,

with an emphasis on standards, their purpose,

utilization, and means of establishing them in the

world of distributed and interactive information

services. It also includes topics like concepts of open

systems, open technologies and their importance, as

well as the nature of open culture and open licenses.

The course is designed as a blended e-learning

course. Bi-weekly assignments are the main course

activity, described in detail in the following chapter.

3.1 Course Assignments

The objective of assignments is to illustrate the

presented concepts in exercises focused on practical

use of open internet protocols and web technologies.

In this way the students get a short hands-on

experience by integrating various open technologies.

There are six assignments in the course. Each

assignment builds on previous ones, until students

complete a simple, but fully functional, web

site/application with search capabilities. Although

students share the same assignment topic, there are

eight topic instances, e.g., a DVD store, a library, a

document management system or a phone book.

The

assignment descriptions include detailed

Sherlock - sydney.edu.au/engineering/it/~scilect/sherlock

BOSS - www.dcs.warwick.ac.uk/boss

CtCompare - minnie.tuhs.org/Programs/Ctcompare

JPlag - www.ipd.uni-karlsruhe.de/jplag

Plaggie - www.cs.hut.fi/Software/Plaggie

MOSS - theory.stanford.edu/~aiken/moss

PMD CPD - pmd.sourceforge.net

Comparator - www.catb.org/~esr/comparator

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

150

instructions, assignment set-up and example code

snippets. Students work individually and may

iteratively upload their code to Moodle before a final

solution. They present solutions to the assistants to

discuss their approach, code, and functionality.

Here are the short assignment descriptions:

1. HTML and CSS – in the first assignment the

students should create a skeleton of two web

pages using standardized and validated

HTML code with CSS design;

2. XML, XSL and DTD or XSD – the second

assignment demonstrates structuring a data

model in an XML file, using Document Type

Definition or XML Schema Definition for

data validation, and transforming XML data

to XHTML with XSL;

3. PHP and DOM – in the third assignment

HTML mock-up previously created is now

extended with logic and search functionality

of a simple web application, implemented in

PHP using DOM to read XML data;

4. Java and XML – in the fourth assignment

students create a Java application that parses

data from a text file and creates a structured

XML data file using SAX or DOM;

5. Java Servlets – in the fifth assignment, the

Java application is converted to a Java Servlet

and deployed on an application server to

produce XML input data for PHP;

6. JavaScript and AJAX – the final assignment

integrates all parts of the application, and

enhances the client-side web page with

detailed information fetched from the

application server using AJAX, presented in

JavaScript tooltips.

Over the course of the years, we have identified

some issues related to student work:

• lack of student experience in object-oriented

programming, especially in languages like

Java, PHP and JavaScript;

• dispersion of information on fast-changing

technologies on the web;

• lack of detailed step-by-step instructions

required to configure the work environment;

• inexperienced students lacking time to finish

the assignment.

In addition to these issues, the teaching staff has

worked on reducing the efforts to answer relatively

simple recurring (beginners’) questions, not

allowing or preventing invalid submission solution

files, ensuring the submitted solutions follow some

basic structure, requirements and standards, as well

as reducing plagiarism. As Moodle lacks tools to

tackle these problems, resolving assignment

validation and plagiarism issues were our major

motivators in development of the ORVViS system.

4 ORVVIS SYSTEM OVERVIEW

ORVViS is an assignment validation system

integrated with Moodle, designed to help the

students resolve problems with their programming

assignments. ORVViS provides separate validation

for each technology required by the assignment.

The tool consists of two main units: validation

core and Moodle LMS integration module. In order

to seamlessly introduce ORVViS to students,

validation was integrated with LMS using Moodle

APIs to fetch student submissions. It works in the

background, with web-based administrative interface

for managing the submissions. To use ORVViS,

students do not need to make any additional actions

other than submitting their work on Moodle.

ORVViS was designed as a modular system, and

new plugins can be developed based on future

course needs. At this moment, available validation

plugins, developed using freely available validators

(such as HTML Tidy

, Cssutils

, DOM, Matra

Lint

, and PMD

) can be used to validate HTML,

CSS, XML, XSL, DTD, PHP, Java and JavaScript.

4.1 Use Cases

Assignment Setup

To use the system, the assignment should be created

in Moodle. The teacher then creates a new task in

ORVViS, and configures it with the Moodle

assignment ID, submission start and finish dates

(can be different from the ones in Moodle), Moodle

server URL, file names (or file extensions) expected

in submissions, and the associated validation plugin.

Validation

Students use ORVViS transparently on each

submission to Moodle. Using the Moodle API,

ORVViS will check the file structure of all

submitted files, and run the validation using the

associated plugins. After the validation is complete,

a detailed report will be sent to the student’s e-mail

address, with the validation results and possible

errors. Students can upload their solutions

iteratively, which triggers the validation and mails

the report on each submission. Students should

finalize the submission once it is complete.

When the assignment deadline is reached,

HTML Tidy Library Project - tidy.sourceforge.net

CSS Parser and Library for Python - cthedot.de/cssutils

XML DTD Parser Utility - matra.sourceforge.net

JavaScript Lint - www.javascriptlint.com

PMD - pmd.sourceforge.net

SOURCECODEVALIDATIONANDPLAGIARISMDETECTION-Technology-richCourseExperiences

151

ORVViS creates a cumulative report and sends it to

the course administrators. This report contains an

overview of the received submissions (number of

submitted solutions, number of successfully

validated solutions, etc.), as well as a collection of

submitted files prepared for further analysis.

Plagiarism

After the deadline, ORVViS compares all submitted

files using an external plagiarism detection tool

Sherlock

to check for similarities between

submissions over a similarity threshold. The final

assignment report sent to the teaching assistants

includes warnings of submissions crossing the

threshold. Sherlock program used here has a reduced

feature set, and this is only the first step of

plagiarism detection. ORVViS prepares the

submitted files for analysis with another plagiarism

detection tool Sherlock from the BOSS package

with graphical view of similarities.

Depending on threshold level setup, it can report

false positive results, especially for assignments

where code templates were given. As a final step,

the course staff manually reviews all of the detected

submission pairs to confirm the similarity.

5 RESULTS AND EXPERIENCES

We group our experiences around two topics:

plagiarism detection and assignment validation.

5.1 Plagiarism Detection

In the pilot period (academic year 2006/07), students

were testing the system on some of the assignments,

and helping to find bugs. In the academic year

2007/08, we started with the plagiarism component,

motivated by a big issue of copying assignment

solutions the year before. In that year, 113 students

were enrolled in the course.

At the course start, students were informed that

assignments have to be done independently, the

solution files uploaded to the server will be

compared for potential plagiarism, and every

suspicious case will be thoroughly analyzed and

submitted to the Faculty’s ethical committee.

After analyzing the first assignment submission,

we found two similar solutions and presented the

graphical results of the comparison to the students.

In the third assignment, another pair of similarities

Sherlock - sydney.edu.au/engineering/it/~scilect/sherlock

BOSS - www.dcs.warwick.ac.uk/boss

was observed, students were cautioned and this was

reported to Faculty ethical committee. The solution

pair detected in the first assignment was virtually

identical (and thus easily detected). The similarity of

the pair detected in the second assignment was

above 80%, as demonstrated in the Figure 1. The

detection process detected two false positives, our

own submissions used to test the system.

The fourth, Java-related assignment, with a

steeper learning curve, was an unpleasant surprise.

ORVViS isolated 6 suspicious cases of plagiarism

with 17 students involved. This assignment was

harder than previous and more time consuming, but

considering that the students were made aware of

that beforehand, this had to be addressed again.



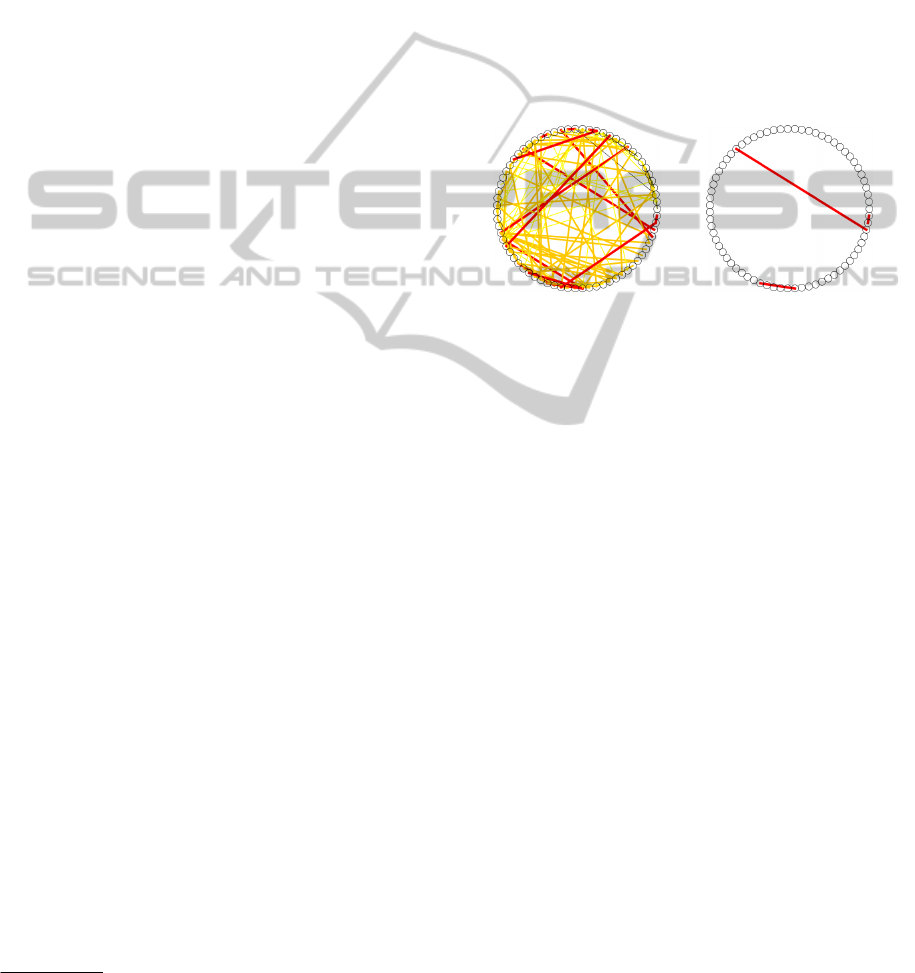

Figure 1: Graphical report on similarities – 0% and 80%

similarity threshold.

These analyses were consistently conducted

during the semester. From the next year onwards,

regular ORVViS usage didn’t find any cases of

similarities higher than what was expected, given

that code excerpts and examples were provided.

Based on our experiences, we concluded the

following:

• students should be explicitly informed in

advance that such a system will be used;

• comparison technology and results should be

shown to students, to persuade them that

teachers use these regularly, instead of just

having the possibility of checking (although

demonstrating the system could lead to more

“creative” ways to bypass it, we find this

method to be more fair);

• perseverance in decisions is needed, as

students wouldn’t get used to completely

independent work all at once, after the first

recognition of plagiarism.

5.2 Assignment Validation

To perform assignment validation and plagiarism

detection, exact assignment submission structure had

to be enforced. During the first testing year,

2007/08, the system reported the following structure

errors in first assignment submissions:

• 52% of solutions were incorrectly named;

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

152

• 10% of submissions were packaged as RAR

instead of ZIP archives;

• 25% of archives had incorrect file structure;

• 4% submissions had incorrectly named files

in the archive.

After initial testing and improvements, we

started using all ORVViS features in year 2009/10.

Here we present statistics and observances from two

years we used the system. In 2009/10, 70 students

enrolled, and in 2010/11, 53 students enrolled.

As stated, students can upload the assignment

solution more than once and receive a new

validation report for each submission. We compared

the total number of submissions per assignment to

the number of final submissions, shown in Figure 2.

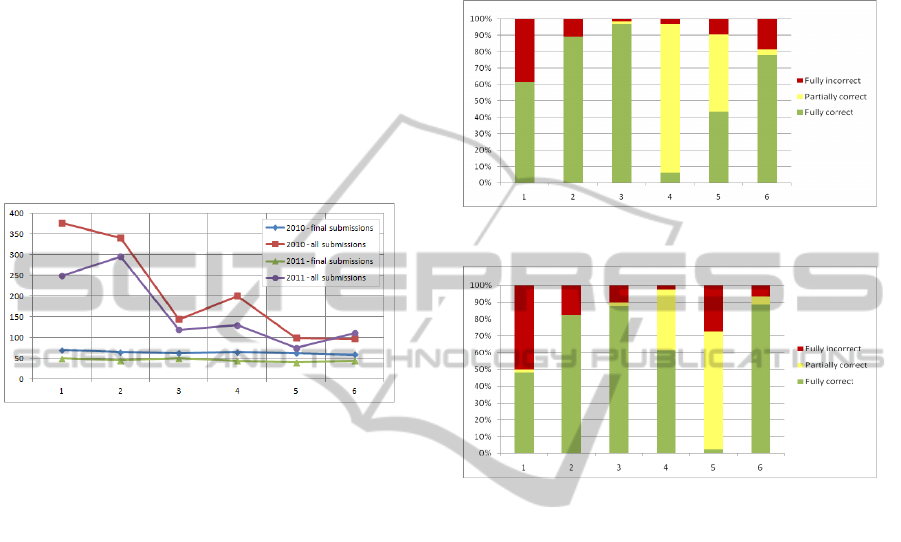

Figure 2: Number of submission instances per assignment.

The number of final submissions is always

similar to the number of students in the course (the

difference is due to some students’ late upload). The

total number of submissions shows the following:

• in the first two assignments, the students have

a high number of submissions – around 5 per

student. Students use the validation service a

lot, to solve submission structure issues, and

to check conformance to HTML&CSS or

XML&DTD formats, which is a tedious

process if done manually;

• the third assignment (PHP) is usually

straightforward with one new technology to

learn. By that time the students got used to

the system, so the ratio of total/final

submissions drops to ~2.4 per student;

• the fourth assignment introduces Java, which

presents the students with a completely new

environment, so there is an increase in the

number of submissions;

• the final assignments become easier again,

with the submission ratio of about 2.

There is a similarity between chart trends for

2010 and 2011. Teaching staff can focus on the

issues demonstrated in these charts (e.g. the Java

assignment), and work on resolving them.

The second set of charts (Figures 3 and 4) shows

the validation results per assignment, for years 2010

and 2011, respectively. The lowest part of bars

shows the percentage of fully correct submissions –

the ones where all submitted files have passed the

validation. The middle part shows the percentage of

the solutions where at least one file was validated

correctly. The upper part shows fully incorrect ones

– where no files have passed the validation.

Figure 3: Level of validation correctness – year 2010.

Figure 4: Level of validation correctness – year 2011.

The results included in Figures 3 and 4 can be

compared to the chart of total/final submissions

(Figure 2). In the first three assignments, the number

of fully correct submissions increases, while the

total number of submissions per student decreases.

The fourth and fifth assignments (Java-related) show

a big decrease in fully correct submissions, due to a

steep learning curve and the environment setup.

Based on this data and observances during the

course, here are our experiences and lessons learned:

• ratio of correctness charts, combined with

detailed error logs, can help the staff to

analyze the particular assignments, and give

students greater attention when needed;

• this system helps the staff to ensure the

student did in fact write the solution, instead

of just submitting something random, and

discussing the fellow student’s work;

• staff can view a detailed report on each

submission before they meet, so they can

help where mistakes were made;

• the number of forum messages related to

simple problems regarding environment setup

and configuration, has been reduced, which

SOURCECODEVALIDATIONANDPLAGIARISMDETECTION-Technology-richCourseExperiences

153

helps both students and teaching staff focus

on more relevant discussions;

• due to a number of technologies used in these

assignments, a set of validators integrated

with LMS makes it easier for students to

check their assignments, instead of using

validation services one by one;

• validations can help create a successful

environment configuration (for instance,

validation of XML configuration files for the

application server);

• some validators have been set to be more

sensitive and report more detailed warnings

than a typical compiler would. This was

effective in cases where students used newer

compiler and runtime versions (e.g. Java)

than those available on our servers, as

additional warnings would give students a

hint where to start looking for problems.

6 CONCLUSIONS

The experiences presented here give us a good

starting point to continue using and upgrading

ORVViS. The students are satisfied with provided

help, while the staff can obtain relevant information

on the students’ behavior in solving the assignment

problems. Whenever we have asked the students for

some kind of help related to the system, such as

testing, they did it enthusiastically, as they consider

it to be beneficial and time-saving.

The downside is that students start to depend on

it, and stop validating their solutions by themselves,

which was observed in our initial experience report

(Bosnic et al. 2010): the number of successful

submissions dropped significantly after a few days

the system was unavailable. Even with such systems

in place, the students should be capable of creating

valid solutions without help from the system.

It should be noted that ORVViS currently does

not support grading nor checking the most of the

assignment’s complex semantic requirements (posed

in a natural language), and currently focuses mainly

on syntax. Such features are a well-worth asset and

we plan to extend the system in the future. However,

concerning the main course objective, the

complexity of content taught, and focus on

understanding the underlying open processes, we

feel the need to discuss the solutions face-to-face.

Additional future work consists of integrating the

staff / administrator interface with Moodle LMS as

well. We expect that the additional APIs and plugin

tools, available in new Moodle 2.x version, would

simplify the task of integrating two systems.

ACKNOWLEDGEMENTS

This work is supported by the Croatian Ministry of

Science, Education and Sport, under the research

project ZP0361965 “Software Engineering in

Ubiquitous Computing”.

We would like to thank our former student Darko

Ronić and other students under his supervision for

their work on ORVViS application.

REFERENCES

Ala-Mutka, K.M., 2005. A Survey of Automated Assess-

ment Approaches for Programming Assignments.

Computer Science Education, 15(2), p.83-102.

Auffarth, B. et al., 2008. System for Automated Assis-

tance in Correction of Programming Exercises (SAC)

Bosnic, I., Orlic, M. & Zagar, M., 2010. Beyond LMS:

Expanding Course Experience with Content

Collaboration and Smart Assignment Feedback.

International Journal of Emerging Technologies in

Learning iJET, 5(4).

Cosma, G. & Joy, M., 2006. Source-code plagiarism: A

UK academic perspective. I Can, (422), p.74.

Dick, M. et al., 2003. Addressing student cheating. ACM

SIGCSE Bulletin, 35(2), p.172.

Edwards, S.H. & Perez-Quinones, M.A., 2008. Web-CAT:

automatically grading programming assignments.

ITiCSE 08 Proceedings of the 13th annual conference

on Innovation and technology in computer science

education, 3(3), p.60558-60558.

Goel, S. & Rao, D., 2005. Plagiarism and its Detection in

Programming Languages. Environment.

Higgins, C. et al., 2003. The CourseMarker CBA system:

Improvements over Ceilidh. Education and

Information Technologies, 8(3), p.287–304.

Ihantola, P. et al., 2010. Review of recent systems for

automatic assessment of programming assignments. In

Proceedings of the 10th Koli Calling International

Conference on Computing Education Research Koli

Calling 10. ACM Press, pp. 86-93.

Joy, M., Griffiths, N. & Boyatt, R., 2005. The BOSS

online submission and assessment system. Journal on

Educational Resources in Computing, 5(3), p.2.

Lancaster, T. & Culwin, F., 2004. A Comparison of

Source Code Plagiarism Detection Engines. Computer

Science Education, 14(2), p.101-112.

Sheard, J. & Dick, M., 2003. Influences on cheating

practice of graduate students in IT courses: what are

the factors? In Proceedings of the 8th annual

conference on Innovation and technology in computer

science education. ACM, p. 49.

Tomić, S. et al., 2006. Living The E-Campus Dream. In A.

Szucs & I. Bo, eds. Proceedings of the EDEN

Conference. Vienna, Austria: European Distance and

E-Learning Network, pp. 644-650.

Wagner, N., 2004. Plagiarism by student programmers.

San Antonio, TX, USA.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

154
