Interoperability Constraints in Service Selection Algorithms
Paweł L. Kaczmarek
Faculty of Electronics, Telecommunications and Informatics, Gda´nsk University of Technology,
Narutowicza 11/12 Str., 80-233 Gda´nsk, Poland
Keywords:
Service Oriented Architecture, Interoperability, Service Integration, Business Process Management, Quality
of Service.
Abstract:
In Service Oriented Architecture, composite applications are developed by integration of existing, atomic
services that may be available in alternative versions realizing the same functionality but having different
Quality of Service (QoS) attributes. The development process requires effective service selection algorithms
that balance profits and constraints of QoS attributes. Additionally, services operate in a heterogeneous en-
vironment, which requires resolution of interoperability issues during integration. In this paper, the author
proposes a methodology that introduces interoperability analysis into existing service selection algorithms.
Algorithm data structures are extended with additional constraints that represent interoperability for the two
considered computational models: the graph-based model and the combinatorial model based on integer linear
programming. The extensions enable a straightforward application of a wide range of existing algorithms as
the general structure of input data is preserved. As a part of the research, a system that supports development
of SOA-based applications was implemented. Chosen service selection algorithms together with appropriate
extensions for interoperability analysis were implemented in the system.
1 INTRODUCTION
Service Oriented Architecture (SOA) allows us to re-
duce development cost and time by extensive reuse
of existing service components and competition be-
tween service suppliers. Alternative services realizing
the same functionality differ in non-functional, Qual-
ity of Service (QoS) attributes such as performance,
reliability and price. Typically, application develop-
ment intends to optimize the QoS, which means max-
imization of desired attributes, such as performance,
while simultaneously meeting constraints imposed on
the final application, such as maximum price or min-
imum reliability (Yu et al., 2007) (Cao et al., 2007a).
It is required that services with optimal QoS values
are selected, while constraints are satisfied.
Existing methods and algorithms of service se-
lection, however, focus on the formal model of the
complex service refraining from interoperability is-
sues that may affect the integration process as ser-
vices are deployed in heterogeneous runtime en-
vironments. Technical interoperability limits the
choice of alternative services despite theoretical con-
formance of functionality and correctness of QoS
analysis. Although services typically use the Web
services standards (WS*) to exchange information,
there are many threats for effective integration. The
runtime platforms that host services support only
selected standards and versions from the wide set
of WS* standards. Even if runtime platforms are
compatible in supported standards, interoperability
is not guaranteed because of standard inconsisten-
cies and vendor-specific extensions (Fisher et al.,
2006) (Egyedi, 2007). A service selection may prove
to be technically infeasible if services prove to be
non-interoperable. Service selection methods addi-
tionally require mechanisms to represent and guaran-
tee interoperability in the final application.
Considering the problem, the author proposes a
methodology that includes interoperability analysis in
service selection algorithms. The data structures of
service selection algorithms are extended with ded-
icated constraints that represent interoperability be-
tween services. The constraints result from interoper-
ability rates that consider runtime environments that
host the services and WS* standards that are used
by the services. In the methodology, two computa-
tional representations are analyzed: the combinato-
rial model together with algorithms based on the inte-
ger linear programming (ILP) problem and the graph-
based model together with algorithms based on single
source shortest path selection. The proposed exten-
23
L. Kaczmarek P..
Interoperability Constraints in Service Selection Algorithms.
DOI: 10.5220/0003980500230032
In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2012), pages 23-32
ISBN: 978-989-8565-13-6
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
sions enable a straightforward application of a wide
range of existing algorithms as the extensions pre-
serve the general structure of data models.

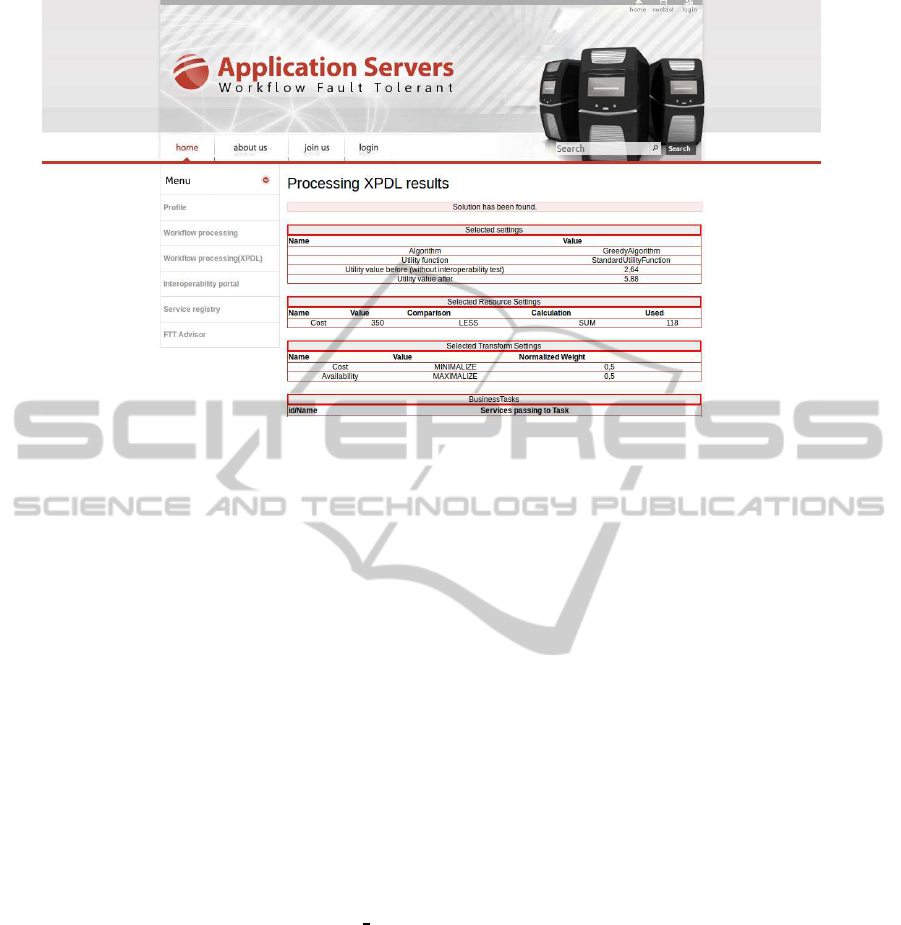

The proposed solution was implemented in a web-
based system that supports service selection in de-
velopment of workflow applications as a representa-
tive case of the composite service concept. The sys-
tem maintains a knowledge base of runtime environ-
ments interoperability, which includes a catalog of
WS* standards, versions and configuration options.
Chosen service selection algorithms together with ap-
propriate extensions for interoperability analysis were
implemented in the system.
The rest of the paper is organized as follows. The
next section presents and analyses backgroundknowl-
edge used in the methodology. Sect. 3 describes in-
teroperability notation adjusted for service selection
purposes. Sect. 4 presents extensions for selection al-
gorithms in the graph-based and combinatorial mod-
els. System implementation is presented in Sect. 5.
Finally, Sect. 6 presents related work and Sect. 7 con-
cludes the paper.
2 SYSTEM MODEL AND
BACKGROUND
Service selection during development of composite
services is a mature research discipline that has al-
ready developed models and solutions for various ap-
plication areas. In this research, existing models are
extended with issues specific for interoperabilityanal-
ysis, considering that interoperability may limit the
choice in concrete situations.
The formal model of a composite service may be
applied in concrete application areas such as: devel-
opment of WS*-based services using the SOA ap-
proach, development of cloud-based applications and
business process modeling (BPM) and execution us-
ing workflow management systems.
2.1 Composite Service Model
Typically, the model of a composite service (CS) takes
the following assumptions (Yu et al., 2007) (Alrifai
et al., 2009) (Cao et al., 2007a):
A composite service consists of N atomic op-
erations composed using composition structures
(e.g.: loops, conditions, forks, joins). Each oper-
ation is realized by a service from a service class
(S
1
, ..., S
N
), a service class is also called an ab-
stract service.
For each service class S
i
, there exist one or more
atomic services (s
ij
) that realize the same func-
tionality, but differ in non-functional attributes.
Each service s
ij
is associated with a QoS vector
q
ij
= [q
1
ij
, ..., q
n
ij
] of non-functionalattributes, e.g.:
service price, performance and security.
There is a defined utility function (F) that is
the evaluation criteria of service selection on its
QoS attributes. The utility function depends on
user preferences considering the non-functional
attributes. The user intends to minimize attributes
such as price and maximize performance and reli-
ability with given weights for each attribute.
The QoS value of the final CS depends on ser-
vice selection and the structure of the CS. The cal-
culation considers probability of execution in multi-
ple execution paths, loop unfolding and others. Con-
sidering that QoS values are expressed in different
metric types, a form of normalization is performed
to calculate the utility function F. Attributes receive
positive and negative weights depending on whether
they are desired or undesired as QoS of the service as
described in detail in (Zeng et al., 2003) (Yu et al.,
2007).
Additionally, it is required that the overall QoS
value of the composite service does not exceed a spec-
ified limit (e.g. a price constraint), which is known as
the QoS constraint and defined as:
Q
c
= [Q
1
c
, Q
2
c
, ..., Q
m
c
] (1)
Service selection process intends to select services
such that
1. The utility function F of the composite service is
maximized
2. Q
c
constraints are satisfied for the composite ser-
vice (Q
a
cs
Q
a
c
,
Q
a
Q
c
)
2.2 Existing Approaches to Service
Selection
The service selection problem with QoS constraints
has exponential computational complexity in the gen-
eral case (Alrifai et al., 2009) (Bradley et al., 1977).
Different solutions have been proposed that either
narrow service structure to make it feasible for opti-
mal calculations or apply a heuristic algorithm. Exist-
ing solutions, however, do not integrate the concept of
interoperability analysis with service selection based
on QoS attributes.
This work intends to introduce interoperability
constraints to existing algorithms without causing the
necessity of major changes in algorithm structures. In
order to cover a possibly wide range of algorithms,
the following features are considered:
ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
24
Table 1: Selected selection algorithms and their characteristics.
Algorithm Computational Optimization
model scope and accuracy
BBLP, WS IP (Yu et al., 2007) Combinatorial Global optimal
MCSP (Yu et al., 2007) Graph Global optimal
RWSCS KP (Cao et al., 2007a) Combinatorial Global heuristic
WS HEU, WFlow (Yu et al., 2007) Combinatorial Global heuristic
MCSP-K (Yu et al., 2007) Graph Global heuristic
SEWSCP (Hong and Hu, 2009) Combinatorial Local optimal
ACO4WS (Wang et al., 2001) Graph Global heuristic (AI)
PSO (Xia et al., 2009) Graph Global heuristic (AI)
DaC (Yu et al., 2006) Combinatorial Local optimal
LOSS/GAIN (Sakellariou et al., 2007) Graph Global heuristic
GA (Cao et al., 2007b) Graph Global heuristic (AI)
FastHeu (Czarnul, 2010) Graph Local heuristic (DYN)
DIST HEU (Alrifai et al., 2009) Combinatorial Local optimal
QCDSS(Chun-hua et al., 2009) Graph Global heuristic (AI)
Computational Model. Two well-known mod-
els are used in service selection: the combina-
torial model - 0-1 multidimensional multichoice
knapsack problem (MMKP), e.g.: (Hong and Hu,
2009) (Cao et al., 2007a), and the graph model
- multiconstraint optimal path selection (MCOP),
e.g.: (Cao et al., 2007b) (Wang et al., 2001). The
work (Yu et al., 2007) analyzes both approaches.
Accuracy. Optimal algorithms are applicable for
small services, e.g. (Yu et al., 2007) proposes an
algorithm based on the branch-and-bound linear
programming. For large services, heuristic al-
gorithms are proposed, such as the shortest-path
based MCSP-K algorithm (Yu et al., 2007) or the
combinatorial-based RWSCS
RP algorithm (Cao
et al., 2007a). Artificial intelligence (AI) heuristic
methods are also used, e.g. the ant-colony based
ACO4WS algorithm (Wang et al., 2001) and par-
ticle swarm optimization (Xia et al., 2009) (Chun-
hua et al., 2009). Some solutions propose dy-
namic (DYN) optimization (Czarnul, 2010).
Optimization Scope. The reduction of optimiza-
tion scope is another method of solving the prob-
lem. In this approach, the composite service
is divided into subservices that are analyzed lo-
cally, typically using an optimal algorithm, e.g.:
SEWSCP (Hong and Hu, 2009), DIST
HEU (Al-
rifai et al., 2009) and DaC (Yu et al., 2006).
Table 1 shows selected algorithms and their char-
acteristics.
In the MMKP/combinatorial model (Cao et al.,
2007a) (Yu et al., 2007) (Martello and Toth, 1987),
service classes are mapped to item groups, while
atomic services are mapped to items in the groups.
Each atomic service (s
ij
) requires resources q
ij
and
supplies profit F
ij
. The Q
c
constraints are treated as
available resource in the knapsack. The problem is
formulated formally as:
Max
N
i=1
jS
i
F
ij
x
ij
subject to
N
i=1
jS
i
q
a
ij
x
ij
Q
a
c
(a = 1, ...m)
jS
i
x
ij
= 1
x
ij
{0, 1} i = 1, ..., N, j S
i
(2)
where x
ij
= 1 if service s
ij
is selected for the so-
lution and x
ij
= 0 otherwise. The problem may be
solved using integer linear programming (ILP) meth-
ods (Bradley et al., 1977).
In the graph-based model (Yu et al., 2007), every
atomic service is a node in the graph and potential
transitions between services are considered as links.
If a service class S
i
sends data to a service class S
k
then there is a link between every service from S
i
to
every service from S
j
. The node that represents a ser-
vice s is assigned with QoS attributes of the service
and consequently with service utility function F. QoS
attributes of a service are added to every link incom-
ing to the node that represents the service. The multi-
constraint optimal path problem intends to find a path
such that the utility function F is maximized while
meeting the Q
c
constraints.
If QoS constraints are removed from the selection
problem, a simplified model is created, in which ser-
vices are selected considering solely the utility func-
tion F. In this case, local optimization for each ser-
vice class S
i
may be used to select the service that
supplies the highest utility value. Despite the sim-
InteroperabilityConstraintsinServiceSelectionAlgorithms
25
plification, interoperability needs to be considered in
this case too, as the communication model of the final
composite service remains unchanged.
2.3 Interoperability in Service
Integration
Service integration in SOA requires resolution of
interoperability issues. Web services standards
(WS*) (Booth et al., 2004) were proposed and ac-
cepted as the main solution for achieving the task.
Currently, there exist approximately fifty standards
in different versions apart from the basic SOAP and
WSDL. Standards constitute the WS* stack (WS-I,
2004), in which standards for an extended functional-
ity rely on lower level ones. Main functional groups
include the areas of: addressing (WS-Addressing),
security (e.g. WS-Security), reliable messaging (e.g
WS-Reliablility), transactions (e.g WS-Coordination,
WS-AtomicTransactions) and others. Business pro-
cess modeling and execution standards (e.g. Business
Process Execution Language (Oasis, 2007)) lever-
age existing WS* standards assuming that lower
layer standards may be used for communication with
atomic services. Despite the general success of WS*,
effective service integration using WS* is still a chal-
lenging task (Egyedi, 2007) (Fisher et al., 2006).
General purpose interoperability metrics have
been proposed as universal means of interoperability
rating. Typically, the metrics specify interoperabil-
ity levels that are associated with a required scope
of data exchange (Ford et al., 2007). For example,
Layers of Coalition Interoperability (LCI) define nine
layers: Physical, Protocol, Data/Object Model, Infor-
mation, Knowledge/Awareness, Aligned Procedures,
Aligned Operations, Harmonized/Strategy Doctrines,
and Political Objectives. The LISI (Levels of Infor-
mation Systems Interoperability) metric defines five
levels: Isolated (manual), Connected (peer-to-peer),
Functional (distributed), Domain (integrated), Enter-
prise (universal). Sect. 6 presents more detailed dis-
cussion concerning existing solutions and methods.
3 INTEROPERABILITY
NOTATION FOR SERVICE
SELECTION
In our work, interoperability is analyzed on the
communication protocol level, which corresponds to
Level 1 (Connected) in the LISI metric or Level 2
(Data/Object) in the LCI metric (Ford et al., 2007).
We assume that if services are interoperable on that
level, it is possible to exchange data between them in
the context of CS construction.
For the purpose of this work, we make the follow-
ing assumptions:
There exist different runtime environments (de-
noted R = {r
1
, ..., r
P
} that may host services.
Each service s is hosted in a runtime environment
r(s) R that is unambiguously determined by the
atomic service s.
Each runtime environment supports a known sub-
set of existing WS* standards and their versions.
Each service s requires some WS* standards (in
specified versions) to operate correctly. The stan-
dards are supported by r(s).
The number of runtime environments is limited,
considering that they are application servers supplied
by leading industrial companies or communities. Ex-
amples of runtime environments include: IBM Web-
Sphere AS, Microsoft IIS, Apache Tomcat/Axis and
Oracle Glassfish.
If a service s communicates remotely with a ser-
vice s
than it is required that s
can interoperate with
s. We rate interoperability binary as either interop-
erable (if data can be transfered correctly) or non-
interoperable (if data can not be transfered). Assum-
ing that s sends data to s
, let q
comm
(s, s
) denote inter-
operability modeled as an attribute of communication
cost between s and s
, defined as follows:
q
comm
(s, s
) = 0 if s, s
can interoperate
q
comm
(s, s
) = 1 if s, s
can not interoperate
(3)
In this notation, interoperability cost 0 denotes
that services are interoperable while interoperability
cost 1 denotes that they are not interoperable.
The q
comm
value is given a priori and depends on
conditions encountered in the real environments that
host the services. Information about service interop-
erability is taken from two complementary sources:
Experimental verification. A test connection is es-
tablished between s and r(s
) to check if data can
be transfered correctly within required standards.
Theoretical calculation. The calculation compares
standards required by s and supported by r(s
). r
must support standards required by s if s and s
are
to be interoperable. The method is easier to ap-
ply but less reliable than the first one, as declared
standard compliance does not inferr compatibil-
ity (Egyedi, 2007).
The flow of data between services depends on
the applied communication model. Two well-known
models are considered (Tanenbaum and van Steen,
2002) as shown in Fig. 1:
ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
26

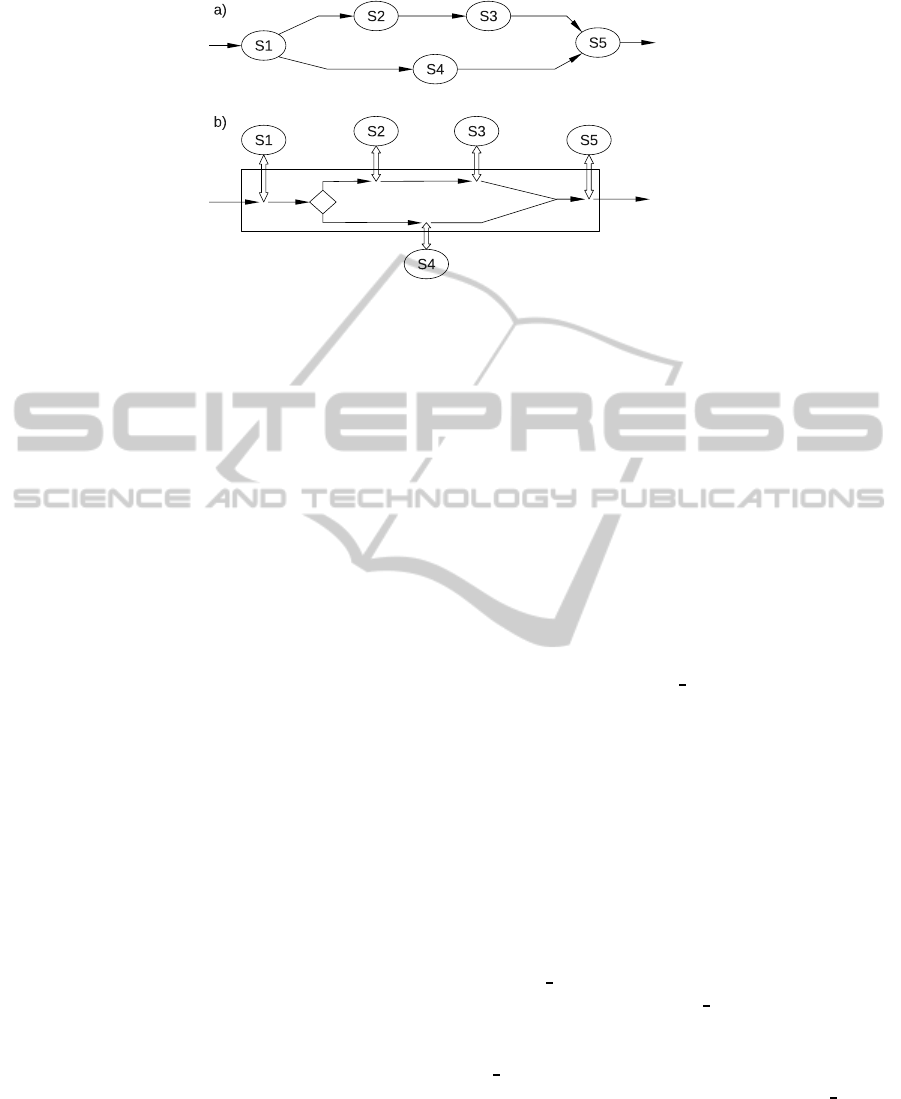

Figure 1: Differences between message passing model (a) and remote method invocation model (b).
remote method invocation model (RMI)
message-passing model (MPM)
In the RMI model, there is a central runtime envi-
ronment that hosts the composite service, denoted
(r(CS)), and the runtime manages data exchange dur-
ing invocation of remote atomic services. The model
is typically used in the BPM technology by Business
Process Execution Language (BPEL) (Oasis, 2007)
and Windows Workflow Foundation (the XPDL for-
mat). In the message-passing model, services send
data directly from one to another without a central
coordination point. The Business Process Modeling
Notation standard (OMG, 2009) uses this model to
describe the logic of a business process.
4 ALGORITHM EXTENSIONS
The proposed extensions of existing models with in-
teroperability constraints enable a possibly straight-
forward application of existing selection algorithms.
We consider both RMI and MPM, as well as graph-
based and combinatorial-based algorithms.
4.1 Extensions for Remote Method
Invocation Model
In the RMI model, we assume that CS may be hosted
on one of alternative runtime environments. Let R
cs
=
{r
cs
1
, ..., r
cs
T
} denote the set of alternativeenvironments
for CS. Each service runtime environment r(s) must
interoperate with the chosen runtime environment for
the CS. The presented algorithm is applicable if a
workflow is defined using the BPEL or XPDL stan-
dards.
Let q
comm,cs
(s, cs, r
cs
) be defined analogously to
q
comm
that is
q
comm,cs
(s, cs, r
cs
) = 0 if s can interoperate with
cs hosted on r
cs
q
comm,cs
(s, cs, r
cs
) = 1 if s can not interoperate with
cs hosted or r
cs
(4)
Let Q
comm,cs
be the set of interoperability informa-
tion of q
comm,cs
(s
ij
, cs, r
cs
t
) for each s
ij
i = 1..N, j S
i
,
r
cs
t
R
cs
.
The processing is done as shown in Algorithm 1.
The algorithm analyzes in a loop each alternative run-
time environment of CS. For each r
cs
, it performs a
pre-filtering of services that are interoperable with the
r
cs
. Then, one optimal solution is calculated for each
r
cs
using an algorithm (SEL
ALG) chosen from exist-
ing selection algorithms. Both combinatorial-based
and graph-based selection algorithms are applicable
in this invocation model. After processing of all r
cs
,
the optimal solution for the whole set R
cs
is selected
Interoperability constraints introduce a relatively
low computational complexity in the RMI model.
Selection of interoperable services depends on
O(sizeof(S) sizeof(R
sc
)). In practice, the size of
R
sc
= T may be considered as constant because it
does not depend on CS size and there is a lim-
ited number of industrially-runningenvironments that
may host services. Generation of tmpSelection takes
T O(SEL
ALG), which does not exceed the com-
putational complexity of SEL
ALG. The final step
(selection of the best solution from R
sc
) takes less
than T timeof (F), which is certainly lower that
SEL
ALG, as the algorithms invokeF for each service
and for the whole workflow. Therefore, O(SEL
ALG)
is the factor that determines the final computational
complexity of Algorithm 1.
InteroperabilityConstraintsinServiceSelectionAlgorithms
27
Algorithm 1: Service selection using an existing selection
algorithm and interoperability constraints in the RMI com-
munication model.
input: R
cs
, S
1
, ...S
N
input: Q
comm,cs
, F - utility function
input: SEL ALG - an existing selection algorithm
output: [s
1a
1
, ..., s
Na
N
], a
i
S
i
//optimal selection
tmpSelection = //list of optimal selections for
each r
cs
R
cs
for all (r
cs
t
R
cs
) do
for all (S
i
, i = 1, ..., N) do
S
r
cs
t
i
= select all s
ij
from S
i
such that
q
comm,cs
(s
ij
, r
cs
t
) = 0
if (S
r
cs
t
i
== ) then
//there are no services in S
i
that can
//interoperate with r
cs
t
, no feasible
//solution for runtime environment r
cs
t
continue with next r
cs
t
end if
end for
tmpSelection+ = SEL
ALG ((S
r
cs
t
i
, i = 1..N))
end for
maxTmpUtility = 0
for all (sel tmpSelection) do
tmpUtility = F(sel)
if (tmpUtility > maxTmpUtility) then
maxTmpUtility = tmpUtility
result = sel
end if
end for
return result
4.2 Extensions for Message Passing,
Combinatorial Model
In this model, if a service s communicates with a ser-
vice s
, then r(s) must interoperate with r(s
). The
model is applicable for workflows defined using the
BPMN standard. As stated in Sect. 3 q
comm
(s
ij
, s
kl
)
denotes interoperability between s
ij
, s
kl
, s
ij
S
i
, s
kl
S
k
, i, k = 1, ..., N, j S
i
, l S
k
. We extend the ex-
isting combinatorial model and its corresponding in-
teger linear programming representation with addi-
tional constraint equations that represent interoper-
ability:
jS
i
lS
k
q
comm
s
ij
,s
kl
(x
ij
x
kl
) = 0 (5)
for all pairs S
i
, S
k
such that S
i
sends data to S
k
in
the structure of CS. It is required that if two services
are selected (x
ij
= 1 and x
kl
= 1), then their interoper-
ability communication cost q
comm
s
ij
,s
kl
= 0. If two service
classes do not pass data, the q
comm
value is insignifi-
cant and may be ignored.
The number of added equations is equivalent to
the number of edges in the composite service graph,
which depends linearly on the number of services (N).
The maximum number of elements in each equation is
Max(sizeof(S
i
)) Max(sizeof(S
i
)) for i = 1...N. We
assume that the maximum number of alternative ser-
vices for one service class does not exceed a constant
(MaxS
i
).
Equation 5, however, introduces non-linearity, so
the problem is changed from ILP to mixed integer
nonlinear programming (MINLP), which makes it
significantly more difficult to solve. We transform
the equation into a separable programming problem,
which is a special class of MINLP that is relatively
easily solvable by existing methods (Bradley et al.,
1977). In order to achieve the separable programming
form, we perform the following transformation:
x
ij
x
kl
= y
2
1,ijkl
y
2
2,ijkl
where y
2
1,ijkl
= 0.5(x
ij
+ x
kl
)
y
2
2,ijkl
= 0.5(x
ij
x
kl
)
(6)
for each j S
i
, l S
k
. After the transformation,
additional y variables are added to problem formu-
lation. The number of y variables equals the total
number of elements in Equation 5 and has the com-
plexity of O(N MaxS
i
MaxS
i
). The newly created
model is more complex than the original one, but it
remains solvable by existing methods such as branch-
and-bound or implicit enumeration (Bradley et al.,
1977). The model is applicable for service selection
methods that leverage (N)LP to find an optimal solu-
tion, that is for methods based on local optimization
(DaC (Yu et al., 2006)) or applied to small composite
services.
4.3 Extensions for Message Passing,
Graph-based Model
In this model, we extend the composite service graph
with additional information regarding interoperabil-
ity constraints. Analogously to the combinatorial ap-
proach, the model is applicable for workflows defined
using the BPMN standard. We use the previously
defined q
comm
attribute to represent interoperability
communication cost. The processing is done as fol-
lows:
Assuming that a service class S
i
communicates
with a service class S
k
, the q
comm
(s
ij
, s
kl
) attribute
is assigned to each link from a service s
ij
S
i
to
a service s
kl
S
k
. The attribute has the value 0
if services are interoperable and the value 1 in the
other case.
ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
28
Figure 2: A screenshot of the WorkflowIntegrator system with summary results of an exemplary service selection.
The Q
c
vector is extended with an additional el-
ement Q
comm
c
that represents interoperability, that
is:
Q
c
= [Q
1
c
, Q
2
c
, ..., Q
m
c
, Q
comm
c
]
Q
comm
c
= 0
(7)
where Q
comm
c
for a service selection (a path in the
graph) is calculated as follows:
Q
comm
c
(path) =
linkpath
q
comm
link
(8)
that is: every edge on the selected path must have
the communication cost 0.
The proposed model does not change the graph
structure and the structure of Q
c
constraints. There-
fore, it is possible to apply both optimal and heuris-
tic existing algorithms that are based on graph
structure processing, such as MSCP, MSCP
K or
ACO4WS (Yu et al., 2007) (Wang et al., 2001).
In this model, interoperability analysis requires
much lower computational cost as compared with the
combinatorial approach. One additional attribute is
added to the QoS vector on the service level and on the
constraints level. This requires additional computa-
tions during graph preparation and during service se-
lection, but does not change the computational com-
plexity of algorithms. Therefore, the graph-based al-
gorithms are more adequate for interoperability anal-
ysis in the message passing model.
5 SYSTEM IMPLEMENTATION
As a part of the research, we implemented the Work-
flowIntegrator system that enables selection of ser-
vices during composite service development. The aim
of the system is to support developers in the selec-
tion process depending on given requirements on util-
ity function, QoS attributes, and interoperability con-
straints. The system is available online at:
http://kask.eti.pg.gda.pl/WorkflowFTI
Fig. 2 shows a screenshot of the WorkflowIntegra-
tor system with summary results of an exemplary ser-
vice selection using cost and availability as selection
attributes.
We use workflow applications as a concrete im-
plementation of the composite service concept, which
enables us to leverage existing solutions in service de-
scription and invocation.
In the workflow methodology, a workflow appli-
cation corresponds to a complex services, while a
service available through Web services corresponds
to an atomic service. Concrete runtime environ-
ments are Workflow Management Systems (WfMS)
for the workflow application, and Application Servers
for atomic services. Three main standards are used
for service description: Business Process Execution
Language (BPEL), Business Process Modeling Nota-
tion (BPMN) and the Windows Workflow Foundation
(XPDL format).
The system supplies the ASInteroperability mod-
ule that stores general purpose interoperability rat-
ings of runtime environments (Kaczmarek and
Nowakowski, 2011) available also at:
InteroperabilityConstraintsinServiceSelectionAlgorithms
29
http://kask.eti.pg.gda.pl/ASInteroperability
The ASInteroperability module contains a sys-
tematic description of existing WS* standards, their
versions, configuration options and acceptable values
for the options. For example WS-AtomicTransaction
anticipate the Commit Protocol option with values:
Completion, Two-Phase Commit (Volataile), Two-
Phase Commit (Durable). Popular existing runtime
environments have been described in the system in-
cluding: name, vendor, version and used libraries.
The runtime description model enables dynamic asso-
ciation between runtime environments and dependant
libraries.
Interoperability rates are given to concrete config-
urations in which integration is attempted. Each con-
figuration covers specification of: the two integrated
runtime environments, used WS* standards, standard
versions, significant configuration options and values
settled for the options. Rates are given by develop-
ers who have already attempted to establish a con-
crete integration and share the knowledge with the
community. The developer that gives a rate specifies
the configuration, the interoperability rate and the re-
quired development complexity to establish the inte-
gration. The complexity ranges from simple GUI op-
erations, through modification of configuration files,
to changes of undocumented features, and indicates
what is the required expertese level to establish the
integration.
Additionally, a service registry is defined that con-
tains specification of services together with their lo-
cation, QoS attributes, the runtime environment that
hosts the service, and used WS* standards. Addition-
ally, it is possible to specify groups of alternative ser-
vices, which is the main function of the registry in
the context of service selection during service compo-
sition. Groups of alternative services are configured
manually by developers of the composite service.
Using ASInteroperability and Service Registry,
the module of Workflow Fault Tolerant Integrator
(WorkflowFTI) supports design of optimal workflow
applications depending on the following information
acquired from the developer:
1. The developer defines groups of alternative ser-
vices that correspond to service classes in the CS
model. Each service contains description of QoS
attributes, used WS* standards and the application
server that hosts the service.
2. The developer specifies the utility function that
should be optimized in the form of weights for
QoS attributes and the method for attribute aggre-
gation (average, sum, max, min and others).
3. The developer specifies which selection algorithm
should be used.
4. The user supplies a defined workflow application
together with initially assigned services for tasks.
The assignment aims at specifying which service
group should be used for processing each task.
After the configuration, WorkflowFTI uses the
chosen algorithm to select appropriate services and
returns the result. During the selection, it considers
the relevant information such as: interoperability con-
straints, QoS attributes, utility function and others.
The system contains prototypical implementa-
tions of representative existing algorithms extending
them with relevant interoperability processing. Both
RMI and message passing models are analyzed during
the work. The BPEL standard was used as a represen-
tation of the RMI model, while the BPMN standard
(using the XPDL format) was used as a representa-
tion of the message passing model. In the message
passing model, interoperability between runtime en-
vironments of individual services is analyzed during
the selection process. The proposed methodology was
implemented using both optimal and approximate ex-
isting algorithms. Optimal algorithms include: ex-
plicit enumeration based on ILP and a simplified ver-
sion of the MSCP algorithm. Additionally, we im-
plemented a greedy algorithm as an example of the
approximate approach. In the RMI model, services
are pre-filtered considering their interoperability with
each WfMS, and services supplying the best QoS are
selected. We verified interoperability analysis using
an optimal algorithm based on explicit enumeration,
and an approximate algorithm based on local opti-
mization.
The system is implemented in the .NET 3.5 en-
vironment and hosted on Microsoft Internet Infor-
mation Service. We used the MSSQL database for
storing data regarding interoperability description and
service registry. A web interface is supplied for users
intending to design a workflow application or verify
interoperability between application servers. Inter-
nally, the system uses Web services to integrate AS-
Interoperability, Service Registry and WorkflowFTI.
6 RELATED WORK
Sect. 2 presented core concepts regarding the problem
addressed in this paper. Apart from the background,
various detailed solutions have been proposed. (Fang
et al., 2004) presents an interoperability assessment
model for service composition using ve interoper-
ability levels: signature, protocol, semantic, quality
and context. The assessment is based on a formal
evaluation metric that assigns a rate in the range [0, 1]
for each level depending on defined conditions. The
ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
30
work (Bhuta and Boehm, 2007) addresses a similar
issue assuming that components-off-the-shelf are in-
tegrated. The work specifies groups of attributes that
are used for interoperability analysis, for example:
control input technique, data communication proto-
cols, encapsulation of behavior and others. Using the
model, authors of that paper propose an interoperabil-
ity assessment tool. Both solutions do not analyze
QoS attributes and constraints, such as price, perfor-
mance, and reliability in service composition.
The Web Services Interoperability (WS-I) Orga-
nization (WS-I, 2004) has been established to refine
existing standards and promote integration of hetero-
geneous environments. The organization issues WS-
Profiles that impose additional constraints on commu-
nication formats, which enables higher interoperabil-
ity. (Lampathaki et al., 2009) overviews XML-based
data transfer standards addressed for B2B systems.
The formats concern different layers of application
development as compared to Web services, focusing
on integration of business-oriented data rather than
protocol compatibility. (van der Aalst et al., 2003)
surveys standards and solutions related to business
process modeling and execution. The work discusses
correlation between standards related to business pro-
cess modeling and formal methods of representation.
(Czarnul, 2010) presents the BeesyCluster execution
environment that enables definition and execution of
business processes with service replacement and dy-
namic optimization.
The concept of Functional Quality of Service
(FQoS) is introduced in (Jeong et al., 2009). FQoS
describes functional attributes of Web services us-
ing mathematical methods to manipulate and quan-
tify those attributes. Authors analyze FQoS on three
levels: term similarity, tree similarity and text simi-
larity. (Tan et al., 2009) proposes to use Petri nets for
compatibility analysis during composition of BPEL
applications. Authors present a detailed association
between Petri net concepts and BPEL control con-
structs and define a formal procedure of Web ser-
vices composition. The papers focus mainly on ser-
vice compatibility analysis rather than selection based
on non-functional QoS attributes.
(Ullberg et al., 2008) and (Tsalgatidou et al.,
2008) present frameworks that enable interoperabil-
ity rating and analysis in Web services-based systems.
Both papers propose service metamodels that cover
core service description concepts applicable on the
enterprise or on the P2P level. Using the metamodels,
interoperability of services is rated in the considered
scope. (Fu et al., 2005) is another work that rates
interoperability in Web services-based solutions. The
work proposes a formal description model that covers
peers and operations, such as send, receive and tran-
sition. Results achieved using the proposed methods
may be beneficial in our work as an additional source
of information about service interoperability.
7 CONCLUSIONS
The presented methodology enables application of
existing service selection algorithms in cases where
interoperability issues must be considered. The re-
mote method invocation model suits best to the pro-
posed solution allowing us to use any of the exist-
ing algorithms with minor development and compu-
tational effort. The message passing model favors
graph-based selection algorithms (both optimal and
heuristic) allowing us to preserve the general struc-
ture of algorithm data model. The application of
the methodology in the message passing model for
combinatorial algorithms faces difficulties because of
non-linearity of constraint equations. The problem is
solvable by existing methods, but requires additional
computational effort. As a part of the research, im-
plementation work was performed for a representa-
tive set of composite service models and algorithm
approaches, which verified the presented approach.
Extension of heuristic algorithms based on the
combinatorial model is an interesting area of future
work, considering that the algorithms may use propri-
etary data processing that does not rely directly on the
defined ILP representation of the problem. Applica-
tion of the methodology in industrial projects is an-
other area of future work. The current work covered
implementation of the methodology in representative
algorithms, but the use of it in industrial projects
may give further guidelines for extensions and adjust-
ments. The projects may further supply interesting
statistical data, such as the ratio of interoperable ser-
vices, market share of runtime environments, and dif-
ferences in QoS attributes of services, which will be
beneficial in further improvements of service selec-
tion methods.
ACKNOWLEDGEMENTS
The work was supported in part by the Polish Min-
istry of Science and Higher Education under research
projects N N519 172337. The author would like to
thank students of the Faculty of ETI for implementa-
tion and testing work regarding the system for service
selection.
InteroperabilityConstraintsinServiceSelectionAlgorithms
31
REFERENCES
Alrifai, M., Risse, T., Dolog, P., and Nejdl, W. (2009).
Service-oriented computing icsoc 2008 workshops.
chapter A Scalable Approach for QoS-Based Web
Service Selection. Springer-Verlag, Berlin, Heidel-
berg.
Bhuta, J. and Boehm, B. (2007). Attribute-based cots
product interoperability assessment. In Sixth Interna-
tional IEEE Conference on Commercial-off-the-Shelf
(COTS)-Based Software Systems.
Booth, D., Haas, H., McCabe, F., Newcomer, E., Cham-
pion, M., Ferris, C., and Orchard, D. (2004). Web
Services Architecture, Working Group Note. W3C.
Bradley, S. P., Hax, A. C., and Magnati, T. L. (1977). Ap-
plied Mathematical Programming. Addison-Wesley.
Cao, H., Feng, X., Sun, Y., Zhang, Z., and Wu, Q. (2007a).
A service selection model with multiple qos con-
straints on the mmkp. In IFIP International Confer-
ence on Network and Parallel Computing.
Cao, L., Li, M., and Cao, J. (2007b). Using genetic algo-
rithm to implement cost-driven web service selection.
Multiagent and Grid Systems - An International Jour-
nal, 3.
Chun-hua, H., Xiao-hong, C., and Xi-ming, L. (2009). Dy-
namic services selection algorithm in web services
composition supporting cross-enterprises collabora-
tion. Cent. South Univ. Technol.
Czarnul, P. (2010). Modeling, run-time optimization and
execution ofdistributed workflow applications in the
jee-based beesycluster environment. The Journal of
Supercomputing, pages 1–26.
Egyedi, T. M. (2007). Standard-compliant, but incompati-
ble?! Computer Standards & Interfaces, 29(6):605–
613.
Fang, J., Hu, S., and Han, Y. (2004). A service interop-
erability assessment model for service composition.
IEEE International Conference on Services Comput-
ing, 0:153–158.
Fisher, M., Lai, R., Sharma, S., and Moroney, L. (2006).
Java EE and .NET Interoperability: Integration
Strategies, Patterns, and Best Practices. FT Prentice
Hall.
Ford, T., Colombi, J., Graham, S., and Jacques, D. (2007).
A survey on interoperability measurement. In 12th
International Command and Control Research and
Technology Symposium (ICCRTS) Adapting C2 to the
21st Century.
Fu, X., Bultan, T., and Su, J. (2005). Synchronizability
of conversations among web services. IEEE Transac-
tions on Software Engineering, 31(12):1042–1055.
Hong, L. and Hu, J. (2009). A multi-dimension qos based
local service selection model for service composition.
JOURNAL OF NETWORKS, 4(5).
Jeong, B., Cho, H., and Lee, C. (2009). On the functional
quality of service (fqos) to discover and compose in-
teroperable web services. Expert Systems with Appli-
cations, 36(3).
Kaczmarek, P. L. and Nowakowski, M. (2011). A devel-
oper’s view of application servers interoperability. 9th
Intr. Conf. on Parallel Processing and Applied Math-
ematics, Part II, LNCS 7204 (in print).
Lampathaki, F., Mouzakitis, S., Gionis, G., Charalabidis,
Y., and Askounis, D. (2009). Business to business in-
teroperability: A current review of xml data integra-
tion standards. Computer Standards & Interfaces.
Martello, S. and Toth, P. (1987). Algorithms for knapsack
problems. Annals of Discrete Mathematics.
Oasis (2007). Web Services Business Process Execution
Language Version 2.0.
OMG (2009). Business Process Model and Notation
2.0 Beta 1 Specification. Object Modeling Group,
http://www.omg.org/cgi-bin/doc?dtc/09-08-14.
Sakellariou, R., Zhao, H., Tsiakkouri, E., and Dikaiakos,
M. D. (2007). Scheduling workflows with budget con-
straints. Integrated Research in GRID Computing,
(CoreGRID Integration Workshop 2005, Selected Pa-
pers).
Tan, W., Fan, Y., and Zhou, M. (2009). A petri net-based
method for compatibility analysis and composition of
web services in business process execution language.
IEEE Transactions on Automation Science and Engi-
neering, 6(1).
Tanenbaum, A. S. and van Steen, M. (2002). Distributed
Systems Principles and Paradigms. Prentice Hall.
Tsalgatidou, A., Athanasopoulos, G., and Pantazoglou, M.
(2008). Interoperability among heterogeneous ser-
vices: The case of integration of p2p services with
web services. Int. J. Web Service Res., 5(4):79–110.
Ullberg, J., Lagerstr¨om, R., and Johnson, P. (2008). A
framework for service interoperability analysis using
enterprise architecture models. In IEEE SCC (2),
pages 99–107.
van der Aalst, W., Hofstede, A. H. M. T., and Weske, M.
(2003). Business process management: A survey. 1st
International Conference on Business Process Man-
agement, LNCS, 2678.
Wang, X.-L., Jing, Z., and zhou Yang, H. (2001). Service
selection constraint model and optimization algorithm
for web service composition. Information Technology
Journal.
WS-I (2004). Interoperability: Ensuring the Success of Web
Services. Web Services Interoperability Consortium.
Xia, H., Chen, Y., Li, Z., Gao, H., and Chen, Y. (2009). Web
service selection algorithm based on particle swarm
optimization. In Eighth IEEE International Confer-
ence on Dependable, Autonomic and Secure Comput-
ing.
Yu, J., Buyya, R., and Tham, C.-K. (2006). Cost-based
scheduling of workflow applications on utility grids.
In IEEE International Conference on e-Science and
Grid Computing (e-Science).
Yu, T., Zhang, Y., and Lin, K.-J. (2007). Efficient algo-
rithms for web services selection with end-to-end qos
constraints. ACM Transactions on the Web, 1(1).
Zeng, L., Benatallah, B., Dumas, M., Kalagnanam, J., and
Sheng, Q. Z. (2003). Quality driven web services
composition. In Proceedings of the 12th international
conference on World Wide Web, WWW ’03.
ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
32
