Subgroup Discovery Applied to the e-Commerce Website

OrOliveSur.com

C. J. Carmona

, S. Ram

ırez-Gallego

, F. Torres

, E. Bernal

, M. J. del Jesus

and S. Garc

ıa

Department of Computer Science, University of Jaen, Jaen, Spain

Department of Marketing, University of Jaen, Jaen, Spain

Department of Economics, University of Jaen, Jaen, Spain

Keywords:

Subgroup Discovery, NMEEF-SD, Web Usage Mining, OrOliveSur.com.

Abstract:

Subgroup discovery is a descriptive data mining technique whose main objective is the search for partial

relations with unusual statistical characteristics with respect to a property of interest. In this paper, we present

the application of a subgroup discovery technique in a users history data set associated to an e-commerce

website called www.OrOliveSur.com which is related to sales of extra virgin olive oil and iberian products

from Spain. The unusual knowledge is extracted using NMEEF-SD algorithm which is one of the most

representative algorithm in this task throughout the literature. In order to apply this algorithm, information of

website such as browser, source, keywords and so on is extracted through Google Analytics toolkit. Results

obtained are discussed to provide advices and improve the design of the website.

1 INTRODUCTION

Electronic commerce is the buying and selling of

products or services through electronic media, such as

Internet and other computer networks. Nowadays, the

amount of trade conducted electronically has grown

extraordinarily due to the Internet. A high variety of

commerce is made in this way (Soares et al., 2008),

stimulating the creation and use of innovations such

as electronic funds transfer, the supply chain manage-

ment, marketing on Internet, online transaction pro-

cessing, among others. Due to the concentration of

olive oil cooperatives in Andalusia (Spain) in the last

years, the literature proliferates on the export of olive

products (Moral-Pajares and Lanzas-Molina, 2009),

the use of e-commerce in the agricultural cooperatives

and the adoption of Information and Communication

Technologies as an essential toolkit in such export.

This necessity arises to propose methodologies for in-

telligent data analysis, to enable the extraction of use-

ful knowledge from the data. This is the concept of

the Knowledge Discovery in Databases (KDD) (Han,

2005).

KDD in web mining was deﬁned by Etzioni (Et-

zioni, 1996) as the use of data mining techniques to

discover and extract knowledge in a website automat-

ically, and by Cooley (Cooley et al., 1999) as the im-

portance to consider the behaviour and preferences of

the user. Web mining can be classiﬁed in three do-

mains with respect to the nature of data (Cooley et al.,

1997; Markov and Larose, 2007): web content min-

ing, web structure data and web usage mining.

In the specialized literature, we found recent ap-

plications and consolidated reviews on the use of data

mining in e-commerce. In (Schafer et al., 2001),

the authors discussed different models of e-commerce

recommendation and in (Hu and Liu, 2004) a method-

ology to extract information from customer question-

naires was provided. The extraction of predictive

knowledge is used to set personalized recommenda-

tions in web use (Zhang and Jiao, 2007) and associ-

ation rules are used for descriptive same task (Laz-

correta et al., 2008). Predictive and descriptive tasks

can hybridize to achieve the same purpose (Kim et al.,

2002) and the recommendation of time-varying prod-

ucts (Min and Han, 2005).

This paper is focused on web usage mining.

In this way an speciﬁc methodology for extract-

ing useful information from web usage data ac-

quired using Google Analytics toolkit in the website

www.OrOliveSur.com is applied: subgroup discovery

task (Kloesgen, 1996; Wrobel, 1997). The main ob-

jective of this task is to obtain unusual knowledge and

describe behaviour of different access to the website

for users in order to increment the number of visits

and orders in the website.

239

Carmona C., Ramírez-Gallego S., Torres F., Bernal E., J. del Jesus M. and García S..

Subgroup Discovery Applied to the e-Commerce Website OrOliveSur.com.

DOI: 10.5220/0003982302390244

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 239-244

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Structure of this paper is organised as follows:

Section 2 presents the subgroup discovery data min-

ing technique, Section 3 presents the main infor-

mation about the e-commerce website in which is

based this paper “www.OrOliveSur.com”, in Section

4 the complete experimental study is presented and

ﬁnally, Section 5 presents concluding remarks about

this study to the experts.

2 SUBGROUP DISCOVERY

The concept of subgroup discovery was initially in-

troduced by Kloesgen (Kloesgen, 1996) and Wrobel

(Wrobel, 1997). It can be deﬁned as (Wrobel, 2001):

“In subgroup discovery, we assume we are

given a so-called population of individuals

(objects, customer, ...) and a property of those

individuals we are interested in. The task

of subgroup discovery is then to discover the

subgroups of the population that are statisti-

cally “most interesting”, i.e., are as large as

possible and have the most unusual statistical

(distributional) characteristics with respect to

the property of interest.”

Considering this deﬁnition, the main property of

this task is the search of partial relations where the

majority of examples for the property of interest (or

target variable) will be covered. In addition, the re-

lations must be interesting with an unusual behaviour

respect to the full data set.

In order to represent the knowledge, subgroup dis-

covery employs a rule (R) which consists of an in-

duced subgroup description. It can be formally de-

ﬁned as:

R : Cond → TargetVar

where TargetVar is a value for the variable of in-

terest (target variable) for the subgroup discovery

task (which also appears as Class in the literature),

and Cond is commonly a conjunction of features

(attribute-value pairs) which is able to describe an

unusual statistical distribution with respect to the

TargetVar.

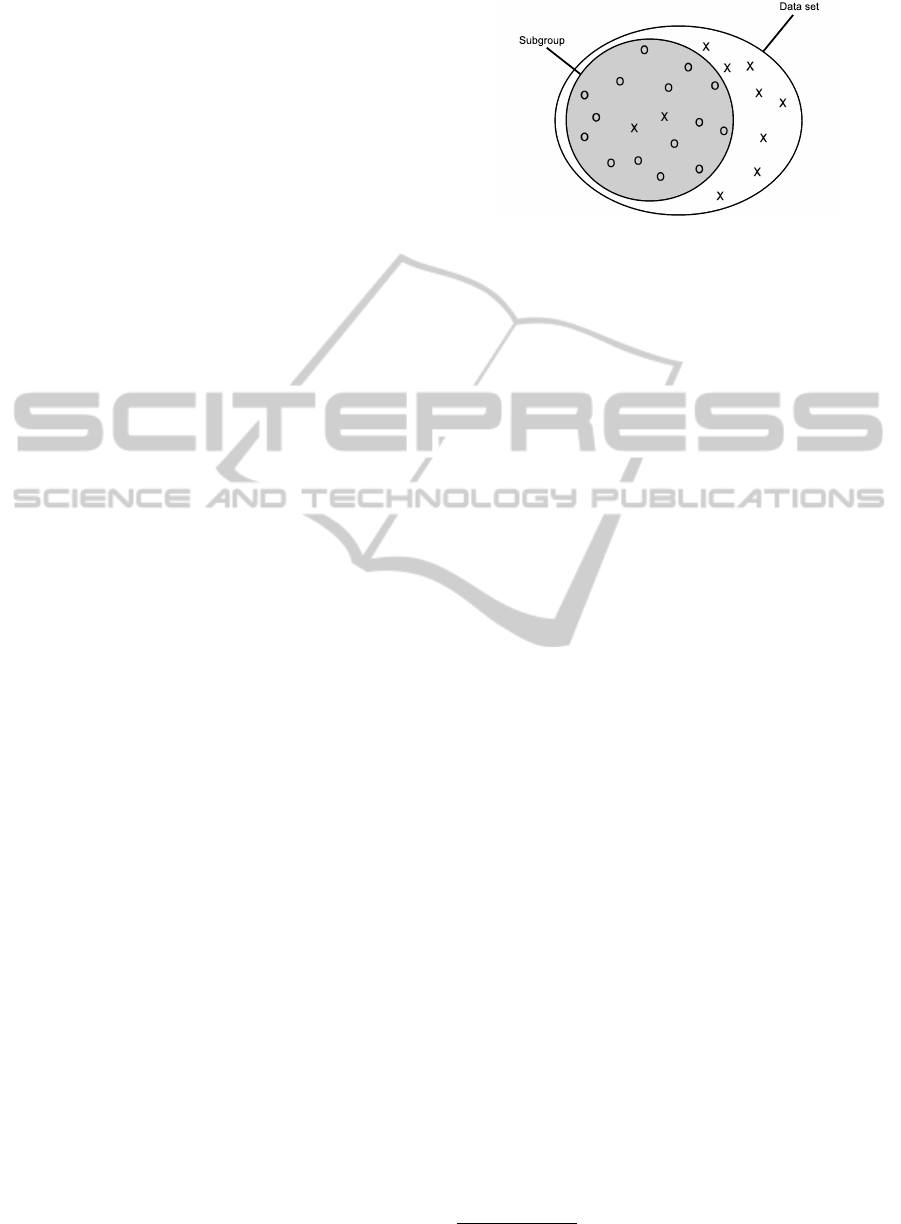

In Fig. 1 is represented a subgroup with two

values for the target variable (TargetVar = o and

TargetVar = x). In this representation a subgroup for

the ﬁrst value of the target variable can be observed,

where the rule attempts to cover a high number of ob-

jects with a single function as for example a circle.

As can be observed the subgroup does not cover all

the examples for the target value o even the examples

covered are not positive in all the cases, but the func-

tion is uniform and simple.

Subgroup

Data set

Figure 1: Representation of a subgroup discovery rule with

respect to a value (o) of the target variable.

Throughout the literature have been presented a

wide number of algorithms in the subgroup discov-

ery task (Herrera et al., 2011), as for example propos-

als based on adaptations of classiﬁcation algorithms,

based on association rules algorithms or evolution-

ary fuzzy systems for subgroup discovery. This pa-

per is focused in an evolutionary fuzzy systems called

NMEEF-SD algorithm (Carmona et al., 2010) which

is one of the most representative into subgroup dis-

covery task.

3 OROLIVESUR.COM AN

E-COMMERCE WEBSITE

OrOliveSur

is a project born in the province of Ja

from Andalusia (Spain) in 2010. The main purpose is

to announce to the world the treasure of its land, the

extra virgin olive oil. This website is focused in the

olive oil produced in a particular territory of Ja

en: the

Sierra M

agina Natural Park. Sierra M

agina is a pro-

tected area of 50,000 acres of natural park, made up of

forested slopes, concealed valleys and rugged moun-

tain peaks. The highest peak, the M

agina Mountain

is the highest in the Ja

en province, standing at 2,167

metres.

OrOliveSur’s catalog presents a wide number of

extra virgin olive oils focused on the picual variety.

This is the most extended olive grove variety at the

world. In Spain it represents 50% of production. Most

of it is to be found in Andalusia, especially in the

province of Ja

en. Its olive is large-sized and elon-

gated in shape, with a peak at the end. The trees of

this variety are of an intense silvery colour, open and

structured. In addition, picual variety has excellent

organoleptic properties because in stability and oleic

acid obtains the best values with respect to other vari-

eties like arbequina or hojiblanca, among others.

It is interesting to remark that users can ﬁnd

http://www.orolivesur.com

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

240

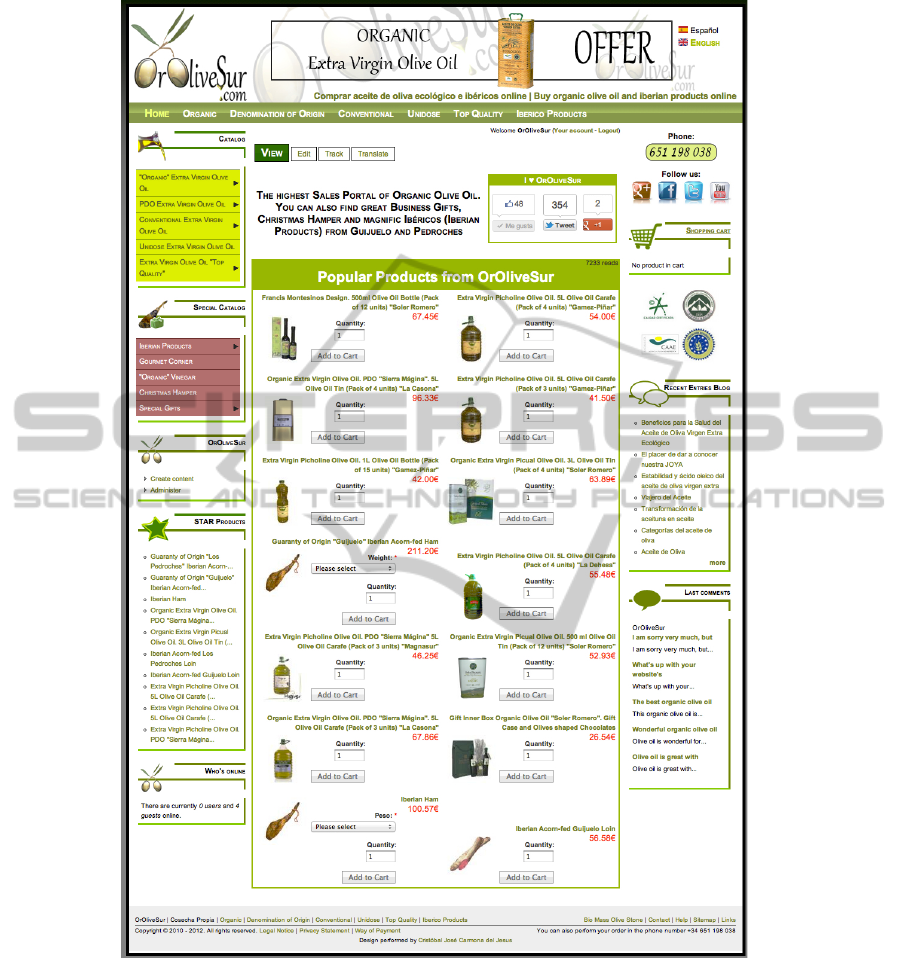

Figure 2: Homepage from the e-commerce website OrOliveSur.com.

an English (http://en.orolivesur.com) and Spanish

(http://www.orolivesur.com) version. In Fig. 2 the

homepage of OrOliveSur is shown.

Along two years, OrOliveSur has received both

national and international orders from European

Union countries (Spain, Denmark, Germany, Great

Britain, France, etc.), and its visits and orders are in-

creased every day. The most important characteristic

is that OrOliveSur offers a complete catalog with a

lot of products and complete descriptions about these

ones. Moreover, the OrOliveSur website gives di-

rect sales and clients can pay with different types like

transfer bank, PayPal or credit card.

Applying subgroup discovery algorithms in this

data, the webmaster team can obtain information re-

lated to the main properties of user access with un-

usual behaviours with respect to a target variable such

as source or keyword access for example.

SubgroupDiscoveryAppliedtothee-CommerceWebsiteOrOliveSur.com

241

4 NMEEF-SD APPLIED TO

OROLIVESUR’S LOG DATA

Non-dominated Multi-objective Evolutionary algo-

rithm for Extracting Fuzzy rules in Subgroup Discov-

ery (NMEEF-SD) (Carmona et al., 2010) is an evolu-

tionary fuzzy system (Herrera, 2008) whose objective

is to extract descriptive fuzzy and/or crisp rules for

the subgroup discovery task, depending on the type

of variables present in the problem. This algorithm in-

cludes some quality measures in order to obtain rules

with suitable values not only in the quality measures

used but also in the rest of the most used quality mea-

sures in subgroup discovery. The best way to obtain

solutions with a good compromise between several

quality measures for subgroup discovery is through

a MOEA approach. In this sense, NMEEF-SD has

a multi-objective approach based on NSGA-II (Deb

et al., 2002), a MOEA based on a non-dominated sort-

ing approach, and on the use of elitism. NMEEF-SD

is oriented towards the subgroup discovery task and

uses speciﬁc operators to promote the extraction of

simple, interpretable and high quality subgroup dis-

covery rules. The algorithm permits a number of qual-

ity measures to be used both for the selection and the

evaluation of rules within the evolutionary process

and it also allows the use of different representation

for rules (Carmona et al., 2009): canonical and DNF.

As the general objective of NMEEF-SD is to ob-

tain a set of general and accurate rules, the algo-

rithm includes components to enhance these charac-

teristics. In particular, diversity is enhanced in the

population using a new operator which performs a re-

initialisation based on coverage. In addition, the algo-

rithm can employ different niching techniques (Car-

mona et al., 2011a) as crowding distance, utility or

knee-angle measure for the selection of the rules. In

this study, a comparison among different measures

promoting the diversity of the population is presented,

in order to obtain the best compromise between the

objectives of the MOEA. On the other hand, to pro-

mote generalisation, as well as the objectives con-

sidered in the evolutionary approach, the algorithm

includes operators of biased initialisation and biased

mutation. Finally, to ensure accuracy, in addition to

the objectives, NMEEF-SD returns as its ﬁnal solu-

tion those rules which reach a predetermined conﬁ-

dence threshold.

NMEEF-SD has shown its quality in real-world

problems in different domains as education (Carmona

et al., 2011c) or medical (Carmona et al., 2011b).

The main purpose of the application of this algorithm

in this data set is focused on the study of design in

the e-commerce website of OrOliveSur.com through

the obtention of unusual subgroups in a data set ob-

tained with the webmaster toolkit Google Analytics

from the period 1st January to 31st December for the

year 2011. Among data we collect information re-

lated to:

• Browser name: IE, Firefox, Chrome, Android and

so on.

• Keyword access: Olive oil, Iberian products,

Brand, Gift, Other or Nothing.

• Visitor type: New or Returning.

• New visits.

• Source access: Direct, Mail, Search Engine, So-

cial Network and so on.

• Page views.

• Time on site.

• Time per page (time/page).

• Unique page views.

Due to fact that the NMEEF-SD algorithm needs

to select a target variable in order to obtain results, we

employ as target variable different features: Keyword,

Visitor type and Source, i.e. NMEEF-SD obtains dif-

ferent subgroups for each target variable selected with

the main objective for describing a complete set of

interesting relationships in data. With respect to the

parameters used by NMEEF-SD algorithm can be ob-

served in Table 1.

Table 1: Parameters used by NMEEF-SD algorithm.

Population size 50

Evaluations 10000

Crossover Probability 0.6

Mutation Probability 0.1

Minimum conﬁdence 0.6

Rule representation Canonical

Linguistic labels 9

Objective 1 Sensitivity

Objective 2 Unusualness

The most relevant subgroups obtained for

NMEEF-SD algorithm with respect to the different

property values together values of quality measures

are shown in Table 2. This one describes rules

obtained and the quality measures of signiﬁcance

(SIGN), unusualness (UNUS), sensitivity (SENS)

and fuzzy conﬁdence (FCNF). A complete de-

scription of these quality measures can be found in

(Herrera et al., 2011).

As can be observed in results obtained by

NMEEF-SD, there are a huge number of rules with

high values in the majority of quality measures. Even

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

242

Table 2: Rules and results obtained by NMEEF-SD algorithm.

] Rule SIGN UNUS SENS FCNF

R1 IF source=E THEN keyword=olive oil 1949.707 0.117 0.999 0.483

R2 IF source=E THEN keyword=brand 1949.707 0.073 1.000 0.303

R3 IF time/page views=Low THEN keyword=nothing 3.920 0.001 0.999 0.448

R4 IF time=Low THEN keyword=nothing 11.175 0.005 0,982 0.486

R5 IF keyword=nothing AND page views=Very low AND unique

page views=Very low THEN source=R

2216.810 0.090 0.996 0.373

R6 IF keyword=nothing AND unique page views=Very low

THEN source=R

2265.863 0.089 0.999 0.368

R7 IF keyword=nothing AND page views=Very low AND

page/visits=Very low THEN source=R

2216.810 0.090 0.996 0.372

R8 IF keyword=nothing AND unique page views=Very low AND

unique page/visits=Very low THEN source=R

2265.863 0.089 0.999 0.368

R9 IF visitor-type=N AND unique page views=Low THEN

source=E

90.077 0.038 0.658 0.653

R10 IF browser=IE AND page views=Low THEN source=E 137.419 0.057 0.575 0.709

R11 IF new visits=0 THEN visitor type=R 2819.825 0.229 1.000 1.000

though some rules like R11 is obvious because if vis-

its are not news the consequence is because users are

returning. However, this rule provides information

about the good behaviour of the algorithm used.

It is interesting to remark that users that access di-

rectly to the website, i.e. without using any keywords

as rules R3 and R4 show in the results, remain in the

website during an acceptable time and time per page

views is interesting. In addition, R5, R6, R7 and R8

show that reference websites like directories or blogs

with external links to OrOliveSur are visits with low

number of page-views and unique-page-views. In this

way, webmaster must improve the description and im-

age of OrOliveSur in these reference websites because

it is probably that users does not ﬁnd the information

hoped.

Rule most interesting discovered by NMEEF-SD

is the use of the browser Internet Explorer for the ma-

jority users that visit OrOliveSur through search en-

gine as Google or Yahoo, for example. These users

visit between 1 and 100 pages in the website. In this

way, we recommend to the webmaster to analyse the

design of the website to test that is correctly shown

and designed in this browser in different versions.

5 CONCLUSIONS

In this paper, a study based on a subgroup discovery

technique in order to extract unusual knowledge in a

data set with information about users history associ-

ated to an e-commerce website is presented. These

data are collected from the e-commerce website OrO-

liveSur.com which is related to the sell of extra virgin

olive oil and iberian products from Spain. The main

purpose is to discover interesting and unusualness in-

formation that allow to help to the webmaster team to

improve the design of the website. To do so, NMEEF-

SD algorithm is employed which is one of the most

representative throughout the related literature. This

real-world application is classiﬁed within web usage

mining.

In general, knowledge discovered is related to

the original point of user access where accesses per-

formed through keywords are more interesting than

by references websites. In this way, webmaster team

must improve the description and image of OrO-

liveSur in these reference websites because it is prob-

ably that users do not ﬁnd the information hoped.

Finally, an important recommendation is per-

formed in order to analyse the design of the website

with the browser IE in different versions because the

majority visits are performed from this browser with

high values of page views.

ACKNOWLEDGEMENTS

This paper was supported by the Spanish Ministry

of Education, Social Policy and Sports under project

TIN-2008-06681-C06-02, FEDER Founds, by the

Andalusian Research Plan under project TIC-3928,

FEDER Founds, and by the University of Ja

en Re-

search Plan under proyect UJA2010/13/07 and Caja

Rural sponsorship.

SubgroupDiscoveryAppliedtothee-CommerceWebsiteOrOliveSur.com

243

REFERENCES

Carmona, C. J., Gonz

alez, P., del Jesus, M. J., and Her-

rera, F. (2009). An Analysis of Evolutionary Algo-

rithms with Different Types of Fuzzy Rules in Sub-

group Discovery. In Proceedings of the FUZZIEEE,

pages 1706–1711.

Carmona, C. J., Gonz

alez, P., del Jesus, M. J., and Her-

rera, F. (2010). NMEEF-SD: Non-dominated Multi-

objective Evolutionary algorithm for Extracting Fuzzy

rules in Subgroup Discovery. IEEE Transactions on

Fuzzy Systems, 18(5):958–970.

Carmona, C. J., Gonz

alez, P., del Jesus, M. J., and Herrera,

F. (2011a). Analysis of the Impact of Using Different

Diversity Functions for the Subgroup Discovery Al-

gorithm NMEEF-SD. In Proceedings of the IEEE Int.

Workshop on GEFS, pages 17–23.

Carmona, C. J., Gonz

alez, P., del Jesus, M. J., Nav

ıo,

M., and Jim

enez, L. (2011b). Evolutionary Fuzzy

Rule Extraction for Subgroup Discovery in a Psy-

chiatric Emergency Department. Soft Computing,

15(12):2435–2448.

Carmona, C. J., Gonz

alez, P., del Jesus, M. J., and Ven-

tura, S. (2011c). Subgroup discovery in an e-learning

usage study based on Moodle. In Proceedings of the

ICEUTE, pages 446–451.

Cooley, R., Mobasher, B., and Srivastava, J. (1997). Web

Mining: Information and Pattern Discovery on the

World Wide Web. On Tools with Artiﬁcial Intelli-

gence, pages 558–567.

Cooley, R., Mobasher, B., and Srivastava, J. (1999). Data

preparation for mining World Wide Web browsing

patterns. Knowledge and Information Systems, 1:5–

32.

Deb, K., Pratap, A., Agrawal, S., and Meyarivan, T. (2002).

A fast and elitist multiobjective genetic algorithm:

NSGA-II. IEEE Transactions Evolutionary Compu-

tation, 6(2):182–197.

Etzioni, O. (1996). The World Wide Web: quagmine or

gold mine. Communications of the ACM, 39:65–68.

Han, J. (2005). Data Mining: Concepts and Techniques.

Morgan Kaufmann Publishers Inc.

Herrera, F. (2008). Genetic fuzzy systems: taxomony, cur-

rent research trends and prospects. Evolutionary In-

telligence, 1:27–46.

Herrera, F., Carmona, C. J., Gonz

alez, P., and del Jesus,

M. J. (2011). An overview on Subgroup Discovery:

Foundations and Applications. Knowledge and Infor-

mation Systems, 29(3):495–525.

Hu, M. and Liu, B. (2004). Mining and summarizing

customer reviews. In Proceedings of the 10th ACM

SIGKDD international conference on Knowledge dis-

covery and data mining, pages 168–177.

Kim, J. K., Cho, Y. H., Kim, W. J., Kim, J. R., and Suh,

J. H. (2002). A personalized recommendation proce-

dure for Internet shopping support. Electronic Com-

merce Research and Applications, 1(3-4):301–313.

Kloesgen, W. (1996). Explora: A Multipattern and Multi-

strategy Discovery Assistant. In Advances in Knowl-

edge Discovery and Data Mining, pages 249–271.

American Association for Artiﬁcial Intelligence.

Lazcorreta, E., Botella, F., and Fernandez-Caballero, A.

(2008). Towards personalized recommendation by

two-step modiﬁed Apriori data mining algorithm. Ex-

pert Systems with Applications, 35(3):1422–1429.

Markov, Z. and Larose, D. T. (2007). Data Mining The

Web. Uncovering patterns in Web Content, Structure

and Usage. Wiley-Interscience.

Min, D. H. and Han, I. (2005). Detection of the customer

time-variant pattern for improving recommender sys-

tems. Expert Systems with Applications, 28(2):189–

199.

Moral-Pajares, E. and Lanzas-Molina, J. R. (2009). La ex-

portacion de aceite de oliva virgen en Andalucia: Di-

namica y factores determinantes. Revista de estudios

regionales, 86(45-70).

Schafer, J. B., Konstan, J. A., and Riedl, J. (2001). E-

commerce recommendation applications. Data Min-

ing and Knowledge Discovery, 5(1-2):115–153.

Soares, C., Peng, Y., Meng, J., Washio, T., and Zhou,

Z. H., editors (2008). Applications of data mining in

e-business and ﬁnance. Frontiers in artiﬁcial intelli-

gence and applications. IOS Press.

Wrobel, S. (1997). An Algorithm for Multi-relational Dis-

covery of Subgroups. In Proceedings of the 1st Eu-

ropean Symposium on Principles of Data Mining and

Knowledge Discovery, volume 1263 of LNAI, pages

78–87. Springer.

Wrobel, S. (2001). Inductive logic programming for knowl-

edge discovery in databases, chapter Relational Data

Mining, pages 74–101. Springer.

Zhang, Y. and Jiao, J. (2007). An associative classiﬁcation-

based recommendation system for personalization in

b2c e-commerce applications. Expert Systems with

Applications, 33(2):357–367.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

244
