On the Efﬁcient Construction of Query Optimizers for Distributed

Heterogeneous Information Systems

A Generic Framework

Tianxiao Liu, Dominique Laurent and Tuyˆet Trˆam Dang Ngoc

ETIS, CNRS, ENSEA - Cergy-Pontoise University, 95000 Cergy-Pontoise, France

Keywords:

Distributed Heterogeneous Information Systems, Query Optimization, Search Strategy, Cost Model.

Abstract:

It is now common practice to address queries to Distributed Heterogeneous Information Systems (DHIS).

In such a setting, the issue of query optimization becomes crucial, and more complex than in centralized

homogeneous approaches. Indeed, the optimization processing must be as ﬂexible as possible so as to apply to

different database models, and integrate different cost models. In this paper, we present a generic framework

for query optimization in the context of DHISs, with the goal of facilitating the implementation of efﬁcient

query optimizers. To this end, we identify all necessary components for building such a query optimizer and

we deﬁne the basic functions that have to be implemented. Moreover, we report on experiments showing that

our approach allows for an efﬁcient query optimization in the context of DHISs.

1 INTRODUCTION

It is well known that one of the main features of re-

lational database systems is to allow for query opti-

mization. When optimizing a query Q, Q is ﬁrst trans-

formed into an initial execution plan, which is then

transformed into other equivalent plans using trans-

formation rules. These candidate plans form a search

space that is explored by the query optimizer module

in order to ﬁnd an optimized execution plan (i.e., an

execution plan having a lower execution cost). As the

size of the search space is generally huge, a search

strategy is used to efﬁciently ﬁnd such an optimized

execution plan. Query optimization processing in a

given database is based on the following information:

• Meta-data Model: database schema, data loca-

tion, data accessibility, etc.

• Data and Query Model: relational, object ori-

ented, semi-structured, services, etc.

• Optimization Goals: minimize runtime, mini-

mize money cost, minimize the access to net-

works, etc.

• A Search Strategy: exhaustive, incremental, ge-

netic, dynamic, etc.

When queries are addressed to a single database for

which the information above is known in advance,

query optimization allows for efﬁciently minimizing

the computation cost. However, it is well known that

changing a piece of the information mentioned above

requires signiﬁcant efforts in source code writing.

On the other hand it is now common practice to

address queries to Distributed Heterogeneous Infor-

mation Systems (DHIS). In this setting, the evalua-

tion of a given query requires accessing different het-

erogeneous data sources, and so, query optimization

becomes more complex. Indeed, in a DHIS, the opti-

mization processing must be as ﬂexible as possible so

as to (1) consider databases located in different sites,

(2) apply to different data models, and (3) integrate

different cost models. The contribution of this paper

is to propose a generic framework for integrating vari-

ous optimization techniques in order to build efﬁcient

optimizers in the context of DHISs. In this frame-

work, we consider the following components:

• Plug-in modules dealing with meta-data, data

models, queries, search strategies and transforma-

tion rules, respectively.

• Basic functions for an easy and efﬁcient imple-

mentation of search strategies.

We have implemented our generic framework, and the

experiments reported in this paper show that our ap-

proach offers the necessary ﬂexibility when designing

efﬁcient query optimizers for DHISs. More precisely,

we show that, by using our approach:

1. the number of code lines for implementing a new

187

Liu T., Laurent D. and Trâm Dang Ngoc T..

On the Efﬁcient Construction of Query Optimizers for Distributed Heterogeneous Information Systems - A Generic Framework.

DOI: 10.5220/0003987801870190

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 187-190

ISBN: 978-989-8565-10-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

strategy or designing a new optimizer is drasti-

cally reduced, as compared with an implementa-

tion from scratch;

2. the generated optimized execution plan reduces

the processing time by 28 times.

The paper is organized as follows: In Section 2 we

describe our generic framework, in Section 3, we re-

port on experiments, in Section 4, we overview re-

lated work, and in Section 5, we conclude the paper

and offer research directions for future research.

2 THE GENERIC FRAMEWORK

Figure 1 shows the main components of our generic

framework, namely:

1. Source Description, such as data schema, source

location, cost model, etc.

2. Transformation Rules, used to transform an ex-

ecution plan into another equivalent execution

plan.

3. A Collection of Search Strategies, which are meta-

heuristic algorithms used for optimization.

4. A Toolbox of Five Basic Functions, implemented

only once and reused to combine optimization

processes for different search strategies.

Candidate

Execution

Plan

Initial

Execution

Plan

Sources

Description

Optimized

Execution

Plan

Search of

Search space

Optimal Plan

Optimizer

Transformation

rules

Strategy

calculateCost

Toolbox

annotate

applyRules

extractRules

updateRuleWeight

Query

result

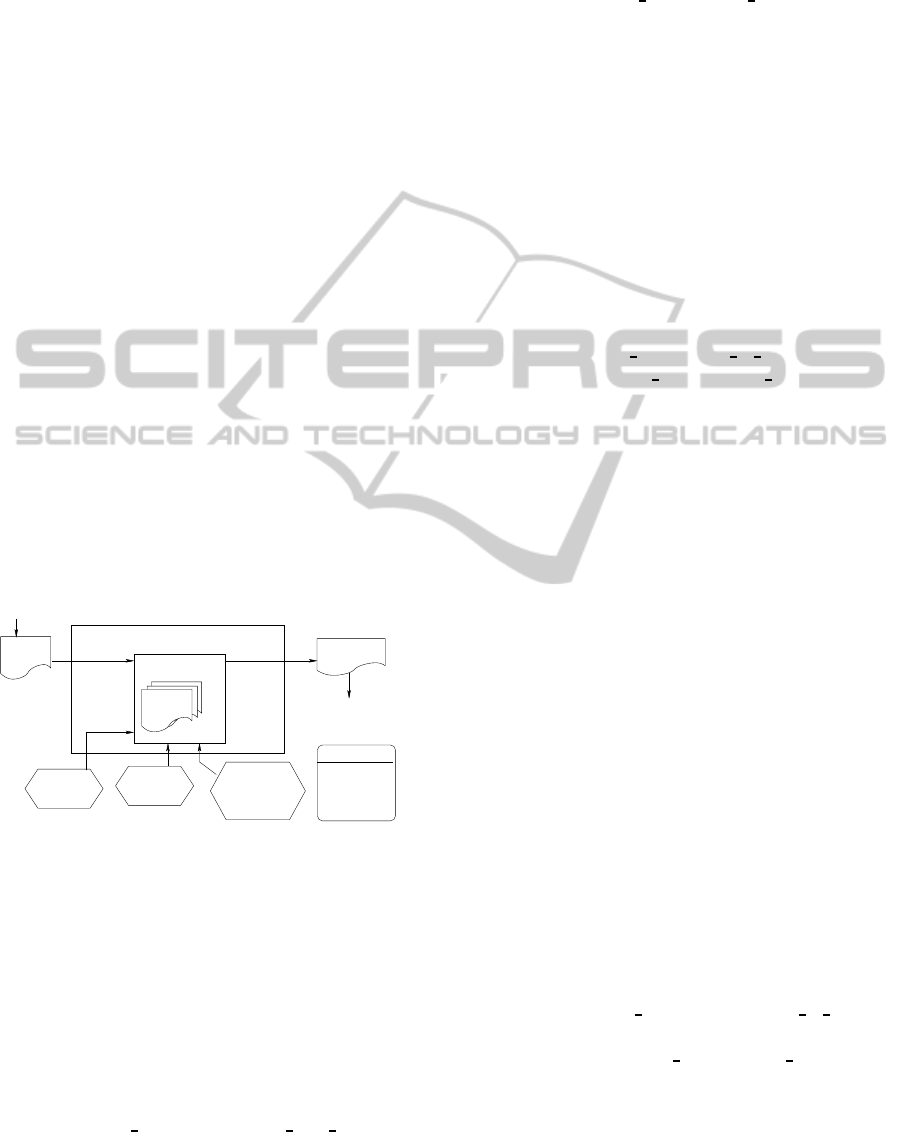

Figure 1: The main components of our framework.

2.1 Generating Execution Plans

We implemented a description module called GSD

(standing for Generic Source Description and for-

merly called TGV in (Dang-Ngoc and Travers, 2007))

for annotating any kind of information about data

sources. However, any module collecting data source

information can be used, as long as it implements the

following function, taking an execution plan as input

and returning the annotated execution plan:

annotate(exec plan) → annotated exec plan

Given an annotated execution plan, the optimizer

should be able to calculate the cost of this execution

plan. In our generic framework, this step is achieved

through a call to the following function:

calculateCost(exec

plan) → cost value

Clearly, the implementation of this function depends

on the characteristics of the data source where the ex-

ecution plan is to be run. This information is provided

by the annotation returned by the annotate function.

On the other hand, in order to generate a new ex-

ecution plan from a given one, transformation rules

are applied. Usually, the following kinds of transfor-

mation rules are considered: (1) Logical rules, that

reﬂect basic properties of the underlying algebra; (2)

Physical rules that specify the best way a given opera-

tion can be computed; (3) User deﬁned rules, such as

speciﬁc commutation rules.

In our generic framework, such a rule manager is

implemented through the following two functions:

extractRules(exec

plan) → set of rules

applyRule(rule, exec

plan) → exec plan

A call to the function extractRules for a given exe-

cution plan generates all rules that can be applied for

transforming this execution plan into another one. On

the other hand, a call to the function applyRule, for

a given rule and a given execution plan, applies the

given rule to generate a new execution plan.

We emphasize that these four functions do not de-

pend on the optimization strategy. Therefore, they are

implemented only once for a ﬁxed DHIS, and chang-

ing the optimization strategy does not require any ad-

ditional implementation work in this respect.

2.2 Search Strategy

We recall that, in order to avoid searching the whole

set of execution plans of a given query, search strate-

gies are used. These strategies are based on well

known algorithms such as Dynamic Programming

(Selinger et al., 1979), Simulated Annealing (Kirk-

patrick et al., 1987), or Genetic Algorithm (Goldberg,

1989). Of course each strategy has its own character-

istics, and thus, changing from one search strategy to

another requires some implementation work.

However, in our generic framework, only the fol-

lowing three functions have to be reconsidered when

changing the strategy:

chooseRules(exec

plan, integer) → set of rules

updateRuleWeight(rule) → value

getOptimizedPlan(exec

plan) → exec plan

The function chooseRules returns a set of rules

(whose cardinality is the value of the second param-

eter) chosen from the set of rules returned by a call

to extractRules. These rules are applied to the cur-

rent execution plan, to generate new execution plans

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

188

whose costs are computed using the function calcu-

lateCost. Finally, the function getOptimizedPlan al-

lows to compute the execution plan with lowest cost,

using a given search strategy.

3 EXPERIMENTS

We now present experimental results on the devel-

opment of our generic framework. The consid-

ered DHIS contains 12 distributed heterogeneous data

sources (relational, xml, object-relational and Web

service), and we have chosen typical queries with

inter-site binary operators to be optimized.

Search strategies are compared in the following

two respects: We ﬁrst compare their quality with re-

spect to the absolute optimal plan obtained by search-

ing the whole search space, and second, we compare

the runtimes needed by each search strategy for the

computation of its output optimized execution plan.

Figure 2 shows the comparison of various search

strategies: Simulating Annealing, Genetic Algorithm,

Incremental (Nahar et al., 1986), Dynamic Program-

ming (Selinger et al., 1979), Random (Swami, 1989)

and Ant Colony (A. Colorni, 1991).

Figure 2: Quality of optimization strategies.

For queries with 10, 15 and 20 inter-site operators,

we compare the quality of execution plans found by

each strategy with the absolute optimal. We can see

that for most strategies, the optimized execution plan

is very close to the absolute optimal execution plan.

Figure 3 shows that the time spent for ﬁnding the

optimized plan increases almost linearly with respect

to the complexity of the query being optimized. It can

also be seen that the average time for computing the

optimized execution plan is in the order of 2 seconds,

whereas we found that computing the absolute opti-

mal execution plan takes about 2 minutes in average.

This clearly shows that any search strategy is much

more efﬁcient than the exhaustive strategy.

Figure 3: Runtime for the computation of the optimal plan.

We also note from Figure 3 that the Incremen-

tal strategy is the most efﬁcient in terms of runtime,

whereas the other strategies show similar and accept-

able performance. However, Figure 2 shows that,

among all other strategies, the efﬁciency of the Incre-

mental strategy is obtained at the cost of computing

the worst execution plan, in terms of quality. More

generally, our experiments have shown that the run-

time of the optimized execution plan is reduced by

up to 28 times, as compared with the runtime of the

non optimized initial execution plan. We refer to (Liu,

2011) for more details in this respect.

Regarding now the efforts in coding search strate-

gies, we recall that applying a new search strategy

only requires to modify the implementation of two the

functions getOptimizedPlan and chooseRules. Our

experiments show that the Exhaustive search strat-

egy can be implemented with about 260 lines of Java

code. Knowing that the total number of code lines

of the whole implementation of the query optimizer

is 5000, implementing the Exhaustive search strategy

represents only 5.2% of these 5000 lines.

Assuming that the query optimizer has already

been implemented using the Exhaustive strategy,

changing from the Exhaustive search strategy to the

Incremental search strategy requires to replace the

260 code lines of the Exhaustive strategy with the 280

code lines for implementing the Incremental strat-

egy. This represents only 5.2% of the 5000 code lines

of the whole implementation. This example clearly

shows that our generic framework is ﬂexible enough

to allow query optimization in various environments.

4 RELATED WORK

Although search strategies are the core component of

query optimization, most mediation systems use ex-

haustive search strategies on a portion of the search

space (System R* (Daniels et al., 1982), DIOM (Liu

and Pu, 1997), DISCO (Naacke et al., 1998), Garlic

(Roth et al., 1999)) or dynamic programming (Star-

OntheEfficientConstructionofQueryOptimizersforDistributedHeterogeneousInformationSystems-AGeneric

Framework

189

Burst (Haas et al., 1989), Garlic (Roth et al., 1999)).

In (Josifovski and Risch, 2002), the authors propose

an approach using the AMOSII mediator database

system, in which a given query is transformed into an

executable object algebraic execution plan. The opti-

mization process is based on built-in algebraic opera-

tors and a built-in cost model for local data.

Moreover, in (Josifovski and Risch, 2002), Dy-

namic Programming, Simulated Annealing, or Ran-

dom can be used as search strategies and so, this ap-

proach is the only system that offers the choice be-

tween different search strategies, as we do. How-

ever, the strategies proposed in (Josifovski and Risch,

2002) are hard-coded, which offers less ﬂexibility

than in our approach.

We ﬁnally mention that, in (Stonebraker 2008),

the author stresses that database systems are now

more and more specialized (e.g. OLPT vs. OLAP

systems), and thus, that there is no hope in design-

ing efﬁcient common optimization techniques for all

these systems. We therefore conclude that our ap-

proach of providing a generic framework for the inte-

gration of different optimization techniques can con-

tribute in the design of efﬁcient and ﬂexible query op-

timizers in DHISs.

5 CONCLUSIONS

In this paper, we have proposed a generic framework

for query optimization in the context of DHISs. Our

framework is composed of a set of basic functions,

whose implementation takes into account all aspects

of query optimization such as transformation rule,

cost estimation, construction and annotation execu-

tion plans, and search strategy. The experimental re-

sults reported in this paper show the high ﬂexibility of

our framework used to create or upgrade easily opti-

mizers with high performance. Moreover, our exper-

iments also show that using our generic framework

allows for signiﬁcant gains of runtime.

Regarding future work, we plan to investigate the

following issues: (i) implementing a cache system in

order to optimize the cost computation of a given exe-

cution plan, (ii) consider cost models in the context of

cloud computing, and (iii) incorporate multi-criteria

optimization techniques in our framework.

REFERENCES

Colorni, A. et al (1991). Distributed optimization by ant

colonies. In Conf´erence europ´eenne sur la vie artiﬁ-

cielle, pages 134–142.

Dang-Ngoc, T.-T. and Travers, N. (2007). Tree graph views

for a distributed pervasive environment. In Interna-

tional Conference on Network-Based Information Sys-

tems (NBIS).

Daniels, D., Selinger, P. G., Haas, L. M., Lindsay, B. G.,

Mohan, C., Walker, A., and Wilms, P. F. (1982). An

introduction to distributed query compilation in r*. In

DDB, pages 291–309.

Goldberg, D. E. (1989). Genetic Algorithms in Search, Op-

timization and Machine Learning. Addison-Wesley.

Haas, L. M., Freytag, J. C., Lohman, G. M., and Pirahesh,

H. (1989). Extensible query processing in starburst.

In ACM SIGMOD, pages 377–388.

Josifovski, V. and Risch, T. (2002). Query decomposition

for a distributed object-oriented mediator system. Dis-

tributed and Parallel Databases, 11:307–336.

Kirkpatrick, S., Gelatt, Jr., C. D., and Vecchi, M. P. (1987).

Readings in computer vision: issues, problems, prin-

ciples, and paradigms. chapter Optimization by simu-

lated annealing, pages 606–615. Morgan Kaufmann.

Liu, L. and Pu, C. (1997). An adaptive object-oriented

approach to integration and access of heteroge-

neous information sources. Distributed and Parallel

Databases, 5:167–205.

Liu, T. (2011). Proposition d’un cadre g´en´erique

d’optimisation de requˆetes dans les environnements

h´et´erog`enes r´epartis. PhD thesis, Universit´e de

Cergy-Pontoise, France. (French).

Naacke, H., Gardarin, G., and Tomasic, A. (1998). Lever-

aging mediator cost models with heterogeneous data

sources. In ICDE, pages 351–360.

Nahar, S., Sahni, S., and Shragowitz, E. (1986). Simulated

annealing and combinatorial optimization. In 23rd

Design Automation Conference.

Roth, M. T., Ozcan, F., and Haas, L. M. (1999). Cost models

do matter: Providing cost information for diverse data

sources in a federated system. In VLDB, pages 599–

610.

Selinger, P. G., Astrahan, M. M., Chamberlin, D. D., Lorie,

R. A., and Price., T. G. (1979). Access path selection

in a relational database management system. In ACM

SIGMOD, pages 23–34.

Stonebraker, M. (2008). Technical perspective - One size

ﬁts all: an idea whose time has come and gone.

CACM, 51(12):76.

Swami, A. (1989). Optimization of large join queries: Com-

bining heuristics and combinatorial techniques. In

ACM SIGMOD, pages 367–376.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

190
